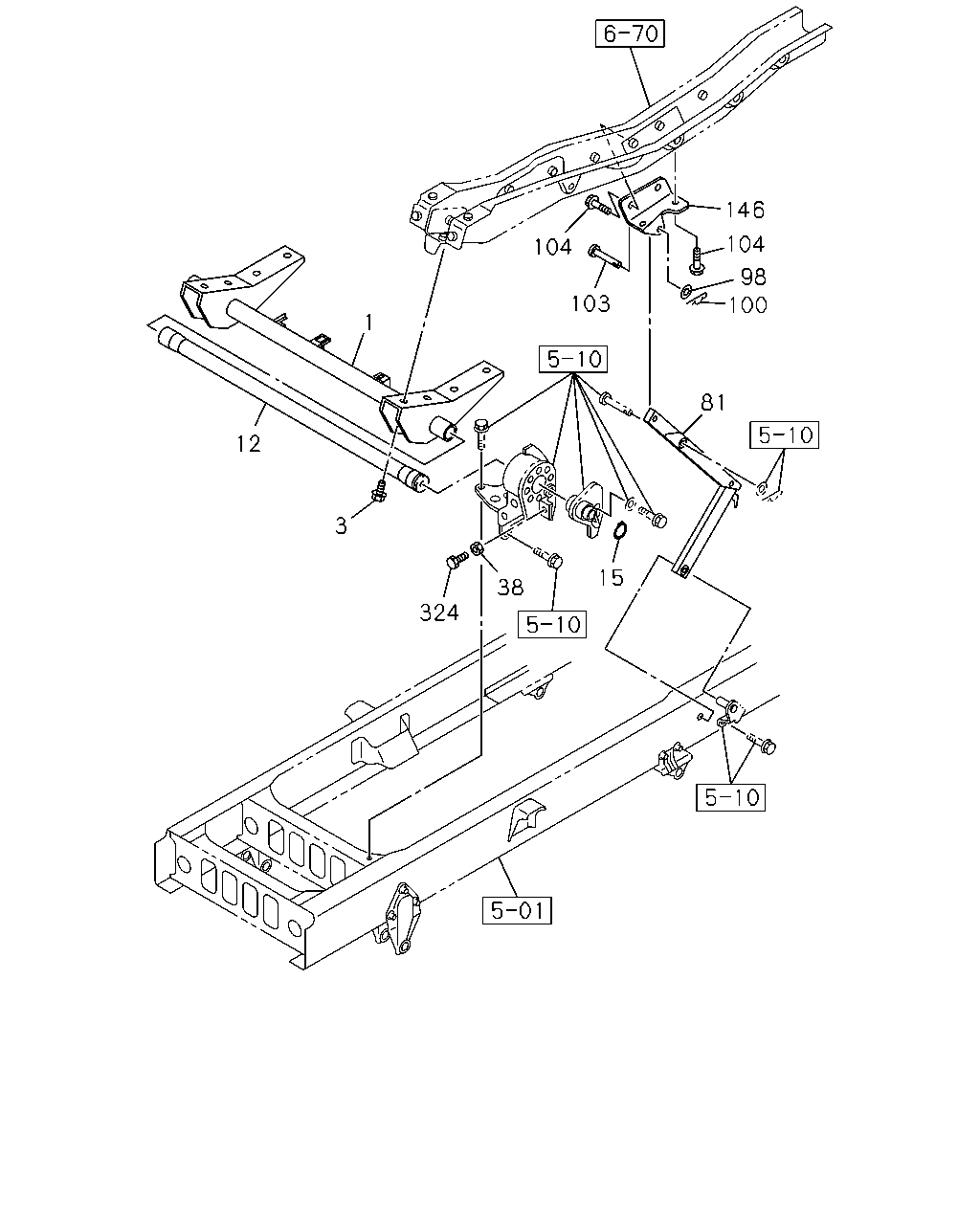

5-15 — CAB MOUNTING; CAB SIDE (#129153) — 136 parça

146 104 98 100 104 103 1 12 3 324 38 15 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LEVER; TORSION BAR	8-98010-752-7	01	1	1310-1410
1	LEVER; TORSION BAR EXC. AUTO CAB TILT<WV2>	8-98010-752-7	01	1	1411-
3	BOLT; LEVER M12X42 FLANGE	8-98090-287-1	08	1	1310-1410
3	BOLT; LEVER EXC. AUTO CAB TILT<WV2> M12X42 FLANGE	8-98090-287-1	08	1	1411-
12	BAR; TORSION,UPR	8-98010-947-1	01	1	1310-1410
12	BAR; TORSION,UPR EXC. AUTO CAB TILT<WV2>	8-98010-947-1	01	1	1411-
15	RING; SNAP,TORSION BAR T=1.90 BLUE	8-97129-615-0	01	1	1310-1410
15	RING; SNAP,TORSION BAR EXC. AUTO CAB TILT<WV2> T=1.90 BLUE	8-97129-615-0	01	1	1411-
38	NUT; LK M14	0-91110-514-0	01	1	1310-1410
38	NUT; LK EXC. AUTO CAB TILT<WV2> M14	0-91110-514-0	01	1	1411-
81	STAY ASM; CAB TILT	1-62500-761-0	01	1	1310-1406
81	STAY ASM; CAB TILT	8-98278-116-0	01	1	1407-1410
81	STAY ASM; CAB TILT EXC. AUTO CAB TILT<WV2>	8-98278-116-0	01	1	1411-
98	WASHER; CAB STAY ID=10.5 T=2.0	1-09985-183-0	01	1	1310-1410
98	WASHER; CAB STAY EXC. AUTO CAB TILT<WV2> ID=10.5 T=2.0	1-09985-183-0	01	1	1411-
100	PIN; SNAP,CAB STAY TO CAB L=34	8-98039-426-1	01	1	1310-1410
100	PIN; SNAP,CAB STAY TO CAB EXC. AUTO CAB TILT<WV2> L=34	8-98039-426-1	01	1	1411-
103	PIN; JOINT,CAB STAY	1-09744-108-1	01	1	1310-1410
103	PIN; JOINT,CAB STAY EXC. AUTO CAB TILT<WV2>	1-09744-108-1	01	1	1411-
104	BOLT; CAB STAY BRKT M10X30 FLANGE	0-28661-030-0	04	1	1310-1410
104	BOLT; CAB STAY BRKT EXC. AUTO CAB TILT<WV2> M10X30 FLANGE	0-28661-030-0	04	1	1411-
146	BRACKET ASM; CAB STAY UPR	8-98019-506-0	01	1	1310-1410
146	BRACKET ASM; CAB STAY UPR EXC. AUTO CAB TILT<WV2>	8-98019-506-0	01	1	1411-
324	BOLT; ADJUST M14X55	8-98004-319-1	01	1	1310-1410
324	BOLT; ADJUST EXC. AUTO CAB TILT<WV2> M14X55	8-98004-319-1	01	1	1411-1511
324	BOLT; ADJUST EXC. AUTO CAB TILT<WV2> M14X59	8-98330-402-0	01	1	1512-

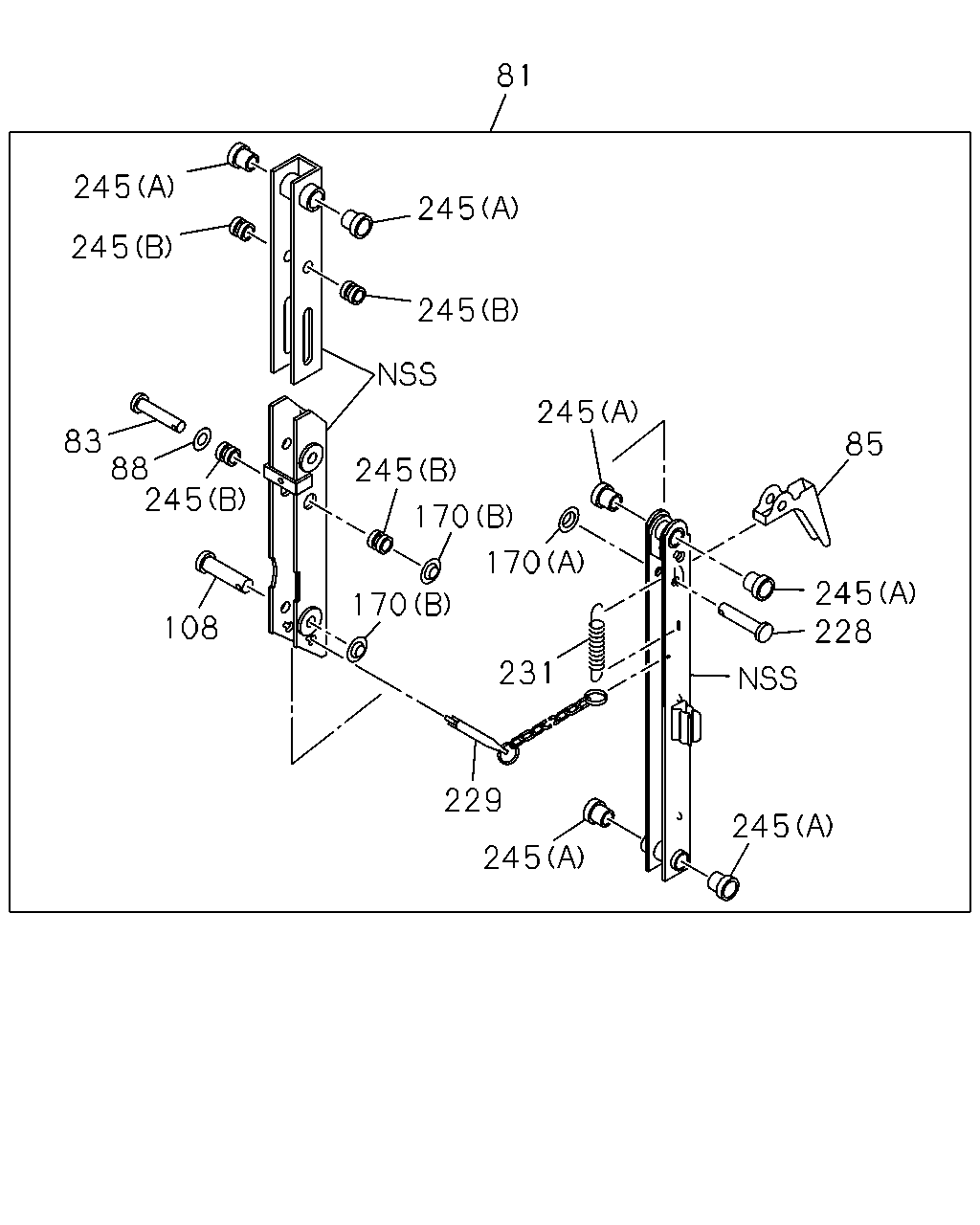

81 245 245 83 245 88 108 245 245 245 245 170 170 170 231 229 245 245 228 85 245

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
81	STAY ASM; CAB TILT	1-62500-761-0	01	1	1310-1406
81	STAY ASM; CAB TILT	8-98278-116-0	01	1	1407-1410
81	STAY ASM; CAB TILT EXC. AUTO CAB TILT<WV2>	8-98278-116-0	01	1	1411-
83	PIN; JOINT,CAB STAY OD=10 L=42	1-09744-106-0	01	1	1310-1410
83	PIN; JOINT,CAB STAY EXC. AUTO CAB TILT<WV2> OD=10 L=42	1-09744-106-0	01	1	1411-
85	LEVER; LOCK,CAB STAY	1-62500-503-0	01	1	1310-1410
85	LEVER; LOCK,CAB STAY EXC. AUTO CAB TILT<WV2>	1-62500-503-0	01	1	1411-
88	WASHER; PL,CAB STAY PIN ID=10.5 T=2.0	1-09985-183-0	01	1	1310-1410
88	WASHER; PL,CAB STAY PIN EXC. AUTO CAB TILT<WV2> ID=10.5 T=2.0	1-09985-183-0	01	1	1411-
108	PIN; ADJ,CAB STAY OD=10 L=42	1-09744-106-0	01	1	1310-1410
108	PIN; ADJ,CAB STAY EXC. AUTO CAB TILT<WV2> OD=10 L=42	1-09744-106-0	01	1	1411-
170	NUT (A) ID=7.9 PUSH NUT	8-97022-565-0	01	1	1310-1410
170	NUT EXC. AUTO CAB TILT<WV2> (A) ID=7.9 PUSH NUT	8-97022-565-0	01	1	1411-
170	NUT (B) ID=9.9 PUSH NUT	8-97022-566-0	02	1	1310-1410
170	NUT EXC. AUTO CAB TILT<WV2> (B) ID=9.9 PUSH NUT	8-97022-566-0	02	1	1411-
228	PIN; SAFETY LOCK SPRING,CAB STAY OD=8 L=27	1-09744-086-2	01	1	1310-1410
228	PIN; SAFETY LOCK SPRING,CAB STAY EXC. AUTO CAB TILT<WV2> OD=8 L=27	1-09744-086-2	01	1	1411-
229	PIN ASM; SAFETY	1-62500-517-1	01	1	1310-1410
229	PIN ASM; SAFETY EXC. AUTO CAB TILT<WV2>	1-62500-517-1	01	1	1411-
231	SPRING; RETURN,LOCK LEVER,CAB STAY	1-09583-244-0	01	1	1310-1410
231	SPRING; RETURN,LOCK LEVER,CAB STAY EXC. AUTO CAB TILT<WV2>	1-09583-244-0	01	1	1411-
245	BUSHING; CAB STAY (A)	1-62500-587-0	06	1	1310-1410
245	BUSHING; CAB STAY EXC. AUTO CAB TILT<WV2> (A)	1-62500-587-0	06	1	1411-
245	BUSHING; CAB STAY (B)	1-62500-588-0	04	1	1310-1410
245	BUSHING; CAB STAY EXC. AUTO CAB TILT<WV2> (B)	1-62500-588-0	04	1	1411-

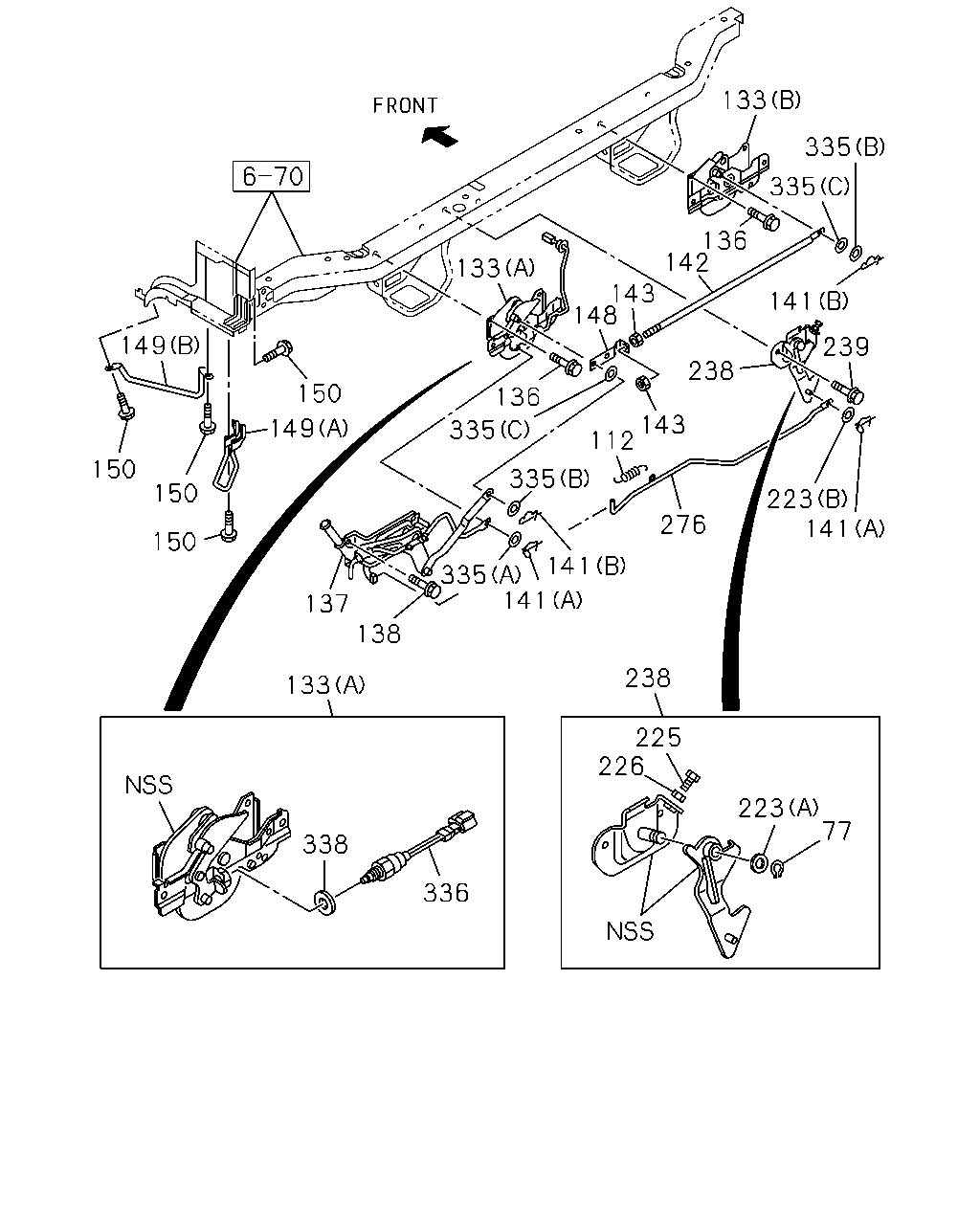

133 335 335 136 142 141 143 148 133 238 239 223 276 141 143 112 136 335 335 141 141 335 138 133 137 150 150 150 150 149 149 338 336 238 225 226 223 77

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
77	RING; SNAP ID=14.7	0-91800-616-0	01	1	1310-1410
77	RING; SNAP EXC. AUTO CAB TILT<WV2> ID=14.7	0-91800-616-0	01	1	1411-
112	SPRING; RETURN,SAFETY ROD	1-79718-655-0	01	1	1310-1410
112	SPRING; RETURN,SAFETY ROD EXC. AUTO CAB TILT<WV2>	1-79718-655-0	01	1	1411-
133	LOCK ASM; CAB AUTO CAB TILT<WV2> (C)	8-97608-198-0	01	1	1411-
133	LOCK ASM; CAB (A)	8-98094-285-2	01	1	1310-
133	LOCK ASM; CAB (B)	8-98061-489-1	01	1	1310-
136	BOLT; CAB LK M8X20 FLANGE	0-28650-820-0	08	1	1310-
137	CONTROL UNIT; CAB LOCK	8-97587-592-5	01	1	1310-
138	BOLT; CAB LOCK CONT UNIT M8X20 FLANGE	0-28650-820-0	04	1	1310-
141	PIN; SNAP,CAB LOCK ROD (A) L=25.3	8-98039-045-1	01	1	1310-1410
141	PIN; SNAP,CAB LOCK ROD (A) L=25.3	8-98039-045-1	01	1	1310-1410
141	PIN; SNAP,CAB LOCK ROD (A) L=25.3	8-98039-045-1	01	1	1411-
141	PIN; SNAP,CAB LOCK ROD EXC. AUTO CAB TILT<WV2> (A) L=25.3	8-98039-045-1	01	1	1411-
141	PIN; SNAP,CAB LOCK ROD (B) L=32.6	8-98062-280-0	02	1	1310-
142	ROD; HOOK TO HOOK	8-97587-990-0	01	1	1310-
143	NUT; JAW JOINT,HOOK TO HOOK M10	0-91110-510-0	02	1	1310-
148	JOINT; JAW,HOOK TO HOOK	8-97410-736-0	01	1	1310-
149	HANDLE; TILT (B)	8-97586-206-1	01	1	1310-1410
149	HANDLE; TILT EXC. AUTO CAB TILT<WV2> (B)	8-97586-206-1	01	1	1411-
149	HANDLE; TILT (A)	8-98025-707-3	01	1	1310-1410
149	HANDLE; TILT EXC. AUTO CAB TILT<WV2> (A)	8-98025-707-3	01	1	1411-
150	BOLT; TILT HANDLE M8X20 FLANGE	0-28650-820-0	06	1	1310-1410
150	BOLT; TILT HANDLE EXC. AUTO CAB TILT<WV2> M8X20 FLANGE	0-28650-820-0	06	1	1411-
223	WASHER; PL,SAFETY LK (B) ID=8.4 OD=16	0-91610-508-0	01	1	1310-1410
223	WASHER; PL,SAFETY LK EXC. AUTO CAB TILT<WV2> (B) ID=8.4 OD=16	0-91610-508-0	01	1	1411-
223	WASHER; PL,SAFETY LK (A) ID=17 OD=30	0-91610-516-0	01	1	1310-1410
223	WASHER; PL,SAFETY LK EXC. AUTO CAB TILT<WV2> (A) ID=17 OD=30	0-91610-516-0	01	1	1411-
225	BOLT; SAFETY LK M8X30 FLANGE	0-28050-830-0	01	1	1310-1410
225	BOLT; SAFETY LK EXC. AUTO CAB TILT<WV2> M8X30 FLANGE	0-28050-830-0	01	1	1411-
226	NUT; SAFETY LK M8	0-91110-508-0	01	1	1310-1410
226	NUT; SAFETY LK EXC. AUTO CAB TILT<WV2> M8	0-91110-508-0	01	1	1411-
238	LOCK ASM; SAFETY,CAB TILT	8-98048-899-1	01	1	1310-1410
238	LOCK ASM; SAFETY,CAB TILT EXC. AUTO CAB TILT<WV2>	8-98048-899-1	01	1	1411-
239	BOLT; SAFETY LK M8X20 FLANGE	0-28650-820-0	02	1	1310-1410
239	BOLT; SAFETY LK EXC. AUTO CAB TILT<WV2> M8X20 FLANGE	0-28650-820-0	02	1	1411-
276	ROD ASM; CAB LOCK,HOOK TO HOOK	8-98048-831-1	01	1	1310-1410
276	ROD ASM; CAB LOCK,HOOK TO HOOK EXC. AUTO CAB TILT<WV2>	8-98048-831-1	01	1	1411-
335	WASHER; CAB LOCK ROD (A) ID=8.4 OD=16	0-91610-508-0	01	1	1310-
335	WASHER; CAB LOCK ROD (B) ID=12.5 OD=26	0-91610-612-0	02	1	1310-
335	WASHER; CAB LOCK ROD (C) ID=13 OD=22	8-98060-839-0	02	1	1310-
336	SWITCH; CAB LOCK	8-98091-155-1	01	1	1310-
338	WASHER; CAB LOCK ID=17 OD=30	0-91610-516-0	01	1	1310-

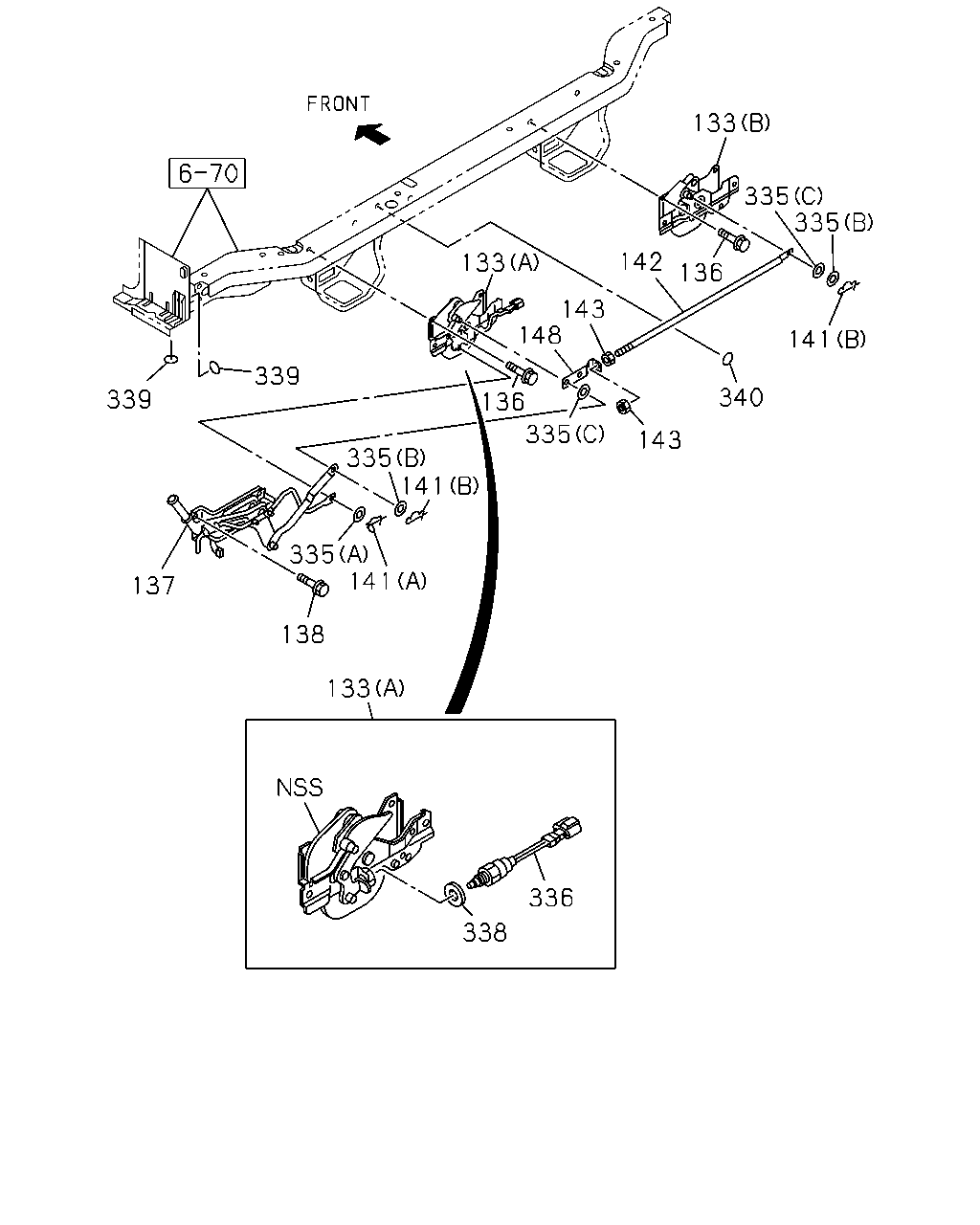

339 339 133 143 148 136 142 133 136 335 141 335 340 143 335 335 335 141 141 138 137 133 336 338

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
133	LOCK ASM; CAB AUTO CAB TILT<WV2> (C)	8-97608-198-0	01	1	1411-
133	LOCK ASM; CAB (A)	8-98094-285-2	01	1	1310-
133	LOCK ASM; CAB (B)	8-98061-489-1	01	1	1310-
136	BOLT; CAB LK M8X20 FLANGE	0-28650-820-0	08	1	1310-
137	CONTROL UNIT; CAB LOCK	8-97587-592-5	01	1	1310-
138	BOLT; CAB LOCK CONT UNIT M8X20 FLANGE	0-28650-820-0	04	1	1310-
141	PIN; SNAP,CAB LOCK ROD (A) L=25.3	8-98039-045-1	01	1	1310-1410
141	PIN; SNAP,CAB LOCK ROD (A) L=25.3	8-98039-045-1	01	1	1310-1410
141	PIN; SNAP,CAB LOCK ROD (A) L=25.3	8-98039-045-1	01	1	1411-
141	PIN; SNAP,CAB LOCK ROD EXC. AUTO CAB TILT<WV2> (A) L=25.3	8-98039-045-1	01	1	1411-
141	PIN; SNAP,CAB LOCK ROD (B) L=32.6	8-98062-280-0	02	1	1310-
142	ROD; HOOK TO HOOK	8-97587-990-0	01	1	1310-
143	NUT; JAW JOINT,HOOK TO HOOK M10	0-91110-510-0	02	1	1310-
148	JOINT; JAW,HOOK TO HOOK	8-97410-736-0	01	1	1310-
335	WASHER; CAB LOCK ROD (A) ID=8.4 OD=16	0-91610-508-0	01	1	1310-
335	WASHER; CAB LOCK ROD (B) ID=12.5 OD=26	0-91610-612-0	02	1	1310-
335	WASHER; CAB LOCK ROD (C) ID=13 OD=22	8-98060-839-0	02	1	1310-
336	SWITCH; CAB LOCK	8-98091-155-1	01	1	1310-
338	WASHER; CAB LOCK ID=17 OD=30	0-91610-516-0	01	1	1310-
339	SEAL; TILT HANDLE AUTO CAB TILT<WV2> OD=25 BLACK	1-76798-019-0	04	1	1411-
340	SEAL; HOLE AUTO CAB TILT<WV2> OD=25 BLACK	1-76798-019-0	02	1	1411-

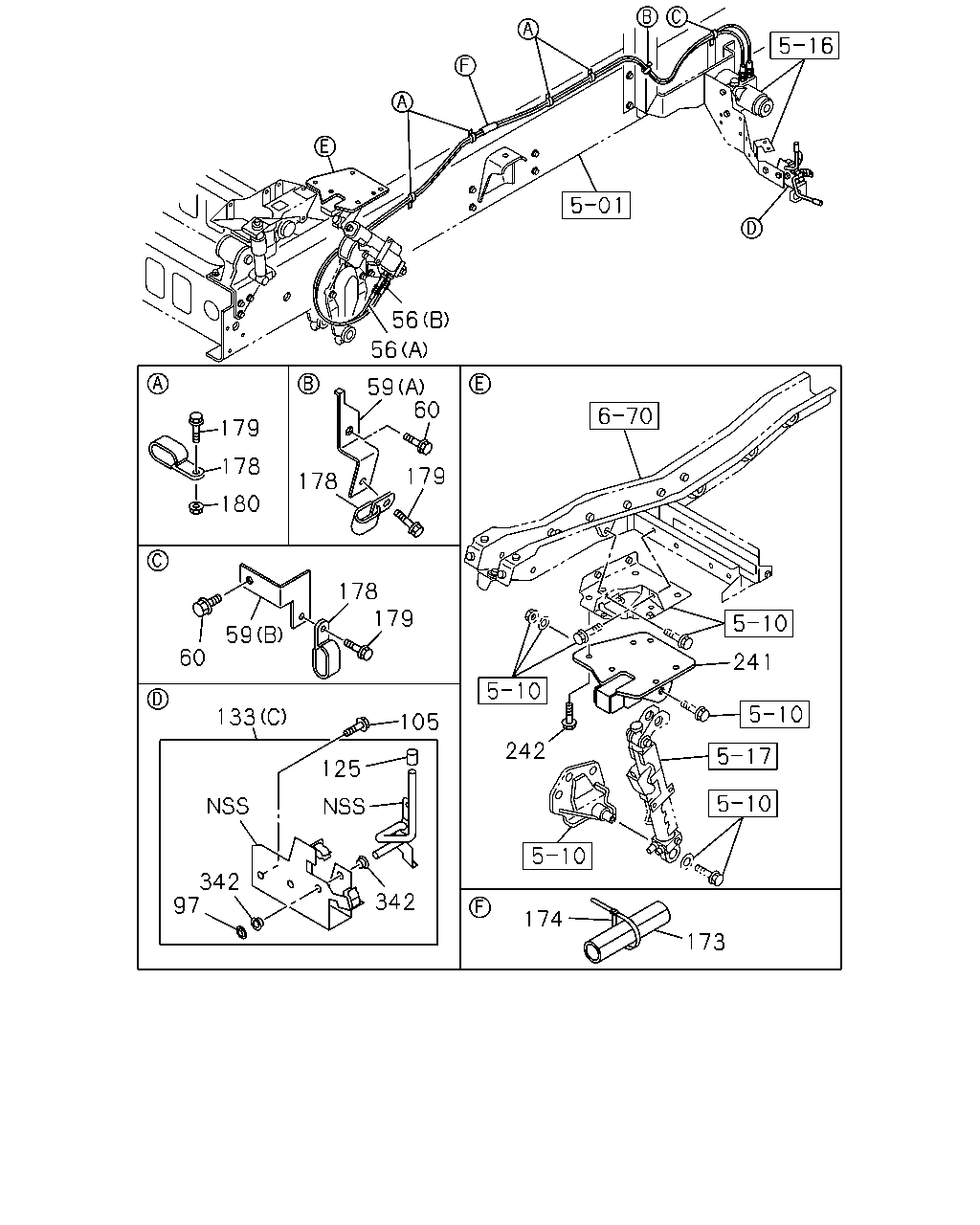

56 56 179 180 178 59 179 60 178 178 179 59 60 133 105 125 342 97 342 241 242 174 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
56	HOSE; FLEX,OIL PIPE AUTO CAB TILT<WV2> (A)	8-98022-487-2	01	1	1411-
56	HOSE; FLEX,OIL PIPE AUTO CAB TILT<WV2> (B)	8-98087-331-1	01	1	1411-
59	BRACKET; CLIP AUTO CAB TILT<WV2> (A)	8-98083-608-1	01	1	1411-
59	BRACKET; CLIP AUTO CAB TILT<WV2> (B)	8-98083-609-0	01	1	1411-
60	BOLT; BRKT AUTO CAB TILT<WV2> M8X20 FLANGE	0-28650-820-0	02	1	1411-
97	NUT; CAB STAY PIN AUTO CAB TILT<WV2> ID=9.9 PUSH NUT	8-97022-566-0	01	1	1411-
105	BOLT; CAB STAY AUTO CAB TILT<WV2> M8X16 FLANGE	0-28050-816-0	02	1	1411-
125	GRIP; HAND LEVER,CAB LOCK AUTO CAB TILT<WV2> ID=9.0	8-94207-303-0	01	1	1411-
133	LOCK ASM; CAB AUTO CAB TILT<WV2> (C)	8-97608-198-0	01	1	1411-
133	LOCK ASM; CAB (A)	8-98094-285-2	01	1	1310-
133	LOCK ASM; CAB (B)	8-98061-489-1	01	1	1310-
173	SLEEVE; RUBBER,FLEX HOSE AUTO CAB TILT<WV2> ID=17 OD=21 L=40	1-09337-012-0	01	1	1411-
174	CLIP; BAND,FLEX HOSE AUTO CAB TILT<WV2> L=140	5-09707-031-1	01	1	1411-
178	CLIP; FLEX HOSE AUTO CAB TILT<WV2> ID=11X2 L=20	0-95325-035-0	07	1	1411-
179	BOLT; CLIP,FLEX HOSE AUTO CAB TILT<WV2> M8X20 FLANGE	0-28650-820-0	06	1	1411-
179	BOLT; CLIP,FLEX HOSE AUTO CAB TILT<WV2> M8X30 FLANGE	0-28650-830-0	03	1	1411-
180	NUT; CLIP AUTO CAB TILT<WV2> M8 FLANGE	0-91180-108-0	02	1	1411-
180	NUT; CLIP AUTO CAB TILT<WV2> M8 FLANGE	0-91180-108-0	04	1	1411-
241	BRACKET; POWER CYL UPR,CAB TILT AUTO CAB TILT<WV2>	8-98022-417-1	01	1	1411-
242	BOLT; POWER CYL BRKT,CAB TILT AUTO CAB TILT<WV2> M10X30 FLANGE	0-28661-030-0	05	1	1411-
342	BUSHING; LEVER,CAB LOCK AUTO CAB TILT<WV2> T=6 OD=17.5	9-33659-249-0	02	1	1411-
