5-10 — CAB MOUNTING; FRAME SIDE (#129152) — 143 parça

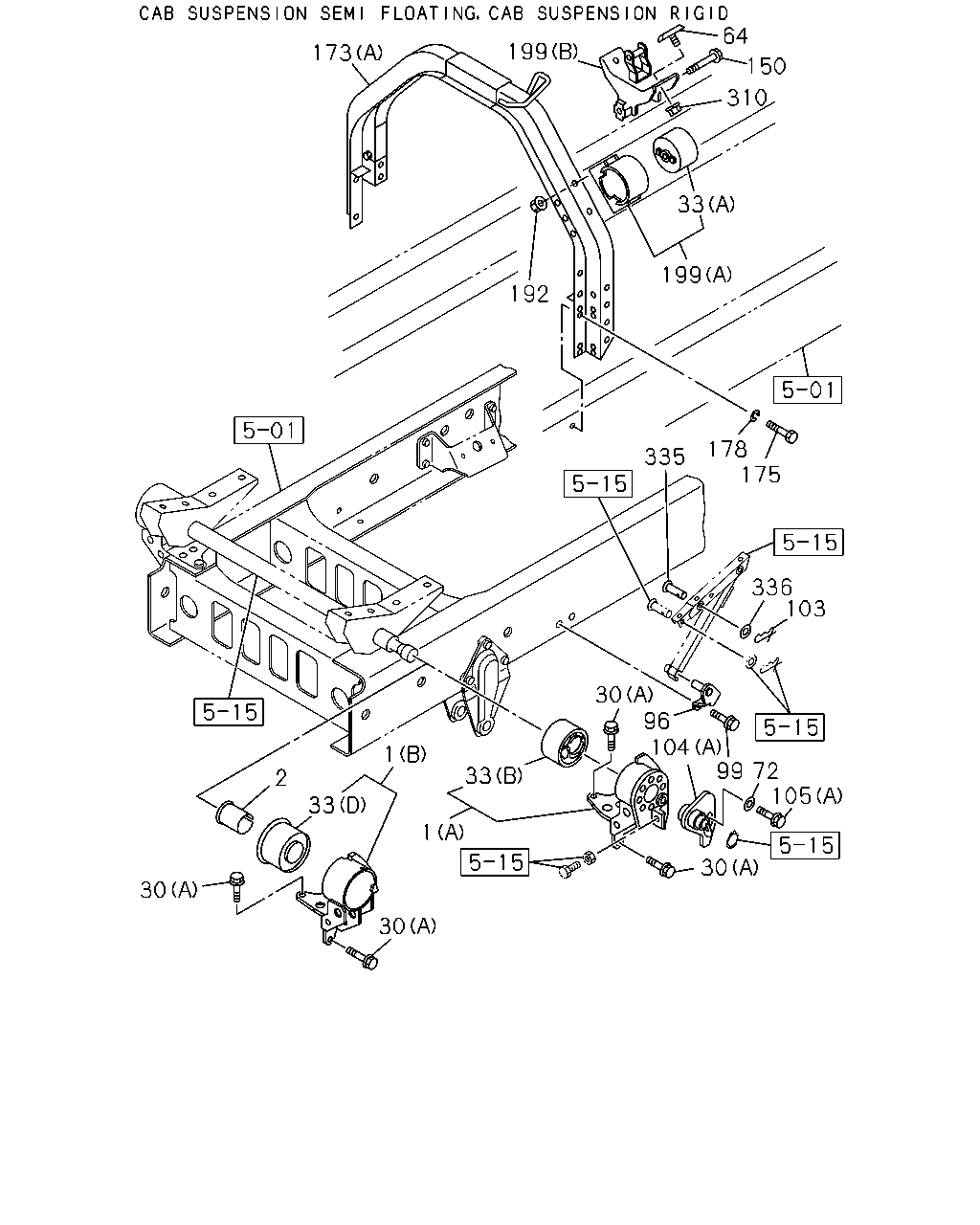

173 199 64 150 310 33 199 192 1 33 2 30 30 1 33 30 96 104 99 72 105 30 335 178 175 336 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BRACKET; CAB MTG CAB SUSPENSION RIGID<W71> (B)	8-98017-660-2	01	1	1411-
1	BRACKET; CAB MTG CAB SUSPENSION RIGID<W71> (B)	8-98017-661-2	01	1	1411-
1	BRACKET; CAB MTG (A)	8-98017-659-1	01	1	1310-1410
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98017-659-1	01	1	1411-
1	BRACKET; CAB MTG (A)	8-98017-658-1	01	1	1310-1410
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98017-658-1	01	1	1411-
2	BUSHING; TORSION BAR CAB SUSPENSION RIGID<W71>	8-98010-767-0	02	1	1411-
30	BOLT; CAB FRT FOOT FULL FLOATING CAB<W16> (B) M14X50	0-20951-450-0	10	1	1411-
30	BOLT; CAB FRT FOOT (A) M14X45 FLANGE	0-28861-445-0	10	1	1310-1410
30	BOLT; CAB FRT FOOT CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (A) M14X45 FLANGE	0-28861-445-0	10	1	1411-
33	BUSHING; RUBBER,CAB MTG BRKT,FRT FULL FLOATING CAB<W16> (C)	1-53458-636-1	02	1	1411-
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION RIGID<W71> (A)	8-98013-934-1	02	1	1411-
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION RIGID<W71> (D)	8-98013-933-1	01	1	1411-
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION RIGID<W71> (D)	8-98013-933-1	01	1	1411-
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (A)	8-98010-759-2	02	1	1310-1410
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98010-759-2	02	1	1411-
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (B)	8-98065-943-0	02	1	1310-1410
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> (B)	8-98065-943-0	02	1	1411-
64	RUBBER; CUSHION	8-97113-340-0	04	1	1310-
72	WASHER; PL,BRKT TO FRAME ID=15 OD=36	0-91614-714-0	01	1	1310-1410
72	WASHER; PL,BRKT TO FRAME EXC. AUTO CAB TILT<WV2> ID=15 OD=36	0-91614-714-0	01	1	1411-
96	BRACKET; CAB STAY	1-62500-628-0	01	1	1310-1410
96	BRACKET; CAB STAY EXC. AUTO CAB TILT<WV2>	1-62500-628-0	01	1	1411-
99	BOLT; BRKT M10X30 FLANGE	0-28661-030-0	02	1	1310-1410
99	BOLT; BRKT EXC. AUTO CAB TILT<WV2> M10X30 FLANGE	0-28661-030-0	02	1	1411-
103	PIN; SPLIT,CAB STAY L=32.6	8-98062-280-0	01	1	1310-1410
103	PIN; SPLIT,CAB STAY EXC. AUTO CAB TILT<WV2> L=32.6	8-98062-280-0	01	1	1411-
104	BRACKET; CAB FRAME,CAB FRT MTG AUTO CAB TILT<WV2> (B)	8-98022-420-2	01	1	1411-
104	BRACKET; CAB FRAME,CAB FRT MTG AUTO CAB TILT<WV2> (B)	8-98022-421-2	01	1	1411-
104	BRACKET; CAB FRAME,CAB FRT MTG (A)	8-98010-753-3	01	1	1310-1410
104	BRACKET; CAB FRAME,CAB FRT MTG EXC. AUTO CAB TILT<WV2> (A)	8-98010-753-3	01	1	1411-1511
104	BRACKET; CAB FRAME,CAB FRT MTG EXC. AUTO CAB TILT<WV2> (A)	8-98330-224-0	01	1	1512-
105	BOLT; BRKT TO CAB FRAME AUTO CAB TILT<WV2> (B) M12X35 FLANGE	0-28651-235-0	04	1	1411-
105	BOLT; BRKT TO CAB FRAME AUTO CAB TILT<WV2> (C) M10X30 FLANGE	0-28661-030-0	08	1	1411-
105	BOLT; BRKT TO CAB FRAME (A) M14X35 FLANGE	0-28661-435-0	01	1	1310-1410
105	BOLT; BRKT TO CAB FRAME EXC. AUTO CAB TILT<WV2> (A) M14X35 FLANGE	0-28661-435-0	01	1	1411-
150	BOLT; CAB MTG RR M14X100	0-10956-400-0	02	1	1310-1410
150	BOLT; CAB MTG RR CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> M14X100	0-10956-400-0	02	1	1411-
173	MEMBER; CAB MTG RR FULL FLOATING CAB<W16> (B)	8-98022-592-8	01	1	1411-
173	MEMBER; CAB MTG RR (A)	8-98151-943-0	01	1	1310-1410
173	MEMBER; CAB MTG RR CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (A)	8-98151-943-0	01	1	1411-
175	BOLT; MEMBER TO FRAME M12X35	0-20951-235-0	08	1	1310-
178	WASHER; LK,MEMBER ID=12.2	0-91510-612-0	08	1	1310-
192	NUT; BRKT FIX M12 FLANGE	0-91180-212-0	04	1	1310-1410
192	NUT; BRKT FIX CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> M12 FLANGE	0-91180-212-0	04	1	1411-
199	BRACKET; CAB RR MTG FULL FLOATING CAB<W16> (C)	8-98025-488-4	01	1	1411-
199	BRACKET; CAB RR MTG FULL FLOATING CAB<W16> (C)	8-98025-489-4	01	1	1411-
199	BRACKET; CAB RR MTG CAB SUSPENSION RIGID<W71> (A)	8-98010-770-0	02	1	1411-
199	BRACKET; CAB RR MTG (B)	8-98023-692-0	02	1	1310-1410
199	BRACKET; CAB RR MTG CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (B)	8-98023-692-0	02	1	1411-
199	BRACKET; CAB RR MTG (A)	8-98060-901-1	02	1	1310-1410
199	BRACKET; CAB RR MTG CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98060-901-1	02	1	1411-
310	NUT; CUSHION M8 FLANGE	0-91180-108-0	04	1	1310-
335	PIN; ADJ,STAY LOCK OD=10 L=48	1-09744-107-0	01	1	1310-1410
335	PIN; ADJ,STAY LOCK EXC. AUTO CAB TILT<WV2> OD=10 L=48	1-09744-107-0	01	1	1411-
336	WASHER; PL,STAY LOCK ID=10.5 T=2.0	1-09985-183-0	01	1	1310-1410
336	WASHER; PL,STAY LOCK EXC. AUTO CAB TILT<WV2> ID=10.5 T=2.0	1-09985-183-0	01	1	1411-

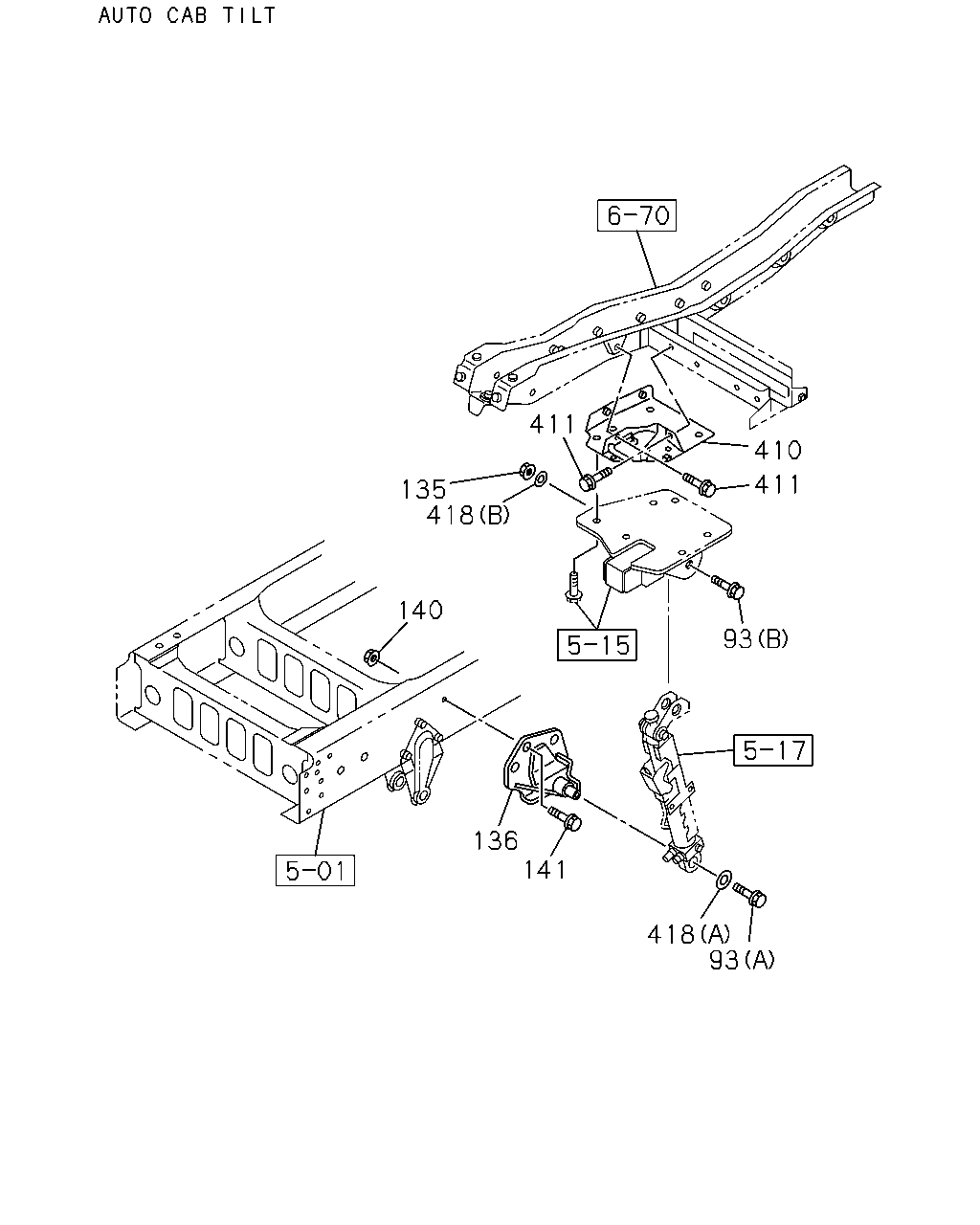

410 411 411 135 418 140 93 418 93 141 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
93	BOLT; PIN AUTO CAB TILT<WV2> (A) M10X20 FLANGE	0-28651-020-0	01	1	1411-
93	BOLT; PIN AUTO CAB TILT<WV2> (B) M14X70 FLANGE	0-29261-470-0	01	1	1411-
135	NUT; PIN AUTO CAB TILT<WV2> M14	0-91110-514-0	01	1	1411-
136	BRACKET; OIL CYL AUTO CAB TILT<WV2>	8-98077-938-0	01	1	1411-
140	NUT; BRKT AUTO CAB TILT<WV2> M14 FLANGE	0-91180-214-0	04	1	1411-
141	BOLT; BRKT AUTO CAB TILT<WV2> M14X40 FLANGE	0-28661-440-0	04	1	1411-
410	REINFORCEMENT; CAB TILT AUTO CAB TILT<WV2>	8-97588-837-5	01	1	1411-
411	BOLT; REINFORCEMENT AUTO CAB TILT<WV2> M8X20 FLANGE	0-28650-820-0	04	1	1411-
418	WASHER; PL,PIN AUTO CAB TILT<WV2> (B) ID=15	0-91610-514-0	01	1	1411-
418	WASHER; PL,PIN AUTO CAB TILT<WV2> (A) ID=10.5 OD=32	0-91614-810-0	01	1	1411-

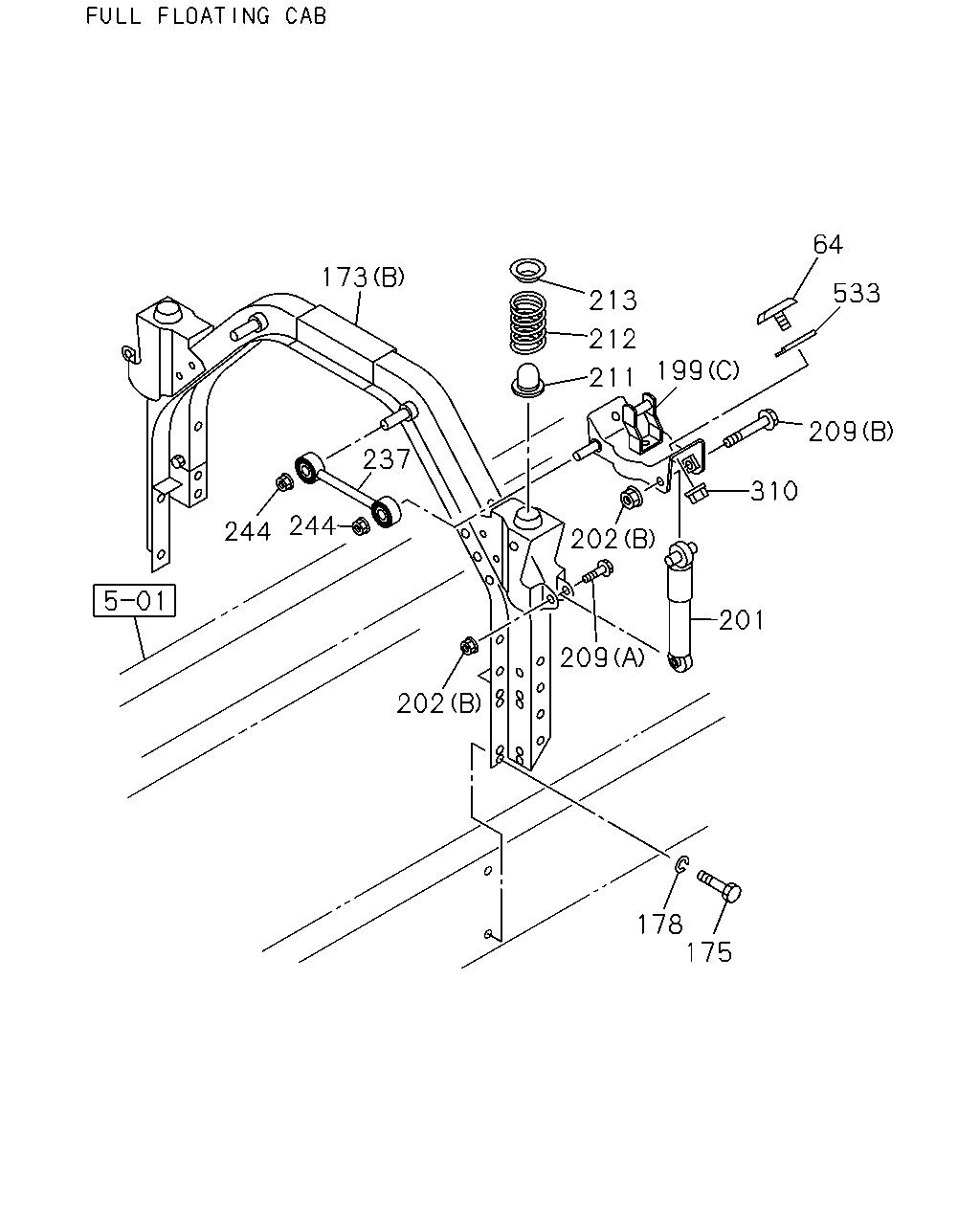

173 213 212 211 199 64 533 209 310 202 201 209 202 237 244 244 178 175

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
64	RUBBER; CUSHION	8-97113-340-0	04	1	1310-
173	MEMBER; CAB MTG RR FULL FLOATING CAB<W16> (B)	8-98022-592-8	01	1	1411-
173	MEMBER; CAB MTG RR (A)	8-98151-943-0	01	1	1310-1410
173	MEMBER; CAB MTG RR CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (A)	8-98151-943-0	01	1	1411-
175	BOLT; MEMBER TO FRAME M12X35	0-20951-235-0	08	1	1310-
178	WASHER; LK,MEMBER ID=12.2	0-91510-612-0	08	1	1310-
199	BRACKET; CAB RR MTG FULL FLOATING CAB<W16> (C)	8-98025-488-4	01	1	1411-
199	BRACKET; CAB RR MTG FULL FLOATING CAB<W16> (C)	8-98025-489-4	01	1	1411-
199	BRACKET; CAB RR MTG CAB SUSPENSION RIGID<W71> (A)	8-98010-770-0	02	1	1411-
199	BRACKET; CAB RR MTG (B)	8-98023-692-0	02	1	1310-1410
199	BRACKET; CAB RR MTG CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (B)	8-98023-692-0	02	1	1411-
199	BRACKET; CAB RR MTG (A)	8-98060-901-1	02	1	1310-1410
199	BRACKET; CAB RR MTG CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98060-901-1	02	1	1411-
201	ABSORBER ASM; SHOCK,RR MTG FULL FLOATING CAB<W16>	8-98269-510-0	02	1	1411-
202	NUT; S/ABS FULL FLOATING CAB<W16> (B) M12 FLANGE	0-91180-212-0	04	1	1411-
202	NUT; S/ABS FULL FLOATING CAB<W16> (A) M10	9-09110-410-0	02	1	1411-
209	BOLT; S/ABS FULL FLOATING CAB<W16> (A) M12X60 FLANGE	0-28051-260-0	02	1	1411-
209	BOLT; S/ABS FULL FLOATING CAB<W16> (B) M12X100 FLANGE	0-28061-200-0	02	1	1411-
211	RUBBER; CUSHION,S/ABS FULL FLOATING CAB<W16>	1-53366-144-0	02	1	1411-
212	SPRING; COIL FULL FLOATING CAB<W16>	1-09580-398-1	02	1	1411-
213	SEAT; SPR,S/ABS FULL FLOATING CAB<W16>	1-53366-062-2	02	1	1411-
237	ROD ASM; LATERAL FULL FLOATING CAB<W16>	1-53459-585-2	02	1	1411-
244	NUT; LATERAL ROD FULL FLOATING CAB<W16> M16 FLANGE	0-91180-216-0	04	1	1411-
310	NUT; CUSHION M8 FLANGE	0-91180-108-0	04	1	1310-
533	SPACER; MTG RUBBER FULL FLOATING CAB<W16>	8-98077-323-0	04	1	1411-

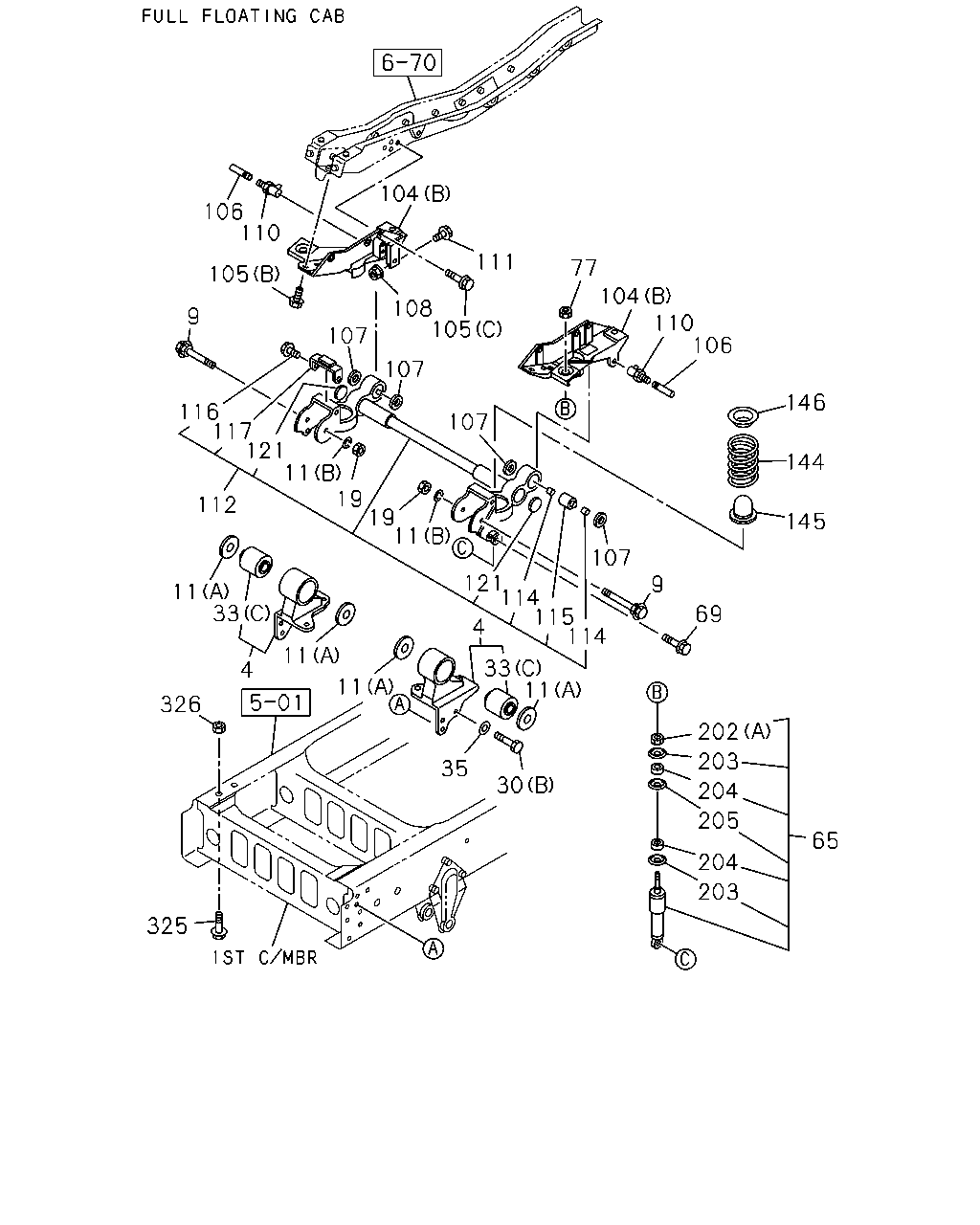

104 106 110 105 9 107 107 108 105 111 77 104 110 106 146 144 145 107 9 69 115 114 114 121 11 19 19 11 121 117 116 112 11 33 11 11 35 30 33 4 11 4 326 325 202 203 204 205 204 203 65 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	BRACKET; FRT MTG FULL FLOATING CAB<W16>	1-53453-269-0	01	1	1411-
4	BRACKET; FRT MTG FULL FLOATING CAB<W16>	1-53453-270-0	01	1	1411-
9	BOLT AUTO CAB TILT<WV2> M16X125	1-51361-023-0	02	1	1411-
11	WASHER; LK AUTO CAB TILT<WV2> (B) ID=16.2	0-91510-816-0	02	1	1411-
11	WASHER; LK AUTO CAB TILT<WV2> (A) ID=34.5	1-53458-281-1	04	1	1411-
19	NUT AUTO CAB TILT<WV2> M16	0-91110-516-0	02	1	1411-
30	BOLT; CAB FRT FOOT FULL FLOATING CAB<W16> (B) M14X50	0-20951-450-0	10	1	1411-
30	BOLT; CAB FRT FOOT (A) M14X45 FLANGE	0-28861-445-0	10	1	1310-1410
30	BOLT; CAB FRT FOOT CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> (A) M14X45 FLANGE	0-28861-445-0	10	1	1411-
33	BUSHING; RUBBER,CAB MTG BRKT,FRT FULL FLOATING CAB<W16> (C)	1-53458-636-1	02	1	1411-
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION RIGID<W71> (A)	8-98013-934-1	02	1	1411-
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION RIGID<W71> (D)	8-98013-933-1	01	1	1411-
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION RIGID<W71> (D)	8-98013-933-1	01	1	1411-
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (A)	8-98010-759-2	02	1	1310-1410
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98010-759-2	02	1	1411-
33	BUSHING; RUBBER,CAB MTG BRKT,FRT (B)	8-98065-943-0	02	1	1310-1410
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> (B)	8-98065-943-0	02	1	1411-
35	WASHER; PL,CAB MTG BRKT FULL FLOATING CAB<W16> ID=15	8-98010-627-1	10	1	1411-
65	ABSORBER; SHOCK,CAB FRT SUSPENSION FULL FLOATING CAB<W16>	1-51630-345-0	02	1	1411-
69	BOLT; S/ABS,CAB FRT SUSPENSION FULL FLOATING CAB<W16> M12X60 FLANGE	0-28051-260-0	02	1	1411-
77	NUT FULL FLOATING CAB<W16>	8-97359-039-0	02	1	1411-
104	BRACKET; CAB FRAME,CAB FRT MTG AUTO CAB TILT<WV2> (B)	8-98022-420-2	01	1	1411-
104	BRACKET; CAB FRAME,CAB FRT MTG AUTO CAB TILT<WV2> (B)	8-98022-421-2	01	1	1411-
104	BRACKET; CAB FRAME,CAB FRT MTG (A)	8-98010-753-3	01	1	1310-1410
104	BRACKET; CAB FRAME,CAB FRT MTG EXC. AUTO CAB TILT<WV2> (A)	8-98010-753-3	01	1	1411-1511
104	BRACKET; CAB FRAME,CAB FRT MTG EXC. AUTO CAB TILT<WV2> (A)	8-98330-224-0	01	1	1512-
105	BOLT; BRKT TO CAB FRAME AUTO CAB TILT<WV2> (B) M12X35 FLANGE	0-28651-235-0	04	1	1411-
105	BOLT; BRKT TO CAB FRAME AUTO CAB TILT<WV2> (C) M10X30 FLANGE	0-28661-030-0	08	1	1411-
105	BOLT; BRKT TO CAB FRAME (A) M14X35 FLANGE	0-28661-435-0	01	1	1310-1410
105	BOLT; BRKT TO CAB FRAME EXC. AUTO CAB TILT<WV2> (A) M14X35 FLANGE	0-28661-435-0	01	1	1411-
106	PIN; BRKT TO LINK ARM AUTO CAB TILT<WV2>	1-53459-642-1	02	1	1411-
107	WASHER; LINK ARM PIN,CAB FRT SUSPENSIO AUTO CAB TILT<WV2>	1-53459-643-2	04	1	1411-
108	NUT; PIN LOCK BOLT AUTO CAB TILT<WV2> M8 FLANGE	0-91180-108-0	02	1	1411-
110	NIPPLE; GREASE,LINK ARM PIN AUTO CAB TILT<WV2> PT1/8 ELBOW	0-90301-610-0	02	1	1411-
111	BOLT; PIN LOCK,LINK ARM AUTO CAB TILT<WV2> M8X50 FLANGE	0-28050-850-0	02	1	1411-
112	ARM ASM; LINK,CAB FRT SUSP AUTO CAB TILT<WV2>	8-98148-517-0	01	1	1411-
114	BUSHING; FLOATING LINK PIN AUTO CAB TILT<WV2>	1-09330-068-0	04	1	1411-
115	BUSHING; RUBBER,FLOATING LINK ARM AUTO CAB TILT<WV2>	1-53459-315-2	02	1	1411-
116	BOLT; STOPPER RUBBER,LINK ARM AUTO CAB TILT<WV2> M8X20 FLANGE	0-28050-820-0	04	1	1411-
117	RUBBER; STOPPER,LINK ARM,CAB FRT MTG AUTO CAB TILT<WV2>	1-53458-321-1	02	1	1411-
121	PLUG; FLOATING LINK ARM AUTO CAB TILT<WV2>	9-09860-031-0	02	1	1411-
144	SPRING; COIL,CAB FRT SUSPENSION FULL FLOATING CAB<W16>	1-09580-518-1	02	1	1411-
145	RUBBER; CUSHION,CAB FRT SUSPENSION FULL FLOATING CAB<W16>	1-53366-144-0	02	1	1411-
146	SEAT; SPRING,CAB FRT SUSPENSION FULL FLOATING CAB<W16>	1-53366-132-1	02	1	1411-
202	NUT; S/ABS FULL FLOATING CAB<W16> (B) M12 FLANGE	0-91180-212-0	04	1	1411-
202	NUT; S/ABS FULL FLOATING CAB<W16> (A) M10	9-09110-410-0	02	1	1411-
203	WASHER; RUBBER,SHOCK FULL FLOATING CAB<W16> ID=10.5 OD=38	9-51631-062-0	04	1	1411-
204	RUBBER; CUSHION,SHOCK FULL FLOATING CAB<W16> TOKICO	9-51631-603-0	04	1	1411-
205	WASHER; RUBBER,SHOCK FULL FLOATING CAB<W16> ID=13 OD=38	9-51631-063-0	02	1	1411-
325	BOLT; GUIDE NUT FULL FLOATING CAB<W16> M12X40 FLANGE	0-28651-240-0	02	1	1411-
326	NUT; GUIDE NUT FULL FLOATING CAB<W16> M12	0-91110-512-0	02	1	1411-
