◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11556 - FVR-RHD EURO5 ▶ 5 - Frame, Cab Mounting ▶ 5-01 - FRAME AND OTHER PARTS ▶
5-01 — FRAME AND OTHER PARTS (#129151) — 162 parça

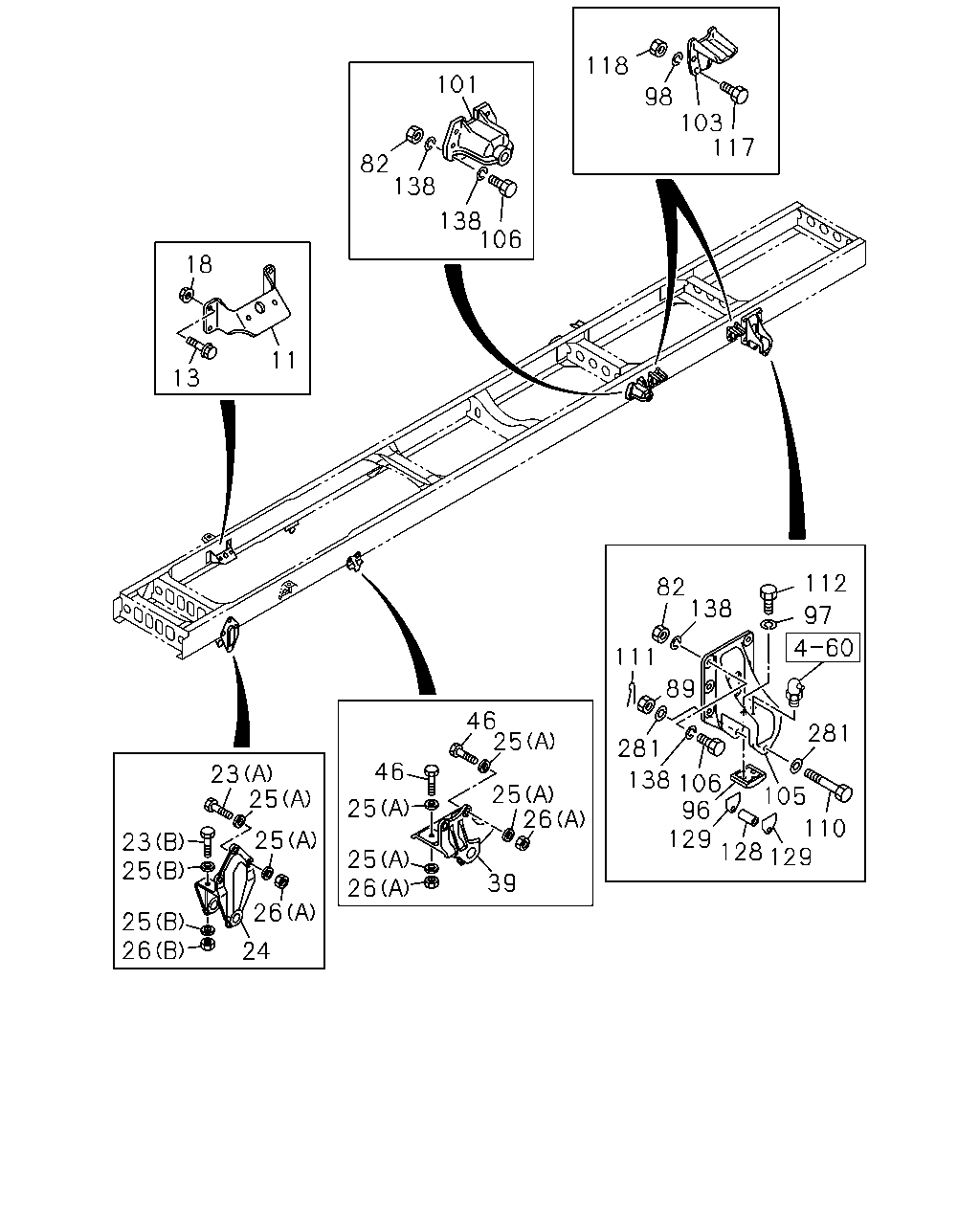

çizim 381401
103 98 118 117 101 82 138 138 106 18 13 11 23 25 25 26 23 25 25 26 24 46 25 25 26 46 25 25 26 39 82 138 111 112 97 89 281 138 106 96 129 128 129 110 105 281
BalonParca AdiParca NoAdetTipApplied Date A B C
11 BRACKET; ENG MTG
MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-97619-549-0 02 1 1310-1410 ●
11 BRACKET; ENG MTG
ZF9S1110 M/T(Y5E) 		8-97619-549-0 02 1 1411- ●
11 BRACKET; ENG MTG
MZW6P M/T(RSZ) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97619-549-0 02 1 1411- ●
11 BRACKET; ENG MTG 8-97619-549-0 02 1 1411- ●
11 BRACKET; ENG MTG
FULLER FSO5206B OD M/T(Y4V) 		8-97619-550-0 02 1 1310-1410 ●
11 BRACKET; ENG MTG
MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-97619-550-0 02 1 1310-1410 ●
11 BRACKET; ENG MTG
FULLER FSO5206B OD M/T(Y4V) 		8-97619-550-0 02 1 1411- ●
11 BRACKET; ENG MTG
MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97619-550-0 02 1 1411- ●
11 BRACKET; ENG MTG 8-97619-550-0 02 1 1411- ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 1310-1410 ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 1411- ● ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 1310-1410 ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 1411- ● ● ●
23 BOLT; BRKT,SPR
(A) M14X50 		0-20951-450-0 06 1 1310-1410 ●
23 BOLT; BRKT,SPR
(A) M14X50 		0-20951-450-0 06 1 1411- ● ● ●
23 BOLT; BRKT,SPR
(B) M16X60 		0-20951-660-0 04 1 1310-1410 ●
23 BOLT; BRKT,SPR
(B) M16X60 		0-20951-660-0 04 1 1411- ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-840-0 01 1 1310-1410 ●
24 BRACKET; FRT SPR,FRT 8-98018-840-0 01 1 1411- ● ● ●
24 BRACKET; FRT SPR,FRT 8-98018-841-0 01 1 1310-1410 ●
24 BRACKET; FRT SPR,FRT 8-98018-841-0 01 1 1411- ● ● ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-316-0 08 1 1310-1410 ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-316-0 08 1 1411- ● ● ●
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 28 1 1310-1410 ●
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 28 1 1411- ● ● ●
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 14 1 1310-1410 ●
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 14 1 1411- ● ● ●
26 NUT; BRKT,SPR
(B) M16 		0-91110-516-0 04 1 1310-1410 ●
26 NUT; BRKT,SPR
(B) M16 		0-91110-516-0 04 1 1411- ● ● ●
39 BRACKET; FRT SPR,RR 8-98043-648-0 01 1 1310-1410 ●
39 BRACKET; FRT SPR,RR 8-98043-648-0 01 1 1411- ● ● ●
39 BRACKET; FRT SPR,RR 8-98043-649-0 01 1 1310-1410 ●
39 BRACKET; FRT SPR,RR 8-98043-649-0 01 1 1411- ● ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 08 1 1310-1410 ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 08 1 1411- ● ● ●
82 NUT; BRKT
M14 		0-91110-514-0 24 1 1310-1410 ●
82 NUT; BRKT
M14 		0-91110-514-0 24 1 1411- ● ● ●
89 NUT; LEAF SPR STOPPER
M14 SLOTTED 		0-91116-514-0 02 1 1310- ● ● ●
96 PAD; RR SPR 1-53359-047-0 02 1 1310- ● ● ●
97 WASHER; LK,PAD
ID=14.2 		0-91510-514-0 04 1 1310- ● ● ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-814-0 16 1 1310-1410 ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-814-0 16 1 1411- ● ● ●
101 BRACKET; RR SPR,FRT 1-53353-078-1 02 1 1310-1410 ●
101 BRACKET; RR SPR,FRT 1-53353-078-1 02 1 1411- ● ● ●
103 STOPPER; SUB SPR 1-53356-057-0 04 1 1310-1410 ●
103 STOPPER; SUB SPR 1-53356-057-0 04 1 1411- ● ● ●
105 BRACKET; RR SPR,RR 1-53354-064-1 02 1 1310-1410 ●
105 BRACKET; RR SPR,RR 1-53354-064-1 02 1 1411- ● ● ●
106 BOLT; BRKT
M14X50 		0-20951-450-0 24 1 1310-1410 ●
106 BOLT; BRKT
M14X50 		0-20951-450-0 24 1 1411- ● ● ●
110 BOLT; LEAF SPR STOPPER 1-09000-007-0 02 1 1310- ● ● ●
111 PIN; SPLIT,LEAF SPR STOPPER
OD=2.8 L=28 		0-81123-028-0 02 1 1310- ● ● ●
112 BOLT; PAD
M14X35 		0-20851-435-0 04 1 1310- ● ● ●
117 BOLT; STOPPER
M14X50 		0-20951-450-0 16 1 1310-1410 ●
117 BOLT; STOPPER
M14X50 		0-20951-450-0 16 1 1411- ● ● ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 1310-1410 ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 1411- ● ● ●
128 COLLAR; RUBBER
EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		1-53359-004-0 02 1 1310- ● ● ●
129 SHIM; SIDE
T=4.5 		1-53359-061-1 02 1 1310- ● ● ●
129 SHIM; SIDE
T=3.2 		1-53359-062-1 02 1 1310- ● ● ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-814-0 24 1 1310-1410 ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-814-0 24 1 1411- ● ● ●
281 WASHER; LEAF SPR STOPPER
ID=15 OD=30 		9-09160-614-0 04 1 1310- ● ● ●

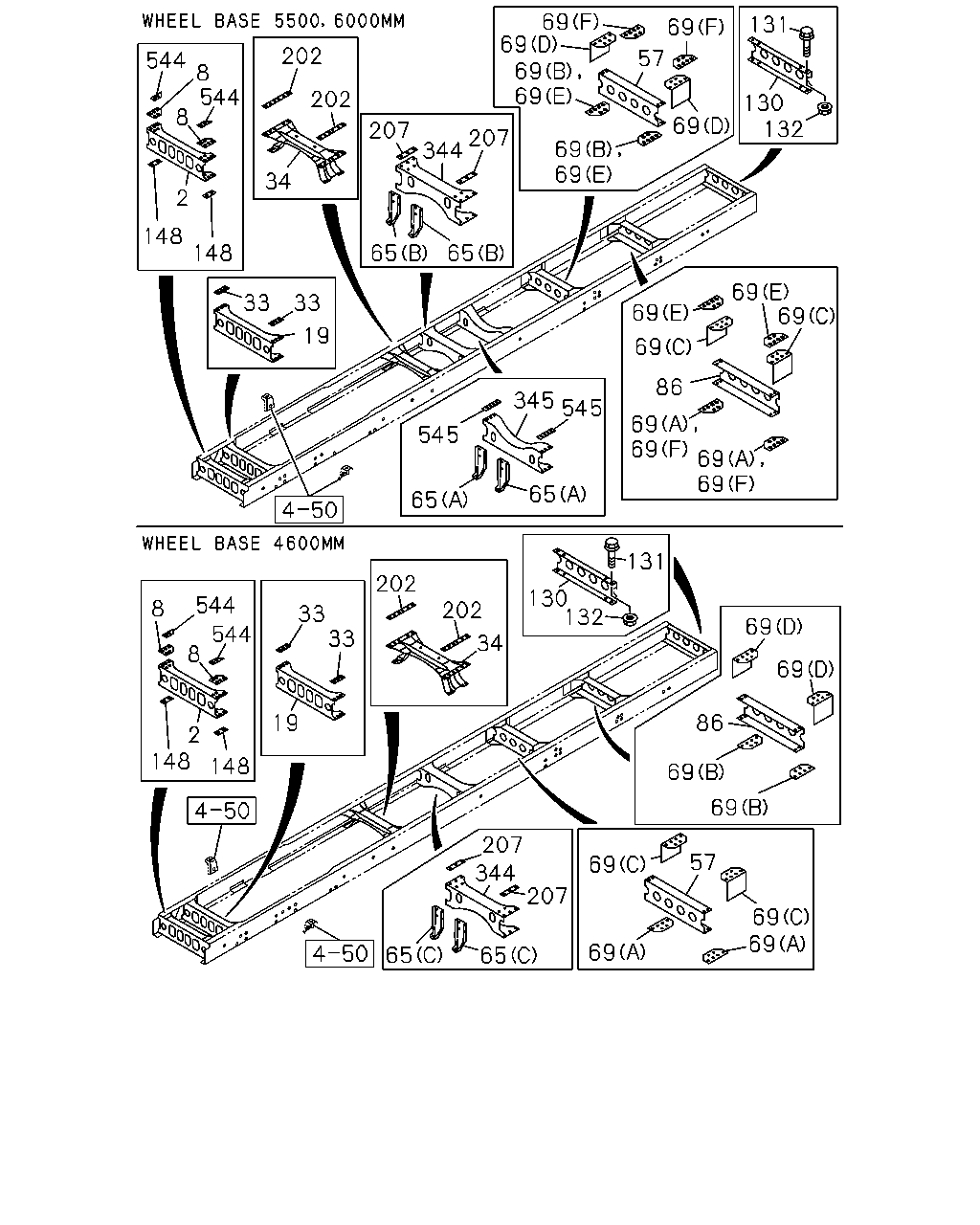

çizim 381826
69 69 69 69 69 69 57 69 69 130 131 132 69 69 69 86 69 69 69 131 132 130 69 69 86 69 69 202 544 544 8 8 148 33 148 33 19 545 65 345 65 202 202 33 33 544 544 8 8 2 148 148 69 344 207 65 65 207 202 34 69 207 344 207 65 65 57 69 69 69 69 545 34 19 2
BalonParca AdiParca NoAdetTipApplied Date A B C
2 MEMBER; CROSS,1ST 8-97610-852-6 01 1 1310-1410 ●
2 MEMBER; CROSS,1ST 8-97610-852-7 01 1 1411- ● ● ●
8 GUSSET; 1ST C/MBR 8-97611-027-0 02 1 1310-1410 ●
8 GUSSET; 1ST C/MBR 8-97611-027-0 02 1 1411- ● ● ●
19 MEMBER; CROSS,2ND 8-97610-853-4 01 1 1310-1410 ●
19 MEMBER; CROSS,2ND 8-97610-853-5 01 1 1411- ● ● ●
33 SPACER; 2ND C/MBR,UPR 8-97611-040-0 02 1 1310-1410 ●
33 SPACER; 2ND C/MBR,UPR 8-97611-040-0 02 1 1411- ● ● ●
34 MEMBER; CROSS,3RD 8-97610-854-2 01 1 1310-1410 ●
34 MEMBER; CROSS,3RD 8-97610-854-2 01 1 1411- ● ● ●
57 MEMBER; CROSS,RR SUSP FRT
MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-97610-858-5 01 1 1310-1410 ●
57 MEMBER; CROSS,RR SUSP FRT
ZF9S1110 M/T(Y5E) 		8-97610-858-5 01 1 1411- ●
57 MEMBER; CROSS,RR SUSP FRT
MZW6P M/T(RSZ) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97610-858-5 01 1 1411- ●
57 MEMBER; CROSS,RR SUSP FRT 8-97610-858-5 01 1 1411- ●
57 MEMBER; CROSS,RR SUSP FRT
FULLER FSO5206B OD M/T(Y4V) 		8-97619-888-3 01 1 1310-1410 ●
57 MEMBER; CROSS,RR SUSP FRT
MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-97619-888-3 01 1 1310-1410 ●
57 MEMBER; CROSS,RR SUSP FRT
FULLER FSO5206B OD M/T(Y4V) 		8-97619-888-3 01 1 1411- ●
57 MEMBER; CROSS,RR SUSP FRT
MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97619-888-3 01 1 1411- ●
57 MEMBER; CROSS,RR SUSP FRT 8-97619-888-3 01 1 1411- ●
65 BRACKET; CENTER BRG
(A) 		8-97614-127-0 02 1 1411- ●
65 BRACKET; CENTER BRG
(B) 		8-97614-129-0 02 1 1411- ●
65 BRACKET; CENTER BRG
(C) 		8-97614-137-0 02 1 1411- ●
65 BRACKET; CENTER BRG
FULLER FSO5206B OD M/T(Y4V) (A) 		8-97614-133-0 02 1 1310-1410 ●
65 BRACKET; CENTER BRG
MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		8-97614-133-0 02 1 1310-1410 ●
65 BRACKET; CENTER BRG
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		8-97614-133-0 02 1 1411- ●
65 BRACKET; CENTER BRG
FULLER FSO5206B OD M/T(Y4V) (B) 		8-97621-881-0 02 1 1310-1410 ●
65 BRACKET; CENTER BRG
MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		8-97621-881-0 02 1 1310-1410 ●
65 BRACKET; CENTER BRG
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) 		8-97621-881-0 02 1 1411- ●
69 GUSSET; RR SUSP,UPR
MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) 		8-97610-865-0 02 1 1310-1410 ●
69 GUSSET; RR SUSP,UPR
ZF9S1110 M/T(Y5E) (B) 		8-97610-865-0 02 1 1411- ●
69 GUSSET; RR SUSP,UPR
MZW6P M/T(RSZ) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) 		8-97610-865-0 02 1 1411- ●
69 GUSSET; RR SUSP,UPR
(B) 		8-97610-865-0 02 1 1411- ●
69 GUSSET; RR SUSP,UPR
MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		8-97610-866-0 02 1 1310-1410 ●
69 GUSSET; RR SUSP,UPR
ZF9S1110 M/T(Y5E) (A) 		8-97610-866-0 02 1 1411- ●
69 GUSSET; RR SUSP,UPR
MZW6P M/T(RSZ) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) 		8-97610-866-0 02 1 1411- ●
69 GUSSET; RR SUSP,UPR
(A) 		8-97610-866-0 02 1 1411- ●
69 GUSSET; RR SUSP,UPR
MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) 		8-97619-800-0 01 1 1310-1410 ●
69 GUSSET; RR SUSP,UPR
ZF9S1110 M/T(Y5E) (D) 		8-97619-800-0 01 1 1411- ●
69 GUSSET; RR SUSP,UPR
MZW6P M/T(RSZ) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) 		8-97619-800-0 01 1 1411- ●
69 GUSSET; RR SUSP,UPR
(D) 		8-97619-800-0 01 1 1411- ●
69 GUSSET; RR SUSP,UPR
MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) 		8-97619-801-0 01 1 1310-1410 ●
69 GUSSET; RR SUSP,UPR
ZF9S1110 M/T(Y5E) (D) 		8-97619-801-0 01 1 1411- ●
69 GUSSET; RR SUSP,UPR
MZW6P M/T(RSZ) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) 		8-97619-801-0 01 1 1411- ●
69 GUSSET; RR SUSP,UPR
(D) 		8-97619-801-0 01 1 1411- ●
69 GUSSET; RR SUSP,UPR
MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) 		8-97619-802-0 01 1 1310-1410 ●
69 GUSSET; RR SUSP,UPR
ZF9S1110 M/T(Y5E) (C) 		8-97619-802-0 01 1 1411- ●
69 GUSSET; RR SUSP,UPR
MZW6P M/T(RSZ) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-97619-802-0 01 1 1411- ●
69 GUSSET; RR SUSP,UPR
(C) 		8-97619-802-0 01 1 1411- ●
69 GUSSET; RR SUSP,UPR
MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (C) 		8-97619-803-0 01 1 1310-1410 ●
69 GUSSET; RR SUSP,UPR
ZF9S1110 M/T(Y5E) (C) 		8-97619-803-0 01 1 1411- ●
69 GUSSET; RR SUSP,UPR
MZW6P M/T(RSZ) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) 		8-97619-803-0 01 1 1411- ●
69 GUSSET; RR SUSP,UPR
(C) 		8-97619-803-0 01 1 1411- ●
69 GUSSET; RR SUSP,UPR
FULLER FSO5206B OD M/T(Y4V) (E) 		8-97619-889-0 04 1 1310-1410 ●
69 GUSSET; RR SUSP,UPR
MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) 		8-97619-889-0 04 1 1310-1410 ●
69 GUSSET; RR SUSP,UPR
FULLER FSO5206B OD M/T(Y4V) (E) 		8-97619-889-0 04 1 1411- ●
69 GUSSET; RR SUSP,UPR
MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) 		8-97619-889-0 04 1 1411- ●
69 GUSSET; RR SUSP,UPR
(E) 		8-97619-889-0 04 1 1411- ●
69 GUSSET; RR SUSP,UPR
FULLER FSO5206B OD M/T(Y4V) (F) 		8-97619-890-0 04 1 1310-1410 ●
69 GUSSET; RR SUSP,UPR
MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F) 		8-97619-890-0 04 1 1310-1410 ●
69 GUSSET; RR SUSP,UPR
FULLER FSO5206B OD M/T(Y4V) (F) 		8-97619-890-0 04 1 1411- ●
69 GUSSET; RR SUSP,UPR
MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) 		8-97619-890-0 04 1 1411- ●
69 GUSSET; RR SUSP,UPR
(F) 		8-97619-890-0 04 1 1411- ●
86 MEMBER; CROSS,RR SUSP RR
MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-97610-858-5 01 1 1310-1410 ●
86 MEMBER; CROSS,RR SUSP RR
ZF9S1110 M/T(Y5E) 		8-97610-858-5 01 1 1411- ●
86 MEMBER; CROSS,RR SUSP RR
MZW6P M/T(RSZ) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97610-858-5 01 1 1411- ●
86 MEMBER; CROSS,RR SUSP RR 8-97610-858-5 01 1 1411- ●
86 MEMBER; CROSS,RR SUSP RR
FULLER FSO5206B OD M/T(Y4V) 		8-97619-888-3 01 1 1310-1410 ●
86 MEMBER; CROSS,RR SUSP RR
MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-97619-888-3 01 1 1310-1410 ●
86 MEMBER; CROSS,RR SUSP RR
FULLER FSO5206B OD M/T(Y4V) 		8-97619-888-3 01 1 1411- ●
86 MEMBER; CROSS,RR SUSP RR
MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97619-888-3 01 1 1411- ●
86 MEMBER; CROSS,RR SUSP RR 8-97619-888-3 01 1 1411- ●
130 MEMBER; CROSS,END 8-97610-869-1 01 1 1310-1410 ●
130 MEMBER; CROSS,END 8-97610-869-1 01 1 1411- ● ● ●
131 BOLT; END C/MBR
M12X30 W/LK WASHER 		0-50541-230-0 04 1 1310-1410 ●
131 BOLT; END C/MBR
M12X30 W/LK WASHER 		0-50541-230-0 04 1 1411- ● ● ●
132 NUT; END C/MBR
M12 		0-91110-512-0 04 1 1310-1410 ●
132 NUT; END C/MBR
M12 		0-91110-512-0 04 1 1411- ● ● ●
148 SPACER; C/MBR 8-97611-039-0 02 1 1310-1410 ●
148 SPACER; C/MBR 8-97611-039-0 02 1 1411- ● ● ●
202 SPACER; 3RD C/MBR 8-97610-872-0 02 1 1310-1410 ●
202 SPACER; 3RD C/MBR 8-97610-872-0 02 1 1411- ● ● ●
207 SPACER; 4TH C/MBR
0.24KG 		8-97611-245-0 02 1 1411- ●
207 SPACER; 4TH C/MBR
0.25KG 		8-97611-244-0 02 1 1310-1410 ●
207 SPACER; 4TH C/MBR
0.25KG 		8-97611-244-0 02 1 1411- ● ●
344 MEMBER; CROSS,4TH 8-97611-238-1 01 1 1310-1410 ●
344 MEMBER; CROSS,4TH 8-97611-238-1 01 1 1411- ● ● ●
345 MEMBER; CROSS,5TH 8-97611-238-1 01 1 1310-1410 ●
345 MEMBER; CROSS,5TH 8-97611-238-1 01 1 1411- ● ●
544 PLATE; CAB FRT MTG
MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-97611-030-0 02 1 1310-1410 ●
544 PLATE; CAB FRT MTG
ZF9S1110 M/T(Y5E) 		8-97611-030-0 02 1 1411- ●
544 PLATE; CAB FRT MTG
MZW6P M/T(RSZ) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97611-030-0 02 1 1411- ●
544 PLATE; CAB FRT MTG 8-97611-030-0 02 1 1411- ●
544 PLATE; CAB FRT MTG
FULLER FSO5206B OD M/T(Y4V) 		8-97615-598-0 02 1 1310-1410 ●
544 PLATE; CAB FRT MTG
MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-97615-598-0 02 1 1310-1410 ●
544 PLATE; CAB FRT MTG
FULLER FSO5206B OD M/T(Y4V) 		8-97615-598-0 02 1 1411- ●
544 PLATE; CAB FRT MTG
MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97615-598-0 02 1 1411- ●
544 PLATE; CAB FRT MTG 8-97615-598-0 02 1 1411- ●
545 SPACER; 5TH C/MBR
0.24KG 		8-97611-245-0 02 1 1310-1410 ●
545 SPACER; 5TH C/MBR
0.24KG 		8-97611-245-0 02 1 1411- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
