4-80 — ROAD WHEEL (#129150) — 102 parça

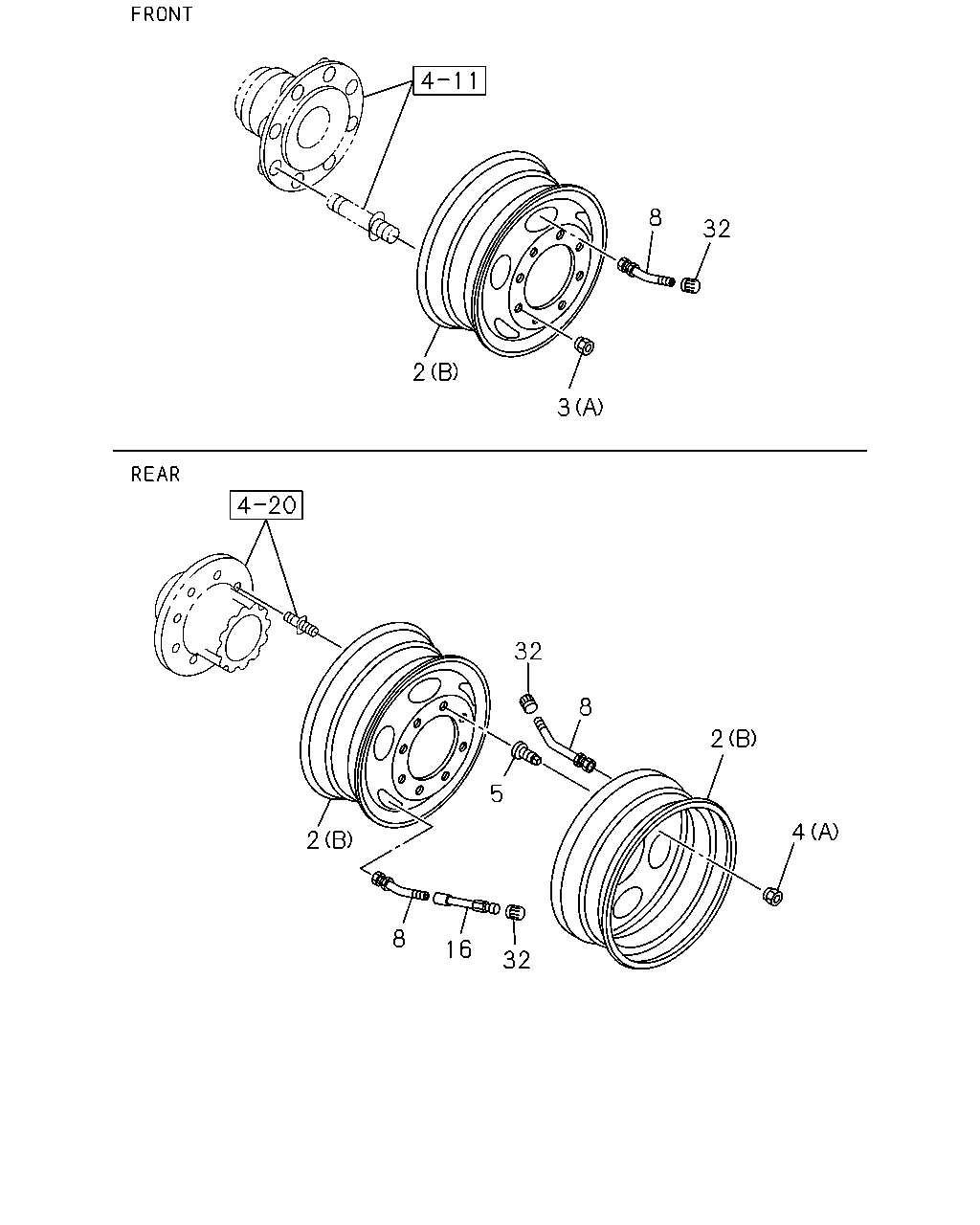

8 32 3 2 32 8 2 4 32 16 8 2 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A) FRONT	1-42350-745-0	02	1	1411-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A) REAR	1-42350-745-0	04	1	1411-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> EXC. DISC WHEEL SPARE<N79> (A) SPARE	1-42350-745-0	01	1	1411-
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT	8-98217-247-0	02	1	1310-
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) REAR	8-98217-247-0	04	1	1310-
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> (A) SPARE	8-98217-247-0	01	1	1310-1410
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (A) SPARE	8-98217-247-0	01	1	1411-
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) FRONT	1-42350-758-0	02	1	1310-1310
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) FRONT	8-98232-031-0	02	1	1311-
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) REAR	1-42350-758-0	04	1	1310-1310
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) REAR	8-98232-031-0	04	1	1311-
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) SPARE	1-42350-758-0	01	1	1310-1310
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) SPARE	8-98232-031-0	01	1	1311-1410
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARETIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE	8-98232-031-0	01	1	1411-
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) EXC. DISC WHEEL SPARE<N79> (B) SPARE	8-98232-031-0	01	1	1411-
3	NUT; WHEEL,FRT AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (B) M22X1.5	1-42333-055-0	20	1	1310-1410
3	NUT; WHEEL,FRT AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (B) M22X1.5	1-42333-055-0	20	1	1411-
3	NUT; WHEEL,FRT AXLE DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (A) M24 LH THREAD	1-42334-022-3	08	1	1310-
3	NUT; WHEEL,FRT AXLE DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (A) M24	1-42333-022-3	08	1	1310-
4	NUT; WHEEL,RR AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (B) M22X1.5	1-42333-055-0	20	1	1310-1410
4	NUT; WHEEL,RR AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (B) M22X1.5	1-42333-055-0	20	1	1411-
4	NUT; WHEEL,RR AXLE DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (A) M30 LH THREAD	8-97359-810-0	08	1	1310-
4	NUT; WHEEL,RR AXLE DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (A) M30 RH THREAD	8-97359-809-0	08	1	1310-
5	NUT; WHEEL,INNER,RR AXLE DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) OUTER M30,INNER M20 LH THREAD	8-97359-806-0	08	1	1310-
5	NUT; WHEEL,INNER,RR AXLE DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) OUTER M30,INNER M20 RH THREAD	8-97359-805-0	08	1	1310-
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> SPARE	1-42370-048-0	01	1	1310-1310
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> SPARE	1-42370-048-0	01	1	1311-1410
8	VALVE; TIRE DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) SPARE	1-42370-048-0	01	1	1311-1410
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> SPARE	1-42370-048-0	01	1	1411-
8	VALVE; TIRE DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARETIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE	1-42370-048-0	01	1	1411-
8	VALVE; TIRE DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) EXC. DISC WHEEL SPARE<N79> SPARE	1-42370-048-0	01	1	1411-
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FRONT	1-42370-048-0	02	1	1310-1310
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) FRONT	1-42370-048-0	02	1	1311-
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) REAR	1-42370-048-0	04	1	1310-1310
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) REAR	1-42370-048-0	04	1	1311-
8	VALVE; TIRE DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) SPARE	1-42370-020-3	01	1	1310-1310
8	VALVE; TIRE DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) FRONT	1-42370-020-3	02	1	1310-1310
8	VALVE; TIRE DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) REAR	1-42370-020-3	04	1	1310-1310
8	VALVE; TIRE DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> EXC. DISC WHEEL SPARE<N79> SPARE	1-42370-020-3	01	1	1411-
8	VALVE; TIRE DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) FRONT	1-42370-020-3	02	1	1411-
8	VALVE; TIRE DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) REAR	1-42370-020-3	04	1	1411-
16	HOLDER; TIRE VALVE,DISC WHEEL DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) L=170	8-98167-052-0	02	1	1310-1310
16	HOLDER; TIRE VALVE,DISC WHEEL L=170	8-98167-052-0	02	1	1311-
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>	1-42374-001-0	01	1	1310-1410
32	CAP; VALVE DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>	1-42374-001-0	01	1	1411-
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	01	1	1411-
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42374-001-0	02	1	1310-1410
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87)	1-42374-001-0	02	1	1411-
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42374-001-0	04	1	1310-1410
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87)	1-42374-001-0	04	1	1411-
32	CAP; VALVE SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> DISC WHEEL 8STUD 7.50X22.5 162-13(SKU)	1-42374-001-0	07	1	1310-1410
32	CAP; VALVE SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> DISC WHEEL 8STUD 7.50X22.5 162-13(SKU)	1-42374-001-0	07	1	1411-

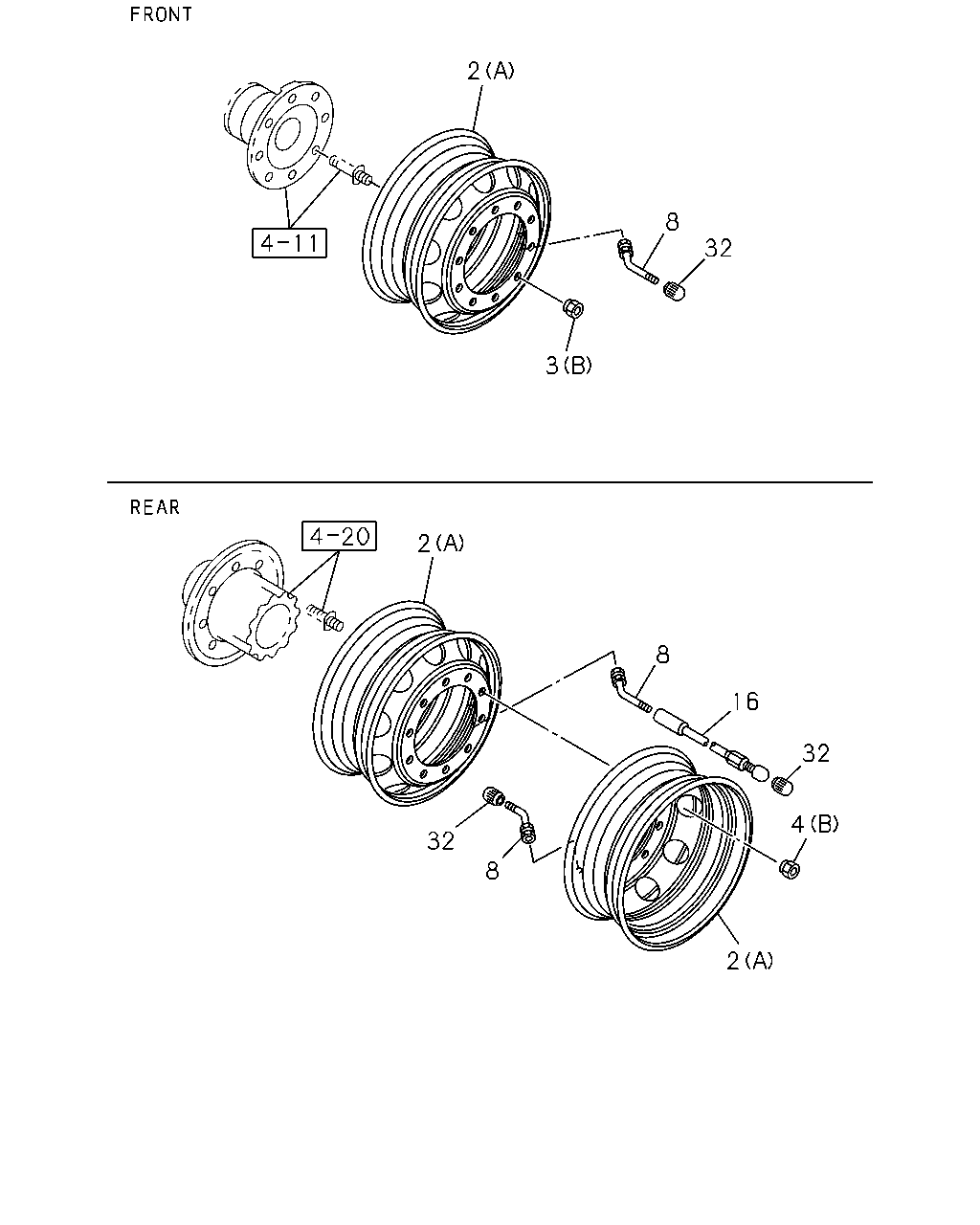

3 32 8 2 2 8 16 32 4 2 8 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A) FRONT	1-42350-745-0	02	1	1411-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A) REAR	1-42350-745-0	04	1	1411-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> EXC. DISC WHEEL SPARE<N79> (A) SPARE	1-42350-745-0	01	1	1411-
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) FRONT	8-98217-247-0	02	1	1310-
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (A) REAR	8-98217-247-0	04	1	1310-
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> (A) SPARE	8-98217-247-0	01	1	1310-1410
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> (A) SPARE	8-98217-247-0	01	1	1411-
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) FRONT	1-42350-758-0	02	1	1310-1310
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) FRONT	8-98232-031-0	02	1	1311-
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) REAR	1-42350-758-0	04	1	1310-1310
2	WHEEL; DISC DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) REAR	8-98232-031-0	04	1	1311-
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) SPARE	1-42350-758-0	01	1	1310-1310
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B) SPARE	8-98232-031-0	01	1	1311-1410
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARETIRE & DISC WHEEL FRONT TIRE ONE<WH2> (B) SPARE	8-98232-031-0	01	1	1411-
2	WHEEL; DISC SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) EXC. DISC WHEEL SPARE<N79> (B) SPARE	8-98232-031-0	01	1	1411-
3	NUT; WHEEL,FRT AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (B) M22X1.5	1-42333-055-0	20	1	1310-1410
3	NUT; WHEEL,FRT AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (B) M22X1.5	1-42333-055-0	20	1	1411-
3	NUT; WHEEL,FRT AXLE DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (A) M24 LH THREAD	1-42334-022-3	08	1	1310-
3	NUT; WHEEL,FRT AXLE DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (A) M24	1-42333-022-3	08	1	1310-
4	NUT; WHEEL,RR AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (B) M22X1.5	1-42333-055-0	20	1	1310-1410
4	NUT; WHEEL,RR AXLE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (B) M22X1.5	1-42333-055-0	20	1	1411-
4	NUT; WHEEL,RR AXLE DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (A) M30 LH THREAD	8-97359-810-0	08	1	1310-
4	NUT; WHEEL,RR AXLE DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (A) M30 RH THREAD	8-97359-809-0	08	1	1310-
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> SPARE	1-42370-048-0	01	1	1310-1310
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> SPARE	1-42370-048-0	01	1	1311-1410
8	VALVE; TIRE DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) SPARE	1-42370-048-0	01	1	1311-1410
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2> EXC. DISC WHEEL SPARE<N79> SPARE	1-42370-048-0	01	1	1411-
8	VALVE; TIRE DISC WHEEL SPARE<N79> DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) EXC. SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>, SPARETIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE	1-42370-048-0	01	1	1411-
8	VALVE; TIRE DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) EXC. DISC WHEEL SPARE<N79> SPARE	1-42370-048-0	01	1	1411-
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) FRONT	1-42370-048-0	02	1	1310-1310
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) FRONT	1-42370-048-0	02	1	1311-
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) REAR	1-42370-048-0	04	1	1310-1310
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) REAR	1-42370-048-0	04	1	1311-
8	VALVE; TIRE DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) SPARE	1-42370-020-3	01	1	1310-1310
8	VALVE; TIRE DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) FRONT	1-42370-020-3	02	1	1310-1310
8	VALVE; TIRE DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) REAR	1-42370-020-3	04	1	1310-1310
8	VALVE; TIRE DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> EXC. DISC WHEEL SPARE<N79> SPARE	1-42370-020-3	01	1	1411-
8	VALVE; TIRE DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) FRONT	1-42370-020-3	02	1	1411-
8	VALVE; TIRE DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) REAR	1-42370-020-3	04	1	1411-
16	HOLDER; TIRE VALVE,DISC WHEEL DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) L=170	8-98167-052-0	02	1	1310-1310
16	HOLDER; TIRE VALVE,DISC WHEEL L=170	8-98167-052-0	02	1	1311-
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>	1-42374-001-0	01	1	1310-1410
32	CAP; VALVE DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>	1-42374-001-0	01	1	1411-
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR TIRE ONE<R46>,SPARE TIRE& DISC WHEEL FRONT TIRE ONE<WH2>	1-42374-001-0	01	1	1411-
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42374-001-0	02	1	1310-1410
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87)	1-42374-001-0	02	1	1411-
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42374-001-0	04	1	1310-1410
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87)	1-42374-001-0	04	1	1411-
32	CAP; VALVE SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> DISC WHEEL 8STUD 7.50X22.5 162-13(SKU)	1-42374-001-0	07	1	1310-1410
32	CAP; VALVE SPARE TIRE & DISC WHEEL RR TIRE ONE<R46> DISC WHEEL 8STUD 7.50X22.5 162-13(SKU)	1-42374-001-0	07	1	1411-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
