Isuzu WW
▶
TRUCKS
▶
FVM
▶
11129 - FVM(THAI)EURO3
▶
3 - Brakes, Brake System
▶
3-52 - BRAKE PIPING; OIL,FRONT
▶

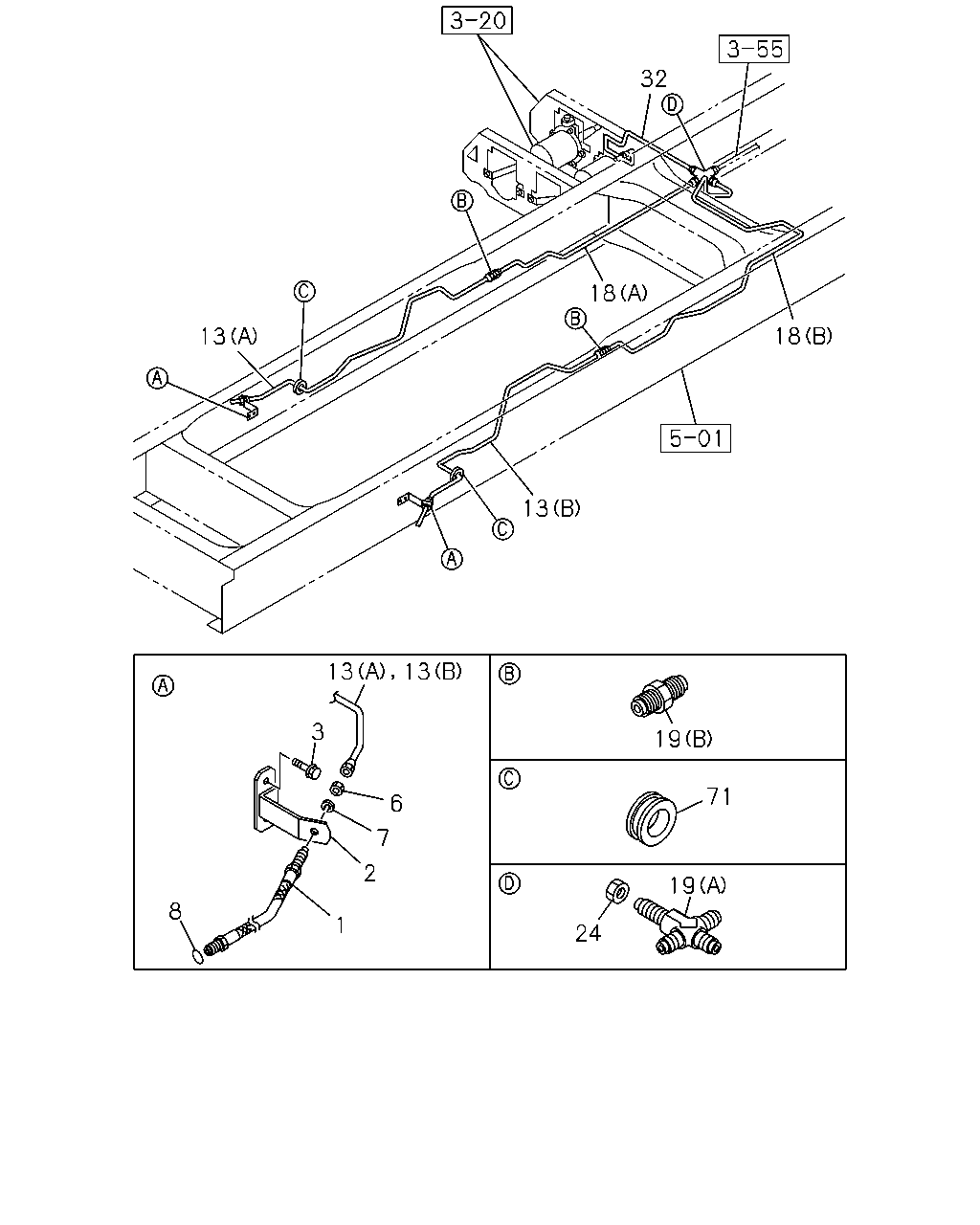

3-52 — BRAKE PIPING; OIL,FRONT
(#12915) — 16 parça
32
18
18
13
13
13
13
3
19
71
6
7
2
19
8
1
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=610
0-05212-610-0
02
1
1108-
2
BRACKET; FLEX HOSE,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05>
8-98118-251-1
02
1
1108-1108
2
BRACKET; FLEX HOSE,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05>
8-98177-524-0
02
1
1108-
3
BOLT; BRKT,FLEX HOSE,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8X25 FLANGE THA
0-28650-825-0
04
1
1108-
6
NUT; FLEX HOSE,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M12
9-09840-280-0
02
1
1108-
7
WASHER; LK,FLEX HOSE,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> ID=12.2
0-91510-512-0
02
1
1108-
8
GASKET; FLEX HOSE,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> ID=9 OD=17
9-09920-472-0
02
1
1108-
13
PIPE; OIL,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) L=1440 SERVICED BY L=1500 THA
1-47428-735-0
01
1
1108-
13
PIPE; OIL,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) L=1136 SERVICED BY L=1200 THA
1-47428-732-0
01
1
1108-
18
PIPE; OIL,UNION TO FRT FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) L=992 SERVICED BY L=1000 THA
1-47428-730-0
01
1
1108-
18
PIPE; OIL,UNION TO FRT FLEX HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) L=1801 SERVICED BY L=1820 THA
1-47428-738-0
01
1
1108-
19
UNION; OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) M12 L=40
0-92113-006-0
02
1
1108-
19
UNION; OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A)
1-09656-019-1
01
1
1108-
24
NUT; UNION,OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M14 THA
0-91110-514-0
01
1
1108-
32
PIPE; OIL,AIR MASTER TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=827 SERVICED BY L=900
1-47428-760-0
01
1
1108-
71
GROMMET; OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> ID=24 OD=30 T=17
9-09956-092-1
02
1
1108-
