4-11 — FRONT HUB AND DRUM OR ROTOR (#129136) — 86 parça

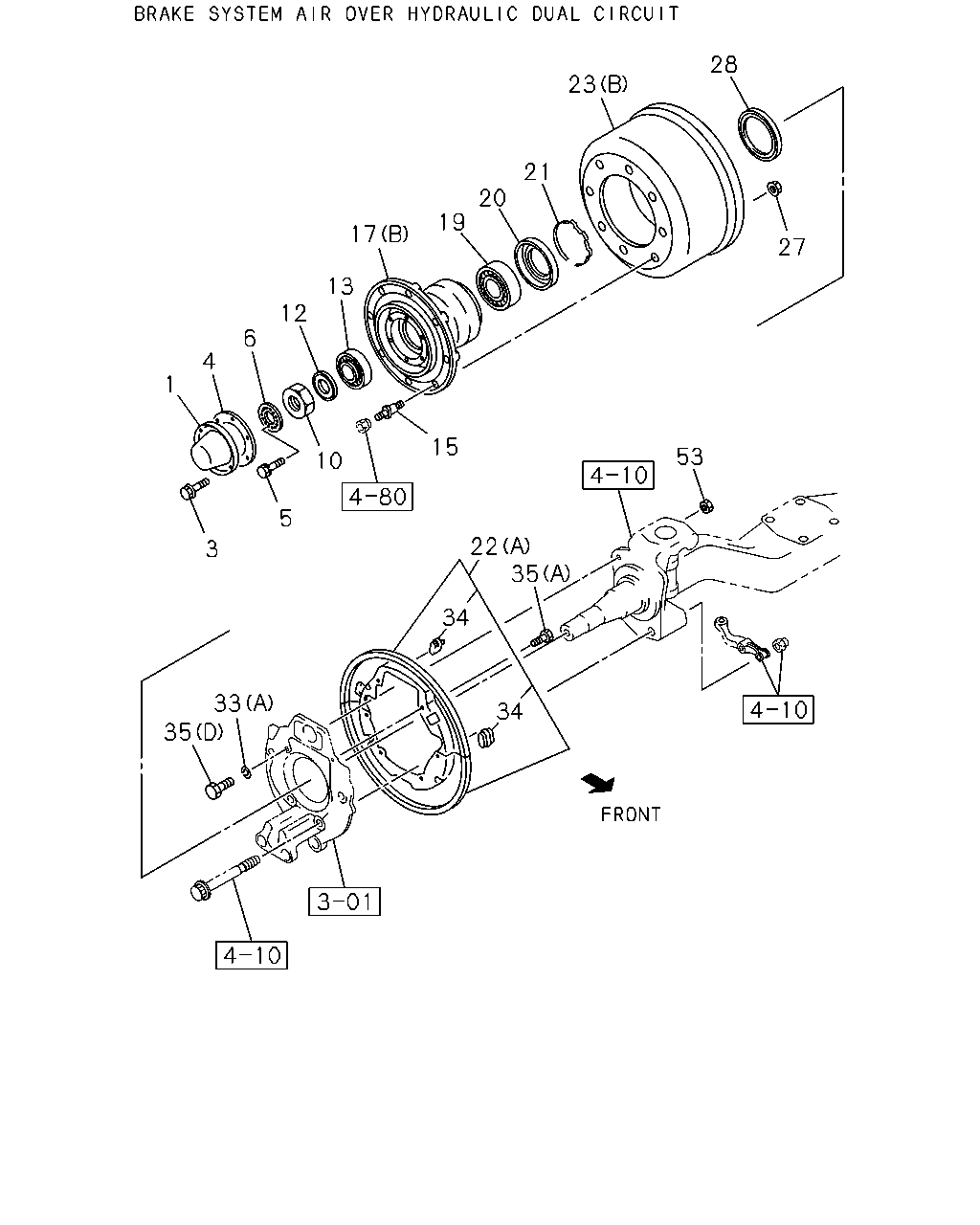

34 34 22 53 35 33 35 3 5 10 15 1 4 6 12 13 17 19 20 21 23 28 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CAP; HUB,FRT AXLE OD=156	9-42313-123-2	02	1	1310-
3	BOLT; HUB CAP,FRT WHEEL M8X12 FLANGE	0-28050-812-0	12	1	1310-
4	GASKET; HUB CAP,FRT WHEEL	1-42319-185-2	02	1	1310-
5	BOLT; LK WASHER M6X16 HEX SOCKET	8-98200-943-0	04	1	1310-
6	WASHER; LK,FRT HUB ID=48	8-98084-561-0	02	1	1310-
10	NUT; FRT HUB BRG M48	1-09840-012-5	02	1	1310-
12	WASHER; LK,FRT HUB BRG ID=48	8-98156-755-0	02	1	1310-
13	BEARING; HUB OUTER,FRT AXLE JTEKT	1-09812-234-0	02	1	1310-
15	PIN; WHEEL,FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M24X37.5,M22X57.5 RH THREAD	1-42331-109-1	08	1	1310-1410
15	PIN; WHEEL,FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M24X37.5,M22X57.5 RH THREAD	1-42331-109-1	08	1	1411-
15	PIN; WHEEL,FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) M24X37.5,M22X57.5 RH THREAD	1-42331-109-1	08	1	1411-
15	PIN; WHEEL,FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M24X37.5 LH THREAD,M22X57.5 RH THREAD	1-42332-109-1	08	1	1310-1410
15	PIN; WHEEL,FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M24X37.5 LH THREAD,M22X57.5 RH THREAD	1-42332-109-1	08	1	1411-
15	PIN; WHEEL,FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) M24X37.5 LH THREAD,M22X57.5 RH THREAD	1-42332-109-1	08	1	1411-
15	PIN; WHEEL,FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M22X42.8,M22X55.5 RH THREAD	1-42337-067-1	20	1	1310-1410
15	PIN; WHEEL,FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) M22X42.8,M22X55.5 RH THREAD	1-42337-067-1	20	1	1411-
17	HUB; FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B)	1-42312-151-3	02	1	1411-
17	HUB; FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-42312-128-2	02	1	1310-
17	HUB; FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-42312-160-0	02	1	1310-1410
17	HUB; FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A)	1-42312-160-0	02	1	1411-
19	BEARING; HUB INNER,FRT AXLE JTEKT	1-09812-231-0	02	1	1310-
20	COVER; HUB BRG INNER	1-42319-039-0	02	1	1310-
21	RING; SNAP,HUB	1-09587-017-0	02	1	1310-
22	COVER SET; FRT BRK DRUM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-47151-458-1	02	1	1310-
22	COVER SET; FRT BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-87831-225-0	02	1	1310-
23	DRUM; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B)	1-42315-397-0	02	1	1411-
23	DRUM; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-42315-355-0	02	1	1310-
23	DRUM; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-42315-365-0	02	1	1310-1410
23	DRUM; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A)	1-42315-365-0	02	1	1411-
27	NUT; WHEEL PIN,FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M22 FLANGE	1-09440-065-0	16	1	1310-1410
27	NUT; WHEEL PIN,FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M22 FLANGE	1-09440-065-0	16	1	1411-
27	NUT; WHEEL PIN,FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) M22 FLANGE	1-09440-065-0	16	1	1411-
27	NUT; WHEEL PIN,FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M22	1-09400-071-0	20	1	1310-1410
27	NUT; WHEEL PIN,FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) M22	1-09400-071-0	20	1	1411-
28	SEAL; OIL,FRT HUB OD=140	1-09625-041-0	02	1	1310-
33	WASHER; LK,DRUM COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=16.2	0-91510-816-0	04	1	1310-
33	WASHER; LK,DRUM COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=18.2	0-91510-818-0	12	1	1310-
34	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	1310-
35	BOLT; DRUM COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) M16X52	1-09044-120-0	04	1	1310-
35	BOLT; DRUM COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M18X65	1-09000-789-0	04	1	1310-
35	BOLT; DRUM COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M18X45	1-09000-790-0	08	1	1310-
35	BOLT; DRUM COVER (A) M10X12	1-47159-187-0	12	1	1310-
53	NUT; DRUM COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M16	0-91110-516-0	04	1	1310-

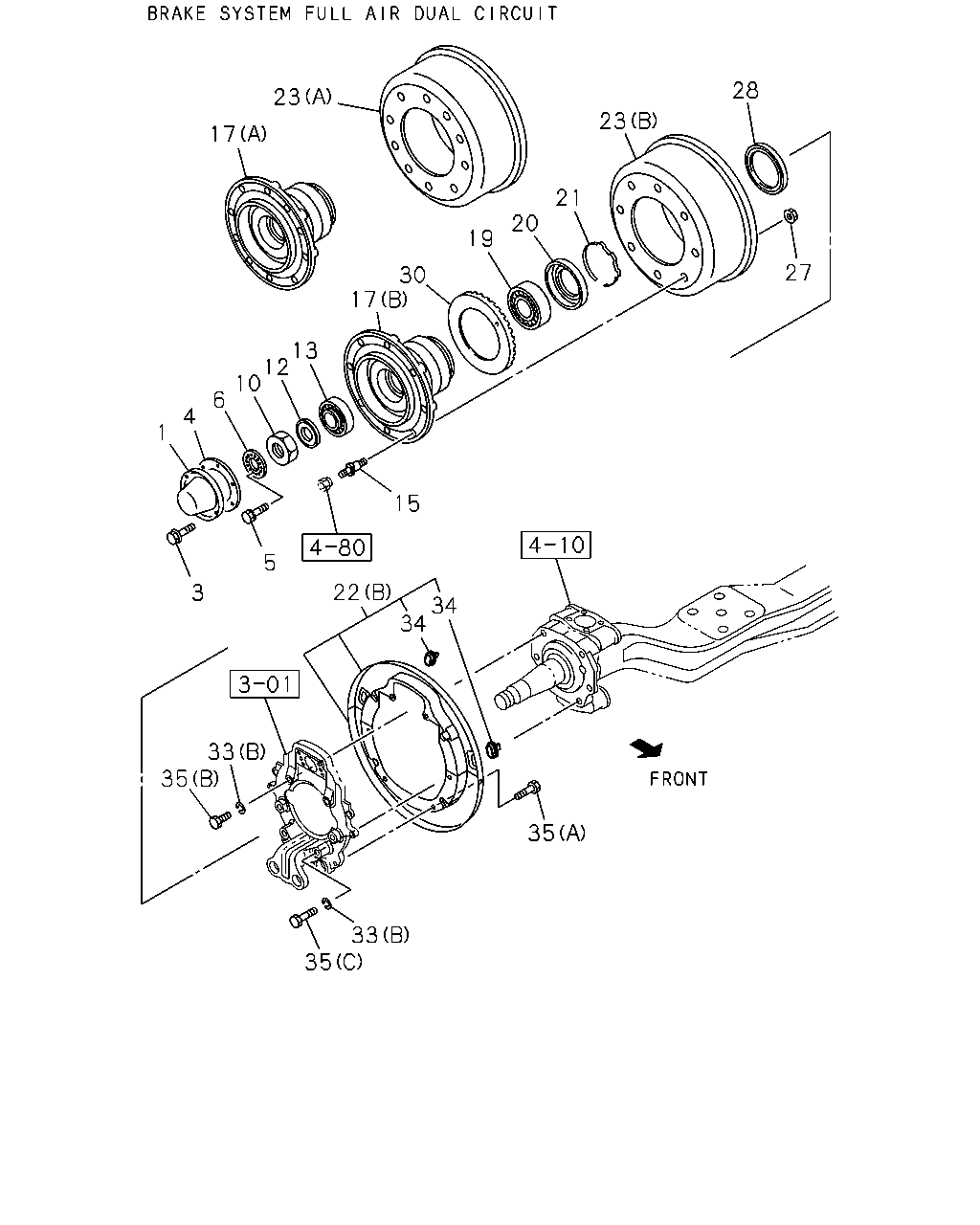

35 33 35 33 35 34 22 34 15 5 3 1 4 6 10 12 13 17 30 19 20 21 23 28 27 23 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CAP; HUB,FRT AXLE OD=156	9-42313-123-2	02	1	1310-
3	BOLT; HUB CAP,FRT WHEEL M8X12 FLANGE	0-28050-812-0	12	1	1310-
4	GASKET; HUB CAP,FRT WHEEL	1-42319-185-2	02	1	1310-
5	BOLT; LK WASHER M6X16 HEX SOCKET	8-98200-943-0	04	1	1310-
6	WASHER; LK,FRT HUB ID=48	8-98084-561-0	02	1	1310-
10	NUT; FRT HUB BRG M48	1-09840-012-5	02	1	1310-
12	WASHER; LK,FRT HUB BRG ID=48	8-98156-755-0	02	1	1310-
13	BEARING; HUB OUTER,FRT AXLE JTEKT	1-09812-234-0	02	1	1310-
15	PIN; WHEEL,FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M24X37.5,M22X57.5 RH THREAD	1-42331-109-1	08	1	1310-1410
15	PIN; WHEEL,FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M24X37.5,M22X57.5 RH THREAD	1-42331-109-1	08	1	1411-
15	PIN; WHEEL,FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) M24X37.5,M22X57.5 RH THREAD	1-42331-109-1	08	1	1411-
15	PIN; WHEEL,FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M24X37.5 LH THREAD,M22X57.5 RH THREAD	1-42332-109-1	08	1	1310-1410
15	PIN; WHEEL,FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M24X37.5 LH THREAD,M22X57.5 RH THREAD	1-42332-109-1	08	1	1411-
15	PIN; WHEEL,FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) M24X37.5 LH THREAD,M22X57.5 RH THREAD	1-42332-109-1	08	1	1411-
15	PIN; WHEEL,FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M22X42.8,M22X55.5 RH THREAD	1-42337-067-1	20	1	1310-1410
15	PIN; WHEEL,FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) M22X42.8,M22X55.5 RH THREAD	1-42337-067-1	20	1	1411-
17	HUB; FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B)	1-42312-151-3	02	1	1411-
17	HUB; FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-42312-128-2	02	1	1310-
17	HUB; FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-42312-160-0	02	1	1310-1410
17	HUB; FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A)	1-42312-160-0	02	1	1411-
19	BEARING; HUB INNER,FRT AXLE JTEKT	1-09812-231-0	02	1	1310-
20	COVER; HUB BRG INNER	1-42319-039-0	02	1	1310-
21	RING; SNAP,HUB	1-09587-017-0	02	1	1310-
22	COVER SET; FRT BRK DRUM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	1-47151-458-1	02	1	1310-
22	COVER SET; FRT BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-87831-225-0	02	1	1310-
23	DRUM; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) (B)	1-42315-397-0	02	1	1411-
23	DRUM; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B)	1-42315-355-0	02	1	1310-
23	DRUM; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-42315-365-0	02	1	1310-1410
23	DRUM; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) (A)	1-42315-365-0	02	1	1411-
27	NUT; WHEEL PIN,FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M22 FLANGE	1-09440-065-0	16	1	1310-1410
27	NUT; WHEEL PIN,FRT AXLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M22 FLANGE	1-09440-065-0	16	1	1411-
27	NUT; WHEEL PIN,FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DISC WHEEL 8STUD 7.50X22.5 162-13(SKU) M22 FLANGE	1-09440-065-0	16	1	1411-
27	NUT; WHEEL PIN,FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M22	1-09400-071-0	20	1	1310-1410
27	NUT; WHEEL PIN,FRT AXLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),DISC WHEEL 10STUD 7.50X22.5 162-13(Q87) M22	1-09400-071-0	20	1	1411-
28	SEAL; OIL,FRT HUB OD=140	1-09625-041-0	02	1	1310-
30	RING; EXCITER,FRT HUB BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5>	1-42319-203-0	02	1	1411-
33	WASHER; LK,DRUM COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=16.2	0-91510-816-0	04	1	1310-
33	WASHER; LK,DRUM COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) ID=18.2	0-91510-818-0	12	1	1310-
34	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	1310-
35	BOLT; DRUM COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) M16X52	1-09044-120-0	04	1	1310-
35	BOLT; DRUM COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M18X65	1-09000-789-0	04	1	1310-
35	BOLT; DRUM COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M18X45	1-09000-790-0	08	1	1310-
35	BOLT; DRUM COVER (A) M10X12	1-47159-187-0	12	1	1310-
