◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11556 - FVR-RHD EURO5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#129134) — 1633 parça

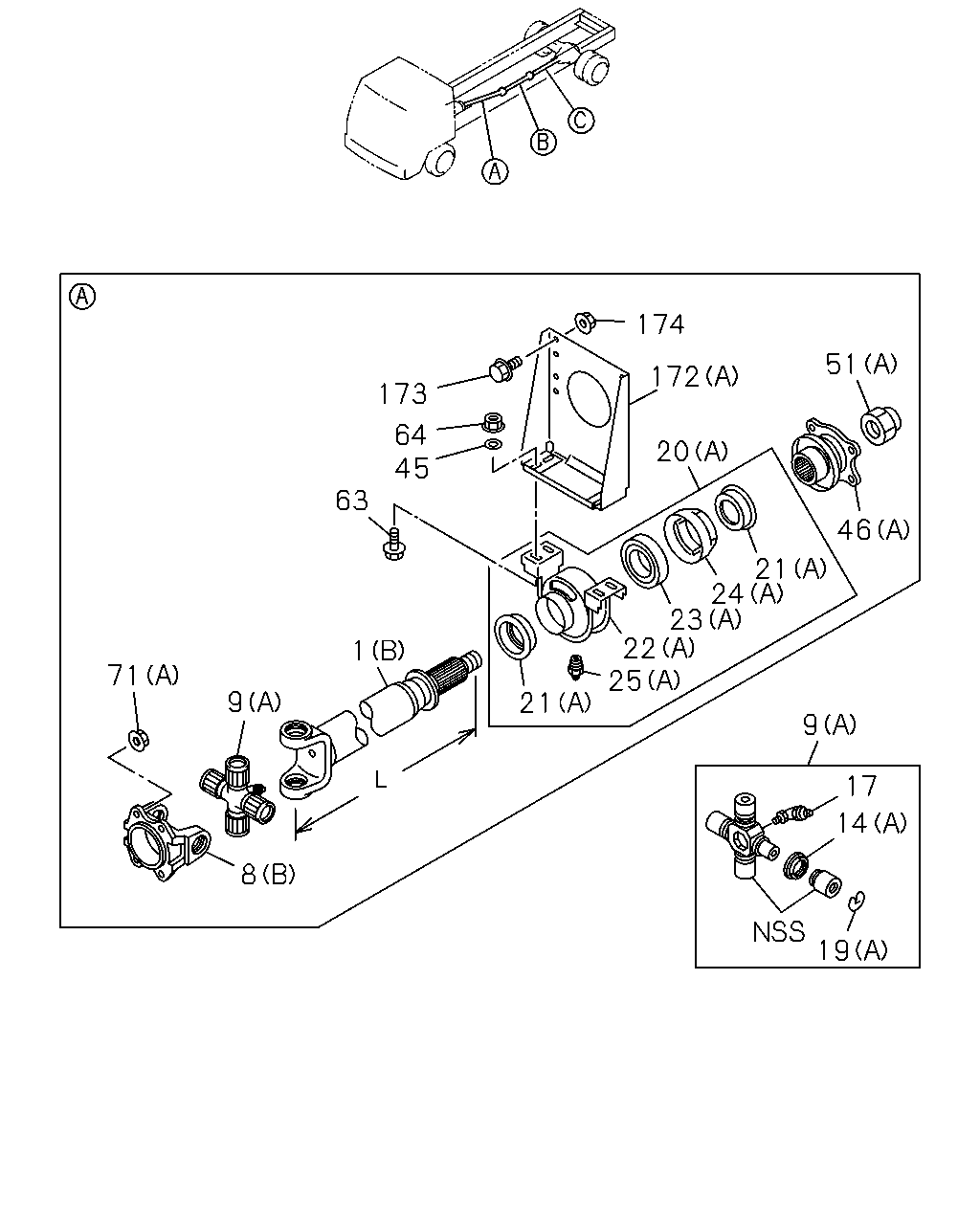

çizim 380372
174 172 51 20 46 21 24 23 22 25 21 9 17 14 19 9 8 1 71 63 45 64 173
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (D) L=1249 		8-98091-270-0 01 1 1411- ●
1 SHAFT; PROP
(D) L=1249 		8-98091-270-0 01 1 1411- ● ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) L=1037 		8-98056-078-0 01 1 1411- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) L=1104 		8-98173-565-0 01 1 1411- ●
1 SHAFT; PROP
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) L=636 		1-37152-028-0 01 1 1411- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) L=1279 		8-98173-566-0 01 1 1411- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (I) L=1299 		1-37125-407-1 01 1 1411- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (G) L=995 		8-98091-465-1 01 1 1411- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (G) L=595 		8-98091-464-1 01 1 1411- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (I) L=1259 		1-37124-820-1 01 1 1411- ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (H) L=1225 		8-98091-473-1 01 1 1411- ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (G) L=1095 		8-98091-482-1 01 1 1411- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (C) L=1234 		8-98069-590-0 01 1 1310- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=719 		8-98069-957-0 01 1 1310- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=639 		8-98090-946-0 01 1 1310- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (A) L=1321 		8-98090-990-0 01 1 1310- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=1214 		1-37124-501-0 01 1 1310-1410 ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (D) L=1214 		1-37124-501-0 01 1 1411- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-222-0 01 1 1310-1410 ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-222-0 01 1 1411- ● ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=786 		1-37152-074-0 01 1 1310-1410 ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (E) L=786 		1-37152-074-0 01 1 1411- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=704 		8-98173-564-0 01 1 1310-1410 ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (E) L=704 		8-98173-564-0 01 1 1411- ●
1 SHAFT; PROP
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) L=704 		8-98173-564-0 01 1 1411- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) L=1124 		8-98232-964-0 01 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (D) 		1-37211-079-1 03 1 1411- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (D) 		1-37211-079-1 01 1 1411- ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-056-3 01 1 1310- ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-056-3 02 1 1310- ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		8-98178-052-0 01 1 1310- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 02 1 1310-1410 ●
8 YOKE; FLANGE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 02 1 1310-1410 ●
8 YOKE; FLANGE,PROP SHAFT
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 01 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (C) 		1-37211-072-1 01 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 01 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (C) 		1-37211-072-1 01 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 01 1 1411- ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 01 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 01 1 1310-1410 ●
8 YOKE; FLANGE,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 01 1 1310-1410 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 02 1 1411- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (C) 		1-37211-072-1 02 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 02 1 1506-1506 ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 01 1 1506- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) NIPPLE 67.5 DEGREES 		1-37300-110-0 02 1 1411-1505 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 03 1 1506-1506 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 03 1 1506- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) NIPPLE 90 DEGREES 		1-37300-111-0 01 1 1411-1505 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) NIPPLE 90 DEGREES 		1-37300-111-0 01 1 1411-1505 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-111-0 01 1 1506-1506 ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-111-0 01 1 1506-1506 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) NIPPLE 67.5 DEGREES 		1-37300-110-0 01 1 1411-1505 ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98048-925-1 AR 1 1310- ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98048-925-1 01 1 1310- ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98048-925-1 02 1 1310- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 DEGREES 		1-37300-094-1 AR 1 1310-1410 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 DEGREES 		1-37300-094-1 AR 1 1310-1410 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 DEGREES 		1-37300-094-1 AR 1 1310-1410 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 DEGREES 		1-37300-094-1 AR 1 1411- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 DEGREES 		1-37300-094-1 AR 1 1411- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 DEGREES 		1-37300-094-1 AR 1 1411- ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) NIPPLE 90 DEGREES 		1-37300-095-1 AR 1 1310-1410 ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) NIPPLE 90 DEGREES 		1-37300-095-1 AR 1 1411- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (C) 		1-37249-131-0 12 1 1411- ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (C) 		1-37249-131-0 04 1 1411- ● ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 		8-98020-800-0 08 1 1310- ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 		8-98020-800-0 04 1 1310- ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 		8-98020-800-0 04 1 1310- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 08 1 1310-1410 ●
14 COVER; DUST,SPIDER
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 08 1 1310-1410 ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 08 1 1411- ● ● ●
14 COVER; DUST,SPIDER
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		9-37352-023-0 08 1 1411- ●
14 COVER; DUST,SPIDER
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1310-1410 ●
14 COVER; DUST,SPIDER
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1310-1410 ●
14 COVER; DUST,SPIDER
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1411- ●
14 COVER; DUST,SPIDER
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		9-37352-023-0 04 1 1411- ●
14 COVER; DUST,SPIDER
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1411- ●
14 COVER; DUST,SPIDER
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		9-37352-023-0 04 1 1411- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1411- ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1411- ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1411- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 02 1 1310- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1310-1410 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1411- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1310-1410 ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1310-1410 ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1310-1410 ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1310-1410 ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1310-1410 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1411-1505 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (B) T=2.2 		1-09587-102-1 12 1 1411- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (B) T=2.2 		1-09587-102-1 04 1 1411- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1310- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1310- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1310- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1310- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1310- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1310- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1310- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1310- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1310- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (C) ID=60 		1-37510-115-0 01 1 1411- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (C) ID=60 		1-37510-115-0 01 1 1411- ● ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98020-881-0 01 1 1310- ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98020-881-0 01 1 1310- ●
20 BEARING ASM; CTR,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 02 1 1310-1410 ●
20 BEARING ASM; CTR,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		1-37510-093-3 02 1 1411- ●
20 BEARING ASM; CTR,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1310-1410 ●
20 BEARING ASM; CTR,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1310-1410 ●
20 BEARING ASM; CTR,PROP SHAFT
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1411- ●
20 BEARING ASM; CTR,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		1-37510-093-3 01 1 1411- ●
20 BEARING ASM; CTR,PROP SHAFT
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1411- ●
20 BEARING ASM; CTR,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		1-37510-093-3 01 1 1411- ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1411- ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1411- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (C) D=120 		1-09625-127-0 01 1 1411- ● ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (C) D=120 		1-09625-127-0 01 1 1411- ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (D) 		1-09625-621-0 01 1 1411- ● ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (D) 		1-09625-621-0 01 1 1411- ● ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 1310- ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 1310- ●
21 SEAL; OIL,CENTER BRG
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) D=120 		1-09625-126-0 04 1 1310-1410 ●
21 SEAL; OIL,CENTER BRG
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) D=120 		1-09625-126-0 04 1 1411- ●
21 SEAL; OIL,CENTER BRG
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) D=120 		1-09625-126-0 02 1 1310-1410 ●
21 SEAL; OIL,CENTER BRG
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) D=120 		1-09625-126-0 02 1 1310-1410 ●
21 SEAL; OIL,CENTER BRG
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) D=120 		1-09625-126-0 02 1 1411- ●
21 SEAL; OIL,CENTER BRG
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) D=120 		1-09625-126-0 02 1 1411- ●
21 SEAL; OIL,CENTER BRG
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) D=120 		1-09625-126-0 02 1 1411- ●
21 SEAL; OIL,CENTER BRG
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) D=120 		1-09625-126-0 02 1 1411- ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (B) D=120 		1-09625-126-0 02 1 1411- ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (B) D=120 		1-09625-126-0 02 1 1411- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (C) 		1-37516-048-2 01 1 1411- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (C) 		1-37516-048-2 01 1 1411- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 1310- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 1310- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 02 1 1310-1410 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		1-37516-047-2 02 1 1411- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1310-1410 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1310-1410 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1411- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		1-37516-047-2 01 1 1411- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1411- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		1-37516-047-2 01 1 1411- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1411- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1411- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		9-00090-256-0 01 1 1411- ● ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		9-00090-256-0 01 1 1411- ● ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 1310- ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 1310- ●
23 BEARING; CENTER,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 02 1 1310-1410 ●
23 BEARING; CENTER,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		9-00090-292-0 02 1 1411- ●
23 BEARING; CENTER,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1310-1410 ●
23 BEARING; CENTER,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1310-1410 ●
23 BEARING; CENTER,PROP SHAFT
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1411- ●
23 BEARING; CENTER,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		9-00090-292-0 01 1 1411- ●
23 BEARING; CENTER,PROP SHAFT
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1411- ●
23 BEARING; CENTER,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		9-00090-292-0 01 1 1411- ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1411- ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1411- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (C) 		1-37529-109-0 01 1 1411- ● ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (C) 		1-37529-109-0 01 1 1411- ● ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		8-98020-882-0 01 1 1310- ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		8-98020-882-0 01 1 1310- ●
24 RETAINER; CENTER BRG,1ST
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 02 1 1310-1410 ●
24 RETAINER; CENTER BRG,1ST
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		1-37529-039-0 02 1 1411- ●
24 RETAINER; CENTER BRG,1ST
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1310-1410 ●
24 RETAINER; CENTER BRG,1ST
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1310-1410 ●
24 RETAINER; CENTER BRG,1ST
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1411- ●
24 RETAINER; CENTER BRG,1ST
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		1-37529-039-0 01 1 1411- ●
24 RETAINER; CENTER BRG,1ST
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1411- ●
24 RETAINER; CENTER BRG,1ST
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		1-37529-039-0 01 1 1411- ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1411- ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
P46 PROP SHAFT(C4Z) (A) 		8-98020-889-0 01 1 1310- ●
25 NIPPLE; GREASE,CENTER BRG
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT 		1-09380-006-0 02 1 1310-1410 ●
25 NIPPLE; GREASE,CENTER BRG
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) MT6 STRAIGHT 		1-09380-006-0 02 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT(C5T) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1310-1410 ●
25 NIPPLE; GREASE,CENTER BRG
P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1310-1410 ●
25 NIPPLE; GREASE,CENTER BRG
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1310-1410 ●
25 NIPPLE; GREASE,CENTER BRG
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1310-1410 ●
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT(C5T) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ● ●
25 NIPPLE; GREASE,CENTER BRG
P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ● ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ●
45 WASHER; PL,RET TO BRKT
P46 PROP SHAFT(C4Z) ID=10.5 OD=22 		0-91614-610-0 04 1 1310- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (C) 		1-37245-348-0 01 1 1411- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (C) 		1-37245-348-0 01 1 1411- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) 		8-98020-815-0 01 1 1310- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) 		8-98020-815-0 01 1 1310- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 02 1 1310-1410 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		1-37245-283-1 02 1 1411- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1310-1410 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1310-1410 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1411- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		1-37245-283-1 01 1 1411- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1411- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		1-37245-283-1 01 1 1411- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1411- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1411- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (C) M39 FLANGE 		1-09440-046-0 01 1 1411- ● ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (C) M39 FLANGE 		1-09440-046-0 01 1 1411- ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 1310- ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 1310- ●
51 NUT; FLANGE,SPLINED
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 02 1 1310-1410 ●
51 NUT; FLANGE,SPLINED
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) M33 FLANGE 		1-09449-051-0 02 1 1411- ●
51 NUT; FLANGE,SPLINED
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1310-1410 ●
51 NUT; FLANGE,SPLINED
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1310-1410 ●
51 NUT; FLANGE,SPLINED
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1411- ●
51 NUT; FLANGE,SPLINED
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) M33 FLANGE 		1-09449-051-0 01 1 1411- ●
51 NUT; FLANGE,SPLINED
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1411- ●
51 NUT; FLANGE,SPLINED
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) M33 FLANGE 		1-09449-051-0 01 1 1411- ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1411- ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1411- ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) M10X35 FLANGE 		0-28651-035-0 04 1 1310- ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) M10X35 FLANGE 		0-28651-035-0 04 1 1310- ●
64 NUT; RET TO BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91180-210-0 04 1 1310- ●
64 NUT; RET TO BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91180-210-0 04 1 1310- ●
71 NUT; YOKE
P90 PROP SHAFT(C5T) (B) M14 FLANGE 		8-97365-444-0 04 1 1411- ● ● ●
71 NUT; YOKE
(A) M16 FLANGE 		1-09449-065-0 04 1 1310-1410 ●
71 NUT; YOKE
P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z) (A) M16 FLANGE 		1-09449-065-0 04 1 1411- ● ● ●
172 BRACKET; CENTER BRG
P46 PROP SHAFT(C4Z) (A) 		1-37515-074-1 01 1 1411- ●
172 BRACKET; CENTER BRG
P46 PROP SHAFT(C4Z) (A) 		1-37515-102-0 01 1 1310- ●
172 BRACKET; CENTER BRG
P46 PROP SHAFT(C4Z) (B) 		1-37515-135-0 01 1 1310- ●
173 BOLT; BRKT
P46 PROP SHAFT(C4Z) M10X25 FLANGE 		0-28651-025-0 04 1 1310-1410 ●
173 BOLT; BRKT
P46 PROP SHAFT(C4Z) M10X25 FLANGE 		0-28651-025-0 04 1 1310-1410 ●
173 BOLT; BRKT
P46 PROP SHAFT(C4Z) M10X25 FLANGE 		0-28651-025-0 04 1 1411- ● ● ●
173 BOLT; BRKT
P46 PROP SHAFT(C4Z) M10X25 FLANGE 		0-28651-025-0 04 1 1411- ● ●
174 NUT; BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91180-210-0 04 1 1310-1410 ●
174 NUT; BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91180-210-0 04 1 1411- ● ● ●
çizim 380424
78 20 1 9 71 8 74 22 24 21 21 51 46 25 23 79 80 81 9 17 14 12 83 84 10 13
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (D) L=1249 		8-98091-270-0 01 1 1411- ●
1 SHAFT; PROP
(D) L=1249 		8-98091-270-0 01 1 1411- ● ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) L=1037 		8-98056-078-0 01 1 1411- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) L=1104 		8-98173-565-0 01 1 1411- ●
1 SHAFT; PROP
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) L=636 		1-37152-028-0 01 1 1411- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) L=1279 		8-98173-566-0 01 1 1411- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (I) L=1299 		1-37125-407-1 01 1 1411- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (G) L=995 		8-98091-465-1 01 1 1411- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (G) L=595 		8-98091-464-1 01 1 1411- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (I) L=1259 		1-37124-820-1 01 1 1411- ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (H) L=1225 		8-98091-473-1 01 1 1411- ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (G) L=1095 		8-98091-482-1 01 1 1411- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (C) L=1234 		8-98069-590-0 01 1 1310- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=719 		8-98069-957-0 01 1 1310- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=639 		8-98090-946-0 01 1 1310- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (A) L=1321 		8-98090-990-0 01 1 1310- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=1214 		1-37124-501-0 01 1 1310-1410 ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (D) L=1214 		1-37124-501-0 01 1 1411- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-222-0 01 1 1310-1410 ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-222-0 01 1 1411- ● ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=786 		1-37152-074-0 01 1 1310-1410 ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (E) L=786 		1-37152-074-0 01 1 1411- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=704 		8-98173-564-0 01 1 1310-1410 ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (E) L=704 		8-98173-564-0 01 1 1411- ●
1 SHAFT; PROP
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) L=704 		8-98173-564-0 01 1 1411- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) L=1124 		8-98232-964-0 01 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (D) 		1-37211-079-1 03 1 1411- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (D) 		1-37211-079-1 01 1 1411- ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-056-3 01 1 1310- ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-056-3 02 1 1310- ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		8-98178-052-0 01 1 1310- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 02 1 1310-1410 ●
8 YOKE; FLANGE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 02 1 1310-1410 ●
8 YOKE; FLANGE,PROP SHAFT
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 01 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (C) 		1-37211-072-1 01 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 01 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (C) 		1-37211-072-1 01 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 01 1 1411- ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 01 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 01 1 1310-1410 ●
8 YOKE; FLANGE,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 01 1 1310-1410 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 02 1 1411- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (C) 		1-37211-072-1 02 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 02 1 1506-1506 ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 01 1 1506- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) NIPPLE 67.5 DEGREES 		1-37300-110-0 02 1 1411-1505 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 03 1 1506-1506 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 03 1 1506- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) NIPPLE 90 DEGREES 		1-37300-111-0 01 1 1411-1505 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) NIPPLE 90 DEGREES 		1-37300-111-0 01 1 1411-1505 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-111-0 01 1 1506-1506 ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-111-0 01 1 1506-1506 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) NIPPLE 67.5 DEGREES 		1-37300-110-0 01 1 1411-1505 ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98048-925-1 AR 1 1310- ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98048-925-1 01 1 1310- ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98048-925-1 02 1 1310- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 DEGREES 		1-37300-094-1 AR 1 1310-1410 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 DEGREES 		1-37300-094-1 AR 1 1310-1410 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 DEGREES 		1-37300-094-1 AR 1 1310-1410 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 DEGREES 		1-37300-094-1 AR 1 1411- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 DEGREES 		1-37300-094-1 AR 1 1411- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 DEGREES 		1-37300-094-1 AR 1 1411- ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) NIPPLE 90 DEGREES 		1-37300-095-1 AR 1 1310-1410 ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) NIPPLE 90 DEGREES 		1-37300-095-1 AR 1 1411- ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 16 1 1310-1410 ●
10 BOLT; UJT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 16 1 1310-1410 ●
10 BOLT; UJT
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 08 1 1411- ●
10 BOLT; UJT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) M10X20 		0-20951-020-0 08 1 1411- ●
10 BOLT; UJT
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 08 1 1411- ●
10 BOLT; UJT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) M10X20 		0-20951-020-0 08 1 1411- ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 08 1 1411- ● ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 08 1 1411- ●
10 BOLT; UJT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 08 1 1310-1410 ●
10 BOLT; UJT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 08 1 1310-1410 ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 16 1 1411- ● ● ●
10 BOLT; UJT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) M10X20 		0-20951-020-0 16 1 1411- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) 		1-37356-010-0 08 1 1310-1410 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) 		1-37356-010-0 08 1 1411- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1310-1410 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1310-1410 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1310-1410 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1411- ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1411- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) 		1-37356-010-0 04 1 1411- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) 		1-37356-010-0 04 1 1411- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1411- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1411- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1411- ●
13 COVER; FRT UJT,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 08 1 1310-1410 ●
13 COVER; FRT UJT,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) T=6 		1-37355-022-0 08 1 1411- ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1310-1410 ●
13 COVER; FRT UJT,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1310-1410 ●
13 COVER; FRT UJT,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1310-1410 ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1411- ● ● ●
13 COVER; FRT UJT,PROP SHAFT
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1411- ●
13 COVER; FRT UJT,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) T=6 		1-37355-022-0 04 1 1411- ●
13 COVER; FRT UJT,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) T=6 		1-37355-022-0 04 1 1411- ●
13 COVER; FRT UJT,PROP SHAFT
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1411- ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1411- ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1411- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (C) 		1-37249-131-0 12 1 1411- ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (C) 		1-37249-131-0 04 1 1411- ● ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 		8-98020-800-0 08 1 1310- ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 		8-98020-800-0 04 1 1310- ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 		8-98020-800-0 04 1 1310- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 08 1 1310-1410 ●
14 COVER; DUST,SPIDER
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 08 1 1310-1410 ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 08 1 1411- ● ● ●
14 COVER; DUST,SPIDER
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		9-37352-023-0 08 1 1411- ●
14 COVER; DUST,SPIDER
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1310-1410 ●
14 COVER; DUST,SPIDER
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1310-1410 ●
14 COVER; DUST,SPIDER
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1411- ●
14 COVER; DUST,SPIDER
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		9-37352-023-0 04 1 1411- ●
14 COVER; DUST,SPIDER
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1411- ●
14 COVER; DUST,SPIDER
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		9-37352-023-0 04 1 1411- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1411- ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1411- ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1411- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 02 1 1310- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1310-1410 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1411- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1310-1410 ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1310-1410 ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1310-1410 ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1310-1410 ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1310-1410 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1411-1505 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (C) ID=60 		1-37510-115-0 01 1 1411- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (C) ID=60 		1-37510-115-0 01 1 1411- ● ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98020-881-0 01 1 1310- ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98020-881-0 01 1 1310- ●
20 BEARING ASM; CTR,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 02 1 1310-1410 ●
20 BEARING ASM; CTR,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		1-37510-093-3 02 1 1411- ●
20 BEARING ASM; CTR,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1310-1410 ●
20 BEARING ASM; CTR,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1310-1410 ●
20 BEARING ASM; CTR,PROP SHAFT
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1411- ●
20 BEARING ASM; CTR,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		1-37510-093-3 01 1 1411- ●
20 BEARING ASM; CTR,PROP SHAFT
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1411- ●
20 BEARING ASM; CTR,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		1-37510-093-3 01 1 1411- ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1411- ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1411- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (C) D=120 		1-09625-127-0 01 1 1411- ● ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (C) D=120 		1-09625-127-0 01 1 1411- ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (D) 		1-09625-621-0 01 1 1411- ● ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (D) 		1-09625-621-0 01 1 1411- ● ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 1310- ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 1310- ●
21 SEAL; OIL,CENTER BRG
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) D=120 		1-09625-126-0 04 1 1310-1410 ●
21 SEAL; OIL,CENTER BRG
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) D=120 		1-09625-126-0 04 1 1411- ●
21 SEAL; OIL,CENTER BRG
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) D=120 		1-09625-126-0 02 1 1310-1410 ●
21 SEAL; OIL,CENTER BRG
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) D=120 		1-09625-126-0 02 1 1310-1410 ●
21 SEAL; OIL,CENTER BRG
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) D=120 		1-09625-126-0 02 1 1411- ●
21 SEAL; OIL,CENTER BRG
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) D=120 		1-09625-126-0 02 1 1411- ●
21 SEAL; OIL,CENTER BRG
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) D=120 		1-09625-126-0 02 1 1411- ●
21 SEAL; OIL,CENTER BRG
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) D=120 		1-09625-126-0 02 1 1411- ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (B) D=120 		1-09625-126-0 02 1 1411- ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (B) D=120 		1-09625-126-0 02 1 1411- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (C) 		1-37516-048-2 01 1 1411- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (C) 		1-37516-048-2 01 1 1411- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 1310- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 1310- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 02 1 1310-1410 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		1-37516-047-2 02 1 1411- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1310-1410 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1310-1410 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1411- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		1-37516-047-2 01 1 1411- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1411- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		1-37516-047-2 01 1 1411- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1411- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1411- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		9-00090-256-0 01 1 1411- ● ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		9-00090-256-0 01 1 1411- ● ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 1310- ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 1310- ●
23 BEARING; CENTER,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 02 1 1310-1410 ●
23 BEARING; CENTER,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		9-00090-292-0 02 1 1411- ●
23 BEARING; CENTER,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1310-1410 ●
23 BEARING; CENTER,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1310-1410 ●
23 BEARING; CENTER,PROP SHAFT
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1411- ●
23 BEARING; CENTER,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		9-00090-292-0 01 1 1411- ●
23 BEARING; CENTER,PROP SHAFT
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1411- ●
23 BEARING; CENTER,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		9-00090-292-0 01 1 1411- ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1411- ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1411- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (C) 		1-37529-109-0 01 1 1411- ● ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (C) 		1-37529-109-0 01 1 1411- ● ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		8-98020-882-0 01 1 1310- ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		8-98020-882-0 01 1 1310- ●
24 RETAINER; CENTER BRG,1ST
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 02 1 1310-1410 ●
24 RETAINER; CENTER BRG,1ST
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		1-37529-039-0 02 1 1411- ●
24 RETAINER; CENTER BRG,1ST
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1310-1410 ●
24 RETAINER; CENTER BRG,1ST
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1310-1410 ●
24 RETAINER; CENTER BRG,1ST
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1411- ●
24 RETAINER; CENTER BRG,1ST
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		1-37529-039-0 01 1 1411- ●
24 RETAINER; CENTER BRG,1ST
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1411- ●
24 RETAINER; CENTER BRG,1ST
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		1-37529-039-0 01 1 1411- ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1411- ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
P46 PROP SHAFT(C4Z) (A) 		8-98020-889-0 01 1 1310- ●
25 NIPPLE; GREASE,CENTER BRG
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT 		1-09380-006-0 02 1 1310-1410 ●
25 NIPPLE; GREASE,CENTER BRG
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) MT6 STRAIGHT 		1-09380-006-0 02 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT(C5T) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1310-1410 ●
25 NIPPLE; GREASE,CENTER BRG
P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1310-1410 ●
25 NIPPLE; GREASE,CENTER BRG
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1310-1410 ●
25 NIPPLE; GREASE,CENTER BRG
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1310-1410 ●
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT(C5T) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ● ●
25 NIPPLE; GREASE,CENTER BRG
P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ● ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (C) 		1-37245-348-0 01 1 1411- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (C) 		1-37245-348-0 01 1 1411- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) 		8-98020-815-0 01 1 1310- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) 		8-98020-815-0 01 1 1310- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 02 1 1310-1410 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		1-37245-283-1 02 1 1411- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1310-1410 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1310-1410 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1411- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		1-37245-283-1 01 1 1411- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1411- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		1-37245-283-1 01 1 1411- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1411- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1411- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (C) M39 FLANGE 		1-09440-046-0 01 1 1411- ● ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (C) M39 FLANGE 		1-09440-046-0 01 1 1411- ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 1310- ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 1310- ●
51 NUT; FLANGE,SPLINED
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 02 1 1310-1410 ●
51 NUT; FLANGE,SPLINED
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) M33 FLANGE 		1-09449-051-0 02 1 1411- ●
51 NUT; FLANGE,SPLINED
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1310-1410 ●
51 NUT; FLANGE,SPLINED
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1310-1410 ●
51 NUT; FLANGE,SPLINED
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1411- ●
51 NUT; FLANGE,SPLINED
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) M33 FLANGE 		1-09449-051-0 01 1 1411- ●
51 NUT; FLANGE,SPLINED
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1411- ●
51 NUT; FLANGE,SPLINED
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) M33 FLANGE 		1-09449-051-0 01 1 1411- ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1411- ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1411- ●
71 NUT; YOKE
P90 PROP SHAFT(C5T) (B) M14 FLANGE 		8-97365-444-0 04 1 1411- ● ● ●
71 NUT; YOKE
(A) M16 FLANGE 		1-09449-065-0 04 1 1310-1410 ●
71 NUT; YOKE
P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z) (A) M16 FLANGE 		1-09449-065-0 04 1 1411- ● ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (C) M14X50 		1-09000-645-0 04 1 1411- ● ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (C) M14X50 		1-09000-645-0 04 1 1411- ● ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (C) M14X50 		1-09000-645-0 04 1 1411- ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) (A) M14X37 		1-09000-121-0 04 1 1310- ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) (A) M14X37 		1-09000-121-0 08 1 1310- ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 04 1 1310-1410 ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 04 1 1310-1410 ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 04 1 1310-1410 ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 04 1 1411- ● ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 04 1 1411- ● ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 04 1 1411- ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
P60 PROP SHAFT(C2M) M16X45 		1-09042-030-0 02 1 1310-1410 ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) M16X45 		1-09042-030-0 02 1 1411- ● ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
P60 PROP SHAFT(C2M) ID=17 		1-09503-241-1 02 1 1310-1410 ●
79 WASHER; PL,HOLDER SET,CENTER BRG
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) ID=17 		1-09503-241-1 02 1 1411- ● ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
P60 PROP SHAFT(C2M) M16 SLOTTED 		8-98049-689-0 02 1 1310-1410 ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) M16 SLOTTED 		8-98049-689-0 02 1 1411- ● ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
P60 PROP SHAFT(C2M) OD=3.7 L=25 		0-81124-025-0 02 1 1310-1410 ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) OD=3.7 L=25 		0-81124-025-0 02 1 1411- ● ● ●
83 PLATE; LK,UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1310-1410 ●
83 PLATE; LK,UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1411- ● ● ●
84 COVER; UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1310-1410 ●
84 COVER; UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1411- ● ● ●
çizim 380766
91 51 46 92 21 24 22 21 20 1 9 49 8 74 93 94 23 25 56 74 56 8 9 1 128 107 106 106 225 104 74 9 8 17 13 84 10 83 12 9 14
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (D) L=1249 		8-98091-270-0 01 1 1411- ●
1 SHAFT; PROP
(D) L=1249 		8-98091-270-0 01 1 1411- ● ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) L=1037 		8-98056-078-0 01 1 1411- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) L=1104 		8-98173-565-0 01 1 1411- ●
1 SHAFT; PROP
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) L=636 		1-37152-028-0 01 1 1411- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) L=1279 		8-98173-566-0 01 1 1411- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (I) L=1299 		1-37125-407-1 01 1 1411- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (G) L=995 		8-98091-465-1 01 1 1411- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (G) L=595 		8-98091-464-1 01 1 1411- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (I) L=1259 		1-37124-820-1 01 1 1411- ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (H) L=1225 		8-98091-473-1 01 1 1411- ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (G) L=1095 		8-98091-482-1 01 1 1411- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (C) L=1234 		8-98069-590-0 01 1 1310- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=719 		8-98069-957-0 01 1 1310- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=639 		8-98090-946-0 01 1 1310- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (A) L=1321 		8-98090-990-0 01 1 1310- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=1214 		1-37124-501-0 01 1 1310-1410 ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (D) L=1214 		1-37124-501-0 01 1 1411- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-222-0 01 1 1310-1410 ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-222-0 01 1 1411- ● ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=786 		1-37152-074-0 01 1 1310-1410 ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (E) L=786 		1-37152-074-0 01 1 1411- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=704 		8-98173-564-0 01 1 1310-1410 ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (E) L=704 		8-98173-564-0 01 1 1411- ●
1 SHAFT; PROP
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) L=704 		8-98173-564-0 01 1 1411- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) L=1124 		8-98232-964-0 01 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (D) 		1-37211-079-1 03 1 1411- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (D) 		1-37211-079-1 01 1 1411- ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-056-3 01 1 1310- ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-056-3 02 1 1310- ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		8-98178-052-0 01 1 1310- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 02 1 1310-1410 ●
8 YOKE; FLANGE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 02 1 1310-1410 ●
8 YOKE; FLANGE,PROP SHAFT
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 01 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (C) 		1-37211-072-1 01 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 01 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (C) 		1-37211-072-1 01 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 01 1 1411- ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 01 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 01 1 1310-1410 ●
8 YOKE; FLANGE,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 01 1 1310-1410 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 02 1 1411- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (C) 		1-37211-072-1 02 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 02 1 1506-1506 ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 01 1 1506- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) NIPPLE 67.5 DEGREES 		1-37300-110-0 02 1 1411-1505 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 03 1 1506-1506 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 03 1 1506- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) NIPPLE 90 DEGREES 		1-37300-111-0 01 1 1411-1505 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) NIPPLE 90 DEGREES 		1-37300-111-0 01 1 1411-1505 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-111-0 01 1 1506-1506 ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-111-0 01 1 1506-1506 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) NIPPLE 67.5 DEGREES 		1-37300-110-0 01 1 1411-1505 ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98048-925-1 AR 1 1310- ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98048-925-1 01 1 1310- ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98048-925-1 02 1 1310- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 DEGREES 		1-37300-094-1 AR 1 1310-1410 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 DEGREES 		1-37300-094-1 AR 1 1310-1410 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 DEGREES 		1-37300-094-1 AR 1 1310-1410 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 DEGREES 		1-37300-094-1 AR 1 1411- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 DEGREES 		1-37300-094-1 AR 1 1411- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 DEGREES 		1-37300-094-1 AR 1 1411- ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) NIPPLE 90 DEGREES 		1-37300-095-1 AR 1 1310-1410 ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) NIPPLE 90 DEGREES 		1-37300-095-1 AR 1 1411- ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 16 1 1310-1410 ●
10 BOLT; UJT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 16 1 1310-1410 ●
10 BOLT; UJT
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 08 1 1411- ●
10 BOLT; UJT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) M10X20 		0-20951-020-0 08 1 1411- ●
10 BOLT; UJT
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 08 1 1411- ●
10 BOLT; UJT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) M10X20 		0-20951-020-0 08 1 1411- ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 08 1 1411- ● ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 08 1 1411- ●
10 BOLT; UJT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 08 1 1310-1410 ●
10 BOLT; UJT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 08 1 1310-1410 ●
10 BOLT; UJT
P60 PROP SHAFT(C2M) M10X20 		0-20951-020-0 16 1 1411- ● ● ●
10 BOLT; UJT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) M10X20 		0-20951-020-0 16 1 1411- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) 		1-37356-010-0 08 1 1310-1410 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) 		1-37356-010-0 08 1 1411- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1310-1410 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1310-1410 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1310-1410 ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1411- ● ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1411- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) 		1-37356-010-0 04 1 1411- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) 		1-37356-010-0 04 1 1411- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1411- ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1411- ● ●
12 PLATE; LK,FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1411- ●
13 COVER; FRT UJT,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 08 1 1310-1410 ●
13 COVER; FRT UJT,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) T=6 		1-37355-022-0 08 1 1411- ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1310-1410 ●
13 COVER; FRT UJT,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1310-1410 ●
13 COVER; FRT UJT,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1310-1410 ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1411- ● ● ●
13 COVER; FRT UJT,PROP SHAFT
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1411- ●
13 COVER; FRT UJT,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) T=6 		1-37355-022-0 04 1 1411- ●
13 COVER; FRT UJT,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) T=6 		1-37355-022-0 04 1 1411- ●
13 COVER; FRT UJT,PROP SHAFT
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1411- ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1411- ● ●
13 COVER; FRT UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1411- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (C) 		1-37249-131-0 12 1 1411- ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (C) 		1-37249-131-0 04 1 1411- ● ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 		8-98020-800-0 08 1 1310- ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 		8-98020-800-0 04 1 1310- ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 		8-98020-800-0 04 1 1310- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 08 1 1310-1410 ●
14 COVER; DUST,SPIDER
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 08 1 1310-1410 ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 08 1 1411- ● ● ●
14 COVER; DUST,SPIDER
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		9-37352-023-0 08 1 1411- ●
14 COVER; DUST,SPIDER
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1310-1410 ●
14 COVER; DUST,SPIDER
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1310-1410 ●
14 COVER; DUST,SPIDER
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1411- ●
14 COVER; DUST,SPIDER
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		9-37352-023-0 04 1 1411- ●
14 COVER; DUST,SPIDER
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1411- ●
14 COVER; DUST,SPIDER
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		9-37352-023-0 04 1 1411- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1411- ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1411- ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1411- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 02 1 1310- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1310-1410 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1411- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1310-1410 ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1310-1410 ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1310-1410 ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1310-1410 ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1310-1410 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1411-1505 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (C) ID=60 		1-37510-115-0 01 1 1411- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (C) ID=60 		1-37510-115-0 01 1 1411- ● ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98020-881-0 01 1 1310- ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98020-881-0 01 1 1310- ●
20 BEARING ASM; CTR,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 02 1 1310-1410 ●
20 BEARING ASM; CTR,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		1-37510-093-3 02 1 1411- ●
20 BEARING ASM; CTR,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1310-1410 ●
20 BEARING ASM; CTR,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1310-1410 ●
20 BEARING ASM; CTR,PROP SHAFT
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1411- ●
20 BEARING ASM; CTR,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		1-37510-093-3 01 1 1411- ●
20 BEARING ASM; CTR,PROP SHAFT
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1411- ●
20 BEARING ASM; CTR,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		1-37510-093-3 01 1 1411- ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1411- ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1411- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (C) D=120 		1-09625-127-0 01 1 1411- ● ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (C) D=120 		1-09625-127-0 01 1 1411- ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (D) 		1-09625-621-0 01 1 1411- ● ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (D) 		1-09625-621-0 01 1 1411- ● ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 1310- ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 1310- ●
21 SEAL; OIL,CENTER BRG
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) D=120 		1-09625-126-0 04 1 1310-1410 ●
21 SEAL; OIL,CENTER BRG
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) D=120 		1-09625-126-0 04 1 1411- ●
21 SEAL; OIL,CENTER BRG
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) D=120 		1-09625-126-0 02 1 1310-1410 ●
21 SEAL; OIL,CENTER BRG
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) D=120 		1-09625-126-0 02 1 1310-1410 ●
21 SEAL; OIL,CENTER BRG
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) D=120 		1-09625-126-0 02 1 1411- ●
21 SEAL; OIL,CENTER BRG
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) D=120 		1-09625-126-0 02 1 1411- ●
21 SEAL; OIL,CENTER BRG
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) D=120 		1-09625-126-0 02 1 1411- ●
21 SEAL; OIL,CENTER BRG
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) D=120 		1-09625-126-0 02 1 1411- ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (B) D=120 		1-09625-126-0 02 1 1411- ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (B) D=120 		1-09625-126-0 02 1 1411- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (C) 		1-37516-048-2 01 1 1411- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (C) 		1-37516-048-2 01 1 1411- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 1310- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 1310- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 02 1 1310-1410 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		1-37516-047-2 02 1 1411- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1310-1410 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1310-1410 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1411- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		1-37516-047-2 01 1 1411- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1411- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		1-37516-047-2 01 1 1411- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1411- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1411- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		9-00090-256-0 01 1 1411- ● ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		9-00090-256-0 01 1 1411- ● ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 1310- ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 1310- ●
23 BEARING; CENTER,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 02 1 1310-1410 ●
23 BEARING; CENTER,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		9-00090-292-0 02 1 1411- ●
23 BEARING; CENTER,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1310-1410 ●
23 BEARING; CENTER,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1310-1410 ●
23 BEARING; CENTER,PROP SHAFT
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1411- ●
23 BEARING; CENTER,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		9-00090-292-0 01 1 1411- ●
23 BEARING; CENTER,PROP SHAFT
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1411- ●
23 BEARING; CENTER,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		9-00090-292-0 01 1 1411- ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1411- ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1411- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (C) 		1-37529-109-0 01 1 1411- ● ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (C) 		1-37529-109-0 01 1 1411- ● ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		8-98020-882-0 01 1 1310- ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		8-98020-882-0 01 1 1310- ●
24 RETAINER; CENTER BRG,1ST
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 02 1 1310-1410 ●
24 RETAINER; CENTER BRG,1ST
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		1-37529-039-0 02 1 1411- ●
24 RETAINER; CENTER BRG,1ST
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1310-1410 ●
24 RETAINER; CENTER BRG,1ST
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1310-1410 ●
24 RETAINER; CENTER BRG,1ST
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1411- ●
24 RETAINER; CENTER BRG,1ST
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		1-37529-039-0 01 1 1411- ●
24 RETAINER; CENTER BRG,1ST
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1411- ●
24 RETAINER; CENTER BRG,1ST
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		1-37529-039-0 01 1 1411- ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1411- ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
P46 PROP SHAFT(C4Z) (A) 		8-98020-889-0 01 1 1310- ●
25 NIPPLE; GREASE,CENTER BRG
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT 		1-09380-006-0 02 1 1310-1410 ●
25 NIPPLE; GREASE,CENTER BRG
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) MT6 STRAIGHT 		1-09380-006-0 02 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT(C5T) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1310-1410 ●
25 NIPPLE; GREASE,CENTER BRG
P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1310-1410 ●
25 NIPPLE; GREASE,CENTER BRG
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1310-1410 ●
25 NIPPLE; GREASE,CENTER BRG
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1310-1410 ●
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT(C5T) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ● ●
25 NIPPLE; GREASE,CENTER BRG
P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ● ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (C) 		1-37245-348-0 01 1 1411- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (C) 		1-37245-348-0 01 1 1411- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) 		8-98020-815-0 01 1 1310- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) 		8-98020-815-0 01 1 1310- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 02 1 1310-1410 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		1-37245-283-1 02 1 1411- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1310-1410 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1310-1410 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1411- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		1-37245-283-1 01 1 1411- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1411- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		1-37245-283-1 01 1 1411- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1411- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1411- ●
49 NUT; YOKE
P90 PROP SHAFT(C5T) (C) M14 FLANGE 		8-97365-444-0 04 1 1411- ● ●
49 NUT; YOKE
P46 PROP SHAFT(C4Z) (A) M14 		0-91110-514-0 04 1 1310- ●
49 NUT; YOKE
P60 PROP SHAFT(C2M) (B) M16 FLANGE 		1-09449-065-0 04 1 1310-1410 ●
49 NUT; YOKE
P60 PROP SHAFT(C2M) (B) M16 FLANGE 		1-09449-065-0 04 1 1411- ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (C) M39 FLANGE 		1-09440-046-0 01 1 1411- ● ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (C) M39 FLANGE 		1-09440-046-0 01 1 1411- ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 1310- ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 1310- ●
51 NUT; FLANGE,SPLINED
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 02 1 1310-1410 ●
51 NUT; FLANGE,SPLINED
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) M33 FLANGE 		1-09449-051-0 02 1 1411- ●
51 NUT; FLANGE,SPLINED
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1310-1410 ●
51 NUT; FLANGE,SPLINED
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1310-1410 ●
51 NUT; FLANGE,SPLINED
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1411- ●
51 NUT; FLANGE,SPLINED
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) M33 FLANGE 		1-09449-051-0 01 1 1411- ●
51 NUT; FLANGE,SPLINED
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1411- ●
51 NUT; FLANGE,SPLINED
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) M33 FLANGE 		1-09449-051-0 01 1 1411- ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1411- ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1411- ●
56 NUT; YOKE
P90 PROP SHAFT(C5T) (C) M14 FLANGE 		8-97365-444-0 08 1 1411- ● ● ●
56 NUT; YOKE
P46 PROP SHAFT(C4Z) (A) M14 		0-91110-514-0 08 1 1310- ●
56 NUT; YOKE
P60 PROP SHAFT(C2M) (B) M16 FLANGE 		1-09449-065-0 08 1 1310-1410 ●
56 NUT; YOKE
P60 PROP SHAFT(C2M) (B) M16 FLANGE 		1-09449-065-0 08 1 1411- ● ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (C) M14X50 		1-09000-645-0 04 1 1411- ● ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (C) M14X50 		1-09000-645-0 04 1 1411- ● ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (C) M14X50 		1-09000-645-0 04 1 1411- ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) (A) M14X37 		1-09000-121-0 04 1 1310- ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) (A) M14X37 		1-09000-121-0 08 1 1310- ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 04 1 1310-1410 ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 04 1 1310-1410 ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 04 1 1310-1410 ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 04 1 1411- ● ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 04 1 1411- ● ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 04 1 1411- ● ●
83 PLATE; LK,UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1310-1410 ●
83 PLATE; LK,UJT,PROP SHAFT
P60 PROP SHAFT(C2M) 		1-37356-010-0 04 1 1411- ● ● ●
84 COVER; UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1310-1410 ●
84 COVER; UJT,PROP SHAFT
P60 PROP SHAFT(C2M) T=6 		1-37355-022-0 04 1 1411- ● ● ●
91 BOLT; HOLDER SET,CTR BRG
P60 PROP SHAFT(C2M) M16X45 		1-09042-030-0 02 1 1310-1410 ●
91 BOLT; HOLDER SET,CTR BRG
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) M16X45 		1-09042-030-0 02 1 1411- ● ● ●
92 WASHER; LK,HOLDER SET,CTR BRG
P60 PROP SHAFT(C2M) ID=17 		1-09503-241-1 02 1 1310-1410 ●
92 WASHER; LK,HOLDER SET,CTR BRG
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) ID=17 		1-09503-241-1 02 1 1411- ● ● ●
93 NUT; HOLDER SET,CTR BRG
P60 PROP SHAFT(C2M) M16 SLOTTED 		8-98049-689-0 02 1 1310-1410 ●
93 NUT; HOLDER SET,CTR BRG
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) M16 SLOTTED 		8-98049-689-0 02 1 1411- ● ● ●
94 PIN; SPLIT,HOLDER SET CTR BRG
P60 PROP SHAFT(C2M) OD=3.7 L=25 		0-81124-025-0 02 1 1310-1410 ●
94 PIN; SPLIT,HOLDER SET CTR BRG
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) OD=3.7 L=25 		0-81124-025-0 02 1 1411- ● ● ●
104 PLUG; SLEEVE YOKE
P46 PROP SHAFT(C4Z) (A) 		1-09600-064-0 01 1 1310- ●
104 PLUG; SLEEVE YOKE
P60 PROP SHAFT(C2M) (B) 		1-09600-067-0 01 1 1310-1410 ●
104 PLUG; SLEEVE YOKE
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (B) 		1-09600-067-0 01 1 1411- ●
104 PLUG; SLEEVE YOKE
P90 PROP SHAFT(C5T) (B) 		1-09600-067-0 01 1 1411- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) M6 STRAIGHT 		0-90301-406-0 01 1 1310- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) PT1/8 STRAIGHT 		0-90301-410-0 01 1 1310-1410 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (C) PT1/8 STRAIGHT 		0-90301-410-0 01 1 1411- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) PT1/8 STRAIGHT 		0-90301-410-0 01 1 1411- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1310-1410 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ● ● ●
107 COVER; RET,SLEEVE
P60 PROP SHAFT(C2M) 		1-37249-137-1 01 1 1310-1410 ●
107 COVER; RET,SLEEVE
P60 PROP SHAFT(C2M) 		1-37249-137-1 01 1 1411- ● ● ●
128 SEAL; SLEEVE
P90 PROP SHAFT(C5T) (C) 		1-37247-019-0 01 1 1411- ● ● ●
128 SEAL; SLEEVE
P46 PROP SHAFT(C4Z) (A) 		1-37247-024-0 01 1 1310- ●
128 SEAL; SLEEVE
P60 PROP SHAFT(C2M) (B) 		1-37247-021-0 01 1 1310-1410 ●
128 SEAL; SLEEVE
P60 PROP SHAFT(C2M) (B) 		1-37247-021-0 01 1 1411- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) L=330 		1-37241-124-0 01 1 1411- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) L=254 		8-98020-885-0 01 1 1310- ●
225 YOKE; SLEEVE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) L=332 		1-37241-109-1 01 1 1310-1410 ●
225 YOKE; SLEEVE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) L=332 		1-37241-109-1 01 1 1411- ● ● ●
çizim 381646
21 1 9 49 52 8 74 63 60 64 173 177 172 20 21 24 23 22 25 46 51 74 8 57 56 1 9 128 225 106 9 8 104 57 56 74 9 17 14 19
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (D) L=1249 		8-98091-270-0 01 1 1411- ●
1 SHAFT; PROP
(D) L=1249 		8-98091-270-0 01 1 1411- ● ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) L=1037 		8-98056-078-0 01 1 1411- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) L=1104 		8-98173-565-0 01 1 1411- ●
1 SHAFT; PROP
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) L=636 		1-37152-028-0 01 1 1411- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) L=1279 		8-98173-566-0 01 1 1411- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (I) L=1299 		1-37125-407-1 01 1 1411- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (G) L=995 		8-98091-465-1 01 1 1411- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (G) L=595 		8-98091-464-1 01 1 1411- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (I) L=1259 		1-37124-820-1 01 1 1411- ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (H) L=1225 		8-98091-473-1 01 1 1411- ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (G) L=1095 		8-98091-482-1 01 1 1411- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (C) L=1234 		8-98069-590-0 01 1 1310- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=719 		8-98069-957-0 01 1 1310- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=639 		8-98090-946-0 01 1 1310- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (A) L=1321 		8-98090-990-0 01 1 1310- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=1214 		1-37124-501-0 01 1 1310-1410 ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (D) L=1214 		1-37124-501-0 01 1 1411- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-222-0 01 1 1310-1410 ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-222-0 01 1 1411- ● ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=786 		1-37152-074-0 01 1 1310-1410 ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (E) L=786 		1-37152-074-0 01 1 1411- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=704 		8-98173-564-0 01 1 1310-1410 ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (E) L=704 		8-98173-564-0 01 1 1411- ●
1 SHAFT; PROP
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) L=704 		8-98173-564-0 01 1 1411- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) L=1124 		8-98232-964-0 01 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (D) 		1-37211-079-1 03 1 1411- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (D) 		1-37211-079-1 01 1 1411- ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-056-3 01 1 1310- ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-056-3 02 1 1310- ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		8-98178-052-0 01 1 1310- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 02 1 1310-1410 ●
8 YOKE; FLANGE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 02 1 1310-1410 ●
8 YOKE; FLANGE,PROP SHAFT
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 01 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (C) 		1-37211-072-1 01 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 01 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (C) 		1-37211-072-1 01 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 01 1 1411- ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 01 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 01 1 1310-1410 ●
8 YOKE; FLANGE,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 01 1 1310-1410 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 02 1 1411- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (C) 		1-37211-072-1 02 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 02 1 1506-1506 ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 01 1 1506- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) NIPPLE 67.5 DEGREES 		1-37300-110-0 02 1 1411-1505 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 03 1 1506-1506 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 03 1 1506- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) NIPPLE 90 DEGREES 		1-37300-111-0 01 1 1411-1505 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) NIPPLE 90 DEGREES 		1-37300-111-0 01 1 1411-1505 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-111-0 01 1 1506-1506 ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-111-0 01 1 1506-1506 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) NIPPLE 67.5 DEGREES 		1-37300-110-0 01 1 1411-1505 ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98048-925-1 AR 1 1310- ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98048-925-1 01 1 1310- ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98048-925-1 02 1 1310- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 DEGREES 		1-37300-094-1 AR 1 1310-1410 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 DEGREES 		1-37300-094-1 AR 1 1310-1410 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 DEGREES 		1-37300-094-1 AR 1 1310-1410 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 DEGREES 		1-37300-094-1 AR 1 1411- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 DEGREES 		1-37300-094-1 AR 1 1411- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 DEGREES 		1-37300-094-1 AR 1 1411- ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) NIPPLE 90 DEGREES 		1-37300-095-1 AR 1 1310-1410 ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) NIPPLE 90 DEGREES 		1-37300-095-1 AR 1 1411- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (C) 		1-37249-131-0 12 1 1411- ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (C) 		1-37249-131-0 04 1 1411- ● ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 		8-98020-800-0 08 1 1310- ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 		8-98020-800-0 04 1 1310- ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 		8-98020-800-0 04 1 1310- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 08 1 1310-1410 ●
14 COVER; DUST,SPIDER
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 08 1 1310-1410 ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 08 1 1411- ● ● ●
14 COVER; DUST,SPIDER
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		9-37352-023-0 08 1 1411- ●
14 COVER; DUST,SPIDER
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1310-1410 ●
14 COVER; DUST,SPIDER
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1310-1410 ●
14 COVER; DUST,SPIDER
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1411- ●
14 COVER; DUST,SPIDER
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		9-37352-023-0 04 1 1411- ●
14 COVER; DUST,SPIDER
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1411- ●
14 COVER; DUST,SPIDER
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		9-37352-023-0 04 1 1411- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1411- ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1411- ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1411- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 02 1 1310- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1310-1410 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1411- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1310-1410 ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1310-1410 ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1310-1410 ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1310-1410 ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1310-1410 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1411-1505 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (B) T=2.2 		1-09587-102-1 12 1 1411- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (B) T=2.2 		1-09587-102-1 04 1 1411- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1310- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1310- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1310- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1310- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1310- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1310- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1310- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1310- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1310- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (C) ID=60 		1-37510-115-0 01 1 1411- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (C) ID=60 		1-37510-115-0 01 1 1411- ● ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98020-881-0 01 1 1310- ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98020-881-0 01 1 1310- ●
20 BEARING ASM; CTR,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 02 1 1310-1410 ●
20 BEARING ASM; CTR,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		1-37510-093-3 02 1 1411- ●
20 BEARING ASM; CTR,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1310-1410 ●
20 BEARING ASM; CTR,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1310-1410 ●
20 BEARING ASM; CTR,PROP SHAFT
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1411- ●
20 BEARING ASM; CTR,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		1-37510-093-3 01 1 1411- ●
20 BEARING ASM; CTR,PROP SHAFT
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1411- ●
20 BEARING ASM; CTR,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		1-37510-093-3 01 1 1411- ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1411- ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1411- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (C) D=120 		1-09625-127-0 01 1 1411- ● ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (C) D=120 		1-09625-127-0 01 1 1411- ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (D) 		1-09625-621-0 01 1 1411- ● ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (D) 		1-09625-621-0 01 1 1411- ● ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 1310- ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 1310- ●
21 SEAL; OIL,CENTER BRG
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) D=120 		1-09625-126-0 04 1 1310-1410 ●
21 SEAL; OIL,CENTER BRG
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) D=120 		1-09625-126-0 04 1 1411- ●
21 SEAL; OIL,CENTER BRG
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) D=120 		1-09625-126-0 02 1 1310-1410 ●
21 SEAL; OIL,CENTER BRG
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) D=120 		1-09625-126-0 02 1 1310-1410 ●
21 SEAL; OIL,CENTER BRG
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) D=120 		1-09625-126-0 02 1 1411- ●
21 SEAL; OIL,CENTER BRG
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) D=120 		1-09625-126-0 02 1 1411- ●
21 SEAL; OIL,CENTER BRG
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) D=120 		1-09625-126-0 02 1 1411- ●
21 SEAL; OIL,CENTER BRG
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) D=120 		1-09625-126-0 02 1 1411- ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (B) D=120 		1-09625-126-0 02 1 1411- ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (B) D=120 		1-09625-126-0 02 1 1411- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (C) 		1-37516-048-2 01 1 1411- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (C) 		1-37516-048-2 01 1 1411- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 1310- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 1310- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 02 1 1310-1410 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		1-37516-047-2 02 1 1411- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1310-1410 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1310-1410 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1411- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		1-37516-047-2 01 1 1411- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1411- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		1-37516-047-2 01 1 1411- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1411- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1411- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		9-00090-256-0 01 1 1411- ● ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		9-00090-256-0 01 1 1411- ● ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 1310- ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 1310- ●
23 BEARING; CENTER,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 02 1 1310-1410 ●
23 BEARING; CENTER,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		9-00090-292-0 02 1 1411- ●
23 BEARING; CENTER,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1310-1410 ●
23 BEARING; CENTER,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1310-1410 ●
23 BEARING; CENTER,PROP SHAFT
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1411- ●
23 BEARING; CENTER,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		9-00090-292-0 01 1 1411- ●
23 BEARING; CENTER,PROP SHAFT
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1411- ●
23 BEARING; CENTER,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		9-00090-292-0 01 1 1411- ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1411- ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1411- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (C) 		1-37529-109-0 01 1 1411- ● ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (C) 		1-37529-109-0 01 1 1411- ● ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		8-98020-882-0 01 1 1310- ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		8-98020-882-0 01 1 1310- ●
24 RETAINER; CENTER BRG,1ST
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 02 1 1310-1410 ●
24 RETAINER; CENTER BRG,1ST
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		1-37529-039-0 02 1 1411- ●
24 RETAINER; CENTER BRG,1ST
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1310-1410 ●
24 RETAINER; CENTER BRG,1ST
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1310-1410 ●
24 RETAINER; CENTER BRG,1ST
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1411- ●
24 RETAINER; CENTER BRG,1ST
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		1-37529-039-0 01 1 1411- ●
24 RETAINER; CENTER BRG,1ST
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1411- ●
24 RETAINER; CENTER BRG,1ST
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		1-37529-039-0 01 1 1411- ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1411- ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
P46 PROP SHAFT(C4Z) (A) 		8-98020-889-0 01 1 1310- ●
25 NIPPLE; GREASE,CENTER BRG
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT 		1-09380-006-0 02 1 1310-1410 ●
25 NIPPLE; GREASE,CENTER BRG
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) MT6 STRAIGHT 		1-09380-006-0 02 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT(C5T) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1310-1410 ●
25 NIPPLE; GREASE,CENTER BRG
P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1310-1410 ●
25 NIPPLE; GREASE,CENTER BRG
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1310-1410 ●
25 NIPPLE; GREASE,CENTER BRG
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1310-1410 ●
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT(C5T) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ● ●
25 NIPPLE; GREASE,CENTER BRG
P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ● ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (C) 		1-37245-348-0 01 1 1411- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (C) 		1-37245-348-0 01 1 1411- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) 		8-98020-815-0 01 1 1310- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) 		8-98020-815-0 01 1 1310- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 02 1 1310-1410 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		1-37245-283-1 02 1 1411- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1310-1410 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1310-1410 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1411- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		1-37245-283-1 01 1 1411- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1411- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		1-37245-283-1 01 1 1411- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1411- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1411- ●
49 NUT; YOKE
P90 PROP SHAFT(C5T) (C) M14 FLANGE 		8-97365-444-0 04 1 1411- ● ●
49 NUT; YOKE
P46 PROP SHAFT(C4Z) (A) M14 		0-91110-514-0 04 1 1310- ●
49 NUT; YOKE
P60 PROP SHAFT(C2M) (B) M16 FLANGE 		1-09449-065-0 04 1 1310-1410 ●
49 NUT; YOKE
P60 PROP SHAFT(C2M) (B) M16 FLANGE 		1-09449-065-0 04 1 1411- ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (C) M39 FLANGE 		1-09440-046-0 01 1 1411- ● ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (C) M39 FLANGE 		1-09440-046-0 01 1 1411- ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 1310- ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 1310- ●
51 NUT; FLANGE,SPLINED
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 02 1 1310-1410 ●
51 NUT; FLANGE,SPLINED
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) M33 FLANGE 		1-09449-051-0 02 1 1411- ●
51 NUT; FLANGE,SPLINED
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1310-1410 ●
51 NUT; FLANGE,SPLINED
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1310-1410 ●
51 NUT; FLANGE,SPLINED
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1411- ●
51 NUT; FLANGE,SPLINED
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) M33 FLANGE 		1-09449-051-0 01 1 1411- ●
51 NUT; FLANGE,SPLINED
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1411- ●
51 NUT; FLANGE,SPLINED
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) M33 FLANGE 		1-09449-051-0 01 1 1411- ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1411- ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1411- ●
52 WASHER; LK,YOKE
P46 PROP SHAFT(C4Z) ID=14.2 		0-91510-614-0 04 1 1310- ●
56 NUT; YOKE
P90 PROP SHAFT(C5T) (C) M14 FLANGE 		8-97365-444-0 08 1 1411- ● ● ●
56 NUT; YOKE
P46 PROP SHAFT(C4Z) (A) M14 		0-91110-514-0 08 1 1310- ●
56 NUT; YOKE
P60 PROP SHAFT(C2M) (B) M16 FLANGE 		1-09449-065-0 08 1 1310-1410 ●
56 NUT; YOKE
P60 PROP SHAFT(C2M) (B) M16 FLANGE 		1-09449-065-0 08 1 1411- ● ● ●
57 WASHER; LK,YOKE
P46 PROP SHAFT(C4Z) ID=14.2 		0-91510-614-0 08 1 1310- ●
60 WASHER; PL,RET TO BRKT
P46 PROP SHAFT(C4Z) ID=10.5 OD=22 		0-91614-610-0 04 1 1310- ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) M10X35 FLANGE 		0-28651-035-0 04 1 1310- ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) M10X35 FLANGE 		0-28651-035-0 04 1 1310- ●
64 NUT; RET TO BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91180-210-0 04 1 1310- ●
64 NUT; RET TO BRKT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91180-210-0 04 1 1310- ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (C) M14X50 		1-09000-645-0 04 1 1411- ● ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (C) M14X50 		1-09000-645-0 04 1 1411- ● ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (C) M14X50 		1-09000-645-0 04 1 1411- ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) (A) M14X37 		1-09000-121-0 04 1 1310- ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) (A) M14X37 		1-09000-121-0 08 1 1310- ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 04 1 1310-1410 ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 04 1 1310-1410 ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 04 1 1310-1410 ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 04 1 1411- ● ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 04 1 1411- ● ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 04 1 1411- ● ●
104 PLUG; SLEEVE YOKE
P46 PROP SHAFT(C4Z) (A) 		1-09600-064-0 01 1 1310- ●
104 PLUG; SLEEVE YOKE
P60 PROP SHAFT(C2M) (B) 		1-09600-067-0 01 1 1310-1410 ●
104 PLUG; SLEEVE YOKE
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (B) 		1-09600-067-0 01 1 1411- ●
104 PLUG; SLEEVE YOKE
P90 PROP SHAFT(C5T) (B) 		1-09600-067-0 01 1 1411- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) M6 STRAIGHT 		0-90301-406-0 01 1 1310- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) PT1/8 STRAIGHT 		0-90301-410-0 01 1 1310-1410 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (C) PT1/8 STRAIGHT 		0-90301-410-0 01 1 1411- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) PT1/8 STRAIGHT 		0-90301-410-0 01 1 1411- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1310-1410 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ● ● ●
128 SEAL; SLEEVE
P90 PROP SHAFT(C5T) (C) 		1-37247-019-0 01 1 1411- ● ● ●
128 SEAL; SLEEVE
P46 PROP SHAFT(C4Z) (A) 		1-37247-024-0 01 1 1310- ●
128 SEAL; SLEEVE
P60 PROP SHAFT(C2M) (B) 		1-37247-021-0 01 1 1310-1410 ●
128 SEAL; SLEEVE
P60 PROP SHAFT(C2M) (B) 		1-37247-021-0 01 1 1411- ● ● ●
172 BRACKET; CENTER BRG
P46 PROP SHAFT(C4Z) (A) 		1-37515-074-1 01 1 1411- ●
172 BRACKET; CENTER BRG
P46 PROP SHAFT(C4Z) (A) 		1-37515-102-0 01 1 1310- ●
172 BRACKET; CENTER BRG
P46 PROP SHAFT(C4Z) (B) 		1-37515-135-0 01 1 1310- ●
173 BOLT; BRKT
P46 PROP SHAFT(C4Z) M10X25 FLANGE 		0-28651-025-0 04 1 1310-1410 ●
173 BOLT; BRKT
P46 PROP SHAFT(C4Z) M10X25 FLANGE 		0-28651-025-0 04 1 1310-1410 ●
173 BOLT; BRKT
P46 PROP SHAFT(C4Z) M10X25 FLANGE 		0-28651-025-0 04 1 1411- ● ● ●
173 BOLT; BRKT
P46 PROP SHAFT(C4Z) M10X25 FLANGE 		0-28651-025-0 04 1 1411- ● ●
177 NUT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91180-210-0 04 1 1310-1410 ●
177 NUT
P46 PROP SHAFT(C4Z) M10 FLANGE 		0-91180-210-0 04 1 1411- ● ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) L=330 		1-37241-124-0 01 1 1411- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) L=254 		8-98020-885-0 01 1 1310- ●
225 YOKE; SLEEVE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) L=332 		1-37241-109-1 01 1 1310-1410 ●
225 YOKE; SLEEVE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) L=332 		1-37241-109-1 01 1 1411- ● ● ●
çizim 455345
21 24 78 20 1 9 8 71 79 80 81 9 17 14 19 22 23 25 46 51 21
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (D) L=1249 		8-98091-270-0 01 1 1411- ●
1 SHAFT; PROP
(D) L=1249 		8-98091-270-0 01 1 1411- ● ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) L=1037 		8-98056-078-0 01 1 1411- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) L=1104 		8-98173-565-0 01 1 1411- ●
1 SHAFT; PROP
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) L=636 		1-37152-028-0 01 1 1411- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) L=1279 		8-98173-566-0 01 1 1411- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (I) L=1299 		1-37125-407-1 01 1 1411- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (G) L=995 		8-98091-465-1 01 1 1411- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (G) L=595 		8-98091-464-1 01 1 1411- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (I) L=1259 		1-37124-820-1 01 1 1411- ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (H) L=1225 		8-98091-473-1 01 1 1411- ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (G) L=1095 		8-98091-482-1 01 1 1411- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (C) L=1234 		8-98069-590-0 01 1 1310- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=719 		8-98069-957-0 01 1 1310- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=639 		8-98090-946-0 01 1 1310- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (A) L=1321 		8-98090-990-0 01 1 1310- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=1214 		1-37124-501-0 01 1 1310-1410 ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (D) L=1214 		1-37124-501-0 01 1 1411- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-222-0 01 1 1310-1410 ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-222-0 01 1 1411- ● ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=786 		1-37152-074-0 01 1 1310-1410 ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (E) L=786 		1-37152-074-0 01 1 1411- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=704 		8-98173-564-0 01 1 1310-1410 ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (E) L=704 		8-98173-564-0 01 1 1411- ●
1 SHAFT; PROP
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) L=704 		8-98173-564-0 01 1 1411- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) L=1124 		8-98232-964-0 01 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (D) 		1-37211-079-1 03 1 1411- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (D) 		1-37211-079-1 01 1 1411- ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-056-3 01 1 1310- ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-056-3 02 1 1310- ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		8-98178-052-0 01 1 1310- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 02 1 1310-1410 ●
8 YOKE; FLANGE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 02 1 1310-1410 ●
8 YOKE; FLANGE,PROP SHAFT
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 01 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (C) 		1-37211-072-1 01 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 01 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (C) 		1-37211-072-1 01 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 01 1 1411- ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 01 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 01 1 1310-1410 ●
8 YOKE; FLANGE,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 01 1 1310-1410 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 02 1 1411- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (C) 		1-37211-072-1 02 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 02 1 1506-1506 ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 01 1 1506- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) NIPPLE 67.5 DEGREES 		1-37300-110-0 02 1 1411-1505 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 03 1 1506-1506 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 03 1 1506- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) NIPPLE 90 DEGREES 		1-37300-111-0 01 1 1411-1505 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) NIPPLE 90 DEGREES 		1-37300-111-0 01 1 1411-1505 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-111-0 01 1 1506-1506 ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-111-0 01 1 1506-1506 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) NIPPLE 67.5 DEGREES 		1-37300-110-0 01 1 1411-1505 ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98048-925-1 AR 1 1310- ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98048-925-1 01 1 1310- ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98048-925-1 02 1 1310- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 DEGREES 		1-37300-094-1 AR 1 1310-1410 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 DEGREES 		1-37300-094-1 AR 1 1310-1410 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 DEGREES 		1-37300-094-1 AR 1 1310-1410 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 DEGREES 		1-37300-094-1 AR 1 1411- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 DEGREES 		1-37300-094-1 AR 1 1411- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 DEGREES 		1-37300-094-1 AR 1 1411- ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) NIPPLE 90 DEGREES 		1-37300-095-1 AR 1 1310-1410 ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) NIPPLE 90 DEGREES 		1-37300-095-1 AR 1 1411- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (C) 		1-37249-131-0 12 1 1411- ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (C) 		1-37249-131-0 04 1 1411- ● ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 		8-98020-800-0 08 1 1310- ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 		8-98020-800-0 04 1 1310- ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 		8-98020-800-0 04 1 1310- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 08 1 1310-1410 ●
14 COVER; DUST,SPIDER
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 08 1 1310-1410 ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 08 1 1411- ● ● ●
14 COVER; DUST,SPIDER
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		9-37352-023-0 08 1 1411- ●
14 COVER; DUST,SPIDER
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1310-1410 ●
14 COVER; DUST,SPIDER
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1310-1410 ●
14 COVER; DUST,SPIDER
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1411- ●
14 COVER; DUST,SPIDER
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		9-37352-023-0 04 1 1411- ●
14 COVER; DUST,SPIDER
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1411- ●
14 COVER; DUST,SPIDER
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		9-37352-023-0 04 1 1411- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1411- ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1411- ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1411- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 02 1 1310- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1310-1410 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1411- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1310-1410 ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1310-1410 ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1310-1410 ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1310-1410 ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1310-1410 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1411-1505 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (B) T=2.2 		1-09587-102-1 12 1 1411- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (B) T=2.2 		1-09587-102-1 04 1 1411- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1310- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1310- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1310- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1310- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1310- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1310- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1310- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1310- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1310- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (C) ID=60 		1-37510-115-0 01 1 1411- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (C) ID=60 		1-37510-115-0 01 1 1411- ● ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98020-881-0 01 1 1310- ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98020-881-0 01 1 1310- ●
20 BEARING ASM; CTR,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 02 1 1310-1410 ●
20 BEARING ASM; CTR,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		1-37510-093-3 02 1 1411- ●
20 BEARING ASM; CTR,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1310-1410 ●
20 BEARING ASM; CTR,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1310-1410 ●
20 BEARING ASM; CTR,PROP SHAFT
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1411- ●
20 BEARING ASM; CTR,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		1-37510-093-3 01 1 1411- ●
20 BEARING ASM; CTR,PROP SHAFT
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1411- ●
20 BEARING ASM; CTR,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		1-37510-093-3 01 1 1411- ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1411- ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1411- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (C) D=120 		1-09625-127-0 01 1 1411- ● ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (C) D=120 		1-09625-127-0 01 1 1411- ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (D) 		1-09625-621-0 01 1 1411- ● ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (D) 		1-09625-621-0 01 1 1411- ● ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 1310- ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 1310- ●
21 SEAL; OIL,CENTER BRG
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) D=120 		1-09625-126-0 04 1 1310-1410 ●
21 SEAL; OIL,CENTER BRG
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) D=120 		1-09625-126-0 04 1 1411- ●
21 SEAL; OIL,CENTER BRG
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) D=120 		1-09625-126-0 02 1 1310-1410 ●
21 SEAL; OIL,CENTER BRG
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) D=120 		1-09625-126-0 02 1 1310-1410 ●
21 SEAL; OIL,CENTER BRG
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) D=120 		1-09625-126-0 02 1 1411- ●
21 SEAL; OIL,CENTER BRG
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) D=120 		1-09625-126-0 02 1 1411- ●
21 SEAL; OIL,CENTER BRG
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) D=120 		1-09625-126-0 02 1 1411- ●
21 SEAL; OIL,CENTER BRG
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) D=120 		1-09625-126-0 02 1 1411- ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (B) D=120 		1-09625-126-0 02 1 1411- ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (B) D=120 		1-09625-126-0 02 1 1411- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (C) 		1-37516-048-2 01 1 1411- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (C) 		1-37516-048-2 01 1 1411- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 1310- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 1310- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 02 1 1310-1410 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		1-37516-047-2 02 1 1411- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1310-1410 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1310-1410 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1411- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		1-37516-047-2 01 1 1411- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1411- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		1-37516-047-2 01 1 1411- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1411- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1411- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		9-00090-256-0 01 1 1411- ● ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		9-00090-256-0 01 1 1411- ● ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 1310- ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 1310- ●
23 BEARING; CENTER,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 02 1 1310-1410 ●
23 BEARING; CENTER,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		9-00090-292-0 02 1 1411- ●
23 BEARING; CENTER,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1310-1410 ●
23 BEARING; CENTER,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1310-1410 ●
23 BEARING; CENTER,PROP SHAFT
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1411- ●
23 BEARING; CENTER,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		9-00090-292-0 01 1 1411- ●
23 BEARING; CENTER,PROP SHAFT
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1411- ●
23 BEARING; CENTER,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		9-00090-292-0 01 1 1411- ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1411- ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1411- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (C) 		1-37529-109-0 01 1 1411- ● ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (C) 		1-37529-109-0 01 1 1411- ● ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		8-98020-882-0 01 1 1310- ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		8-98020-882-0 01 1 1310- ●
24 RETAINER; CENTER BRG,1ST
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 02 1 1310-1410 ●
24 RETAINER; CENTER BRG,1ST
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		1-37529-039-0 02 1 1411- ●
24 RETAINER; CENTER BRG,1ST
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1310-1410 ●
24 RETAINER; CENTER BRG,1ST
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1310-1410 ●
24 RETAINER; CENTER BRG,1ST
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1411- ●
24 RETAINER; CENTER BRG,1ST
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		1-37529-039-0 01 1 1411- ●
24 RETAINER; CENTER BRG,1ST
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1411- ●
24 RETAINER; CENTER BRG,1ST
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		1-37529-039-0 01 1 1411- ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1411- ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
P46 PROP SHAFT(C4Z) (A) 		8-98020-889-0 01 1 1310- ●
25 NIPPLE; GREASE,CENTER BRG
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT 		1-09380-006-0 02 1 1310-1410 ●
25 NIPPLE; GREASE,CENTER BRG
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) MT6 STRAIGHT 		1-09380-006-0 02 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT(C5T) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1310-1410 ●
25 NIPPLE; GREASE,CENTER BRG
P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1310-1410 ●
25 NIPPLE; GREASE,CENTER BRG
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1310-1410 ●
25 NIPPLE; GREASE,CENTER BRG
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1310-1410 ●
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT(C5T) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ● ●
25 NIPPLE; GREASE,CENTER BRG
P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ● ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (C) 		1-37245-348-0 01 1 1411- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (C) 		1-37245-348-0 01 1 1411- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) 		8-98020-815-0 01 1 1310- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) 		8-98020-815-0 01 1 1310- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 02 1 1310-1410 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		1-37245-283-1 02 1 1411- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1310-1410 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1310-1410 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1411- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		1-37245-283-1 01 1 1411- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1411- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		1-37245-283-1 01 1 1411- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1411- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1411- ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (C) M39 FLANGE 		1-09440-046-0 01 1 1411- ● ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (C) M39 FLANGE 		1-09440-046-0 01 1 1411- ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 1310- ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 1310- ●
51 NUT; FLANGE,SPLINED
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 02 1 1310-1410 ●
51 NUT; FLANGE,SPLINED
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) M33 FLANGE 		1-09449-051-0 02 1 1411- ●
51 NUT; FLANGE,SPLINED
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1310-1410 ●
51 NUT; FLANGE,SPLINED
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1310-1410 ●
51 NUT; FLANGE,SPLINED
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1411- ●
51 NUT; FLANGE,SPLINED
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) M33 FLANGE 		1-09449-051-0 01 1 1411- ●
51 NUT; FLANGE,SPLINED
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1411- ●
51 NUT; FLANGE,SPLINED
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) M33 FLANGE 		1-09449-051-0 01 1 1411- ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1411- ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1411- ●
71 NUT; YOKE
P90 PROP SHAFT(C5T) (B) M14 FLANGE 		8-97365-444-0 04 1 1411- ● ● ●
71 NUT; YOKE
(A) M16 FLANGE 		1-09449-065-0 04 1 1310-1410 ●
71 NUT; YOKE
P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z) (A) M16 FLANGE 		1-09449-065-0 04 1 1411- ● ● ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
P60 PROP SHAFT(C2M) M16X45 		1-09042-030-0 02 1 1310-1410 ●
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) M16X45 		1-09042-030-0 02 1 1411- ● ● ●
79 WASHER; PL,HOLDER SET,CENTER BRG
P60 PROP SHAFT(C2M) ID=17 		1-09503-241-1 02 1 1310-1410 ●
79 WASHER; PL,HOLDER SET,CENTER BRG
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) ID=17 		1-09503-241-1 02 1 1411- ● ● ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
P60 PROP SHAFT(C2M) M16 SLOTTED 		8-98049-689-0 02 1 1310-1410 ●
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) M16 SLOTTED 		8-98049-689-0 02 1 1411- ● ● ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
P60 PROP SHAFT(C2M) OD=3.7 L=25 		0-81124-025-0 02 1 1310-1410 ●
81 PIN; SPLIT,HOLDER SET,CENTER BRG
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) OD=3.7 L=25 		0-81124-025-0 02 1 1411- ● ● ●
çizim 455591
51 46 25 21 24 91 20 1 9 8 74 49 94 93 92 21 22 23 74 8 56 9 1 128 225 104 9 8 74 17 106 14 19 9 56
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHAFT; PROP
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (D) L=1249 		8-98091-270-0 01 1 1411- ●
1 SHAFT; PROP
(D) L=1249 		8-98091-270-0 01 1 1411- ● ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) L=1037 		8-98056-078-0 01 1 1411- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) L=1104 		8-98173-565-0 01 1 1411- ●
1 SHAFT; PROP
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) L=636 		1-37152-028-0 01 1 1411- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) L=1279 		8-98173-566-0 01 1 1411- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (I) L=1299 		1-37125-407-1 01 1 1411- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (G) L=995 		8-98091-465-1 01 1 1411- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (G) L=595 		8-98091-464-1 01 1 1411- ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (I) L=1259 		1-37124-820-1 01 1 1411- ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (H) L=1225 		8-98091-473-1 01 1 1411- ● ●
1 SHAFT; PROP
P90 PROP SHAFT(C5T) (G) L=1095 		8-98091-482-1 01 1 1411- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (C) L=1234 		8-98069-590-0 01 1 1310- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=719 		8-98069-957-0 01 1 1310- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=639 		8-98090-946-0 01 1 1310- ●
1 SHAFT; PROP
P46 PROP SHAFT(C4Z) (A) L=1321 		8-98090-990-0 01 1 1310- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (D) L=1214 		1-37124-501-0 01 1 1310-1410 ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (D) L=1214 		1-37124-501-0 01 1 1411- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-222-0 01 1 1310-1410 ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) (F) L=1229 		8-98091-222-0 01 1 1411- ● ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (E) L=786 		1-37152-074-0 01 1 1310-1410 ●
1 SHAFT; PROP
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (E) L=786 		1-37152-074-0 01 1 1411- ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (E) L=704 		8-98173-564-0 01 1 1310-1410 ●
1 SHAFT; PROP
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (E) L=704 		8-98173-564-0 01 1 1411- ●
1 SHAFT; PROP
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) L=704 		8-98173-564-0 01 1 1411- ●
1 SHAFT; PROP
P60 PROP SHAFT(C2M) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) L=1124 		8-98232-964-0 01 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (D) 		1-37211-079-1 03 1 1411- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
P90 PROP SHAFT(C5T) (D) 		1-37211-079-1 01 1 1411- ● ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-056-3 01 1 1310- ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		1-37211-056-3 02 1 1310- ●
8 YOKE; FLANGE,PROP SHAFT
P46 PROP SHAFT(C4Z) (B) 		8-98178-052-0 01 1 1310- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 02 1 1310-1410 ●
8 YOKE; FLANGE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 02 1 1310-1410 ●
8 YOKE; FLANGE,PROP SHAFT
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 01 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (C) 		1-37211-072-1 01 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 01 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (C) 		1-37211-072-1 01 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 01 1 1411- ● ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 01 1 1411- ●
8 YOKE; FLANGE,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 01 1 1310-1410 ●
8 YOKE; FLANGE,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 01 1 1310-1410 ●
8 YOKE; FLANGE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) 		1-37211-072-1 02 1 1411- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (C) 		1-37211-072-1 02 1 1411- ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 02 1 1506-1506 ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 01 1 1506- ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) NIPPLE 67.5 DEGREES 		1-37300-110-0 02 1 1411-1505 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 03 1 1506-1506 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-110-0 03 1 1506- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) NIPPLE 90 DEGREES 		1-37300-111-0 01 1 1411-1505 ● ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) NIPPLE 90 DEGREES 		1-37300-111-0 01 1 1411-1505 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-111-0 01 1 1506-1506 ● ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) 		1-37300-111-0 01 1 1506-1506 ●
9 JOURNAL ASM; PROP SHAFT
P90 PROP SHAFT(C5T) (C) NIPPLE 67.5 DEGREES 		1-37300-110-0 01 1 1411-1505 ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98048-925-1 AR 1 1310- ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98048-925-1 01 1 1310- ●
9 JOURNAL ASM; PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98048-925-1 02 1 1310- ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 DEGREES 		1-37300-094-1 AR 1 1310-1410 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 DEGREES 		1-37300-094-1 AR 1 1310-1410 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 DEGREES 		1-37300-094-1 AR 1 1310-1410 ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 DEGREES 		1-37300-094-1 AR 1 1411- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 DEGREES 		1-37300-094-1 AR 1 1411- ● ● ●
9 JOURNAL ASM; PROP SHAFT
P60 PROP SHAFT(C2M) (B) NIPPLE 67.5 DEGREES 		1-37300-094-1 AR 1 1411- ● ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) NIPPLE 90 DEGREES 		1-37300-095-1 AR 1 1310-1410 ●
9 JOURNAL ASM; PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) NIPPLE 90 DEGREES 		1-37300-095-1 AR 1 1411- ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (C) 		1-37249-131-0 12 1 1411- ● ● ●
14 COVER; DUST,SPIDER
P90 PROP SHAFT(C5T) (C) 		1-37249-131-0 04 1 1411- ● ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 		8-98020-800-0 08 1 1310- ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 		8-98020-800-0 04 1 1310- ●
14 COVER; DUST,SPIDER
P46 PROP SHAFT(C4Z) (A) 		8-98020-800-0 04 1 1310- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 08 1 1310-1410 ●
14 COVER; DUST,SPIDER
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 08 1 1310-1410 ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 08 1 1411- ● ● ●
14 COVER; DUST,SPIDER
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		9-37352-023-0 08 1 1411- ●
14 COVER; DUST,SPIDER
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1310-1410 ●
14 COVER; DUST,SPIDER
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1310-1410 ●
14 COVER; DUST,SPIDER
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1411- ●
14 COVER; DUST,SPIDER
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		9-37352-023-0 04 1 1411- ●
14 COVER; DUST,SPIDER
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1411- ●
14 COVER; DUST,SPIDER
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		9-37352-023-0 04 1 1411- ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1411- ● ●
14 COVER; DUST,SPIDER
P60 PROP SHAFT(C2M) (B) 		9-37352-023-0 04 1 1411- ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 03 1 1411- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 02 1 1310- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1310-1410 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1411- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1310-1410 ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1310-1410 ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1310-1410 ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P90 PROP SHAFT(C5T) 90 DEGREES PT1/8 ELBOW 		0-90301-610-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
P46 PROP SHAFT(C4Z) PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) PT1/8 ELBOW 		0-90301-610-0 01 1 1506- ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1310-1410 ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1310-1410 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1411-1505 ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1411-1505 ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1506- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (B) T=2.2 		1-09587-102-1 12 1 1411- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (B) T=2.2 		1-09587-102-1 04 1 1411- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1310- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1310- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1310- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1310- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1310- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1310- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1310- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1310- ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1310- ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (C) ID=60 		1-37510-115-0 01 1 1411- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT
P90 PROP SHAFT(C5T) (C) ID=60 		1-37510-115-0 01 1 1411- ● ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98020-881-0 01 1 1310- ●
20 BEARING ASM; CTR,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		8-98020-881-0 01 1 1310- ●
20 BEARING ASM; CTR,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 02 1 1310-1410 ●
20 BEARING ASM; CTR,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		1-37510-093-3 02 1 1411- ●
20 BEARING ASM; CTR,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1310-1410 ●
20 BEARING ASM; CTR,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1310-1410 ●
20 BEARING ASM; CTR,PROP SHAFT
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1411- ●
20 BEARING ASM; CTR,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		1-37510-093-3 01 1 1411- ●
20 BEARING ASM; CTR,PROP SHAFT
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1411- ●
20 BEARING ASM; CTR,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		1-37510-093-3 01 1 1411- ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1411- ● ●
20 BEARING ASM; CTR,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		1-37510-093-3 01 1 1411- ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (C) D=120 		1-09625-127-0 01 1 1411- ● ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (C) D=120 		1-09625-127-0 01 1 1411- ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (D) 		1-09625-621-0 01 1 1411- ● ● ●
21 SEAL; OIL,CENTER BRG
P90 PROP SHAFT(C5T) (D) 		1-09625-621-0 01 1 1411- ● ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 1310- ●
21 SEAL; OIL,CENTER BRG
P46 PROP SHAFT(C4Z) (A) ID=54 		1-09625-161-0 02 1 1310- ●
21 SEAL; OIL,CENTER BRG
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) D=120 		1-09625-126-0 04 1 1310-1410 ●
21 SEAL; OIL,CENTER BRG
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) D=120 		1-09625-126-0 04 1 1411- ●
21 SEAL; OIL,CENTER BRG
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) D=120 		1-09625-126-0 02 1 1310-1410 ●
21 SEAL; OIL,CENTER BRG
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) D=120 		1-09625-126-0 02 1 1310-1410 ●
21 SEAL; OIL,CENTER BRG
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) D=120 		1-09625-126-0 02 1 1411- ●
21 SEAL; OIL,CENTER BRG
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) D=120 		1-09625-126-0 02 1 1411- ●
21 SEAL; OIL,CENTER BRG
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) D=120 		1-09625-126-0 02 1 1411- ●
21 SEAL; OIL,CENTER BRG
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) D=120 		1-09625-126-0 02 1 1411- ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (B) D=120 		1-09625-126-0 02 1 1411- ● ●
21 SEAL; OIL,CENTER BRG
P60 PROP SHAFT(C2M) (B) D=120 		1-09625-126-0 02 1 1411- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (C) 		1-37516-048-2 01 1 1411- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P90 PROP SHAFT(C5T) (C) 		1-37516-048-2 01 1 1411- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 1310- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		1-37516-059-0 01 1 1310- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 02 1 1310-1410 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		1-37516-047-2 02 1 1411- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1310-1410 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1310-1410 ●
22 RUBBER; CUSHION,CENTER BRG,1ST
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1411- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		1-37516-047-2 01 1 1411- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1411- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		1-37516-047-2 01 1 1411- ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1411- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37516-047-2 01 1 1411- ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		9-00090-256-0 01 1 1411- ● ● ●
23 BEARING; CENTER,PROP SHAFT
P90 PROP SHAFT(C5T) (C) 		9-00090-256-0 01 1 1411- ● ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 1310- ●
23 BEARING; CENTER,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) 		9-00090-071-0 01 1 1310- ●
23 BEARING; CENTER,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 02 1 1310-1410 ●
23 BEARING; CENTER,PROP SHAFT
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		9-00090-292-0 02 1 1411- ●
23 BEARING; CENTER,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1310-1410 ●
23 BEARING; CENTER,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1310-1410 ●
23 BEARING; CENTER,PROP SHAFT
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1411- ●
23 BEARING; CENTER,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		9-00090-292-0 01 1 1411- ●
23 BEARING; CENTER,PROP SHAFT
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1411- ●
23 BEARING; CENTER,PROP SHAFT
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		9-00090-292-0 01 1 1411- ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1411- ● ●
23 BEARING; CENTER,PROP SHAFT
P60 PROP SHAFT(C2M) (B) 		9-00090-292-0 01 1 1411- ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (C) 		1-37529-109-0 01 1 1411- ● ● ●
24 RETAINER; CENTER BRG,1ST
P90 PROP SHAFT(C5T) (C) 		1-37529-109-0 01 1 1411- ● ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		8-98020-882-0 01 1 1310- ●
24 RETAINER; CENTER BRG,1ST
P46 PROP SHAFT(C4Z) (A) 		8-98020-882-0 01 1 1310- ●
24 RETAINER; CENTER BRG,1ST
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 02 1 1310-1410 ●
24 RETAINER; CENTER BRG,1ST
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		1-37529-039-0 02 1 1411- ●
24 RETAINER; CENTER BRG,1ST
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1310-1410 ●
24 RETAINER; CENTER BRG,1ST
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1310-1410 ●
24 RETAINER; CENTER BRG,1ST
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1411- ●
24 RETAINER; CENTER BRG,1ST
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		1-37529-039-0 01 1 1411- ●
24 RETAINER; CENTER BRG,1ST
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1411- ●
24 RETAINER; CENTER BRG,1ST
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		1-37529-039-0 01 1 1411- ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1411- ● ●
24 RETAINER; CENTER BRG,1ST
P60 PROP SHAFT(C2M) (B) 		1-37529-039-0 01 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
P46 PROP SHAFT(C4Z) (A) 		8-98020-889-0 01 1 1310- ●
25 NIPPLE; GREASE,CENTER BRG
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT 		1-09380-006-0 02 1 1310-1410 ●
25 NIPPLE; GREASE,CENTER BRG
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) MT6 STRAIGHT 		1-09380-006-0 02 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT(C5T) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1310-1410 ●
25 NIPPLE; GREASE,CENTER BRG
P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1310-1410 ●
25 NIPPLE; GREASE,CENTER BRG
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1310-1410 ●
25 NIPPLE; GREASE,CENTER BRG
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1310-1410 ●
25 NIPPLE; GREASE,CENTER BRG
P90 PROP SHAFT(C5T) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ● ●
25 NIPPLE; GREASE,CENTER BRG
P46 PROP SHAFT(C4Z),P90 PROP SHAFT(C5T) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ● ●
25 NIPPLE; GREASE,CENTER BRG
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (C) 		1-37245-348-0 01 1 1411- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P90 PROP SHAFT(C5T) (C) 		1-37245-348-0 01 1 1411- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) 		8-98020-815-0 01 1 1310- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P46 PROP SHAFT(C4Z) (A) 		8-98020-815-0 01 1 1310- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 02 1 1310-1410 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		1-37245-283-1 02 1 1411- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1310-1410 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1310-1410 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1411- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		1-37245-283-1 01 1 1411- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1411- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) 		1-37245-283-1 01 1 1411- ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1411- ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST
P60 PROP SHAFT(C2M) (B) 		1-37245-283-1 01 1 1411- ●
49 NUT; YOKE
P90 PROP SHAFT(C5T) (C) M14 FLANGE 		8-97365-444-0 04 1 1411- ● ●
49 NUT; YOKE
P46 PROP SHAFT(C4Z) (A) M14 		0-91110-514-0 04 1 1310- ●
49 NUT; YOKE
P60 PROP SHAFT(C2M) (B) M16 FLANGE 		1-09449-065-0 04 1 1310-1410 ●
49 NUT; YOKE
P60 PROP SHAFT(C2M) (B) M16 FLANGE 		1-09449-065-0 04 1 1411- ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (C) M39 FLANGE 		1-09440-046-0 01 1 1411- ● ● ●
51 NUT; FLANGE,SPLINED
P90 PROP SHAFT(C5T) (C) M39 FLANGE 		1-09440-046-0 01 1 1411- ● ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 1310- ●
51 NUT; FLANGE,SPLINED
P46 PROP SHAFT(C4Z) (A) M30 		8-97160-857-0 01 1 1310- ●
51 NUT; FLANGE,SPLINED
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 02 1 1310-1410 ●
51 NUT; FLANGE,SPLINED
FULLER FSO5206B OD M/T(Y4V) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) M33 FLANGE 		1-09449-051-0 02 1 1411- ●
51 NUT; FLANGE,SPLINED
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1310-1410 ●
51 NUT; FLANGE,SPLINED
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1310-1410 ●
51 NUT; FLANGE,SPLINED
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1411- ●
51 NUT; FLANGE,SPLINED
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) M33 FLANGE 		1-09449-051-0 01 1 1411- ●
51 NUT; FLANGE,SPLINED
HONG KONG EQUIPMENT(B14) P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1411- ●
51 NUT; FLANGE,SPLINED
MZW6P M/T(RSZ) P60 PROP SHAFT(C2M) SINGAPORE EQUIPMENT(2G0) (B) M33 FLANGE 		1-09449-051-0 01 1 1411- ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1411- ● ●
51 NUT; FLANGE,SPLINED
P60 PROP SHAFT(C2M) (B) M33 FLANGE 		1-09449-051-0 01 1 1411- ●
56 NUT; YOKE
P90 PROP SHAFT(C5T) (C) M14 FLANGE 		8-97365-444-0 08 1 1411- ● ● ●
56 NUT; YOKE
P46 PROP SHAFT(C4Z) (A) M14 		0-91110-514-0 08 1 1310- ●
56 NUT; YOKE
P60 PROP SHAFT(C2M) (B) M16 FLANGE 		1-09449-065-0 08 1 1310-1410 ●
56 NUT; YOKE
P60 PROP SHAFT(C2M) (B) M16 FLANGE 		1-09449-065-0 08 1 1411- ● ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (C) M14X50 		1-09000-645-0 04 1 1411- ● ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (C) M14X50 		1-09000-645-0 04 1 1411- ● ● ●
74 BOLT; YOKE,TRANS
P90 PROP SHAFT(C5T) (C) M14X50 		1-09000-645-0 04 1 1411- ● ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) (A) M14X37 		1-09000-121-0 04 1 1310- ●
74 BOLT; YOKE,TRANS
P46 PROP SHAFT(C4Z) (A) M14X37 		1-09000-121-0 08 1 1310- ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 04 1 1310-1410 ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 04 1 1310-1410 ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 04 1 1310-1410 ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 04 1 1411- ● ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 04 1 1411- ● ● ●
74 BOLT; YOKE,TRANS
P60 PROP SHAFT(C2M) (B) M16X48 		1-09000-383-0 04 1 1411- ● ●
91 BOLT; HOLDER SET,CTR BRG
P60 PROP SHAFT(C2M) M16X45 		1-09042-030-0 02 1 1310-1410 ●
91 BOLT; HOLDER SET,CTR BRG
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) M16X45 		1-09042-030-0 02 1 1411- ● ● ●
92 WASHER; LK,HOLDER SET,CTR BRG
P60 PROP SHAFT(C2M) ID=17 		1-09503-241-1 02 1 1310-1410 ●
92 WASHER; LK,HOLDER SET,CTR BRG
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) ID=17 		1-09503-241-1 02 1 1411- ● ● ●
93 NUT; HOLDER SET,CTR BRG
P60 PROP SHAFT(C2M) M16 SLOTTED 		8-98049-689-0 02 1 1310-1410 ●
93 NUT; HOLDER SET,CTR BRG
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) M16 SLOTTED 		8-98049-689-0 02 1 1411- ● ● ●
94 PIN; SPLIT,HOLDER SET CTR BRG
P60 PROP SHAFT(C2M) OD=3.7 L=25 		0-81124-025-0 02 1 1310-1410 ●
94 PIN; SPLIT,HOLDER SET CTR BRG
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) OD=3.7 L=25 		0-81124-025-0 02 1 1411- ● ● ●
104 PLUG; SLEEVE YOKE
P46 PROP SHAFT(C4Z) (A) 		1-09600-064-0 01 1 1310- ●
104 PLUG; SLEEVE YOKE
P60 PROP SHAFT(C2M) (B) 		1-09600-067-0 01 1 1310-1410 ●
104 PLUG; SLEEVE YOKE
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (B) 		1-09600-067-0 01 1 1411- ●
104 PLUG; SLEEVE YOKE
P90 PROP SHAFT(C5T) (B) 		1-09600-067-0 01 1 1411- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) M6 STRAIGHT 		0-90301-406-0 01 1 1310- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M) (C) PT1/8 STRAIGHT 		0-90301-410-0 01 1 1310-1410 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M),P90 PROP SHAFT(C5T) (C) PT1/8 STRAIGHT 		0-90301-410-0 01 1 1411- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) PT1/8 STRAIGHT 		0-90301-410-0 01 1 1411- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1310-1410 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) MT6 STRAIGHT 		1-09380-006-0 01 1 1411- ● ● ●
128 SEAL; SLEEVE
P90 PROP SHAFT(C5T) (C) 		1-37247-019-0 01 1 1411- ● ● ●
128 SEAL; SLEEVE
P46 PROP SHAFT(C4Z) (A) 		1-37247-024-0 01 1 1310- ●
128 SEAL; SLEEVE
P60 PROP SHAFT(C2M) (B) 		1-37247-021-0 01 1 1310-1410 ●
128 SEAL; SLEEVE
P60 PROP SHAFT(C2M) (B) 		1-37247-021-0 01 1 1411- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P90 PROP SHAFT(C5T) (C) L=330 		1-37241-124-0 01 1 1411- ● ● ●
225 YOKE; SLEEVE,PROP SHAFT
P46 PROP SHAFT(C4Z) (A) L=254 		8-98020-885-0 01 1 1310- ●
225 YOKE; SLEEVE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) L=332 		1-37241-109-1 01 1 1310-1410 ●
225 YOKE; SLEEVE,PROP SHAFT
P60 PROP SHAFT(C2M) (B) L=332 		1-37241-109-1 01 1 1411- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
