3-70 — BRAKE PIPING; AIR,AIR MASTER (#129130) — 102 parça

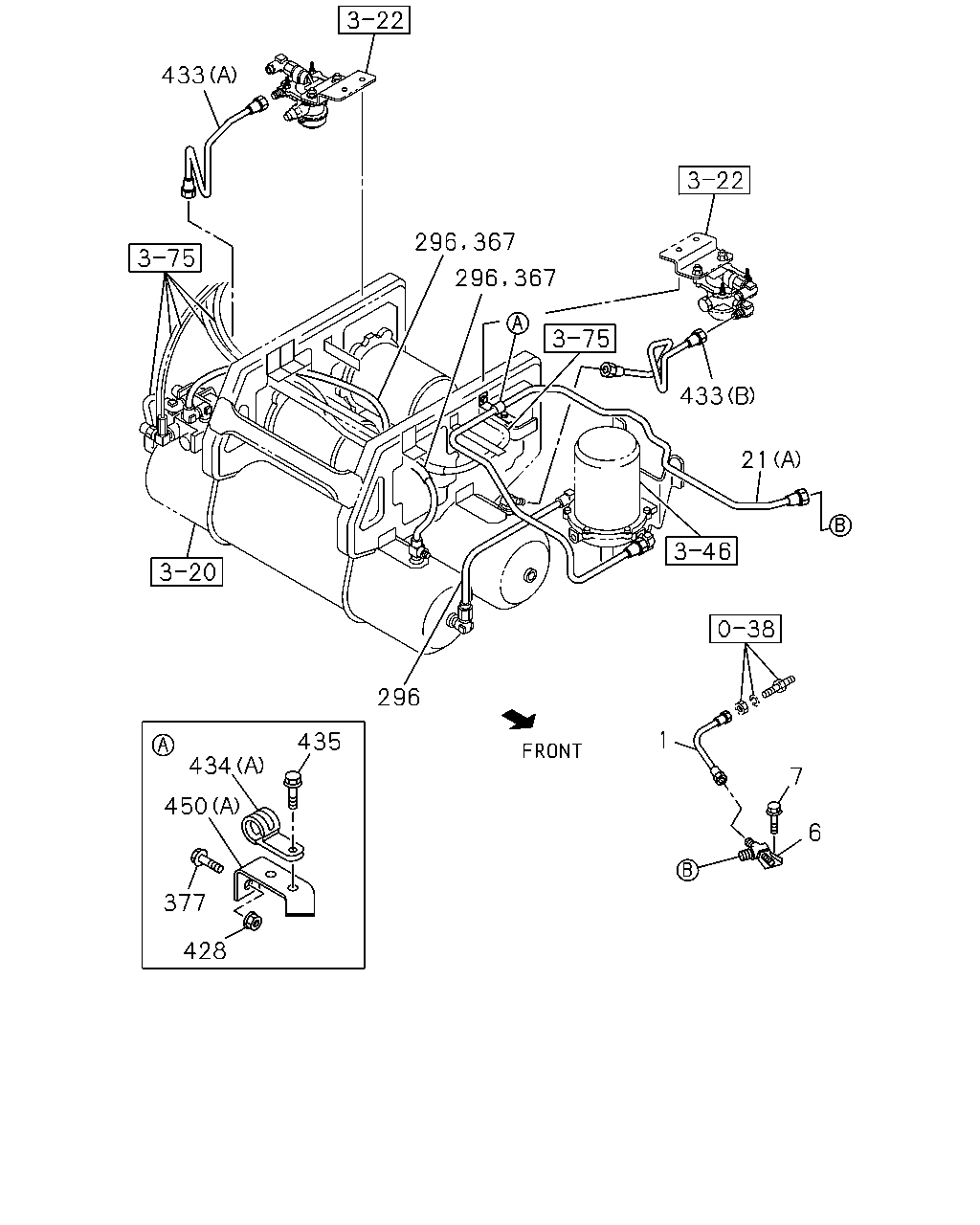

433 296 367 296 367 433 21 1 7 6 434 435 450 377 428 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK L=320	8-98067-411-0	01	1	1310-
6	BRACKET; FLEX HOSE,AIR TANK	8-98076-344-0	01	1	1310-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28650-830-0	02	1	1310-
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=1834	8-98250-574-0	01	1	1310-
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=1707	8-98226-213-0	01	1	1310-
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	1310-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1310-
296	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1310-
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1310-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1310-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87411-016-0	AR	1	1310-
377	BOLT; BRKT FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28650-830-0	01	1	1310-
377	BOLT; BRKT FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR SUSP DRIVER SEAT<A56> M8X25 FLANGE	0-28650-825-0	02	1	1310-
428	NUT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91180-108-0	01	1	1310-
433	PIPE; AIR,AIR TANK TO RELAY VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP> (A)	8-98250-575-0	01	1	1310-
433	PIPE; AIR,AIR TANK TO RELAY VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP> (B)	8-98250-576-0	01	1	1310-
434	CLIP ZF9S1110 M/T(Y5E) (C) L=350	1-09707-183-0	01	1	1411-
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=16 L=20	0-95235-536-0	01	1	1310-
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=16 L=60	0-95235-596-0	01	1	1310-
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=16 L=20	0-95235-536-0	02	1	1310-
434	CLIP AIR SUSP DRIVER SEAT<A56> (B) ID=7 L=20	0-95234-635-0	01	1	1310-
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	1310-
435	BOLT; CLIP AIR SUSP DRIVER SEAT<A56> M8X20 FLANGE	0-28650-820-0	01	1	1310-
450	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	8-98232-692-0	01	1	1310-
450	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR SUSP DRIVER SEAT<A56> (B)	8-98106-046-0	01	1	1310-

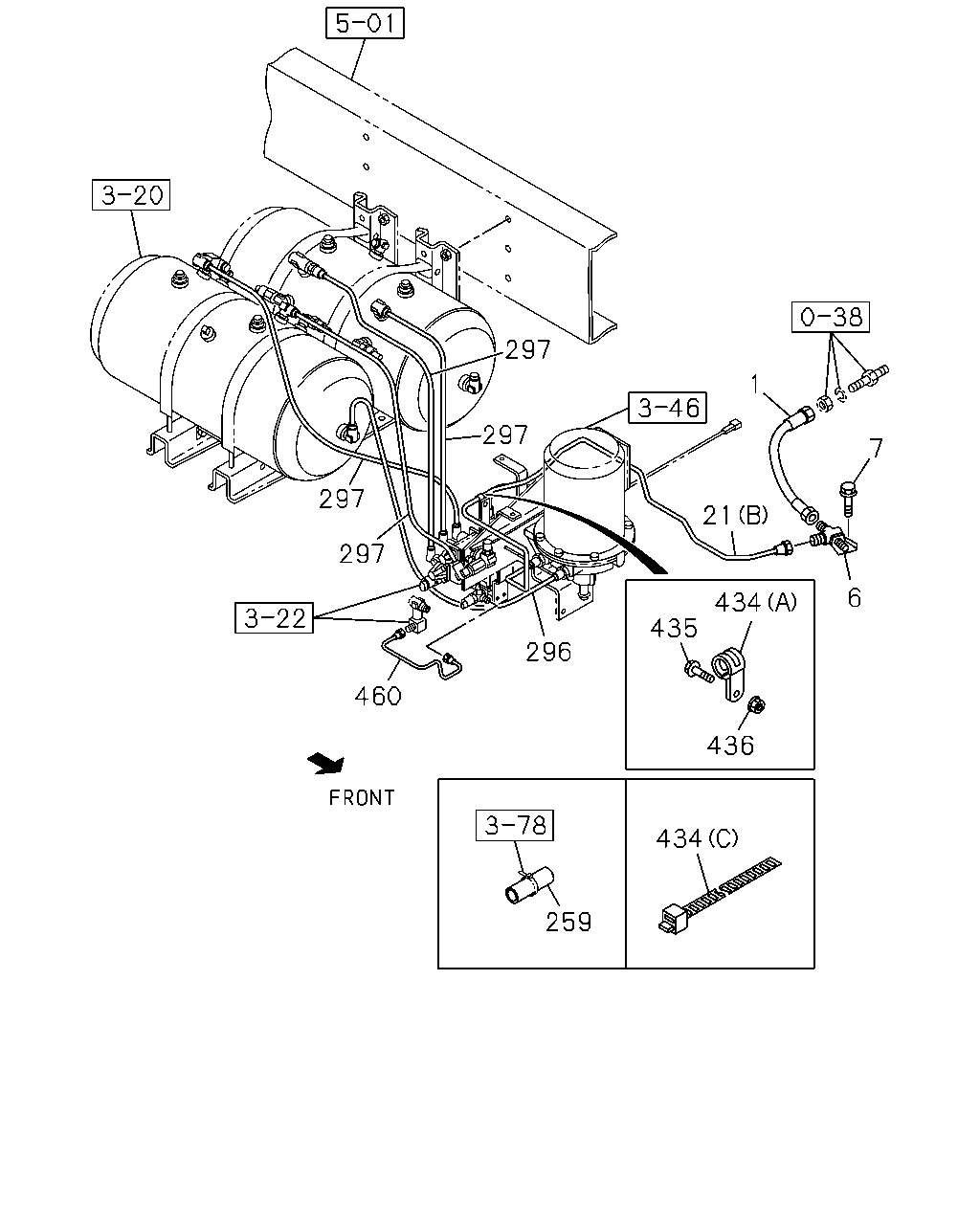

297 297 297 297 460 296 435 436 434 21 1 7 6 434 259

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,AIR TANK L=320	8-98067-411-0	01	1	1310-
6	BRACKET; FLEX HOSE,AIR TANK	8-98076-344-0	01	1	1310-
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X30 FLANGE	0-28650-830-0	02	1	1310-
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=1834	8-98250-574-0	01	1	1310-
21	PIPE; AIR,UNION TO AIR DRYER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) L=1707	8-98226-213-0	01	1	1310-
259	SLEEVE; RUBBER,NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=29 OD=39 L=40	1-09337-013-0	01	1	1310-
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	1310-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1310-
296	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1310-
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1310-
297	TUBE; NYLON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) SERVICED BY L=2000 OD=12	1-87411-011-0	04	1	1310-
434	CLIP ZF9S1110 M/T(Y5E) (C) L=350	1-09707-183-0	01	1	1411-
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=16 L=20	0-95235-536-0	01	1	1310-
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=16 L=60	0-95235-596-0	01	1	1310-
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=16 L=20	0-95235-536-0	02	1	1310-
434	CLIP AIR SUSP DRIVER SEAT<A56> (B) ID=7 L=20	0-95234-635-0	01	1	1310-
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	1310-
435	BOLT; CLIP AIR SUSP DRIVER SEAT<A56> M8X20 FLANGE	0-28650-820-0	01	1	1310-
436	NUT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	01	1	1310-
436	NUT; CLIP AIR SUSP DRIVER SEAT<A56> M8 FLANGE	0-91180-108-0	01	1	1310-
460	PIPE; AIR,PROTECTION VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98184-394-0	01	1	1310-

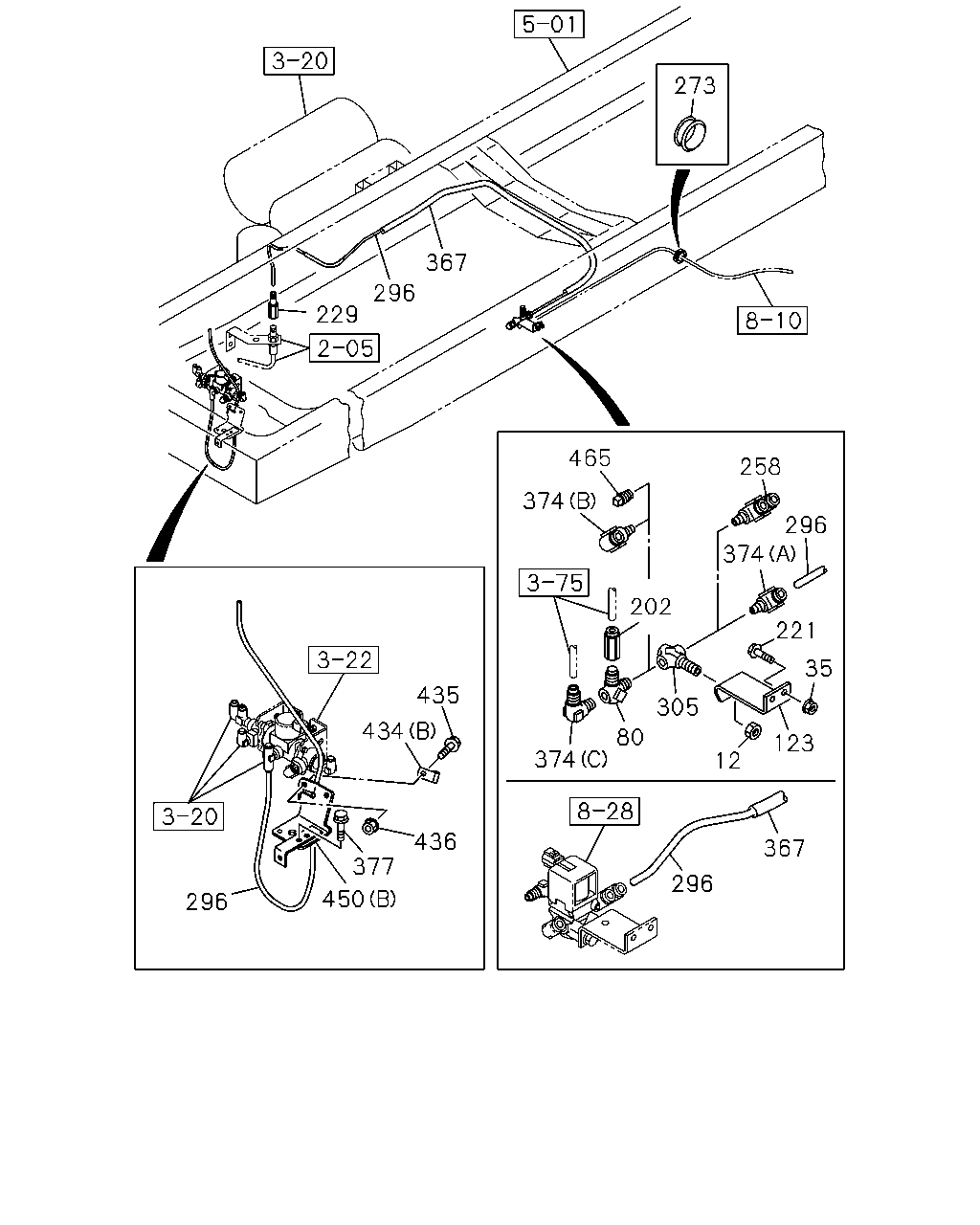

296 367 229 465 374 202 305 80 374 12 123 35 221 374 258 367 296 436 377 434 435 450 296 296 273

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	NUT; UNION EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M12	0-91111-512-0	01	1	1310-1410
12	NUT; UNION EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC),PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) M12	0-91111-512-0	01	1	1411-
35	NUT; BRKT EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE	0-91180-108-0	02	1	1310-1410
35	NUT; BRKT EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC),PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) M8 FLANGE	0-91180-108-0	02	1	1411-
80	UNION; 3 WAY ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC),PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1411-
80	UNION; 3 WAY ZF9S1110 M/T(Y5E) AIR SUSP DRIVER SEAT<A56> EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC),PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) ,H.S.A SYSTEM<6EP> M12 & PT1/4 3WAY	1-09656-586-1	01	1	1411-
123	BRACKET; UNION EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98118-545-0	01	1	1310-1410
123	BRACKET; UNION EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC),PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98118-545-0	01	1	1411-
202	ADAPTER ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC),PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1411-
202	ADAPTER ZF9S1110 M/T(Y5E) AIR SUSP DRIVER SEAT<A56> EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC),PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) ,H.S.A SYSTEM<6EP> DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	1411-
221	BOLT; BRKT EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X35 FLANGE	0-28650-835-0	02	1	1310-1410
221	BOLT; BRKT EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC),PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X35 FLANGE	0-28650-835-0	02	1	1411-
229	ADAPTER; NYLON TUBE MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1310-
258	CONNECTOR; NYLON TUBE MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) DIN8X2 & PT1/4 DOUBLE ELBOW	8-98179-708-0	01	1	1310-1410
258	CONNECTOR; NYLON TUBE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) DIN8X2 & PT1/4 DOUBLE ELBOW	8-98179-708-0	01	1	1310-1410
258	CONNECTOR; NYLON TUBE MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC),PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) DIN8X2 & PT1/4 DOUBLE ELBOW	8-98179-708-0	01	1	1411-
258	CONNECTOR; NYLON TUBE MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC),PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) DIN8X2 & PT1/4 DOUBLE ELBOW	8-98179-708-0	01	1	1411-
273	GROMMET ID=28 OD=35 T=25	1-09332-011-1	01	1	1310-
273	GROMMET ID=28 OD=35 T=25	1-09332-011-1	01	1	1310-
296	TUBE; NYLON SERVICED BY L=2000 OD=6	1-87411-001-0	AR	1	1310-
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	1310-
296	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	1310-
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1310-
305	UNION ASM; NYLON TUBE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 & RC1/4X2 2WAY	8-98120-049-0	01	1	1310-1410
305	UNION ASM; NYLON TUBE EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC),PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 & RC1/4X2 2WAY	8-98120-049-0	01	1	1411-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1310-
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=7	1-87411-016-0	AR	1	1310-
374	CONNECTOR ZF9S1110 M/T(Y5E) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC),PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1411-
374	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1310-1410
374	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),H.S.A SYSTEM<6EP> (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1310-1410
374	CONNECTOR MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR SUSP DRIVER SEAT<A56> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1310-1410
374	CONNECTOR MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1310-1410
374	CONNECTOR MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1411-
374	CONNECTOR MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) AIR SUSP DRIVER SEAT<A56> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5),H.S.A SYSTEM<6EP> (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1411-
374	CONNECTOR MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR SUSP DRIVER SEAT<A56> EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1411-
374	CONNECTOR MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC),PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	1411-
374	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1310-1410
374	CONNECTOR MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1411-
374	CONNECTOR ZF9S1110 M/T(Y5E) EXC. PTO ZF TRANS RR(BDM) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1411-
377	BOLT; BRKT FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X30 FLANGE	0-28650-830-0	01	1	1310-
377	BOLT; BRKT FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR SUSP DRIVER SEAT<A56> M8X25 FLANGE	0-28650-825-0	02	1	1310-
434	CLIP ZF9S1110 M/T(Y5E) (C) L=350	1-09707-183-0	01	1	1411-
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=16 L=20	0-95235-536-0	01	1	1310-
434	CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=16 L=60	0-95235-596-0	01	1	1310-
434	CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=16 L=20	0-95235-536-0	02	1	1310-
434	CLIP AIR SUSP DRIVER SEAT<A56> (B) ID=7 L=20	0-95234-635-0	01	1	1310-
435	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	1310-
435	BOLT; CLIP AIR SUSP DRIVER SEAT<A56> M8X20 FLANGE	0-28650-820-0	01	1	1310-
436	NUT; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	01	1	1310-
436	NUT; CLIP AIR SUSP DRIVER SEAT<A56> M8 FLANGE	0-91180-108-0	01	1	1310-
450	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A)	8-98232-692-0	01	1	1310-
450	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) AIR SUSP DRIVER SEAT<A56> (B)	8-98106-046-0	01	1	1310-
465	PLUG MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) RIGID SEAT WO/ARM REST<TAZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),H.S.A SYSTEM<6EP> PT1/4	9-99204-513-0	01	1	1310-1410
465	PLUG MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) RIGID SEAT WO/ARM REST<TAZ> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	1310-1410
465	PLUG MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) RIGID SEAT WO/ARM REST<TAZ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5),H.S.A SYSTEM<6EP> PT1/4	9-99204-513-0	01	1	1411-
465	PLUG MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) RIGID SEAT WO/ARM REST<TAZ> EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) PT1/4	9-99204-513-0	01	1	1411-
