3-52 — BRAKE PIPING; OIL,FRONT (#129127) — 15 parça

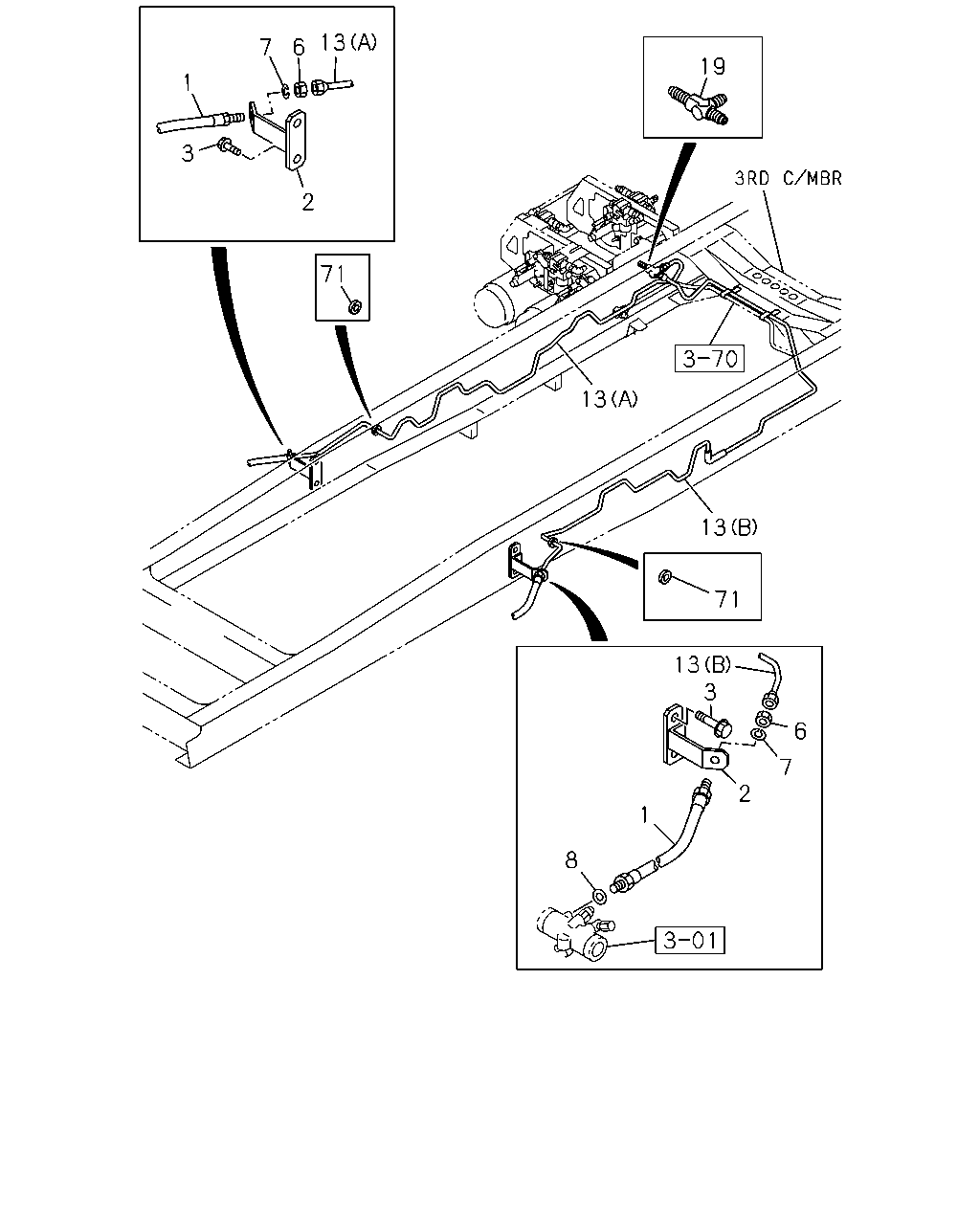

çizim 380532
1 3 2 7 6 13 71 19 13 71 13 13 3 6 7 2 1 8
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=610 		0-05212-610-0 02 1 1310-
2 BRACKET; FLEX HOSE,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-98177-524-0 02 1 1310-
3 BOLT; BRKT,FLEX HOSE,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X25 FLANGE 		0-28650-825-0 04 1 1310-
6 NUT; FLEX HOSE,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 		9-09840-280-0 02 1 1310-
7 WASHER; LK,FLEX HOSE,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=12.2 		0-91510-812-0 02 1 1310-
8 GASKET; FLEX HOSE,FRT BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=9 OD=17 		9-09920-472-0 02 1 1310-
13 PIPE; OIL,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=3328 SERVICED BY L=3400 		1-47428-746-0 01 1 1310-
13 PIPE; OIL,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=1606 		8-98126-034-0 01 1 1310-
19 UNION; OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 3WAY 		0-92138-906-0 01 1 1310-
71 GROMMET; OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) ID=24 OD=30 T=17 		9-09956-092-1 02 1 1310-

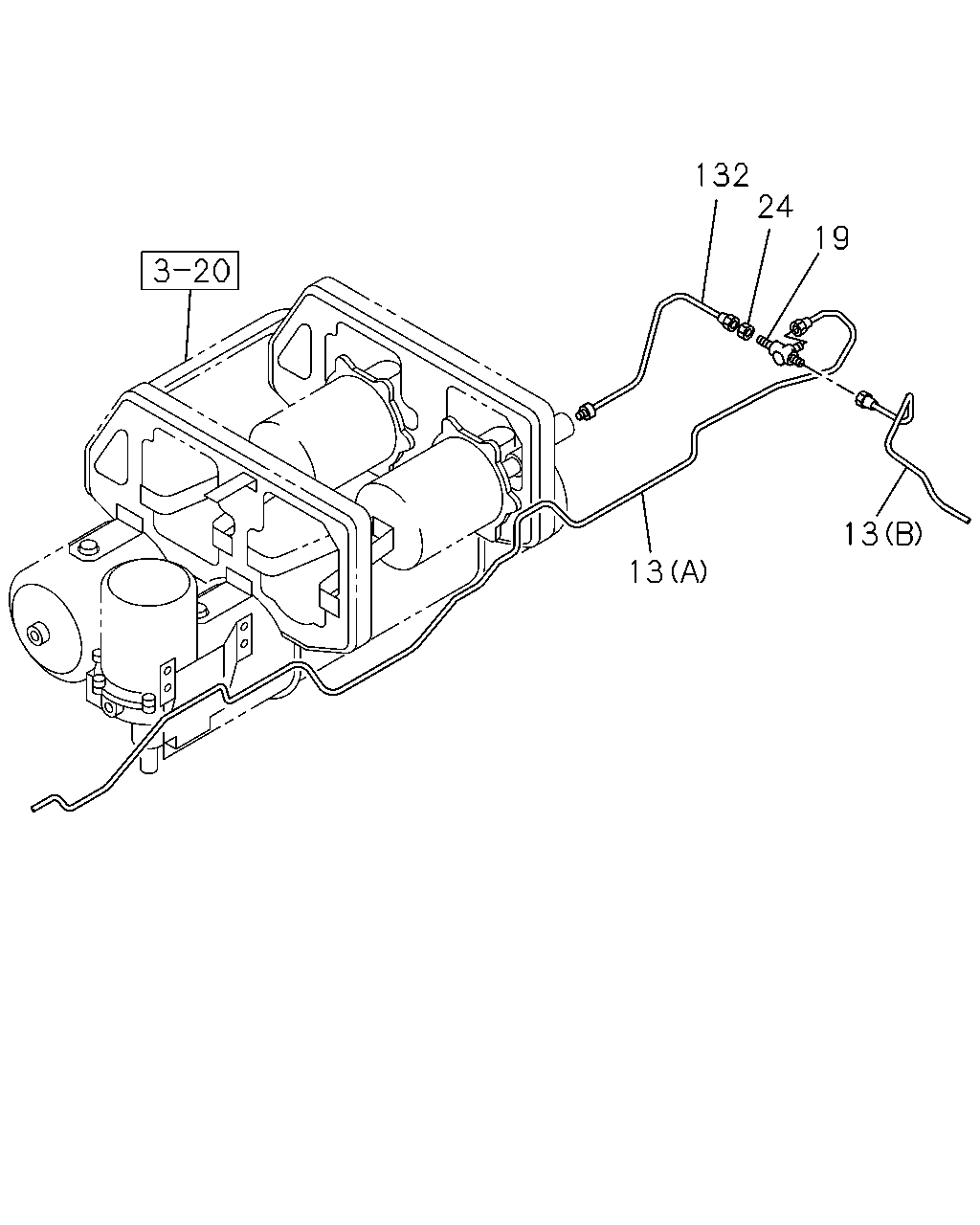

çizim 380839
13 13 19 24 132
BalonParca AdiParca NoAdetTipApplied Date
13 PIPE; OIL,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) L=3328 SERVICED BY L=3400 		1-47428-746-0 01 1 1310-
13 PIPE; OIL,UNION TO UNION
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) L=1606 		8-98126-034-0 01 1 1310-
19 UNION; OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 3WAY 		0-92138-906-0 01 1 1310-
24 NUT; UNION,OIL PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M12 		9-09840-280-0 01 1 1310-
132 PIPE; OIL,BRK,HYD UNIT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=903 		8-98250-573-0 01 1 1310-
