3-41 — REAR BRAKE POWER CHAMBER (#129125) — 16 parça

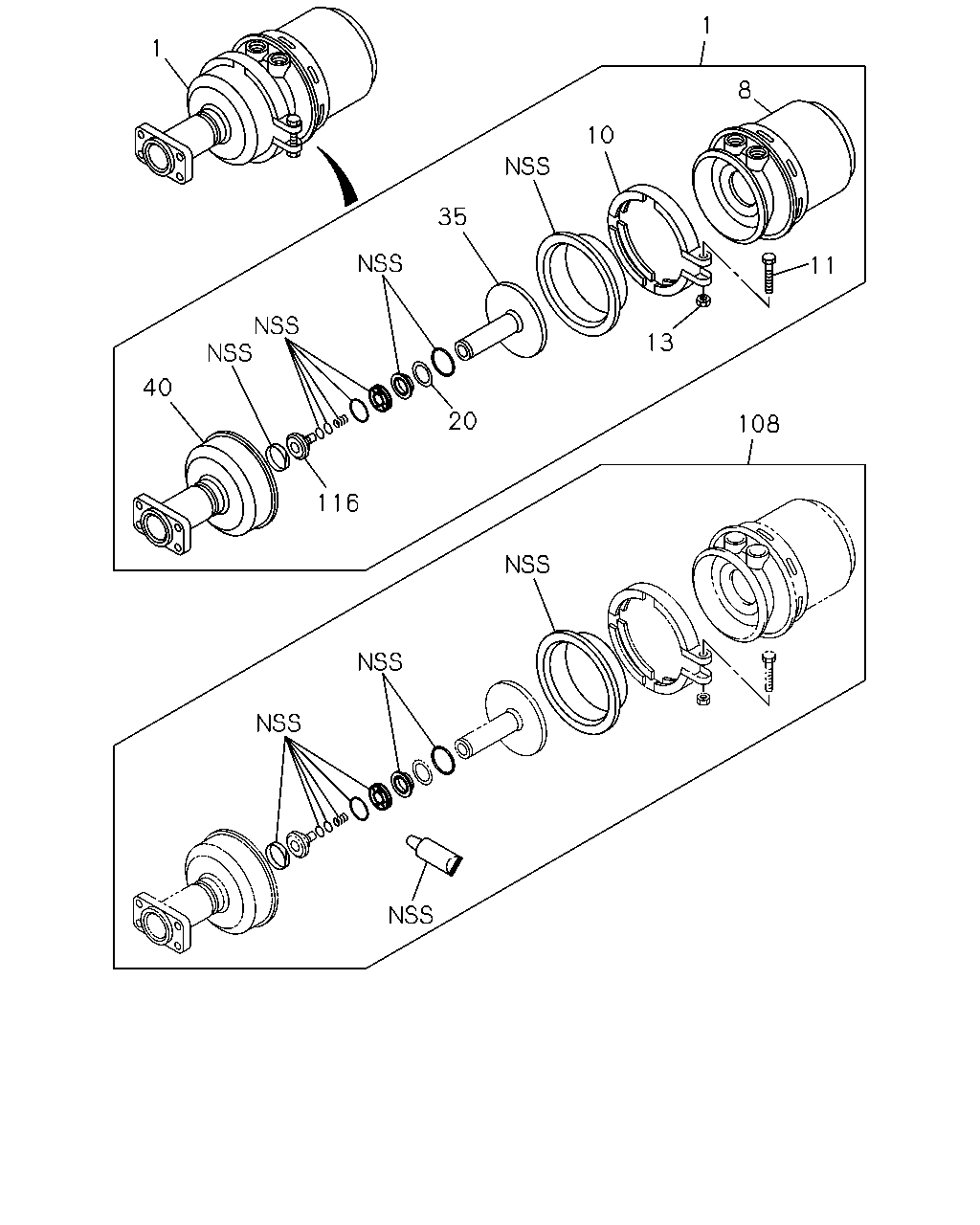

çizim 380632
1 40 116 20 13 11 10 1 8 108 35
BalonParca AdiParca NoAdetTipApplied Date
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98236-220-0 01 1 1310-
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98236-221-0 01 1 1310-
8 SHELL; CYL,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48251-173-1 01 1 1310-
8 SHELL; CYL,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48251-174-1 01 1 1310-
10 RING; CLAMP,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48269-231-0 02 1 1310-
11 BOLT; CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48269-232-0 02 1 1310-
13 NUT; CLAMP RING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48269-233-0 02 1 1310-
20 RING; RET
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48269-236-0 02 1 1310-
35 PLATE; ROD END,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48269-253-0 02 1 1310-
40 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48251-179-0 01 1 1310-
40 COVER ASM; LWR,SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48251-180-0 01 1 1310-
108 REPAIR KIT; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-85576-407-1 02 1 1310-
116 GUIDE; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		1-48269-237-0 02 1 1310-
çizim 380731
1 1 32
BalonParca AdiParca NoAdetTipApplied Date
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98236-220-0 01 1 1310-
1 CHAMBER ASM; SPRING
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98236-221-0 01 1 1310-
32 CONNECTOR; SPR CHAMBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN12 & R3/8 ELBOW 		1-09660-959-0 04 1 1310-
