Sayfa 3-22 - Isuzu EPC

3-22 — AIR CONTROL PARTS (#129119) — 253 parça

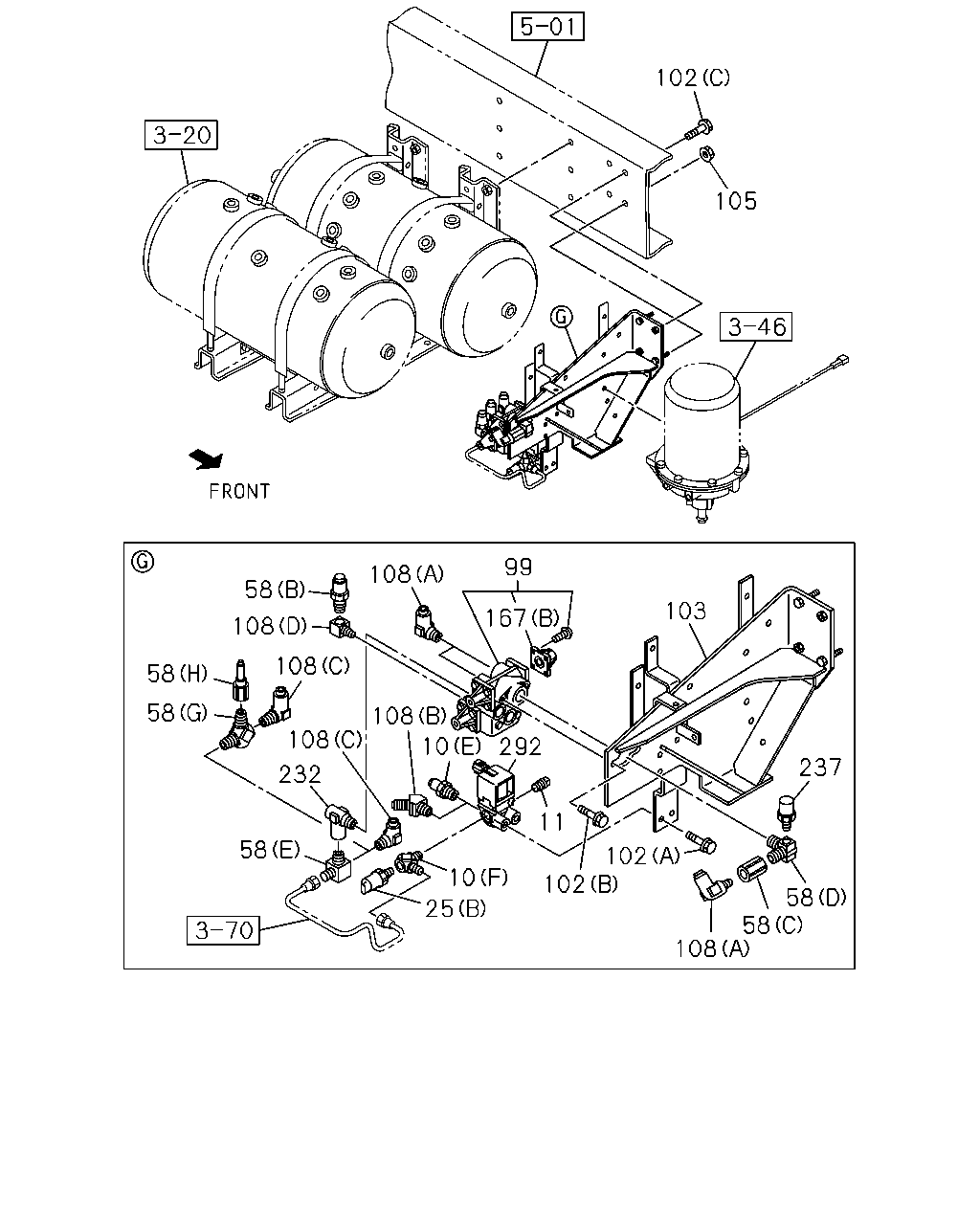

105 108 58 58 237 103 102 102 10 25 292 10 167 99 108 108 58 232 108 108 108 58 58 58 102 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1310-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1310-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1310-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1310-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1310-
10	CONNECTOR MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1310-
11	PLUG BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) PT1/4	9-99204-513-0	01	1	1310-
25	SWITCH; PRESSURE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) STAMP 2.0	8-98010-856-2	01	1	1310-
25	SWITCH; PRESSURE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) STAMP 5.5	8-97609-249-0	01	1	1310-
58	ADAPTER ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (G) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1411-
58	ADAPTER ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (H) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1411-
58	ADAPTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP> (A) INNER PT3/8,OUTER M22	1-09650-494-1	02	1	1310-
58	ADAPTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP> (F) M16 & PT3/8 STRAIGHT	1-09661-044-0	02	1	1310-
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	1310-
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1310-
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1310-
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN17 & RC3/8 & R1/2 3WAY	8-98031-238-0	01	1	1310-
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E)	8-98148-475-0	01	1	1310-
99	VALVE; PROTECTION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48110-288-3	01	1	1310-
102	BOLT; PROTECTION VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M10X35 FLANGE	0-28651-035-0	02	1	1310-
102	BOLT; PROTECTION VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X16 FLANGE	0-28050-816-0	02	1	1310-
102	BOLT; PROTECTION VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X20 FLANGE	0-28650-820-0	02	1	1310-
103	BRACKET; PROTECTION VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98226-215-0	01	1	1310-
105	NUT; BRKT,VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91180-210-0	02	1	1310-
108	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) DIN12 & M22 ELBOW	1-09661-497-0	04	1	1411-
108	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) PT3/8 ELBOW	1-09660-696-0	01	1	1310-
108	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1310-
108	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1310-
108	CONNECTOR; ELBOW FULLER FSO5206B OD M/T(Y4V) (B) M12 & PT1/4 ELBOW	1-48629-258-0	01	1	1310-1410
108	CONNECTOR; ELBOW FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M12 & PT1/4 ELBOW	1-48629-258-0	01	1	1411-1503
108	CONNECTOR; ELBOW FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M12 & PT1/4 ELBOW	8-98299-777-0	01	1	1504-
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48119-625-0	04	1	1310-
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48219-070-0	01	1	1310-
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48219-070-0	01	1	1310-
232	VALVE; CHECK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	1310-
237	VALVE; SAFETY	1-48320-012-2	01	1	1310-
292	VALVE ASM; MAGNETIC BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-82563-871-2	01	1	1310-

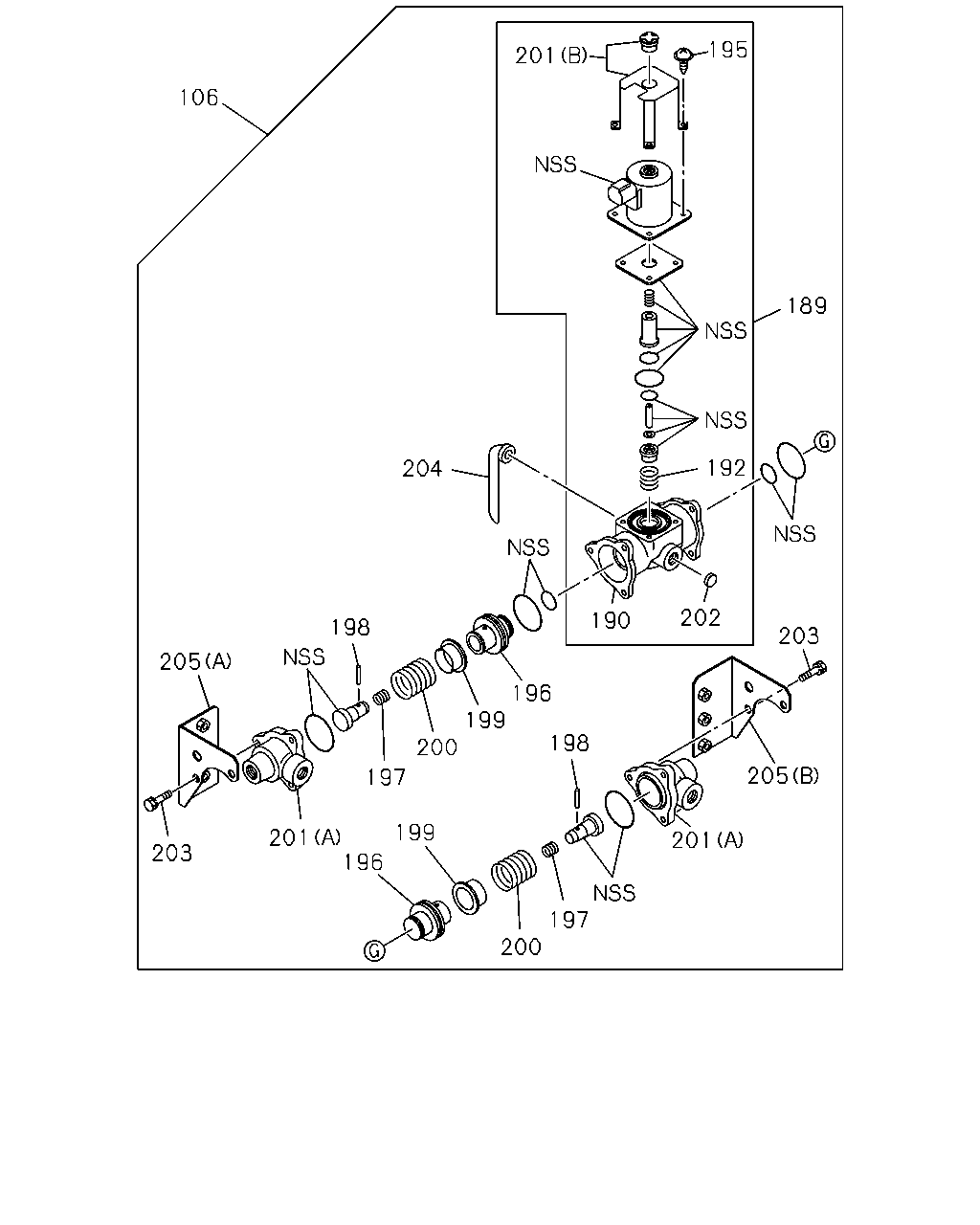

106 201 195 189 192 202 203 190 196 199 200 204 198 201 203 197 199 196 198 205 201 197 200 205

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
106	VALVE; HSA H.S.A SYSTEM<6EP>	1-46362-123-1	01	1	1310-
189	VALVE ASM; SOLENOID,HSA VLV H.S.A SYSTEM<6EP>	1-46366-247-0	01	1	1310-
190	BODY; SOLENOID VLV,HSA VLV H.S.A SYSTEM<6EP>	1-46366-234-0	01	1	1310-
192	SPRING; SOLENOID VLV,HSA VLV H.S.A SYSTEM<6EP>	1-46366-181-0	01	1	1310-
195	SCREW; SOLENOID VLV,HSA VLV H.S.A SYSTEM<6EP>	1-46366-191-0	04	1	1310-
196	PISTON; HSA VLV H.S.A SYSTEM<6EP>	1-46366-232-0	02	1	1310-
197	SPRING; INNER,HSA VLV H.S.A SYSTEM<6EP>	1-46366-161-0	02	1	1310-
198	PIN; STRAIGHT,HSA VLV H.S.A SYSTEM<6EP>	1-46366-122-0	02	1	1310-
199	RETAINER; HSA VLV H.S.A SYSTEM<6EP>	1-46366-121-0	02	1	1310-
200	SPRING; OUTER,HSA VLV H.S.A SYSTEM<6EP>	1-46366-120-0	02	1	1310-
201	COVER; HSA VLV H.S.A SYSTEM<6EP> (A)	1-46366-118-1	02	1	1310-
201	COVER; HSA VLV H.S.A SYSTEM<6EP> (B)	1-46366-241-0	01	1	1310-
202	FILTER; HSA VLV H.S.A SYSTEM<6EP>	1-46366-117-1	02	1	1310-
203	SCREW; HSA VLV H.S.A SYSTEM<6EP>	1-46366-116-1	06	1	1310-
204	PIPE ASM; HSA VLV H.S.A SYSTEM<6EP>	1-46366-194-0	01	1	1310-
205	BRACKET; HSA VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP> (C)	8-98232-228-0	01	1	1310-
205	BRACKET; HSA VLV H.S.A SYSTEM<6EP> (A)	1-46366-149-0	01	1	1310-
205	BRACKET; HSA VLV H.S.A SYSTEM<6EP> (B)	1-46366-150-0	01	1	1310-

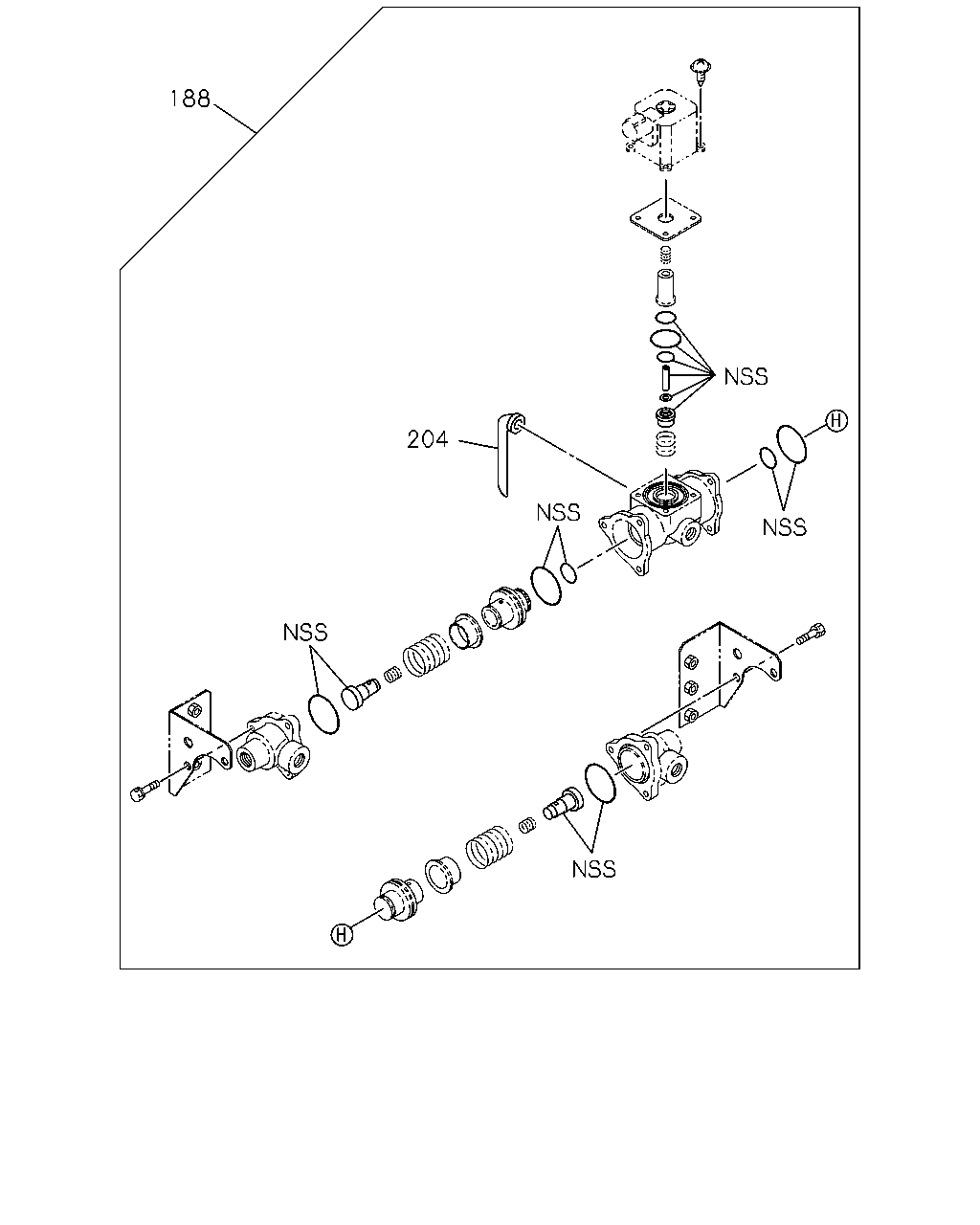

188 204

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	188	REPAIR KIT; HSA VLV H.S.A SYSTEM<6EP>	1-85576-304-1	01	1	1310-
	204	PIPE ASM; HSA VLV H.S.A SYSTEM<6EP>	1-46366-194-0	01	1	1310-

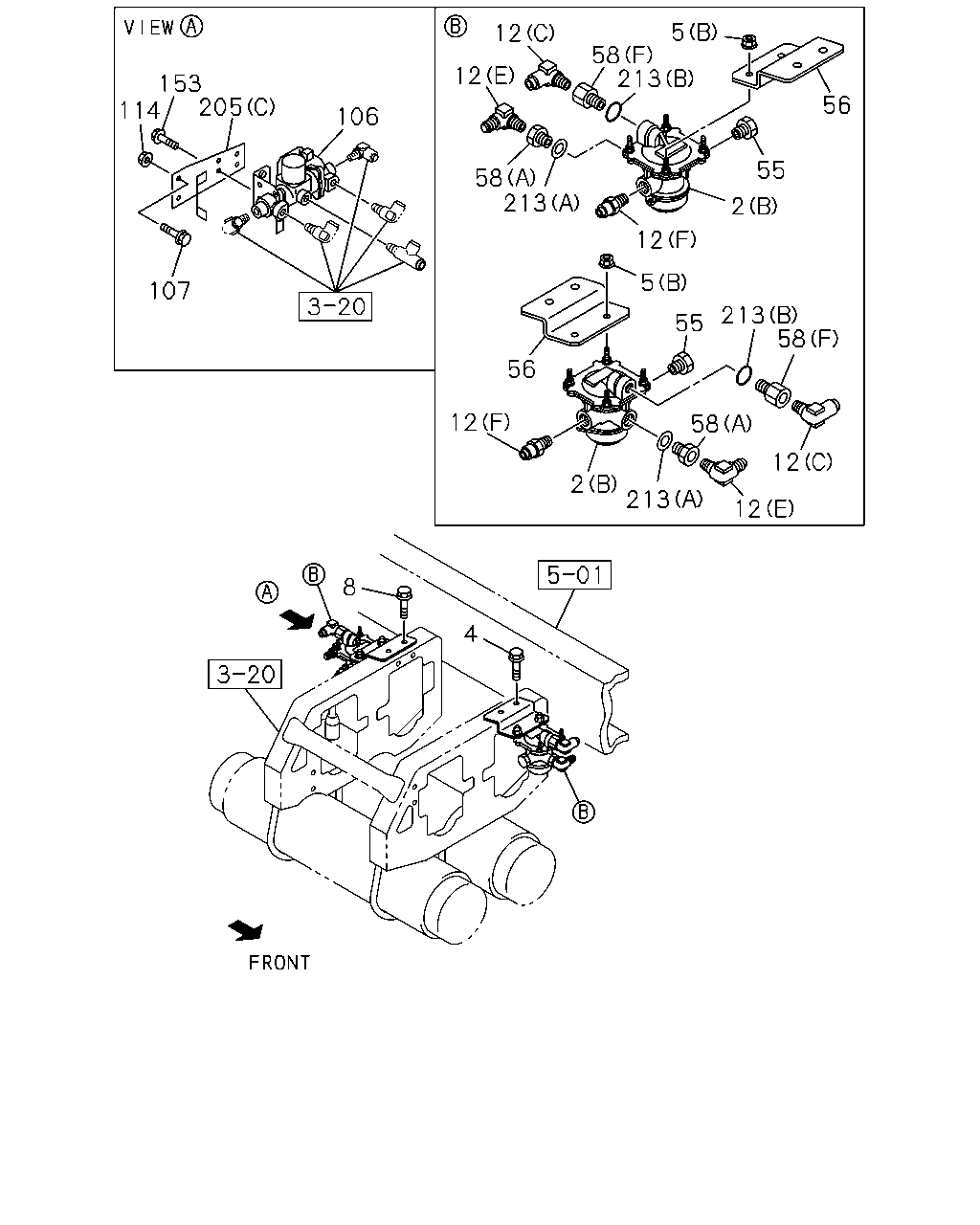

2 12 12 58 213 55 5 12 2 55 56 5 58 12 12 106 205 153 114 107 12 56 8 4 58 58 213 213 213

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	VALVE; RELAY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP> (B)	8-98091-529-0	02	1	1310-
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48210-875-0	01	1	1310-
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48210-875-0	01	1	1310-
4	BOLT; RELAY VLV TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP> M10X25 FLANGE	0-28651-025-0	02	1	1310-
4	BOLT; RELAY VLV TO BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X35 FLANGE	0-28651-035-0	02	1	1310-
4	BOLT; RELAY VLV TO BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X35 FLANGE	0-28651-035-0	02	1	1310-
5	NUT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP> (B) M8 FLANGE	0-91180-108-0	04	1	1310-
5	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M10 FLANGE	0-91180-210-0	02	1	1310-
5	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M10 FLANGE	0-91180-210-0	02	1	1310-
8	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP> M10X25 FLANGE	0-28651-025-0	02	1	1310-
8	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X35 FLANGE	0-28651-035-0	02	1	1310-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP> (E) M20 & PT3/8 ELBOW	0-92134-312-0	02	1	1310-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP> (F) DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	1310-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1310-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1310-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP> (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1310-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1310-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1310-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M12 & M8 & RC3/8 3WAY	1-09661-207-0	01	1	1310-
55	PLUG; SUPPLY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP> M22	1-09661-502-0	02	1	1310-
56	BRACKET; RELAY VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP>	8-98250-663-0	02	1	1310-
56	BRACKET; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98126-366-0	01	1	1310-
58	ADAPTER ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (G) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1411-
58	ADAPTER ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (H) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1411-
58	ADAPTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP> (A) INNER PT3/8,OUTER M22	1-09650-494-1	02	1	1310-
58	ADAPTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP> (F) M16 & PT3/8 STRAIGHT	1-09661-044-0	02	1	1310-
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	1310-
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1310-
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1310-
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN17 & RC3/8 & R1/2 3WAY	8-98031-238-0	01	1	1310-
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E)	8-98148-475-0	01	1	1310-
106	VALVE; HSA H.S.A SYSTEM<6EP>	1-46362-123-1	01	1	1310-
107	BOLT; VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP> M10X25 FLANGE	0-28651-025-0	03	1	1310-
107	BOLT; VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> M8X25 FLANGE	0-28650-825-0	04	1	1310-
114	NUT; VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP> M10 FLANGE	0-91180-210-0	03	1	1310-
153	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP> M8X25 FLANGE	0-28650-825-0	04	1	1310-
205	BRACKET; HSA VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP> (C)	8-98232-228-0	01	1	1310-
205	BRACKET; HSA VLV H.S.A SYSTEM<6EP> (A)	1-46366-149-0	01	1	1310-
205	BRACKET; HSA VLV H.S.A SYSTEM<6EP> (B)	1-46366-150-0	01	1	1310-
213	GASKET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP> (B) ID=16.2 OD=24	9-09571-416-0	02	1	1310-
213	GASKET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP> (A) ID=22.5	9-09571-422-0	02	1	1310-
213	GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=22.5	9-09571-422-0	04	1	1310-

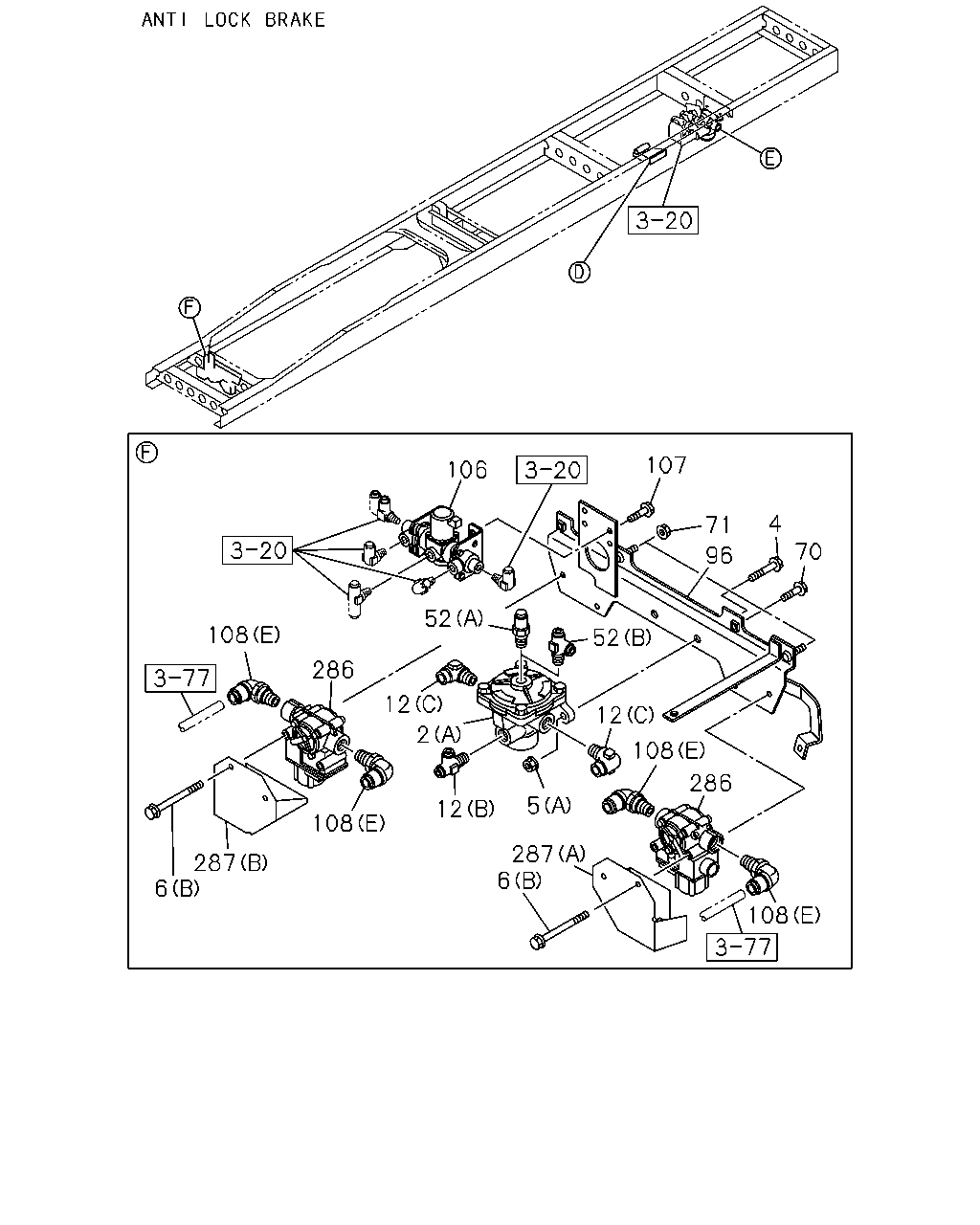

108 286 108 12 5 287 6 12 2 12 286 108 287 6 108 106 52 52 70 4 71 96 107

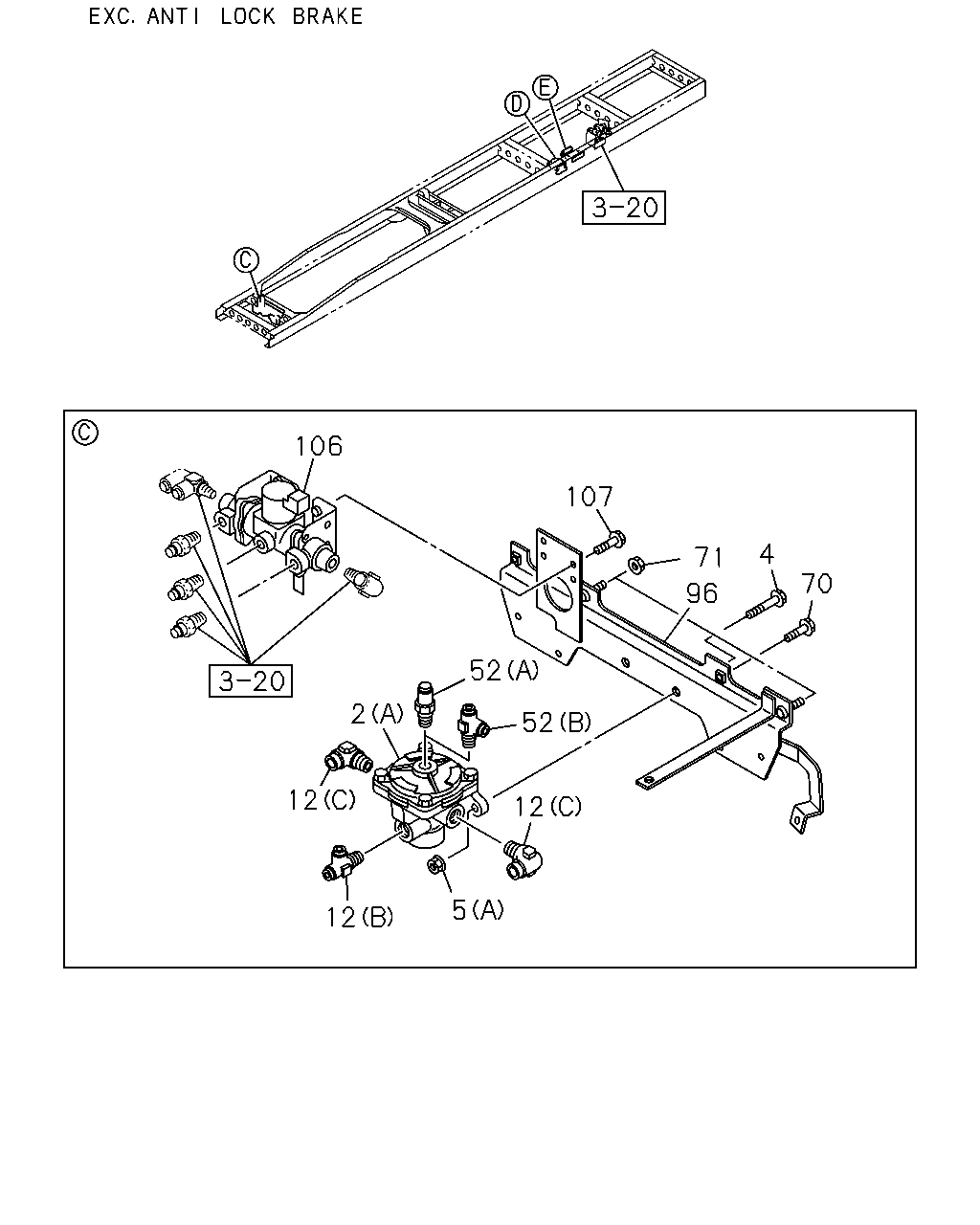

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	VALVE; RELAY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP> (B)	8-98091-529-0	02	1	1310-
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48210-875-0	01	1	1310-
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48210-875-0	01	1	1310-
4	BOLT; RELAY VLV TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP> M10X25 FLANGE	0-28651-025-0	02	1	1310-
4	BOLT; RELAY VLV TO BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X35 FLANGE	0-28651-035-0	02	1	1310-
4	BOLT; RELAY VLV TO BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X35 FLANGE	0-28651-035-0	02	1	1310-
5	NUT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP> (B) M8 FLANGE	0-91180-108-0	04	1	1310-
5	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M10 FLANGE	0-91180-210-0	02	1	1310-
5	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M10 FLANGE	0-91180-210-0	02	1	1310-
6	BOLT; VLV ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X85	1-09044-074-0	04	1	1411-
6	BOLT; VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X35 FLANGE	0-28650-835-0	02	1	1310-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP> (E) M20 & PT3/8 ELBOW	0-92134-312-0	02	1	1310-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP> (F) DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	1310-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1310-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1310-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP> (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1310-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1310-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1310-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M12 & M8 & RC3/8 3WAY	1-09661-207-0	01	1	1310-
52	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1310-
52	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. H.S.A SYSTEM<6EP> (B) DIN8X2 & R3/8 3WAY	1-09660-997-0	01	1	1310-
70	BOLT; AIR VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28650-825-0	02	1	1310-
71	NUT; AIR VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	02	1	1310-
96	BRACKET ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98273-496-0	01	1	1411-
96	BRACKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98074-613-3	01	1	1310-1410
96	BRACKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5>	8-98074-613-3	01	1	1411-
106	VALVE; HSA H.S.A SYSTEM<6EP>	1-46362-123-1	01	1	1310-
107	BOLT; VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP> M10X25 FLANGE	0-28651-025-0	03	1	1310-
107	BOLT; VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> M8X25 FLANGE	0-28650-825-0	04	1	1310-
108	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) DIN12 & M22 ELBOW	1-09661-497-0	04	1	1411-
108	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) PT3/8 ELBOW	1-09660-696-0	01	1	1310-
108	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	1310-
108	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	1310-
108	CONNECTOR; ELBOW FULLER FSO5206B OD M/T(Y4V) (B) M12 & PT1/4 ELBOW	1-48629-258-0	01	1	1310-1410
108	CONNECTOR; ELBOW FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M12 & PT1/4 ELBOW	1-48629-258-0	01	1	1411-1503
108	CONNECTOR; ELBOW FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M12 & PT1/4 ELBOW	8-98299-777-0	01	1	1504-
286	MODULATOR; FRT ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98215-454-0	02	1	1411-
287	COVER; MODULATOR ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	8-98273-493-0	01	1	1411-
287	COVER; MODULATOR ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	8-98273-494-0	01	1	1411-

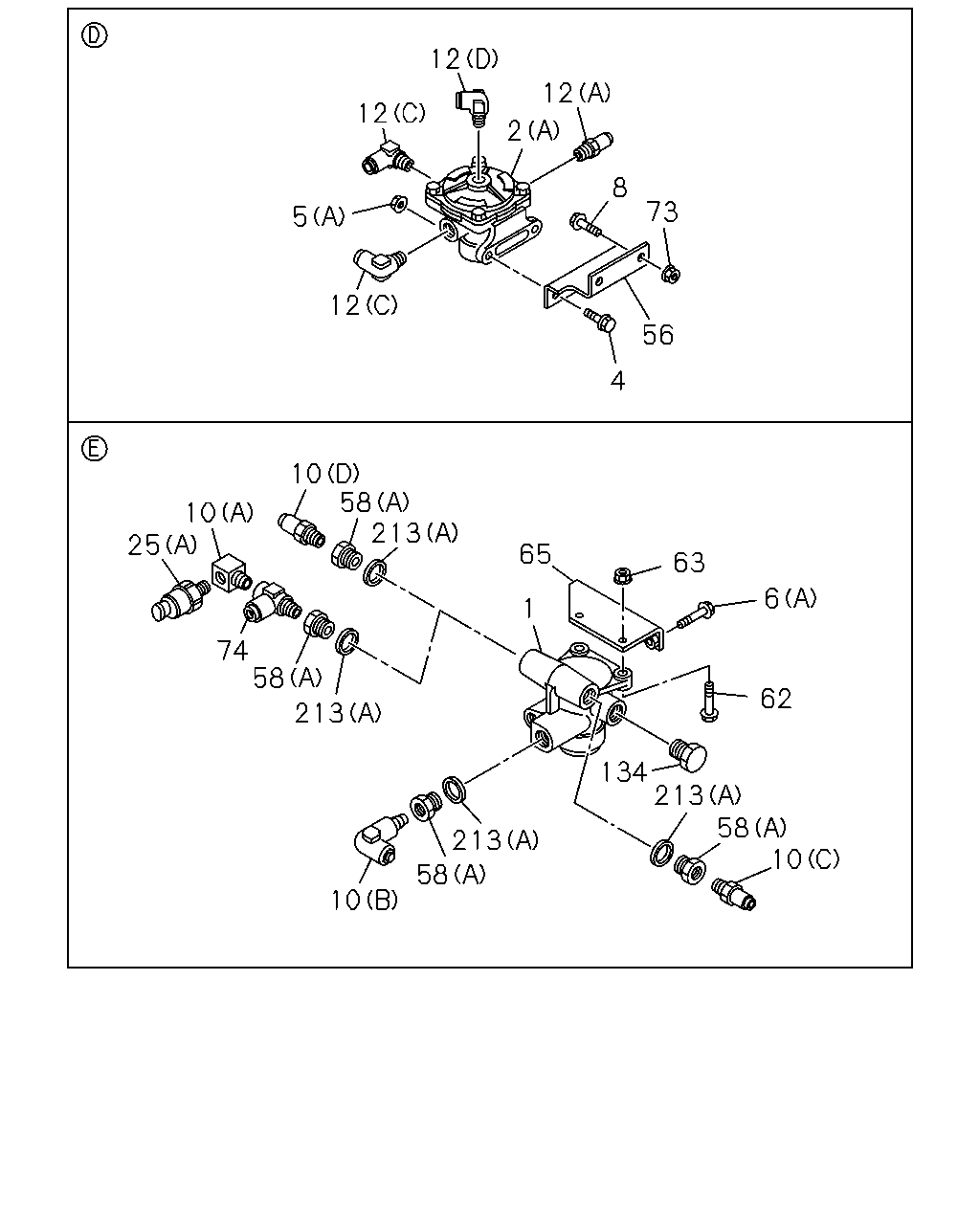

12 12 2 12 8 73 56 4 12 5 10 58 213 134 62 6 63 65 213 58 10 213 58 74 25 10 10 58 213 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

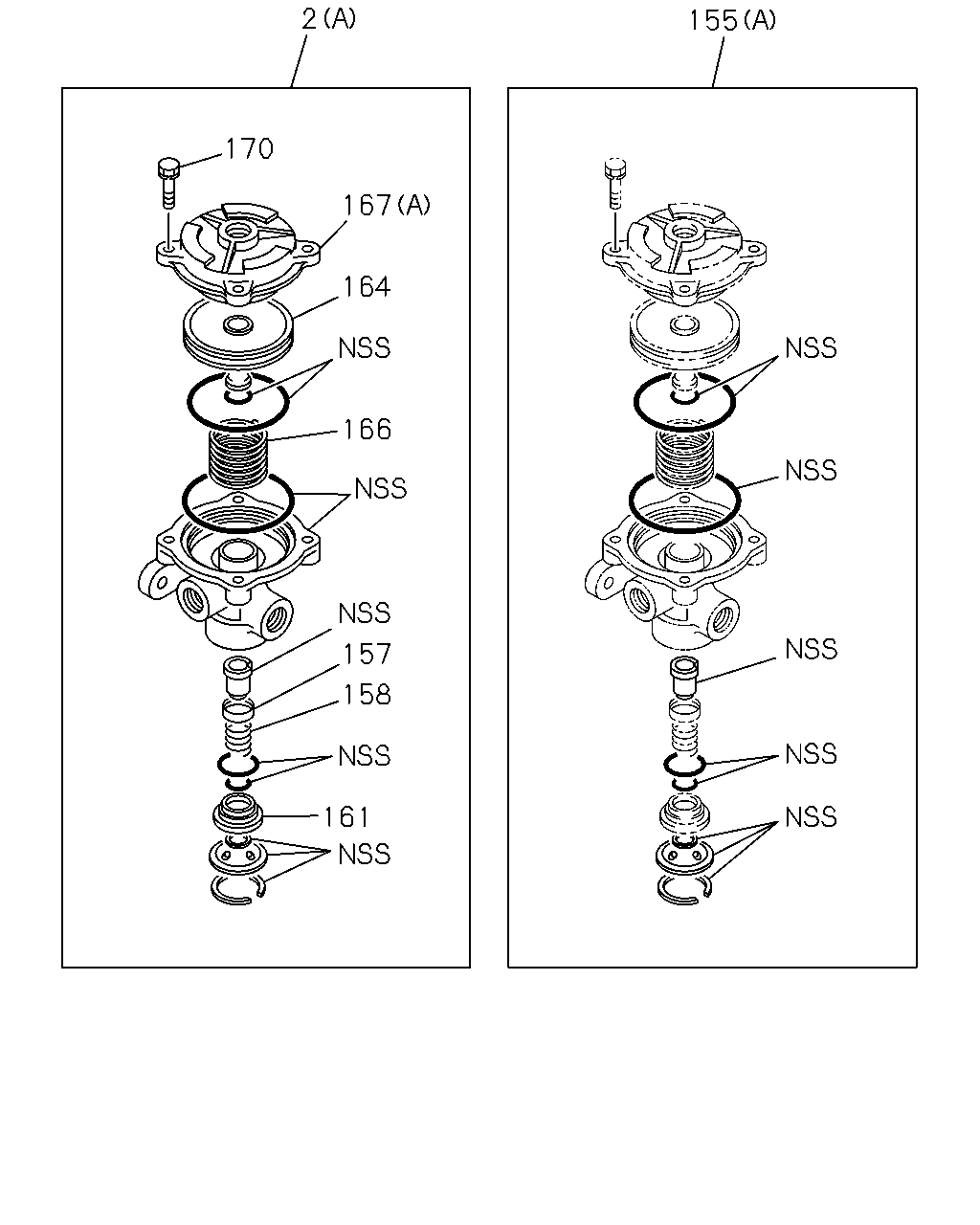

1	VALVE; RELAY RWD RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48240-354-1	01	1	1310-
2	VALVE; RELAY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP> (B)	8-98091-529-0	02	1	1310-
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48210-875-0	01	1	1310-
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48210-875-0	01	1	1310-
4	BOLT; RELAY VLV TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP> M10X25 FLANGE	0-28651-025-0	02	1	1310-
4	BOLT; RELAY VLV TO BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X35 FLANGE	0-28651-035-0	02	1	1310-
4	BOLT; RELAY VLV TO BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X35 FLANGE	0-28651-035-0	02	1	1310-
5	NUT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP> (B) M8 FLANGE	0-91180-108-0	04	1	1310-
5	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M10 FLANGE	0-91180-210-0	02	1	1310-
5	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M10 FLANGE	0-91180-210-0	02	1	1310-
6	BOLT; VLV ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X85	1-09044-074-0	04	1	1411-
6	BOLT; VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M8X35 FLANGE	0-28650-835-0	02	1	1310-
8	BOLT; BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP> M10X25 FLANGE	0-28651-025-0	02	1	1310-
8	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X35 FLANGE	0-28651-035-0	02	1	1310-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) PT1/4 & PT1/4 2WAY	1-09660-693-0	01	1	1310-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	1310-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1310-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1310-
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (F) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1310-
10	CONNECTOR MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1310-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP> (E) M20 & PT3/8 ELBOW	0-92134-312-0	02	1	1310-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP> (F) DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	1310-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1310-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1310-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP> (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1310-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1310-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1310-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M12 & M8 & RC3/8 3WAY	1-09661-207-0	01	1	1310-
25	SWITCH; PRESSURE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) STAMP 2.0	8-98010-856-2	01	1	1310-
25	SWITCH; PRESSURE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) STAMP 5.5	8-97609-249-0	01	1	1310-
56	BRACKET; RELAY VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP>	8-98250-663-0	02	1	1310-
56	BRACKET; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98126-366-0	01	1	1310-
58	ADAPTER ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (G) M12 & PT1/4 3WAY	1-09656-586-1	01	1	1411-
58	ADAPTER ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (H) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1411-
58	ADAPTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP> (A) INNER PT3/8,OUTER M22	1-09650-494-1	02	1	1310-
58	ADAPTER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP> (F) M16 & PT3/8 STRAIGHT	1-09661-044-0	02	1	1310-
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) INNER PT3/8,OUTER M22	1-09650-494-1	04	1	1310-
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	1310-
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1310-
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN17 & RC3/8 & R1/2 3WAY	8-98031-238-0	01	1	1310-
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (E)	8-98148-475-0	01	1	1310-
62	BOLT; BRKT FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X30 FLANGE	0-28650-830-0	02	1	1310-
63	NUT; BRKT FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	02	1	1310-
65	BRACKET; RELAY VLV RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47471-032-0	01	1	1310-
73	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10 FLANGE	0-91180-210-0	02	1	1310-
74	CONNECTOR; 3WAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) DIN8 & R3/8 & RC1/4 3WAY	1-09661-536-0	01	1	1310-
134	PLUG; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M22	1-09661-502-0	01	1	1310-
213	GASKET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP> (B) ID=16.2 OD=24	9-09571-416-0	02	1	1310-
213	GASKET BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP> (A) ID=22.5	9-09571-422-0	02	1	1310-
213	GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=22.5	9-09571-422-0	04	1	1310-

106 107 71 4 70 96 52 52 12 5 12 12 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	VALVE; RELAY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP> (B)	8-98091-529-0	02	1	1310-
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48210-875-0	01	1	1310-
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48210-875-0	01	1	1310-
4	BOLT; RELAY VLV TO BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP> M10X25 FLANGE	0-28651-025-0	02	1	1310-
4	BOLT; RELAY VLV TO BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X35 FLANGE	0-28651-035-0	02	1	1310-
4	BOLT; RELAY VLV TO BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X35 FLANGE	0-28651-035-0	02	1	1310-
5	NUT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP> (B) M8 FLANGE	0-91180-108-0	04	1	1310-
5	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M10 FLANGE	0-91180-210-0	02	1	1310-
5	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) M10 FLANGE	0-91180-210-0	02	1	1310-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP> (E) M20 & PT3/8 ELBOW	0-92134-312-0	02	1	1310-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP> (F) DIN12 & M22 STRAIGHT	1-09661-050-0	02	1	1310-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	1310-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1310-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP> (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1310-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	1310-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	1310-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M12 & M8 & RC3/8 3WAY	1-09661-207-0	01	1	1310-
52	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> (A) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	1310-
52	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. H.S.A SYSTEM<6EP> (B) DIN8X2 & R3/8 3WAY	1-09660-997-0	01	1	1310-
70	BOLT; AIR VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X25 FLANGE	0-28650-825-0	02	1	1310-
71	NUT; AIR VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8 FLANGE	0-91180-108-0	02	1	1310-
96	BRACKET ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98273-496-0	01	1	1411-
96	BRACKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98074-613-3	01	1	1310-1410
96	BRACKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5>	8-98074-613-3	01	1	1411-
106	VALVE; HSA H.S.A SYSTEM<6EP>	1-46362-123-1	01	1	1310-
107	BOLT; VLV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP> M10X25 FLANGE	0-28651-025-0	03	1	1310-
107	BOLT; VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP> M8X25 FLANGE	0-28650-825-0	04	1	1310-

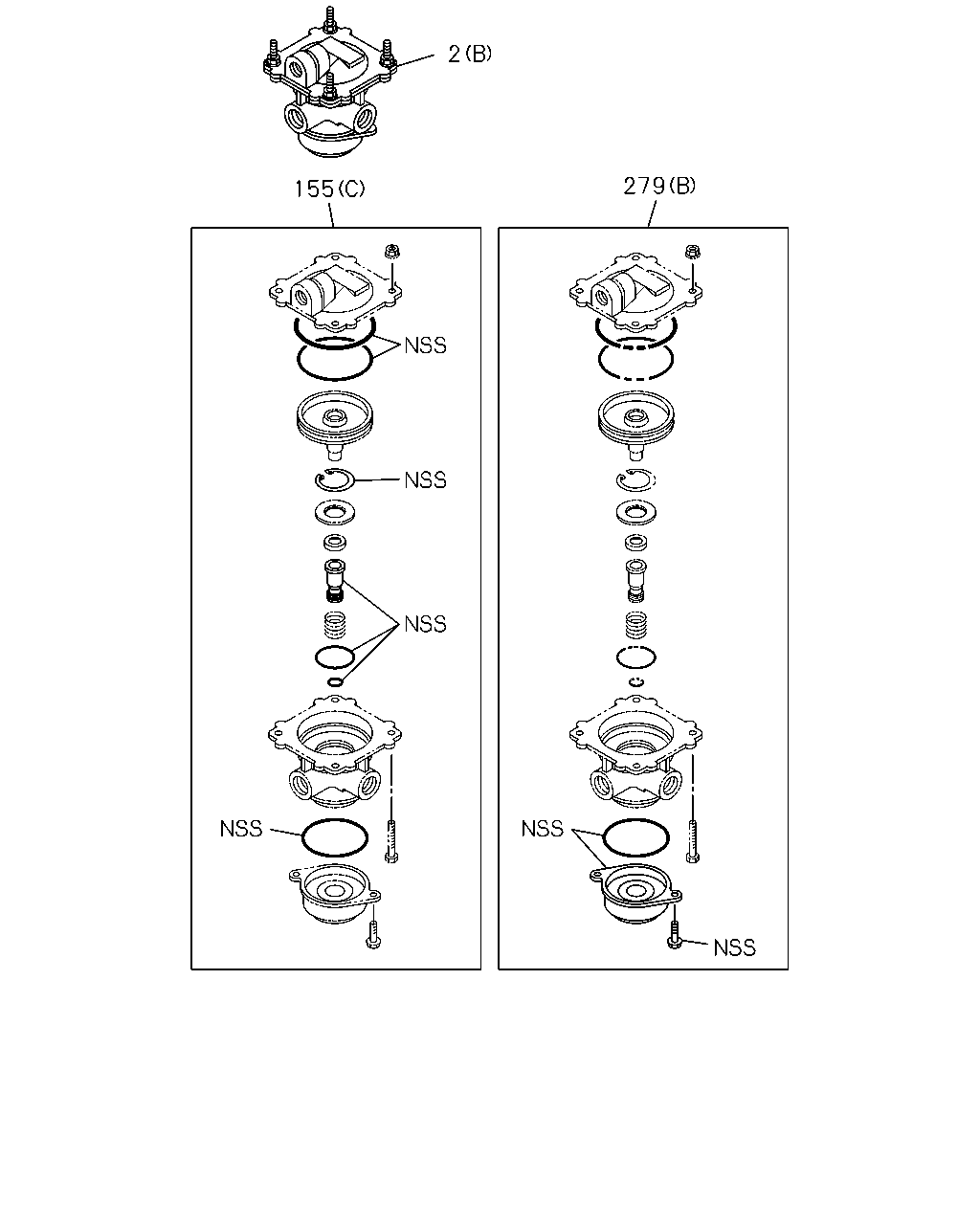

279 155 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	VALVE; RELAY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP> (B)	8-98091-529-0	02	1	1310-
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48210-875-0	01	1	1310-
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48210-875-0	01	1	1310-
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP> (C)	8-98165-977-0	02	1	1310-
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-85576-033-0	01	1	1310-
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-85576-033-0	01	1	1310-
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-85576-408-0	01	1	1310-
279	REPAIR KIT; SILENCER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP> (B)	8-98165-978-0	02	1	1310-
279	REPAIR KIT; SILENCER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-85576-409-0	01	1	1310-

155 2 170 167 164 166 157 158 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	VALVE; RELAY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP> (B)	8-98091-529-0	02	1	1310-
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48210-875-0	01	1	1310-
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48210-875-0	01	1	1310-
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP> (C)	8-98165-977-0	02	1	1310-
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-85576-033-0	01	1	1310-
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-85576-033-0	01	1	1310-
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-85576-408-0	01	1	1310-
157	RETAINER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48213-002-0	01	1	1310-
157	RETAINER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48213-002-0	01	1	1310-
158	SPRING; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47819-089-0	01	1	1310-
158	SPRING; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47819-089-0	01	1	1310-
161	GUIDE; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48129-014-0	01	1	1310-
161	GUIDE; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48129-014-0	01	1	1310-
164	PISTON; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-071-0	01	1	1310-
164	PISTON; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-071-0	01	1	1310-
166	SPRING; PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47819-090-0	01	1	1310-
166	SPRING; PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47819-090-0	01	1	1310-
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-48119-625-0	04	1	1310-
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48219-070-0	01	1	1310-
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-48219-070-0	01	1	1310-
170	SCREW; COVER TO BODY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-039-0	04	1	1310-
170	SCREW; COVER TO BODY BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48219-039-0	04	1	1310-

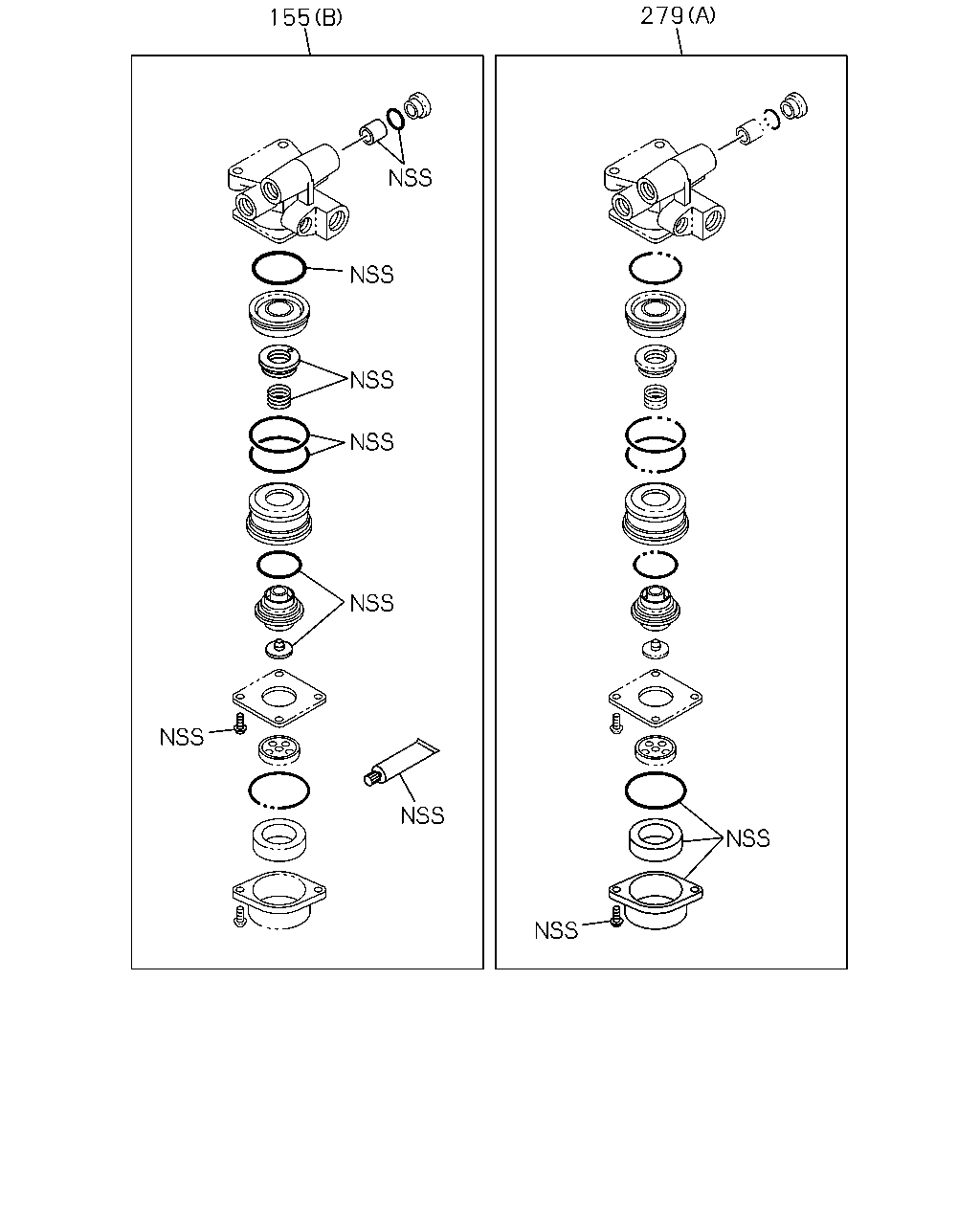

279 155

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP> (C)	8-98165-977-0	02	1	1310-
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-85576-033-0	01	1	1310-
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-85576-033-0	01	1	1310-
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-85576-408-0	01	1	1310-
279	REPAIR KIT; SILENCER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) H.S.A SYSTEM<6EP> (B)	8-98165-978-0	02	1	1310-
279	REPAIR KIT; SILENCER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-85576-409-0	01	1	1310-

241

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	241	REPAIR KIT; PROTECTION VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-85576-451-2	01	1	1310-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
