◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11556 - FVR-RHD EURO5 ▶ 3 - Brakes, Brake System ▶ 3-11 - PARKING BRAKE CONTROL ▶
3-11 — PARKING BRAKE CONTROL (#129117) — 40 parça
çizim 380049
97
BalonParca AdiParca NoAdetTipApplied Date
97 GROMMET; PARKING BRK CABLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) OD=35 		8-94122-971-0 01 1 1310-
97 GROMMET; PARKING BRK CABLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		8-98029-219-1 01 1 1310-

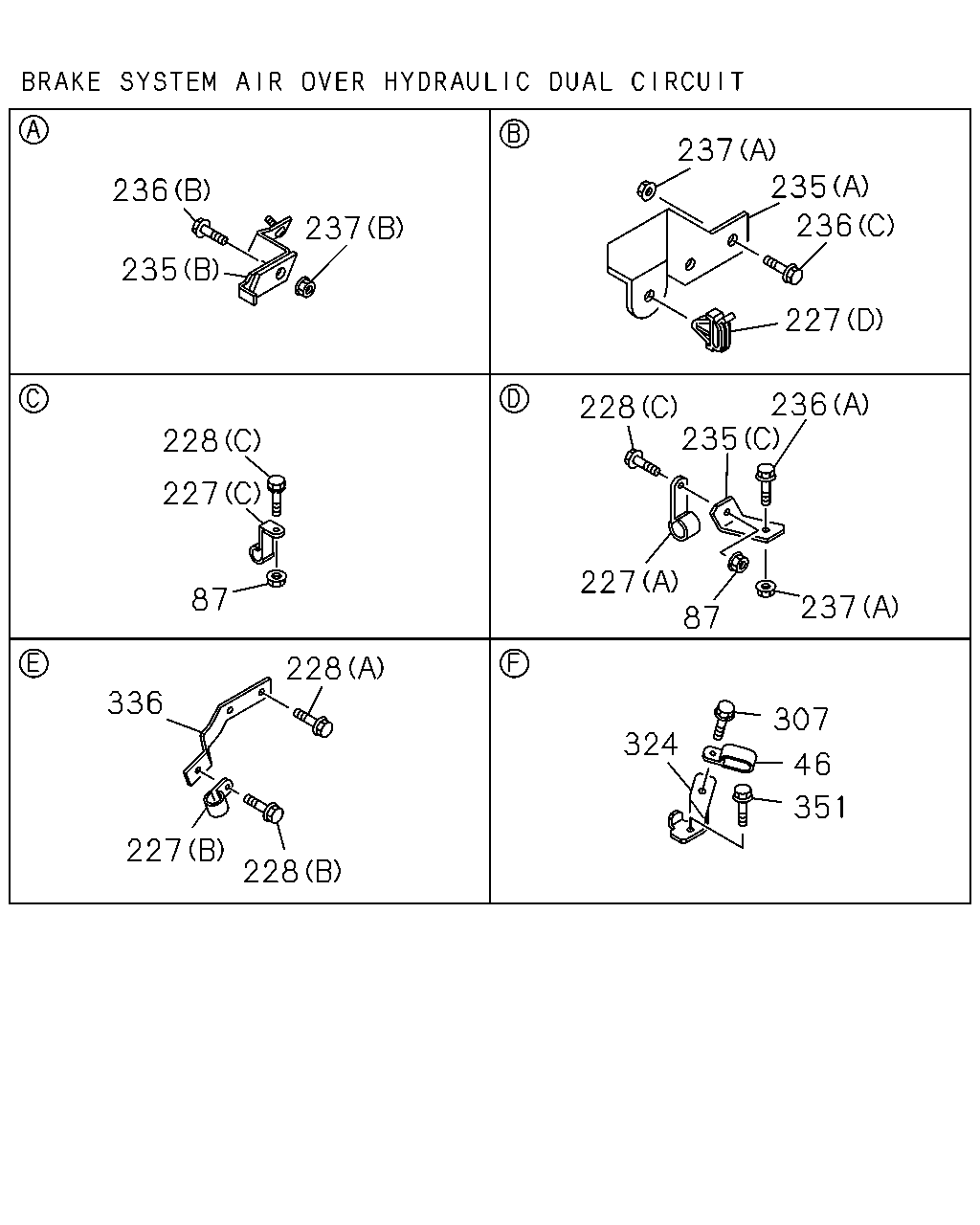

çizim 380249
236 235 237 228 227 87 336 227 228 228 307 324 46 351 237 87 227 228 235 236 227 236 235 237
BalonParca AdiParca NoAdetTipApplied Date
46 CLIP; FRT CABLE TO FLOOR
MZW6P M/T(RSZ) PARKING BRAKE DRUM 10"(B1T) ID=16 L=20 		0-95235-535-0 01 1 1310-
87 NUT
MZW6P M/T(RSZ) PARKING BRAKE DRUM 10"(B1T) M8 FLANGE 		0-91180-108-0 02 1 1310-
227 CLIP; RAD
MZW6P M/T(RSZ) PARKING BRAKE DRUM 10"(B1T) (B) ID=13 L=20 		0-95235-235-0 02 1 1310-
227 CLIP; RAD
MZW6P M/T(RSZ) PARKING BRAKE DRUM 10"(B1T) (C) ID=25 H=60 L=35 		1-09701-103-0 01 1 1310-
227 CLIP; RAD
MZW6P M/T(RSZ) PARKING BRAKE DRUM 10"(B1T) (D) ID=9.5 		5-09709-020-0 02 1 1310-
227 CLIP; RAD
MZW6P M/T(RSZ) PARKING BRAKE DRUM 10"(B1T) (A) ID=14.5 L=40 		8-98119-885-0 01 1 1310-
228 BOLT; CLIP RAD MTG
MZW6P M/T(RSZ) PARKING BRAKE DRUM 10"(B1T) (B) M8X16 FLANGE 		0-28050-816-0 01 1 1310-
228 BOLT; CLIP RAD MTG
MZW6P M/T(RSZ) PARKING BRAKE DRUM 10"(B1T) (C) M8X25 FLANGE 		0-28650-825-0 02 1 1310-
228 BOLT; CLIP RAD MTG
MZW6P M/T(RSZ) PARKING BRAKE DRUM 10"(B1T) (A) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 1310-
235 BRACKET; CONT CABLE TO FRAME
MZW6P M/T(RSZ) PARKING BRAKE DRUM 10"(B1T) (C) 		1-82699-199-0 01 1 1310-
235 BRACKET; CONT CABLE TO FRAME
MZW6P M/T(RSZ) PARKING BRAKE DRUM 10"(B1T) (B) 		8-98077-903-2 01 1 1310-
235 BRACKET; CONT CABLE TO FRAME
MZW6P M/T(RSZ) PARKING BRAKE DRUM 10"(B1T) (A) 		8-98100-152-0 01 1 1310-
236 BOLT; BRKT TO FRAME
MZW6P M/T(RSZ) PARKING BRAKE DRUM 10"(B1T) (A) M8X25 FLANGE 		0-28650-825-0 01 1 1310-
236 BOLT; BRKT TO FRAME
MZW6P M/T(RSZ) PARKING BRAKE DRUM 10"(B1T) (C) M8X30 FLANGE 		0-28650-830-0 02 1 1310-
236 BOLT; BRKT TO FRAME
MZW6P M/T(RSZ) PARKING BRAKE DRUM 10"(B1T) (B) M10X30 FLANGE 		0-28651-030-0 01 1 1310-1504
236 BOLT; BRKT TO FRAME
MZW6P M/T(RSZ) PARKING BRAKE DRUM 10"(B1T) (B) M10X30 FLANGE 		0-28051-030-0 01 1 1505-
237 NUT; BRKT TO FRAME
MZW6P M/T(RSZ) PARKING BRAKE DRUM 10"(B1T) (A) M8 FLANGE 		0-91180-108-0 02 1 1310-
237 NUT; BRKT TO FRAME
MZW6P M/T(RSZ) PARKING BRAKE DRUM 10"(B1T) (B) M10 FLANGE 		0-91180-210-0 01 1 1310-
307 BOLT; BRKT,PARKING BRK CABLE
MZW6P M/T(RSZ) PARKING BRAKE DRUM 10"(B1T) M8X25 W/WASHER 		0-51640-825-0 01 1 1310-
324 BRACKET
MZW6P M/T(RSZ) PARKING BRAKE DRUM 10"(B1T) 		8-98067-482-1 01 1 1310-
336 BRACKET; RADIATOR
MZW6P M/T(RSZ) PARKING BRAKE DRUM 10"(B1T) 		8-98044-680-0 01 1 1310-
351 BOLT; CLIP
MZW6P M/T(RSZ) PARKING BRAKE DRUM 10"(B1T) M8X25 W/WASHER 		0-51640-825-0 03 1 1310-

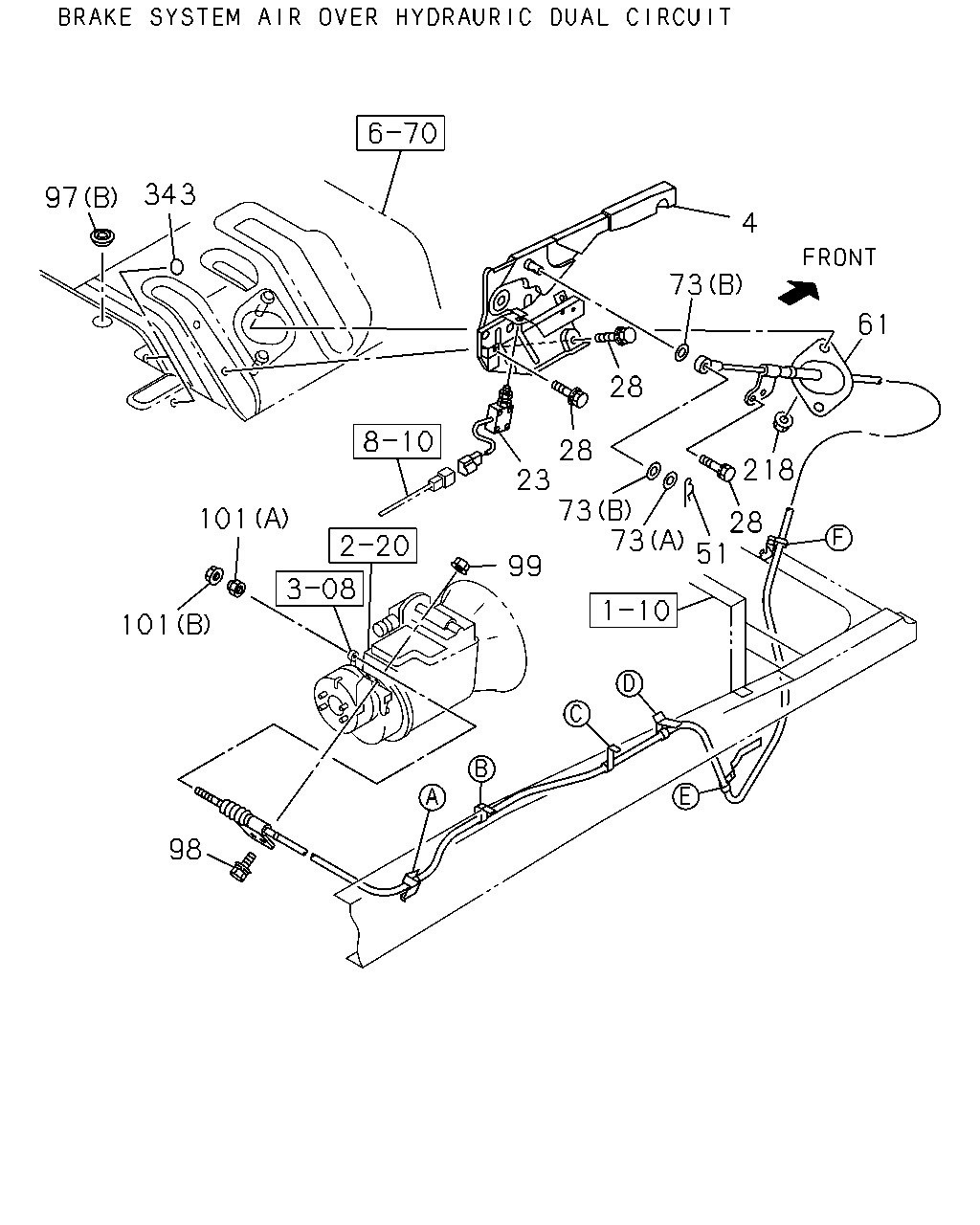

çizim 380274
97 343 101 101 98 99 23 28 73 28 73 4 61 218 28 51 73
BalonParca AdiParca NoAdetTipApplied Date
4 STEM; PARKING BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-79996-549-0 01 1 1310-
23 SWITCH; PARKING BRK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		1-82440-100-0 01 1 1310-
28 BOLT; HAND BRK LEVER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1310-
51 PIN; JOINT,RELAY LEVER
MZW6P M/T(RSZ) PARKING BRAKE DRUM 10"(B1T) 		1-09987-243-1 01 1 1310-
61 CABLE; PARKING BRK
MZW6P M/T(RSZ) PARKING BRAKE DRUM 10"(B1T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=4615 		8-98106-061-5 01 1 1310-
61 CABLE; PARKING BRK
MZW6P M/T(RSZ) PARKING BRAKE DRUM 10"(B1T) TRANSMISSION CONTROL-SMOOTHER(8GF) L=4695 		8-98106-062-5 01 1 1310-
73 WASHER; PL,CABLE
MZW6P M/T(RSZ) PARKING BRAKE DRUM 10"(B1T) (A) ID=17 OD=30 		0-91610-516-0 01 1 1310-
73 WASHER; PL,CABLE
MZW6P M/T(RSZ) PARKING BRAKE DRUM 10"(B1T) (B) ID=19 		8-94206-429-1 02 1 1310-
97 GROMMET; PARKING BRK CABLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) OD=35 		8-94122-971-0 01 1 1310-
97 GROMMET; PARKING BRK CABLE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) 		8-98029-219-1 01 1 1310-
98 BOLT; RR COVER
MZW6P M/T(RSZ) PARKING BRAKE DRUM 10"(B1T) M10X30 FLANGE 		0-28651-030-0 02 1 1310-
99 NUT; CONT CABLE
MZW6P M/T(RSZ) PARKING BRAKE DRUM 10"(B1T) M10 FLANGE 		0-91180-210-0 02 1 1310-
101 NUT; CABLE TO LEVER
MZW6P M/T(RSZ) PARKING BRAKE DRUM 10"(B1T) (B) M8 FLANGE 		0-91180-108-0 01 1 1310-
101 NUT; CABLE TO LEVER
MZW6P M/T(RSZ) PARKING BRAKE DRUM 10"(B1T) (A) M8 		1-46259-007-0 01 1 1310-
218 NUT; BRKT,PARKING BRK CABLE
MZW6P M/T(RSZ) PARKING BRAKE DRUM 10"(B1T) M8 FLANGE 		0-91180-108-0 02 1 1310-
343 SEAL
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) OD=25 BLACK 		1-76798-019-0 04 1 1310-
