◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11556 - FVR-RHD EURO5 ▶ 3 - Brakes, Brake System ▶ 3-08A - PARKING BRAKE ▶
3-08A — PARKING BRAKE (#129115) — 26 parça

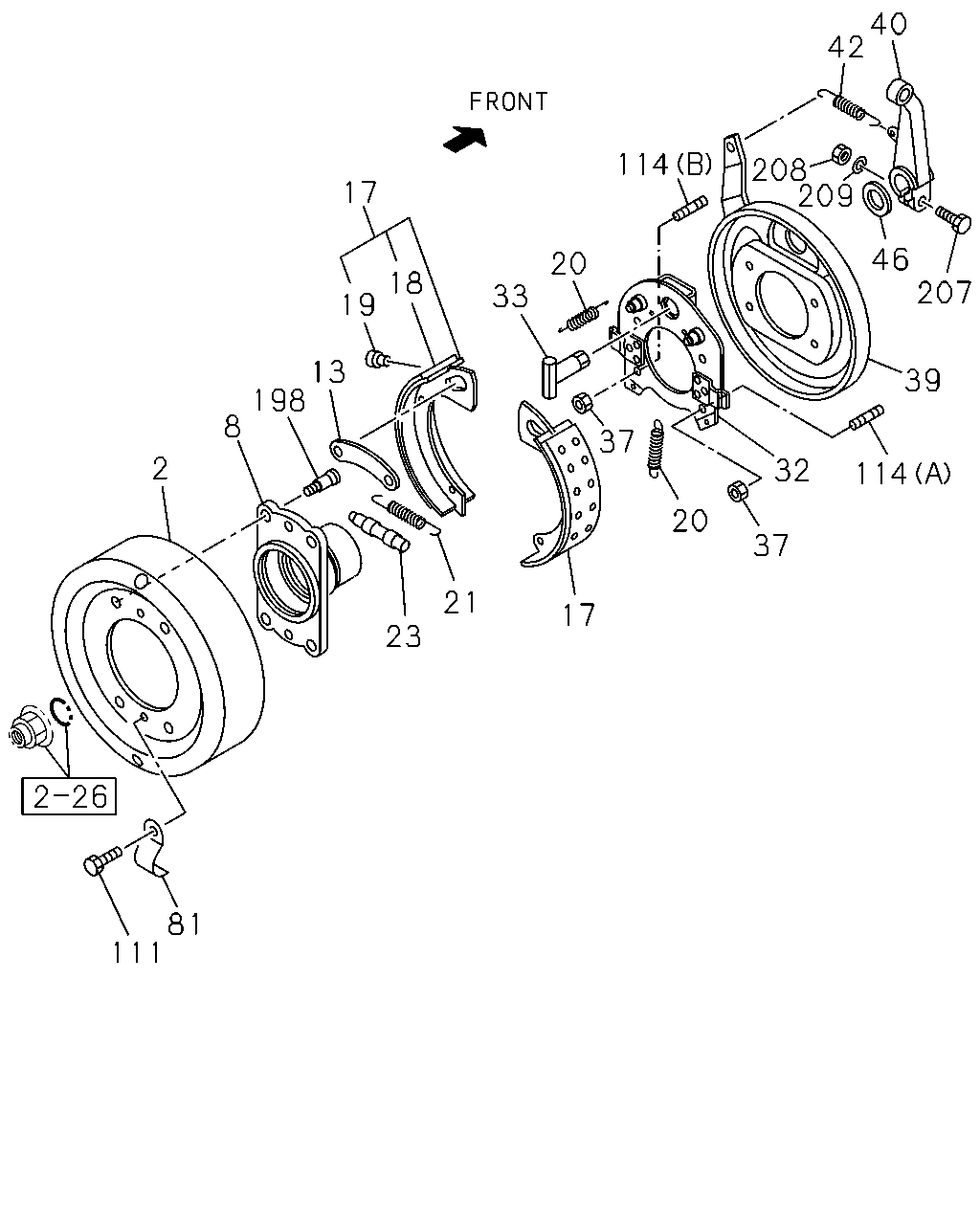

çizim 380598
40 42 208 209 46 207 39 114 32 37 20 37 33 20 114 17 21 23 13 19 18 17 198 8 2 111 81
BalonParca AdiParca NoAdetTipApplied Date
2 DRUM; PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		1-46211-019-0 01 1 1310-
8 FLANGE; PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		8-98153-193-0 01 1 1310-
13 BRACE; PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		9-46239-002-0 01 1 1310-
17 SHOE; PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		1-46220-022-1 02 1 1310-
18 LINING; BRK,PARKING
PARKING BRAKE DRUM 10"(B1T) 		1-46225-023-0 02 1 1310-
19 RIVET; LINING,PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		1-09732-058-0 32 1 1310-
20 SPRING; RETURN,SECONDARY,PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		9-09942-434-0 02 1 1310-
21 SPRING; RETURN,PARKING BRK SHOE
PARKING BRAKE DRUM 10"(B1T) 		9-09942-516-0 01 1 1310-
23 SCREW; ADJ,PARKING BRK SHOE
PARKING BRAKE DRUM 10"(B1T) 		1-46240-003-0 01 1 1310-
32 PLATE; SUPPORT,PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		1-46213-039-0 01 1 1310-
33 SHAFT; CAM,PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		1-46251-010-0 01 1 1310-
37 NUT; SUPPORT PLATE
PARKING BRAKE DRUM 10"(B1T) M14 FLANGE 		8-97365-444-0 04 1 1310-
39 COVER; DUST,PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		1-46213-038-0 01 1 1310-
40 LEVER; CM/SHF,PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		1-46252-046-0 01 1 1310-
42 SPRING; RETURN,LEVER
PARKING BRAKE DRUM 10"(B1T) 		1-09583-104-0 01 1 1310-
46 WASHER; LEVER
PARKING BRAKE DRUM 10"(B1T) 		9-09855-362-0 01 1 1310-
81 COVER; CHECK HOLE,PARKING BRK
PARKING BRAKE DRUM 10"(B1T) 		1-46219-030-0 02 1 1310-
111 BOLT; COVER,CHECK HOLE
PARKING BRAKE DRUM 10"(B1T) M8X20 W/LK WASHER 		0-50740-820-0 02 1 1310-
114 STUD; SUPPORT PLATE
PARKING BRAKE DRUM 10"(B1T) (B) M14X22 WO/DRY-ROCK 		8-98014-137-0 03 1 1310-
114 STUD; SUPPORT PLATE
PARKING BRAKE DRUM 10"(B1T) (A) M14X22 W/DRY-ROCK 		8-98014-138-0 01 1 1310-
198 BOLT; KNURL
PARKING BRAKE DRUM 10"(B1T) M16X55 		8-98023-172-0 04 1 1310-
207 BOLT; LEVER
PARKING BRAKE DRUM 10"(B1T) 		8-98061-595-0 01 1 1310-
208 NUT; LEVER
PARKING BRAKE DRUM 10"(B1T) M10 		0-91111-510-0 01 1 1310-
209 WASHER; SP,LEVER
PARKING BRAKE DRUM 10"(B1T) ID=10.2 		0-91510-510-0 01 1 1310-
çizim 381086
130 197
BalonParca AdiParca NoAdetTipApplied Date
130 BOLT; BRKT
PARKING BRAKE DRUM 10"(B1T) M10X25 FLANGE 		0-28751-025-0 03 1 1310-
197 BRACKET; CENTER BRAKE CABLE
PARKING BRAKE DRUM 10"(B1T) 		8-98009-002-1 01 1 1310-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
