Sayfa 3-05 - Isuzu EPC

3-05 — REAR WHEEL BRAKE (#129114) — 257 parça

346 301 328 327 319 334 297 348 311 335 297 329 319 327 328 301 347 301 301

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
297	RING; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47649-031-0	02	1	1310-
297	RING; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47649-034-1	02	1	1310-
301	CLIP; ANTI LOTATION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47621-016-0	04	1	1310-
301	CLIP; ANTI LOTATION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47621-017-0	04	1	1310-
311	BOOT; WEDGE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-042-0	02	1	1310-
319	RING; DRIVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47629-120-0	04	1	1310-
319	RING; DRIVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-200-0	04	1	1310-
327	SPRING; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09580-543-0	04	1	1310-
327	SPRING; ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-196-0	04	1	1310-
328	CAGE; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-192-0	04	1	1310-
329	SCREW; LOCATING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47619-149-1	04	1	1310-
334	SPRING; ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-041-0	02	1	1310-
335	RETAINER; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-020-0	02	1	1310-
346	REPAIR KIT; EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-85576-403-0	02	1	1310-
347	REPAIR KIT; BOOT,EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-85576-404-0	02	1	1310-
348	CAP; EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-044-0	02	1	1310-

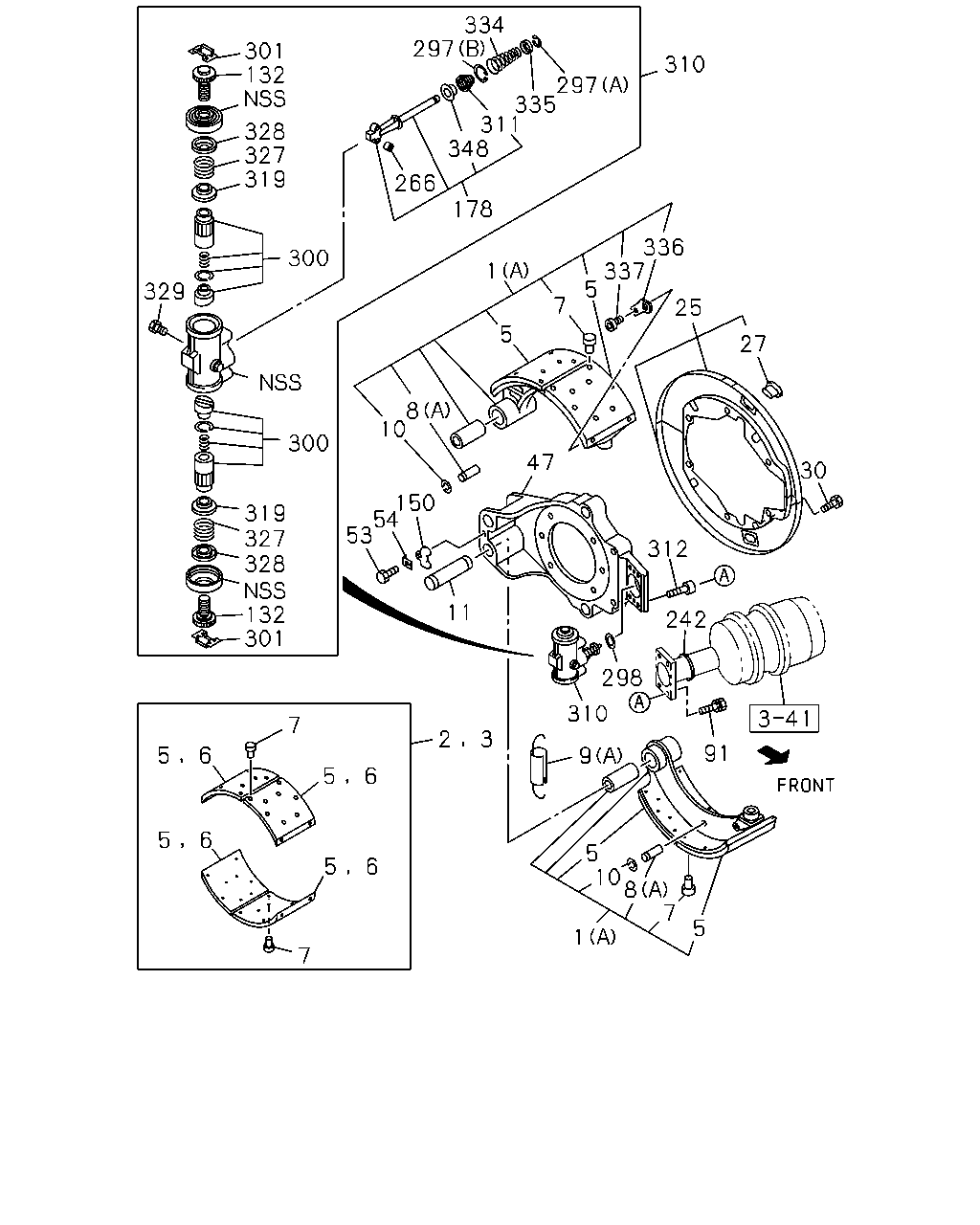

301 132 328 327 319 300 329 300 319 327 328 132 301 7 5 6 6 5 6 5 5 6 7 2 3 1 5 7 8 10 5 91 9 310 242 298 312 25 27 30 53 54 150 11 47 8 10 1 5 7 5 337 336 310 297 335 311 348 178 266 297 334

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-47170-442-0	04	1	1310-
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) LEADING	1-47170-520-0	01	1	1310-
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) TRAILING	1-47170-521-0	01	1	1310-
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) LEADING	1-47170-522-0	01	1	1310-
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) TRAILING	1-47170-523-0	01	1	1310-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) LEADING	1-47170-504-0	01	1	1310-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) TRAILING	1-47170-505-0	01	1	1310-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) LEADING	1-47170-506-0	01	1	1310-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) TRAILING	1-47170-507-0	01	1	1310-
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> T=16	1-88311-359-1	02	1	1310-
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-396-0	01	1	1310-
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-398-0	01	1	1310-
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-88310-773-0	02	1	1310-
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> T=17	1-88311-360-1	02	1	1310-
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-397-0	01	1	1310-
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-399-0	01	1	1310-
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-88310-774-0	02	1	1310-
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47126-760-0	08	1	1310-
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-814-0	08	1	1310-
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47126-091-0	08	1	1310-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> T=17	1-47126-761-0	08	1	1310-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-815-0	08	1	1310-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47126-092-0	08	1	1310-
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> L=18.5	1-09732-034-0	AR	1	1310-
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> L=18.5	1-09732-034-0	68	1	1310-
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> L=15.5	1-09732-053-0	68	1	1310-
7	RIVET; LINING,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=15.5	1-09732-053-0	AR	1	1310-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-09744-051-0	04	1	1310-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (D)	1-47119-025-0	04	1	1310-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47119-135-0	02	1	1310-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47119-136-0	02	1	1310-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47119-175-0	04	1	1310-
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-09583-175-0	02	1	1310-
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (D)	1-09583-210-0	02	1	1310-
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-09583-361-0	04	1	1310-
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-09583-376-0	02	1	1310-
10	RING; SNAP,SPR PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> ID=10	0-91805-510-0	02	1	1310-
10	RING; SNAP,SPR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=10	0-91805-510-0	04	1	1310-
11	PIN; ANCHOR,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=121.5	1-47131-039-0	04	1	1310-
11	PIN; ANCHOR,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=138.5	1-47131-045-0	04	1	1310-
25	COVER SET; RR BRK DRUM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47151-461-1	02	1	1310-
25	COVER SET; RR BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47151-806-0	01	1	1310-
25	COVER SET; RR BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47151-807-0	01	1	1310-
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	1310-
30	BOLT; DRUM COVER M10X12	1-47159-187-0	12	1	1310-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5>	8-98091-254-1	01	1	1411-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5>	8-98091-255-1	01	1	1411-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47137-151-0	02	1	1310-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47137-579-0	02	1	1310-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98091-253-1	02	1	1310-1410
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5>	8-98091-253-1	02	1	1411-
53	BOLT; LOCK PLATE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X16	0-20851-016-0	02	1	1310-
53	BOLT; LOCK PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X16	1-47139-173-0	02	1	1310-
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	1310-
91	BOLT; CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X45	1-47139-174-0	08	1	1310-
132	SCREW; ADJ,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47623-035-2	04	1	1310-
150	PLATE; LK,ANCHOR PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47133-005-0	02	1	1310-
150	PLATE; LK,ANCHOR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47133-010-0	02	1	1310-
178	WEDGE; RR WHEEL CYL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47640-012-0	02	1	1310-
242	SEAL BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47159-186-0	04	1	1310-
266	ROLLER; WEDGE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47643-007-0	04	1	1310-
297	RING; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47649-031-0	02	1	1310-
297	RING; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B)	1-47649-034-1	02	1	1310-
298	GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-48259-231-0	02	1	1310-
300	SLEEVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-247-1	04	1	1310-
301	CLIP; ANTI LOTATION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47621-016-0	04	1	1310-
301	CLIP; ANTI LOTATION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47621-017-0	04	1	1310-
310	EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47601-087-0	02	1	1310-
311	BOOT; WEDGE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-042-0	02	1	1310-
312	BOLT; EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X16 HEXALOBULAR SOCKET	1-47634-008-0	04	1	1310-
319	RING; DRIVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47629-120-0	04	1	1310-
319	RING; DRIVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-200-0	04	1	1310-
327	SPRING; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09580-543-0	04	1	1310-
327	SPRING; ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-196-0	04	1	1310-
328	CAGE; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-192-0	04	1	1310-
329	SCREW; LOCATING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47619-149-1	04	1	1310-
334	SPRING; ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-041-0	02	1	1310-
335	RETAINER; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-020-0	02	1	1310-
336	PLATE; PIVOT BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47119-152-0	04	1	1310-
337	BOLT; PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47119-153-0	04	1	1310-
348	CAP; EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47649-044-0	02	1	1310-

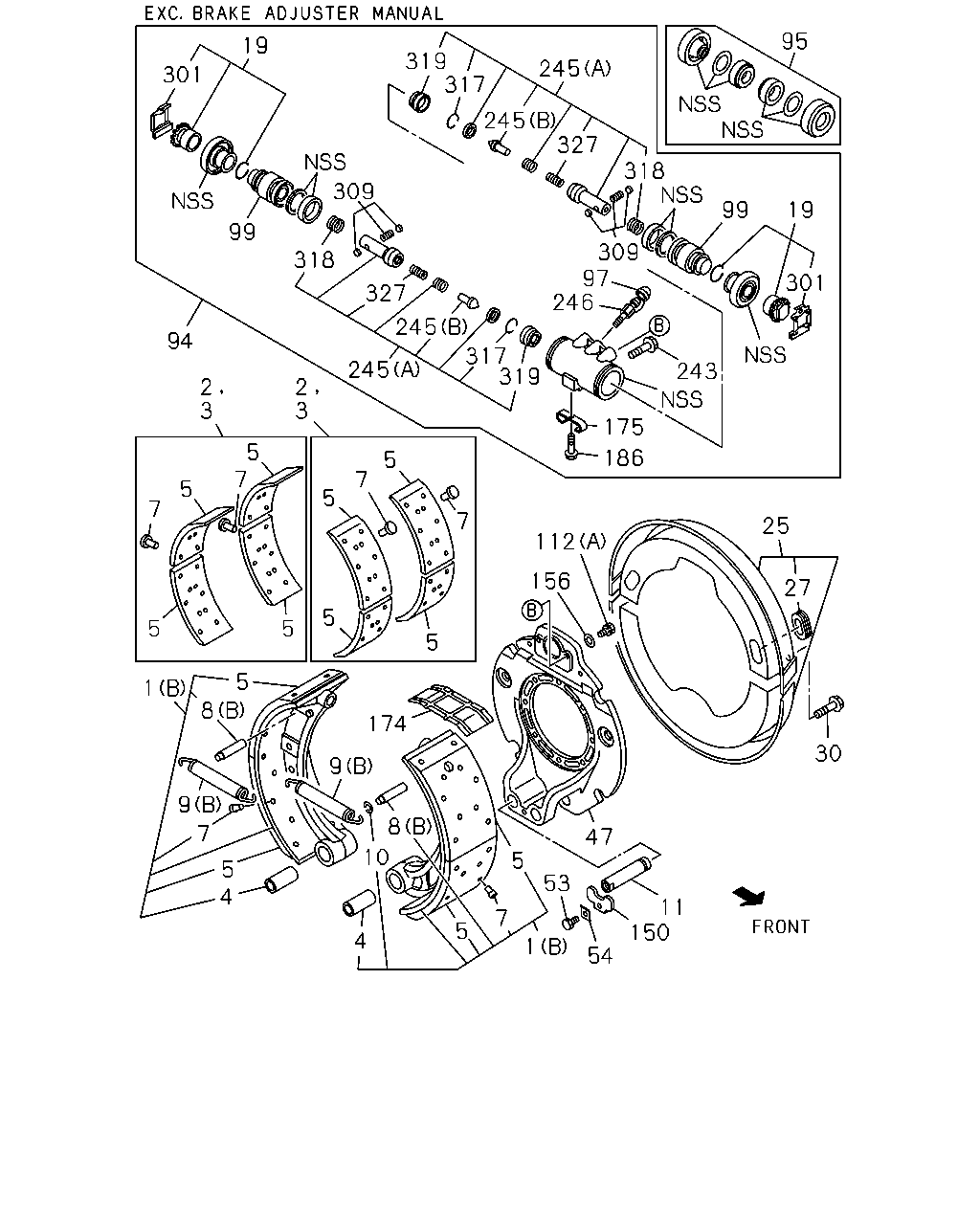

19 301 99 318 309 327 245 245 317 319 246 97 309 318 327 245 317 319 245 95 19 99 301 243 175 25 27 30 11 150 54 1 53 47 112 156 186 5 7 5 7 5 5 174 9 8 10 5 7 5 4 4 5 7 9 8 5 5 1 7 5 7 5 3 2 2 3 94 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-47170-442-0	04	1	1310-
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) LEADING	1-47170-520-0	01	1	1310-
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) TRAILING	1-47170-521-0	01	1	1310-
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) LEADING	1-47170-522-0	01	1	1310-
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) TRAILING	1-47170-523-0	01	1	1310-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) LEADING	1-47170-504-0	01	1	1310-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) TRAILING	1-47170-505-0	01	1	1310-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) LEADING	1-47170-506-0	01	1	1310-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) TRAILING	1-47170-507-0	01	1	1310-
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> T=16	1-88311-359-1	02	1	1310-
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-396-0	01	1	1310-
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-398-0	01	1	1310-
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-88310-773-0	02	1	1310-
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> T=17	1-88311-360-1	02	1	1310-
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-397-0	01	1	1310-
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-399-0	01	1	1310-
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-88310-774-0	02	1	1310-
4	BUSHING; BRK SHOE,RR WHEEL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47112-012-0	04	1	1310-
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47126-760-0	08	1	1310-
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-814-0	08	1	1310-
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47126-091-0	08	1	1310-
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> L=18.5	1-09732-034-0	AR	1	1310-
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> L=18.5	1-09732-034-0	68	1	1310-
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> L=15.5	1-09732-053-0	68	1	1310-
7	RIVET; LINING,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=15.5	1-09732-053-0	AR	1	1310-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-09744-051-0	04	1	1310-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (D)	1-47119-025-0	04	1	1310-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47119-135-0	02	1	1310-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47119-136-0	02	1	1310-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47119-175-0	04	1	1310-
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-09583-175-0	02	1	1310-
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (D)	1-09583-210-0	02	1	1310-
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-09583-361-0	04	1	1310-
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-09583-376-0	02	1	1310-
10	RING; SNAP,SPR PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> ID=10	0-91805-510-0	02	1	1310-
10	RING; SNAP,SPR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=10	0-91805-510-0	04	1	1310-
11	PIN; ANCHOR,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=121.5	1-47131-039-0	04	1	1310-
11	PIN; ANCHOR,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=138.5	1-47131-045-0	04	1	1310-
19	ADJUSTER; RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47621-015-0	04	1	1310-
25	COVER SET; RR BRK DRUM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47151-461-1	02	1	1310-
25	COVER SET; RR BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47151-806-0	01	1	1310-
25	COVER SET; RR BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47151-807-0	01	1	1310-
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	1310-
30	BOLT; DRUM COVER M10X12	1-47159-187-0	12	1	1310-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5>	8-98091-254-1	01	1	1411-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5>	8-98091-255-1	01	1	1411-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47137-151-0	02	1	1310-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47137-579-0	02	1	1310-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98091-253-1	02	1	1310-1410
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5>	8-98091-253-1	02	1	1411-
53	BOLT; LOCK PLATE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X16	0-20851-016-0	02	1	1310-
53	BOLT; LOCK PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X16	1-47139-173-0	02	1	1310-
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	1310-
94	CYLINDER; WHEEL,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47601-125-0	02	1	1310-
94	CYLINDER; WHEEL,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47601-068-0	02	1	1310-
95	CUP SET; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-87830-720-0	02	1	1310-
95	CUP SET; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-87830-987-0	02	1	1310-
97	CAP; BLEEDER,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) OD=12	1-47619-011-0	02	1	1310-
99	PISTON; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47624-391-0	04	1	1310-
99	PISTON; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47624-372-0	04	1	1310-
112	BOLT; WHEEL CYL SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M14X35	0-20851-435-0	04	1	1310-
112	BOLT; WHEEL CYL SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (B) M8X16 W/LK WASHER	0-50540-816-0	06	1	1310-
150	PLATE; LK,ANCHOR PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47133-005-0	02	1	1310-
150	PLATE; LK,ANCHOR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47133-010-0	02	1	1310-
156	WASHER; LK,WHEEL CYL SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> ID=14.2	0-91510-514-0	04	1	1310-
174	COVER; CYL,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-081-0	02	1	1310-
175	HANGER; RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47619-146-0	02	1	1310-
186	BOLT; HANGER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> M8X16 W/LK WASHER	0-50540-816-0	02	1	1310-
243	BOLT; WHEEL CYL COVER SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> M8X16 W/LK WASHER	0-50540-816-0	06	1	1310-
245	SHAFT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-47623-027-1	04	1	1310-
245	SHAFT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47629-121-0	04	1	1310-
246	BLEEDER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47615-002-0	02	1	1310-
301	CLIP; ANTI LOTATION BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47621-016-0	04	1	1310-
301	CLIP; ANTI LOTATION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47621-017-0	04	1	1310-
309	SPRING; ADJUSTER SHAFT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09580-544-0	04	1	1310-
317	RING; RETAINER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47629-119-0	04	1	1310-
318	SPRING; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09580-542-0	04	1	1310-
319	RING; DRIVE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47629-120-0	04	1	1310-
319	RING; DRIVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-200-0	04	1	1310-
327	SPRING; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09580-543-0	04	1	1310-
327	SPRING; ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47629-196-0	04	1	1310-

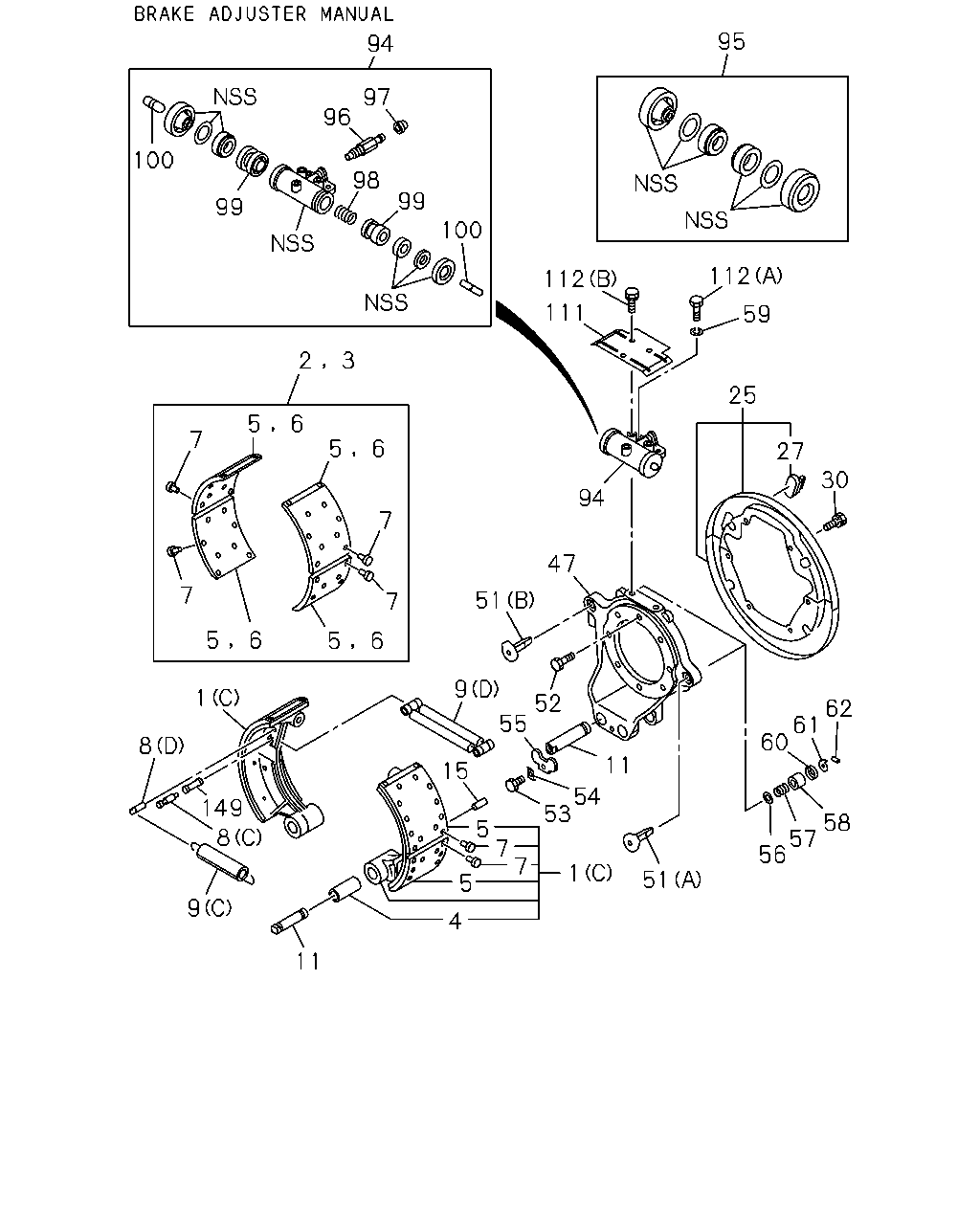

94 97 96 98 99 100 99 100 2 3 5 6 5 6 7 7 5 6 5 6 7 7 1 8 149 8 9 11 4 5 7 7 5 15 9 55 52 54 53 1 11 51 56 57 58 62 61 60 51 94 25 27 30 59 112 95 112 111 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-47170-442-0	04	1	1310-
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) LEADING	1-47170-520-0	01	1	1310-
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) TRAILING	1-47170-521-0	01	1	1310-
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) LEADING	1-47170-522-0	01	1	1310-
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B) TRAILING	1-47170-523-0	01	1	1310-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) LEADING	1-47170-504-0	01	1	1310-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) TRAILING	1-47170-505-0	01	1	1310-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) LEADING	1-47170-506-0	01	1	1310-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) TRAILING	1-47170-507-0	01	1	1310-
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> T=16	1-88311-359-1	02	1	1310-
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-396-0	01	1	1310-
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-398-0	01	1	1310-
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-88310-773-0	02	1	1310-
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> T=17	1-88311-360-1	02	1	1310-
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-397-0	01	1	1310-
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-399-0	01	1	1310-
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-88310-774-0	02	1	1310-
4	BUSHING; BRK SHOE,RR WHEEL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47112-012-0	04	1	1310-
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47126-760-0	08	1	1310-
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-814-0	08	1	1310-
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47126-091-0	08	1	1310-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> T=17	1-47126-761-0	08	1	1310-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-815-0	08	1	1310-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47126-092-0	08	1	1310-
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> L=18.5	1-09732-034-0	AR	1	1310-
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> L=18.5	1-09732-034-0	68	1	1310-
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> L=15.5	1-09732-053-0	68	1	1310-
7	RIVET; LINING,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=15.5	1-09732-053-0	AR	1	1310-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-09744-051-0	04	1	1310-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (D)	1-47119-025-0	04	1	1310-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47119-135-0	02	1	1310-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-47119-136-0	02	1	1310-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-47119-175-0	04	1	1310-
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (C)	1-09583-175-0	02	1	1310-
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (D)	1-09583-210-0	02	1	1310-
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR> (B)	1-09583-361-0	04	1	1310-
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A)	1-09583-376-0	02	1	1310-
11	PIN; ANCHOR,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) L=121.5	1-47131-039-0	04	1	1310-
11	PIN; ANCHOR,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) L=138.5	1-47131-045-0	04	1	1310-
15	PIN; GUIDE,ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47116-002-0	04	1	1310-
25	COVER SET; RR BRK DRUM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	1-47151-461-1	02	1	1310-
25	COVER SET; RR BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47151-806-0	01	1	1310-
25	COVER SET; RR BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	1-47151-807-0	01	1	1310-
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	1310-
30	BOLT; DRUM COVER M10X12	1-47159-187-0	12	1	1310-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5>	8-98091-254-1	01	1	1411-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ANTI LOCK BRAKE<JE5>	8-98091-255-1	01	1	1411-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47137-151-0	02	1	1310-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47137-579-0	02	1	1310-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98091-253-1	02	1	1310-1410
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. ANTI LOCK BRAKE<JE5>	8-98091-253-1	02	1	1411-
51	CAM ASM; SHOE ADJ,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (A)	1-47165-058-1	02	1	1310-
51	CAM ASM; SHOE ADJ,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (B)	1-47165-059-1	02	1	1310-
52	BOLT; ANCHOR BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> M14X50	1-09040-066-0	02	1	1310-
53	BOLT; LOCK PLATE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M10X16	0-20851-016-0	02	1	1310-
53	BOLT; LOCK PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M10X16	1-47139-173-0	02	1	1310-
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	1310-
55	PLATE; LK,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47133-005-0	02	1	1310-
56	WASHER; ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-033-0	04	1	1310-
57	SPRING; ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-046-0	04	1	1310-
58	BOOT; ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-034-0	04	1	1310-
59	WASHER; LK,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> ID=14.2	0-91510-514-0	04	1	1310-
60	COVER; ADJ CAM BOOT,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-031-0	04	1	1310-
61	INDICATOR; WEAR,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-032-1	04	1	1310-
62	PIN; ADJ CAM SPINDLE,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47169-030-0	04	1	1310-
94	CYLINDER; WHEEL,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47601-125-0	02	1	1310-
94	CYLINDER; WHEEL,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47601-068-0	02	1	1310-
95	CUP SET; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-87830-720-0	02	1	1310-
95	CUP SET; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-87830-987-0	02	1	1310-
96	SCREW; BLEEDER,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47615-002-0	02	1	1310-
97	CAP; BLEEDER,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) OD=12	1-47619-011-0	02	1	1310-
98	SPRING; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-09580-019-0	02	1	1310-
99	PISTON; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47624-391-0	04	1	1310-
99	PISTON; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47624-372-0	04	1	1310-
100	ROD; PUSH,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47621-009-0	04	1	1310-
111	COVER; WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47159-081-0	02	1	1310-
112	BOLT; WHEEL CYL SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) M14X35	0-20851-435-0	04	1	1310-
112	BOLT; WHEEL CYL SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR> (B) M8X16 W/LK WASHER	0-50540-816-0	06	1	1310-
149	PIN; GUIDE RETURN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) BRAKE ADJUSTER MANUAL<BJR>	1-47119-024-0	04	1	1310-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
