Sayfa 2-81A - Isuzu EPC

2-81A — POWER TAKE OFF; TRANSMISSION SIDE (#129111) — 389 parça

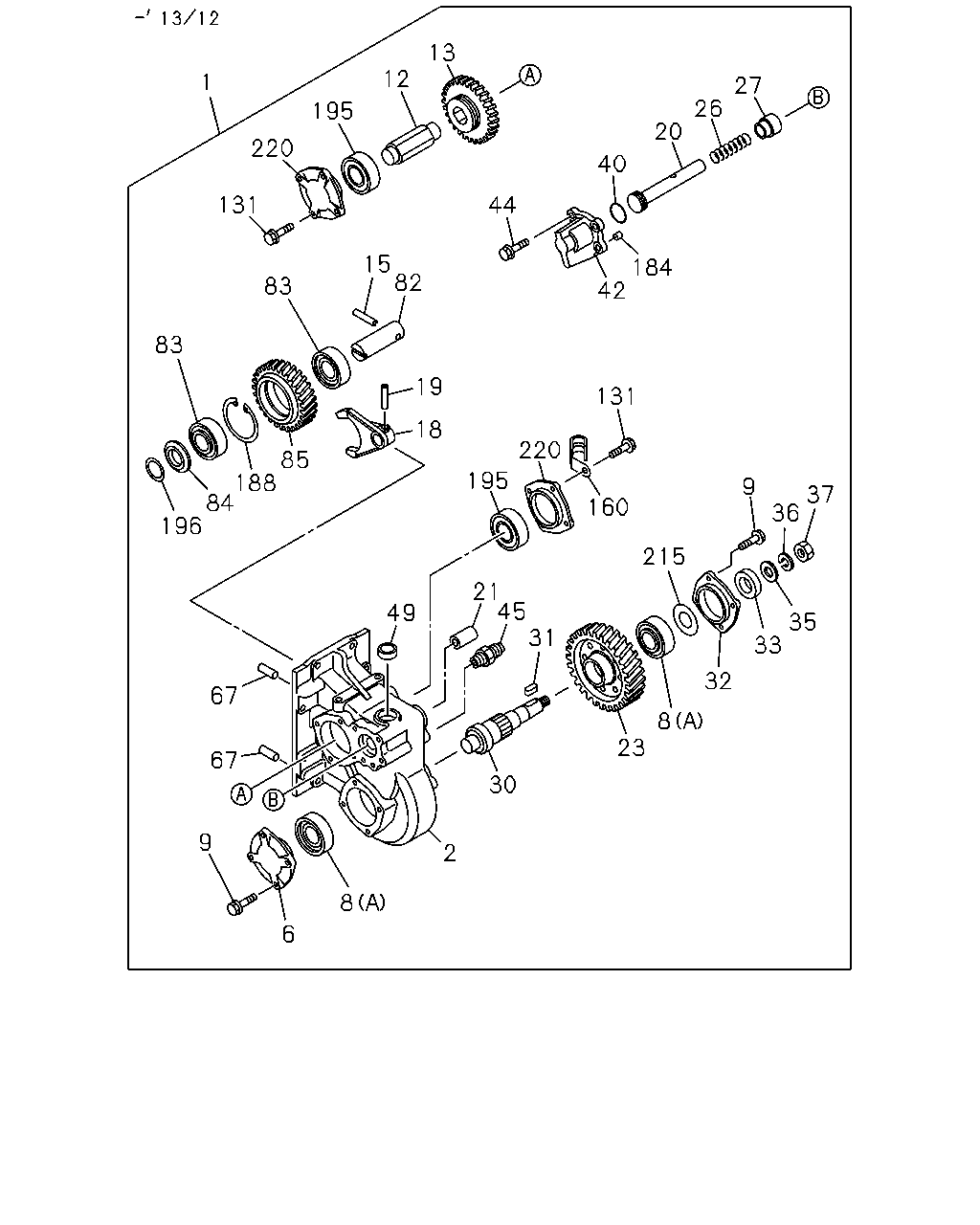

1 13 12 195 220 131 83 83 15 82 19 18 85 188 84 196 44 40 42 184 20 26 27 131 220 160 195 49 67 67 9 6 8 2 30 31 45 21 215 23 32 8 33 36 37 9 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	8-98238-579-1	01	1	1411-
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98118-443-3	01	1	1310-1312
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-577-0	01	1	1401-
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	8-98238-786-1	01	1	1411-
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-894-1	01	1	1310-1312
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-784-0	01	1	1401-
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	8-98289-063-0	01	1	1411-
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-910-0	01	1	1310-
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A)	5-09820-017-0	01	1	1411-
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B)	8-98134-892-0	01	1	1411-
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	5-09820-017-0	02	1	1310-
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28050-820-0	08	1	1310-1410
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28050-820-0	08	1	1411-
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	8-98238-792-0	01	1	1411-
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98140-219-1	01	1	1310-1312
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-791-0	01	1	1401-
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) Z=27	8-98238-794-0	01	1	1411-
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=27	8-98134-900-1	01	1	1310-1312
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=27	8-98238-793-0	01	1	1401-
15	PIN; SPR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=20 OD=4	9-09678-514-0	01	1	1310-1410
15	PIN; SPR,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) L=20 OD=4	9-09678-514-0	01	1	1411-
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98204-322-0	01	1	1310-1312
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-797-0	01	1	1401-1410
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-797-0	01	1	1411-
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97306-596-0	01	1	1310-1410
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97306-596-0	01	1	1411-
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-38371-051-0	01	1	1411-
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38371-062-0	01	1	1310-1312
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38371-057-0	01	1	1401-
21	COVER; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98046-619-0	01	1	1310-1410
21	COVER; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98046-619-0	01	1	1411-
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) Z=29	8-98238-790-0	01	1	1411-
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=37	8-98134-902-0	01	1	1310-1312
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=37	8-98238-789-0	01	1	1401-
26	SPRING; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38121-004-1	01	1	1310-1410
26	SPRING; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38121-004-1	01	1	1411-
27	COLLAR; DIST,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-912-0	01	1	1310-1312
27	COLLAR; DIST,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98153-945-0	01	1	1401-1410
27	COLLAR; DIST,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98153-945-0	01	1	1411-
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	8-98238-788-0	01	1	1411-
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97374-129-1	01	1	1310-1312
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-787-0	01	1	1401-
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=25	8-98068-088-0	01	1	1310-
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	8-98047-703-0	01	1	1411-
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97305-794-0	01	1	1310-
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	8-98036-323-0	01	1	1411-
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38159-007-0	01	1	1310-
35	WASHER; PL,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=15	0-91610-514-0	01	1	1310-
36	WASHER; LK,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=14.2	0-91510-814-0	01	1	1310-
37	NUT; FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M24 FLANGE	8-98189-932-0	01	1	1411-
37	NUT; FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M14	0-91111-514-0	01	1	1310-
40	GASKET; AIR SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-09561-324-0	01	1	1310-1410
40	GASKET; AIR SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-09561-324-0	01	1	1411-
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-911-1	01	1	1310-1312
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-798-0	01	1	1401-1410
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-798-0	01	1	1411-
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28050-820-0	04	1	1310-1410
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28050-820-0	04	1	1411-
45	NIPPLE; AIR CYL,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1310-1410
45	NIPPLE; AIR CYL,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1411-
49	PLUG; IDLE SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98037-773-0	01	1	1310-1410
49	PLUG; IDLE SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98037-773-0	01	1	1411-
67	PIN; STRAIGHT TRANSMISSION SIDE PTO WO/LEVER(SH5) L=22	8-94483-674-0	02	1	1310-1312
67	PIN; STRAIGHT TRANSMISSION SIDE PTO WO/LEVER(SH5) L=22	8-98238-799-0	02	1	1401-1410
67	PIN; STRAIGHT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) L=22	8-98238-799-0	02	1	1411-
82	SHAFT; INPUT TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-904-0	01	1	1310-1410
82	SHAFT; INPUT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-904-0	01	1	1411-
83	BEARING; INPUT SHAFT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) NSK	8-97360-334-0	02	1	1411-
83	BEARING; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	5-09820-017-0	02	1	1310-
84	COLLAR; INPUT SHAFT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	8-98238-808-0	01	1	1411-
84	COLLAR; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-38245-603-1	01	1	1310-1312
84	COLLAR; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-800-0	01	1	1401-
85	GEAR; INPUT SHAFT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) Z=28	8-98238-796-0	01	1	1411-
85	GEAR; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=28	8-98134-898-1	01	1	1310-1312
85	GEAR; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=28	8-98238-795-0	01	1	1401-
131	BOLT; FLANGE TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28050-820-0	08	1	1310-1410
131	BOLT; FLANGE TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28050-820-0	08	1	1411-
160	CLIP; PTO A/T SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=8.5	5-09700-275-0	01	1	1310-1410
160	CLIP; PTO A/T SIDE TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=8.5	5-09700-275-0	01	1	1411-
184	DOWEL; PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) OD=11 L=8	9-11229-058-1	01	1	1310-1410
184	DOWEL; PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) OD=11 L=8	9-11229-058-1	01	1	1411-
188	RING; SNAP,INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5) T=2.2	1-09587-103-1	01	1	1310-1410
188	RING; SNAP,INPUT SHAFT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) T=2.2	1-09587-103-1	01	1	1411-
195	BEARING; ROLLER,TAPER,PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) NSK	8-97360-334-0	02	1	1411-
195	BEARING; ROLLER,TAPER,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) NSK	8-97360-312-0	02	1	1310-
196	PIECE; THRUST TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=1.24	8-97360-318-0	01	1	1411-
196	PIECE; THRUST TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=1.28	8-97360-319-0	01	1	1411-
196	PIECE; THRUST TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=1.32	8-97360-320-0	01	1	1411-
196	PIECE; THRUST TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=1.36	8-97360-321-0	01	1	1411-
196	PIECE; THRUST TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=1.40	8-97360-322-0	01	1	1411-
196	PIECE; THRUST TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=1.44	8-97360-323-0	01	1	1411-
196	PIECE; THRUST TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=1.48	8-97360-324-0	01	1	1411-
196	PIECE; THRUST TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=1.52	8-97360-325-0	01	1	1411-
196	PIECE; THRUST TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=1.56	8-97360-326-0	01	1	1411-
196	PIECE; THRUST TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=1.60	8-97360-327-0	01	1	1411-
196	PIECE; THRUST TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=1.64	8-97360-328-0	01	1	1411-
196	PIECE; THRUST TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=1.68	8-97360-329-0	01	1	1411-
196	PIECE; THRUST TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=1.72	8-97360-330-0	01	1	1411-
196	PIECE; THRUST TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=1.76	8-97360-331-0	01	1	1411-
196	PIECE; THRUST TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=1.80	8-97360-332-0	01	1	1411-
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.50	8-97106-724-0	02	1	1310-
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.60	8-97106-725-0	02	1	1310-
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.65	8-97106-726-0	02	1	1310-
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.70	8-97106-727-0	02	1	1310-
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.80	8-97106-728-0	02	1	1310-
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.85	8-97106-729-0	02	1	1310-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=0.05	1-38229-013-0	AR	1	1411-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=0.07	1-38229-014-0	AR	1	1411-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=0.10	1-38229-015-0	AR	1	1411-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=0.15	1-38229-016-0	AR	1	1411-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=0.50	1-38229-017-0	AR	1	1411-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=0.75	1-38229-018-0	AR	1	1411-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.1	5-33156-022-0	AR	1	1310-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.2	5-33156-024-0	AR	1	1310-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.15	8-98067-573-0	AR	1	1310-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.40	8-98067-574-0	AR	1	1310-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.65	8-98067-575-0	AR	1	1310-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.80	8-98067-576-0	AR	1	1310-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.00	8-98134-917-0	AR	1	1310-
220	COVER; IDLE SHAFT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	8-98289-063-0	02	1	1411-
220	COVER; IDLE SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-910-0	02	1	1310-

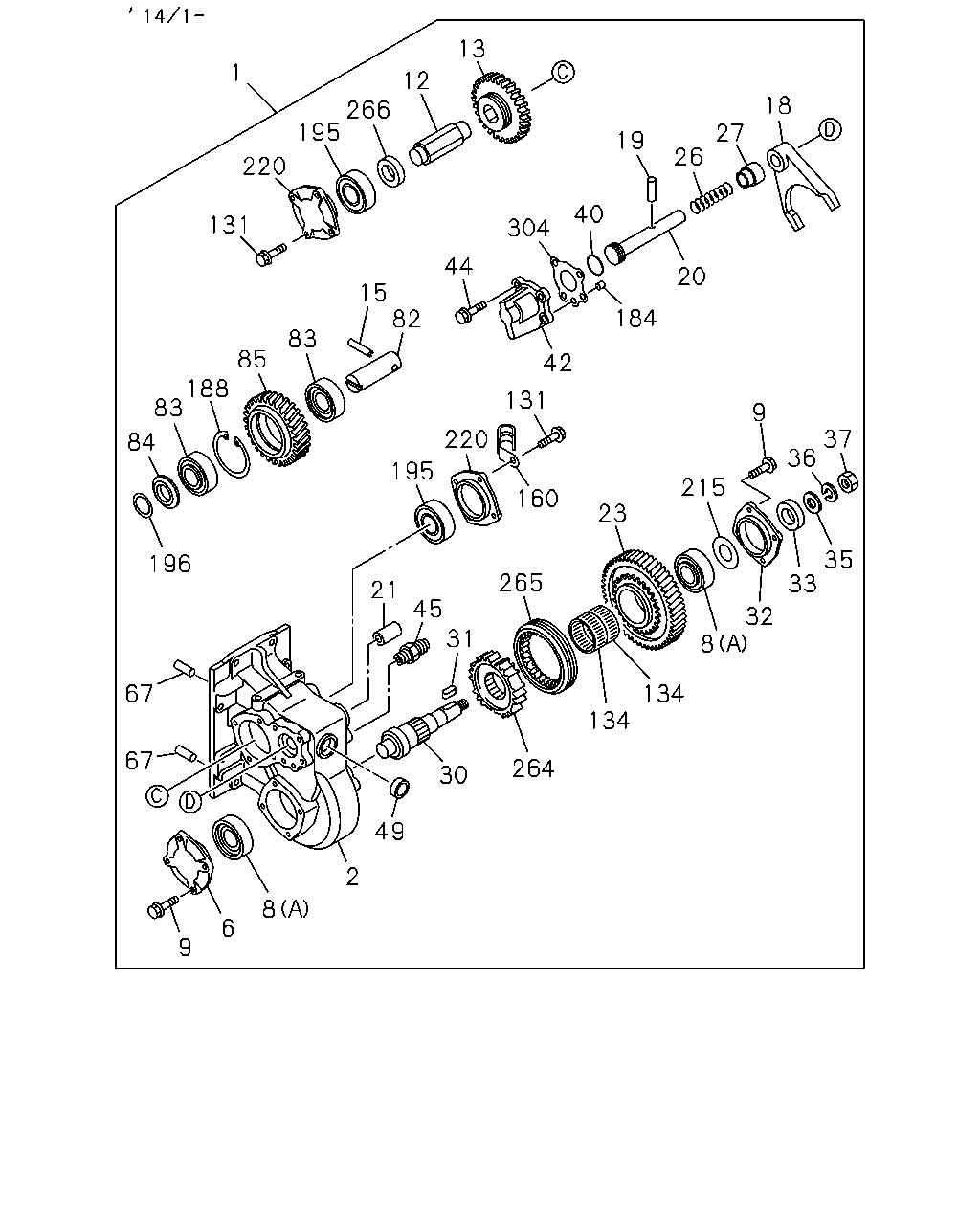

1 131 220 195 266 12 13 44 82 15 83 85 188 83 84 304 40 19 27 18 26 20 184 42 131 220 195 196 67 67 9 2 8 6 49 30 264 134 134 8 32 33 35 37 36 9 215 23 160 265 31 45 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	8-98238-579-1	01	1	1411-
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98118-443-3	01	1	1310-1312
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-577-0	01	1	1401-
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	8-98238-786-1	01	1	1411-
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-894-1	01	1	1310-1312
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-784-0	01	1	1401-
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	8-98289-063-0	01	1	1411-
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-910-0	01	1	1310-
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A)	5-09820-017-0	01	1	1411-
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B)	8-98134-892-0	01	1	1411-
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	5-09820-017-0	02	1	1310-
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28050-820-0	08	1	1310-1410
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28050-820-0	08	1	1411-
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	8-98238-792-0	01	1	1411-
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98140-219-1	01	1	1310-1312
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-791-0	01	1	1401-
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) Z=27	8-98238-794-0	01	1	1411-
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=27	8-98134-900-1	01	1	1310-1312
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=27	8-98238-793-0	01	1	1401-
15	PIN; SPR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=20 OD=4	9-09678-514-0	01	1	1310-1410
15	PIN; SPR,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) L=20 OD=4	9-09678-514-0	01	1	1411-
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98204-322-0	01	1	1310-1312
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-797-0	01	1	1401-1410
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-797-0	01	1	1411-
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97306-596-0	01	1	1310-1410
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97306-596-0	01	1	1411-
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-38371-051-0	01	1	1411-
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38371-062-0	01	1	1310-1312
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38371-057-0	01	1	1401-
21	COVER; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98046-619-0	01	1	1310-1410
21	COVER; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98046-619-0	01	1	1411-
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) Z=29	8-98238-790-0	01	1	1411-
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=37	8-98134-902-0	01	1	1310-1312
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=37	8-98238-789-0	01	1	1401-
26	SPRING; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38121-004-1	01	1	1310-1410
26	SPRING; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38121-004-1	01	1	1411-
27	COLLAR; DIST,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-912-0	01	1	1310-1312
27	COLLAR; DIST,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98153-945-0	01	1	1401-1410
27	COLLAR; DIST,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98153-945-0	01	1	1411-
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	8-98238-788-0	01	1	1411-
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97374-129-1	01	1	1310-1312
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-787-0	01	1	1401-
31	KEY; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=25	8-98068-088-0	01	1	1310-
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	8-98047-703-0	01	1	1411-
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97305-794-0	01	1	1310-
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	8-98036-323-0	01	1	1411-
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38159-007-0	01	1	1310-
35	WASHER; PL,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=15	0-91610-514-0	01	1	1310-
36	WASHER; LK,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=14.2	0-91510-814-0	01	1	1310-
37	NUT; FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M24 FLANGE	8-98189-932-0	01	1	1411-
37	NUT; FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M14	0-91111-514-0	01	1	1310-
40	GASKET; AIR SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-09561-324-0	01	1	1310-1410
40	GASKET; AIR SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-09561-324-0	01	1	1411-
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-911-1	01	1	1310-1312
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-798-0	01	1	1401-1410
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-798-0	01	1	1411-
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28050-820-0	04	1	1310-1410
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28050-820-0	04	1	1411-
45	NIPPLE; AIR CYL,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1310-1410
45	NIPPLE; AIR CYL,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1411-
49	PLUG; IDLE SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98037-773-0	01	1	1310-1410
49	PLUG; IDLE SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98037-773-0	01	1	1411-
67	PIN; STRAIGHT TRANSMISSION SIDE PTO WO/LEVER(SH5) L=22	8-94483-674-0	02	1	1310-1312
67	PIN; STRAIGHT TRANSMISSION SIDE PTO WO/LEVER(SH5) L=22	8-98238-799-0	02	1	1401-1410
67	PIN; STRAIGHT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) L=22	8-98238-799-0	02	1	1411-
82	SHAFT; INPUT TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-904-0	01	1	1310-1410
82	SHAFT; INPUT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-904-0	01	1	1411-
83	BEARING; INPUT SHAFT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) NSK	8-97360-334-0	02	1	1411-
83	BEARING; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	5-09820-017-0	02	1	1310-
84	COLLAR; INPUT SHAFT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	8-98238-808-0	01	1	1411-
84	COLLAR; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-38245-603-1	01	1	1310-1312
84	COLLAR; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-800-0	01	1	1401-
85	GEAR; INPUT SHAFT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) Z=28	8-98238-796-0	01	1	1411-
85	GEAR; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=28	8-98134-898-1	01	1	1310-1312
85	GEAR; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=28	8-98238-795-0	01	1	1401-
131	BOLT; FLANGE TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28050-820-0	08	1	1310-1410
131	BOLT; FLANGE TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28050-820-0	08	1	1411-
134	BEARING; NEEDLE,OUTPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-803-0	02	1	1401-1410
134	BEARING; NEEDLE,OUTPUT SHAFT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-803-0	02	1	1411-
160	CLIP; PTO A/T SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=8.5	5-09700-275-0	01	1	1310-1410
160	CLIP; PTO A/T SIDE TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=8.5	5-09700-275-0	01	1	1411-
184	DOWEL; PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) OD=11 L=8	9-11229-058-1	01	1	1310-1410
184	DOWEL; PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) OD=11 L=8	9-11229-058-1	01	1	1411-
188	RING; SNAP,INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5) T=2.2	1-09587-103-1	01	1	1310-1410
188	RING; SNAP,INPUT SHAFT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) T=2.2	1-09587-103-1	01	1	1411-
195	BEARING; ROLLER,TAPER,PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) NSK	8-97360-334-0	02	1	1411-
195	BEARING; ROLLER,TAPER,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) NSK	8-97360-312-0	02	1	1310-
196	PIECE; THRUST TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=1.24	8-97360-318-0	01	1	1411-
196	PIECE; THRUST TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=1.28	8-97360-319-0	01	1	1411-
196	PIECE; THRUST TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=1.32	8-97360-320-0	01	1	1411-
196	PIECE; THRUST TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=1.36	8-97360-321-0	01	1	1411-
196	PIECE; THRUST TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=1.40	8-97360-322-0	01	1	1411-
196	PIECE; THRUST TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=1.44	8-97360-323-0	01	1	1411-
196	PIECE; THRUST TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=1.48	8-97360-324-0	01	1	1411-
196	PIECE; THRUST TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=1.52	8-97360-325-0	01	1	1411-
196	PIECE; THRUST TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=1.56	8-97360-326-0	01	1	1411-
196	PIECE; THRUST TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=1.60	8-97360-327-0	01	1	1411-
196	PIECE; THRUST TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=1.64	8-97360-328-0	01	1	1411-
196	PIECE; THRUST TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=1.68	8-97360-329-0	01	1	1411-
196	PIECE; THRUST TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=1.72	8-97360-330-0	01	1	1411-
196	PIECE; THRUST TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=1.76	8-97360-331-0	01	1	1411-
196	PIECE; THRUST TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=1.80	8-97360-332-0	01	1	1411-
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.50	8-97106-724-0	02	1	1310-
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.60	8-97106-725-0	02	1	1310-
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.65	8-97106-726-0	02	1	1310-
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.70	8-97106-727-0	02	1	1310-
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.80	8-97106-728-0	02	1	1310-
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.85	8-97106-729-0	02	1	1310-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=0.05	1-38229-013-0	AR	1	1411-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=0.07	1-38229-014-0	AR	1	1411-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=0.10	1-38229-015-0	AR	1	1411-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=0.15	1-38229-016-0	AR	1	1411-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=0.50	1-38229-017-0	AR	1	1411-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=0.75	1-38229-018-0	AR	1	1411-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.1	5-33156-022-0	AR	1	1310-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.2	5-33156-024-0	AR	1	1310-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.15	8-98067-573-0	AR	1	1310-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.40	8-98067-574-0	AR	1	1310-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.65	8-98067-575-0	AR	1	1310-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.80	8-98067-576-0	AR	1	1310-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.00	8-98134-917-0	AR	1	1310-
220	COVER; IDLE SHAFT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	8-98289-063-0	02	1	1411-
220	COVER; IDLE SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-910-0	02	1	1310-
264	CLUTCH; OUTPUT SHAFT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	8-98238-805-0	01	1	1411-
264	CLUTCH; OUTPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-804-0	01	1	1401-
265	SLEEVE; OUTPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-802-0	01	1	1401-1410
265	SLEEVE; OUTPUT SHAFT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-802-0	01	1	1411-
266	COLLAR; IDLE SHAFT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	8-98238-807-0	02	1	1411-
266	COLLAR; IDLE SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-806-0	01	1	1401-
304	PACKING; PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98328-479-0	01	1	1401-1410
304	PACKING; PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98328-479-0	01	1	1411-

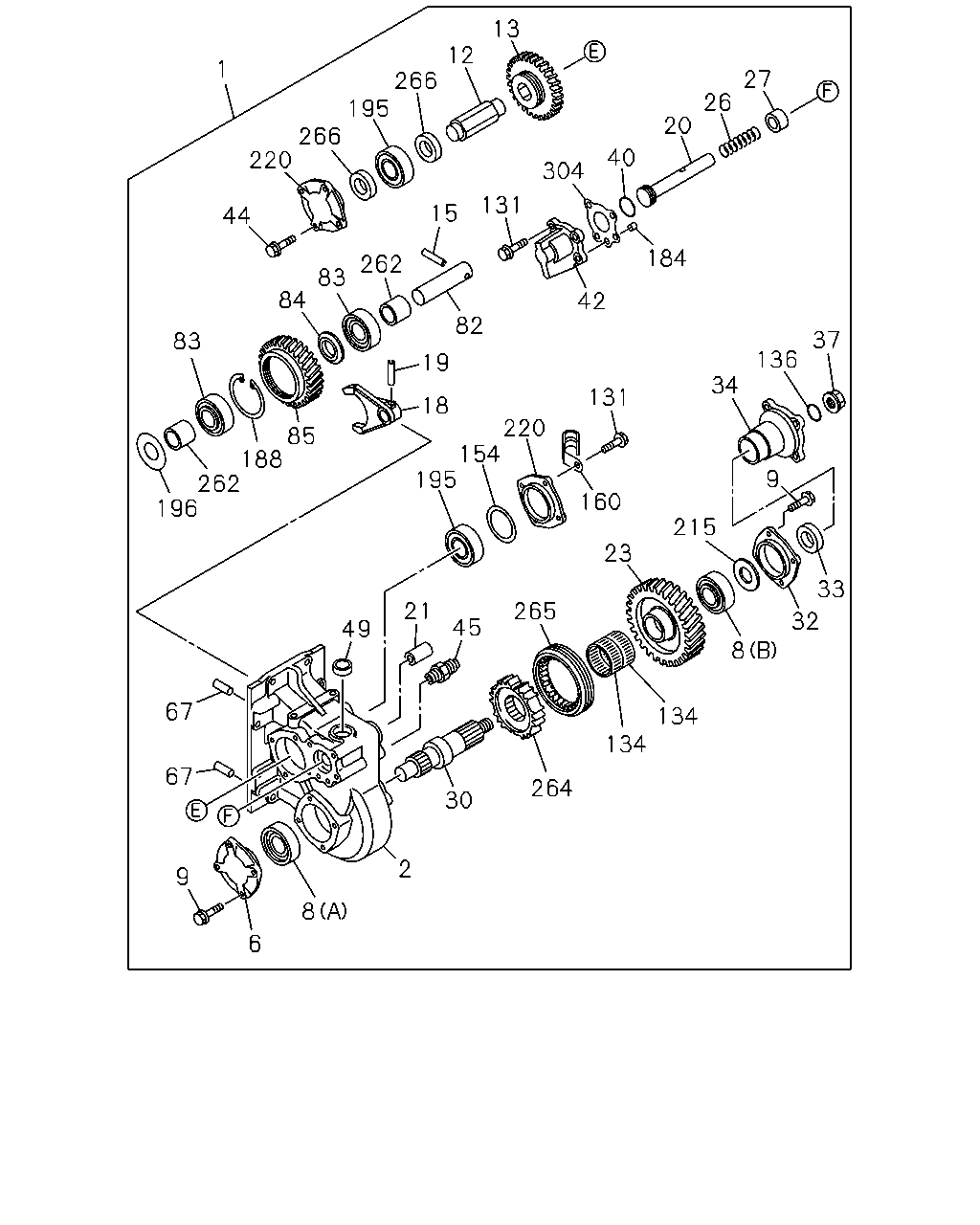

1 13 12 266 195 266 220 44 27 26 20 40 304 131 15 262 83 84 83 184 42 82 19 18 85 188 262 196 37 136 34 9 215 131 220 154 195 160 23 265 45 21 49 67 67 9 6 8 2 30 264 134 134 8 32 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	8-98238-579-1	01	1	1411-
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98118-443-3	01	1	1310-1312
1	POWER TAKE OFF ASM; TRANS SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-577-0	01	1	1401-
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	8-98238-786-1	01	1	1411-
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-894-1	01	1	1310-1312
2	CASE; GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-784-0	01	1	1401-
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	8-98289-063-0	01	1	1411-
6	COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-910-0	01	1	1310-
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A)	5-09820-017-0	01	1	1411-
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B)	8-98134-892-0	01	1	1411-
8	BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) (A)	5-09820-017-0	02	1	1310-
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28050-820-0	08	1	1310-1410
9	BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28050-820-0	08	1	1411-
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	8-98238-792-0	01	1	1411-
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98140-219-1	01	1	1310-1312
12	SHAFT; IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-791-0	01	1	1401-
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) Z=27	8-98238-794-0	01	1	1411-
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=27	8-98134-900-1	01	1	1310-1312
13	GEAR; IDLE,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=27	8-98238-793-0	01	1	1401-
15	PIN; SPR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=20 OD=4	9-09678-514-0	01	1	1310-1410
15	PIN; SPR,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) L=20 OD=4	9-09678-514-0	01	1	1411-
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98204-322-0	01	1	1310-1312
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-797-0	01	1	1401-1410
18	ARM; GEAR SHIFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-797-0	01	1	1411-
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97306-596-0	01	1	1310-1410
19	PIN; SPR,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97306-596-0	01	1	1411-
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-38371-051-0	01	1	1411-
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38371-062-0	01	1	1310-1312
20	ROD; GEAR SHIFTER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38371-057-0	01	1	1401-
21	COVER; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98046-619-0	01	1	1310-1410
21	COVER; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98046-619-0	01	1	1411-
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) Z=29	8-98238-790-0	01	1	1411-
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=37	8-98134-902-0	01	1	1310-1312
23	GEAR; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=37	8-98238-789-0	01	1	1401-
26	SPRING; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38121-004-1	01	1	1310-1410
26	SPRING; SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38121-004-1	01	1	1411-
27	COLLAR; DIST,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-912-0	01	1	1310-1312
27	COLLAR; DIST,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98153-945-0	01	1	1401-1410
27	COLLAR; DIST,SHIFT ARM,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98153-945-0	01	1	1411-
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	8-98238-788-0	01	1	1411-
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97374-129-1	01	1	1310-1312
30	SHAFT; OUTPUT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-787-0	01	1	1401-
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	8-98047-703-0	01	1	1411-
32	COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-97305-794-0	01	1	1310-
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	8-98036-323-0	01	1	1411-
33	SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38159-007-0	01	1	1310-
34	FLANGE; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	8-98240-563-0	01	1	1411-
37	NUT; FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M24 FLANGE	8-98189-932-0	01	1	1411-
37	NUT; FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M14	0-91111-514-0	01	1	1310-
40	GASKET; AIR SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-09561-324-0	01	1	1310-1410
40	GASKET; AIR SHIFTER ROD,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-09561-324-0	01	1	1411-
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-911-1	01	1	1310-1312
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-798-0	01	1	1401-1410
42	CYLINDER; AIR,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-798-0	01	1	1411-
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28050-820-0	04	1	1310-1410
44	BOLT; COVER,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28050-820-0	04	1	1411-
45	NIPPLE; AIR CYL,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1310-1410
45	NIPPLE; AIR CYL,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1411-
49	PLUG; IDLE SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98037-773-0	01	1	1310-1410
49	PLUG; IDLE SHAFT,TRANS SIDE PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98037-773-0	01	1	1411-
67	PIN; STRAIGHT TRANSMISSION SIDE PTO WO/LEVER(SH5) L=22	8-94483-674-0	02	1	1310-1312
67	PIN; STRAIGHT TRANSMISSION SIDE PTO WO/LEVER(SH5) L=22	8-98238-799-0	02	1	1401-1410
67	PIN; STRAIGHT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) L=22	8-98238-799-0	02	1	1411-
82	SHAFT; INPUT TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-904-0	01	1	1310-1410
82	SHAFT; INPUT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-904-0	01	1	1411-
83	BEARING; INPUT SHAFT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) NSK	8-97360-334-0	02	1	1411-
83	BEARING; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	5-09820-017-0	02	1	1310-
84	COLLAR; INPUT SHAFT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	8-98238-808-0	01	1	1411-
84	COLLAR; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	9-38245-603-1	01	1	1310-1312
84	COLLAR; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-800-0	01	1	1401-
85	GEAR; INPUT SHAFT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) Z=28	8-98238-796-0	01	1	1411-
85	GEAR; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=28	8-98134-898-1	01	1	1310-1312
85	GEAR; INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5) Z=28	8-98238-795-0	01	1	1401-
131	BOLT; FLANGE TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28050-820-0	08	1	1310-1410
131	BOLT; FLANGE TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) M8X20 FLANGE	0-28050-820-0	08	1	1411-
134	BEARING; NEEDLE,OUTPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-803-0	02	1	1401-1410
134	BEARING; NEEDLE,OUTPUT SHAFT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-803-0	02	1	1411-
136	GASKET; PTO SHAFT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-09623-246-0	01	1	1411-
154	SHIM; IDLE GEAR TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=0.1	5-33156-022-0	AR	1	1411-
154	SHIM; IDLE GEAR TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=0.2	5-33156-024-0	AR	1	1411-
154	SHIM; IDLE GEAR TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=0.15	8-98067-573-0	AR	1	1411-
154	SHIM; IDLE GEAR TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=0.40	8-98067-574-0	AR	1	1411-
154	SHIM; IDLE GEAR TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=0.65	8-98067-575-0	AR	1	1411-
154	SHIM; IDLE GEAR TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=0.80	8-98067-576-0	AR	1	1411-
160	CLIP; PTO A/T SIDE TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=8.5	5-09700-275-0	01	1	1310-1410
160	CLIP; PTO A/T SIDE TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=8.5	5-09700-275-0	01	1	1411-
184	DOWEL; PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) OD=11 L=8	9-11229-058-1	01	1	1310-1410
184	DOWEL; PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) OD=11 L=8	9-11229-058-1	01	1	1411-
188	RING; SNAP,INPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5) T=2.2	1-09587-103-1	01	1	1310-1410
188	RING; SNAP,INPUT SHAFT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) T=2.2	1-09587-103-1	01	1	1411-
195	BEARING; ROLLER,TAPER,PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) NSK	8-97360-334-0	02	1	1411-
195	BEARING; ROLLER,TAPER,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) NSK	8-97360-312-0	02	1	1310-
196	PIECE; THRUST TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=1.24	8-97360-318-0	01	1	1411-
196	PIECE; THRUST TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=1.28	8-97360-319-0	01	1	1411-
196	PIECE; THRUST TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=1.32	8-97360-320-0	01	1	1411-
196	PIECE; THRUST TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=1.36	8-97360-321-0	01	1	1411-
196	PIECE; THRUST TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=1.40	8-97360-322-0	01	1	1411-
196	PIECE; THRUST TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=1.44	8-97360-323-0	01	1	1411-
196	PIECE; THRUST TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=1.48	8-97360-324-0	01	1	1411-
196	PIECE; THRUST TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=1.52	8-97360-325-0	01	1	1411-
196	PIECE; THRUST TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=1.56	8-97360-326-0	01	1	1411-
196	PIECE; THRUST TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=1.60	8-97360-327-0	01	1	1411-
196	PIECE; THRUST TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=1.64	8-97360-328-0	01	1	1411-
196	PIECE; THRUST TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=1.68	8-97360-329-0	01	1	1411-
196	PIECE; THRUST TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=1.72	8-97360-330-0	01	1	1411-
196	PIECE; THRUST TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=1.76	8-97360-331-0	01	1	1411-
196	PIECE; THRUST TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=1.80	8-97360-332-0	01	1	1411-
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.50	8-97106-724-0	02	1	1310-
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.60	8-97106-725-0	02	1	1310-
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.65	8-97106-726-0	02	1	1310-
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.70	8-97106-727-0	02	1	1310-
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.80	8-97106-728-0	02	1	1310-
196	PIECE; THRUST TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.85	8-97106-729-0	02	1	1310-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=0.05	1-38229-013-0	AR	1	1411-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=0.07	1-38229-014-0	AR	1	1411-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=0.10	1-38229-015-0	AR	1	1411-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=0.15	1-38229-016-0	AR	1	1411-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=0.50	1-38229-017-0	AR	1	1411-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) T=0.75	1-38229-018-0	AR	1	1411-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.1	5-33156-022-0	AR	1	1310-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.2	5-33156-024-0	AR	1	1310-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.15	8-98067-573-0	AR	1	1310-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.40	8-98067-574-0	AR	1	1310-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.65	8-98067-575-0	AR	1	1310-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=0.80	8-98067-576-0	AR	1	1310-
215	SHIM; BEARING,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) T=1.00	8-98134-917-0	AR	1	1310-
220	COVER; IDLE SHAFT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	8-98289-063-0	02	1	1411-
220	COVER; IDLE SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-910-0	02	1	1310-
262	RING; INNER TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	8-98238-801-0	02	1	1411-
264	CLUTCH; OUTPUT SHAFT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	8-98238-805-0	01	1	1411-
264	CLUTCH; OUTPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-804-0	01	1	1401-
265	SLEEVE; OUTPUT SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-802-0	01	1	1401-1410
265	SLEEVE; OUTPUT SHAFT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-802-0	01	1	1411-
266	COLLAR; IDLE SHAFT TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	8-98238-807-0	02	1	1411-
266	COLLAR; IDLE SHAFT TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98238-806-0	01	1	1401-
304	PACKING; PTO TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98328-479-0	01	1	1401-1410
304	PACKING; PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98328-479-0	01	1	1411-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
