Isuzu WW
▶
TRUCKS
▶
FVR
▶
11556 - FVR-RHD EURO5
▶
2 - Clutch, Transmission, Trans Axle
▶
2-53 - TRANSMISSION OIL COOLER SYSTEM
▶
2-53 — TRANSMISSION OIL COOLER SYSTEM
(#129110) — 33 parça
◀
[253A] NO.1 (14 parça)
[253A] NO.2 (17 parça)
[253A] NO.3 (2 parça)
▶

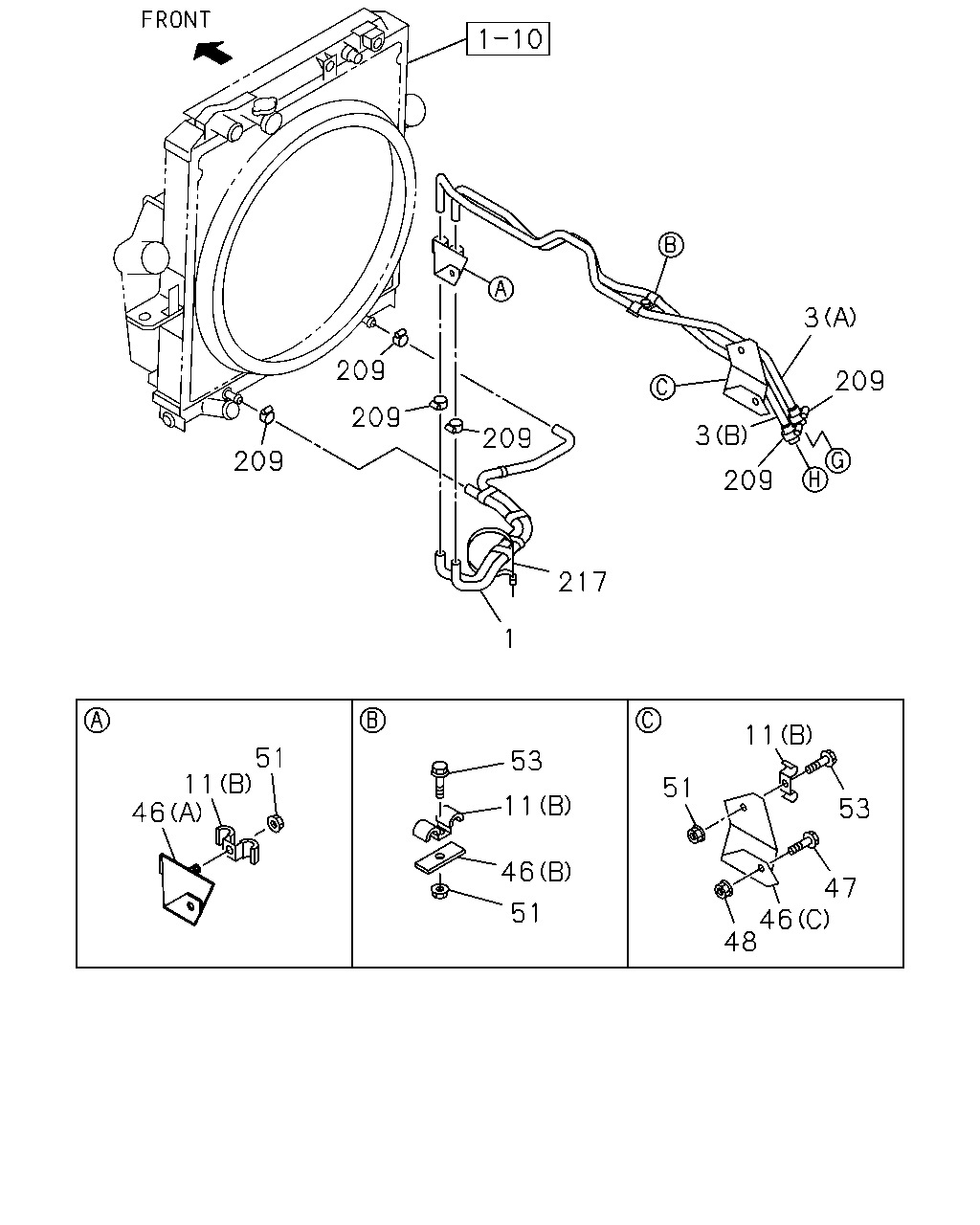

209
209
209
209
217
1
209
209
3
3
11
53
47
46
48
51
53
11
46
51
51
11
46
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; ATF
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98081-599-0
01
1
1310-
3
PIPE; OIL,A/T TO OIL COOLER
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)
8-98096-811-0
01
1
1310-
3
PIPE; OIL,A/T TO OIL COOLER
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)
8-98096-812-0
01
1
1310-
11
CLIP; PIPE
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=11 & 11 L=21.5 & 21.5
1-09700-660-0
03
1
1310-
11
CLIP; PIPE
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)
8-98084-148-0
01
1
1310-
46
BRACKET; OIL PIPE
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=50
1-47475-299-2
01
1
1310-
46
BRACKET; OIL PIPE
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)
8-98045-565-0
01
1
1310-
46
BRACKET; OIL PIPE
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)
8-98072-018-0
01
1
1310-
47
BOLT; BRKT TO FRAME
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X30 FLANGE
0-28650-830-0
02
1
1310-
48
NUT; BRKT
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE
0-91180-108-0
02
1
1310-
51
NUT; CLIP TO BRKT
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE
0-91180-108-0
04
1
1310-
53
BOLT; CLIP,FLEX HOSE,A/T
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE
0-28650-820-0
02
1
1310-
209
CLIP; HOSE
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98192-447-0
08
1
1310-
217
CLIP; BAND,FLEX HOSE
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) L=350
1-09707-183-0
01
1
1310-

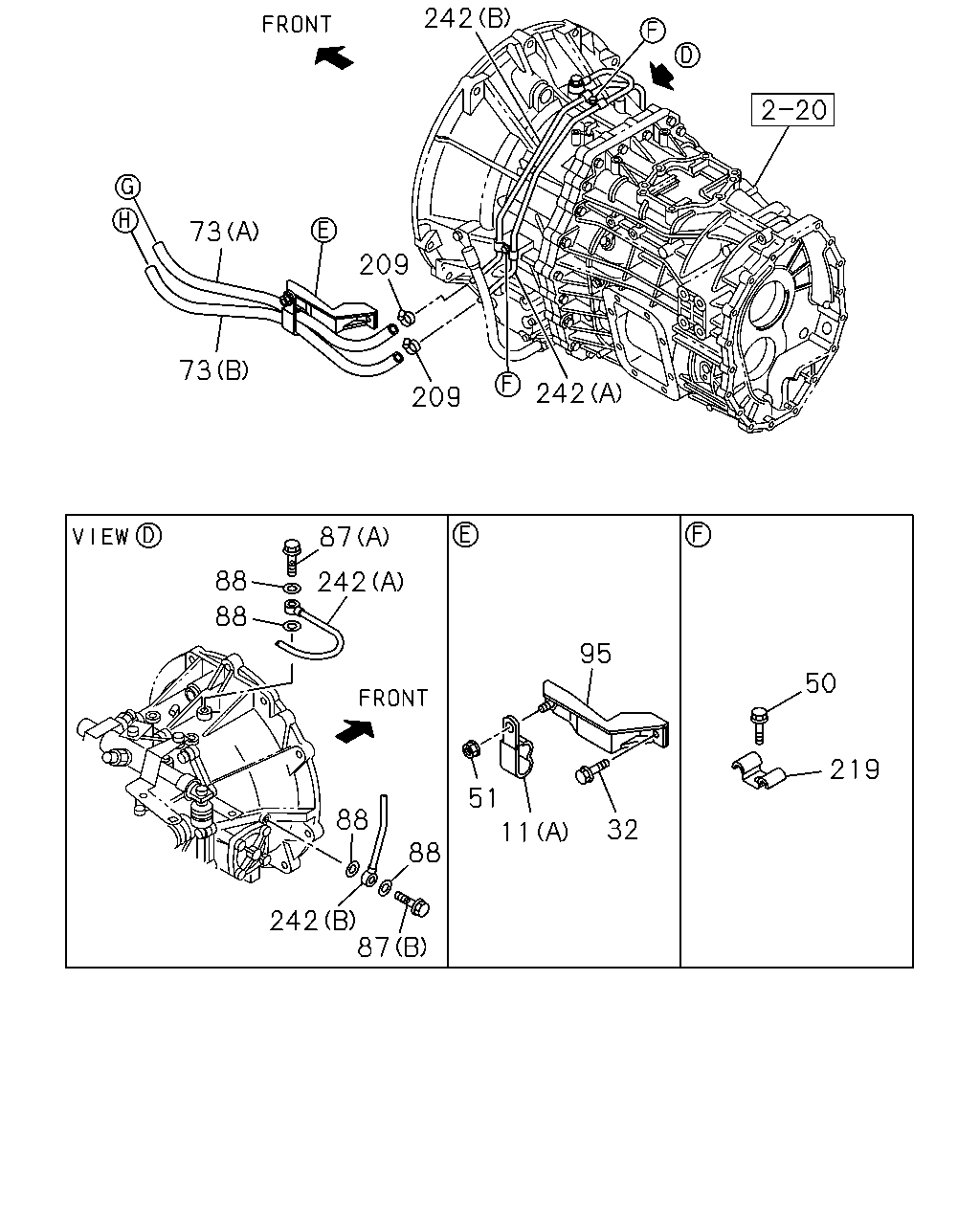

242
242
209
209
73
73
87
242
88
88
88
88
87
242
95
51
11
32
50
219
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
CLIP; PIPE
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=11 & 11 L=21.5 & 21.5
1-09700-660-0
03
1
1310-
11
CLIP; PIPE
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)
8-98084-148-0
01
1
1310-
32
BOLT; BRKT
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X30 FLANGE
0-28650-830-0
01
1
1310-
50
BOLT; CLIP
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE
0-28650-820-0
02
1
1310-
51
NUT; CLIP TO BRKT
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE
0-91180-108-0
04
1
1310-
73
HOSE; FLEX,TRANS
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) L=470
8-98081-844-0
01
1
1310-
73
HOSE; FLEX,TRANS
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=500
8-98081-853-0
01
1
1310-
87
BOLT; EYE
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M14X30 EYE-BOLT
8-98037-827-0
01
1
1310-
87
BOLT; EYE
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M14X35.5 FLANGE
8-98060-612-0
01
1
1310-
88
GASKET; EYE BOLT
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) ID=14.2 OD=20.0
9-09571-414-0
04
1
1310-
95
BRACKET; CLIP
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98072-008-0
01
1
1310-
209
CLIP; HOSE
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98192-447-0
08
1
1310-
219
CLIP; ATF PIPE
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) ID=11 & 11 L=17.5 & 17.5
1-09700-739-0
02
1
1310-
242
PIPE; COOLER
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)
8-98003-674-0
01
1
1310-1507
242
PIPE; COOLER
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (A)
8-98303-637-0
01
1
1508-
242
PIPE; COOLER
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)
8-98003-675-0
01
1
1310-1507
242
PIPE; COOLER
MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)
8-98303-638-0
01
1
1508-

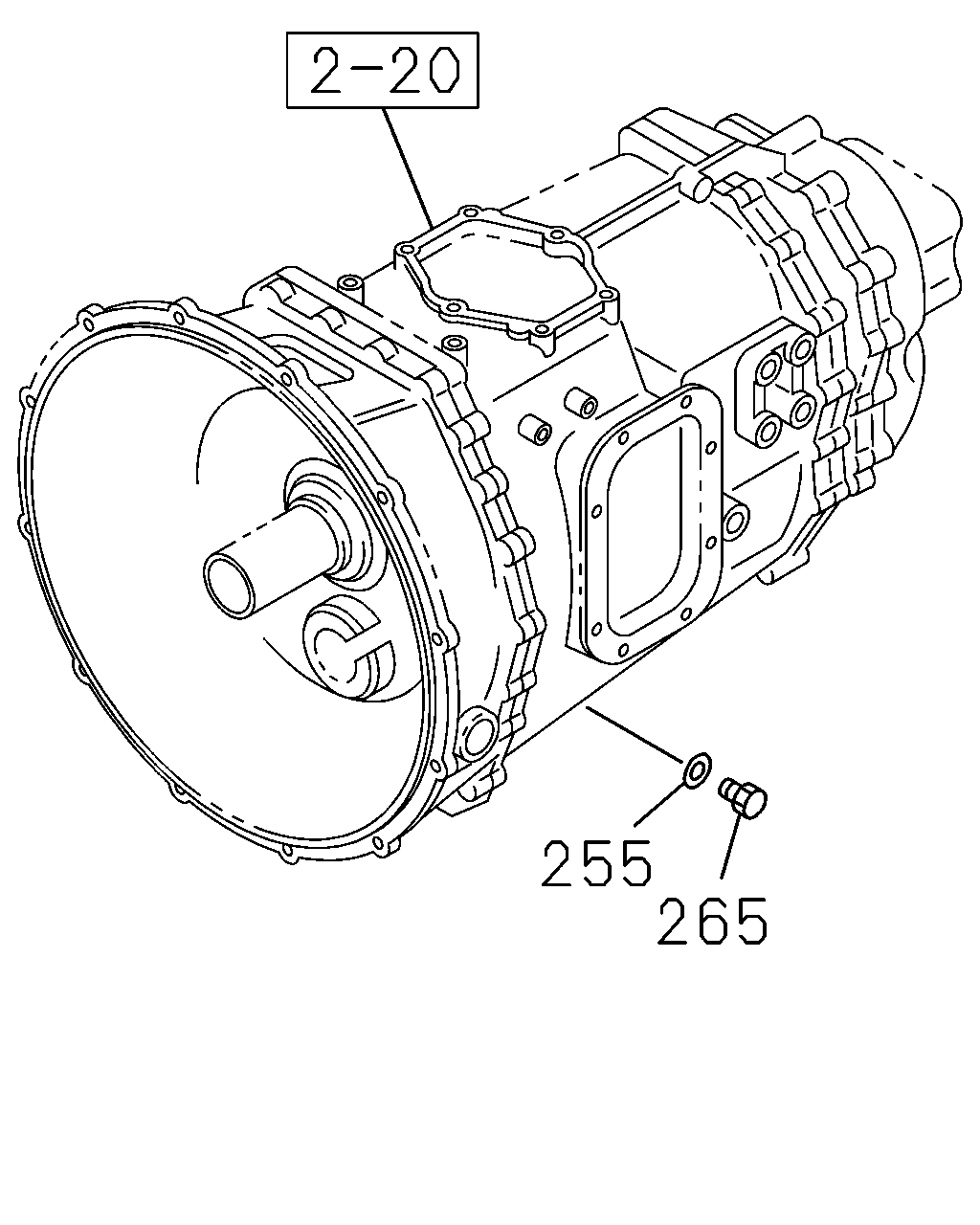

265
255
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
255
GASKET; SENSOR
MZW6P M/T(RSZ) ID=12.2
9-09571-412-0
01
1
1405-
265
PLUG; HOLE
MZW6P M/T(RSZ) M12X9
0-92002-412-0
01
1
1405-
