◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11556 - FVR-RHD EURO5 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-26B - MANUAL TRANSMISSION GEAR ▶
2-26B — MANUAL TRANSMISSION GEAR (#129102) — 83 parça

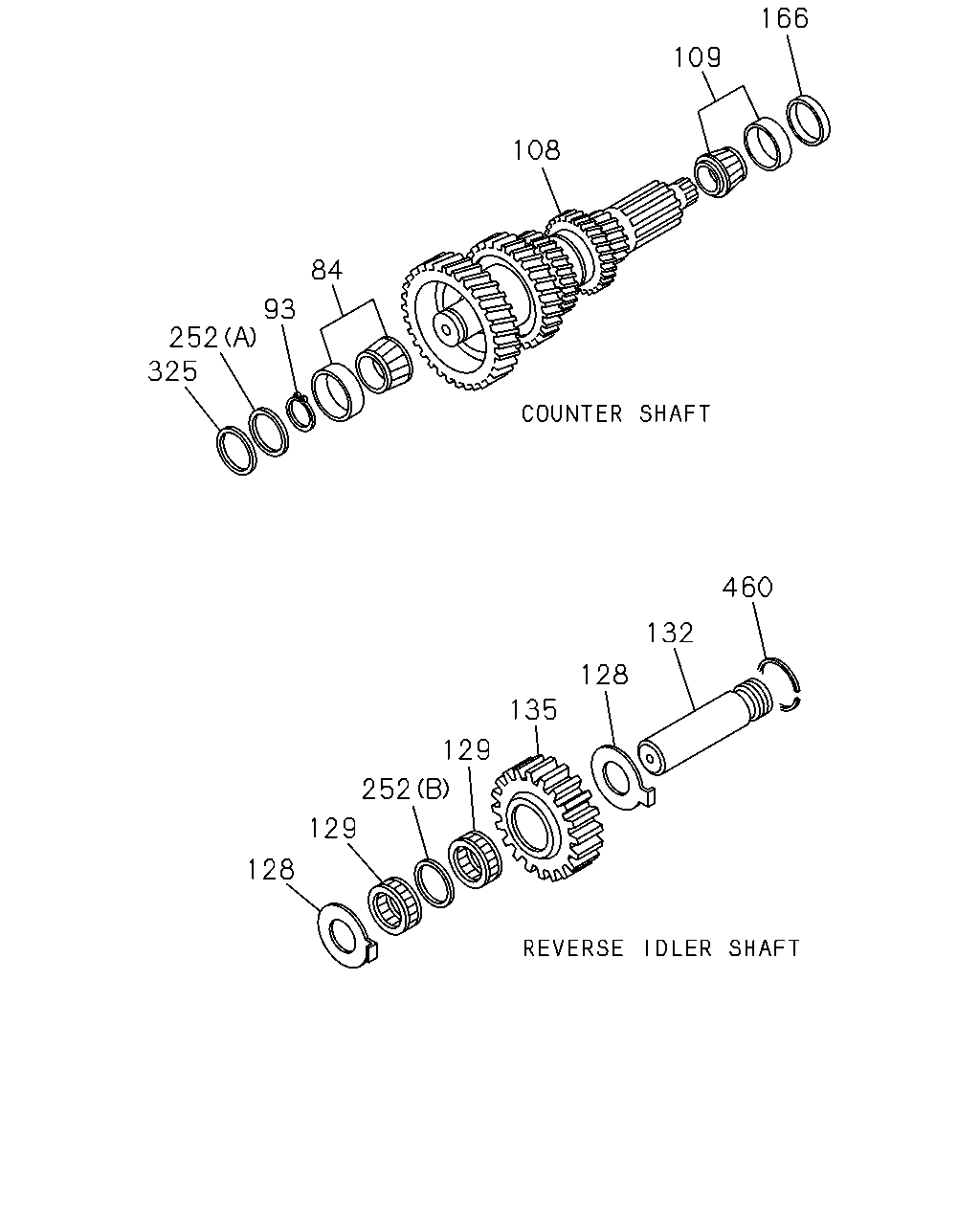

çizim 380478
166 109 108 84 93 252 325 460 132 128 135 129 252 129 128
BalonParca AdiParca NoAdetTipApplied Date
84 BEARING; COUNTER SHAFT,FRT 1-33319-221-0 01 1 1310-
93 RING; SNAP,COUNTER FRT BRG
T=2.12 		1-33239-238-0 01 1 1310-
93 RING; SNAP,COUNTER FRT BRG
T=2.07 		1-33239-239-0 01 1 1310-
93 RING; SNAP,COUNTER FRT BRG
T=2.02 		1-33239-240-0 01 1 1310-
93 RING; SNAP,COUNTER FRT BRG
T=1.97 		1-33319-146-0 01 1 1310-
93 RING; SNAP,COUNTER FRT BRG
T=1.92 		1-33319-147-0 01 1 1310-
93 RING; SNAP,COUNTER FRT BRG
T=1.87 		1-33319-148-0 01 1 1310-
93 RING; SNAP,COUNTER FRT BRG
T=1.82 		1-33319-149-0 01 1 1310-
93 RING; SNAP,COUNTER FRT BRG
T=1.77 		1-33319-150-0 01 1 1310-
108 SHAFT; COUNTER 1-33311-334-0 01 1 1310-
109 BEARING; COUNTER SHAFT,RR 1-33319-221-0 01 1 1310-
128 WASHER; THRUST,REV SHAFT 1-33359-016-0 02 1 1310-
129 BEARING; NEEDLE,IDLER 1-33359-005-0 02 1 1310-
132 SHAFT; REV 1-33351-044-0 01 1 1310-
135 GEAR; REV IDLER 1-33361-090-0 01 1 1310-
166 PIECE; DIST 1-33319-222-0 01 1 1310-
252 SPACER
(A) 		1-33319-223-0 01 1 1310-
252 SPACER
(B) 		1-33359-017-0 01 1 1310-
325 SHIM; COUNTER SHAFT BRG
T=0.051 		1-33319-152-0 01 1 1310-
325 SHIM; COUNTER SHAFT BRG
T=0.127 		1-33319-153-0 01 1 1310-
325 SHIM; COUNTER SHAFT BRG
T=0.254 		1-33319-154-0 01 1 1310-
325 SHIM; COUNTER SHAFT BRG
T=0.510 		1-33319-155-0 01 1 1310-
460 RING; SNAP,REV SHAFT 1-33219-297-0 01 1 1310-

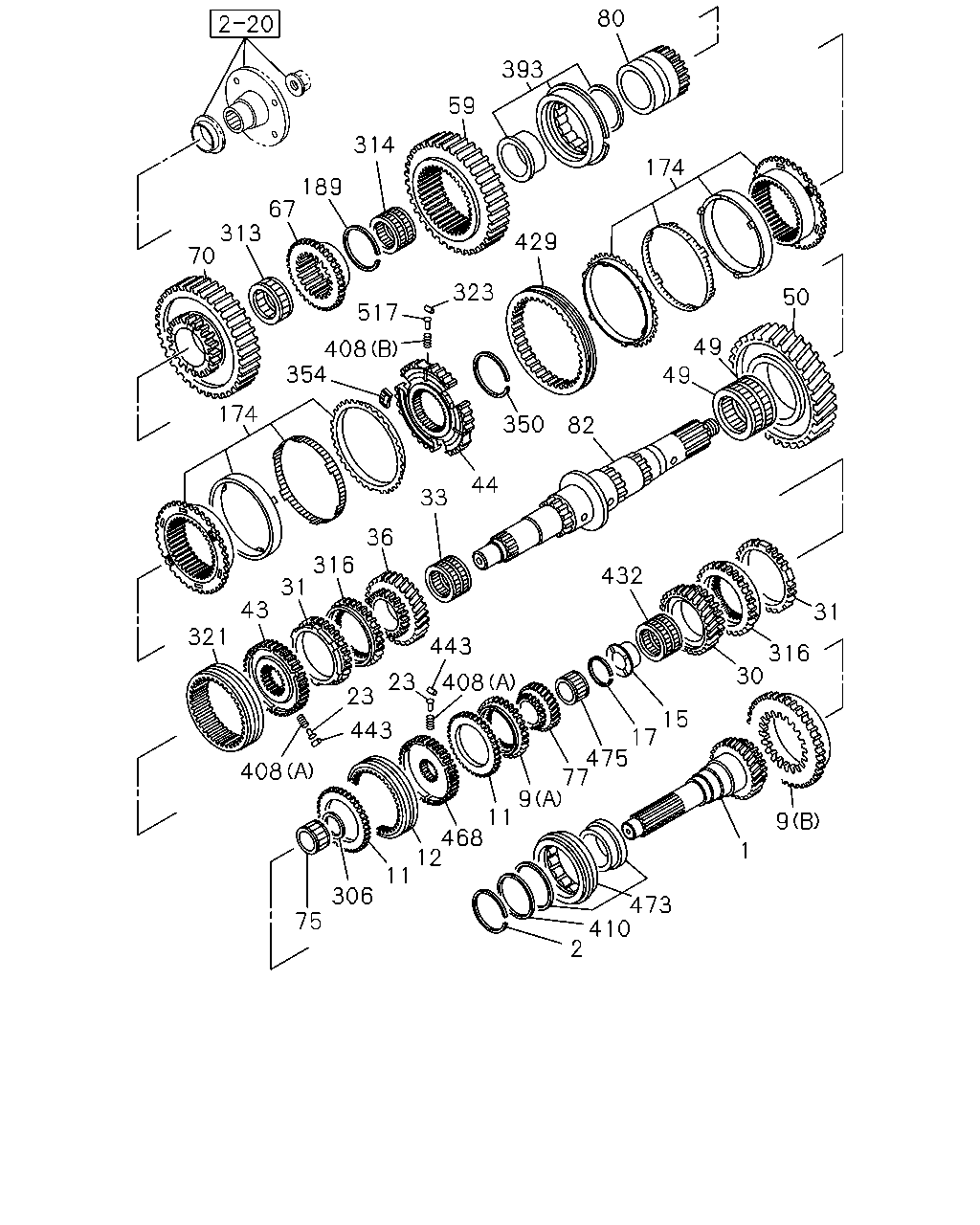

çizim 381573
80 393 59 314 189 67 313 70 517 408 323 429 174 49 50 49 82 350 44 33 36 354 174 316 31 43 321 23 443 23 408 443 408 11 468 12 11 306 75 9 17 475 77 432 31 316 30 15 9 1 410 2 473
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; TOP GEAR,TRANS 1-33215-012-0 01 1 1310-
2 RING; SNAP,TOP GEAR SHAFT 1-33219-268-0 01 1 1310-
9 CLUTCH; DOG,TOP GEAR
(A) 		1-33265-601-0 01 1 1310-
9 CLUTCH; DOG,TOP GEAR
(B) 		1-33265-604-0 01 1 1310-
11 RING; BLOCK,5TH & 6TH 1-33265-602-0 02 1 1310-
12 SLEEVE; 5TH & 6TH 1-33262-234-0 01 1 1310-
15 COLLAR; 4TH GEAR 1-33259-123-0 01 1 1310-
17 RING; SNAP,4TH GEAR
T=2.00 		1-33269-064-0 01 1 1310-
17 RING; SNAP,4TH GEAR
T=2.10 		1-33269-100-0 01 1 1310-
17 RING; SNAP,4TH GEAR
T=2.05 		1-33269-101-0 01 1 1310-
23 PLUNGER; DETENT,SYN 1-33265-600-0 06 1 1310-
30 GEAR; 4TH,MAINSHAFT 1-33252-474-0 01 1 1310-
31 RING; BLOCK,3RD & 4TH 1-33265-599-0 02 1 1310-
33 BEARING; NEEDLE,3RD GEAR 1-33259-089-0 01 1 1310-
36 GEAR; 3RD,MAINSHAFT 1-33252-473-0 01 1 1310-
43 HUB; CLU,3RD & 4TH,MAIN 1-33261-288-0 01 1 1310-
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-301-0 01 1 1310-
49 BEARING; NEEDLE,2ND GEAR 1-33259-089-0 01 1 1310-
50 GEAR; 2ND,MAINSHAFT 1-33251-446-0 01 1 1310-
59 GEAR; REV MAINSHAFT 1-33257-092-0 01 1 1310-
67 HUB; CLU,1ST TO REV 1-33261-290-0 01 1 1310-
70 GEAR; 1ST,MAINSHAFT 1-33251-447-0 01 1 1310-
75 BEARING; MAINSHAFT 1-33239-241-0 01 1 1310-
77 GEAR; 6TH,MAINSHAFT 1-33253-719-0 01 1 1310-
80 GEAR; SPD DRIVE 1-33371-072-0 01 1 1310-
82 SHAFT; MAIN,TRANS 1-33231-333-0 01 1 1310-
174 SYNCHRONIZER ASM; 2ND-3RD 1-33265-639-0 02 1 1310-
189 RING; SNAP,REV,GEAR
T=2.10 		1-33269-066-0 01 1 1310-
189 RING; SNAP,REV,GEAR
T=2.05 		1-33269-067-0 01 1 1310-
189 RING; SNAP,REV,GEAR
T=2.00 		1-33269-068-0 01 1 1310-
306 RING; SNAP,MAINSHAFT
T=2.12 		1-33239-238-0 01 1 1310-
306 RING; SNAP,MAINSHAFT
T=2.07 		1-33239-239-0 01 1 1310-
306 RING; SNAP,MAINSHAFT
T=2.02 		1-33239-240-0 01 1 1310-
306 RING; SNAP,MAINSHAFT
SET 		1-33239-314-0 01 1 1310-
313 BEARING; NEEDLE,LOW GEAR 1-33259-078-0 01 1 1310-
314 BEARING; NEEDLE,REV GEAR 1-33259-073-0 01 1 1310-
316 CLUTCH; DOG,3RD GEAR 1-33265-598-0 02 1 1310-
321 SLEEVE; SYN,4TH & 3RD 1-33262-233-0 01 1 1310-
323 INSERT 1-33269-103-0 03 1 1310-
350 RING; RET,2ND GEAR 1-33269-095-0 01 1 1310-
354 RETAINER; SYN 1-33269-102-0 03 1 1310-
393 BEARING; MAINSHAFT END 1-33239-347-0 01 1 1310-
408 SPRING
(A) 		1-33264-042-0 06 1 1310-
408 SPRING
(B) 		1-33264-043-0 03 1 1310-
410 SPACER; TOP GEAR SHAFT
T=3.10 		1-33219-298-0 01 1 1310-
410 SPACER; TOP GEAR SHAFT
T=3.15 		1-33219-299-0 01 1 1310-
410 SPACER; TOP GEAR SHAFT
T=3.20 		1-33219-300-0 01 1 1310-
410 SPACER; TOP GEAR SHAFT
T=3.25 		1-33219-301-0 01 1 1310-
410 SPACER; TOP GEAR SHAFT
T=3.30 		1-33219-302-0 01 1 1310-
410 SPACER; TOP GEAR SHAFT
T=3.35 		1-33219-303-0 01 1 1310-
410 SPACER; TOP GEAR SHAFT
T=3.40 		1-33219-304-0 01 1 1310-
410 SPACER; TOP GEAR SHAFT
T=3.45 		1-33219-305-0 01 1 1310-
410 SPACER; TOP GEAR SHAFT
T=3.50 		1-33219-306-0 01 1 1310-
429 SLEEVE; 2ND & 3RD 1-33262-243-0 01 1 1310-
432 BEARING; NEEDLE,4TH 1-33259-069-0 01 1 1310-
443 ROLLER; SYNCHRONIZER 1-33269-063-0 06 1 1310-
468 HUB; CLU,5TH & 6TH 1-33261-289-0 01 1 1310-
473 BEARING; INPUT SHAFT 1-33219-186-0 01 1 1310-
475 BEARING; 6TH 1-33259-071-0 01 1 1310-
517 BALL; SYNCHRO,INDEX 1-33269-104-0 03 1 1310-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
