◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10631 - FVR-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#1291) — 72 parça

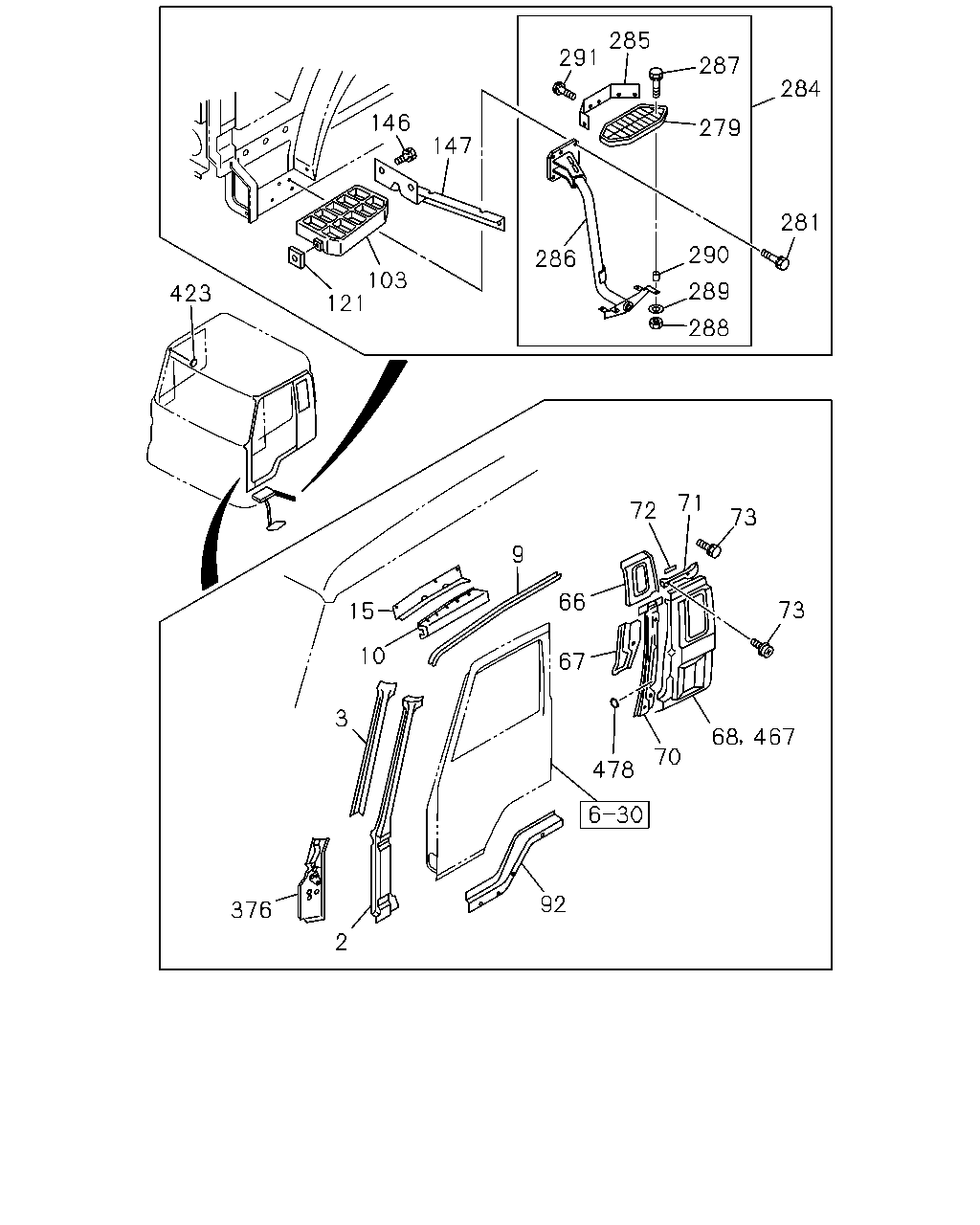

çizim 95572
423 121 103 147 146 286 291 285 287 279 284 281 290 289 288 73 71 72 73 467 68 70 478 67 66 9 15 10 3 376 2 92
BalonParca AdiParca NoAdetTipApplied Date A B
2 PILLAR; FRT 1-61280-672-0 01 1 9202- ●
2 PILLAR; FRT
EXC. MIRROR O/S UNDER VIEW<RR9> 		1-61280-672-0 01 1 9202- ●
2 PILLAR; FRT 1-61270-648-2 01 1 9202- ● ●
2 PILLAR; FRT
MIRROR O/S UNDER VIEW<RR9> 		1-61281-021-0 01 1 9202- ●
3 PANEL; CLOSING,FRT PILLAR 1-61280-549-2 01 1 9202- ● ●
3 PANEL; CLOSING,FRT PILLAR 1-61280-548-2 01 1 9202- ● ●
9 MOLDING; DRIP,CAB SIDE 1-61270-537-6 01 1 9202- ● ●
9 MOLDING; DRIP,CAB SIDE 1-61270-536-6 01 1 9202- ● ●
10 CLOSING; ROOF SIDE 1-61270-517-2 01 1 9202- ● ●
10 CLOSING; ROOF SIDE 1-61270-516-2 01 1 9202- ● ●
15 PANEL; CANT RAIL SIDE
DELUXE CAB(W14) 		1-61280-830-4 01 1 9202- ● ●
15 PANEL; CANT RAIL SIDE
DELUXE CAB(W14) 		1-61280-562-4 01 1 9202- ● ●
15 PANEL; CANT RAIL SIDE
EXC. DELUXE CAB(W14) 		1-61280-739-0 01 1 9202- ● ●
15 PANEL; CANT RAIL SIDE
EXC. DELUXE CAB(W14) 		1-61280-831-2 01 1 9410- ● ●
66 PANEL; BACK SIDE INNER
DELUXE CAB(W14) 		1-61280-601-3 01 1 9202- ● ●
66 PANEL; BACK SIDE INNER
DELUXE CAB(W14) 		1-61280-600-3 01 1 9202- ● ●
66 PANEL; BACK SIDE INNER
EXC. DELUXE CAB(W14) 		1-61280-905-1 01 1 9202- ● ●
66 PANEL; BACK SIDE INNER
EXC. DELUXE CAB(W14) 		1-61280-904-1 01 1 9202- ● ●
67 PANEL; INNER,RR PILLAR LWR 1-61281-139-0 01 1 9202- ● ●
67 PANEL; INNER,RR PILLAR LWR 1-61281-050-0 01 1 9202- ● ●
68 PANEL; BACK SIDE OUTER
SAUDI ARABIA EQUIPMENT(WH1) 		1-61280-911-1 01 1 9202-9310 ● ●
68 PANEL; BACK SIDE OUTER
SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-61280-911-1 01 1 9311-9507 ● ●
68 PANEL; BACK SIDE OUTER
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-61280-911-1 01 1 9508- ● ●
68 PANEL; BACK SIDE OUTER
EXC. SAUDI ARABIA EQUIPMENT(WH1) W/DOOR SW HOLE 		1-61280-474-5 01 1 9202-9310 ● ●
68 PANEL; BACK SIDE OUTER
EXC. SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) W/DOOR SW HOLE 		1-61280-474-5 01 1 9311-9507 ● ●
68 PANEL; BACK SIDE OUTER
EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) W/DOOR SW HOLE 		1-61280-474-5 01 1 9508- ● ●
70 REINFORCEMENT; BACK INNER PANEL 1-61270-746-0 01 1 9202- ● ●
70 REINFORCEMENT; BACK INNER PANEL 1-61281-077-0 01 1 9202- ● ●
71 COVER; SIDE PANEL UPR 1-65471-051-1 01 1 9202- ● ●
71 COVER; SIDE PANEL UPR 1-65471-050-1 01 1 9202- ● ●
72 CUSHION; COVER,SIDE PANEL UPR 1-65470-726-1 02 1 9202- ● ●
73 SCREW; SIDE PANEL COVER 1-09981-385-0 04 1 9202-9406 ● ●
73 SCREW; SIDE PANEL COVER
BODY COLOR CALM WHITE(820),BODY COLOR GLACIAL WHITE(844) 		1-09981-385-0 04 1 9407- ●
73 SCREW; SIDE PANEL COVER
BODY COLOR CALM WHITE(820),BODY COLOR GLACIAL WHITE(844),BODY COLOR POLAR WHITE(982) 		1-09981-385-0 04 1 9407- ●
73 SCREW; SIDE PANEL COVER
BODY COLOR SUNRISE RED(816),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR DARKGREEN(903),BODY COLOR GOLDEN YELLOW(904),BODY COLOR SMOKE YELLOW(905),BODY COLOR OMAHA ORANGE(906), BODY COLOR MIDDLE BRONZE GREEN(909),BODY COLOR WHEATLAND YELLOW(910),BODY COLOR LIME GREEN(911),BODY COLOR NEPAL ORANGE(912),BODY COLOR FIRE RED(915), BODY COLOR HIGHWAY YELLOW(916),BODY COLOR CATERPILLAR YELLOW(917),BODY COLOR PURUTAMINA BLUE(918),BO DY COLOR PRIMER PAINT(927),BODY COLOR BCL YELLOW(930),BODY COLOR HIGHWAY ORANGE(944) M8X20 		1-09981-468-0 04 1 9407- ● ●
92 PANEL; SIDE SILL,CAB 1-61270-519-5 01 1 9202- ● ●
92 PANEL; SIDE SILL,CAB 1-61270-518-5 01 1 9202- ● ●
103 PLATE; STEP 1-53414-033-0 02 1 9202- ● ●
121 COVER; STEP PLATE 1-71998-153-0 08 1 9401- ● ●
146 BOLT; STEP BRKT
M8X20 W/LK&PL WASHER 		1-09980-496-0 04 1 9202- ● ●
147 BRACKET; MUD GUARD,RR 1-65680-731-0 01 1 9202- ● ●
147 BRACKET; MUD GUARD,RR 1-65680-730-0 01 1 9202- ● ●
279 BOARD; STEP 1ST 1-53414-035-0 02 1 9202- ● ●
281 BOLT; STEP BOARD TO FLOOR
M12X40 W/LK WASHER 		0-50041-240-0 08 1 9202- ● ●
284 STEP ASM; 1ST 1-53414-037-0 01 1 9202- ● ●
284 STEP ASM; 1ST 1-53414-018-2 01 1 9202- ● ●
285 PLATE; STEP,1ST STEP 1-53414-019-0 01 1 9202- ● ●
285 PLATE; STEP,1ST STEP 1-53414-020-0 01 1 9202- ● ●
286 STEP ASM; 1ST 1-53414-015-2 01 1 9202- ● ●
286 STEP ASM; 1ST 1-53414-036-0 01 1 9202- ● ●
287 BOLT; BOARD STEP
M6X35 W/LK WASHER 		9-01900-635-0 04 1 9202-9204 ● ●
287 BOLT; BOARD STEP
M6X35 W/LK WASHER 		0-50040-635-0 04 1 9205-9312 ● ●
287 BOLT; BOARD STEP
M6X35 FLANGE 		0-28080-635-0 04 1 9401- ● ●
287 BOLT; BOARD STEP
M8X35 W/LK WASHER 		9-01900-835-0 04 1 9202-9204 ● ●
287 BOLT; BOARD STEP
M8X35 W/LK WASHER 		0-50040-835-0 04 1 9205-9312 ● ●
287 BOLT; BOARD STEP
M8X35 FLANGE 		0-28080-835-0 04 1 9401- ● ●
288 NUT; STEP
M6 		9-09110-406-0 04 1 9202-9312 ● ●
288 NUT; STEP
M6 FLANGE 		0-91150-106-0 04 1 9401- ● ●
288 NUT; STEP
M8 		9-09110-408-0 04 1 9202-9312 ● ●
288 NUT; STEP
M8 FLANGE 		0-91150-108-0 04 1 9401- ● ●
289 WASHER; PL,STEP
ID=6.4 OD=14 		9-09160-606-0 04 1 9202-9312 ● ●
289 WASHER; PL,STEP
ID=8.4 OD=18 		9-09160-608-0 04 1 9202-9312 ● ●
290 SPACER 1-53414-016-0 08 1 9202- ● ●
291 BOLT; STEP PLATE
M6X20 W/LK&PL WASHER 		9-01960-620-0 10 1 9202-9204 ● ●
291 BOLT; STEP PLATE
M6X20 W/LK&PL WASHER 		0-50140-620-0 10 1 9205-9312 ● ●
291 BOLT; STEP PLATE
M6X16 FLANGE 		0-28080-616-0 10 1 9401- ● ●
376 PANEL ASM; FRT SIDE INNER 1-61470-587-4 01 1 9202- ● ●
376 PANEL ASM; FRT SIDE INNER 1-61470-583-4 01 1 9202- ● ●
423 SEAL; CANTRAIL SIDE
BODY COLOR CALM WHITE(820),BODY COLOR GLACIAL WHITE(844) EXC. DELUXE CAB(W14) OD=36 WHITE 		1-76778-007-0 01 1 9501- ●
423 SEAL; CANTRAIL SIDE
BODY COLOR CALM WHITE(820),BODY COLOR GLACIAL WHITE(844),BODY COLOR POLAR WHITE(982) EXC. DELUXE CAB(W14) OD=36 WHITE 		1-76778-007-0 01 1 9501- ●
467 PANEL; OUTER,BACK CORNER 1-61280-473-4 01 1 9202- ● ●
478 SEAL; RR PILLAR
OD=25 BLACK 		1-76798-019-0 03 1 9202- ● ●
