Sayfa 2-20A - Isuzu EPC

2-20A — MANUAL TRANSMISSION ASM AND CASE (#129097) — 117 parça

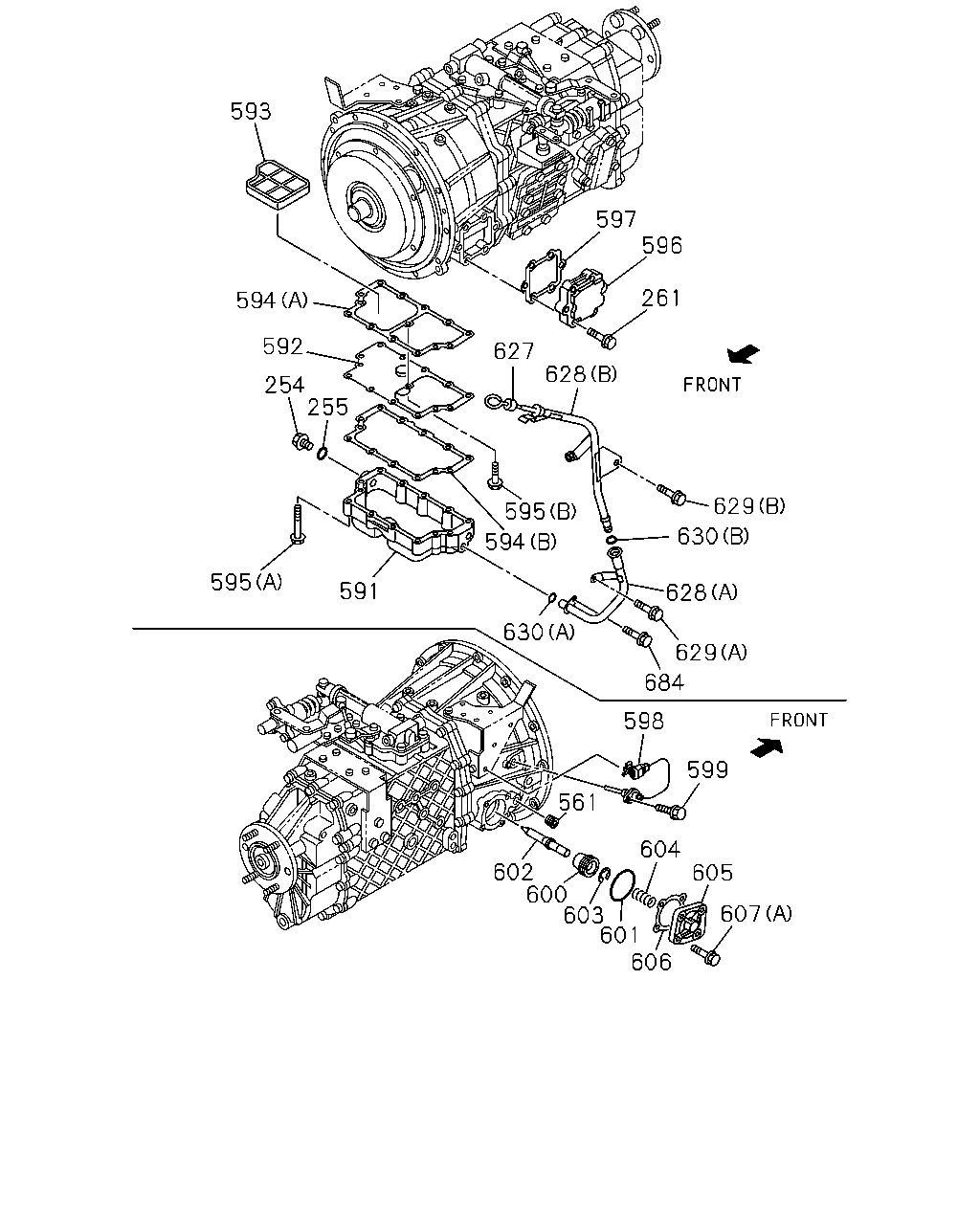

593 594 592 254 255 595 591 630 684 629 628 630 629 594 595 628 261 596 597 627 598 599 561 604 605 607 606 601 603 600 602

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
254	PLUG; DRAIN,OIL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97365-374-0	01	1	1310-
255	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) ID=17	8-97115-712-0	01	1	1310-
261	BOLT; COVER TRANSMISSION CONTROL-SMOOTHER(8GF) M6X35 FLANGE	0-28650-635-0	06	1	1310-
561	PLUG TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97320-204-0	01	1	1310-
591	PAN; OIL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97256-429-2	01	1	1310-
592	COVER; STRAINER ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97289-771-1	01	1	1310-
593	FILTER; STRAINER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97256-438-1	01	1	1310-
594	GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97256-430-1	01	1	1310-
594	GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97289-772-0	01	1	1310-
595	BOLT; OIL PAN TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M6X16 FLANGE	0-28650-616-0	01	1	1310-
595	BOLT; OIL PAN TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X35 FLANGE	0-28650-635-0	13	1	1310-
596	COVER; OIL PAN TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97289-773-0	01	1	1310-
597	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97289-774-0	01	1	1310-
598	SENSOR; TURBINE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97316-495-1	01	1	1310-
599	BOLT; SENSOR TRANSMISSION CONTROL-SMOOTHER(8GF) M6X16 FLANGE	0-28650-616-0	01	1	1310-
600	PISTON; BRAKE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-652-1	01	1	1310-
601	SEAL; PISTON ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-755-0	01	1	1310-
602	PLUNGER; BRAKE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98009-306-1	01	1	1310-
603	RING; SNAP TRANSMISSION CONTROL-SMOOTHER(8GF) ID=8	9-09185-008-0	01	1	1310-
604	SPRING; PISTON TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97371-467-0	01	1	1310-
605	COVER; CYLINDER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-756-0	01	1	1310-
606	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-757-0	01	1	1310-
607	BOLT; COVER (B) M8X16 FLANGE	0-28050-816-0	02	1	1310-
607	BOLT; COVER TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	04	1	1310-
627	GAUGE; OIL LEVEL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98024-424-0	01	1	1310-
628	TUBE; OIL FILLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98003-673-0	01	1	1310-
628	TUBE; OIL FILLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98005-327-0	01	1	1310-
629	BOLT; OIL FILLER TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M10X16 FLANGE	0-28151-016-0	01	1	1310-
629	BOLT; OIL FILLER TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X16 FLANGE	0-28650-616-0	01	1	1310-
630	GASKET; OIL FILLER TUBE,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=15.8	8-97305-656-0	01	1	1310-
630	GASKET; OIL FILLER TUBE,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF) (B) ID=12.3	8-97313-558-0	01	1	1310-
684	BOLT; OIL FILLER TUBE TRANSMISSION CONTROL-SMOOTHER(8GF) M10X16 FLANGE	0-28151-016-0	02	1	1310-

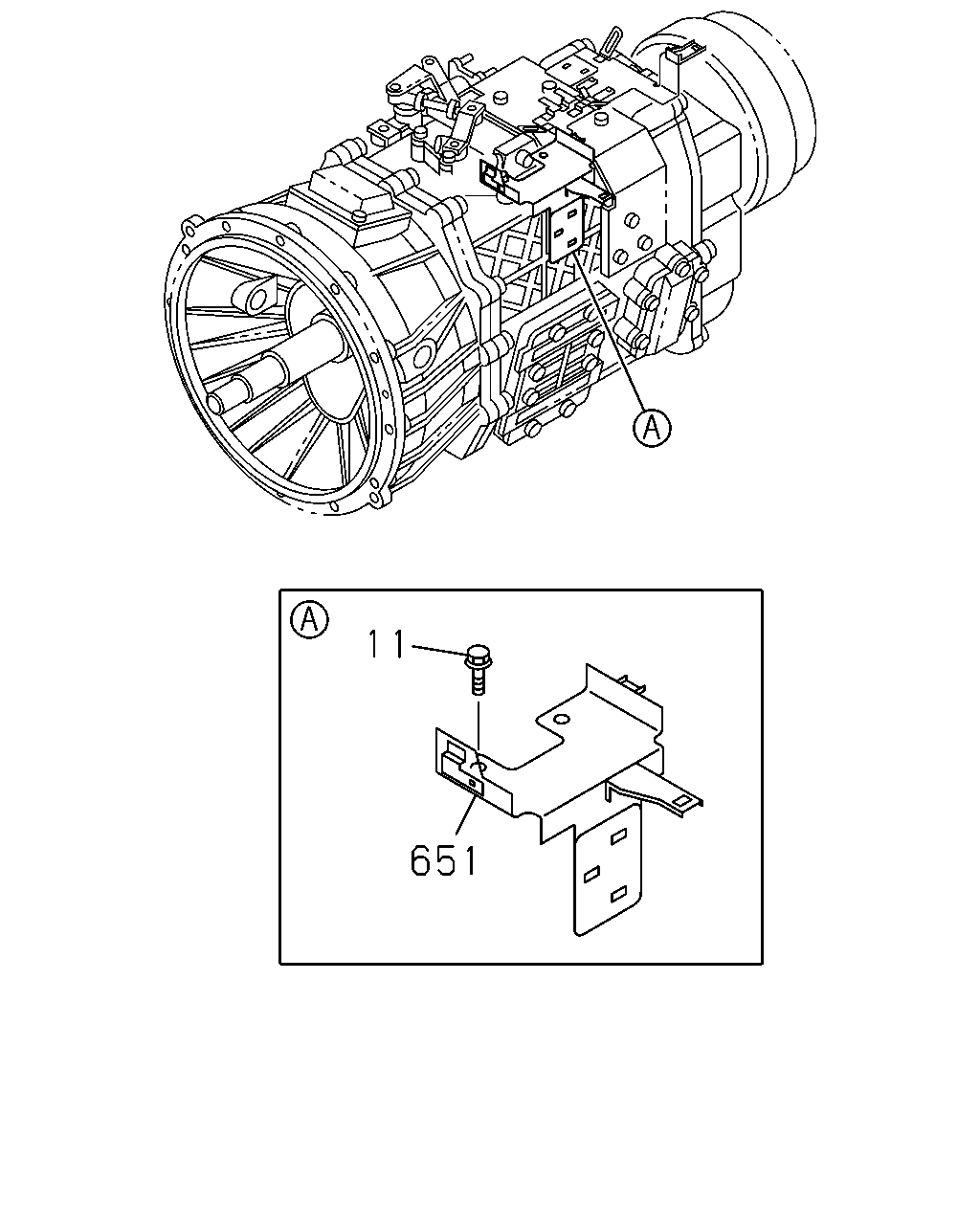

11 651

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	11	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) M8X35 FLANGE	0-28650-835-0	02	1	1310-
	651	BRACKET; T/M HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97610-090-3	01	1	1310-

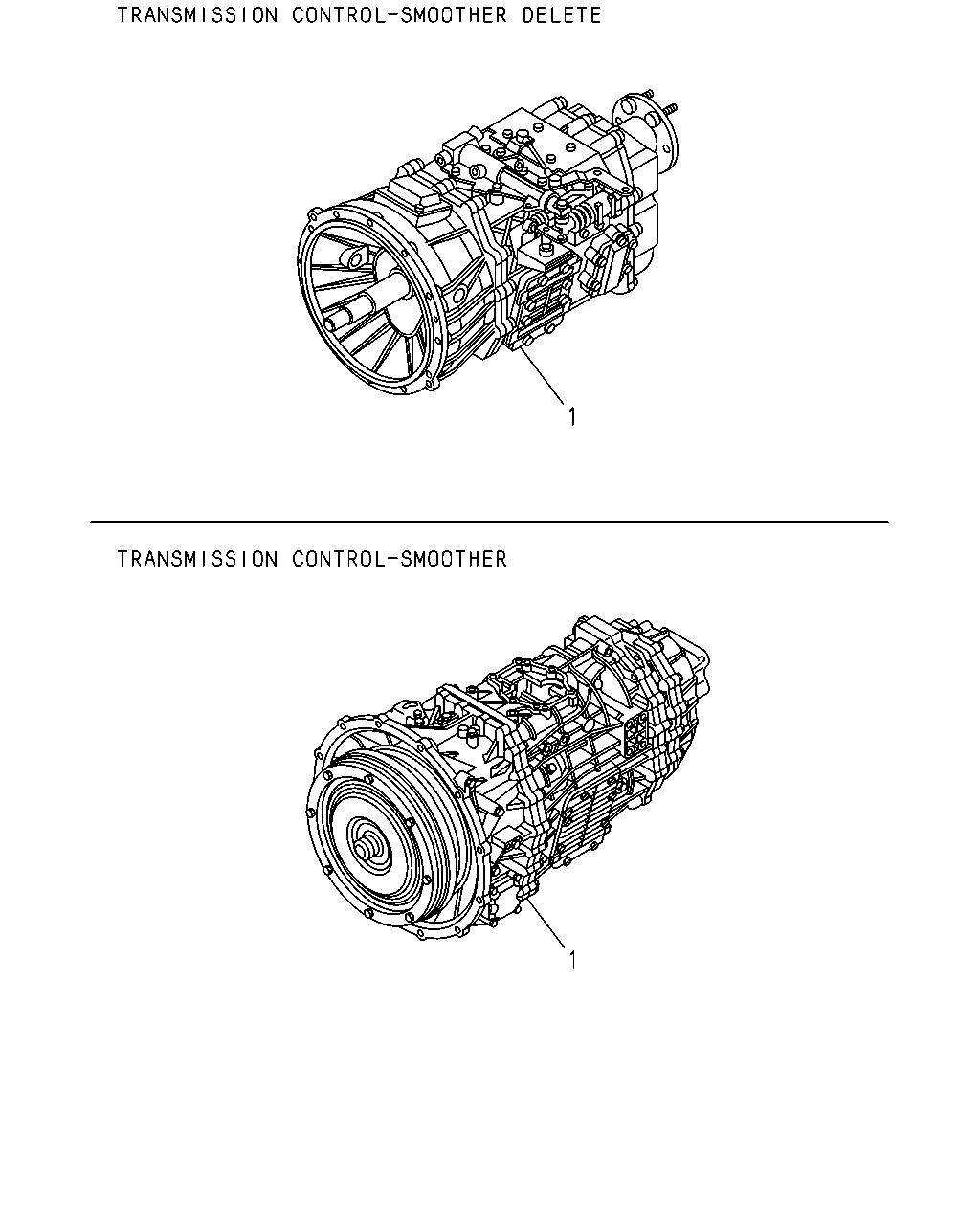

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PARKING BRAKE DRUM 10"(B1T)	8-98173-555-0	01	1	1411-
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PARKING BRAKE DRUM 10"(B1T)	8-98232-620-0	01	1	1411-
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 10"(B1T) P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),15" CLUTCH(RE9),TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	8-98134-566-0	01	1	1310-1410
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 10"(B1T) P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC),REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-566-0	01	1	1411-
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 10"(B1T) P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A),15" CLUTCH(RE9),ASSISTOR SHIFT CONTROL<WX8>	8-98134-566-0	01	1	1310-1410
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 10"(B1T) P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98134-566-0	01	1	1411-
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 10"(B1T) P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z) 15" CLUTCH(RE9) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98134-518-0	01	1	1310-1410
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 10"(B1T) P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98134-518-0	01	1	1411-
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 10"(B1T) P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z) 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-518-0	01	1	1310-1410
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 10"(B1T) P60 PROP SHAFT(C2M),P46 PROP SHAFT(C4Z) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-518-0	01	1	1411-
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) 15" CLUTCH(RE9) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PARKING BRAKE DRUM 10"(B1T)	8-98134-520-0	01	1	1310-1410
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PARKING BRAKE DRUM 10"(B1T)	8-98134-520-0	01	1	1411-
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PARKING BRAKE DRUM 10"(B1T),TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98134-520-0	01	1	1310-1410
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC),PTO ZF TRANS RR(BDM),PARKING BRAKE DRUM 10"(B1T),TRANSMI SSION SIDE PTO WO/LEVER(SH5)	8-98134-520-0	01	1	1411-
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) 15" CLUTCH(RE9) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PARKING BRAKE DRUM 10"(B1T),ASSISTOR SHIFT CONTROL<WX8>	8-98134-532-0	01	1	1310-
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) 15" CLUTCH(RE9) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PARKING BRAKE DRUM 10"(B1T),TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFT CONTROL<WX8>	8-98134-532-0	01	1	1310-1410
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) 15" CLUTCH(RE9) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC),PTO ZF TRANS RR(BDM),PARKING BRAKE DRUM 10"(B1T),TRANSMI SSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFT CONTROL<WX8>	8-98134-532-0	01	1	1411-
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PARKING BRAKE DRUM 10"(B1T),15" CLUTCH(RE9), ASSISTOR SHIFT CONTROL<WX8>	8-98134-568-0	01	1	1310-
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PARKING BRAKE DRUM 10"(B1T),15" CLUTCH(RE9), TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFT CONTROL<WX8>	8-98134-568-0	01	1	1310-1410
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P46 PROP SHAFT(C4Z) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC),PTO ZF TRANS RR(BDM),PARKING BRAKE DRUM 10"(B1T),15" CLUTCH(RE9),TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSIST OR SHIFT CONTROL<WX8>	8-98134-568-0	01	1	1411-
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 15" CLUTCH(RE9) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PARKING BRAKE DRUM 10"(B1T),ASSISTOR SHIFT CONTROL<WX8>	8-98173-553-0	01	1	1310-1410
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98173-553-0	01	1	1411-
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 15" CLUTCH(RE9) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PARKING BRAKE DRUM 10"(B1T),TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFT CONTROL<WX8>	8-98173-553-0	01	1	1310-1410
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFT CONTROL<WX8>	8-98173-553-0	01	1	1411-
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 15" CLUTCH(RE9) TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PARKING BRAKE DRUM 10"(B1T)	8-98173-555-0	01	1	1310-1410
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98173-555-0	01	1	1411-
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PARKING BRAKE DRUM 10"(B1T),TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98173-555-0	01	1	1310-1410
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98173-555-0	01	1	1411-
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PARKING BRAKE DRUM 10"(B1T),15" CLUTCH(RE9), ASSISTOR SHIFT CONTROL<WX8>	8-98232-620-0	01	1	1310-1410
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) TRANSMISSION SIDE PTO WO/LEVER(SH5) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98232-620-0	01	1	1411-
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. PARKING BRAKE DRUM 10"(B1T),15" CLUTCH(RE9), TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFT CONTROL<WX8>	8-98232-620-0	01	1	1310-1410
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) P60 PROP SHAFT(C2M) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98232-620-0	01	1	1411-

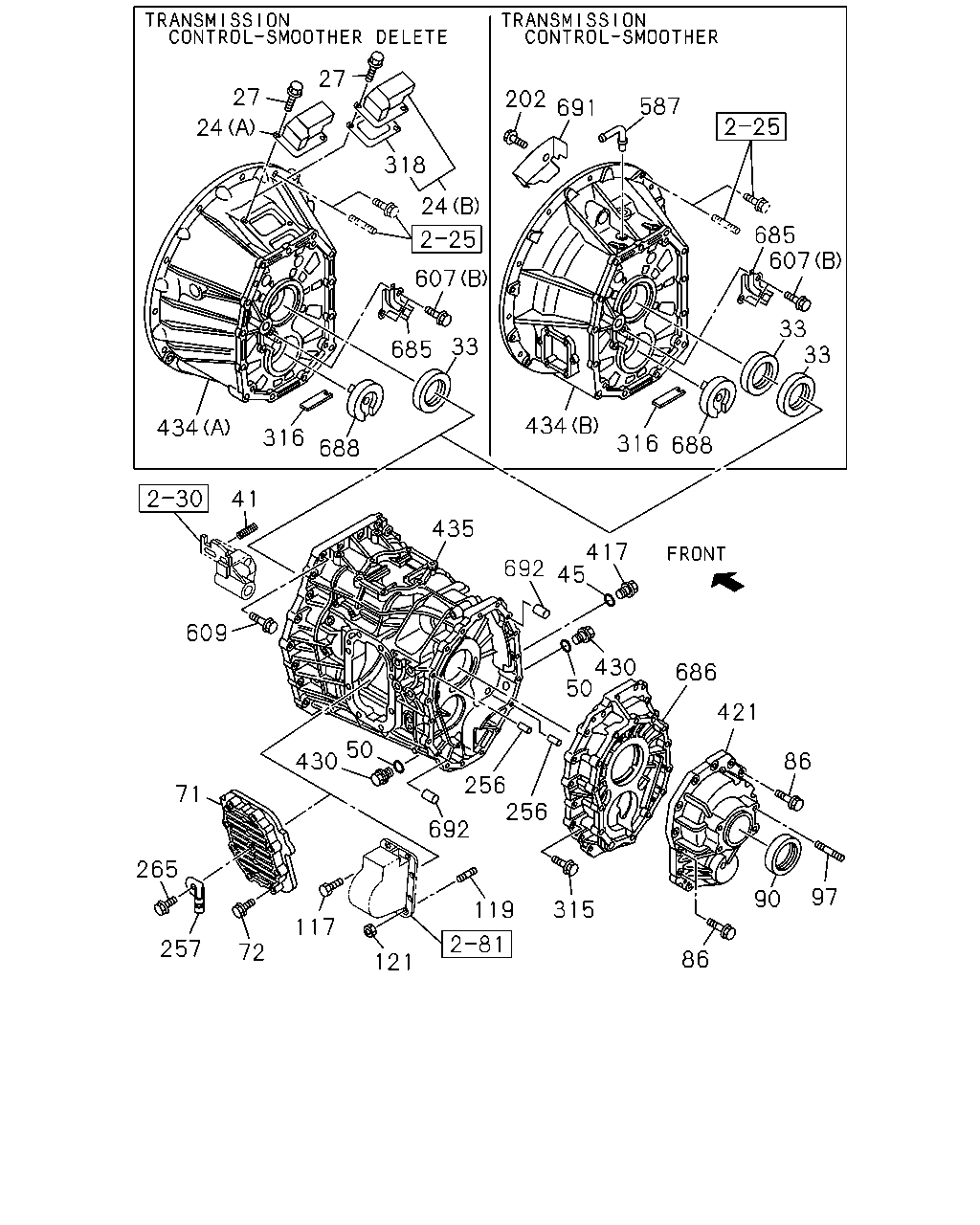

27 27 24 318 685 33 607 24 688 316 434 202 587 691 685 33 607 33 688 316 434 41 609 71 265 257 72 121 117 692 119 315 86 90 97 86 421 686 430 50 256 256 50 430 435 417 45 692

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	COVER; CHECK HOLE,DUST TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	1-31131-041-0	01	1	1310-1410
24	COVER; CHECK HOLE,DUST TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	1-31131-041-0	01	1	1411-1411
24	COVER; CHECK HOLE,DUST TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98283-062-0	01	1	1411-
27	BOLT; COVER TO CLU HSG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X12 FLANGE	0-28050-812-0	02	1	1310-1410
27	BOLT; COVER TO CLU HSG TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X16 FLANGE	0-28050-816-0	02	1	1411-
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97377-947-0	01	1	1310-
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-187-0	02	1	1310-
41	SPRING; DETENT BALL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98071-140-0	01	1	1310-
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1310-
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1310-1404
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	1405-
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC),PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98122-318-0	01	1	1310-1408
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC),PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98270-265-1	01	1	1409-
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X50 FLANGE	1-09044-081-0	08	1	1310-
86	BOLT; RR COVER M10X40 FLANGE	8-98045-397-0	14	1	1310-
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97377-948-0	01	1	1310-
97	STUD; PARKING BRK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14X22 W/DRY-ROCK	8-98014-138-0	01	1	1310-
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X40 FLANGE	0-28151-040-0	02	1	1310-
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X35 L=50	0-44011-035-0	06	1	1310-
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	06	1	1310-
202	BOLT; PLATE TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	01	1	1310-
256	PIN; KNOCK OD=6 L=12	9-08150-612-0	02	1	1310-
257	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=8	8-97329-633-0	01	1	1310-1410
257	CLIP; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC),PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=8	8-97329-633-0	01	1	1411-
265	BOLT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28151-016-0	01	1	1310-1410
265	BOLT; CLIP TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC),PTO ZF TRANS RR(BDM),TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28151-016-0	01	1	1411-
315	BOLT; CASE M8X40 FLANGE	0-28050-840-0	18	1	1310-
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	1310-
318	GASKET; COVER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31139-023-0	01	1	1411-
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	1310-
421	COVER; RR,TRANS	8-98004-790-1	01	1	1310-
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1310-1404
430	PLUG; OIL DRAIN	8-97365-374-0	02	1	1405-
434	HOUSING; CLU TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98004-506-2	01	1	1310-
434	HOUSING; CLU TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98100-982-1	01	1	1310-
435	CASE; TRANS	8-98186-449-0	01	1	1310-1404
435	CASE; TRANS	8-98236-421-1	01	1	1405-
587	PIPE; BREATHER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97358-318-0	01	1	1310-
607	BOLT; COVER (B) M8X16 FLANGE	0-28050-816-0	02	1	1310-
607	BOLT; COVER TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M8X30 FLANGE	0-28650-830-0	04	1	1310-
609	BOLT; HSG TO CASE M8X40 FLANGE	0-28050-840-0	22	1	1310-
685	COVER; OIL PORT	8-98018-864-1	01	1	1310-
686	CASE; RR,TRANS	8-97388-873-1	01	1	1310-
688	NOZZLE; OIL,COUNTER	8-98202-402-0	01	1	1310-1508
688	NOZZLE; OIL,COUNTER	8-98309-860-0	01	1	1509-
691	PLATE; BREATHER TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98044-428-0	01	1	1310-
692	PIN; DOWEL OD=11 L=8	9-11229-058-1	04	1	1310-
692	PIN; DOWEL OD=14 L=10	9-11319-065-3	02	1	1310-

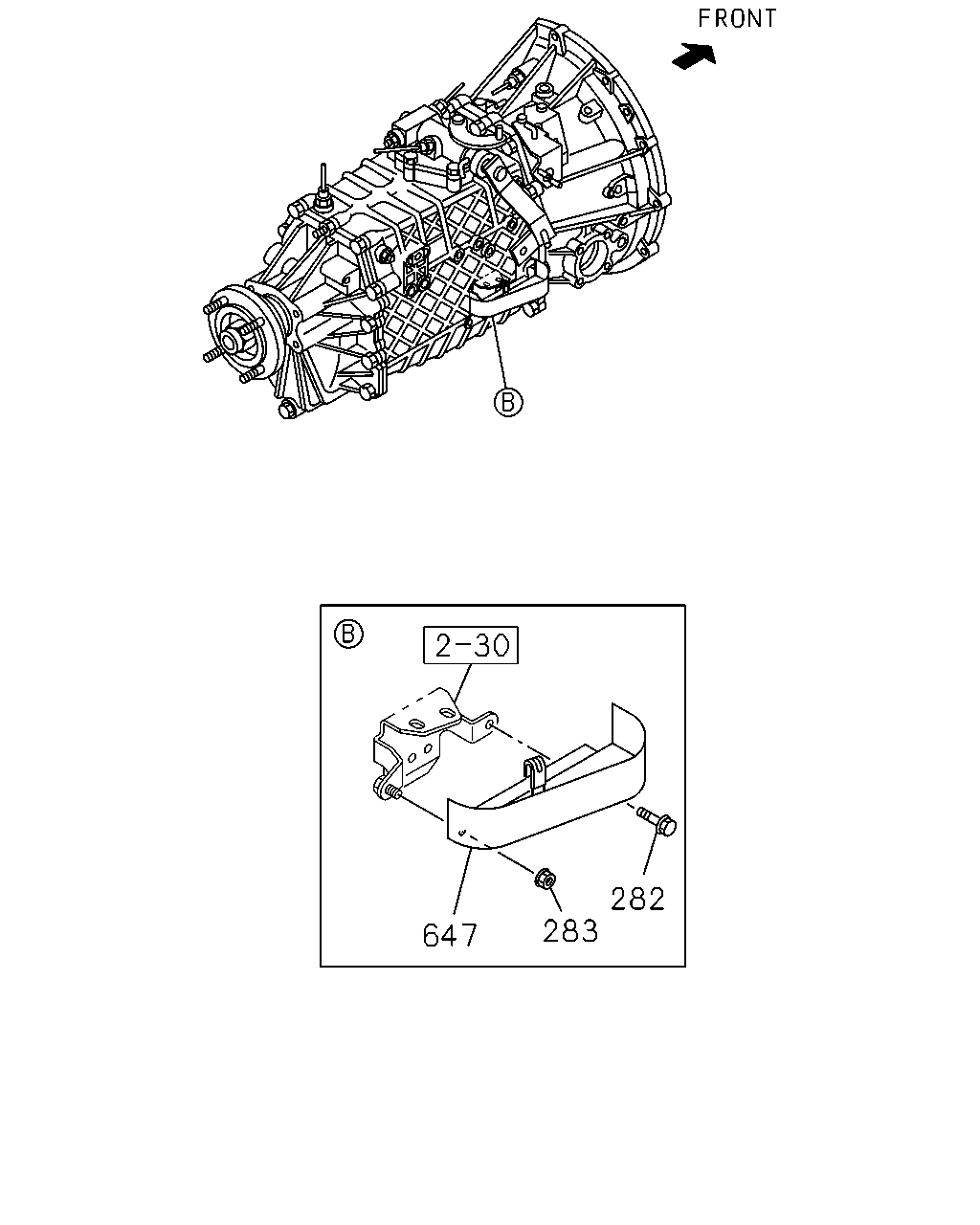

647 283 282

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
282	BOLT; PROTECTOR TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	01	1	1310-
283	NUT; PROTECTOR TRANSMISSION CONTROL-SMOOTHER(8GF) M8 FLANGE	0-91180-108-0	01	1	1310-
647	PROTECTOR; HEAT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97329-465-0	01	1	1310-
