Sayfa 2-05 - Isuzu EPC

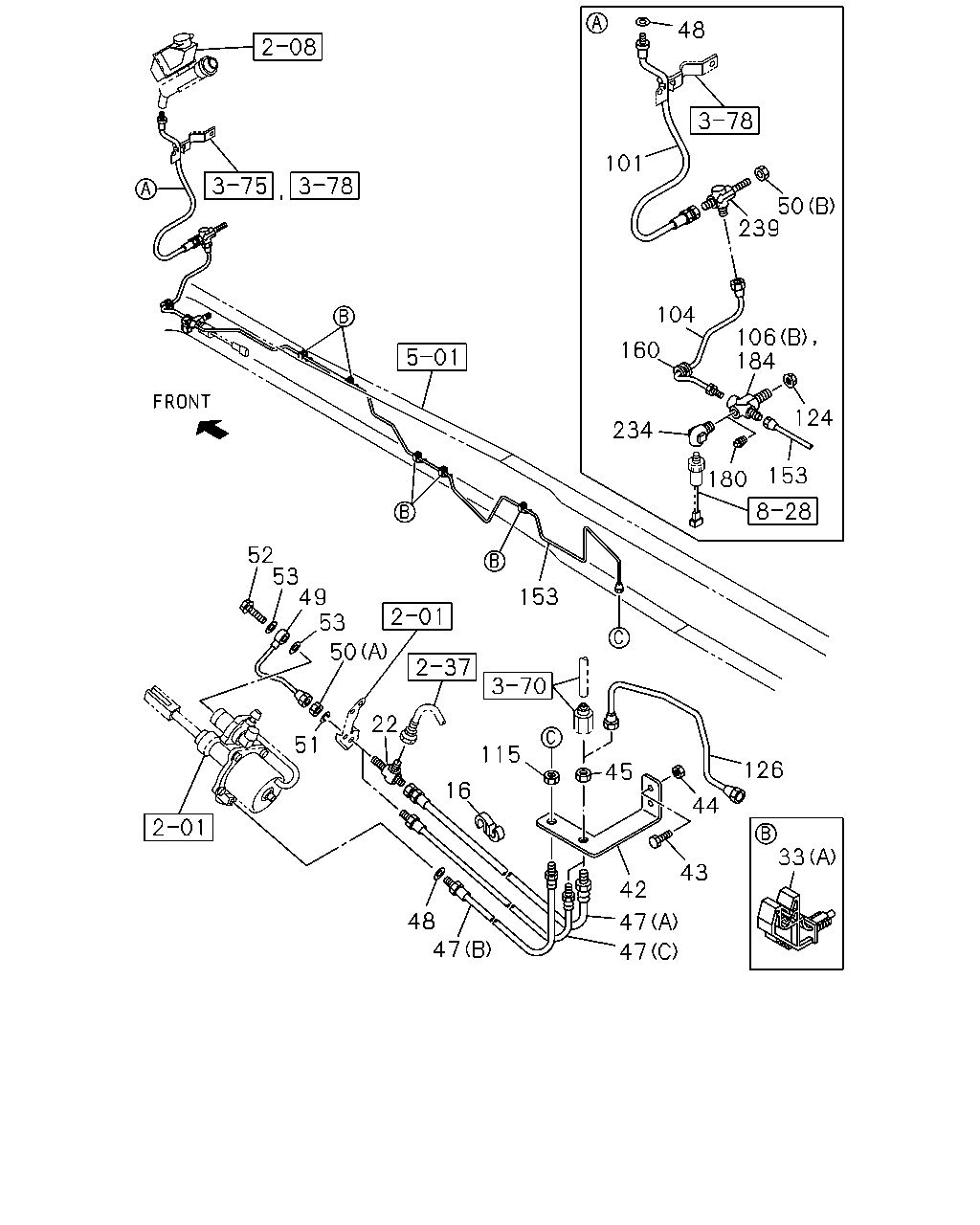

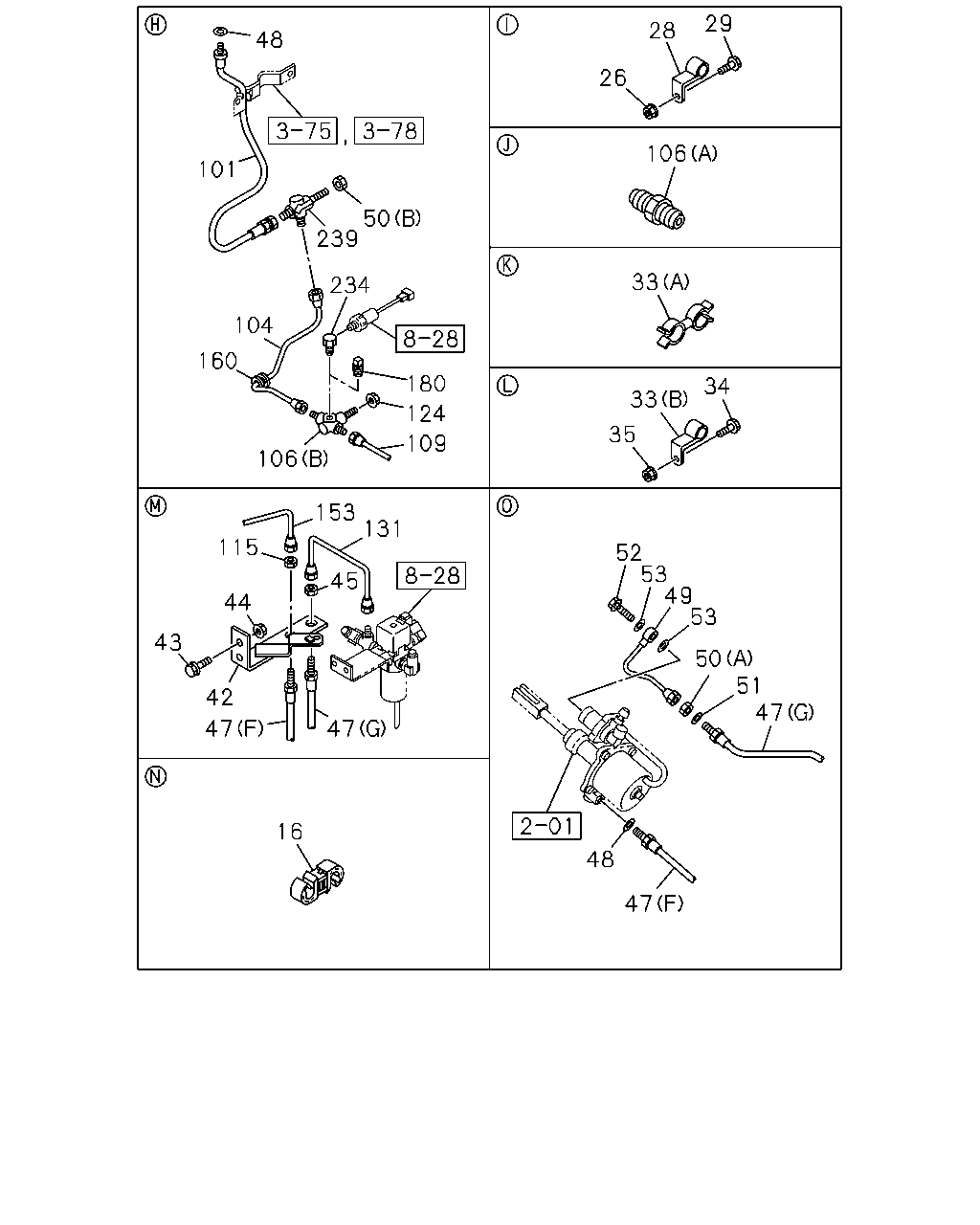

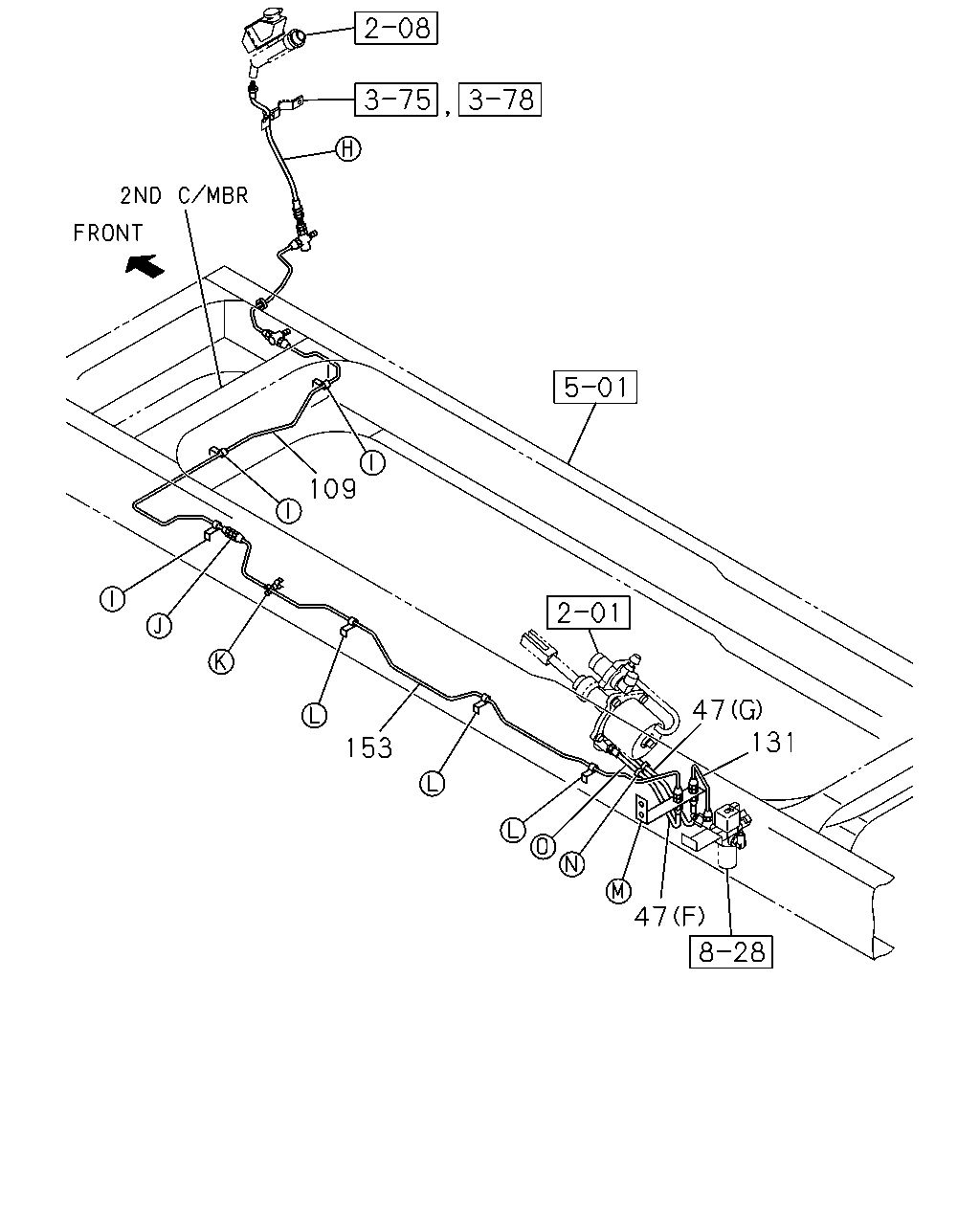

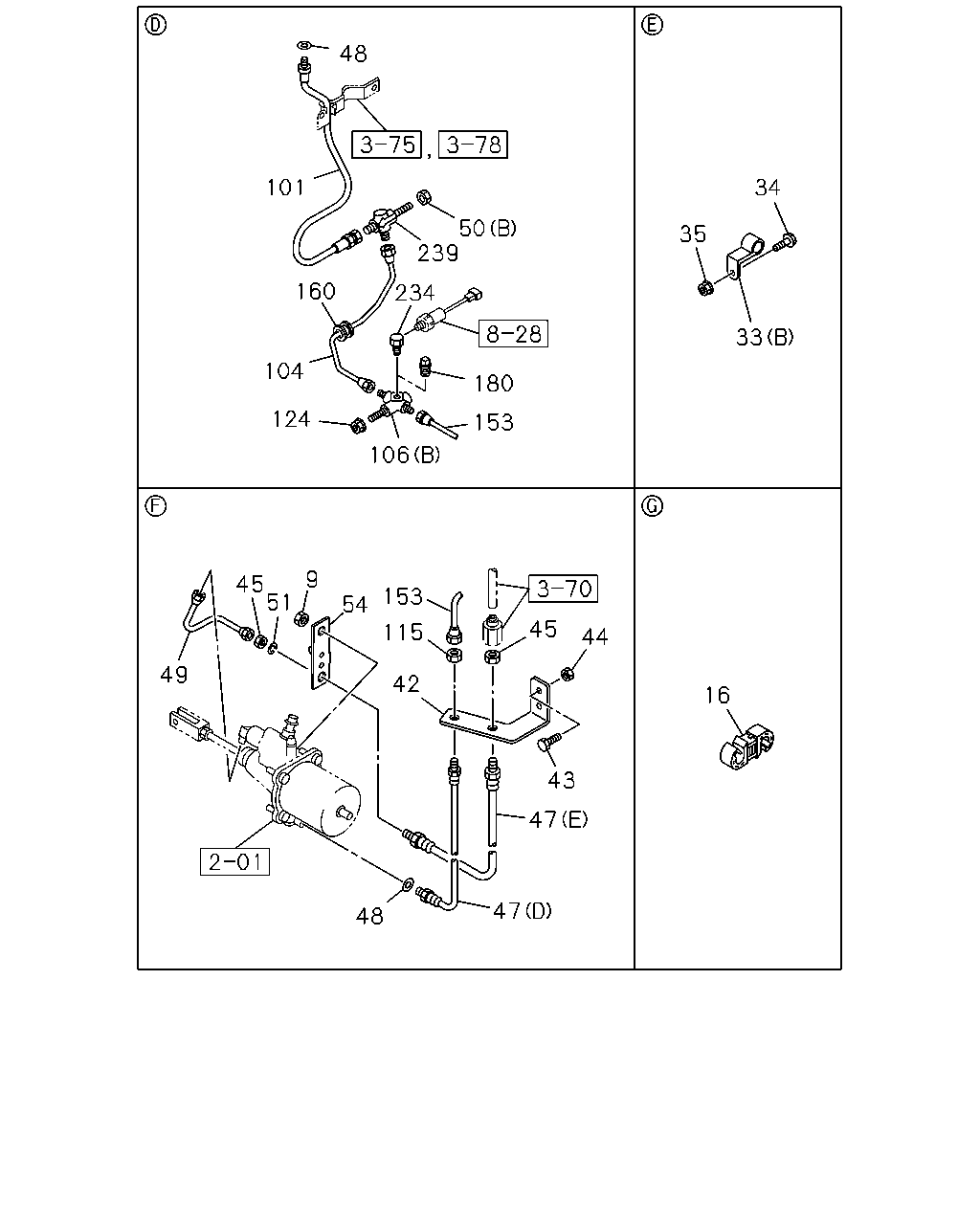

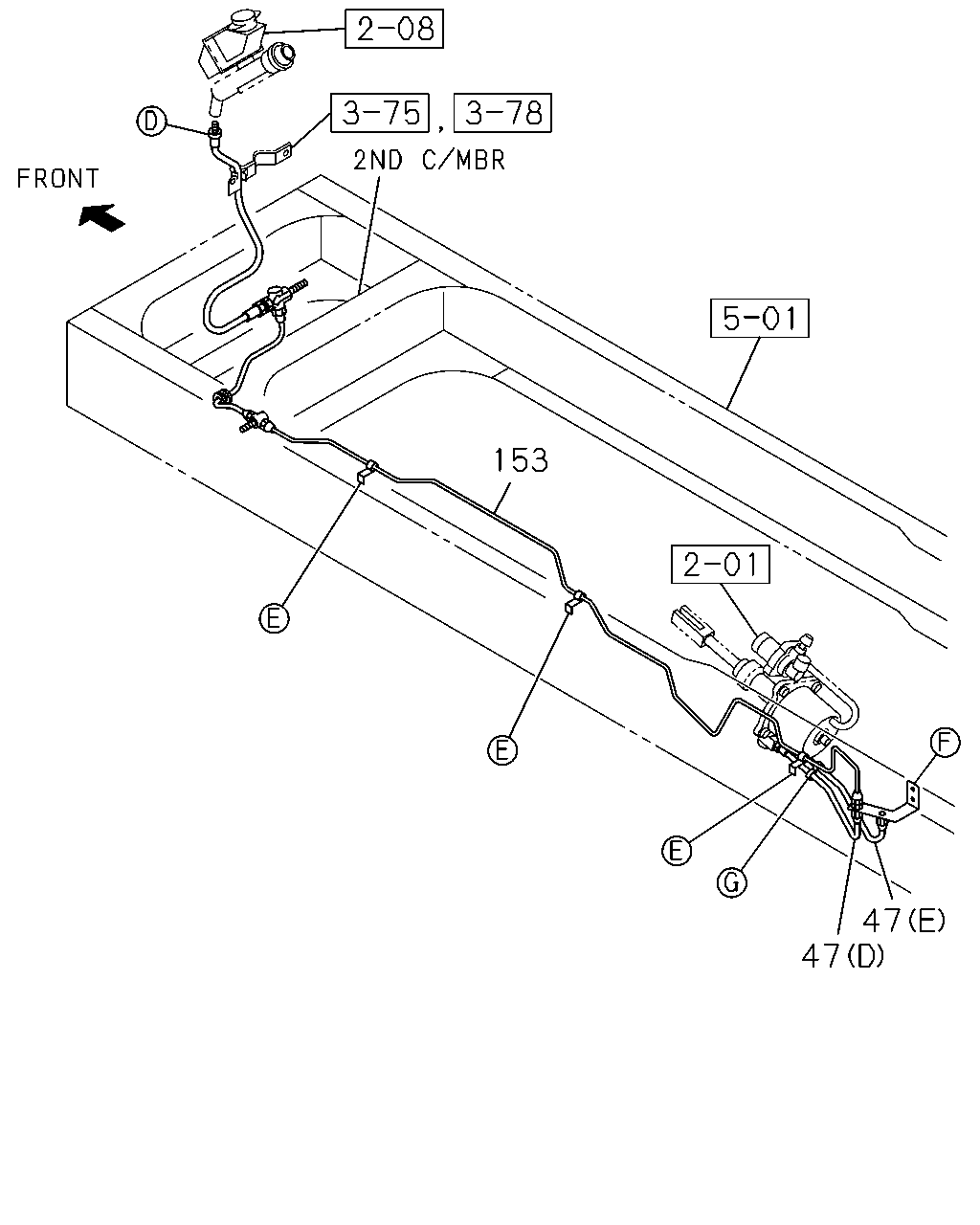

2-05 — CLUTCH PIPING (#129092) — 310 parça

48 101 160 104 124 106 153 180 239 234 50 35 34 33 45 44 153 115 42 54 51 45 49 48 47 47 43 16 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	NUT; BRKT,FLEX HOSE FULLER FSO5206B OD M/T(Y4V) M8 FLANGE	0-91180-208-0	02	1	1310-
16	CLIP; FLEX HOSE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> ID=10 & 12	1-09709-278-1	01	1	1310-1410
16	CLIP; FLEX HOSE MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10 & 12	1-09709-278-1	01	1	1310-1410
16	CLIP; FLEX HOSE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> ID=10 & 12	1-09709-278-1	01	1	1411-
16	CLIP; FLEX HOSE MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10 & 12	1-09709-278-1	01	1	1411-
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	1411-
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (A) ID=8.3 & 10	8-94176-792-0	01	1	1411-
33	CLIP; OIL PIPE FULLER FSO5206B OD M/T(Y4V) (B) ID=8 H=20 L=20	1-09700-604-0	05	1	1310-
33	CLIP; OIL PIPE MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=6.35	1-09701-247-1	03	1	1310-
33	CLIP; OIL PIPE MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=6.35	1-09701-247-1	05	1	1310-
34	BOLT; PIPE CLIP ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	03	1	1411-
34	BOLT; PIPE CLIP FULLER FSO5206B OD M/T(Y4V) M8X30 FLANGE	0-28650-830-0	05	1	1310-
35	NUT; PIPE CLIP ZF9S1110 M/T(Y5E) M8 FLANGE	0-91180-108-0	03	1	1411-
35	NUT; PIPE CLIP FULLER FSO5206B OD M/T(Y4V) M8 FLANGE	0-91180-108-0	05	1	1310-
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E)	8-98099-521-1	01	1	1411-
42	BRACKET; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V)	8-98100-603-0	01	1	1310-
42	BRACKET; FLEX HOSE,CLU CONT MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98105-654-0	01	1	1310-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X30 FLANGE	0-28650-830-0	02	1	1310-1410
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X30 FLANGE	0-28650-830-0	02	1	1310-1410
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X30 FLANGE	0-28650-830-0	02	1	1411-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X30 FLANGE	0-28650-830-0	02	1	1411-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE	0-91180-108-0	02	1	1310-1410
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE	0-91180-108-0	02	1	1310-1410
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE	0-91180-108-0	02	1	1411-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE	0-91180-108-0	02	1	1411-
45	NUT; FLEX HOSE,CLU CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> M12	9-09840-280-0	01	1	1310-1410
45	NUT; FLEX HOSE,CLU CONT MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M12	9-09840-280-0	01	1	1310-1410
45	NUT; FLEX HOSE,CLU CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> M12	9-09840-280-0	01	1	1411-
45	NUT; FLEX HOSE,CLU CONT MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M12	9-09840-280-0	01	1	1411-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (G) L=500	1-09363-720-0	01	1	1411-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (F) L=500	1-09364-329-0	01	1	1411-
47	HOSE; FLEX,CLU CONT FULLER FSO5206B OD M/T(Y4V) (E) L=430	1-09363-726-0	01	1	1310-
47	HOSE; FLEX,CLU CONT FULLER FSO5206B OD M/T(Y4V) (D) L=330	1-09364-607-0	01	1	1310-
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=380	1-09363-884-0	01	1	1310-
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=470	1-09363-716-0	01	1	1310-
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=375	1-09364-407-0	01	1	1310-
48	GASKET; FLEX HOSE,CLU CONT MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10.2 OD=16.0	9-09571-410-0	02	1	1310-1410
48	GASKET; FLEX HOSE,CLU CONT CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10.2 OD=16.0	9-09571-410-0	02	1	1411-
48	GASKET; FLEX HOSE,CLU CONT MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) FULL FLOATING CAB<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10.2 OD=16.0	9-09571-410-0	02	1	1411-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER ZF9S1110 M/T(Y5E) L=232	1-49124-795-0	01	1	1411-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FULLER FSO5206B OD M/T(Y4V)	1-49116-838-0	01	1	1310-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MZW6P M/T(RSZ) 15" CLUTCH(RE9) L=239	1-49117-401-0	01	1	1310-
50	NUT; UNION MZW6P M/T(RSZ) 15" CLUTCH(RE9) (A) M12	9-09840-280-0	01	1	1310-1410
50	NUT; UNION MZW6P M/T(RSZ) 15" CLUTCH(RE9) (A) M12	9-09840-280-0	01	1	1411-
50	NUT; UNION ZF9S1110 M/T(Y5E) (A) M12	9-09840-280-0	01	1	1411-
50	NUT; UNION MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M12	0-91111-512-0	01	1	1310-1410
50	NUT; UNION CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M12	0-91111-512-0	01	1	1411-
50	NUT; UNION MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) FULL FLOATING CAB<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M12	0-91111-512-0	01	1	1411-
51	WASHER; LK MZW6P M/T(RSZ) 15" CLUTCH(RE9) ID=12.2	0-91510-812-0	01	1	1310-1410
51	WASHER; LK MZW6P M/T(RSZ) 15" CLUTCH(RE9) ID=12.2	0-91510-812-0	01	1	1411-
51	WASHER; LK ZF9S1110 M/T(Y5E) ID=12.2	0-91510-812-0	01	1	1411-
54	BRACKET; AIR,FLEX HOSE FULLER FSO5206B OD M/T(Y4V)	1-47475-372-0	01	1	1310-
101	HOSE; FLEX,OIL PIPE TO OIL PIPE MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) FULL FLOATING CAB<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=500	8-98072-350-0	01	1	1411-
101	HOSE; FLEX,OIL PIPE TO OIL PIPE MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=440	8-98072-346-0	01	1	1310-1410
101	HOSE; FLEX,OIL PIPE TO OIL PIPE CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=440	8-98072-346-0	01	1	1411-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FULLER FSO5206B OD M/T(Y4V) L=533 SERVICED BY L=550	1-47428-753-0	01	1	1310-1410
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FULLER FSO5206B OD M/T(Y4V) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> L=533 SERVICED BY L=550	1-47428-753-0	01	1	1411-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T(Y5E) L=533 SERVICED BY L=550	1-47428-753-0	01	1	1411-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=554	8-98114-452-0	01	1	1310-1410
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=554	8-98114-452-0	01	1	1411-
106	UNION; OIL PIPE ZF9S1110 M/T(Y5E) (A) M14 STRAIGHT	0-92113-008-0	01	1	1411-
106	UNION; OIL PIPE FULLER FSO5206B OD M/T(Y4V) (B) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	1310-1410
106	UNION; OIL PIPE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	1411-
106	UNION; OIL PIPE MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M12 3WAY	8-98051-113-0	01	1	1310-
115	NUT; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V) M14	0-91111-514-0	01	1	1310-1410
115	NUT; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> M14	0-91111-514-0	01	1	1411-
115	NUT; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M14	0-91111-514-0	01	1	1411-
115	NUT; FLEX HOSE,CLU CONT MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M12	9-09840-280-0	01	1	1310-
124	NUT; PIPE UNION MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M12	0-91111-512-0	01	1	1310-1410
124	NUT; PIPE UNION MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M12	0-91111-512-0	01	1	1310-1410
124	NUT; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M12	0-91111-512-0	01	1	1411-
124	NUT; PIPE UNION MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M12	0-91111-512-0	01	1	1411-
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	1411-
153	PIPE ASM; CLU,UNION TO FLEX FULLER FSO5206B OD M/T(Y4V) L=2743	8-98152-245-0	01	1	1310-
153	PIPE ASM; CLU,UNION TO FLEX MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=2686	8-98185-616-0	01	1	1310-
153	PIPE ASM; CLU,UNION TO FLEX MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=2738	8-98152-246-0	01	1	1310-
160	GROMMET; OIL PIPE MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=28 OD=35 T=17	9-09956-256-2	01	1	1310-1410
160	GROMMET; OIL PIPE CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=28 OD=35 T=17	9-09956-256-2	01	1	1411-
160	GROMMET; OIL PIPE MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) FULL FLOATING CAB<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=28 OD=35 T=17	9-09956-256-2	01	1	1411-
180	PLUG; PIPE FULLER FSO5206B OD M/T(Y4V) PT1/4	9-99204-513-0	01	1	1310-1410
180	PLUG; PIPE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. H.S.A SYSTEM<6EP> PT1/4	9-99204-513-0	01	1	1411-
234	CONNECTOR; ELBOW FULLER FSO5206B OD M/T(Y4V)	1-09660-012-0	01	1	1310-1410
234	CONNECTOR; ELBOW FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP>	1-09660-012-0	01	1	1411-
234	CONNECTOR; ELBOW MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PT1/8 ELBOW	8-94338-418-1	01	1	1310-
239	UNION; CLU HOSE FULLER FSO5206B OD M/T(Y4V)	8-98107-850-0	01	1	1310-1410
239	UNION; CLU HOSE FULLER FSO5206B OD M/T(Y4V) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71>	8-98107-850-0	01	1	1411-
239	UNION; CLU HOSE ZF9S1110 M/T(Y5E)	8-98107-850-0	01	1	1411-
239	UNION; CLU HOSE MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M12 2WAY	1-09654-059-2	01	1	1310-1410
239	UNION; CLU HOSE MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M12 2WAY	1-09654-059-2	01	1	1411-

33 126 44 43 42 47 47 47 48 16 115 45 153 22 50 53 49 53 52 51 153 180 124 184 106 104 160 234 239 50 101 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; FLEX HOSE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> ID=10 & 12	1-09709-278-1	01	1	1310-1410
16	CLIP; FLEX HOSE MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10 & 12	1-09709-278-1	01	1	1310-1410
16	CLIP; FLEX HOSE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> ID=10 & 12	1-09709-278-1	01	1	1411-
16	CLIP; FLEX HOSE MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10 & 12	1-09709-278-1	01	1	1411-
22	UNION; CLU PIPE MZW6P M/T(RSZ) 15" CLUTCH(RE9) ASSISTOR SHIFT CONTROL<WX8> M12 3WAY	0-92138-706-0	01	1	1310-
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	1411-
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (A) ID=8.3 & 10	8-94176-792-0	01	1	1411-
33	CLIP; OIL PIPE FULLER FSO5206B OD M/T(Y4V) (B) ID=8 H=20 L=20	1-09700-604-0	05	1	1310-
33	CLIP; OIL PIPE MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=6.35	1-09701-247-1	03	1	1310-
33	CLIP; OIL PIPE MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=6.35	1-09701-247-1	05	1	1310-
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E)	8-98099-521-1	01	1	1411-
42	BRACKET; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V)	8-98100-603-0	01	1	1310-
42	BRACKET; FLEX HOSE,CLU CONT MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98105-654-0	01	1	1310-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X30 FLANGE	0-28650-830-0	02	1	1310-1410
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X30 FLANGE	0-28650-830-0	02	1	1310-1410
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X30 FLANGE	0-28650-830-0	02	1	1411-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X30 FLANGE	0-28650-830-0	02	1	1411-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE	0-91180-108-0	02	1	1310-1410
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE	0-91180-108-0	02	1	1310-1410
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE	0-91180-108-0	02	1	1411-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE	0-91180-108-0	02	1	1411-
45	NUT; FLEX HOSE,CLU CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> M12	9-09840-280-0	01	1	1310-1410
45	NUT; FLEX HOSE,CLU CONT MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M12	9-09840-280-0	01	1	1310-1410
45	NUT; FLEX HOSE,CLU CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> M12	9-09840-280-0	01	1	1411-
45	NUT; FLEX HOSE,CLU CONT MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M12	9-09840-280-0	01	1	1411-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (G) L=500	1-09363-720-0	01	1	1411-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (F) L=500	1-09364-329-0	01	1	1411-
47	HOSE; FLEX,CLU CONT FULLER FSO5206B OD M/T(Y4V) (E) L=430	1-09363-726-0	01	1	1310-
47	HOSE; FLEX,CLU CONT FULLER FSO5206B OD M/T(Y4V) (D) L=330	1-09364-607-0	01	1	1310-
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=380	1-09363-884-0	01	1	1310-
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=470	1-09363-716-0	01	1	1310-
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=375	1-09364-407-0	01	1	1310-
48	GASKET; FLEX HOSE,CLU CONT MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10.2 OD=16.0	9-09571-410-0	02	1	1310-1410
48	GASKET; FLEX HOSE,CLU CONT CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10.2 OD=16.0	9-09571-410-0	02	1	1411-
48	GASKET; FLEX HOSE,CLU CONT MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) FULL FLOATING CAB<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10.2 OD=16.0	9-09571-410-0	02	1	1411-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER ZF9S1110 M/T(Y5E) L=232	1-49124-795-0	01	1	1411-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FULLER FSO5206B OD M/T(Y4V)	1-49116-838-0	01	1	1310-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MZW6P M/T(RSZ) 15" CLUTCH(RE9) L=239	1-49117-401-0	01	1	1310-
50	NUT; UNION MZW6P M/T(RSZ) 15" CLUTCH(RE9) (A) M12	9-09840-280-0	01	1	1310-1410
50	NUT; UNION MZW6P M/T(RSZ) 15" CLUTCH(RE9) (A) M12	9-09840-280-0	01	1	1411-
50	NUT; UNION ZF9S1110 M/T(Y5E) (A) M12	9-09840-280-0	01	1	1411-
50	NUT; UNION MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M12	0-91111-512-0	01	1	1310-1410
50	NUT; UNION CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M12	0-91111-512-0	01	1	1411-
50	NUT; UNION MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) FULL FLOATING CAB<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M12	0-91111-512-0	01	1	1411-
51	WASHER; LK MZW6P M/T(RSZ) 15" CLUTCH(RE9) ID=12.2	0-91510-812-0	01	1	1310-1410
51	WASHER; LK MZW6P M/T(RSZ) 15" CLUTCH(RE9) ID=12.2	0-91510-812-0	01	1	1411-
51	WASHER; LK ZF9S1110 M/T(Y5E) ID=12.2	0-91510-812-0	01	1	1411-
52	BOLT; EYE,AIR PIPE MZW6P M/T(RSZ) 15" CLUTCH(RE9) M14X27 FLANGE	1-09675-086-0	01	1	1310-1410
52	BOLT; EYE,AIR PIPE ZF9S1110 M/T(Y5E) M14X27 FLANGE	1-09675-086-0	01	1	1411-
52	BOLT; EYE,AIR PIPE MZW6P M/T(RSZ) 15" CLUTCH(RE9) M14X27 FLANGE	1-09675-086-0	01	1	1411-
53	GASKET; JOINT BOLT MZW6P M/T(RSZ) 15" CLUTCH(RE9) ID=14.2 OD=19.2	1-09630-085-0	02	1	1310-1312
53	GASKET; JOINT BOLT MZW6P M/T(RSZ) 15" CLUTCH(RE9) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-1410
53	GASKET; JOINT BOLT ZF9S1110 M/T(Y5E) ID=14.2 OD=19.2	8-98251-345-0	02	1	1411-
53	GASKET; JOINT BOLT MZW6P M/T(RSZ) 15" CLUTCH(RE9) ID=14.2 OD=19.2	8-98251-345-0	02	1	1411-
101	HOSE; FLEX,OIL PIPE TO OIL PIPE MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) FULL FLOATING CAB<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=500	8-98072-350-0	01	1	1411-
101	HOSE; FLEX,OIL PIPE TO OIL PIPE MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=440	8-98072-346-0	01	1	1310-1410
101	HOSE; FLEX,OIL PIPE TO OIL PIPE CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=440	8-98072-346-0	01	1	1411-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FULLER FSO5206B OD M/T(Y4V) L=533 SERVICED BY L=550	1-47428-753-0	01	1	1310-1410
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FULLER FSO5206B OD M/T(Y4V) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> L=533 SERVICED BY L=550	1-47428-753-0	01	1	1411-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T(Y5E) L=533 SERVICED BY L=550	1-47428-753-0	01	1	1411-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=554	8-98114-452-0	01	1	1310-1410
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=554	8-98114-452-0	01	1	1411-
106	UNION; OIL PIPE ZF9S1110 M/T(Y5E) (A) M14 STRAIGHT	0-92113-008-0	01	1	1411-
106	UNION; OIL PIPE FULLER FSO5206B OD M/T(Y4V) (B) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	1310-1410
106	UNION; OIL PIPE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	1411-
106	UNION; OIL PIPE MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M12 3WAY	8-98051-113-0	01	1	1310-
115	NUT; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V) M14	0-91111-514-0	01	1	1310-1410
115	NUT; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> M14	0-91111-514-0	01	1	1411-
115	NUT; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M14	0-91111-514-0	01	1	1411-
115	NUT; FLEX HOSE,CLU CONT MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M12	9-09840-280-0	01	1	1310-
124	NUT; PIPE UNION MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M12	0-91111-512-0	01	1	1310-1410
124	NUT; PIPE UNION MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M12	0-91111-512-0	01	1	1310-1410
124	NUT; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M12	0-91111-512-0	01	1	1411-
124	NUT; PIPE UNION MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M12	0-91111-512-0	01	1	1411-
126	PIPE; AIR,UNION TO UNION MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=350	8-98110-637-0	01	1	1310-
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	1411-
153	PIPE ASM; CLU,UNION TO FLEX FULLER FSO5206B OD M/T(Y4V) L=2743	8-98152-245-0	01	1	1310-
153	PIPE ASM; CLU,UNION TO FLEX MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=2686	8-98185-616-0	01	1	1310-
153	PIPE ASM; CLU,UNION TO FLEX MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=2738	8-98152-246-0	01	1	1310-
160	GROMMET; OIL PIPE MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=28 OD=35 T=17	9-09956-256-2	01	1	1310-1410
160	GROMMET; OIL PIPE CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=28 OD=35 T=17	9-09956-256-2	01	1	1411-
160	GROMMET; OIL PIPE MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) FULL FLOATING CAB<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=28 OD=35 T=17	9-09956-256-2	01	1	1411-
180	PLUG; PIPE FULLER FSO5206B OD M/T(Y4V) PT1/4	9-99204-513-0	01	1	1310-1410
180	PLUG; PIPE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. H.S.A SYSTEM<6EP> PT1/4	9-99204-513-0	01	1	1411-
184	UNION; FLEX HOSE MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98150-865-0	01	1	1310-
234	CONNECTOR; ELBOW FULLER FSO5206B OD M/T(Y4V)	1-09660-012-0	01	1	1310-1410
234	CONNECTOR; ELBOW FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP>	1-09660-012-0	01	1	1411-
234	CONNECTOR; ELBOW MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PT1/8 ELBOW	8-94338-418-1	01	1	1310-
239	UNION; CLU HOSE FULLER FSO5206B OD M/T(Y4V)	8-98107-850-0	01	1	1310-1410
239	UNION; CLU HOSE FULLER FSO5206B OD M/T(Y4V) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71>	8-98107-850-0	01	1	1411-
239	UNION; CLU HOSE ZF9S1110 M/T(Y5E)	8-98107-850-0	01	1	1411-
239	UNION; CLU HOSE MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M12 2WAY	1-09654-059-2	01	1	1310-1410
239	UNION; CLU HOSE MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M12 2WAY	1-09654-059-2	01	1	1411-

153 47 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (G) L=500	1-09363-720-0	01	1	1411-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (F) L=500	1-09364-329-0	01	1	1411-
47	HOSE; FLEX,CLU CONT FULLER FSO5206B OD M/T(Y4V) (E) L=430	1-09363-726-0	01	1	1310-
47	HOSE; FLEX,CLU CONT FULLER FSO5206B OD M/T(Y4V) (D) L=330	1-09364-607-0	01	1	1310-
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=380	1-09363-884-0	01	1	1310-
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=470	1-09363-716-0	01	1	1310-
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=375	1-09364-407-0	01	1	1310-
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	1411-
153	PIPE ASM; CLU,UNION TO FLEX FULLER FSO5206B OD M/T(Y4V) L=2743	8-98152-245-0	01	1	1310-
153	PIPE ASM; CLU,UNION TO FLEX MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=2686	8-98185-616-0	01	1	1310-
153	PIPE ASM; CLU,UNION TO FLEX MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=2738	8-98152-246-0	01	1	1310-

109 153 47 47 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (G) L=500	1-09363-720-0	01	1	1411-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (F) L=500	1-09364-329-0	01	1	1411-
47	HOSE; FLEX,CLU CONT FULLER FSO5206B OD M/T(Y4V) (E) L=430	1-09363-726-0	01	1	1310-
47	HOSE; FLEX,CLU CONT FULLER FSO5206B OD M/T(Y4V) (D) L=330	1-09364-607-0	01	1	1310-
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=380	1-09363-884-0	01	1	1310-
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=470	1-09363-716-0	01	1	1310-
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=375	1-09364-407-0	01	1	1310-
109	PIPE; AIR,UNION TO UNION ZF9S1110 M/T(Y5E) L=1413 SERVICED BY L=1550	1-47428-766-0	01	1	1411-
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) L=244	8-98092-621-0	01	1	1411-
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) AIR SUSP DRIVER SEAT<A56> EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5),H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	1411-
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) RIGID SEAT WO/ARM REST<TAZ> EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5),H.S.A SYSTEM<6EP> L=262	8-98108-925-0	01	1	1411-
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	1411-
153	PIPE ASM; CLU,UNION TO FLEX FULLER FSO5206B OD M/T(Y4V) L=2743	8-98152-245-0	01	1	1310-
153	PIPE ASM; CLU,UNION TO FLEX MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=2686	8-98185-616-0	01	1	1310-
153	PIPE ASM; CLU,UNION TO FLEX MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=2738	8-98152-246-0	01	1	1310-

48 101 239 50 234 104 160 180 124 109 106 115 45 153 131 47 47 42 43 44 16 28 29 26 106 33 33 35 34 52 53 49 53 50 51 47 48 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; FLEX HOSE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> ID=10 & 12	1-09709-278-1	01	1	1310-1410
16	CLIP; FLEX HOSE MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10 & 12	1-09709-278-1	01	1	1310-1410
16	CLIP; FLEX HOSE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> ID=10 & 12	1-09709-278-1	01	1	1411-
16	CLIP; FLEX HOSE MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10 & 12	1-09709-278-1	01	1	1411-
26	NUT; CLIP,OIL PIPE ZF9S1110 M/T(Y5E) M8 FLANGE	0-91180-108-0	03	1	1411-
28	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) ID=8 H=20 L=20	1-09700-604-0	03	1	1411-
29	BOLT; CLIP,OIL PIPE ZF9S1110 M/T(Y5E) M8X25 FLANGE	0-28650-825-0	02	1	1411-
29	BOLT; CLIP,OIL PIPE ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	01	1	1411-
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	1411-
33	CLIP; OIL PIPE ZF9S1110 M/T(Y5E) (A) ID=8.3 & 10	8-94176-792-0	01	1	1411-
33	CLIP; OIL PIPE FULLER FSO5206B OD M/T(Y4V) (B) ID=8 H=20 L=20	1-09700-604-0	05	1	1310-
33	CLIP; OIL PIPE MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=6.35	1-09701-247-1	03	1	1310-
33	CLIP; OIL PIPE MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=6.35	1-09701-247-1	05	1	1310-
34	BOLT; PIPE CLIP ZF9S1110 M/T(Y5E) M8X30 FLANGE	0-28650-830-0	03	1	1411-
34	BOLT; PIPE CLIP FULLER FSO5206B OD M/T(Y4V) M8X30 FLANGE	0-28650-830-0	05	1	1310-
35	NUT; PIPE CLIP ZF9S1110 M/T(Y5E) M8 FLANGE	0-91180-108-0	03	1	1411-
35	NUT; PIPE CLIP FULLER FSO5206B OD M/T(Y4V) M8 FLANGE	0-91180-108-0	05	1	1310-
42	BRACKET; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E)	8-98099-521-1	01	1	1411-
42	BRACKET; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V)	8-98100-603-0	01	1	1310-
42	BRACKET; FLEX HOSE,CLU CONT MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98105-654-0	01	1	1310-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X30 FLANGE	0-28650-830-0	02	1	1310-1410
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X30 FLANGE	0-28650-830-0	02	1	1310-1410
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X30 FLANGE	0-28650-830-0	02	1	1411-
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X30 FLANGE	0-28650-830-0	02	1	1411-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE	0-91180-108-0	02	1	1310-1410
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE	0-91180-108-0	02	1	1310-1410
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE	0-91180-108-0	02	1	1411-
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE	0-91180-108-0	02	1	1411-
45	NUT; FLEX HOSE,CLU CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> M12	9-09840-280-0	01	1	1310-1410
45	NUT; FLEX HOSE,CLU CONT MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M12	9-09840-280-0	01	1	1310-1410
45	NUT; FLEX HOSE,CLU CONT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> M12	9-09840-280-0	01	1	1411-
45	NUT; FLEX HOSE,CLU CONT MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M12	9-09840-280-0	01	1	1411-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (G) L=500	1-09363-720-0	01	1	1411-
47	HOSE; FLEX,CLU CONT ZF9S1110 M/T(Y5E) (F) L=500	1-09364-329-0	01	1	1411-
47	HOSE; FLEX,CLU CONT FULLER FSO5206B OD M/T(Y4V) (E) L=430	1-09363-726-0	01	1	1310-
47	HOSE; FLEX,CLU CONT FULLER FSO5206B OD M/T(Y4V) (D) L=330	1-09364-607-0	01	1	1310-
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=380	1-09363-884-0	01	1	1310-
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=470	1-09363-716-0	01	1	1310-
47	HOSE; FLEX,CLU CONT MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=375	1-09364-407-0	01	1	1310-
48	GASKET; FLEX HOSE,CLU CONT MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10.2 OD=16.0	9-09571-410-0	02	1	1310-1410
48	GASKET; FLEX HOSE,CLU CONT CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10.2 OD=16.0	9-09571-410-0	02	1	1411-
48	GASKET; FLEX HOSE,CLU CONT MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) FULL FLOATING CAB<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10.2 OD=16.0	9-09571-410-0	02	1	1411-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER ZF9S1110 M/T(Y5E) L=232	1-49124-795-0	01	1	1411-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER FULLER FSO5206B OD M/T(Y4V)	1-49116-838-0	01	1	1310-
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MZW6P M/T(RSZ) 15" CLUTCH(RE9) L=239	1-49117-401-0	01	1	1310-
50	NUT; UNION MZW6P M/T(RSZ) 15" CLUTCH(RE9) (A) M12	9-09840-280-0	01	1	1310-1410
50	NUT; UNION MZW6P M/T(RSZ) 15" CLUTCH(RE9) (A) M12	9-09840-280-0	01	1	1411-
50	NUT; UNION ZF9S1110 M/T(Y5E) (A) M12	9-09840-280-0	01	1	1411-
50	NUT; UNION MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M12	0-91111-512-0	01	1	1310-1410
50	NUT; UNION CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M12	0-91111-512-0	01	1	1411-
50	NUT; UNION MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) FULL FLOATING CAB<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M12	0-91111-512-0	01	1	1411-
51	WASHER; LK MZW6P M/T(RSZ) 15" CLUTCH(RE9) ID=12.2	0-91510-812-0	01	1	1310-1410
51	WASHER; LK MZW6P M/T(RSZ) 15" CLUTCH(RE9) ID=12.2	0-91510-812-0	01	1	1411-
51	WASHER; LK ZF9S1110 M/T(Y5E) ID=12.2	0-91510-812-0	01	1	1411-
52	BOLT; EYE,AIR PIPE MZW6P M/T(RSZ) 15" CLUTCH(RE9) M14X27 FLANGE	1-09675-086-0	01	1	1310-1410
52	BOLT; EYE,AIR PIPE ZF9S1110 M/T(Y5E) M14X27 FLANGE	1-09675-086-0	01	1	1411-
52	BOLT; EYE,AIR PIPE MZW6P M/T(RSZ) 15" CLUTCH(RE9) M14X27 FLANGE	1-09675-086-0	01	1	1411-
53	GASKET; JOINT BOLT MZW6P M/T(RSZ) 15" CLUTCH(RE9) ID=14.2 OD=19.2	1-09630-085-0	02	1	1310-1312
53	GASKET; JOINT BOLT MZW6P M/T(RSZ) 15" CLUTCH(RE9) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-1410
53	GASKET; JOINT BOLT ZF9S1110 M/T(Y5E) ID=14.2 OD=19.2	8-98251-345-0	02	1	1411-
53	GASKET; JOINT BOLT MZW6P M/T(RSZ) 15" CLUTCH(RE9) ID=14.2 OD=19.2	8-98251-345-0	02	1	1411-
101	HOSE; FLEX,OIL PIPE TO OIL PIPE MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) FULL FLOATING CAB<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=500	8-98072-350-0	01	1	1411-
101	HOSE; FLEX,OIL PIPE TO OIL PIPE MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=440	8-98072-346-0	01	1	1310-1410
101	HOSE; FLEX,OIL PIPE TO OIL PIPE CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=440	8-98072-346-0	01	1	1411-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FULLER FSO5206B OD M/T(Y4V) L=533 SERVICED BY L=550	1-47428-753-0	01	1	1310-1410
104	PIPE; OIL,FLEX HOSE TO CONNECTOR FULLER FSO5206B OD M/T(Y4V) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> L=533 SERVICED BY L=550	1-47428-753-0	01	1	1411-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR ZF9S1110 M/T(Y5E) L=533 SERVICED BY L=550	1-47428-753-0	01	1	1411-
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=554	8-98114-452-0	01	1	1310-1410
104	PIPE; OIL,FLEX HOSE TO CONNECTOR MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=554	8-98114-452-0	01	1	1411-
106	UNION; OIL PIPE ZF9S1110 M/T(Y5E) (A) M14 STRAIGHT	0-92113-008-0	01	1	1411-
106	UNION; OIL PIPE FULLER FSO5206B OD M/T(Y4V) (B) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	1310-1410
106	UNION; OIL PIPE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M12 & M14 & PT1/4 3WAY	1-09656-286-2	01	1	1411-
106	UNION; OIL PIPE MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M12 3WAY	8-98051-113-0	01	1	1310-
109	PIPE; AIR,UNION TO UNION ZF9S1110 M/T(Y5E) L=1413 SERVICED BY L=1550	1-47428-766-0	01	1	1411-
115	NUT; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V) M14	0-91111-514-0	01	1	1310-1410
115	NUT; FLEX HOSE,CLU CONT FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> M14	0-91111-514-0	01	1	1411-
115	NUT; FLEX HOSE,CLU CONT ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M14	0-91111-514-0	01	1	1411-
115	NUT; FLEX HOSE,CLU CONT MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M12	9-09840-280-0	01	1	1310-
124	NUT; PIPE UNION MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M12	0-91111-512-0	01	1	1310-1410
124	NUT; PIPE UNION MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M12	0-91111-512-0	01	1	1310-1410
124	NUT; PIPE UNION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M12	0-91111-512-0	01	1	1411-
124	NUT; PIPE UNION MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M12	0-91111-512-0	01	1	1411-
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP> EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5) L=244	8-98092-621-0	01	1	1411-
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) AIR SUSP DRIVER SEAT<A56> EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5),H.S.A SYSTEM<6EP> L=244	8-98092-621-0	01	1	1411-
131	PIPE; AIR,UNION TO FLEX HOSE ZF9S1110 M/T(Y5E) RIGID SEAT WO/ARM REST<TAZ> EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC), TRANSMISSION SIDE PTO WO/LEVER(SH5),H.S.A SYSTEM<6EP> L=262	8-98108-925-0	01	1	1411-
153	PIPE ASM; CLU,UNION TO FLEX ZF9S1110 M/T(Y5E) L=2150 SERVICED BY L=2150	1-47428-770-0	01	1	1411-
153	PIPE ASM; CLU,UNION TO FLEX FULLER FSO5206B OD M/T(Y4V) L=2743	8-98152-245-0	01	1	1310-
153	PIPE ASM; CLU,UNION TO FLEX MZW6P M/T(RSZ) BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=2686	8-98185-616-0	01	1	1310-
153	PIPE ASM; CLU,UNION TO FLEX MZW6P M/T(RSZ) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=2738	8-98152-246-0	01	1	1310-
160	GROMMET; OIL PIPE MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=28 OD=35 T=17	9-09956-256-2	01	1	1310-1410
160	GROMMET; OIL PIPE CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=28 OD=35 T=17	9-09956-256-2	01	1	1411-
160	GROMMET; OIL PIPE MZW6P M/T(RSZ),ZF9S1110 M/T(Y5E) FULL FLOATING CAB<W16> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=28 OD=35 T=17	9-09956-256-2	01	1	1411-
180	PLUG; PIPE FULLER FSO5206B OD M/T(Y4V) PT1/4	9-99204-513-0	01	1	1310-1410
180	PLUG; PIPE FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) EXC. H.S.A SYSTEM<6EP> PT1/4	9-99204-513-0	01	1	1411-
234	CONNECTOR; ELBOW FULLER FSO5206B OD M/T(Y4V)	1-09660-012-0	01	1	1310-1410
234	CONNECTOR; ELBOW FULLER FSO5206B OD M/T(Y4V),ZF9S1110 M/T(Y5E) BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) H.S.A SYSTEM<6EP>	1-09660-012-0	01	1	1411-
234	CONNECTOR; ELBOW MZW6P M/T(RSZ) H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PT1/8 ELBOW	8-94338-418-1	01	1	1310-
239	UNION; CLU HOSE FULLER FSO5206B OD M/T(Y4V)	8-98107-850-0	01	1	1310-1410
239	UNION; CLU HOSE FULLER FSO5206B OD M/T(Y4V) CAB SUSPENSION SEMI FLOATING<SDK>,CAB SUSPENSION RIGID<W71>	8-98107-850-0	01	1	1411-
239	UNION; CLU HOSE ZF9S1110 M/T(Y5E)	8-98107-850-0	01	1	1411-
239	UNION; CLU HOSE MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M12 2WAY	1-09654-059-2	01	1	1310-1410
239	UNION; CLU HOSE MZW6P M/T(RSZ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M12 2WAY	1-09654-059-2	01	1	1411-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
