◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11129 - FVM(THAI)EURO3 ▶ 3 - Brakes, Brake System ▶ 3-26 - TRAILER CONTROL ▶

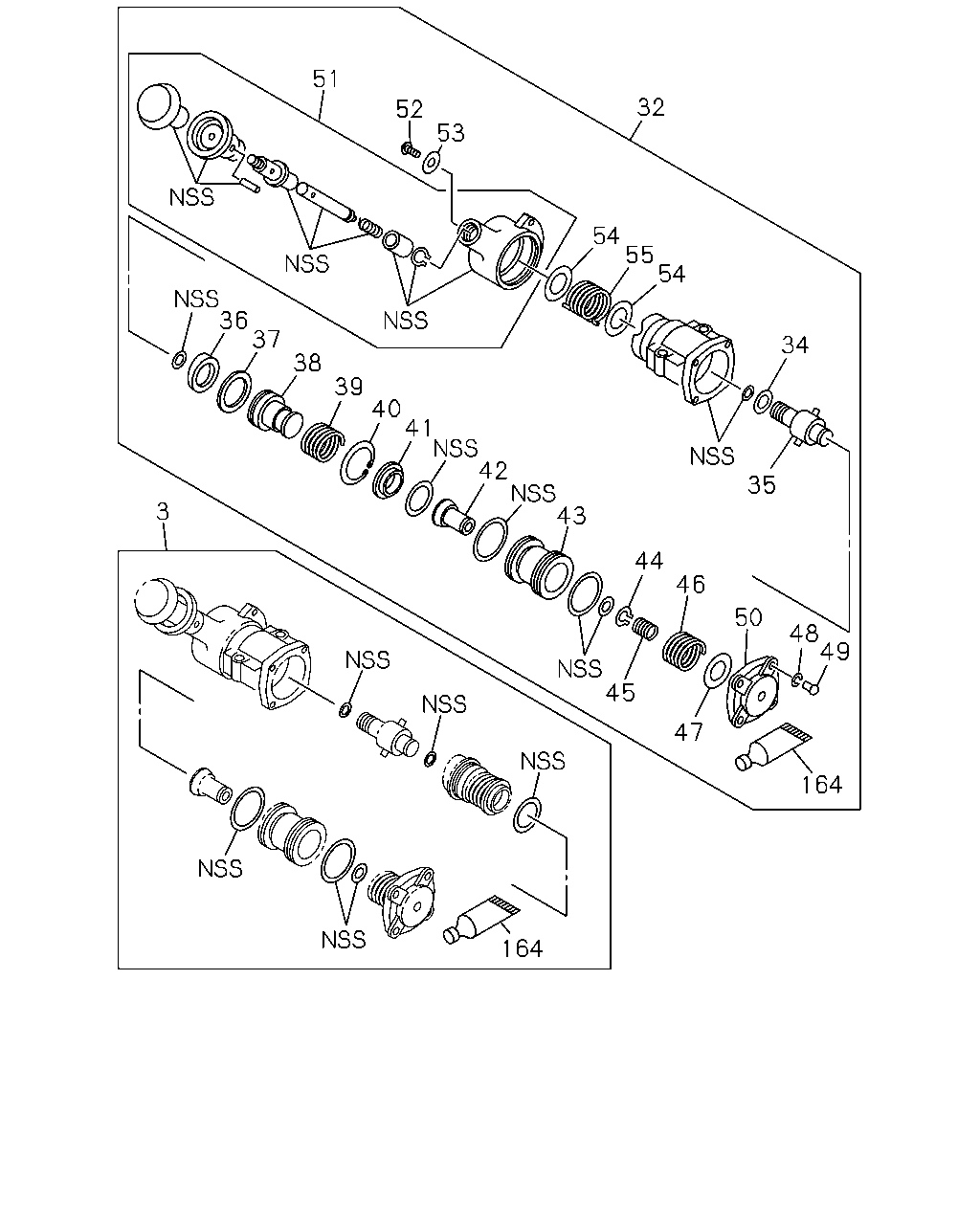

3-26 — TRAILER CONTROL (#12909) — 71 parça

51 32 52 53 54 55 54 36 37 34 38 39 40 41 42 43 35 3 44 46 50 48 49 45 47 164 164

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	REPAIR KIT; HAND BRK VLV	1-48469-096-0	01	1	0807-1107
3	REPAIR KIT; HAND BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A>	1-48469-096-0	01	1	1108-
32	VALVE; BRK,HAND CONT	1-48460-306-0	01	1	0807-1107
32	VALVE; BRK,HAND CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A>	1-48460-306-0	01	1	1108-
34	SHIM; CAM HOLDER	1-48469-055-0	AR	1	0807-1107
34	SHIM; CAM HOLDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A>	1-48469-055-0	AR	1	1108-
35	HOLDER; CAM	1-48469-054-0	01	1	0807-1107
35	HOLDER; CAM BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A>	1-48469-054-0	01	1	1108-
36	RING; CAM	1-48469-056-0	01	1	0807-1107
36	RING; CAM BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A>	1-48469-056-0	01	1	1108-
37	GUIDE; CAM RING	1-48469-058-0	01	1	0807-1107
37	GUIDE; CAM RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A>	1-48469-058-0	01	1	1108-
38	SEAT; EXH VLV	1-48469-057-0	01	1	0807-1107
38	SEAT; EXH VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A>	1-48469-057-0	01	1	1108-
39	SPRING; RETURN,CAM RING	1-48469-063-0	01	1	0807-1107
39	SPRING; RETURN,CAM RING BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A>	1-48469-063-0	01	1	1108-
40	RING; SNAP	1-48469-067-0	01	1	0807-1107
40	RING; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A>	1-48469-067-0	01	1	1108-
41	SEAT; FEED VLV	1-48469-066-0	01	1	0807-1107
41	SEAT; FEED VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A>	1-48469-066-0	01	1	1108-
42	VALVE; FEED	1-48469-065-0	01	1	0807-1107
42	VALVE; FEED BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A>	1-48469-065-0	01	1	1108-
43	PISTON; HAND BRK VLV	1-48469-064-0	01	1	0807-1107
43	PISTON; HAND BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A>	1-48469-064-0	01	1	1108-
44	RING; SNAP,FEED VLV	1-48469-068-0	02	1	0807-1107
44	RING; SNAP,FEED VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A>	1-48469-068-0	02	1	1108-
45	SPRING; FEED VLV	1-48469-070-0	01	1	0807-1107
45	SPRING; FEED VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A>	1-48469-070-0	01	1	1108-
46	SPRING; MAIN,PISTON	1-48469-089-0	01	1	0807-1107
46	SPRING; MAIN,PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A>	1-48469-089-0	01	1	1108-
47	SHIM; MAIN SPRING	1-48469-072-0	AR	1	0807-1107
47	SHIM; MAIN SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A>	1-48469-072-0	AR	1	1108-
48	WASHER; COVER	1-48469-091-0	04	1	0807-1107
48	WASHER; COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A>	1-48469-091-0	04	1	1108-
49	SCREW; COVER	1-48469-092-0	04	1	0807-1107
49	SCREW; COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A>	1-48469-092-0	04	1	1108-
50	COVER; HAND BRK VLV	1-48469-090-0	01	1	0807-1107
50	COVER; HAND BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A>	1-48469-090-0	01	1	1108-
51	HANDLE ASM; HAND BRK VLV	1-48469-122-0	01	1	0807-1107
51	HANDLE ASM; HAND BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A>	1-48469-122-0	01	1	1108-
52	SCREW; HANDLE	1-48469-062-0	01	1	0807-1107
52	SCREW; HANDLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A>	1-48469-062-0	01	1	1108-
53	WASHER; HANDLE	1-48469-061-0	01	1	0807-1107
53	WASHER; HANDLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A>	1-48469-061-0	01	1	1108-
54	SEAT; SPRING	1-48469-082-0	02	1	0807-1107
54	SEAT; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A>	1-48469-082-0	02	1	1108-
55	SPRING; RETURN,HANDLE	1-48469-059-0	01	1	0807-1107
55	SPRING; RETURN,HANDLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A>	1-48469-059-0	01	1	1108-
164	GREASE; HAND BRK VLV	1-48469-084-0	01	1	0807-1107
164	GREASE; HAND BRK VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A>	1-48469-084-0	01	1	1108-

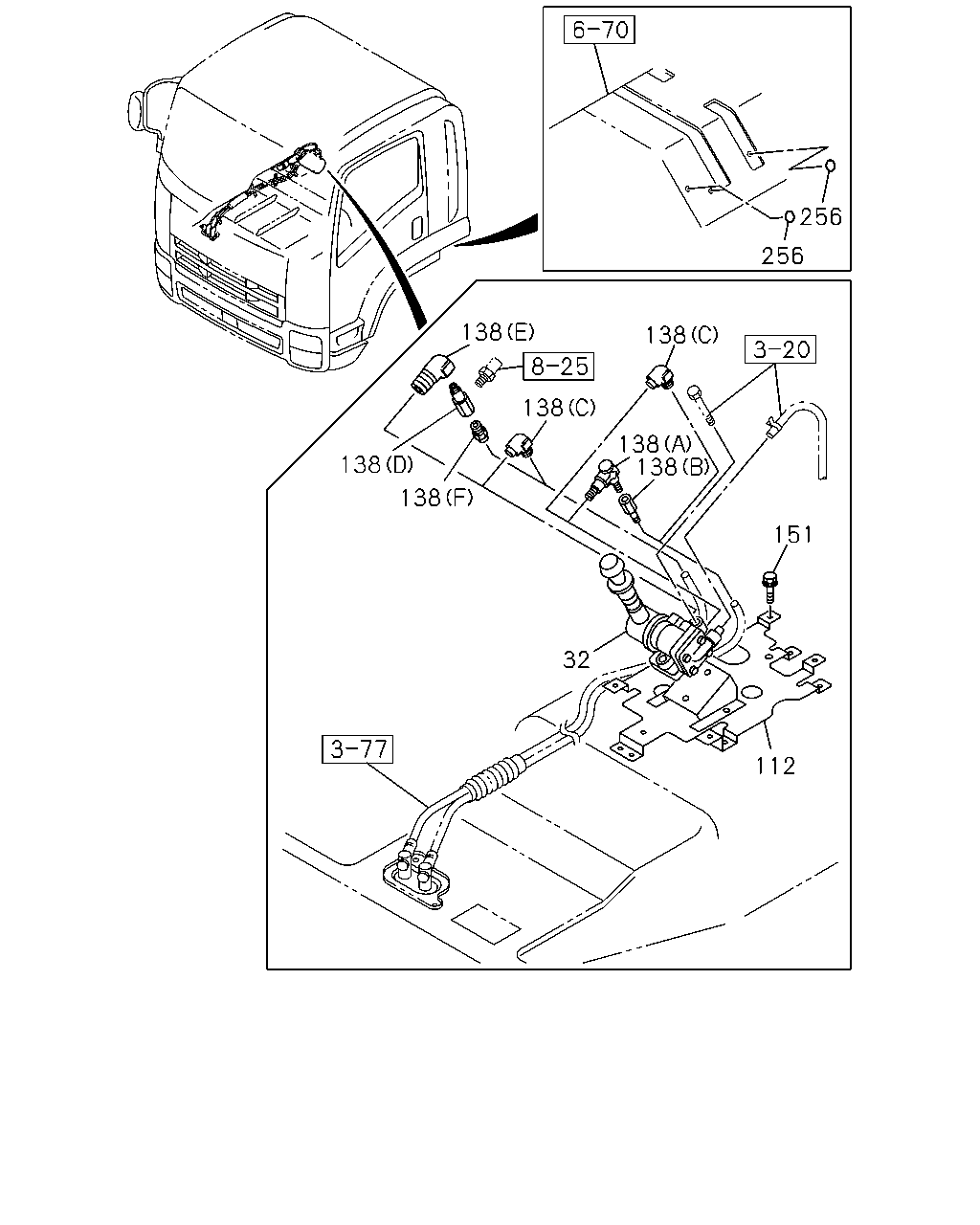

256 256 138 138 138 138 138 138 138 151 32 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
32	VALVE; BRK,HAND CONT	1-48460-306-0	01	1	0807-1107
32	VALVE; BRK,HAND CONT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A>	1-48460-306-0	01	1	1108-
112	BRACKET; CONT VLV REAR WHEEL PARKING BRAKE AIR CONTROL<B3A>	1-73908-054-7	01	1	0807-1205
112	BRACKET; CONT VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A>	1-73908-054-7	01	1	1206-
138	CONNECTOR; DELIVERY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> (D)	1-09660-335-1	01	1	1108-1209
138	CONNECTOR; DELIVERY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> (E) PT1/4 2WAY THA	1-09660-693-0	01	1	1108-1209
138	CONNECTOR; DELIVERY BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> (F) DIN8 R1/4 STRAIGHT THA	1-09660-963-0	01	1	1108-1205
138	CONNECTOR; DELIVERY (A)	1-09650-240-1	01	1	0807-1102
138	CONNECTOR; DELIVERY BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	1-09650-240-1	01	1	1103-1107
138	CONNECTOR; DELIVERY BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> (A)	1-09650-240-1	01	1	1108-
138	CONNECTOR; DELIVERY (B) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0807-1102
138	CONNECTOR; DELIVERY BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	1103-1107
138	CONNECTOR; DELIVERY BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> (B) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	1108-
138	CONNECTOR; DELIVERY (C) DIN8 & R1/4 ELBOW THA	1-09660-956-0	01	1	0807-1102
138	CONNECTOR; DELIVERY BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) DIN8 & R1/4 ELBOW THA	1-09660-956-0	01	1	1103-1107
138	CONNECTOR; DELIVERY REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> (C) DIN8 & R1/4 ELBOW THA	1-09660-956-0	01	1	1108-1209
138	CONNECTOR; DELIVERY BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> (C) DIN8 & R1/4 ELBOW THA	1-09660-956-0	01	1	1210-
151	BOLT; VLV BRKT REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> M6X16 THA	0-52000-616-0	04	1	0807-1205
151	BOLT; VLV BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> M6X16 THA	0-52000-616-0	04	1	1206-
256	SEAL REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> OD=25 BLACK THA	1-76798-019-0	08	1	0807-1205
256	SEAL BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> OD=25 BLACK THA	1-76798-019-0	08	1	1206-
