2-01A — CLUTCH (#129089) — 98 parça

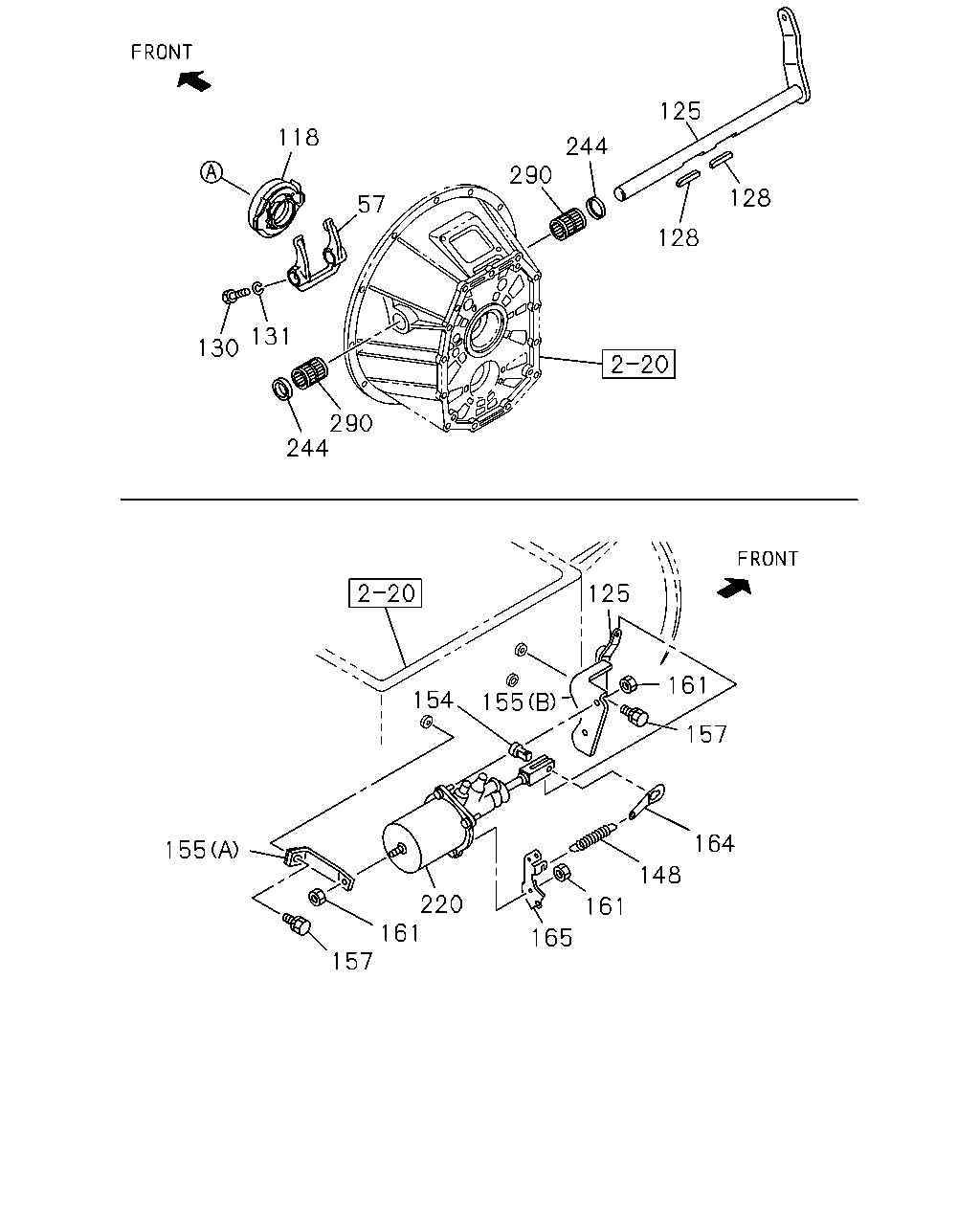

125 161 157 164 148 161 165 220 161 157 155 155 154 290 244 130 131 57 118 290 244 125 128 128

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
57	FORK; SHIFT,CLU TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31341-048-2	01	1	1310-
118	BEARING; CLU RELEASE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS	1-87610-109-0	01	1	1310-
118	BEARING; CLU RELEASE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31310-026-0	01	1	1310-
125	SHAFT; CLU TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31342-335-0	01	1	1310-
128	KEY; FEATHER,CLU SHAFT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	9-09867-008-0	02	1	1310-1410
128	KEY; FEATHER,CLU SHAFT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	9-09867-008-0	02	1	1411-
130	SCREW; SHIFT FORK TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X14	0-61200-814-0	01	1	1310-
131	WASHER; LK,SHIFT FORK TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=8.2	0-91510-508-0	01	1	1310-1410
131	WASHER; LK,SHIFT FORK TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=8.2	0-91510-508-0	01	1	1411-
148	SPRING; CLU RETURN TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=135	1-09583-305-0	01	1	1310-1410
148	SPRING; CLU RETURN TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=135	1-09583-305-0	01	1	1411-
154	PIN; JAW JOINT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31424-009-0	01	1	1310-1410
154	PIN; JAW JOINT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31424-009-0	01	1	1411-
155	BRACKET; MINIPACK TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	1-31429-475-1	01	1	1310-
155	BRACKET; MINIPACK TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	1-31429-478-0	01	1	1310-
157	BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10X25 FLANGE	0-28751-025-0	03	1	1310-
161	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE	0-91180-210-0	05	1	1310-
164	EYE; SPRING TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31426-041-0	01	1	1310-
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-47477-789-0	01	1	1310-
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-31800-511-2	01	1	1310-
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS	1-87610-089-0	01	1	1310-1410
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS	1-87610-089-0	01	1	1411-
244	SEAL; DUST ALSO INCLUDED IN GASKET SET(M/T). TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	1-09625-002-0	02	1	1310-
290	BEARING; NEEDLE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) NTN	1-09811-002-1	02	1	1310-

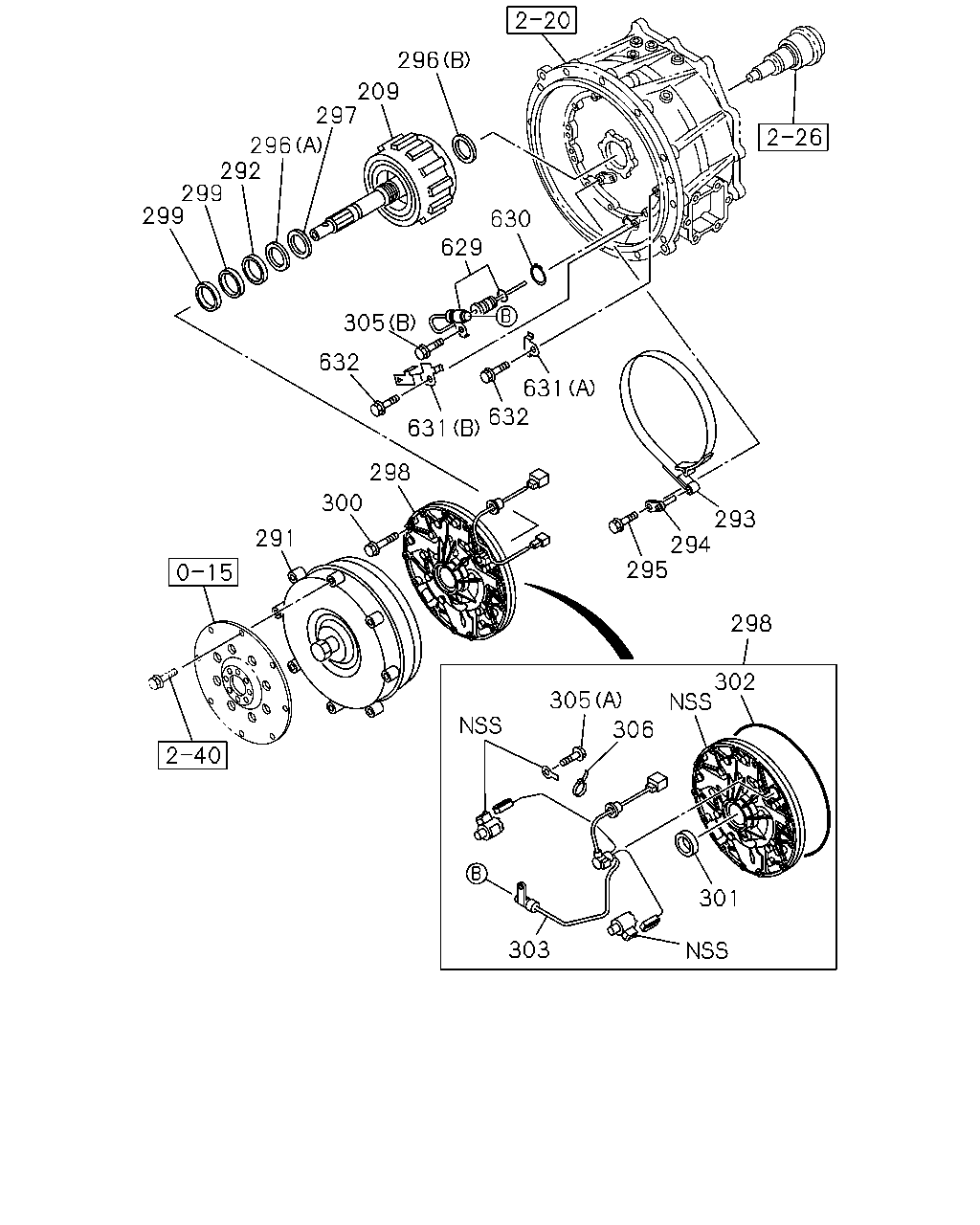

301 303 306 302 305 298 293 294 295 291 300 298 631 632 631 632 305 629 630 296 209 297 296 292 299 299

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
209	CLUTCH ASM TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98044-527-3	01	1	1310-1412
209	CLUTCH ASM TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98275-315-0	01	1	1501-
291	COUPLING; FLUID TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98248-560-1	01	1	1310-
292	RING; SEAL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-329-0	01	1	1310-
293	BAND; BRAKE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97254-651-0	01	1	1310-
294	PIN; ANCHOR TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-703-0	01	1	1310-
295	BOLT; ANCHOR PIN TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	01	1	1310-
296	BEARING; THRUST TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-97255-688-0	01	1	1310-
296	BEARING; THRUST TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-97255-689-0	01	1	1310-
297	WASHER; THRUST TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97300-070-0	01	1	1310-
298	PUMP ASM; OIL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98107-925-2	01	1	1310-
299	RING; SEAL TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-330-0	02	1	1310-
300	BOLT; OIL PUMP TRANSMISSION CONTROL-SMOOTHER(8GF) M8X45 FLANGE	0-28050-845-0	11	1	1310-
301	SEAL; OIL PUMP TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97289-811-0	01	1	1310-
302	RING; OIL PUMP TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-188-0	01	1	1310-
303	HARNESS ASM; OIL PUMP TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98020-613-1	01	1	1310-
305	BOLT; BRACKET TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M6X12 FLANGE	0-28050-612-0	01	1	1310-
305	BOLT; BRACKET TRANSMISSION CONTROL-SMOOTHER(8GF) (B) M6X16 FLANGE	0-28650-616-0	01	1	1310-
306	CLIP; BAND TRANSMISSION CONTROL-SMOOTHER(8GF) L=100	8-94279-939-0	02	1	1310-
629	SENSOR; OIL TEMP TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98021-895-0	01	1	1310-
630	RING; SNAP TRANSMISSION CONTROL-SMOOTHER(8GF) ID=17.5	9-09180-019-0	01	1	1310-
631	PLATE; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98021-285-0	02	1	1310-
631	PLATE; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98023-254-0	01	1	1310-
632	BOLT; HARNESS TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE	0-28650-820-0	03	1	1310-

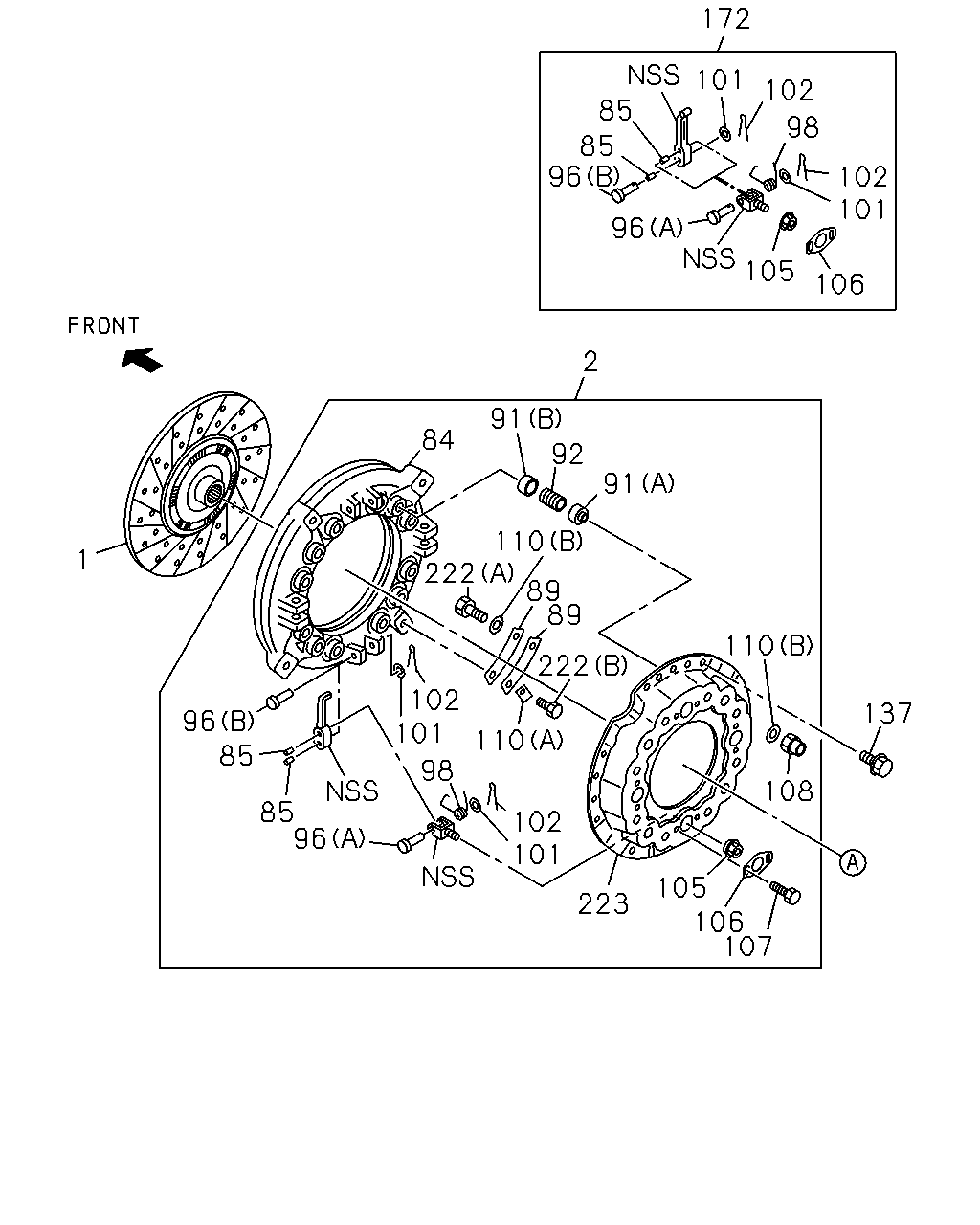

1 96 85 85 96 102 101 222 110 84 91 2 92 91 89 89 222 110 102 101 223 105 106 107 108 137 110 85 85 96 96 105 106 101 102 98 102 101 172 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DISC; CLUTCH 15" CLUTCH(RE9) BEST VALUE PARTS	1-87610-119-0	01	1	1411-
1	DISC; CLUTCH 15" CLUTCH(RE9) 15"	1-31240-851-2	01	1	1310-1410
1	DISC; CLUTCH 15" CLUTCH(RE9) 15"	1-31240-851-2	01	1	1411-
2	PLATE ASM; PRESSURE,CLU 6HK1-TCN ENG(82L) 15" CLUTCH(RE9)	1-31220-374-2	01	1	1310-
2	PLATE ASM; PRESSURE,CLU 6HK1-TCC ENG(81L) 15" CLUTCH(RE9)	1-31220-377-2	01	1	1411-
2	PLATE ASM; PRESSURE,CLU 6HK1-TCC ENG(81L) 15" CLUTCH(RE9) BEST VALUE PARTS	1-87610-146-0	01	1	1411-
2	PLATE ASM; PRESSURE,CLU 6HK1-TCN ENG(82L) 15" CLUTCH(RE9) BEST VALUE PARTS	1-87610-120-0	01	1	1310-
84	PLATE; PRESSURE 15" CLUTCH(RE9) 15"	1-31221-100-0	01	1	1310-1410
84	PLATE; PRESSURE 15" CLUTCH(RE9) 15"	1-31221-100-0	01	1	1411-
85	BUSHING; RELEASE LEVER 15" CLUTCH(RE9)	9-31239-116-0	08	1	1310-1410
85	BUSHING; RELEASE LEVER 15" CLUTCH(RE9)	9-31239-116-0	08	1	1411-
89	PLATE; STRAP 15" CLUTCH(RE9)	1-31229-050-0	16	1	1310-1410
89	PLATE; STRAP 15" CLUTCH(RE9)	1-31229-050-0	16	1	1411-
91	SEAT; SPR 15" CLUTCH(RE9) (A) ID=37 H=25	1-31219-012-0	12	1	1310-1410
91	SEAT; SPR 15" CLUTCH(RE9) (A) ID=37 H=25	1-31219-012-0	12	1	1411-
91	SEAT; SPR 15" CLUTCH(RE9) (B) ID=37 H=15	1-31219-013-0	12	1	1310-1410
91	SEAT; SPR 15" CLUTCH(RE9) (B) ID=37 H=15	1-31219-013-0	12	1	1411-
92	SPRING; CLU 6HK1-TCN ENG(82L) 15" CLUTCH(RE9)	1-31214-086-0	12	1	1310-
92	SPRING; CLU 6HK1-TCC ENG(81L) 15" CLUTCH(RE9)	1-31214-066-0	12	1	1411-
96	PIN; RELEASE LEVER 15" CLUTCH(RE9) (A) L=49.0	1-31232-005-0	04	1	1310-1410
96	PIN; RELEASE LEVER 15" CLUTCH(RE9) (A) L=49.0	1-31232-005-0	04	1	1411-
96	PIN; RELEASE LEVER 15" CLUTCH(RE9) (B) L=57.0	1-31232-014-0	04	1	1310-1410
96	PIN; RELEASE LEVER 15" CLUTCH(RE9) (B) L=57.0	1-31232-014-0	04	1	1411-
98	SPRING; RETURN 15" CLUTCH(RE9)	1-31233-003-0	04	1	1310-1410
98	SPRING; RETURN 15" CLUTCH(RE9)	1-31233-003-0	04	1	1411-
101	WASHER; RELEASE LEVER 15" CLUTCH(RE9)	1-31239-058-0	08	1	1310-1410
101	WASHER; RELEASE LEVER 15" CLUTCH(RE9)	1-31239-058-0	08	1	1411-
102	PIN; SPLIT,RELEASE LEVER 15" CLUTCH(RE9) OD=2.7 L=22	9-08103-022-0	08	1	1310-1410
102	PIN; SPLIT,RELEASE LEVER 15" CLUTCH(RE9) OD=2.7 L=22	9-08103-022-0	08	1	1411-
105	NUT; SUPPORT 15" CLUTCH(RE9)	1-31235-014-0	04	1	1310-1410
105	NUT; SUPPORT 15" CLUTCH(RE9)	1-31235-014-0	04	1	1411-
106	PLATE; LK,LEVER SUPPORT 15" CLUTCH(RE9)	1-31239-019-0	04	1	1310-1410
106	PLATE; LK,LEVER SUPPORT 15" CLUTCH(RE9)	1-31239-019-0	04	1	1411-
107	BOLT; LK PLATE 15" CLUTCH(RE9)	1-31239-061-0	08	1	1310-1410
107	BOLT; LK PLATE 15" CLUTCH(RE9)	1-31239-061-0	08	1	1411-
108	NUT; STRAP 15" CLUTCH(RE9)	1-09449-036-0	04	1	1310-1410
108	NUT; STRAP 15" CLUTCH(RE9)	1-09449-036-0	04	1	1411-
110	WASHER; SPECIAL,STRAP 15" CLUTCH(RE9) (A) T=1.2	1-31229-009-0	04	1	1310-1410
110	WASHER; SPECIAL,STRAP 15" CLUTCH(RE9) (A) T=1.2	1-31229-009-0	04	1	1411-
110	WASHER; SPECIAL,STRAP 15" CLUTCH(RE9) (B) T=3.2	8-97374-512-0	08	1	1310-1410
110	WASHER; SPECIAL,STRAP 15" CLUTCH(RE9) (B) T=3.2	8-97374-512-0	08	1	1411-
137	BOLT; CLU COVER 15" CLUTCH(RE9) M10X20 FLANGE	0-28151-020-0	12	1	1310-
172	LEVER KIT; RELEASE,CLU 15" CLUTCH(RE9)	1-87831-170-1	01	1	1310-1410
172	LEVER KIT; RELEASE,CLU 15" CLUTCH(RE9)	1-87831-170-1	01	1	1411-
222	BOLT; STRAP 15" CLUTCH(RE9) (B) M10X23.2	1-09040-042-0	04	1	1310-1410
222	BOLT; STRAP 15" CLUTCH(RE9) (B) M10X23.2	1-09040-042-0	04	1	1411-
222	BOLT; STRAP 15" CLUTCH(RE9) (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	1310-1410
222	BOLT; STRAP 15" CLUTCH(RE9) (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	1411-
223	COVER; CLU 15" CLUTCH(RE9)	1-31211-019-1	01	1	1310-1410
223	COVER; CLU 15" CLUTCH(RE9)	1-31211-019-1	01	1	1411-
