1-31 — AIR DUCT (#129081) — 69 parça

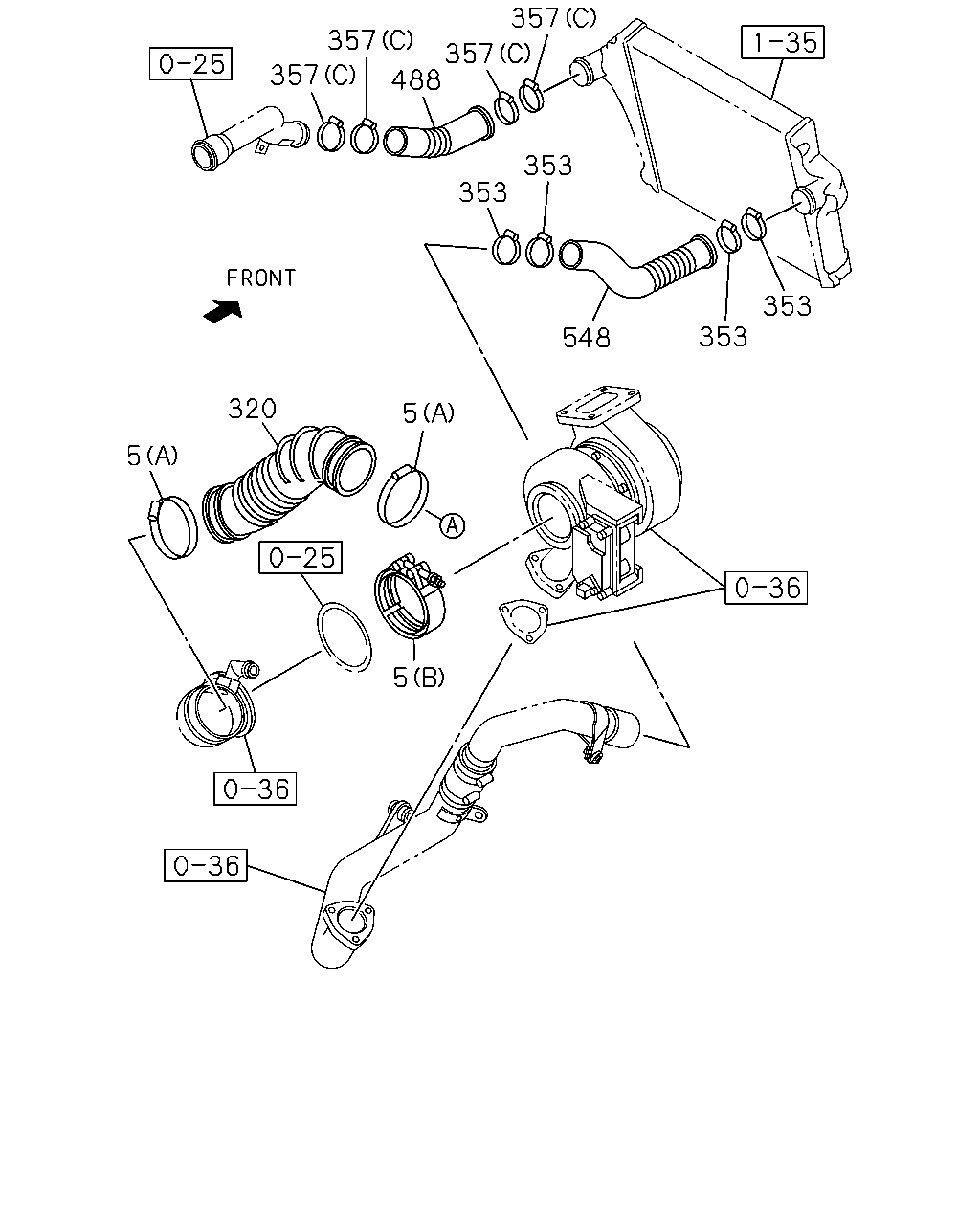

çizim 380903
357 357 488 357 357 353 353 548 353 353 5 320 5 5
BalonParca AdiParca NoAdetTipApplied Date A B
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-139-0 01 1 1310-1410 ●
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-139-0 01 1 1310-1410 ●
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-139-0 01 1 1411- ● ●
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-139-0 01 1 1411- ● ●
5 CLIP; AIR DUCT
(B) ID=114 		8-15178-030-0 01 1 1310-1410 ●
5 CLIP; AIR DUCT
(B) ID=114 		8-15178-030-0 01 1 1411- ● ●
320 HOSE; CONN,ACL 8-98012-859-2 01 1 1310-1410 ●
320 HOSE; CONN,ACL 8-98012-859-2 01 1 1411- ● ●
353 CLIP; RUBBER HOSE
ID=58-79 		1-09707-136-0 04 1 1310-1410 ●
353 CLIP; RUBBER HOSE
ID=58-79 		1-09707-136-0 04 1 1411- ● ●
357 CLIP; RUBBER HOSE
(C) ID=58-79 		1-09707-136-0 04 1 1310-1410 ●
357 CLIP; RUBBER HOSE
(C) ID=58-79 		1-09707-136-0 04 1 1411- ● ●
357 CLIP; RUBBER HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=26 		1-09707-091-0 01 1 1310- ●
357 CLIP; RUBBER HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=29.5 		8-97354-979-0 01 1 1310- ●
357 CLIP; RUBBER HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=26 		1-09707-091-0 02 1 1310-1410 ●
357 CLIP; RUBBER HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=26 		1-09707-091-0 02 1 1411- ● ●
488 HOSE; RUBBER,PIPE 8-98012-936-1 01 1 1310-1410 ●
488 HOSE; RUBBER,PIPE 8-98012-936-1 01 1 1411- ● ●
548 HOSE; RUBBER,TURBO TO INL PIPE 8-98065-044-0 01 1 1310-1410 ●
548 HOSE; RUBBER,TURBO TO INL PIPE 8-98065-044-0 01 1 1411- ● ●

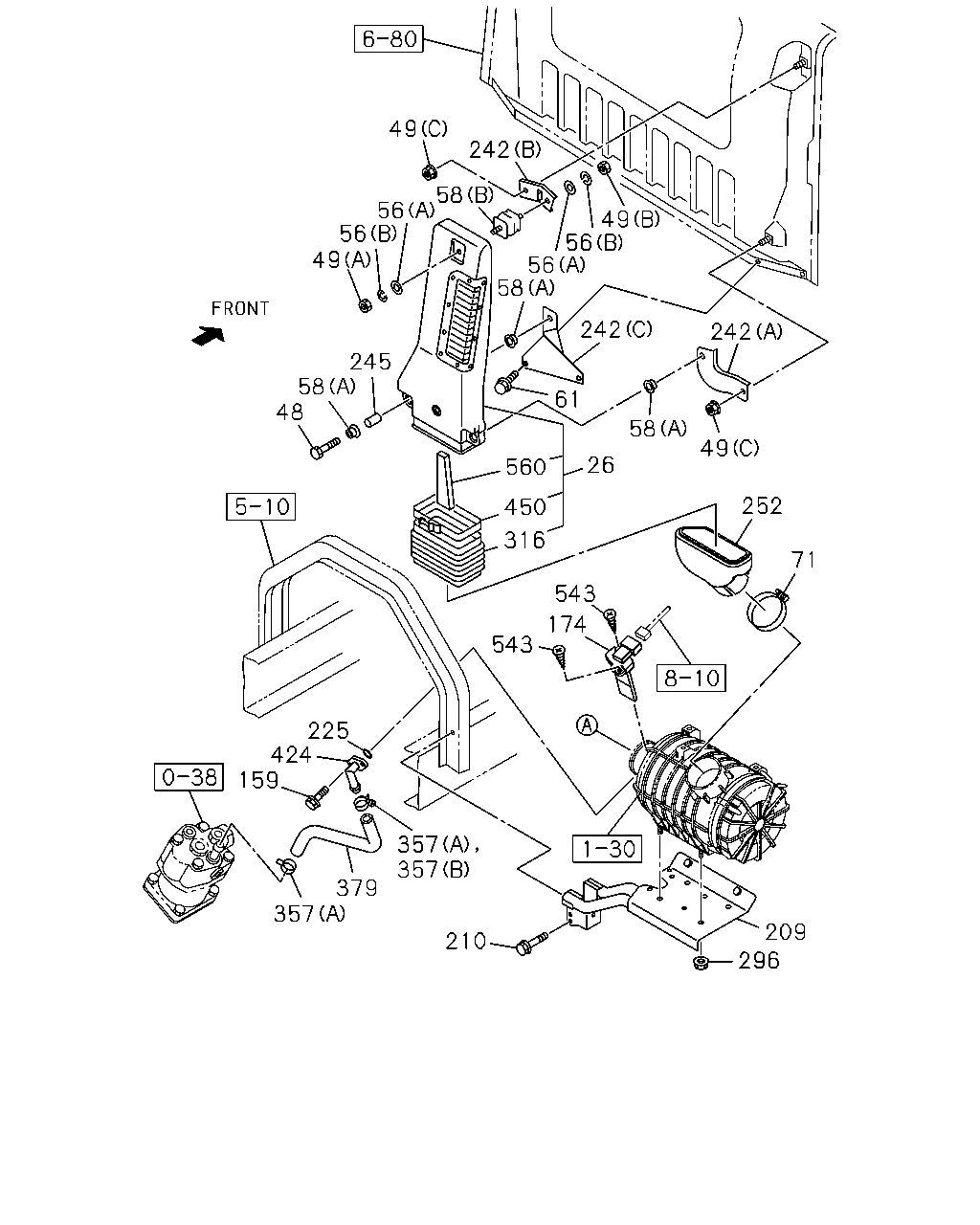

çizim 381013
49 242 58 56 56 49 49 56 56 58 245 58 48 242 61 26 560 450 316 58 242 49 252 71 543 174 543 225 424 159 357 357 357 379 210 209 296
BalonParca AdiParca NoAdetTipApplied Date A B
26 DUCT; AIR INT 8-98010-361-2 01 1 1310- ● ●
48 BOLT; AIR DUCT
M10X60 		1-09030-044-1 02 1 1310- ● ●
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-122-0 01 1 1310- ● ●
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 1310- ● ●
49 NUT; AIR DUCT
(C) M8 FLANGE 		8-94279-517-0 02 1 1310- ● ●
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 1310- ● ●
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 1310- ● ●
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 1310- ● ●
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 1310- ● ●
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 1310- ● ●
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 1310-1410 ●
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 1411- ● ●
159 BOLT; AIR PIPE
M6X16 FLANGE 		0-28050-616-0 02 1 1310-1410 ●
159 BOLT; AIR PIPE
M6X16 FLANGE 		0-28050-616-0 02 1 1411- ●
159 BOLT; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M6X16 FLANGE 		0-28050-616-0 02 1 1411- ●
174 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 1310-1410 ●
174 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 1411- ● ●
209 BRACKET; ACL 8-98021-995-1 01 1 1310-1410 ●
209 BRACKET; ACL 8-98021-995-1 01 1 1411- ● ●
210 BOLT; ACL BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1310-1410 ●
210 BOLT; ACL BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 1411- ● ●
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 1310-1410 ●
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 1411- ●
225 GASKET; AIR PIPE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=24.4 		1-09623-057-0 01 1 1411- ●
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1310- ● ●
242 BRACKET; AIR DUCT
(C) 		8-98019-302-1 01 1 1310- ● ●
242 BRACKET; AIR DUCT
(A) 		8-98019-304-1 01 1 1310- ● ●
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 1310- ● ●
252 DUCT; AIR INT 8-98012-861-1 01 1 1310-1410 ●
252 DUCT; AIR INT 8-98012-861-1 01 1 1411- ● ●
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 1310-1410 ●
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 1411- ● ●
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 1310- ● ●
357 CLIP; RUBBER HOSE
(C) ID=58-79 		1-09707-136-0 04 1 1310-1410 ●
357 CLIP; RUBBER HOSE
(C) ID=58-79 		1-09707-136-0 04 1 1411- ● ●
357 CLIP; RUBBER HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) ID=26 		1-09707-091-0 01 1 1310- ●
357 CLIP; RUBBER HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) ID=29.5 		8-97354-979-0 01 1 1310- ●
357 CLIP; RUBBER HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=26 		1-09707-091-0 02 1 1310-1410 ●
357 CLIP; RUBBER HOSE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (A) ID=26 		1-09707-091-0 02 1 1411- ● ●
379 HOSE; RUBBER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-97619-194-0 01 1 1310- ●
379 HOSE; RUBBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98077-469-0 01 1 1310-1410 ●
379 HOSE; RUBBER
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98077-469-0 01 1 1411- ● ●
424 PIPE; AIR,INL 8-98081-834-0 01 1 1310-1410 ●
424 PIPE; AIR,INL 8-98081-834-0 01 1 1411- ●
424 PIPE; AIR,INL
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-98081-834-0 01 1 1411- ●
450 CLAMP; HOSE 9-09915-504-1 01 1 1310- ● ●
543 SCREW; SENSOR
M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1310-1410 ●
543 SCREW; SENSOR
M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1411- ● ●
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 1310- ● ●
