Sayfa 3-22 - Isuzu EPC

3-22 — AIR CONTROL PARTS (#12908) — 659 parça

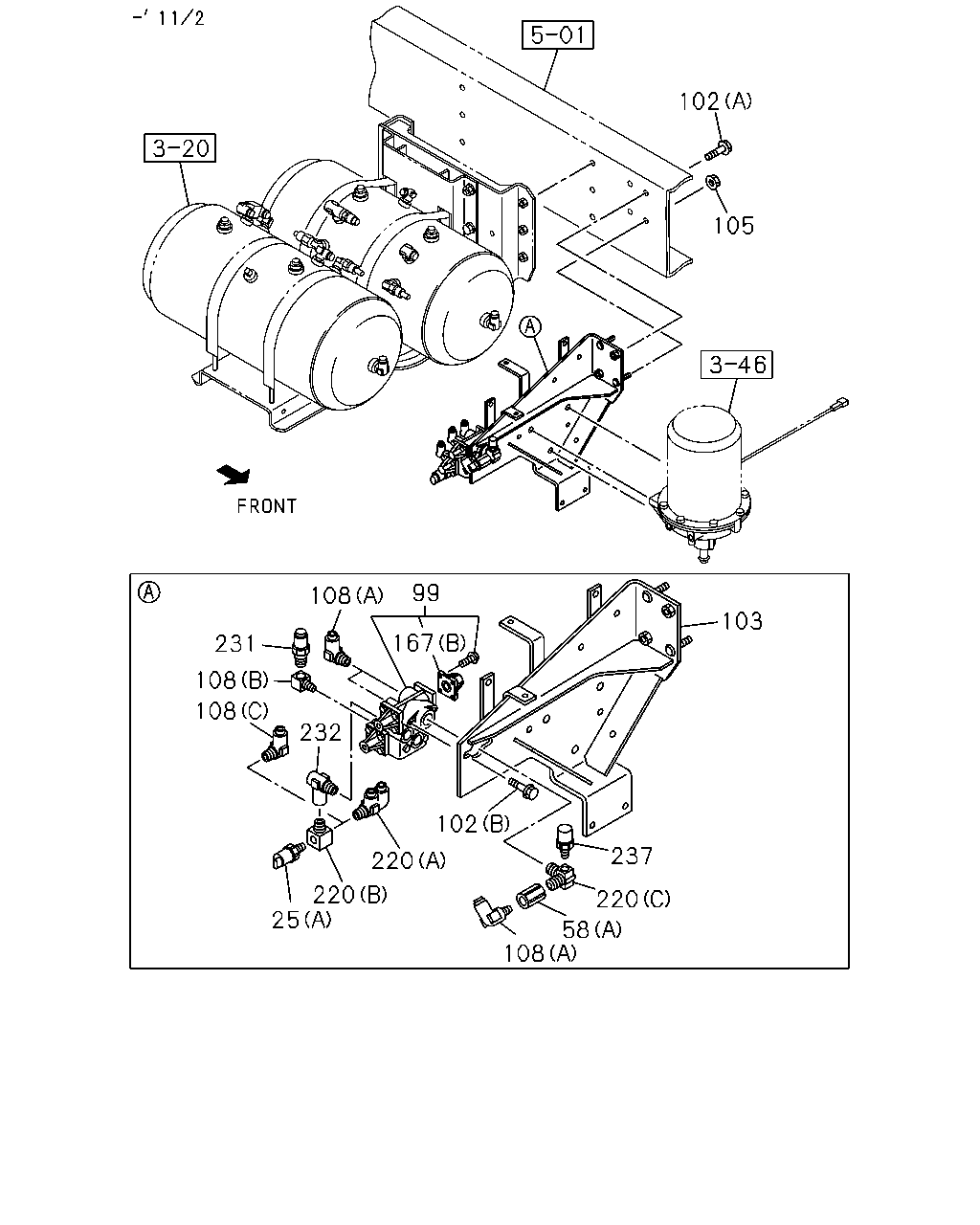

103 108 99 231 108 25 108 232 220 102 167 108 237 220 58 102 105 220

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	SWITCH; PRESSURE (A) STAMP 5.5 THA	8-97609-249-0	01	1	0807-1107
25	SWITCH; PRESSURE ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) STAMP 5.5 THA	8-97609-249-0	01	1	1108-
25	SWITCH; PRESSURE MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. PTO CONTROL<SV6> (A) STAMP 5.5 THA	8-97609-249-0	01	1	1108-
25	SWITCH; PRESSURE (B) STAMP 2.0	8-98010-856-1	01	1	0807-1107
25	SWITCH; PRESSURE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) STAMP 2.0	8-98010-856-2	01	1	1108-
58	ADAPTER MZW6P M/T<RSZ> PTO CONTROL<SV6> (C) PT3/8 ELBOW THA	1-09660-696-0	01	1	1103-1107
58	ADAPTER MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> PTO CONTROL<SV6> (C) PT3/8 ELBOW THA	1-09660-696-0	01	1	1108-
58	ADAPTER (D) DIN12 & R3/8 STRAIGHT THA	1-09660-965-0	01	1	1103-1107
58	ADAPTER ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (D) DIN12 & R3/8 STRAIGHT THA	1-09660-965-0	01	1	1108-
58	ADAPTER MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. PTO CONTROL<SV6> (D) DIN12 & R3/8 STRAIGHT THA	1-09660-965-0	01	1	1108-
58	ADAPTER (E) THA	8-98031-238-0	01	1	1103-1107
58	ADAPTER ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (E) THA	8-98031-238-0	01	1	1108-
58	ADAPTER MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. PTO CONTROL<SV6> (E) THA	8-98031-238-0	01	1	1108-
58	ADAPTER (F)	8-98148-475-0	01	1	1103-1107
58	ADAPTER ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (F)	8-98148-475-0	01	1	1108-
58	ADAPTER MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. PTO CONTROL<SV6> (F)	8-98148-475-0	01	1	1108-
58	ADAPTER ZF9S1110 M/T<Y5E> (G) M12 & PT1/4 3WAY THA	1-09656-586-1	01	1	1103-1107
58	ADAPTER ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (G) M12 & PT1/4 3WAY THA	1-09656-586-1	01	1	1108-
58	ADAPTER ZF9S1110 M/T<Y5E> (H) DIN8 & M12 STRAIGHT THA	1-09660-873-0	01	1	1103-1107
58	ADAPTER ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (H) DIN8 & M12 STRAIGHT THA	1-09660-873-0	01	1	1108-
58	ADAPTER (B) INNER PT3/8,OUTER M22 THA	1-09650-494-1	05	1	0807-1107
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) INNER PT3/8,OUTER M22 THA	1-09650-494-1	05	1	1108-
58	ADAPTER (A) M20 & RC3/8 STRAIGHT THA	1-09660-883-0	01	1	0807-1107
58	ADAPTER ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) M20 & RC3/8 STRAIGHT THA	1-09660-883-0	01	1	1108-
58	ADAPTER MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. PTO CONTROL<SV6> (A) M20 & RC3/8 STRAIGHT THA	1-09660-883-0	01	1	1108-
99	VALVE; PROTECTION	1-48110-288-1	01	1	0807-1107
99	VALVE; PROTECTION ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-48110-288-3	01	1	1108-
99	VALVE; PROTECTION MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. PTO CONTROL<SV6> THA	1-48110-288-3	01	1	1108-
102	BOLT; PROTECTION VALVE (C) M8X20 FLANGE THA	0-28650-820-0	02	1	1103-1107
102	BOLT; PROTECTION VALVE ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) M8X20 FLANGE THA	0-28650-820-0	02	1	1108-
102	BOLT; PROTECTION VALVE MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. PTO CONTROL<SV6> (C) M8X20 FLANGE THA	0-28650-820-0	02	1	1108-
102	BOLT; PROTECTION VALVE (B) M8X16 FLANGE THA	0-28050-816-0	02	1	0807-1107
102	BOLT; PROTECTION VALVE ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) M8X16 FLANGE THA	0-28050-816-0	02	1	1108-
102	BOLT; PROTECTION VALVE MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. PTO CONTROL<SV6> (B) M8X16 FLANGE THA	0-28050-816-0	02	1	1108-
102	BOLT; PROTECTION VALVE (A) M10X35 FLANGE THA	0-28651-035-0	02	1	0807-1107
102	BOLT; PROTECTION VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) M10X35 FLANGE THA	0-28651-035-0	02	1	1108-
103	BRACKET; PROTECTION VALVE	8-98073-219-1	01	1	0807-0905
103	BRACKET; PROTECTION VALVE	8-98119-704-0	01	1	0906-1102
103	BRACKET; PROTECTION VALVE THA	8-98173-454-0	01	1	1103-1107
103	BRACKET; PROTECTION VALVE ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	8-98173-454-0	01	1	1108-
103	BRACKET; PROTECTION VALVE MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. PTO CONTROL<SV6> THA	8-98173-454-0	01	1	1108-
105	NUT; BRKT,VALVE M10 FLANGE THA	0-91180-210-0	02	1	0807-0905
105	NUT; BRKT,VALVE M10 FLANGE THA	0-91180-210-0	02	1	0807-0905
105	NUT; BRKT,VALVE M10 FLANGE THA	0-91180-210-0	02	1	0906-1107
105	NUT; BRKT,VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M10 FLANGE THA	0-91180-210-0	02	1	1108-
108	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (A) DIN12 & R3/8 ELBOW THA	1-09660-959-0	02	1	1112-
108	CONNECTOR; ELBOW MZW6P M/T<RSZ> PTO CONTROL<SV6> (E) M12 & PT1/4 STRAIGHT THA	1-09650-074-1	01	1	1103-1107
108	CONNECTOR; ELBOW MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> PTO CONTROL<SV6> (E) M12 & PT1/4 STRAIGHT THA	1-09650-074-1	01	1	1108-
108	CONNECTOR; ELBOW MZW6P M/T<RSZ> PTO CONTROL<SV6> (F) M12 & PT1/4 3WAY THA	1-09656-586-1	01	1	1103-1107
108	CONNECTOR; ELBOW MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> PTO CONTROL<SV6> (F) M12 & PT1/4 3WAY THA	1-09656-586-1	01	1	1108-
108	CONNECTOR; ELBOW MZW6P M/T<RSZ> PTO CONTROL<SV6> (G) DIN12 & R3/8 STRAIGHT THA	1-09660-965-0	01	1	1103-1107
108	CONNECTOR; ELBOW MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> PTO CONTROL<SV6> (G) DIN12 & R3/8 STRAIGHT THA	1-09660-965-0	01	1	1108-
108	CONNECTOR; ELBOW MZW6P M/T<RSZ> PTO CONTROL<SV6> (H) THA	8-98031-238-0	01	1	1103-1107
108	CONNECTOR; ELBOW MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> PTO CONTROL<SV6> (H) THA	8-98031-238-0	01	1	1108-
108	CONNECTOR; ELBOW (I) M12 & PT1/4 ELBOW THA	1-09650-430-0	02	1	1103-1107
108	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (I) M12 & PT1/4 ELBOW THA	1-09650-430-0	02	1	1108-
108	CONNECTOR; ELBOW ZF9S1110 M/T<Y5E> (J) M12 & PT1/4 ELBOW THA	1-48629-258-0	01	1	1103-1107
108	CONNECTOR; ELBOW ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (J) M12 & PT1/4 ELBOW THA	1-48629-258-0	01	1	1108-1503
108	CONNECTOR; ELBOW ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (J) M12 & PT1/4 ELBOW IMA	8-98299-777-0	01	1	1504-
108	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> (D) DIN12 & M22 ELBOW IMA	1-09661-497-0	04	1	0808-1107
108	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (D) DIN12 & M22 ELBOW IMA	1-09661-497-0	04	1	1108-
108	CONNECTOR; ELBOW MZW6P M/T<RSZ> PTO CONTROL<SV6> (K) DIN8 & M12 STRAIGHT THA	1-09660-873-0	01	1	1103-1107
108	CONNECTOR; ELBOW MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> PTO CONTROL<SV6> (K) DIN8 & M12 STRAIGHT THA	1-09660-873-0	01	1	1108-
108	CONNECTOR; ELBOW ZF6S1000 M/T<Y5D> (C) DIN8 & R3/8 ELBOW THA	1-09660-957-0	01	1	0807-1102
108	CONNECTOR; ELBOW (L) DIN8 & R1/4 ELBOW THA	1-09660-956-0	01	1	1103-1107
108	CONNECTOR; ELBOW ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (L) DIN8 & R1/4 ELBOW THA	1-09660-956-0	01	1	1108-
108	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (L) DIN8 & R1/4 ELBOW THA	1-09660-956-0	01	1	1108-
108	CONNECTOR; ELBOW MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. PTO CONTROL<SV6> (L) DIN8 & R1/4 ELBOW THA	1-09660-956-0	01	1	1108-
108	CONNECTOR; ELBOW (B) PT3/8 ELBOW THA	1-09660-696-0	01	1	0807-1107
108	CONNECTOR; ELBOW ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) PT3/8 ELBOW THA	1-09660-696-0	01	1	1108-
108	CONNECTOR; ELBOW MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. PTO CONTROL<SV6> (B) PT3/8 ELBOW THA	1-09660-696-0	01	1	1108-
108	CONNECTOR; ELBOW (A) DIN12 & R3/8 ELBOW THA	1-09660-959-0	02	1	0807-0807
108	CONNECTOR; ELBOW EXC. ANTI LOCK BRAKE<JE5> (A) DIN12 & R3/8 ELBOW THA	1-09660-959-0	02	1	0808-1107
108	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (A) DIN12 & R3/8 ELBOW THA	1-09660-959-0	02	1	1108-1109
108	CONNECTOR; ELBOW (A) DIN12 & R3/8 ELBOW THA	1-09660-959-0	03	1	0807-1107
108	CONNECTOR; ELBOW ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) DIN12 & R3/8 ELBOW THA	1-09660-959-0	03	1	1108-
108	CONNECTOR; ELBOW MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. PTO CONTROL<SV6> (A) DIN12 & R3/8 ELBOW THA	1-09660-959-0	03	1	1108-
167	COVER; VALVE (B) THA	1-48119-625-0	04	1	1103-1107
167	COVER; VALVE ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) THA	1-48119-625-0	04	1	1108-1506
167	COVER; VALVE MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. PTO CONTROL<SV6> (B) THA	1-48119-625-0	04	1	1108-1506
167	COVER; VALVE (A)	1-48219-070-0	03	1	0807-0807
167	COVER; VALVE ANTI LOCK BRAKE<JE5> (A)	1-48219-070-0	01	1	0808-1107
167	COVER; VALVE ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	1-48219-070-0	01	1	1108-
167	COVER; VALVE EXC. ANTI LOCK BRAKE<JE5> (A)	1-48219-070-0	03	1	0808-1107
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (A)	1-48219-070-0	03	1	1108-1109
167	COVER; VALVE ANTI LOCK BRAKE<JE5> (A)	1-48219-070-0	02	1	0809-1107
167	COVER; VALVE ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	1-48219-070-0	02	1	1108-1111
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	1-48219-070-0	02	1	1112-
220	CONNECTOR; 3WAY ZF9S1110 M/T<Y5E> (A) DIN8X2 & PT3/8 DOUBLE ELBOW THA	1-09661-025-0	01	1	0807-1102
220	CONNECTOR; 3WAY (B) IMA	1-09656-708-0	01	1	0807-1102
220	CONNECTOR; 3WAY (C) THA	8-98031-238-0	01	1	0807-1102
231	CONNECTOR; NYLON TUBE DIN12 & R3/8 STRAIGHT THA	1-09660-965-0	01	1	0807-1102
232	VALVE; CHECK DIN18 & R3/8 & RC3/8 3WAY THA	8-98032-527-0	01	1	0807-1107
232	VALVE; CHECK ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> DIN18 & R3/8 & RC3/8 3WAY THA	8-98032-527-0	01	1	1108-
232	VALVE; CHECK MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. PTO CONTROL<SV6> DIN18 & R3/8 & RC3/8 3WAY THA	8-98032-527-0	01	1	1108-
237	VALVE; SAFETY	1-48320-012-2	01	1	0807-

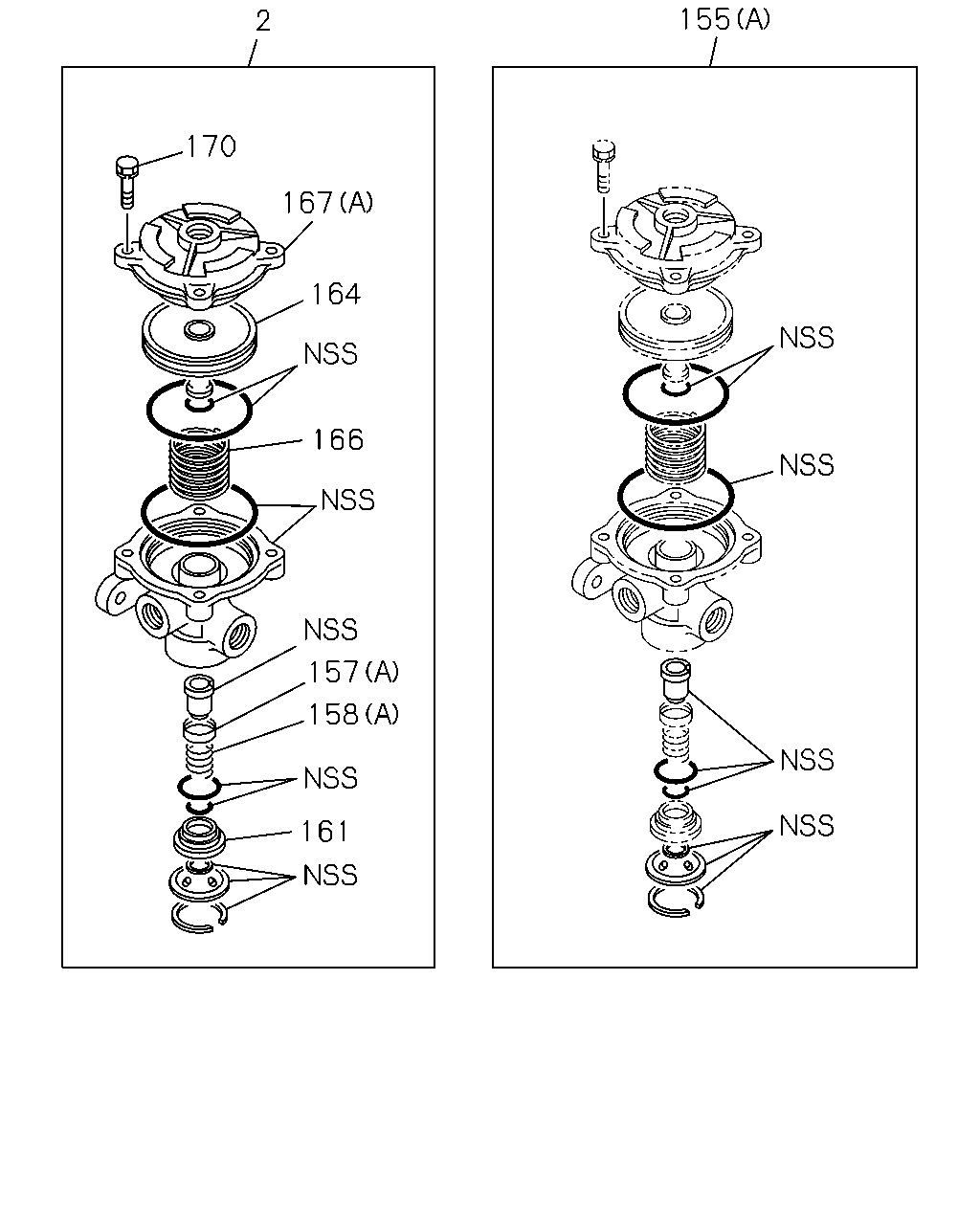

2 170 167 164 166 157 158 161 155

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

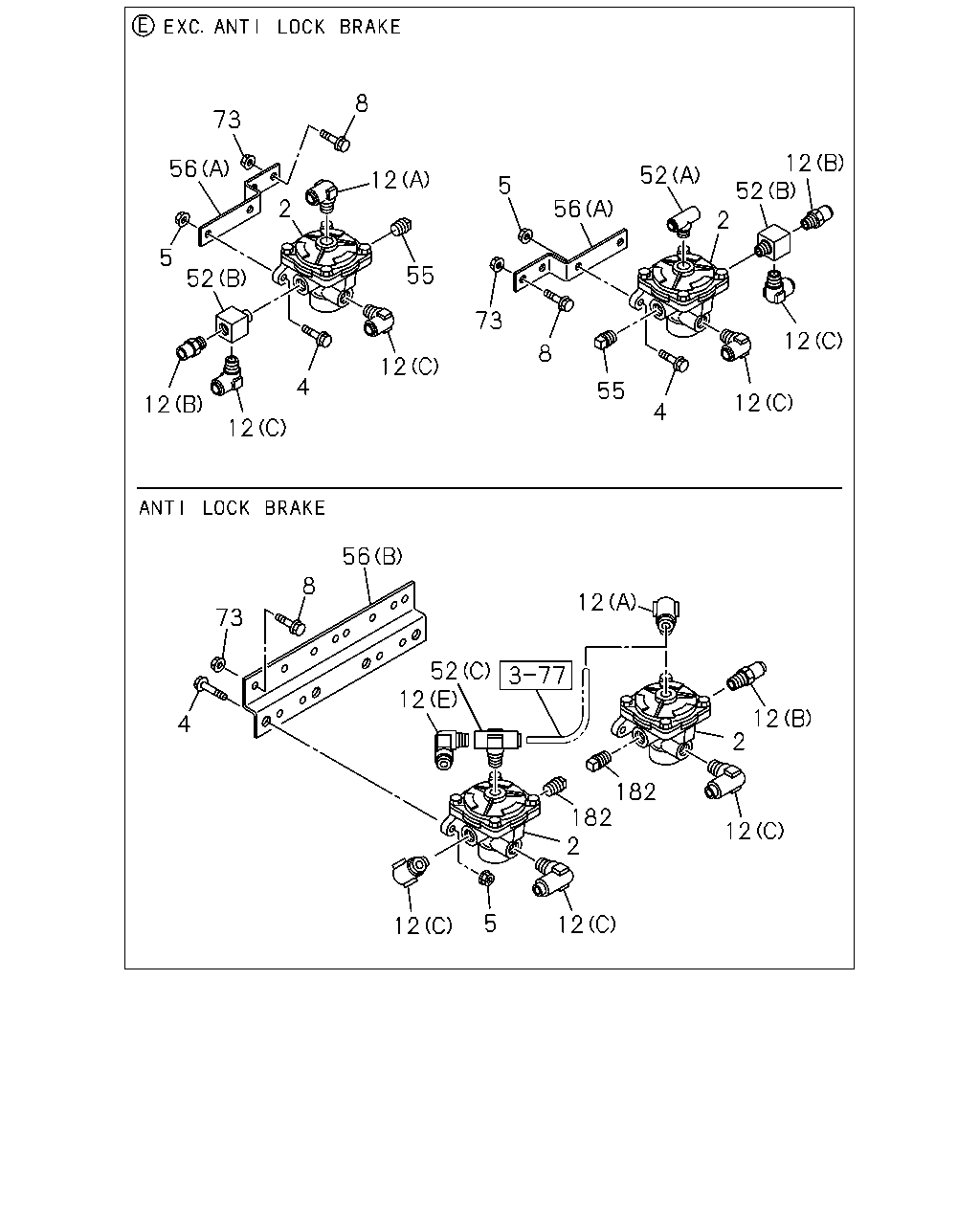

2	VALVE; RELAY	1-48210-875-0	03	1	0807-0807
2	VALVE; RELAY ANTI LOCK BRAKE<JE5>	1-48210-875-0	01	1	0808-1107
2	VALVE; RELAY ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-48210-875-0	01	1	1108-
2	VALVE; RELAY EXC. ANTI LOCK BRAKE<JE5>	1-48210-875-0	03	1	0808-1107
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5>	1-48210-875-0	03	1	1108-1109
2	VALVE; RELAY ANTI LOCK BRAKE<JE5>	1-48210-875-0	02	1	0809-1107
2	VALVE; RELAY ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-48210-875-0	02	1	1108-1111
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-48210-875-0	02	1	1112-
155	REPAIR KIT; RELAY VALVE (A)	1-85576-033-0	03	1	0807-0807
155	REPAIR KIT; RELAY VALVE ANTI LOCK BRAKE<JE5> (A)	1-85576-033-0	01	1	0808-1107
155	REPAIR KIT; RELAY VALVE ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	1-85576-033-0	01	1	1108-
155	REPAIR KIT; RELAY VALVE EXC. ANTI LOCK BRAKE<JE5> (A)	1-85576-033-0	03	1	0808-1107
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (A)	1-85576-033-0	03	1	1108-1109
155	REPAIR KIT; RELAY VALVE ANTI LOCK BRAKE<JE5> (A)	1-85576-033-0	02	1	0809-1107
155	REPAIR KIT; RELAY VALVE ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	1-85576-033-0	02	1	1108-1111
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	1-85576-033-0	02	1	1112-

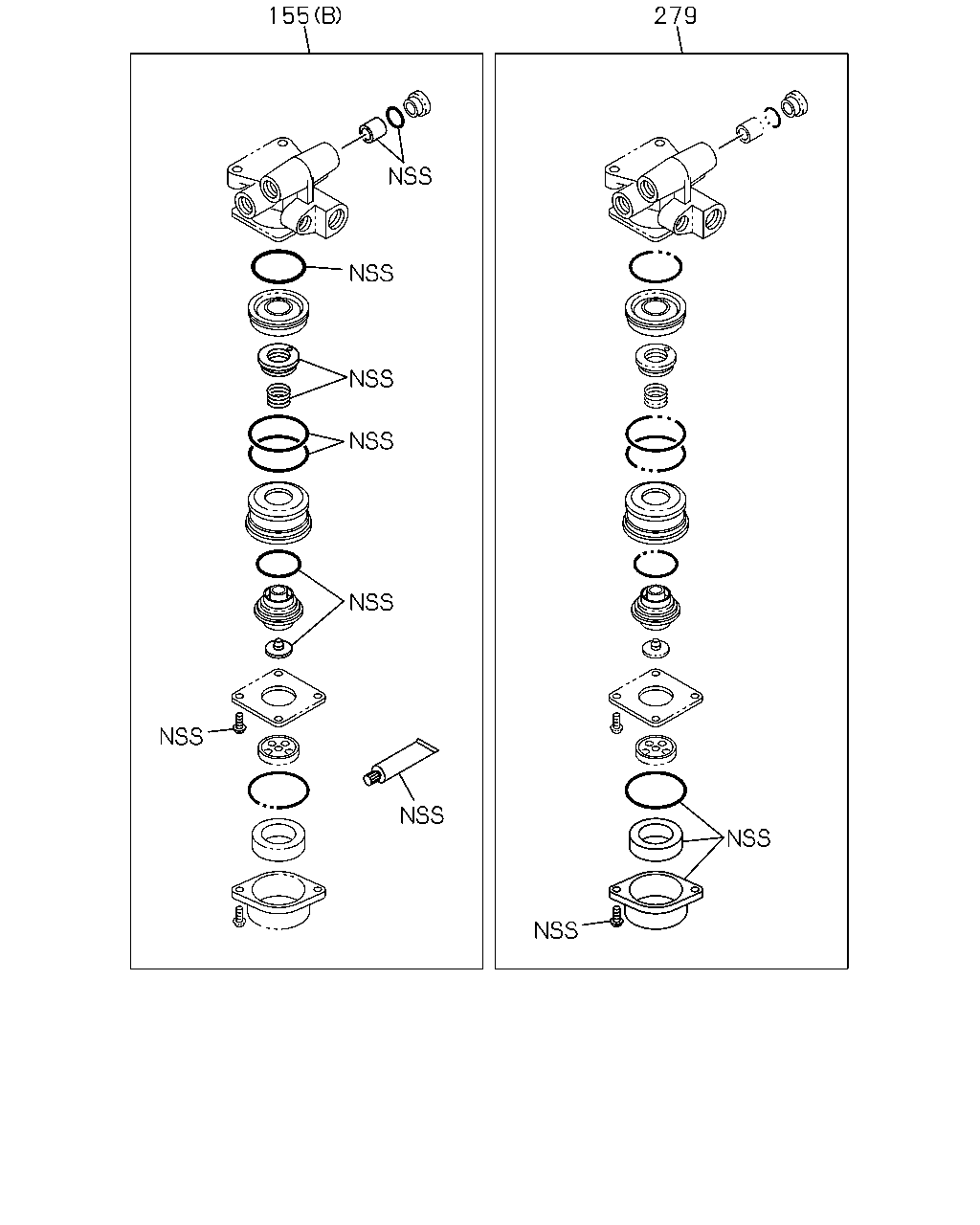

155	REPAIR KIT; RELAY VALVE (B)	1-85576-408-0	01	1	0807-1107
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B)	1-85576-408-0	01	1	1108-
157	RETAINER; VALVE (A)	1-48213-002-0	03	1	0807-0807
157	RETAINER; VALVE ANTI LOCK BRAKE<JE5> (A)	1-48213-002-0	01	1	0808-1107
157	RETAINER; VALVE ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	1-48213-002-0	01	1	1108-
157	RETAINER; VALVE EXC. ANTI LOCK BRAKE<JE5> (A)	1-48213-002-0	03	1	0808-1107
157	RETAINER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (A)	1-48213-002-0	03	1	1108-1109
157	RETAINER; VALVE ANTI LOCK BRAKE<JE5> (A)	1-48213-002-0	02	1	0809-1107
157	RETAINER; VALVE ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	1-48213-002-0	02	1	1108-1111
157	RETAINER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	1-48213-002-0	02	1	1112-
157	RETAINER; VALVE (B)	1-48419-020-0	01	1	0807-0808
157	RETAINER; VALVE EXC. ANTI LOCK BRAKE<JE5> (B)	1-48419-020-0	01	1	0809-1107
157	RETAINER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (B)	1-48419-020-0	01	1	1108-
158	SPRING; VALVE (A)	1-47819-089-0	03	1	0807-0807
158	SPRING; VALVE ANTI LOCK BRAKE<JE5> (A)	1-47819-089-0	01	1	0808-1107
158	SPRING; VALVE ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	1-47819-089-0	01	1	1108-
158	SPRING; VALVE EXC. ANTI LOCK BRAKE<JE5> (A)	1-47819-089-0	03	1	0808-1107
158	SPRING; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (A)	1-47819-089-0	03	1	1108-1109
158	SPRING; VALVE ANTI LOCK BRAKE<JE5> (A)	1-47819-089-0	02	1	0809-1107
158	SPRING; VALVE ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	1-47819-089-0	02	1	1108-1111
158	SPRING; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	1-47819-089-0	02	1	1112-
158	SPRING; VALVE (B)	9-48419-003-0	01	1	0807-0808
158	SPRING; VALVE EXC. ANTI LOCK BRAKE<JE5> (B)	9-48419-003-0	01	1	0809-1107
158	SPRING; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (B)	9-48419-003-0	01	1	1108-
161	GUIDE; VALVE	1-48129-014-0	03	1	0807-0807
161	GUIDE; VALVE ANTI LOCK BRAKE<JE5>	1-48129-014-0	01	1	0808-1107
161	GUIDE; VALVE ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-48129-014-0	01	1	1108-
161	GUIDE; VALVE EXC. ANTI LOCK BRAKE<JE5>	1-48129-014-0	03	1	0808-1107
161	GUIDE; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5>	1-48129-014-0	03	1	1108-1109
161	GUIDE; VALVE ANTI LOCK BRAKE<JE5>	1-48129-014-0	02	1	0809-1107
161	GUIDE; VALVE ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-48129-014-0	02	1	1108-1111
161	GUIDE; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-48129-014-0	02	1	1112-
164	PISTON; RELAY VALVE	1-48219-071-0	03	1	0807-0807
164	PISTON; RELAY VALVE ANTI LOCK BRAKE<JE5>	1-48219-071-0	01	1	0808-1107
164	PISTON; RELAY VALVE ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-48219-071-0	01	1	1108-
164	PISTON; RELAY VALVE EXC. ANTI LOCK BRAKE<JE5>	1-48219-071-0	03	1	0808-1107
164	PISTON; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5>	1-48219-071-0	03	1	1108-1109
164	PISTON; RELAY VALVE ANTI LOCK BRAKE<JE5>	1-48219-071-0	02	1	0809-1107
164	PISTON; RELAY VALVE ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-48219-071-0	02	1	1108-1111
164	PISTON; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-48219-071-0	02	1	1112-
166	SPRING; PISTON	1-47819-090-0	03	1	0807-0807
166	SPRING; PISTON ANTI LOCK BRAKE<JE5>	1-47819-090-0	01	1	0808-1107
166	SPRING; PISTON ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-47819-090-0	01	1	1108-
166	SPRING; PISTON EXC. ANTI LOCK BRAKE<JE5>	1-47819-090-0	03	1	0808-1107
166	SPRING; PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5>	1-47819-090-0	03	1	1108-1109
166	SPRING; PISTON ANTI LOCK BRAKE<JE5>	1-47819-090-0	02	1	0809-1107
166	SPRING; PISTON ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-47819-090-0	02	1	1108-1111
166	SPRING; PISTON BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-47819-090-0	02	1	1112-
167	COVER; VALVE (B) THA	1-48119-625-0	04	1	1103-1107
167	COVER; VALVE ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) THA	1-48119-625-0	04	1	1108-1506
167	COVER; VALVE MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. PTO CONTROL<SV6> (B) THA	1-48119-625-0	04	1	1108-1506
167	COVER; VALVE (A)	1-48219-070-0	03	1	0807-0807
167	COVER; VALVE ANTI LOCK BRAKE<JE5> (A)	1-48219-070-0	01	1	0808-1107
167	COVER; VALVE ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	1-48219-070-0	01	1	1108-
167	COVER; VALVE EXC. ANTI LOCK BRAKE<JE5> (A)	1-48219-070-0	03	1	0808-1107
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (A)	1-48219-070-0	03	1	1108-1109
167	COVER; VALVE ANTI LOCK BRAKE<JE5> (A)	1-48219-070-0	02	1	0809-1107
167	COVER; VALVE ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	1-48219-070-0	02	1	1108-1111
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	1-48219-070-0	02	1	1112-
170	SCREW; COVER TO BODY	1-48219-039-0	12	1	0807-0807
170	SCREW; COVER TO BODY ANTI LOCK BRAKE<JE5>	1-48219-039-0	04	1	0808-1107
170	SCREW; COVER TO BODY ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-48219-039-0	04	1	1108-
170	SCREW; COVER TO BODY EXC. ANTI LOCK BRAKE<JE5>	1-48219-039-0	12	1	0808-1107
170	SCREW; COVER TO BODY BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5>	1-48219-039-0	12	1	1108-1109
170	SCREW; COVER TO BODY ANTI LOCK BRAKE<JE5>	1-48219-039-0	08	1	0809-1107
170	SCREW; COVER TO BODY ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-48219-039-0	08	1	1108-1111
170	SCREW; COVER TO BODY BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-48219-039-0	08	1	1112-

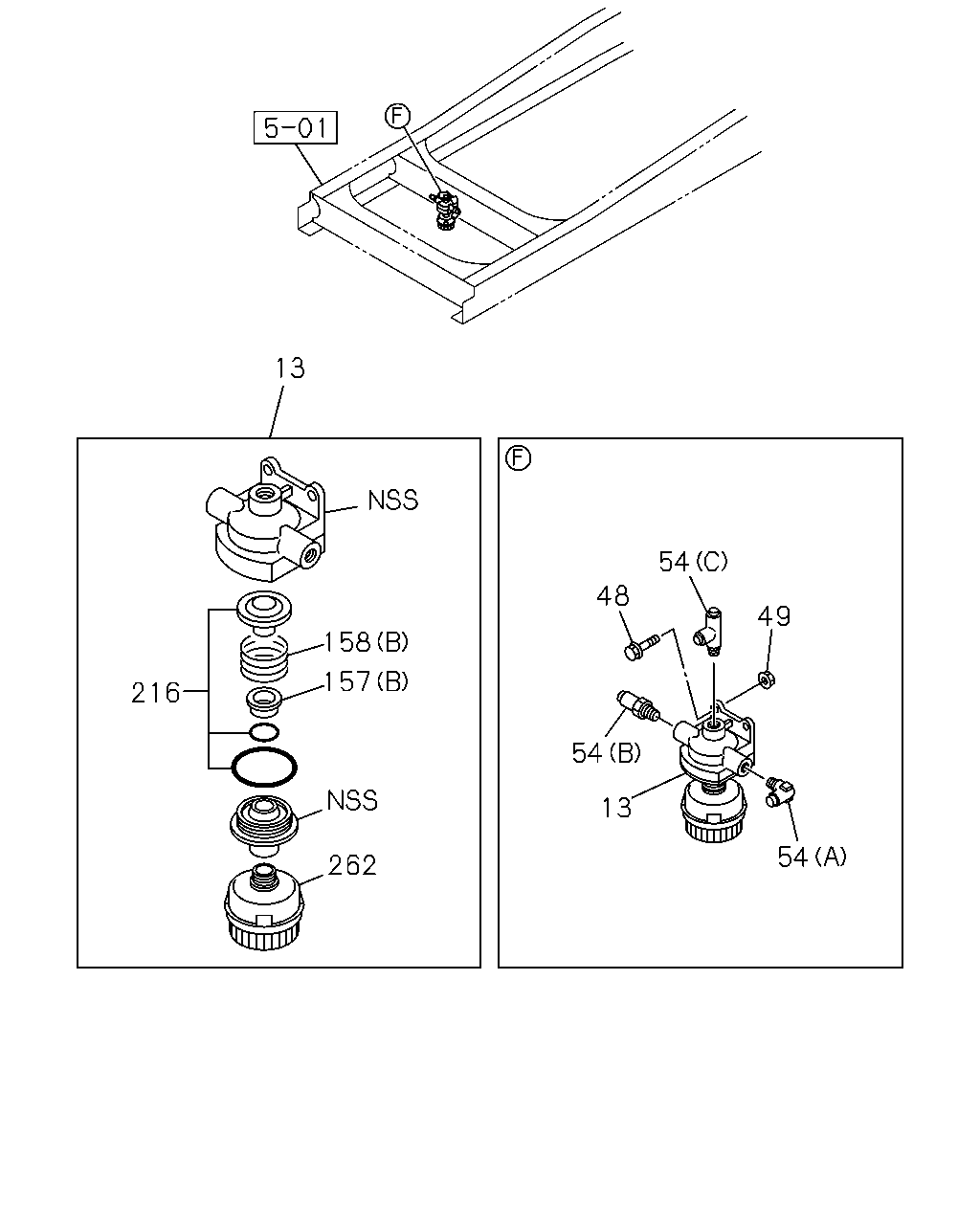

13 54 48 49 158 157 216 54 13 54 262

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	VALVE ASM; QUICK RELEASE	1-48410-726-0	01	1	0807-0808
13	VALVE ASM; QUICK RELEASE EXC. ANTI LOCK BRAKE<JE5>	1-48410-726-1	01	1	0809-1107
13	VALVE ASM; QUICK RELEASE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5>	1-48410-726-1	01	1	1108-
48	BOLT; QUICK RELEASE VLV M8X25 FLANGE THA	0-28650-825-0	02	1	0807-0807
48	BOLT; QUICK RELEASE VLV EXC. ANTI LOCK BRAKE<JE5> M8X25 FLANGE THA	0-28650-825-0	02	1	0808-1107
48	BOLT; QUICK RELEASE VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> M8X25 FLANGE THA	0-28650-825-0	02	1	1108-
49	NUT; QUICK RELEASE VLV M8 FLANGE THA	0-91180-108-0	02	1	0807-0807
49	NUT; QUICK RELEASE VLV EXC. ANTI LOCK BRAKE<JE5> M8 FLANGE THA	0-91180-108-0	02	1	0808-1107
49	NUT; QUICK RELEASE VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> M8 FLANGE THA	0-91180-108-0	02	1	1108-
54	CONNECTOR; QUICK RELEASE VLV (A) DIN12 & R3/8 ELBOW THA	1-09660-959-0	01	1	0807-0808
54	CONNECTOR; QUICK RELEASE VLV EXC. ANTI LOCK BRAKE<JE5> (A) DIN12 & R3/8 ELBOW THA	1-09660-959-0	01	1	0809-1107
54	CONNECTOR; QUICK RELEASE VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (A) DIN12 & R3/8 ELBOW THA	1-09660-959-0	01	1	1108-
54	CONNECTOR; QUICK RELEASE VLV (B) DIN12 & R3/8 STRAIGHT THA	1-09660-965-0	01	1	0807-0808
54	CONNECTOR; QUICK RELEASE VLV EXC. ANTI LOCK BRAKE<JE5> (B) DIN12 & R3/8 STRAIGHT THA	1-09660-965-0	01	1	0809-1107
54	CONNECTOR; QUICK RELEASE VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (B) DIN12 & R3/8 STRAIGHT THA	1-09660-965-0	01	1	1108-
54	CONNECTOR; QUICK RELEASE VLV (C) IMA	1-09661-207-0	01	1	0807-0808
54	CONNECTOR; QUICK RELEASE VLV EXC. ANTI LOCK BRAKE<JE5> (C) IMA	1-09661-207-0	01	1	0809-1107
54	CONNECTOR; QUICK RELEASE VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (C) IMA	1-09661-207-0	01	1	1108-
157	RETAINER; VALVE (A)	1-48213-002-0	03	1	0807-0807
157	RETAINER; VALVE ANTI LOCK BRAKE<JE5> (A)	1-48213-002-0	01	1	0808-1107
157	RETAINER; VALVE ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	1-48213-002-0	01	1	1108-
157	RETAINER; VALVE EXC. ANTI LOCK BRAKE<JE5> (A)	1-48213-002-0	03	1	0808-1107
157	RETAINER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (A)	1-48213-002-0	03	1	1108-1109
157	RETAINER; VALVE ANTI LOCK BRAKE<JE5> (A)	1-48213-002-0	02	1	0809-1107
157	RETAINER; VALVE ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	1-48213-002-0	02	1	1108-1111
157	RETAINER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	1-48213-002-0	02	1	1112-
157	RETAINER; VALVE (B)	1-48419-020-0	01	1	0807-0808
157	RETAINER; VALVE EXC. ANTI LOCK BRAKE<JE5> (B)	1-48419-020-0	01	1	0809-1107
157	RETAINER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (B)	1-48419-020-0	01	1	1108-
158	SPRING; VALVE (A)	1-47819-089-0	03	1	0807-0807
158	SPRING; VALVE ANTI LOCK BRAKE<JE5> (A)	1-47819-089-0	01	1	0808-1107
158	SPRING; VALVE ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	1-47819-089-0	01	1	1108-
158	SPRING; VALVE EXC. ANTI LOCK BRAKE<JE5> (A)	1-47819-089-0	03	1	0808-1107
158	SPRING; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (A)	1-47819-089-0	03	1	1108-1109
158	SPRING; VALVE ANTI LOCK BRAKE<JE5> (A)	1-47819-089-0	02	1	0809-1107
158	SPRING; VALVE ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	1-47819-089-0	02	1	1108-1111
158	SPRING; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	1-47819-089-0	02	1	1112-
158	SPRING; VALVE (B)	9-48419-003-0	01	1	0807-0808
158	SPRING; VALVE EXC. ANTI LOCK BRAKE<JE5> (B)	9-48419-003-0	01	1	0809-1107
158	SPRING; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (B)	9-48419-003-0	01	1	1108-
216	REPAIR KIT; QUICK RELEASE VLV	1-85576-235-0	01	1	0807-0808
216	REPAIR KIT; QUICK RELEASE VLV EXC. ANTI LOCK BRAKE<JE5>	1-85576-235-0	01	1	0809-1107
216	REPAIR KIT; QUICK RELEASE VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5>	1-85576-235-0	01	1	1108-1109
216	REPAIR KIT; QUICK RELEASE VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5>	1-85576-484-0	01	1	1110-
262	SILENCER; RELAY VALVE	1-48219-149-0	01	1	0807-0808
262	SILENCER; RELAY VALVE EXC. ANTI LOCK BRAKE<JE5>	1-48219-149-0	01	1	0809-1107
262	SILENCER; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5>	1-48219-149-0	01	1	1108-

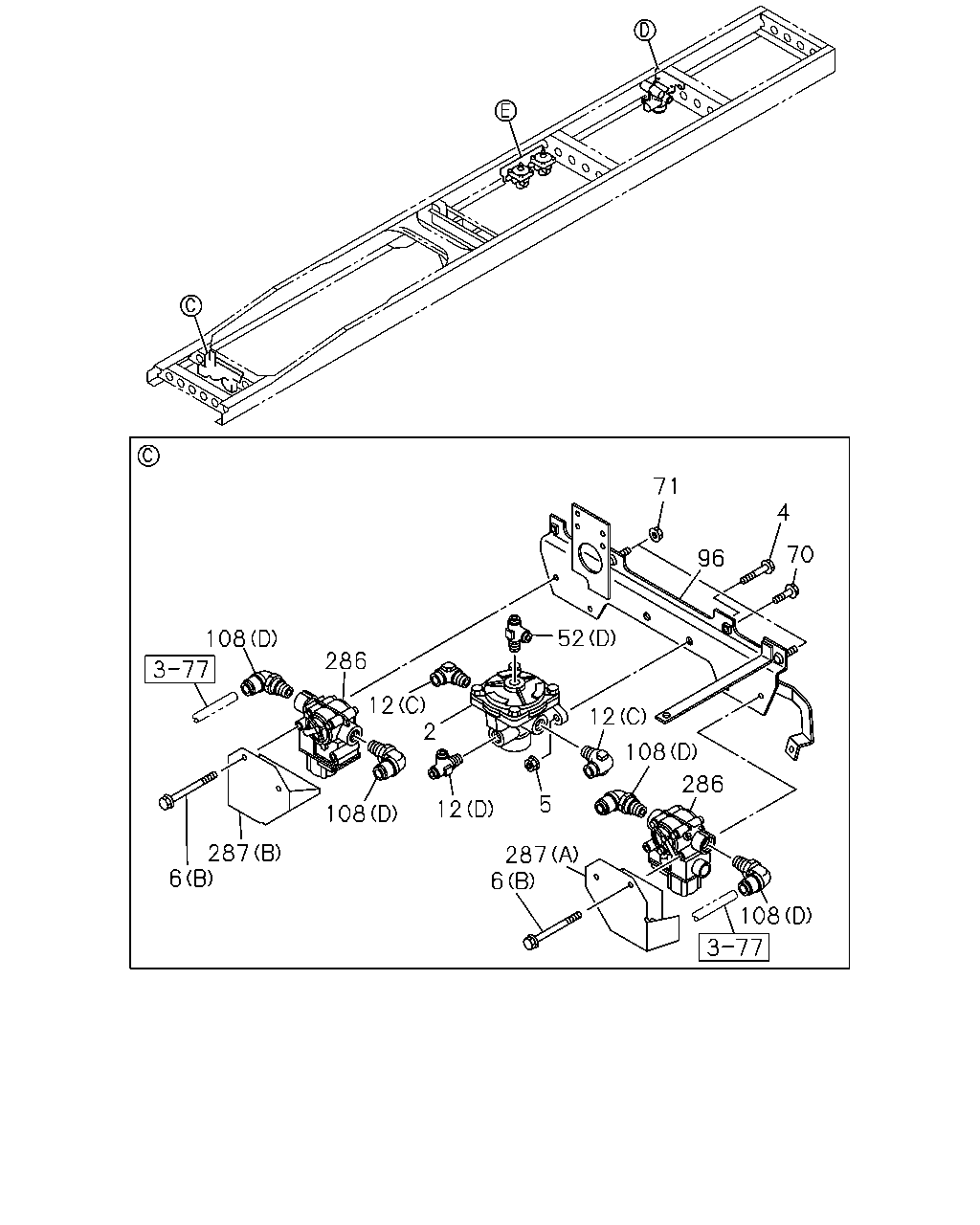

71 4 70 96 52 108 286 12 2 12 108 286 5 12 108 287 6 287 6 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	VALVE; RELAY	1-48210-875-0	03	1	0807-0807
2	VALVE; RELAY ANTI LOCK BRAKE<JE5>	1-48210-875-0	01	1	0808-1107
2	VALVE; RELAY ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-48210-875-0	01	1	1108-
2	VALVE; RELAY EXC. ANTI LOCK BRAKE<JE5>	1-48210-875-0	03	1	0808-1107
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5>	1-48210-875-0	03	1	1108-1109
2	VALVE; RELAY ANTI LOCK BRAKE<JE5>	1-48210-875-0	02	1	0809-1107
2	VALVE; RELAY ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-48210-875-0	02	1	1108-1111
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-48210-875-0	02	1	1112-
4	BOLT; RELAY VLV TO BRKT EXC. ANTI LOCK BRAKE<JE5> M10X35 FLANGE THA	0-28651-035-0	04	1	0808-0808
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE THA	0-28651-035-0	04	1	0809-1107
4	BOLT; RELAY VLV TO BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M10X35 FLANGE THA	0-28651-035-0	04	1	1108-1109
4	BOLT; RELAY VLV TO BRKT ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M10X35 FLANGE THA	0-28651-035-0	04	1	1110-1111
4	BOLT; RELAY VLV TO BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M10X35 FLANGE THA	0-28651-035-0	04	1	1112-
4	BOLT; RELAY VLV TO BRKT M10X30 FLANGE THA	0-28651-030-0	02	1	0807-0807
4	BOLT; RELAY VLV TO BRKT EXC. ANTI LOCK BRAKE<JE5> M10X30 FLANGE THA	0-28651-030-0	02	1	0808-1107
4	BOLT; RELAY VLV TO BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> M10X30 FLANGE THA	0-28651-030-0	02	1	1108-1109
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE THA	0-28651-035-0	04	1	0807-0807
4	BOLT; RELAY VLV TO BRKT ANTI LOCK BRAKE<JE5> M10X35 FLANGE THA	0-28651-035-0	02	1	0808-1107
4	BOLT; RELAY VLV TO BRKT ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M10X35 FLANGE THA	0-28651-035-0	02	1	1108-
5	NUT M10 FLANGE THA	0-91180-210-0	06	1	0807-0807
5	NUT ANTI LOCK BRAKE<JE5> M10 FLANGE THA	0-91180-210-0	02	1	0808-1107
5	NUT ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M10 FLANGE THA	0-91180-210-0	02	1	1108-
5	NUT EXC. ANTI LOCK BRAKE<JE5> M10 FLANGE THA	0-91180-210-0	06	1	0808-1107
5	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> M10 FLANGE THA	0-91180-210-0	06	1	1108-1109
5	NUT ANTI LOCK BRAKE<JE5> M10 FLANGE THA	0-91180-210-0	04	1	0809-1107
5	NUT ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M10 FLANGE THA	0-91180-210-0	04	1	1108-1111
5	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M10 FLANGE THA	0-91180-210-0	04	1	1112-
6	BOLT; VLV ANTI LOCK BRAKE<JE5> (B) M8X80 FLANGE THA	0-28050-880-0	04	1	0808-1107
6	BOLT; VLV ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) M8X80 FLANGE THA	0-28050-880-0	04	1	1108-
6	BOLT; VLV (A) M8X35 FLANGE THA	0-28650-835-0	02	1	0807-1107
6	BOLT; VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) M8X35 FLANGE THA	0-28650-835-0	02	1	1108-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (B) DIN12 & R3/8 STRAIGHT THA	1-09660-965-0	02	1	1112-
12	CONNECTOR; RELAY VLV (A) DIN8 & R3/8 ELBOW THA	1-09660-957-0	02	1	0807-0807
12	CONNECTOR; RELAY VLV EXC. ANTI LOCK BRAKE<JE5> (A) DIN8 & R3/8 ELBOW THA	1-09660-957-0	02	1	0808-1107
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (A) DIN8 & R3/8 ELBOW THA	1-09660-957-0	02	1	1108-1109
12	CONNECTOR; RELAY VLV (C) DIN12 & R3/8 ELBOW THA	1-09660-959-0	03	1	0807-0807
12	CONNECTOR; RELAY VLV ANTI LOCK BRAKE<JE5> (C) DIN12 & R3/8 ELBOW THA	1-09660-959-0	02	1	0808-1107
12	CONNECTOR; RELAY VLV ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) DIN12 & R3/8 ELBOW THA	1-09660-959-0	02	1	1108-1111
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) DIN12 & R3/8 ELBOW THA	1-09660-959-0	02	1	1112-
12	CONNECTOR; RELAY VLV ANTI LOCK BRAKE<JE5> (D) IMA	1-09661-207-0	01	1	0808-1107
12	CONNECTOR; RELAY VLV ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (D) IMA	1-09661-207-0	01	1	1108-
12	CONNECTOR; RELAY VLV EXC. ANTI LOCK BRAKE<JE5> (C) DIN12 & R3/8 ELBOW THA	1-09660-959-0	03	1	0808-0808
12	CONNECTOR; RELAY VLV (C) DIN12 & R3/8 ELBOW THA	1-09660-959-0	03	1	0809-1107
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) DIN12 & R3/8 ELBOW THA	1-09660-959-0	03	1	1108-1109
12	CONNECTOR; RELAY VLV ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) DIN12 & R3/8 ELBOW THA	1-09660-959-0	03	1	1110-
12	CONNECTOR; RELAY VLV ANTI LOCK BRAKE<JE5> (E) DIN8 & R1/4 ELBOW THA	1-09660-956-0	01	1	0809-1107
12	CONNECTOR; RELAY VLV ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (E) DIN8 & R1/4 ELBOW THA	1-09660-956-0	01	1	1108-
12	CONNECTOR; RELAY VLV ANTI LOCK BRAKE<JE5> (A) DIN8 & R3/8 ELBOW THA	1-09660-957-0	01	1	0809-1107
12	CONNECTOR; RELAY VLV ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) DIN8 & R3/8 ELBOW THA	1-09660-957-0	01	1	1108-1111
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) DIN8 & R3/8 ELBOW THA	1-09660-957-0	01	1	1112-
12	CONNECTOR; RELAY VLV ANTI LOCK BRAKE<JE5> (B) DIN12 & R3/8 STRAIGHT THA	1-09660-965-0	01	1	0809-1107
12	CONNECTOR; RELAY VLV ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) DIN12 & R3/8 STRAIGHT THA	1-09660-965-0	01	1	1108-
12	CONNECTOR; RELAY VLV (B) DIN12 & R3/8 STRAIGHT THA	1-09660-965-0	02	1	0807-0807
12	CONNECTOR; RELAY VLV EXC. ANTI LOCK BRAKE<JE5> (B) DIN12 & R3/8 STRAIGHT THA	1-09660-965-0	02	1	0808-1107
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (B) DIN12 & R3/8 STRAIGHT THA	1-09660-965-0	02	1	1108-1109
52	CONNECTOR; RELAY VLV ANTI LOCK BRAKE<JE5> (D) DIN8X2 & R3/8 3WAY IMA	1-09660-997-0	01	1	0808-1107
52	CONNECTOR; RELAY VLV ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (D) DIN8X2 & R3/8 3WAY IMA	1-09660-997-0	01	1	1108-
52	CONNECTOR; RELAY VLV ANTI LOCK BRAKE<JE5> (C)	1-09661-537-0	01	1	0809-0811
52	CONNECTOR; RELAY VLV ANTI LOCK BRAKE<JE5> (C) DIN8 & RC1/4 & R3/8 3WAY THA	8-97620-116-0	01	1	0812-1107
52	CONNECTOR; RELAY VLV ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) DIN8 & RC1/4 & R3/8 3WAY THA	8-97620-116-0	01	1	1108-
52	CONNECTOR; RELAY VLV (A) DIN8X2 & R3/8 3WAY THA	1-09660-996-0	01	1	0807-0808
52	CONNECTOR; RELAY VLV EXC. ANTI LOCK BRAKE<JE5> (A) DIN8X2 & R3/8 3WAY THA	1-09660-996-0	01	1	0809-1107
52	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (A) DIN8X2 & R3/8 3WAY THA	1-09660-996-0	01	1	1108-
52	CONNECTOR; RELAY VLV (B) PT3/8 3WAY THA	1-09661-300-0	02	1	0807-0808
52	CONNECTOR; RELAY VLV EXC. ANTI LOCK BRAKE<JE5> (B) PT3/8 3WAY THA	1-09661-300-0	02	1	0809-1107
52	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (B) PT3/8 3WAY THA	1-09661-300-0	02	1	1108-1111
52	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (B) DIN9 & RC3/8 ELBOW THA	8-98203-578-0	02	1	1112-
70	BOLT; AIR VLV ANTI LOCK BRAKE<JE5> M8X25 FLANGE THA	0-28650-825-0	02	1	0808-1107
70	BOLT; AIR VLV ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X25 FLANGE THA	0-28650-825-0	02	1	1108-
71	NUT; AIR VLV ANTI LOCK BRAKE<JE5> M8 FLANGE THA	0-91180-108-0	02	1	0808-1107
71	NUT; AIR VLV ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8 FLANGE THA	0-91180-108-0	02	1	1108-
96	BRACKET ANTI LOCK BRAKE<JE5>	8-98074-613-3	01	1	0808-1107
96	BRACKET ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	8-98074-613-3	01	1	1108-
96	BRACKET ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	8-98273-496-0	01	1	1411-
108	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (A) DIN12 & R3/8 ELBOW THA	1-09660-959-0	02	1	1112-
108	CONNECTOR; ELBOW MZW6P M/T<RSZ> PTO CONTROL<SV6> (E) M12 & PT1/4 STRAIGHT THA	1-09650-074-1	01	1	1103-1107
108	CONNECTOR; ELBOW MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> PTO CONTROL<SV6> (E) M12 & PT1/4 STRAIGHT THA	1-09650-074-1	01	1	1108-
108	CONNECTOR; ELBOW MZW6P M/T<RSZ> PTO CONTROL<SV6> (F) M12 & PT1/4 3WAY THA	1-09656-586-1	01	1	1103-1107
108	CONNECTOR; ELBOW MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> PTO CONTROL<SV6> (F) M12 & PT1/4 3WAY THA	1-09656-586-1	01	1	1108-
108	CONNECTOR; ELBOW MZW6P M/T<RSZ> PTO CONTROL<SV6> (G) DIN12 & R3/8 STRAIGHT THA	1-09660-965-0	01	1	1103-1107
108	CONNECTOR; ELBOW MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> PTO CONTROL<SV6> (G) DIN12 & R3/8 STRAIGHT THA	1-09660-965-0	01	1	1108-
108	CONNECTOR; ELBOW MZW6P M/T<RSZ> PTO CONTROL<SV6> (H) THA	8-98031-238-0	01	1	1103-1107
108	CONNECTOR; ELBOW MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> PTO CONTROL<SV6> (H) THA	8-98031-238-0	01	1	1108-
108	CONNECTOR; ELBOW (I) M12 & PT1/4 ELBOW THA	1-09650-430-0	02	1	1103-1107
108	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (I) M12 & PT1/4 ELBOW THA	1-09650-430-0	02	1	1108-
108	CONNECTOR; ELBOW ZF9S1110 M/T<Y5E> (J) M12 & PT1/4 ELBOW THA	1-48629-258-0	01	1	1103-1107
108	CONNECTOR; ELBOW ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (J) M12 & PT1/4 ELBOW THA	1-48629-258-0	01	1	1108-1503
108	CONNECTOR; ELBOW ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (J) M12 & PT1/4 ELBOW IMA	8-98299-777-0	01	1	1504-
108	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> (D) DIN12 & M22 ELBOW IMA	1-09661-497-0	04	1	0808-1107
108	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (D) DIN12 & M22 ELBOW IMA	1-09661-497-0	04	1	1108-
108	CONNECTOR; ELBOW MZW6P M/T<RSZ> PTO CONTROL<SV6> (K) DIN8 & M12 STRAIGHT THA	1-09660-873-0	01	1	1103-1107
108	CONNECTOR; ELBOW MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> PTO CONTROL<SV6> (K) DIN8 & M12 STRAIGHT THA	1-09660-873-0	01	1	1108-
108	CONNECTOR; ELBOW ZF6S1000 M/T<Y5D> (C) DIN8 & R3/8 ELBOW THA	1-09660-957-0	01	1	0807-1102
108	CONNECTOR; ELBOW (L) DIN8 & R1/4 ELBOW THA	1-09660-956-0	01	1	1103-1107
108	CONNECTOR; ELBOW ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (L) DIN8 & R1/4 ELBOW THA	1-09660-956-0	01	1	1108-
108	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (L) DIN8 & R1/4 ELBOW THA	1-09660-956-0	01	1	1108-
108	CONNECTOR; ELBOW MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. PTO CONTROL<SV6> (L) DIN8 & R1/4 ELBOW THA	1-09660-956-0	01	1	1108-
108	CONNECTOR; ELBOW (B) PT3/8 ELBOW THA	1-09660-696-0	01	1	0807-1107
108	CONNECTOR; ELBOW ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) PT3/8 ELBOW THA	1-09660-696-0	01	1	1108-
108	CONNECTOR; ELBOW MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. PTO CONTROL<SV6> (B) PT3/8 ELBOW THA	1-09660-696-0	01	1	1108-
108	CONNECTOR; ELBOW (A) DIN12 & R3/8 ELBOW THA	1-09660-959-0	02	1	0807-0807
108	CONNECTOR; ELBOW EXC. ANTI LOCK BRAKE<JE5> (A) DIN12 & R3/8 ELBOW THA	1-09660-959-0	02	1	0808-1107
108	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (A) DIN12 & R3/8 ELBOW THA	1-09660-959-0	02	1	1108-1109
108	CONNECTOR; ELBOW (A) DIN12 & R3/8 ELBOW THA	1-09660-959-0	03	1	0807-1107
108	CONNECTOR; ELBOW ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) DIN12 & R3/8 ELBOW THA	1-09660-959-0	03	1	1108-
108	CONNECTOR; ELBOW MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. PTO CONTROL<SV6> (A) DIN12 & R3/8 ELBOW THA	1-09660-959-0	03	1	1108-
286	MODULATOR; FRT ANTI LOCK BRAKE<JE5> THA	1-48240-115-0	02	1	0808-1107
286	MODULATOR; FRT ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-48240-115-0	02	1	1108-
286	MODULATOR; FRT ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	8-98215-454-0	02	1	1411-
287	COVER; MODULATOR ANTI LOCK BRAKE<JE5> (A) THA	1-47479-611-1	01	1	0808-1107
287	COVER; MODULATOR ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	1-47479-611-1	01	1	1108-
287	COVER; MODULATOR ANTI LOCK BRAKE<JE5> (B) THA	8-98073-401-0	01	1	0808-1107
287	COVER; MODULATOR ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) THA	8-98073-401-0	01	1	1108-

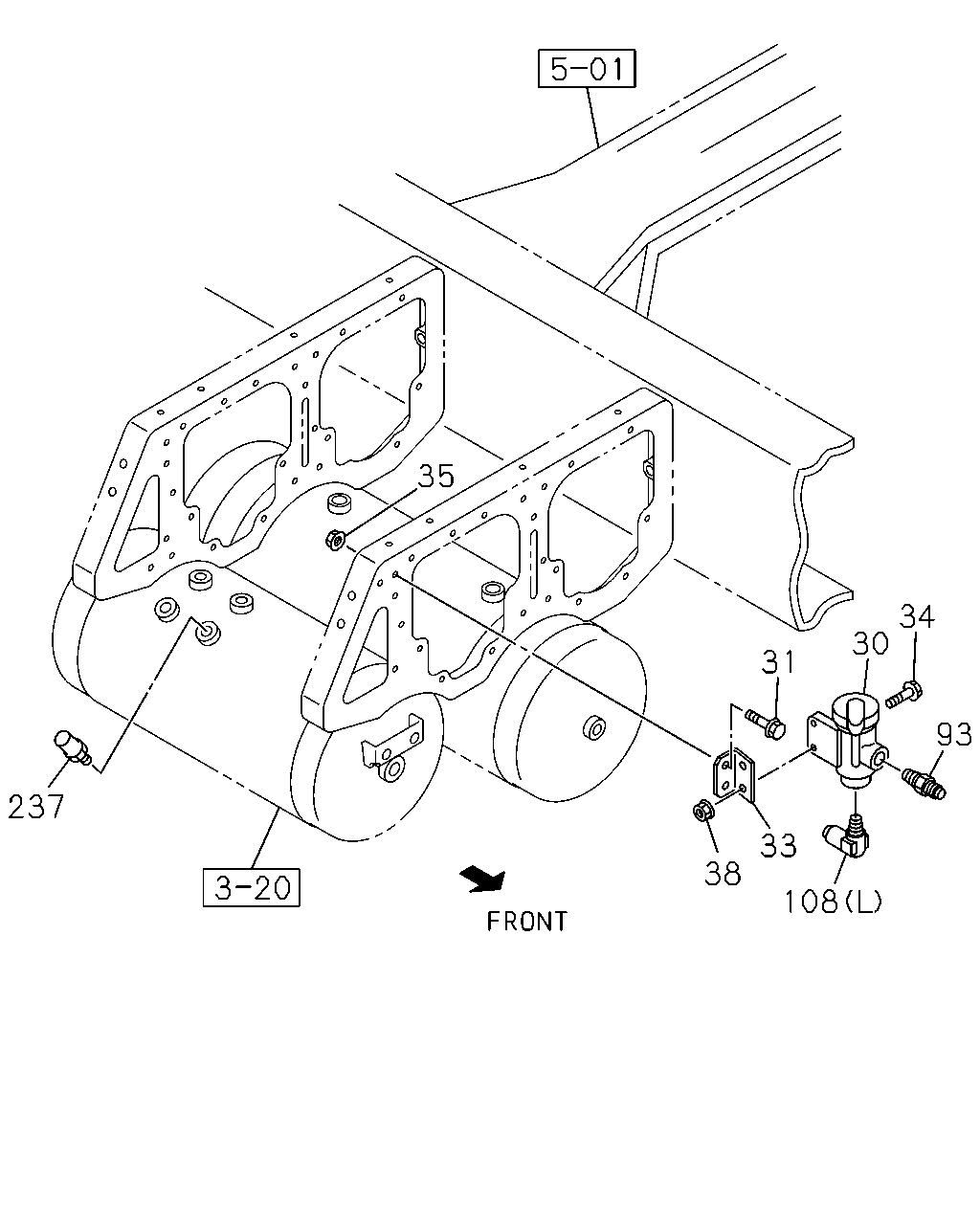

35 34 30 31 93 237 33 38 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
30	GOVERNOR; AIR CONT	1-48350-093-2	01	1	1103-
31	BOLT; GOV TO FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8X20 FLANGE THA	0-28650-820-0	02	1	1108-
31	BOLT; GOV TO FRAME M8X30 FLANGE THA	0-28650-830-0	02	1	1103-1107
31	BOLT; GOV TO FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X30 FLANGE THA	0-28650-830-0	02	1	1108-
33	BRACKET; GOV,AIR CONT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05>	8-98120-459-1	01	1	1108-
34	BOLT; BRKT,GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8X30 FLANGE THA	0-28650-830-0	02	1	1108-
35	NUT; GOV TO FRAME M8 FLANGE THA	0-91180-108-0	02	1	1103-
38	NUT; BRKT,GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8 FLANGE THA	0-91180-108-0	02	1	1108-
93	CONNECTOR; GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M12 & PT1/4 STRAIGHT THA	1-09650-074-1	01	1	1108-
108	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (A) DIN12 & R3/8 ELBOW THA	1-09660-959-0	02	1	1112-
108	CONNECTOR; ELBOW MZW6P M/T<RSZ> PTO CONTROL<SV6> (E) M12 & PT1/4 STRAIGHT THA	1-09650-074-1	01	1	1103-1107
108	CONNECTOR; ELBOW MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> PTO CONTROL<SV6> (E) M12 & PT1/4 STRAIGHT THA	1-09650-074-1	01	1	1108-
108	CONNECTOR; ELBOW MZW6P M/T<RSZ> PTO CONTROL<SV6> (F) M12 & PT1/4 3WAY THA	1-09656-586-1	01	1	1103-1107
108	CONNECTOR; ELBOW MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> PTO CONTROL<SV6> (F) M12 & PT1/4 3WAY THA	1-09656-586-1	01	1	1108-
108	CONNECTOR; ELBOW MZW6P M/T<RSZ> PTO CONTROL<SV6> (G) DIN12 & R3/8 STRAIGHT THA	1-09660-965-0	01	1	1103-1107
108	CONNECTOR; ELBOW MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> PTO CONTROL<SV6> (G) DIN12 & R3/8 STRAIGHT THA	1-09660-965-0	01	1	1108-
108	CONNECTOR; ELBOW MZW6P M/T<RSZ> PTO CONTROL<SV6> (H) THA	8-98031-238-0	01	1	1103-1107
108	CONNECTOR; ELBOW MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> PTO CONTROL<SV6> (H) THA	8-98031-238-0	01	1	1108-
108	CONNECTOR; ELBOW (I) M12 & PT1/4 ELBOW THA	1-09650-430-0	02	1	1103-1107
108	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (I) M12 & PT1/4 ELBOW THA	1-09650-430-0	02	1	1108-
108	CONNECTOR; ELBOW ZF9S1110 M/T<Y5E> (J) M12 & PT1/4 ELBOW THA	1-48629-258-0	01	1	1103-1107
108	CONNECTOR; ELBOW ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (J) M12 & PT1/4 ELBOW THA	1-48629-258-0	01	1	1108-1503
108	CONNECTOR; ELBOW ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (J) M12 & PT1/4 ELBOW IMA	8-98299-777-0	01	1	1504-
108	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> (D) DIN12 & M22 ELBOW IMA	1-09661-497-0	04	1	0808-1107
108	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (D) DIN12 & M22 ELBOW IMA	1-09661-497-0	04	1	1108-
108	CONNECTOR; ELBOW MZW6P M/T<RSZ> PTO CONTROL<SV6> (K) DIN8 & M12 STRAIGHT THA	1-09660-873-0	01	1	1103-1107
108	CONNECTOR; ELBOW MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> PTO CONTROL<SV6> (K) DIN8 & M12 STRAIGHT THA	1-09660-873-0	01	1	1108-
108	CONNECTOR; ELBOW ZF6S1000 M/T<Y5D> (C) DIN8 & R3/8 ELBOW THA	1-09660-957-0	01	1	0807-1102
108	CONNECTOR; ELBOW (L) DIN8 & R1/4 ELBOW THA	1-09660-956-0	01	1	1103-1107
108	CONNECTOR; ELBOW ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (L) DIN8 & R1/4 ELBOW THA	1-09660-956-0	01	1	1108-
108	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (L) DIN8 & R1/4 ELBOW THA	1-09660-956-0	01	1	1108-
108	CONNECTOR; ELBOW MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. PTO CONTROL<SV6> (L) DIN8 & R1/4 ELBOW THA	1-09660-956-0	01	1	1108-
108	CONNECTOR; ELBOW (B) PT3/8 ELBOW THA	1-09660-696-0	01	1	0807-1107
108	CONNECTOR; ELBOW ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) PT3/8 ELBOW THA	1-09660-696-0	01	1	1108-
108	CONNECTOR; ELBOW MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. PTO CONTROL<SV6> (B) PT3/8 ELBOW THA	1-09660-696-0	01	1	1108-
108	CONNECTOR; ELBOW (A) DIN12 & R3/8 ELBOW THA	1-09660-959-0	02	1	0807-0807
108	CONNECTOR; ELBOW EXC. ANTI LOCK BRAKE<JE5> (A) DIN12 & R3/8 ELBOW THA	1-09660-959-0	02	1	0808-1107
108	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (A) DIN12 & R3/8 ELBOW THA	1-09660-959-0	02	1	1108-1109
108	CONNECTOR; ELBOW (A) DIN12 & R3/8 ELBOW THA	1-09660-959-0	03	1	0807-1107
108	CONNECTOR; ELBOW ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) DIN12 & R3/8 ELBOW THA	1-09660-959-0	03	1	1108-
108	CONNECTOR; ELBOW MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. PTO CONTROL<SV6> (A) DIN12 & R3/8 ELBOW THA	1-09660-959-0	03	1	1108-
237	VALVE; SAFETY	1-48320-012-2	01	1	0807-

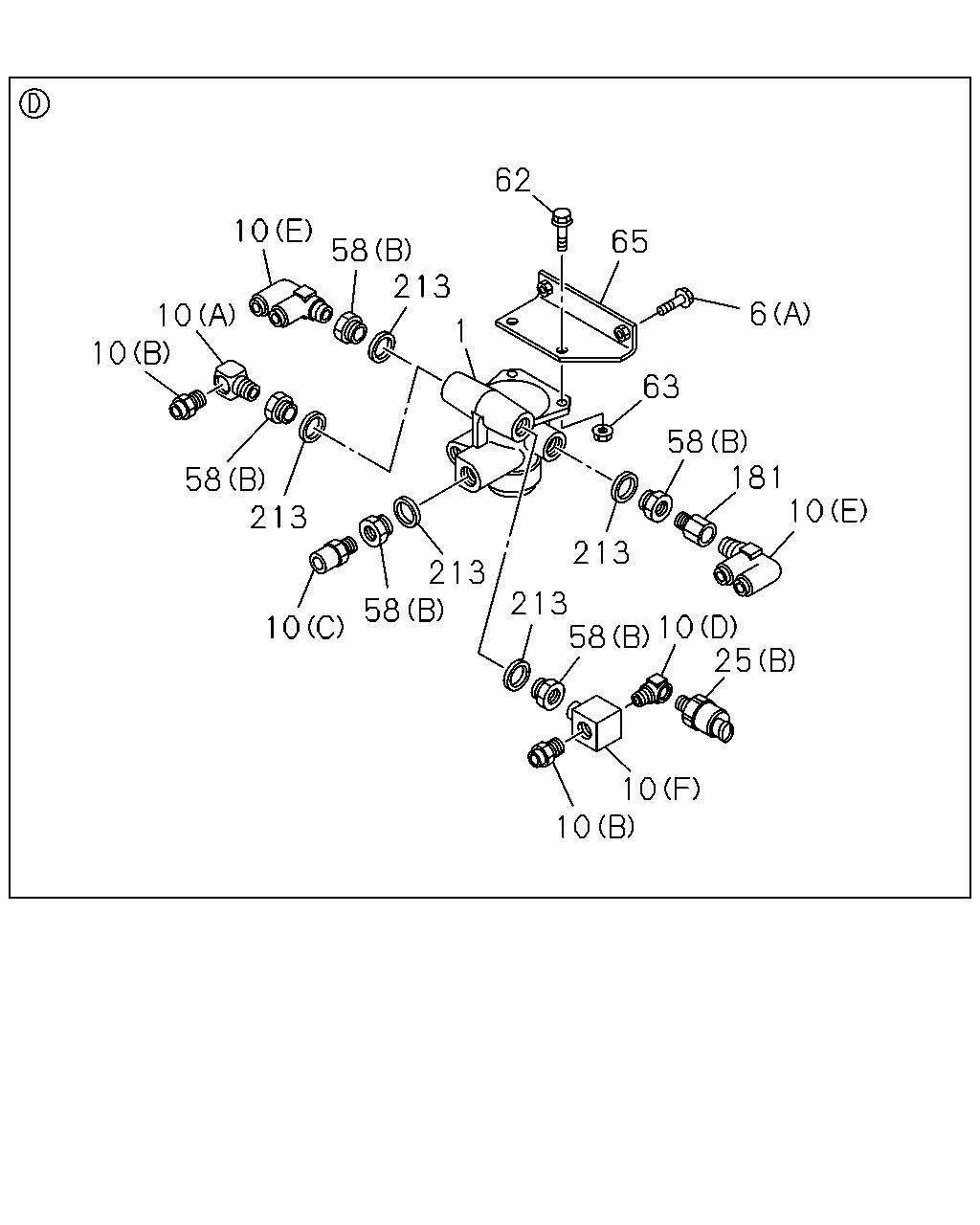

62 10 65 58 213 6 10 10 1 63 58 181 10 58 213 213 213 58 213 10 58 25 10 10 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; RELAY RWD RR	1-48240-354-1	01	1	0807-1107
1	VALVE; RELAY RWD RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-48240-354-1	01	1	1108-
6	BOLT; VLV ANTI LOCK BRAKE<JE5> (B) M8X80 FLANGE THA	0-28050-880-0	04	1	0808-1107
6	BOLT; VLV ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) M8X80 FLANGE THA	0-28050-880-0	04	1	1108-
6	BOLT; VLV (A) M8X35 FLANGE THA	0-28650-835-0	02	1	0807-1107
6	BOLT; VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) M8X35 FLANGE THA	0-28650-835-0	02	1	1108-
10	CONNECTOR MZW6P M/T<RSZ> EXC. PTO CONTROL<SV6> (G) M12 & PT1/4 STRAIGHT THA	1-09650-074-1	01	1	1103-1107
10	CONNECTOR MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. PTO CONTROL<SV6> (G) M12 & PT1/4 STRAIGHT THA	1-09650-074-1	01	1	1108-
10	CONNECTOR (H) M12 & PT1/4 3WAY THA	1-09656-586-1	01	1	1103-1107
10	CONNECTOR ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (H) M12 & PT1/4 3WAY THA	1-09656-586-1	01	1	1108-
10	CONNECTOR MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. PTO CONTROL<SV6> (H) M12 & PT1/4 3WAY THA	1-09656-586-1	01	1	1108-
10	CONNECTOR (F) IMA	1-09656-708-0	01	1	0807-1107
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (F) IMA	1-09656-708-0	01	1	1108-
10	CONNECTOR (D) PT1/4 2WAY THA	1-09660-693-0	01	1	0807-1107
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (D) PT1/4 2WAY THA	1-09660-693-0	01	1	1108-
10	CONNECTOR (A) PT3/8 ELBOW THA	1-09660-696-0	01	1	0807-1107
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) PT3/8 ELBOW THA	1-09660-696-0	01	1	1108-
10	CONNECTOR (B) DIN8 & R3/8 STRAIGHT THA	1-09660-964-0	02	1	0807-1107
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) DIN8 & R3/8 STRAIGHT THA	1-09660-964-0	02	1	1108-
10	CONNECTOR (C) DIN12 & R3/8 STRAIGHT THA	1-09660-965-0	01	1	0807-1107
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) DIN12 & R3/8 STRAIGHT THA	1-09660-965-0	01	1	1108-
10	CONNECTOR (E) DIN12X2 & PT3/8 DOUBLE ELBOW THA	1-09661-026-0	02	1	0807-1107
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (E) DIN12X2 & PT3/8 DOUBLE ELBOW THA	1-09661-026-0	02	1	1108-
25	SWITCH; PRESSURE (A) STAMP 5.5 THA	8-97609-249-0	01	1	0807-1107
25	SWITCH; PRESSURE ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) STAMP 5.5 THA	8-97609-249-0	01	1	1108-
25	SWITCH; PRESSURE MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. PTO CONTROL<SV6> (A) STAMP 5.5 THA	8-97609-249-0	01	1	1108-
25	SWITCH; PRESSURE (B) STAMP 2.0	8-98010-856-1	01	1	0807-1107
25	SWITCH; PRESSURE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) STAMP 2.0	8-98010-856-2	01	1	1108-
58	ADAPTER MZW6P M/T<RSZ> PTO CONTROL<SV6> (C) PT3/8 ELBOW THA	1-09660-696-0	01	1	1103-1107
58	ADAPTER MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> PTO CONTROL<SV6> (C) PT3/8 ELBOW THA	1-09660-696-0	01	1	1108-
58	ADAPTER (D) DIN12 & R3/8 STRAIGHT THA	1-09660-965-0	01	1	1103-1107
58	ADAPTER ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (D) DIN12 & R3/8 STRAIGHT THA	1-09660-965-0	01	1	1108-
58	ADAPTER MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. PTO CONTROL<SV6> (D) DIN12 & R3/8 STRAIGHT THA	1-09660-965-0	01	1	1108-
58	ADAPTER (E) THA	8-98031-238-0	01	1	1103-1107
58	ADAPTER ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (E) THA	8-98031-238-0	01	1	1108-
58	ADAPTER MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. PTO CONTROL<SV6> (E) THA	8-98031-238-0	01	1	1108-
58	ADAPTER (F)	8-98148-475-0	01	1	1103-1107
58	ADAPTER ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (F)	8-98148-475-0	01	1	1108-
58	ADAPTER MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. PTO CONTROL<SV6> (F)	8-98148-475-0	01	1	1108-
58	ADAPTER ZF9S1110 M/T<Y5E> (G) M12 & PT1/4 3WAY THA	1-09656-586-1	01	1	1103-1107
58	ADAPTER ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (G) M12 & PT1/4 3WAY THA	1-09656-586-1	01	1	1108-
58	ADAPTER ZF9S1110 M/T<Y5E> (H) DIN8 & M12 STRAIGHT THA	1-09660-873-0	01	1	1103-1107
58	ADAPTER ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (H) DIN8 & M12 STRAIGHT THA	1-09660-873-0	01	1	1108-
58	ADAPTER (B) INNER PT3/8,OUTER M22 THA	1-09650-494-1	05	1	0807-1107
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) INNER PT3/8,OUTER M22 THA	1-09650-494-1	05	1	1108-
58	ADAPTER (A) M20 & RC3/8 STRAIGHT THA	1-09660-883-0	01	1	0807-1107
58	ADAPTER ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) M20 & RC3/8 STRAIGHT THA	1-09660-883-0	01	1	1108-
58	ADAPTER MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. PTO CONTROL<SV6> (A) M20 & RC3/8 STRAIGHT THA	1-09660-883-0	01	1	1108-
62	BOLT; BRKT FIX M8X30 FLANGE THA	0-28650-830-0	02	1	0807-1107
62	BOLT; BRKT FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X30 FLANGE THA	0-28650-830-0	02	1	1108-
63	NUT; BRKT FIX M8 FLANGE THA	0-91180-108-0	02	1	0807-1107
63	NUT; BRKT FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8 FLANGE THA	0-91180-108-0	02	1	1108-
65	BRACKET; RELAY VLV RR THA	1-47471-032-0	01	1	0807-1107
65	BRACKET; RELAY VLV RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47471-032-0	01	1	1108-
181	ADAPTER; PRESSURE SW PT3/8 THA	1-09664-210-0	01	1	0807-1107
181	ADAPTER; PRESSURE SW BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> PT3/8 THA	1-09664-210-0	01	1	1108-
213	GASKET ID=22.5 THA	9-09571-422-0	05	1	0807-1107
213	GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> ID=22.5 THA	9-09571-422-0	05	1	1108-

102 105 30 35 108 108 108 31 103 292 102 11 102 108 58 58 10 25 108 108 108 10 108 108 232 58 58 58 108 58 58 108 167 108 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	CONNECTOR MZW6P M/T<RSZ> EXC. PTO CONTROL<SV6> (G) M12 & PT1/4 STRAIGHT THA	1-09650-074-1	01	1	1103-1107
10	CONNECTOR MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. PTO CONTROL<SV6> (G) M12 & PT1/4 STRAIGHT THA	1-09650-074-1	01	1	1108-
10	CONNECTOR (H) M12 & PT1/4 3WAY THA	1-09656-586-1	01	1	1103-1107
10	CONNECTOR ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (H) M12 & PT1/4 3WAY THA	1-09656-586-1	01	1	1108-
10	CONNECTOR MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. PTO CONTROL<SV6> (H) M12 & PT1/4 3WAY THA	1-09656-586-1	01	1	1108-
10	CONNECTOR (F) IMA	1-09656-708-0	01	1	0807-1107
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (F) IMA	1-09656-708-0	01	1	1108-
10	CONNECTOR (D) PT1/4 2WAY THA	1-09660-693-0	01	1	0807-1107
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (D) PT1/4 2WAY THA	1-09660-693-0	01	1	1108-
10	CONNECTOR (A) PT3/8 ELBOW THA	1-09660-696-0	01	1	0807-1107
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) PT3/8 ELBOW THA	1-09660-696-0	01	1	1108-
10	CONNECTOR (B) DIN8 & R3/8 STRAIGHT THA	1-09660-964-0	02	1	0807-1107
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) DIN8 & R3/8 STRAIGHT THA	1-09660-964-0	02	1	1108-
10	CONNECTOR (C) DIN12 & R3/8 STRAIGHT THA	1-09660-965-0	01	1	0807-1107
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) DIN12 & R3/8 STRAIGHT THA	1-09660-965-0	01	1	1108-
10	CONNECTOR (E) DIN12X2 & PT3/8 DOUBLE ELBOW THA	1-09661-026-0	02	1	0807-1107
10	CONNECTOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (E) DIN12X2 & PT3/8 DOUBLE ELBOW THA	1-09661-026-0	02	1	1108-
11	PLUG PT1/4 THA	9-99204-513-0	01	1	1103-1107
11	PLUG ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> PT1/4 THA	9-99204-513-0	01	1	1108-
11	PLUG MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. PTO CONTROL<SV6> PT1/4 THA	9-99204-513-0	01	1	1108-
25	SWITCH; PRESSURE (A) STAMP 5.5 THA	8-97609-249-0	01	1	0807-1107
25	SWITCH; PRESSURE ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) STAMP 5.5 THA	8-97609-249-0	01	1	1108-
25	SWITCH; PRESSURE MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. PTO CONTROL<SV6> (A) STAMP 5.5 THA	8-97609-249-0	01	1	1108-
25	SWITCH; PRESSURE (B) STAMP 2.0	8-98010-856-1	01	1	0807-1107
25	SWITCH; PRESSURE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) STAMP 2.0	8-98010-856-2	01	1	1108-
30	GOVERNOR; AIR CONT	1-48350-093-2	01	1	1103-
31	BOLT; GOV TO FRAME BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8X20 FLANGE THA	0-28650-820-0	02	1	1108-
31	BOLT; GOV TO FRAME M8X30 FLANGE THA	0-28650-830-0	02	1	1103-1107
31	BOLT; GOV TO FRAME BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X30 FLANGE THA	0-28650-830-0	02	1	1108-
35	NUT; GOV TO FRAME M8 FLANGE THA	0-91180-108-0	02	1	1103-
58	ADAPTER MZW6P M/T<RSZ> PTO CONTROL<SV6> (C) PT3/8 ELBOW THA	1-09660-696-0	01	1	1103-1107
58	ADAPTER MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> PTO CONTROL<SV6> (C) PT3/8 ELBOW THA	1-09660-696-0	01	1	1108-
58	ADAPTER (D) DIN12 & R3/8 STRAIGHT THA	1-09660-965-0	01	1	1103-1107
58	ADAPTER ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (D) DIN12 & R3/8 STRAIGHT THA	1-09660-965-0	01	1	1108-
58	ADAPTER MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. PTO CONTROL<SV6> (D) DIN12 & R3/8 STRAIGHT THA	1-09660-965-0	01	1	1108-
58	ADAPTER (E) THA	8-98031-238-0	01	1	1103-1107
58	ADAPTER ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (E) THA	8-98031-238-0	01	1	1108-
58	ADAPTER MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. PTO CONTROL<SV6> (E) THA	8-98031-238-0	01	1	1108-
58	ADAPTER (F)	8-98148-475-0	01	1	1103-1107
58	ADAPTER ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (F)	8-98148-475-0	01	1	1108-
58	ADAPTER MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. PTO CONTROL<SV6> (F)	8-98148-475-0	01	1	1108-
58	ADAPTER ZF9S1110 M/T<Y5E> (G) M12 & PT1/4 3WAY THA	1-09656-586-1	01	1	1103-1107
58	ADAPTER ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (G) M12 & PT1/4 3WAY THA	1-09656-586-1	01	1	1108-
58	ADAPTER ZF9S1110 M/T<Y5E> (H) DIN8 & M12 STRAIGHT THA	1-09660-873-0	01	1	1103-1107
58	ADAPTER ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (H) DIN8 & M12 STRAIGHT THA	1-09660-873-0	01	1	1108-
58	ADAPTER (B) INNER PT3/8,OUTER M22 THA	1-09650-494-1	05	1	0807-1107
58	ADAPTER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) INNER PT3/8,OUTER M22 THA	1-09650-494-1	05	1	1108-
58	ADAPTER (A) M20 & RC3/8 STRAIGHT THA	1-09660-883-0	01	1	0807-1107
58	ADAPTER ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) M20 & RC3/8 STRAIGHT THA	1-09660-883-0	01	1	1108-
58	ADAPTER MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. PTO CONTROL<SV6> (A) M20 & RC3/8 STRAIGHT THA	1-09660-883-0	01	1	1108-
99	VALVE; PROTECTION	1-48110-288-1	01	1	0807-1107
99	VALVE; PROTECTION ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-48110-288-3	01	1	1108-
99	VALVE; PROTECTION MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. PTO CONTROL<SV6> THA	1-48110-288-3	01	1	1108-
102	BOLT; PROTECTION VALVE (C) M8X20 FLANGE THA	0-28650-820-0	02	1	1103-1107
102	BOLT; PROTECTION VALVE ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) M8X20 FLANGE THA	0-28650-820-0	02	1	1108-
102	BOLT; PROTECTION VALVE MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. PTO CONTROL<SV6> (C) M8X20 FLANGE THA	0-28650-820-0	02	1	1108-
102	BOLT; PROTECTION VALVE (B) M8X16 FLANGE THA	0-28050-816-0	02	1	0807-1107
102	BOLT; PROTECTION VALVE ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) M8X16 FLANGE THA	0-28050-816-0	02	1	1108-
102	BOLT; PROTECTION VALVE MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. PTO CONTROL<SV6> (B) M8X16 FLANGE THA	0-28050-816-0	02	1	1108-
102	BOLT; PROTECTION VALVE (A) M10X35 FLANGE THA	0-28651-035-0	02	1	0807-1107
102	BOLT; PROTECTION VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) M10X35 FLANGE THA	0-28651-035-0	02	1	1108-
103	BRACKET; PROTECTION VALVE	8-98073-219-1	01	1	0807-0905
103	BRACKET; PROTECTION VALVE	8-98119-704-0	01	1	0906-1102
103	BRACKET; PROTECTION VALVE THA	8-98173-454-0	01	1	1103-1107
103	BRACKET; PROTECTION VALVE ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	8-98173-454-0	01	1	1108-
103	BRACKET; PROTECTION VALVE MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. PTO CONTROL<SV6> THA	8-98173-454-0	01	1	1108-
105	NUT; BRKT,VALVE M10 FLANGE THA	0-91180-210-0	02	1	0807-0905
105	NUT; BRKT,VALVE M10 FLANGE THA	0-91180-210-0	02	1	0807-0905
105	NUT; BRKT,VALVE M10 FLANGE THA	0-91180-210-0	02	1	0906-1107
105	NUT; BRKT,VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M10 FLANGE THA	0-91180-210-0	02	1	1108-
108	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (A) DIN12 & R3/8 ELBOW THA	1-09660-959-0	02	1	1112-
108	CONNECTOR; ELBOW MZW6P M/T<RSZ> PTO CONTROL<SV6> (E) M12 & PT1/4 STRAIGHT THA	1-09650-074-1	01	1	1103-1107
108	CONNECTOR; ELBOW MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> PTO CONTROL<SV6> (E) M12 & PT1/4 STRAIGHT THA	1-09650-074-1	01	1	1108-
108	CONNECTOR; ELBOW MZW6P M/T<RSZ> PTO CONTROL<SV6> (F) M12 & PT1/4 3WAY THA	1-09656-586-1	01	1	1103-1107
108	CONNECTOR; ELBOW MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> PTO CONTROL<SV6> (F) M12 & PT1/4 3WAY THA	1-09656-586-1	01	1	1108-
108	CONNECTOR; ELBOW MZW6P M/T<RSZ> PTO CONTROL<SV6> (G) DIN12 & R3/8 STRAIGHT THA	1-09660-965-0	01	1	1103-1107
108	CONNECTOR; ELBOW MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> PTO CONTROL<SV6> (G) DIN12 & R3/8 STRAIGHT THA	1-09660-965-0	01	1	1108-
108	CONNECTOR; ELBOW MZW6P M/T<RSZ> PTO CONTROL<SV6> (H) THA	8-98031-238-0	01	1	1103-1107
108	CONNECTOR; ELBOW MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> PTO CONTROL<SV6> (H) THA	8-98031-238-0	01	1	1108-
108	CONNECTOR; ELBOW (I) M12 & PT1/4 ELBOW THA	1-09650-430-0	02	1	1103-1107
108	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (I) M12 & PT1/4 ELBOW THA	1-09650-430-0	02	1	1108-
108	CONNECTOR; ELBOW ZF9S1110 M/T<Y5E> (J) M12 & PT1/4 ELBOW THA	1-48629-258-0	01	1	1103-1107
108	CONNECTOR; ELBOW ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (J) M12 & PT1/4 ELBOW THA	1-48629-258-0	01	1	1108-1503
108	CONNECTOR; ELBOW ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (J) M12 & PT1/4 ELBOW IMA	8-98299-777-0	01	1	1504-
108	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> (D) DIN12 & M22 ELBOW IMA	1-09661-497-0	04	1	0808-1107
108	CONNECTOR; ELBOW ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (D) DIN12 & M22 ELBOW IMA	1-09661-497-0	04	1	1108-
108	CONNECTOR; ELBOW MZW6P M/T<RSZ> PTO CONTROL<SV6> (K) DIN8 & M12 STRAIGHT THA	1-09660-873-0	01	1	1103-1107
108	CONNECTOR; ELBOW MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> PTO CONTROL<SV6> (K) DIN8 & M12 STRAIGHT THA	1-09660-873-0	01	1	1108-
108	CONNECTOR; ELBOW ZF6S1000 M/T<Y5D> (C) DIN8 & R3/8 ELBOW THA	1-09660-957-0	01	1	0807-1102
108	CONNECTOR; ELBOW (L) DIN8 & R1/4 ELBOW THA	1-09660-956-0	01	1	1103-1107
108	CONNECTOR; ELBOW ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (L) DIN8 & R1/4 ELBOW THA	1-09660-956-0	01	1	1108-
108	CONNECTOR; ELBOW BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (L) DIN8 & R1/4 ELBOW THA	1-09660-956-0	01	1	1108-
108	CONNECTOR; ELBOW MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. PTO CONTROL<SV6> (L) DIN8 & R1/4 ELBOW THA	1-09660-956-0	01	1	1108-
108	CONNECTOR; ELBOW (B) PT3/8 ELBOW THA	1-09660-696-0	01	1	0807-1107
108	CONNECTOR; ELBOW ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) PT3/8 ELBOW THA	1-09660-696-0	01	1	1108-
108	CONNECTOR; ELBOW MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. PTO CONTROL<SV6> (B) PT3/8 ELBOW THA	1-09660-696-0	01	1	1108-
108	CONNECTOR; ELBOW (A) DIN12 & R3/8 ELBOW THA	1-09660-959-0	02	1	0807-0807
108	CONNECTOR; ELBOW EXC. ANTI LOCK BRAKE<JE5> (A) DIN12 & R3/8 ELBOW THA	1-09660-959-0	02	1	0808-1107
108	CONNECTOR; ELBOW BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (A) DIN12 & R3/8 ELBOW THA	1-09660-959-0	02	1	1108-1109
108	CONNECTOR; ELBOW (A) DIN12 & R3/8 ELBOW THA	1-09660-959-0	03	1	0807-1107
108	CONNECTOR; ELBOW ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) DIN12 & R3/8 ELBOW THA	1-09660-959-0	03	1	1108-
108	CONNECTOR; ELBOW MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. PTO CONTROL<SV6> (A) DIN12 & R3/8 ELBOW THA	1-09660-959-0	03	1	1108-
167	COVER; VALVE (B) THA	1-48119-625-0	04	1	1103-1107
167	COVER; VALVE ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) THA	1-48119-625-0	04	1	1108-1506
167	COVER; VALVE MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. PTO CONTROL<SV6> (B) THA	1-48119-625-0	04	1	1108-1506
167	COVER; VALVE (A)	1-48219-070-0	03	1	0807-0807
167	COVER; VALVE ANTI LOCK BRAKE<JE5> (A)	1-48219-070-0	01	1	0808-1107
167	COVER; VALVE ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	1-48219-070-0	01	1	1108-
167	COVER; VALVE EXC. ANTI LOCK BRAKE<JE5> (A)	1-48219-070-0	03	1	0808-1107
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (A)	1-48219-070-0	03	1	1108-1109
167	COVER; VALVE ANTI LOCK BRAKE<JE5> (A)	1-48219-070-0	02	1	0809-1107
167	COVER; VALVE ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	1-48219-070-0	02	1	1108-1111
167	COVER; VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	1-48219-070-0	02	1	1112-
232	VALVE; CHECK DIN18 & R3/8 & RC3/8 3WAY THA	8-98032-527-0	01	1	0807-1107
232	VALVE; CHECK ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> DIN18 & R3/8 & RC3/8 3WAY THA	8-98032-527-0	01	1	1108-
232	VALVE; CHECK MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. PTO CONTROL<SV6> DIN18 & R3/8 & RC3/8 3WAY THA	8-98032-527-0	01	1	1108-
292	VALVE ASM; MAGNETIC	1-82563-871-2	01	1	1103-1107
292	VALVE ASM; MAGNETIC ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-82563-871-2	01	1	1108-
292	VALVE ASM; MAGNETIC MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. PTO CONTROL<SV6>	1-82563-871-2	01	1	1108-

240

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	240	REPAIR KIT; AIR CONT GOV BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05>	1-85576-467-0	01	1	1108-

155 279

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
155	REPAIR KIT; RELAY VALVE (A)	1-85576-033-0	03	1	0807-0807
155	REPAIR KIT; RELAY VALVE ANTI LOCK BRAKE<JE5> (A)	1-85576-033-0	01	1	0808-1107
155	REPAIR KIT; RELAY VALVE ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	1-85576-033-0	01	1	1108-
155	REPAIR KIT; RELAY VALVE EXC. ANTI LOCK BRAKE<JE5> (A)	1-85576-033-0	03	1	0808-1107
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (A)	1-85576-033-0	03	1	1108-1109
155	REPAIR KIT; RELAY VALVE ANTI LOCK BRAKE<JE5> (A)	1-85576-033-0	02	1	0809-1107
155	REPAIR KIT; RELAY VALVE ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	1-85576-033-0	02	1	1108-1111
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A)	1-85576-033-0	02	1	1112-
155	REPAIR KIT; RELAY VALVE (B)	1-85576-408-0	01	1	0807-1107
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B)	1-85576-408-0	01	1	1108-
279	REPAIR KIT; SILENCER	1-85576-409-0	01	1	0807-1107
279	REPAIR KIT; SILENCER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-85576-409-0	01	1	1108-

8 73 12 52 2 56 52 1 5 2 56 5 55 52 73 12 8 12 4 55 12 12 4 12 56 8 12 73 52 12 12 2 4 182 182 2 12 5 12 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; RELAY RWD RR	1-48240-354-1	01	1	0807-1107
1	VALVE; RELAY RWD RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-48240-354-1	01	1	1108-
2	VALVE; RELAY	1-48210-875-0	03	1	0807-0807
2	VALVE; RELAY ANTI LOCK BRAKE<JE5>	1-48210-875-0	01	1	0808-1107
2	VALVE; RELAY ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-48210-875-0	01	1	1108-
2	VALVE; RELAY EXC. ANTI LOCK BRAKE<JE5>	1-48210-875-0	03	1	0808-1107
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5>	1-48210-875-0	03	1	1108-1109
2	VALVE; RELAY ANTI LOCK BRAKE<JE5>	1-48210-875-0	02	1	0809-1107
2	VALVE; RELAY ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-48210-875-0	02	1	1108-1111
2	VALVE; RELAY BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-48210-875-0	02	1	1112-
4	BOLT; RELAY VLV TO BRKT EXC. ANTI LOCK BRAKE<JE5> M10X35 FLANGE THA	0-28651-035-0	04	1	0808-0808
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE THA	0-28651-035-0	04	1	0809-1107
4	BOLT; RELAY VLV TO BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M10X35 FLANGE THA	0-28651-035-0	04	1	1108-1109
4	BOLT; RELAY VLV TO BRKT ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M10X35 FLANGE THA	0-28651-035-0	04	1	1110-1111
4	BOLT; RELAY VLV TO BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M10X35 FLANGE THA	0-28651-035-0	04	1	1112-
4	BOLT; RELAY VLV TO BRKT M10X30 FLANGE THA	0-28651-030-0	02	1	0807-0807
4	BOLT; RELAY VLV TO BRKT EXC. ANTI LOCK BRAKE<JE5> M10X30 FLANGE THA	0-28651-030-0	02	1	0808-1107
4	BOLT; RELAY VLV TO BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> M10X30 FLANGE THA	0-28651-030-0	02	1	1108-1109
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE THA	0-28651-035-0	04	1	0807-0807
4	BOLT; RELAY VLV TO BRKT ANTI LOCK BRAKE<JE5> M10X35 FLANGE THA	0-28651-035-0	02	1	0808-1107
4	BOLT; RELAY VLV TO BRKT ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M10X35 FLANGE THA	0-28651-035-0	02	1	1108-
5	NUT M10 FLANGE THA	0-91180-210-0	06	1	0807-0807
5	NUT ANTI LOCK BRAKE<JE5> M10 FLANGE THA	0-91180-210-0	02	1	0808-1107
5	NUT ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M10 FLANGE THA	0-91180-210-0	02	1	1108-
5	NUT EXC. ANTI LOCK BRAKE<JE5> M10 FLANGE THA	0-91180-210-0	06	1	0808-1107
5	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> M10 FLANGE THA	0-91180-210-0	06	1	1108-1109
5	NUT ANTI LOCK BRAKE<JE5> M10 FLANGE THA	0-91180-210-0	04	1	0809-1107
5	NUT ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M10 FLANGE THA	0-91180-210-0	04	1	1108-1111
5	NUT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M10 FLANGE THA	0-91180-210-0	04	1	1112-
8	BOLT; BRKT ANTI LOCK BRAKE<JE5> M8X30 FLANGE THA	0-28650-830-0	03	1	0809-1107
8	BOLT; BRKT ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X30 FLANGE THA	0-28650-830-0	03	1	1108-
8	BOLT; BRKT M10X30 FLANGE THA	0-28651-030-0	04	1	0807-0807
8	BOLT; BRKT EXC. ANTI LOCK BRAKE<JE5> M10X30 FLANGE THA	0-28651-030-0	04	1	0808-1107
8	BOLT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> M10X30 FLANGE THA	0-28651-030-0	04	1	1108-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (B) DIN12 & R3/8 STRAIGHT THA	1-09660-965-0	02	1	1112-
12	CONNECTOR; RELAY VLV (A) DIN8 & R3/8 ELBOW THA	1-09660-957-0	02	1	0807-0807
12	CONNECTOR; RELAY VLV EXC. ANTI LOCK BRAKE<JE5> (A) DIN8 & R3/8 ELBOW THA	1-09660-957-0	02	1	0808-1107
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (A) DIN8 & R3/8 ELBOW THA	1-09660-957-0	02	1	1108-1109
12	CONNECTOR; RELAY VLV (C) DIN12 & R3/8 ELBOW THA	1-09660-959-0	03	1	0807-0807
12	CONNECTOR; RELAY VLV ANTI LOCK BRAKE<JE5> (C) DIN12 & R3/8 ELBOW THA	1-09660-959-0	02	1	0808-1107
12	CONNECTOR; RELAY VLV ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) DIN12 & R3/8 ELBOW THA	1-09660-959-0	02	1	1108-1111
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) DIN12 & R3/8 ELBOW THA	1-09660-959-0	02	1	1112-
12	CONNECTOR; RELAY VLV ANTI LOCK BRAKE<JE5> (D) IMA	1-09661-207-0	01	1	0808-1107
12	CONNECTOR; RELAY VLV ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (D) IMA	1-09661-207-0	01	1	1108-
12	CONNECTOR; RELAY VLV EXC. ANTI LOCK BRAKE<JE5> (C) DIN12 & R3/8 ELBOW THA	1-09660-959-0	03	1	0808-0808
12	CONNECTOR; RELAY VLV (C) DIN12 & R3/8 ELBOW THA	1-09660-959-0	03	1	0809-1107
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) DIN12 & R3/8 ELBOW THA	1-09660-959-0	03	1	1108-1109
12	CONNECTOR; RELAY VLV ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) DIN12 & R3/8 ELBOW THA	1-09660-959-0	03	1	1110-
12	CONNECTOR; RELAY VLV ANTI LOCK BRAKE<JE5> (E) DIN8 & R1/4 ELBOW THA	1-09660-956-0	01	1	0809-1107
12	CONNECTOR; RELAY VLV ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (E) DIN8 & R1/4 ELBOW THA	1-09660-956-0	01	1	1108-
12	CONNECTOR; RELAY VLV ANTI LOCK BRAKE<JE5> (A) DIN8 & R3/8 ELBOW THA	1-09660-957-0	01	1	0809-1107
12	CONNECTOR; RELAY VLV ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) DIN8 & R3/8 ELBOW THA	1-09660-957-0	01	1	1108-1111
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) DIN8 & R3/8 ELBOW THA	1-09660-957-0	01	1	1112-
12	CONNECTOR; RELAY VLV ANTI LOCK BRAKE<JE5> (B) DIN12 & R3/8 STRAIGHT THA	1-09660-965-0	01	1	0809-1107
12	CONNECTOR; RELAY VLV ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) DIN12 & R3/8 STRAIGHT THA	1-09660-965-0	01	1	1108-
12	CONNECTOR; RELAY VLV (B) DIN12 & R3/8 STRAIGHT THA	1-09660-965-0	02	1	0807-0807
12	CONNECTOR; RELAY VLV EXC. ANTI LOCK BRAKE<JE5> (B) DIN12 & R3/8 STRAIGHT THA	1-09660-965-0	02	1	0808-1107
12	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (B) DIN12 & R3/8 STRAIGHT THA	1-09660-965-0	02	1	1108-1109
52	CONNECTOR; RELAY VLV ANTI LOCK BRAKE<JE5> (D) DIN8X2 & R3/8 3WAY IMA	1-09660-997-0	01	1	0808-1107
52	CONNECTOR; RELAY VLV ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (D) DIN8X2 & R3/8 3WAY IMA	1-09660-997-0	01	1	1108-
52	CONNECTOR; RELAY VLV ANTI LOCK BRAKE<JE5> (C)	1-09661-537-0	01	1	0809-0811
52	CONNECTOR; RELAY VLV ANTI LOCK BRAKE<JE5> (C) DIN8 & RC1/4 & R3/8 3WAY THA	8-97620-116-0	01	1	0812-1107
52	CONNECTOR; RELAY VLV ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) DIN8 & RC1/4 & R3/8 3WAY THA	8-97620-116-0	01	1	1108-
52	CONNECTOR; RELAY VLV (A) DIN8X2 & R3/8 3WAY THA	1-09660-996-0	01	1	0807-0808
52	CONNECTOR; RELAY VLV EXC. ANTI LOCK BRAKE<JE5> (A) DIN8X2 & R3/8 3WAY THA	1-09660-996-0	01	1	0809-1107
52	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (A) DIN8X2 & R3/8 3WAY THA	1-09660-996-0	01	1	1108-
52	CONNECTOR; RELAY VLV (B) PT3/8 3WAY THA	1-09661-300-0	02	1	0807-0808
52	CONNECTOR; RELAY VLV EXC. ANTI LOCK BRAKE<JE5> (B) PT3/8 3WAY THA	1-09661-300-0	02	1	0809-1107
52	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (B) PT3/8 3WAY THA	1-09661-300-0	02	1	1108-1111
52	CONNECTOR; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (B) DIN9 & RC3/8 ELBOW THA	8-98203-578-0	02	1	1112-
55	PLUG; SUPPLY PT3/8 THA	9-09204-517-0	02	1	0807-0808
55	PLUG; SUPPLY EXC. ANTI LOCK BRAKE<JE5> PT3/8 THA	9-09204-517-0	02	1	0809-1107
55	PLUG; SUPPLY BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> PT3/8 THA	9-09204-517-0	02	1	1108-
56	BRACKET; RELAY VLV ANTI LOCK BRAKE<JE5> (B)	1-47479-937-0	01	1	0809-1107
56	BRACKET; RELAY VLV ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B)	1-47479-937-0	01	1	1108-
56	BRACKET; RELAY VLV (A)	8-98094-850-0	02	1	0807-0808
56	BRACKET; RELAY VLV EXC. ANTI LOCK BRAKE<JE5> (A)	8-98094-850-0	02	1	0809-1107
56	BRACKET; RELAY VLV BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> (A)	8-98094-850-0	02	1	1108-
73	NUT; BRKT ANTI LOCK BRAKE<JE5> M8 FLANGE THA	0-91180-108-0	03	1	0809-1107
73	NUT; BRKT ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8 FLANGE THA	0-91180-108-0	03	1	1108-
73	NUT; BRKT M10 FLANGE THA	0-91180-210-0	04	1	0807-0807
73	NUT; BRKT EXC. ANTI LOCK BRAKE<JE5> M10 FLANGE THA	0-91180-210-0	04	1	0808-1107
73	NUT; BRKT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> M10 FLANGE THA	0-91180-210-0	04	1	1108-
182	PLUG; RELAY VLV ANTI LOCK BRAKE<JE5> PT3/8 THA	9-09204-517-0	02	1	0809-1107
182	PLUG; RELAY VLV ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> PT3/8 THA	9-09204-517-0	02	1	1108-

241

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
241	REPAIR KIT; PROTECTION VALVE THA	1-85576-451-1	01	1	1103-1107
241	REPAIR KIT; PROTECTION VALVE ZF9S1110 M/T<Y5E> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-85576-451-1	01	1	1108-1506
241	REPAIR KIT; PROTECTION VALVE MZW6P M/T<RSZ> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. PTO CONTROL<SV6> THA	1-85576-451-1	01	1	1108-1506

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
