◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11556 - FVR-RHD EURO5 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-10 - RADIATOR ▶
1-10 — RADIATOR (#129078) — 99 parça

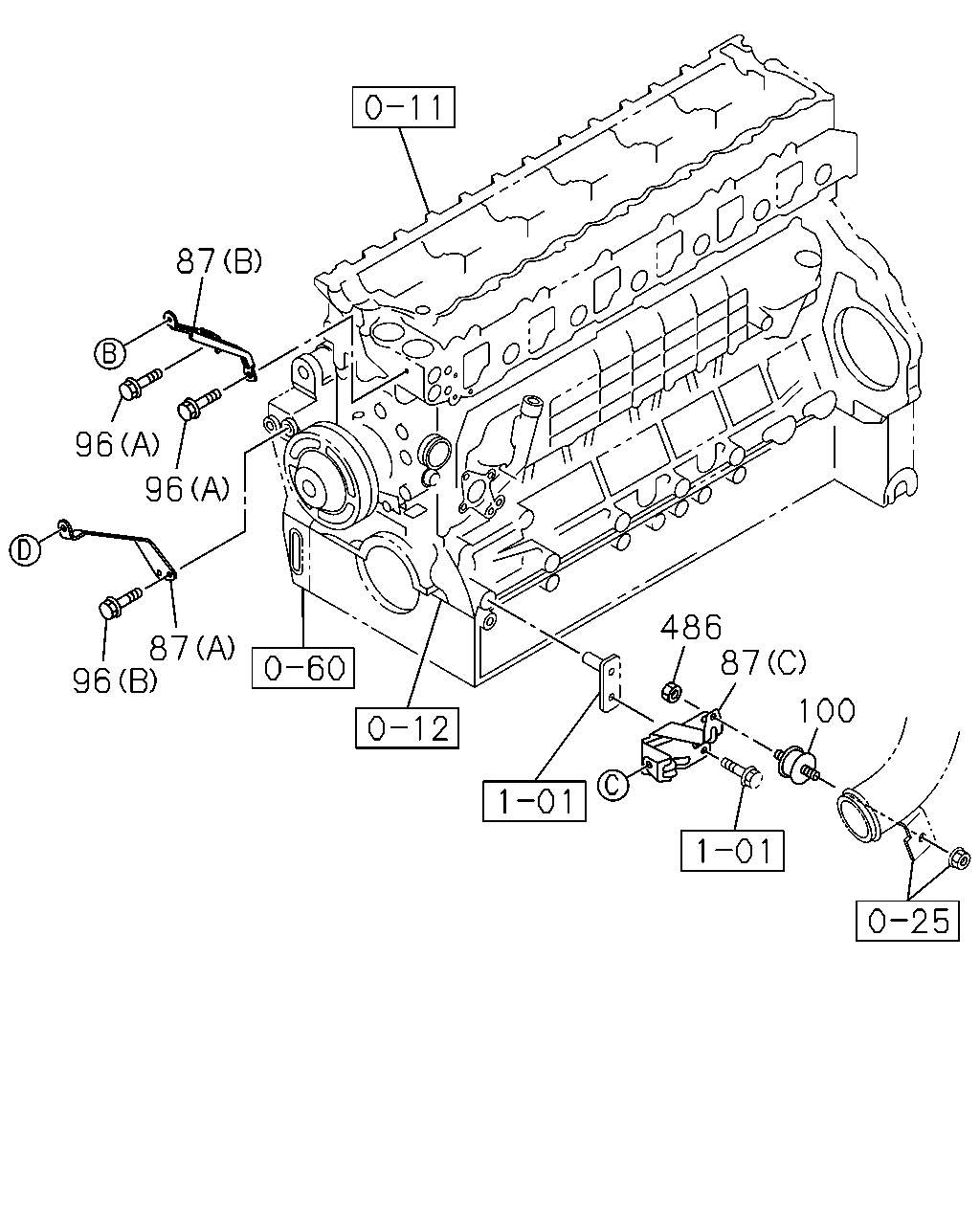

çizim 379385
87 96 96 87 96 486 87 100
BalonParca AdiParca NoAdetTipApplied Date A B
87 STAY; FAN GUIDE
(B) 		8-94393-776-1 01 1 1310-1410 ●
87 STAY; FAN GUIDE
(B) 		8-94393-776-1 01 1 1411- ● ●
87 STAY; FAN GUIDE
(C) 		8-94393-778-2 01 1 1310-1410 ●
87 STAY; FAN GUIDE
(C) 		8-94393-778-2 01 1 1411- ● ●
87 STAY; FAN GUIDE
(A) 		8-97602-988-0 01 1 1310-1410 ●
87 STAY; FAN GUIDE
(A) 		8-97602-988-0 01 1 1411- ● ●
96 BOLT; STAY FIX
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1310-1410 ●
96 BOLT; STAY FIX
(B) M8X16 FLANGE 		0-28050-816-0 02 1 1411- ● ●
96 BOLT; STAY FIX
(A) M10X16 FLANGE 		0-28151-016-0 02 1 1310-1410 ●
96 BOLT; STAY FIX
(A) M10X16 FLANGE 		0-28151-016-0 02 1 1411- ● ●
100 RUBBER; MTG 8-98148-109-0 01 1 1310-1410 ●
100 RUBBER; MTG 8-98148-109-0 01 1 1411- ● ●
486 NUT; MTG RUBBER
M8 FLANGE 		0-91180-108-0 01 1 1310-1410 ●
486 NUT; MTG RUBBER
M8 FLANGE 		0-91180-108-0 01 1 1411- ● ●

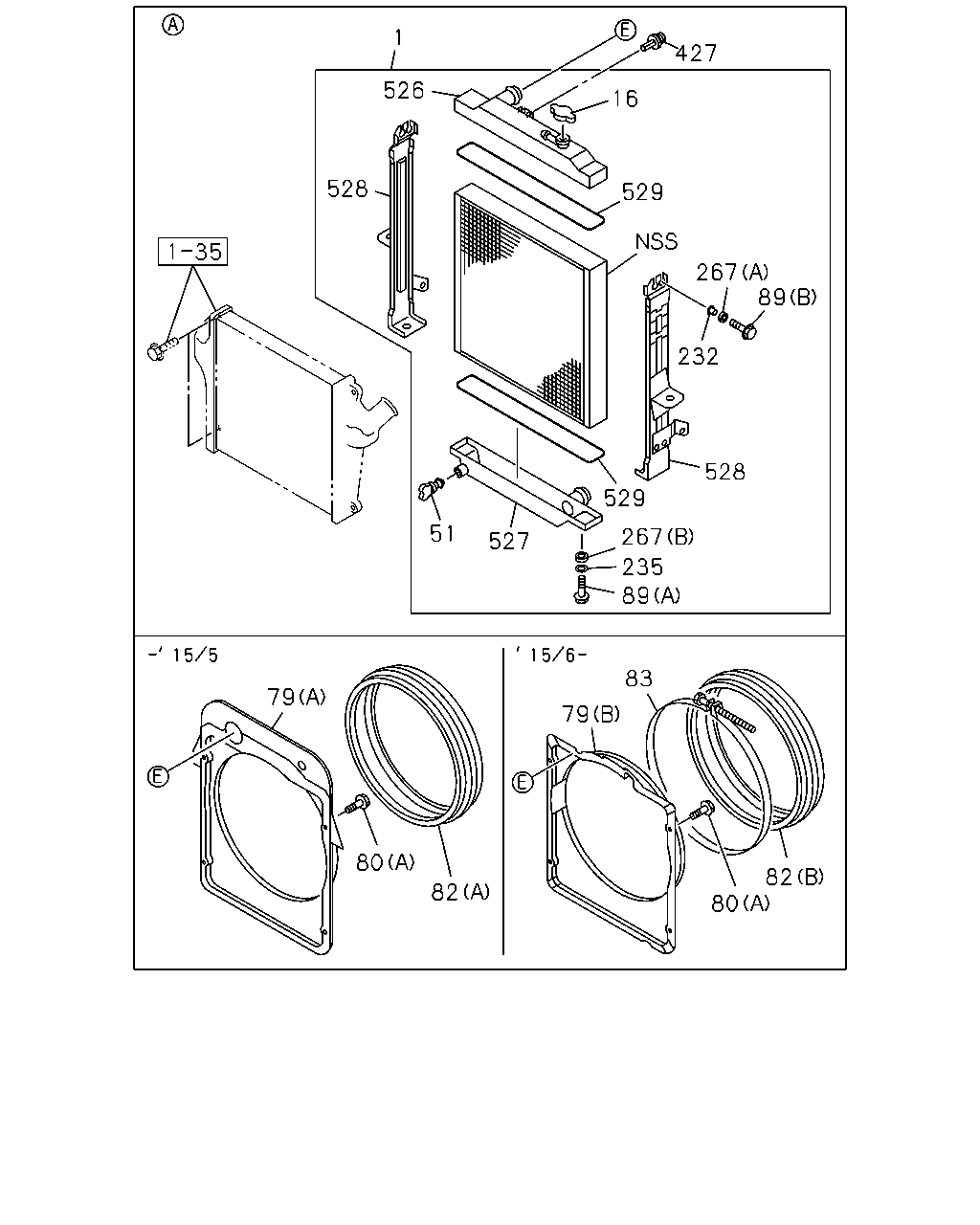

çizim 379422
427 16 529 267 89 232 528 529 267 235 89 527 51 528 526 1 79 83 82 80 82 80 79
BalonParca AdiParca NoAdetTipApplied Date A B
1 RADIATOR ASM
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98139-311-0 01 1 1310-1410 ●
1 RADIATOR ASM
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98139-311-0 01 1 1411- ● ●
1 RADIATOR ASM
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98139-310-0 01 1 1310-1410 ●
1 RADIATOR ASM
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98139-310-0 01 1 1411- ● ●
16 CAP; RAD 8-98096-226-0 01 1 1310-1410 ●
16 CAP; RAD 8-98096-226-0 01 1 1411- ● ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 1310-1410 ●
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 1411- ● ●
79 GUIDE; FAN,RAD
(A) 		8-98004-207-0 01 1 1310-1410 ●
79 GUIDE; FAN,RAD
(A) 		8-98004-207-0 01 1 1411-1505 ● ●
79 GUIDE; FAN,RAD
(B) 		8-98286-937-0 01 1 1506- ● ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1310-1410 ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1411- ● ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 1310-1410 ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 1411-1505 ● ●
80 BOLT; FAN GUIDE
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1506- ● ●
82 COVER; FAN,RAD
(A) 		8-98004-211-0 01 1 1310-1410 ●
82 COVER; FAN,RAD
(A) 		8-98004-211-0 01 1 1411-1505 ● ●
82 COVER; FAN,RAD
(B) 		8-98293-253-0 01 1 1506- ● ●
83 CLIP; FAN COVER 1-09707-177-2 01 1 1506- ● ●
89 BOLT
(A) M6X12 FLANGE 		0-28050-612-0 02 1 1310-1410 ●
89 BOLT
(A) M6X12 FLANGE 		0-28050-612-0 02 1 1411- ● ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 04 1 1310-1410 ●
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 04 1 1411- ● ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 04 1 1310-1410 ●
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 04 1 1411- ● ●
235 WASHER; CUSHION RUBBER 1-21469-133-0 02 1 1310-1410 ●
235 WASHER; CUSHION RUBBER 1-21469-133-0 02 1 1411- ● ●
267 RUBBER; CUSHION
(A) 		1-21469-130-0 04 1 1310-1410 ●
267 RUBBER; CUSHION
(A) 		1-21469-130-0 04 1 1411- ● ●
267 RUBBER; CUSHION
(B) 		1-21469-131-0 02 1 1310-1410 ●
267 RUBBER; CUSHION
(B) 		1-21469-131-0 02 1 1411- ● ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1310-1410 ●
427 CLIP; FAN GUIDE 1-09470-009-0 01 1 1411-1505 ● ●
526 TANK; UPR,RADIATOR CORE 8-98004-202-2 01 1 1310-1410 ●
526 TANK; UPR,RADIATOR CORE 8-98004-202-2 01 1 1411- ● ●
527 TANK; LWR,RADIATOR CORE
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-365-0 01 1 1310-1410 ●
527 TANK; LWR,RADIATOR CORE
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98010-365-0 01 1 1411- ● ●
527 TANK; LWR,RADIATOR CORE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98004-203-0 01 1 1310-1410 ●
527 TANK; LWR,RADIATOR CORE
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98004-203-0 01 1 1411- ● ●
528 PLATE; SIDE,RADIATOR CORE 8-98042-838-3 01 1 1310-1410 ●
528 PLATE; SIDE,RADIATOR CORE 8-98042-838-3 01 1 1411- ● ●
528 PLATE; SIDE,RADIATOR CORE 8-98042-839-2 01 1 1310-1410 ●
528 PLATE; SIDE,RADIATOR CORE 8-98042-839-2 01 1 1411- ● ●
529 GASKET; CORE,RADIATOR 8-98004-206-0 02 1 1310-1410 ●
529 GASKET; CORE,RADIATOR 8-98004-206-0 02 1 1411- ● ●

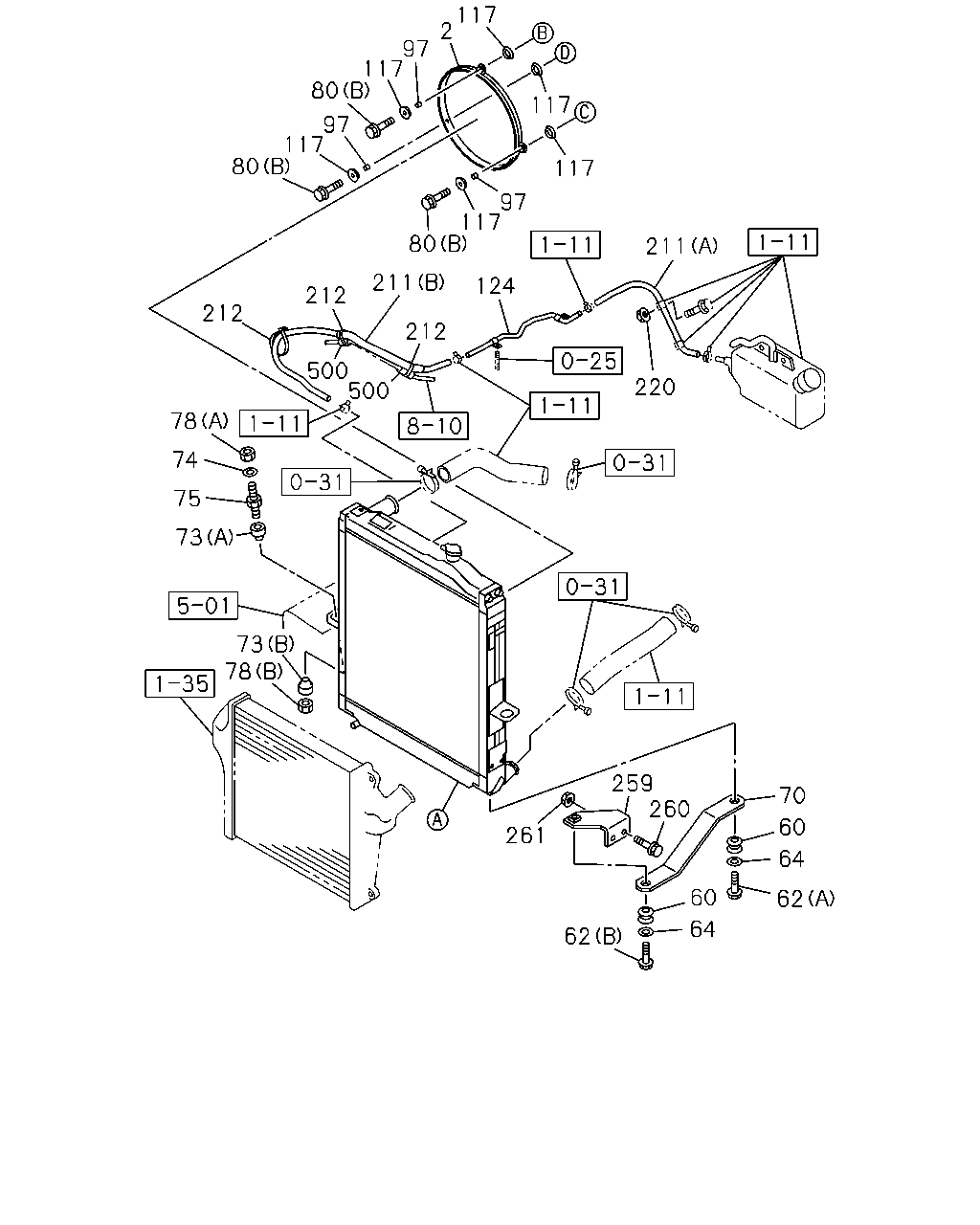

çizim 380909
80 117 97 80 117 97 2 117 117 117 211 97 117 80 211 212 500 500 212 78 74 75 73 73 78 261 259 260 60 64 70 60 64 62 62 220 124 212
BalonParca AdiParca NoAdetTipApplied Date A B
2 GUIDE; FAN 8-94393-779-1 01 1 1310-1410 ●
2 GUIDE; FAN 8-94393-779-1 01 1 1411- ● ●
60 GROMMET 1-09332-117-0 04 1 1310- ● ●
62 BOLT; STAY
(A) M8X30 		1-09009-020-1 02 1 1310- ● ●
62 BOLT; STAY
(B) M8X26 		1-09009-175-0 02 1 1310- ● ●
64 WASHER; STAY TO RAD
ID=12.5 OD=26 		0-91610-612-0 04 1 1310- ● ●
70 STAY; RAD 8-98004-132-2 02 1 1310- ● ●
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 1310- ● ●
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 1310- ● ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-2 02 1 1310-1410 ●
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-2 02 1 1411- ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 1310-1410 ●
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 1411- ● ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 1310-1410 ●
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 1411- ● ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 1310-1410 ●
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 1411- ● ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1310-1410 ●
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1411- ● ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 1310-1410 ●
80 BOLT; FAN GUIDE
(A) M8X14 		8-98046-222-0 04 1 1411-1505 ● ●
80 BOLT; FAN GUIDE
(A) M8X12 FLANGE 		0-28050-812-0 04 1 1506- ● ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 1310-1410 ●
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 1411- ● ●
117 RUBBER; MTG,FAN GUIDE
OD=32 		8-94395-766-0 06 1 1310-1410 ●
117 RUBBER; MTG,FAN GUIDE
OD=32 		8-94395-766-0 06 1 1411- ● ●
124 PIPE; WATER,TANK TO RAD 8-97611-022-1 01 1 1310-1410 ●
124 PIPE; WATER,TANK TO RAD 8-97611-022-1 01 1 1411- ● ●
211 HOSE; RAD TO PIPE
(B) L=940 		8-98073-544-0 01 1 1310-1410 ●
211 HOSE; RAD TO PIPE
(B) L=940 		8-98073-544-0 01 1 1411- ● ●
211 HOSE; RAD TO PIPE
(A) L=560 		8-98119-375-0 01 1 1310- ● ●
212 CLIP; HOSE
L=250 		5-09707-030-1 01 1 1310- ● ●
212 CLIP; HOSE
L=140 		5-09707-031-1 02 1 1310- ● ●
220 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1310- ● ●
259 BRACKET; RAD STAY 8-98071-821-0 01 1 1310- ● ●
259 BRACKET; RAD STAY 8-98071-822-0 01 1 1310- ● ●
260 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 1310- ● ●
261 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 1310- ● ●
500 SLEEVE; RUBBER
ID=17 OD=21 L=40 		1-09337-012-0 02 1 1310- ● ●
