0-60 — ENGINE ELECTRICAL CONTROL PARTS (#129073) — 61 parça

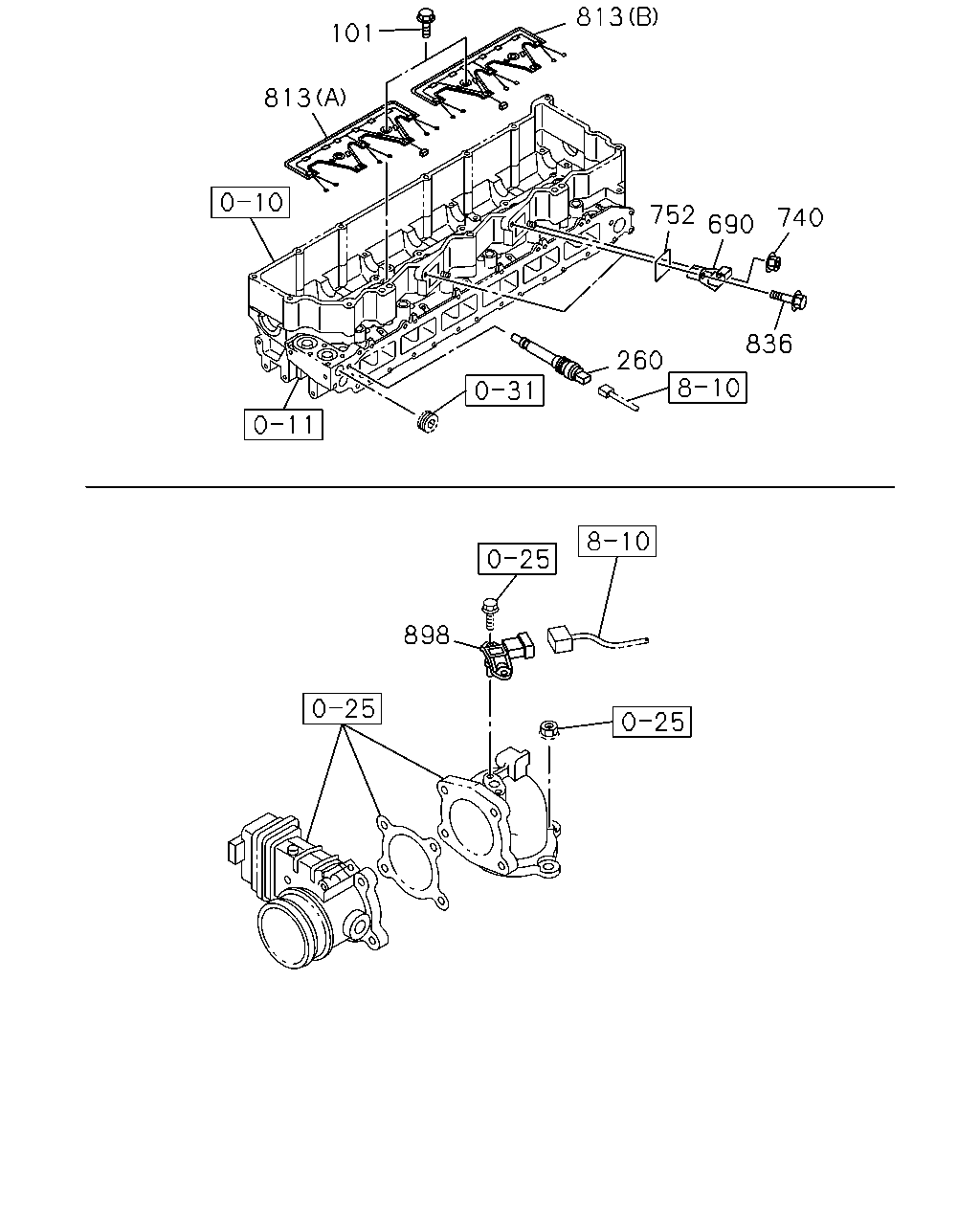

çizim 379273
101 813 813 752 690 740 836 260 898
BalonParca AdiParca NoAdetTipApplied Date
101 BOLT; HARNESS
M8X40 FLANGE 		0-28650-840-0 04 1 1310-
260 SENSOR; WATER TEMP
MITSUBISHI 		8-98023-883-0 01 1 1310-1503
260 SENSOR; WATER TEMP
NISHIDA 		8-98260-257-0 01 1 1504-
690 CONNECTOR 8-94390-858-1 02 1 1310-
740 NUT
M8 FLANGE 		0-91180-108-0 02 1 1310-
752 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94391-310-0 02 1 1310-
813 HARNESS; INJECTOR
(A) FRONT 		8-98204-717-0 01 1 1310-
813 HARNESS; INJECTOR
(B) REAR 		8-98204-718-0 01 1 1310-
836 BOLT; CONNECTOR
M8X12 FLANGE 		0-28050-812-0 02 1 1310-
898 SENSOR; BOOST 8-98009-418-0 01 1 1310-

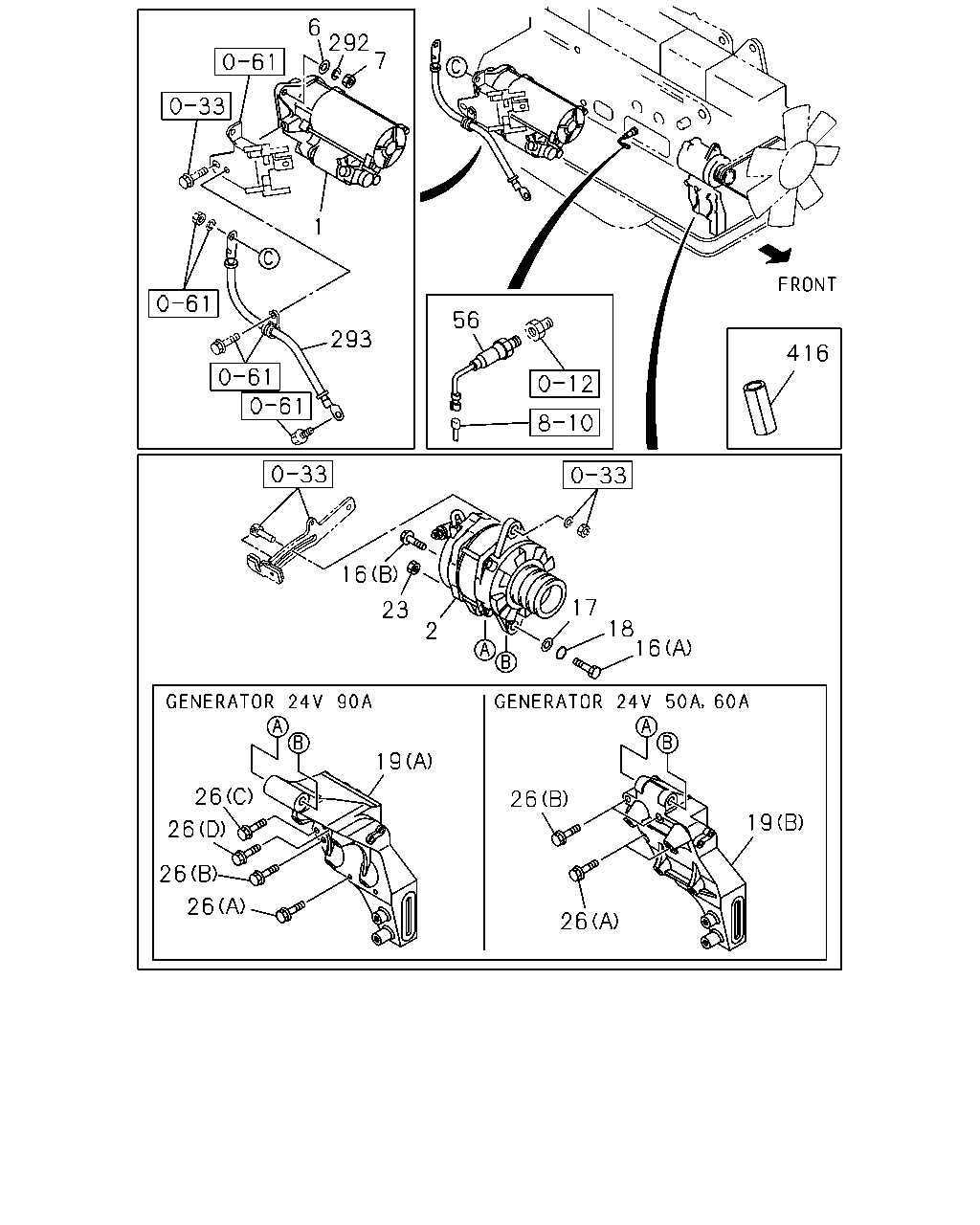

çizim 379328
416 56 293 1 7 292 6 16 23 2 17 18 16 19 26 26 19 26 26 26 26
BalonParca AdiParca NoAdetTipApplied Date
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI 		8-98141-206-3 01 1 1310-1409
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.0KW MITSUBISHI 		8-98261-669-0 01 1 1410-
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(K89) 24V 50A NIKKO 		8-98013-461-5 01 1 1310-
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A NIKKO 		8-98013-462-5 01 1 1310-
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V90A(K44) 24V 90A NIKKO 		8-98013-463-3 01 1 1310-1508
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V90A(K44) 24V 90A NIKKO 		8-98330-087-0 01 1 1509-
6 WASHER; PL,STARTER
ID=15 		0-91610-514-0 01 1 1310-
7 NUT; STARTER
M14 		0-91110-514-0 02 1 1310-
16 BOLT; GEN
(A) M14X135 		1-09000-133-1 01 1 1310-
16 BOLT; GEN
AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE 		0-28050-610-0 02 1 1310-
16 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) M6X10 FLANGE 		0-28050-610-0 01 1 1310-
17 WASHER; PL,GEN
ID=15 		0-91610-514-0 01 1 1310-
18 WASHER; LK,GEN
ID=14.2 		0-91510-514-0 01 1 1310-
19 BRACKET; GEN
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B) 		8-98082-615-1 01 1 1310-
19 BRACKET; GEN
GENERATOR 24V90A(K44) (A) 		8-98082-617-0 01 1 1310-
23 NUT; GEN
M14 		0-91110-514-0 01 1 1310-
26 BOLT; GEN BRKT
(A) M10X40 FLANGE 		0-28151-040-0 02 1 1310-
26 BOLT; GEN BRKT
(B) M10X80 FLANGE 		0-28151-080-0 02 1 1310-
26 BOLT; GEN BRKT
GENERATOR 24V90A(K44) (C) M10X25 FLANGE 		0-28151-025-0 01 1 1310-
26 BOLT; GEN BRKT
GENERATOR 24V90A(K44) (D) M10X135 		8-94397-139-1 01 1 1310-
56 SWITCH; OIL PRESSURE WARNING 1-82410-170-1 01 1 1310-
292 WASHER; LK,STARTER
ID=14.2 		0-91510-514-0 01 1 1310-
293 CABLE; STARTER EARTH
L=430 		8-97621-357-0 01 1 1310-
416 SLEEVE; RUBBER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) ID=17 OD=21 L=40 		1-09337-012-0 01 1 1310-

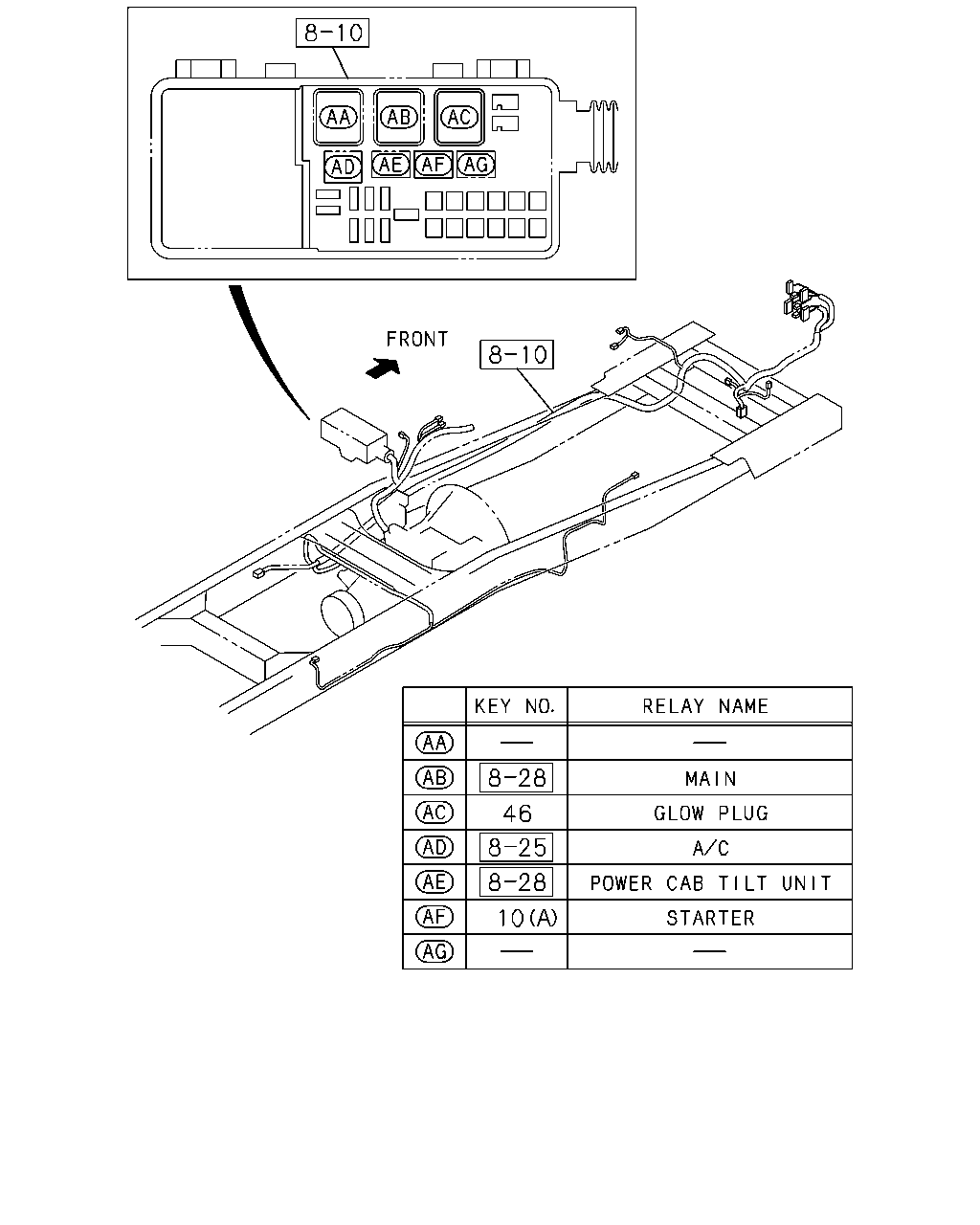

çizim 380840
46 10
BalonParca AdiParca NoAdetTipApplied Date
10 RELAY; STARTER
(B) 24V NIKKO 		8-98005-631-1 01 1 1310-
10 RELAY; STARTER
(A) 24V 10A PANASONIC 		8-98167-173-0 01 1 1310-
46 RELAY; GLOW PLUG
EXC. SINGAPORE EQUIPMENT(2G0) 24V 50A 		8-97173-947-0 01 1 1411-

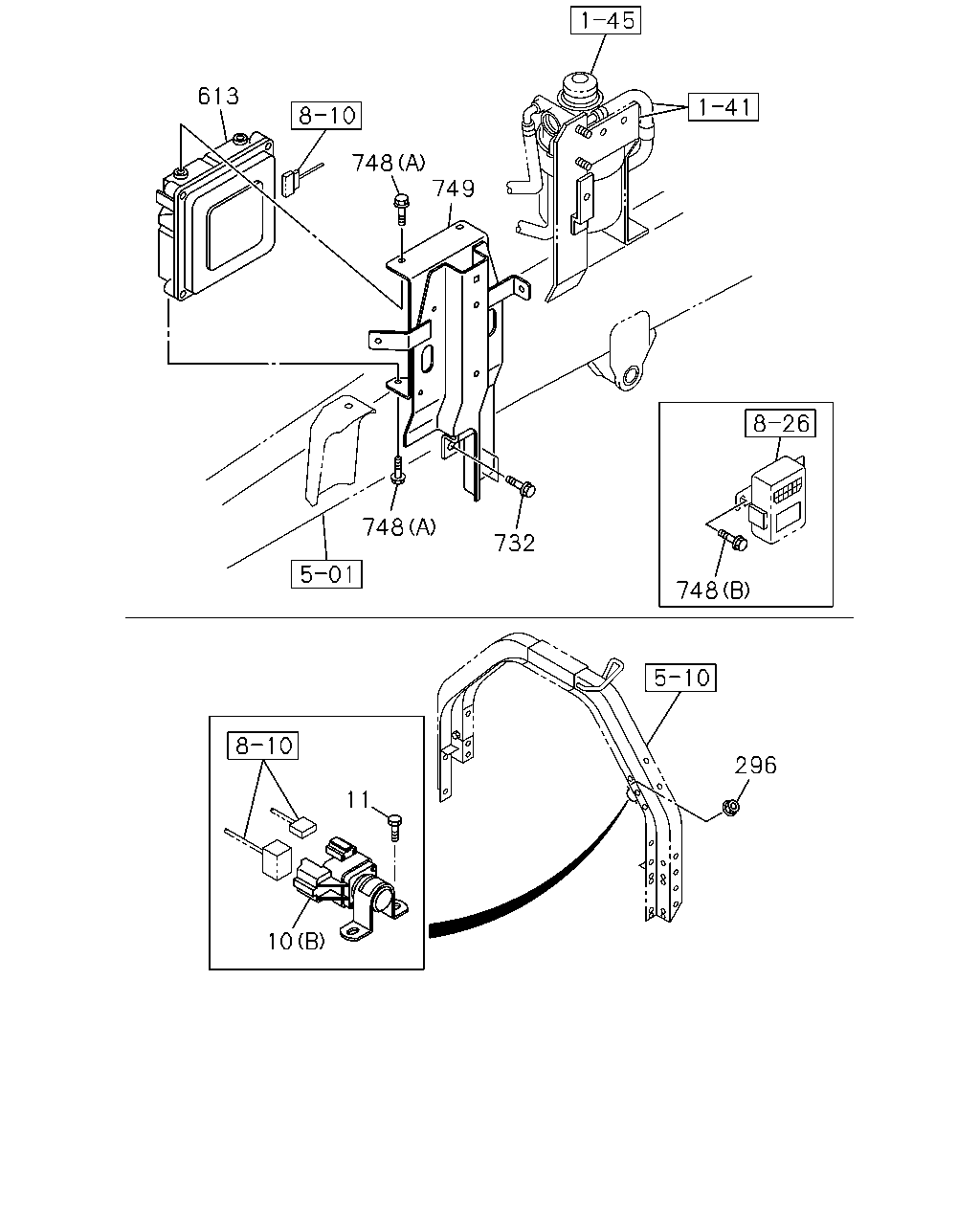

çizim 381515
748 749 613 748 732 748 296 11 10
BalonParca AdiParca NoAdetTipApplied Date
10 RELAY; STARTER
(B) 24V NIKKO 		8-98005-631-1 01 1 1310-
10 RELAY; STARTER
(A) 24V 10A PANASONIC 		8-98167-173-0 01 1 1310-
11 BOLT; RELAY STARTER
M8X20 FLANGE 		0-28650-820-0 02 1 1310-
296 NUT; RELAY,STARTER
M8 FLANGE 		0-91180-108-0 02 1 1310-
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) SPEED LIMITER 70KM(ECY) AUTO CRUISE<K30> INJ PUMP Q SET SPECIAL +5%Q(T1A) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SINGAPORE EQUIPMENT(2G0) 		8-98239-765-3 01 1 1411-
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) SPEED LIMITER 70KM(ECY) INJ PUMP Q SET SPECIAL +5%Q(T1A) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO CRUISE<K30>,SINGAPORE EQUIPMENT(2G0) 		8-98239-768-3 01 1 1411-
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) SPEED LIMITER 70KM(ECY) INJ PUMP Q SET SPECIAL +5%Q(T1A) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30>,SINGAPORE EQUIPMENT(2G0) 		8-98239-769-3 01 1 1411-
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) AUTO CRUISE<K30> INJ PUMP Q SET SPECIAL +5%Q(T1A) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 70KM(ECY),SINGAPORE EQUIPMENT(2G0) 		8-98239-766-3 01 1 1411-
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) INJ PUMP Q SET SPECIAL +5%Q(T1A) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 70KM(ECY),AUTO CRUISE<K30>,SINGAPORE EQUIPMENT(2G0) 		8-98239-774-4 01 1 1411-
613 CONTROL UNIT; ENG
6HK1-TCC ENG(81L) INJ PUMP Q SET SPECIAL +5%Q(T1A) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 70KM(ECY),AUTO CRUISE<K30>,SINGAPORE EQUIPMENT(2G0) 		8-98239-775-4 01 1 1411-
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) SPEED LIMITER 70KM(ECY) AUTO CRUISE<K30> INJ PUMP Q SET SPECIAL +5%Q(T1A) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SINGAPORE EQUIPMENT(2G0) 		8-98239-801-2 01 1 1411-
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) SPEED LIMITER 70KM(ECY) INJ PUMP Q SET SPECIAL +5%Q(T1A) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO CRUISE<K30>,SINGAPORE EQUIPMENT(2G0) 		8-98239-803-2 01 1 1411-
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) SPEED LIMITER 70KM(ECY) INJ PUMP Q SET SPECIAL +5%Q(T1A) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30>,SINGAPORE EQUIPMENT(2G0) 		8-98239-804-2 01 1 1411-
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) AUTO CRUISE<K30> INJ PUMP Q SET SPECIAL +5%Q(T1A) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 70KM(ECY),SINGAPORE EQUIPMENT(2G0) 		8-98239-802-2 01 1 1411-
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) INJ PUMP Q SET SPECIAL +5%Q(T1A) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 70KM(ECY),AUTO CRUISE<K30>,SINGAPORE EQUIPMENT(2G0) 		8-98239-805-5 01 1 1411-
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) INJ PUMP Q SET SPECIAL +5%Q(T1A) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. SPEED LIMITER 60KM(ECF),SPEED LIMITER 70KM(ECY),AUTO CRUISE<K30>,SINGAPORE EQUIPMENT(2G0) 		8-98239-764-3 01 1 1411-
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98239-761-2 01 1 1310-1410
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) SPEED LIMITER 60KM(ECF) SINGAPORE EQUIPMENT(2G0) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CRUISE<K30>,INJ PUMP Q SET SPECIAL +5%Q(T1A) 		8-98239-761-2 01 1 1411-
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) MZW6P M/T(RSZ),FULLER FSO5206B OD M/T(Y4V) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98239-760-2 01 1 1310-1410
613 CONTROL UNIT; ENG
6HK1-TCN ENG(82L) SPEED LIMITER 60KM(ECF) SINGAPORE EQUIPMENT(2G0) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AUTO CRUISE<K30>,INJ PUMP Q SET SPECIAL +5%Q(T1A) 		8-98239-760-2 01 1 1411-
732 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 03 1 1310-
748 BOLT; CONT UNIT
(A) M6X12 FLANGE 		0-28050-612-0 04 1 1310-
748 BOLT; CONT UNIT
EXC. MULTI INFORMATION DISPLAY<7NY> (B) M6X16 FLANGE 		0-28650-616-0 02 1 1310-
749 STAY; CONT UNIT 8-98229-662-0 01 1 1310-
