0-57 — EMISSION PIPING (#129072) — 88 parça

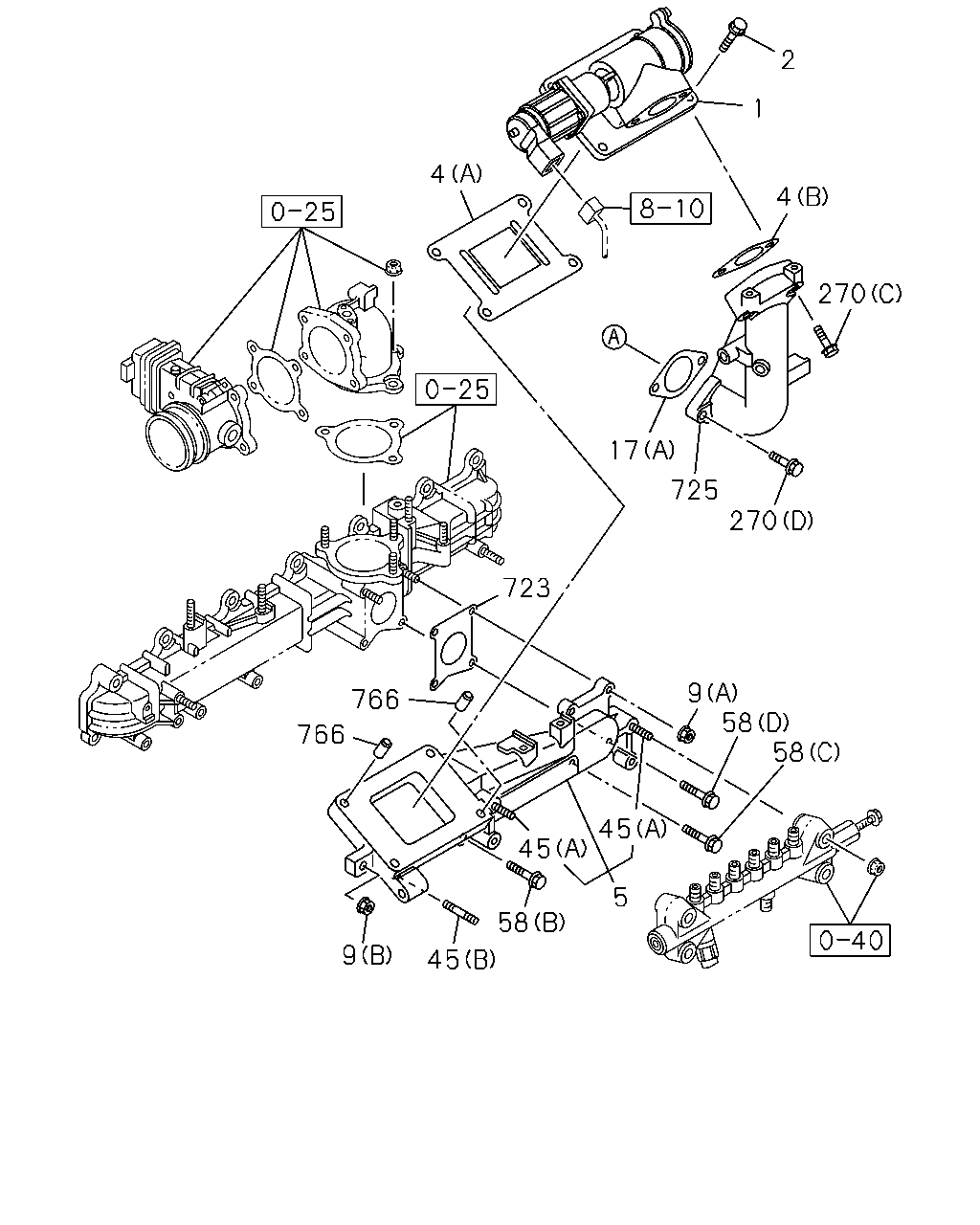

2 1 4 4 17 270 725 270 723 766 766 9 58 58 45 45 5 58 45 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE; EGR	8-98215-211-0	01	1	1310-1410	●
1	VALVE; EGR	8-98215-211-0	01	1	1411-1411	●	●
1	VALVE; EGR	8-98238-267-1	01	1	1412-	●	●
2	BOLT; EGR VLV M10X35 FLANGE	0-28751-035-0	04	1	1310-1410	●
2	BOLT; EGR VLV M10X35 FLANGE	0-28751-035-0	04	1	1411-	●	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=47	8-97603-282-0	01	1	1310-1410	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=47	8-97603-282-0	01	1	1411-	●	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97608-423-0	01	1	1310-1410	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97608-423-0	01	1	1411-	●	●
5	ADAPTER ASM	8-98239-839-0	01	1	1310-1410	●
5	ADAPTER ASM	8-98239-839-0	01	1	1411-	●	●
9	NUT; EGR ADAPTER (A) M8 FLANGE	0-91180-108-0	02	1	1310-1410	●
9	NUT; EGR ADAPTER (A) M8 FLANGE	0-91180-108-0	02	1	1411-	●	●
9	NUT; EGR ADAPTER (B) M10 FLANGE	0-91180-110-0	02	1	1310-1410	●
9	NUT; EGR ADAPTER (B) M10 FLANGE	0-91180-110-0	02	1	1411-	●	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=55	8-97600-167-0	01	1	1310-1410	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=55	8-97600-167-0	01	1	1411-	●	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=44.5	8-97601-144-0	02	1	1310-1410	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=44.5	8-97601-144-0	02	1	1411-	●	●
45	STUD; ADAPTER,EGR (A) M10X60 L=75	0-44011-060-0	01	1	1310-1410	●
45	STUD; ADAPTER,EGR (A) M10X60 L=75	0-44011-060-0	01	1	1411-	●	●
45	STUD; ADAPTER,EGR (B) M10X30 L=45	0-44011-030-0	01	1	1310-1410	●
45	STUD; ADAPTER,EGR (B) M10X30 L=45	0-44011-030-0	01	1	1411-	●	●
58	BOLT; PIPE (A) M8X60 FLANGE	0-28050-860-0	05	1	1310-1410	●
58	BOLT; PIPE (A) M8X60 FLANGE	0-28050-860-0	05	1	1411-	●	●
58	BOLT; PIPE (B) M10X30 FLANGE	0-28151-030-0	01	1	1310-1410	●
58	BOLT; PIPE (B) M10X30 FLANGE	0-28151-030-0	01	1	1411-	●	●
58	BOLT; PIPE (C) M8X30 FLANGE	0-28650-830-0	01	1	1310-1410	●
58	BOLT; PIPE (C) M8X30 FLANGE	0-28650-830-0	01	1	1411-	●	●
58	BOLT; PIPE (E) M10X35 FLANGE	0-28751-035-0	04	1	1310-1410	●
58	BOLT; PIPE (E) M10X35 FLANGE	0-28751-035-0	04	1	1411-	●	●
58	BOLT; PIPE (D) M8X30 FLANGE	8-98034-764-0	01	1	1310-1410	●
58	BOLT; PIPE (D) M8X30 FLANGE	8-98034-764-0	01	1	1411-	●	●
270	BOLT (D) M8X25 FLANGE	0-28050-825-0	02	1	1310-1410	●
270	BOLT (D) M8X25 FLANGE	0-28050-825-0	02	1	1411-	●	●
270	BOLT (B) M8X35 FLANGE	0-28050-835-0	02	1	1310-1410	●
270	BOLT (B) M8X35 FLANGE	0-28050-835-0	02	1	1411-	●	●
270	BOLT (C) M10X45 FLANGE	0-28151-045-0	02	1	1310-1410	●
270	BOLT (C) M10X45 FLANGE	0-28151-045-0	02	1	1411-	●	●
270	BOLT (A) M8X28 FLANGE	8-98043-528-0	03	1	1310-1410	●
270	BOLT (A) M8X28 FLANGE	8-98043-528-0	03	1	1411-	●	●
723	GASKET; REED VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=52	8-97605-995-0	01	1	1310-1410	●
723	GASKET; REED VLV ALSO INCLUDED IN GASKET SET(ENGINE). ID=52	8-97605-995-0	01	1	1411-	●	●
725	DUCT; EGR VLV	8-98240-120-0	01	1	1310-1410	●
725	DUCT; EGR VLV	8-98240-120-0	01	1	1411-	●	●
766	DOWEL; EGR VLV OD=14 L=10	9-11319-065-3	02	1	1310-1410	●
766	DOWEL; EGR VLV OD=14 L=10	9-11319-065-3	02	1	1411-	●	●

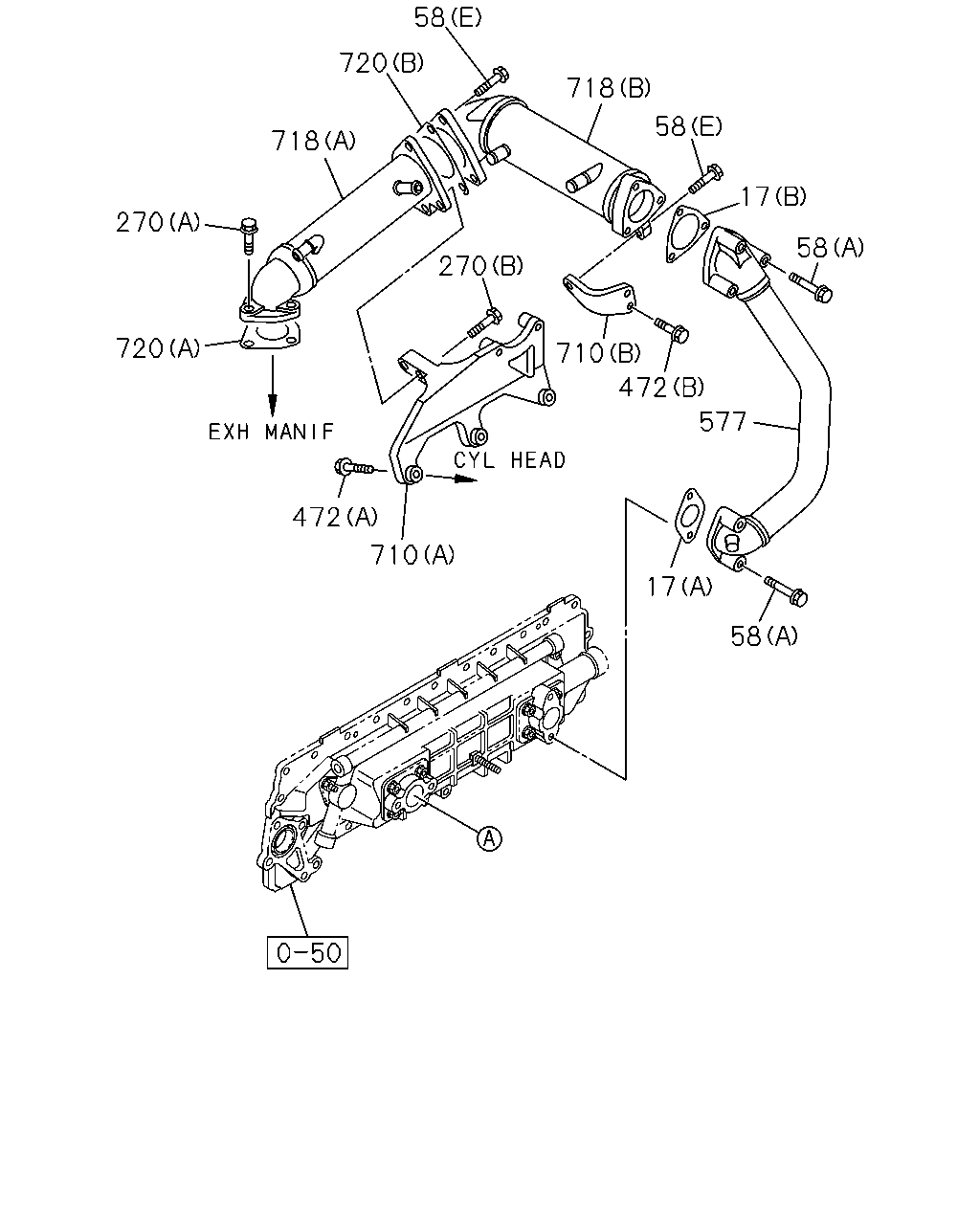

58 720 718 270 720 270 718 58 17 58 577 472 710 472 710 17 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=55	8-97600-167-0	01	1	1310-1410	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=55	8-97600-167-0	01	1	1411-	●	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=44.5	8-97601-144-0	02	1	1310-1410	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=44.5	8-97601-144-0	02	1	1411-	●	●
58	BOLT; PIPE (A) M8X60 FLANGE	0-28050-860-0	05	1	1310-1410	●
58	BOLT; PIPE (A) M8X60 FLANGE	0-28050-860-0	05	1	1411-	●	●
58	BOLT; PIPE (B) M10X30 FLANGE	0-28151-030-0	01	1	1310-1410	●
58	BOLT; PIPE (B) M10X30 FLANGE	0-28151-030-0	01	1	1411-	●	●
58	BOLT; PIPE (C) M8X30 FLANGE	0-28650-830-0	01	1	1310-1410	●
58	BOLT; PIPE (C) M8X30 FLANGE	0-28650-830-0	01	1	1411-	●	●
58	BOLT; PIPE (E) M10X35 FLANGE	0-28751-035-0	04	1	1310-1410	●
58	BOLT; PIPE (E) M10X35 FLANGE	0-28751-035-0	04	1	1411-	●	●
58	BOLT; PIPE (D) M8X30 FLANGE	8-98034-764-0	01	1	1310-1410	●
58	BOLT; PIPE (D) M8X30 FLANGE	8-98034-764-0	01	1	1411-	●	●
270	BOLT (D) M8X25 FLANGE	0-28050-825-0	02	1	1310-1410	●
270	BOLT (D) M8X25 FLANGE	0-28050-825-0	02	1	1411-	●	●
270	BOLT (B) M8X35 FLANGE	0-28050-835-0	02	1	1310-1410	●
270	BOLT (B) M8X35 FLANGE	0-28050-835-0	02	1	1411-	●	●
270	BOLT (C) M10X45 FLANGE	0-28151-045-0	02	1	1310-1410	●
270	BOLT (C) M10X45 FLANGE	0-28151-045-0	02	1	1411-	●	●
270	BOLT (A) M8X28 FLANGE	8-98043-528-0	03	1	1310-1410	●
270	BOLT (A) M8X28 FLANGE	8-98043-528-0	03	1	1411-	●	●
472	BOLT; BRKT (B) M8X30 FLANGE	0-28050-830-0	02	1	1310-1410	●
472	BOLT; BRKT (B) M8X30 FLANGE	0-28050-830-0	02	1	1411-	●	●
472	BOLT; BRKT (A) M8X35 FLANGE	0-28060-835-0	03	1	1310-1410	●
472	BOLT; BRKT (A) M8X35 FLANGE	0-28060-835-0	03	1	1411-	●	●
577	PIPE; AIR,EGR	8-97604-968-1	01	1	1310-1410	●
577	PIPE; AIR,EGR	8-97604-968-1	01	1	1411-	●	●
710	BRACKET; EGR COOLER (B)	8-98030-584-0	01	1	1310-1410	●
710	BRACKET; EGR COOLER (B)	8-98030-584-0	01	1	1411-	●	●
710	BRACKET; EGR COOLER (A)	8-98186-437-0	01	1	1310-1410	●
710	BRACKET; EGR COOLER (A)	8-98186-437-0	01	1	1411-	●	●
718	COOLER; EGR (A)	8-98030-582-3	01	1	1310-1401	●
718	COOLER; EGR (A)	8-98250-860-0	01	1	1402-1410	●
718	COOLER; EGR (A)	8-98250-860-0	01	1	1411-	●	●
718	COOLER; EGR (B)	8-98030-583-1	01	1	1310-1410	●
718	COOLER; EGR (B)	8-98030-583-1	01	1	1411-	●	●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=80	8-97603-889-0	01	1	1310-1410	●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=80	8-97603-889-0	01	1	1411-	●	●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=51.5	8-98046-192-1	01	1	1310-1410	●
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=51.5	8-98046-192-1	01	1	1411-	●	●
