◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11129 - FVM(THAI)EURO3 ▶ 3 - Brakes, Brake System ▶ 3-20 - AIR TANK ▶
3-20 — AIR TANK (#12907) — 541 parça

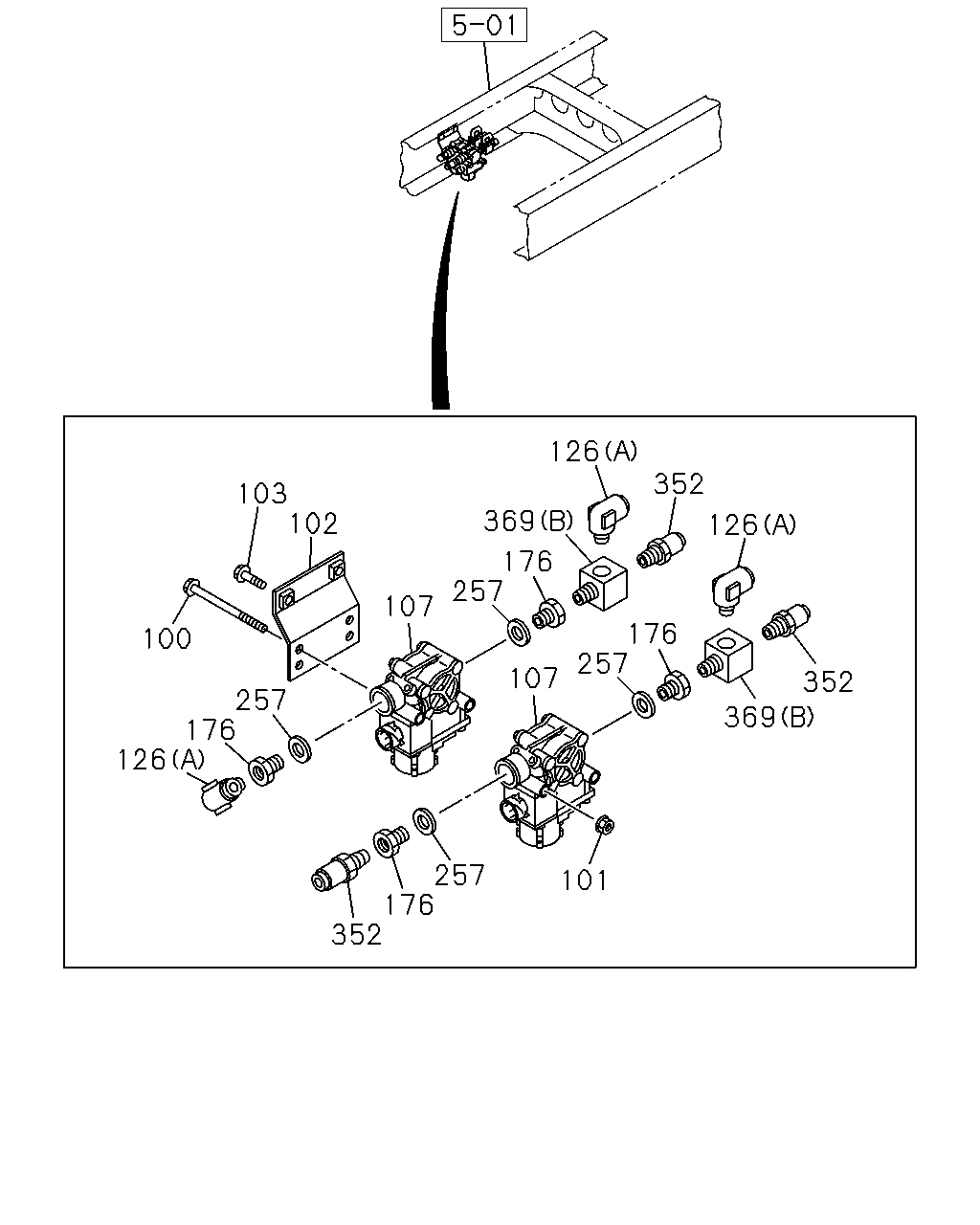

çizim 98294
126 352 103 102 369 126 176 257 107 176 257 100 107 352 257 176 126 369 257 176 352 101
BalonParca AdiParca NoAdetTipApplied Date
100 BOLT; MODULATOR
ANTI LOCK BRAKE<JE5> M8X140 FLANGE 		0-28055-814-0 02 1 0809-1107
100 BOLT; MODULATOR
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X140 FLANGE 		0-28055-814-0 02 1 1108-
101 NUT; MODULATOR
ANTI LOCK BRAKE<JE5> M8 FLANGE THA 		0-91180-108-0 02 1 0809-1107
101 NUT; MODULATOR
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8 FLANGE THA 		0-91180-108-0 02 1 1108-
102 BRACKET; MODULATOR
ANTI LOCK BRAKE<JE5> 		8-98034-539-2 01 1 0809-1107
102 BRACKET; MODULATOR
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> 		8-98034-539-2 01 1 1108-1410
102 BRACKET; MODULATOR
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> 		8-98272-821-0 01 1 1411-
103 BOLT; BRKT
ANTI LOCK BRAKE<JE5> M8X30 FLANGE THA 		0-28650-830-0 02 1 0809-1107
103 BOLT; BRKT
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X30 FLANGE THA 		0-28650-830-0 02 1 1108-
107 MODULATOR; RR
ANTI LOCK BRAKE<JE5> THA 		1-48240-115-0 02 1 0809-1107
107 MODULATOR; RR
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA 		1-48240-115-0 02 1 1108-1410
107 MODULATOR; RR
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA 		8-98215-454-0 02 1 1411-
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (G) 		1-09650-283-1 01 1 1204-
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) PT1/4 2WAY THA 		1-09660-693-0 04 1 1204-
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (D) DIN8 & R1/4 ELBOW THA 		1-09660-956-0 01 1 1204-
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (E) DIN8 & R3/8 ELBOW THA 		1-09660-957-0 01 1 1204-
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 06 1 1204-
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (F) DIN12 & R3/8 STRAIGHT THA 		1-09660-965-0 01 1 1204-
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) IMA 		8-98166-127-0 01 1 1204-
126 CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (I) PT1/4 & PT3/8 2WAY THA 		1-09660-809-0 01 1 1108-
126 CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (J) DIN12 & M20 STRAIGHT IMA 		1-09660-877-0 01 1 1108-
126 CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 02 1 1108-
126 CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (H) DIN12 & R1/2 ELBOW THA 		1-09660-960-0 02 1 1108-
126 CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (K) DIN12X2 & R3/8 3WAY 		1-09661-007-0 01 1 1108-
126 CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (L) DIN8X2 & PT3/8 DOUBLE ELBOW THA 		1-09661-025-0 01 1 1108-
126 CONNECTOR; ELBOW
(G) 		1-09650-283-1 01 1 1103-1107
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (G) 		1-09650-283-1 01 1 1108-1203
126 CONNECTOR; ELBOW
(B) IMA 		1-09656-708-0 01 1 1003-1102
126 CONNECTOR; ELBOW
(B) IMA 		8-98166-127-0 01 1 1103-1107
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) IMA 		8-98166-127-0 01 1 1108-1203
126 CONNECTOR; ELBOW
(C) PT1/4 2WAY THA 		1-09660-693-0 04 1 1003-1107
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) PT1/4 2WAY THA 		1-09660-693-0 04 1 1108-1203
126 CONNECTOR; ELBOW
(D) DIN8 & R1/4 ELBOW THA 		1-09660-956-0 01 1 1003-1107
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (D) DIN8 & R1/4 ELBOW THA 		1-09660-956-0 01 1 1108-1203
126 CONNECTOR; ELBOW
(E) DIN8 & R3/8 ELBOW THA 		1-09660-957-0 01 1 1003-1107
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (E) DIN8 & R3/8 ELBOW THA 		1-09660-957-0 01 1 1108-1203
126 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 07 1 1003-1102
126 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 06 1 1103-1107
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 06 1 1108-1203
126 CONNECTOR; ELBOW
(F) DIN12 & R3/8 STRAIGHT THA 		1-09660-965-0 01 1 1003-1107
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (F) DIN12 & R3/8 STRAIGHT THA 		1-09660-965-0 01 1 1108-1203
126 CONNECTOR; ELBOW
ANTI LOCK BRAKE<JE5> (A) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 03 1 0809-1107
126 CONNECTOR; ELBOW
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 03 1 1108-1109
176 ADAPTER
ANTI LOCK BRAKE<JE5> INNER PT3/8,OUTER M22 THA 		1-09650-494-1 04 1 0809-1107
176 ADAPTER
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> INNER PT3/8,OUTER M22 THA 		1-09650-494-1 04 1 1108-
257 GASKET; PLUG
ANTI LOCK BRAKE<JE5> ID=22.5 THA 		9-09571-422-0 04 1 0809-1107
257 GASKET; PLUG
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> ID=22.5 THA 		9-09571-422-0 04 1 1108-
352 CONNECTOR; STRAIGHT
ANTI LOCK BRAKE<JE5> DIN12 & R3/8 STRAIGHT THA 		1-09660-965-0 03 1 0809-1107
352 CONNECTOR; STRAIGHT
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> DIN12 & R3/8 STRAIGHT THA 		1-09660-965-0 03 1 1108-
369 CONNECTOR; 3WAY
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) DIN9 & RC3/8 ELBOW THA 		8-98203-578-0 02 1 1112-
369 CONNECTOR; 3WAY
ANTI LOCK BRAKE<JE5> (B) PT3/8 3WAY THA 		1-09661-300-0 02 1 0809-1107
369 CONNECTOR; 3WAY
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) PT3/8 3WAY THA 		1-09661-300-0 02 1 1108-1111
369 CONNECTOR; 3WAY
(A) IMA 		1-09656-708-0 01 1 0807-1002

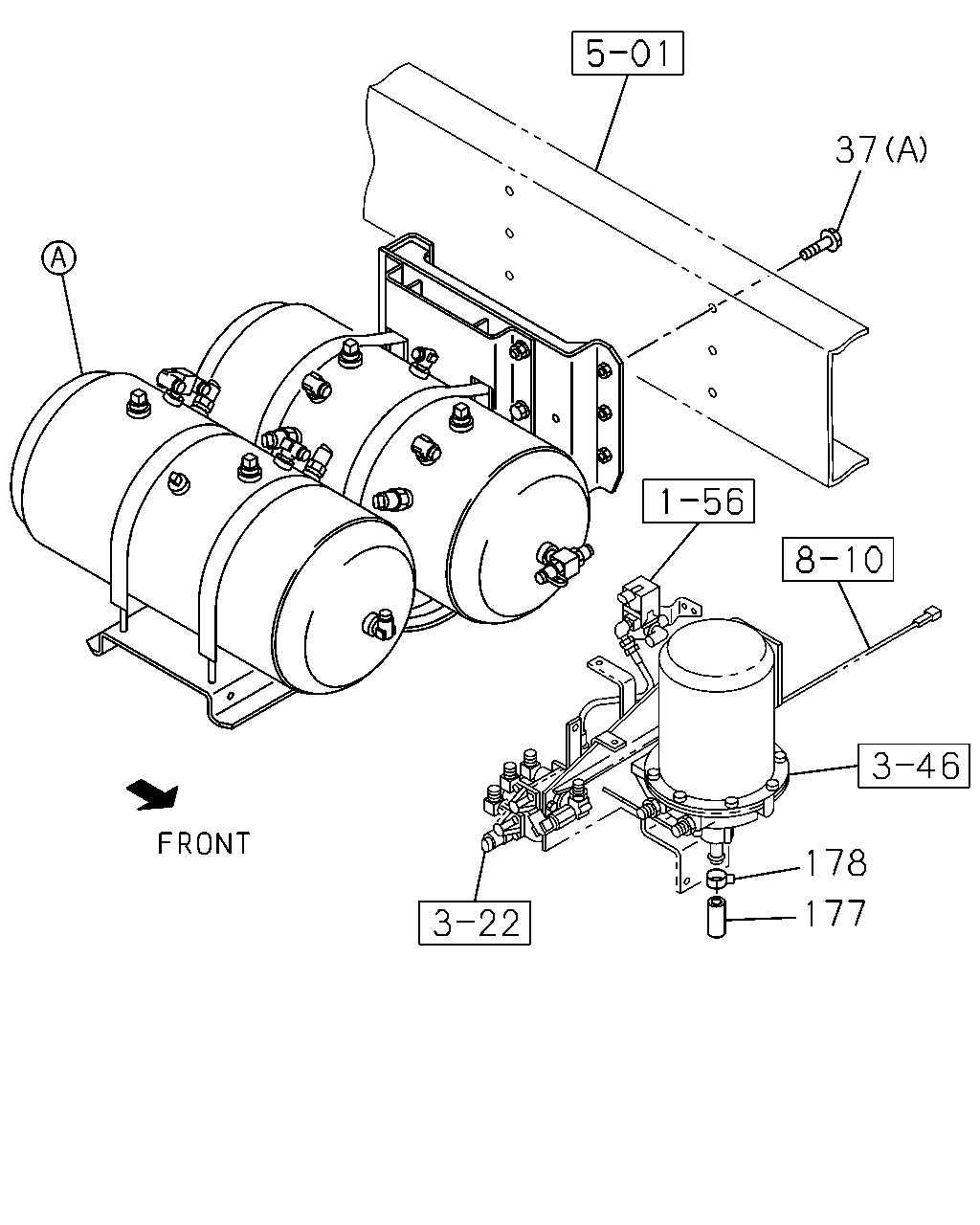

çizim 98333
178 177
BalonParca AdiParca NoAdetTipApplied Date
177 HOSE; RUBBER,DRAIN
L=60 SERVICED BY L=3000 THA 		0-03566-300-0 01 1 0807-
178 CLIP; HOSE
ID=22 		8-94382-401-0 01 1 0807-1102
178 CLIP; HOSE
ID=21 THA 		8-94242-034-0 01 1 1103-

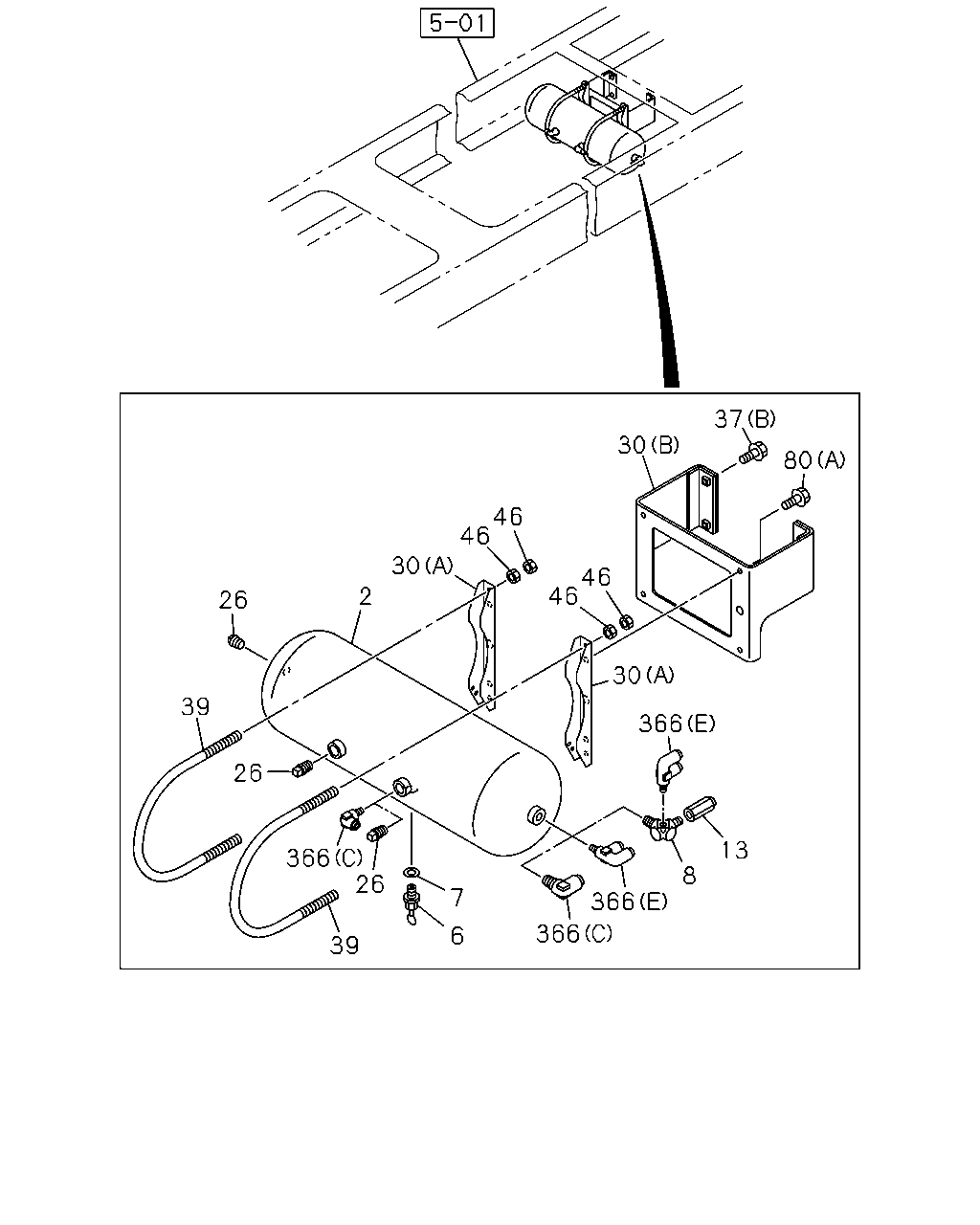

çizim 98406
37 30 80 46 46 30 46 46 2 26 30 39 366 26 13 366 26 8 7 366 366 6 39
BalonParca AdiParca NoAdetTipApplied Date
2 TANK; AIR
THA 		8-98202-947-0 01 1 1207-
2 TANK; AIR 1-48370-477-0 01 1 0807-1206
6 COCK; DRAIN,AIR TANK 1-48312-015-0 04 1 1207-
6 COCK; DRAIN,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> 		1-48312-015-0 01 1 1110-1112
6 COCK; DRAIN,AIR TANK 1-48312-015-0 05 1 1201-1203
6 COCK; DRAIN,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> 		1-48312-015-0 04 1 1204-1206
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1207-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 05 1 0807-1109
6 COCK; DRAIN,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> 		1-48312-015-0 04 1 1110-1112
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 1207-
7 GASKET; DRAIN COCK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> ID=14 		1-09630-145-0 01 1 1110-1112
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 05 1 1201-1203
7 GASKET; DRAIN COCK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> ID=14 		1-09630-145-0 04 1 1204-1206
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1207-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 05 1 0807-1109
7 GASKET; DRAIN COCK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> ID=14 		1-09630-145-0 04 1 1110-1112
8 CONNECTOR; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> 		1-09656-557-1 01 1 1207-1207
8 CONNECTOR; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M16 & R3/8 THA 		8-98204-239-0 01 1 1208-
8 CONNECTOR; AIR TANK 1-09656-557-1 01 1 0809-1107
8 CONNECTOR; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> 		1-09656-557-1 01 1 1108-1112
8 CONNECTOR; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M16 & R3/8 THA 		8-98204-239-0 01 1 1201-1206
13 ADAPTER; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> DIN12 & M16 STRAIGHT THA 		1-09660-876-0 01 1 0807-
26 PLUG; SUB AIR TANK
PT3/8 THA 		9-09204-517-0 03 1 0807-
30 BRACKET; AIR TANK,SUB
(A) 		1-48317-287-2 02 1 0807-1306
30 BRACKET; AIR TANK,SUB
(A) THA 		8-97948-143-0 02 1 1307-
30 BRACKET; AIR TANK,SUB
(B) 		8-98040-713-1 01 1 0807-
37 BOLT; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) M12X40 FLANGE THA 		0-28651-240-0 06 1 1108-
37 BOLT; AIR TANK
(A) M12X40 FLANGE THA 		0-28651-240-0 06 1 0807-1102
37 BOLT; AIR TANK
(A) M12X40 FLANGE THA 		0-28651-240-0 08 1 1103-1107
37 BOLT; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) M12X40 FLANGE THA 		0-28651-240-0 08 1 1108-
37 BOLT; AIR TANK
(B) M10X45 FLANGE THA 		0-28051-045-0 04 1 0807-
39 U-BOLT; AIR TANK 1-48317-289-0 02 1 0807-
46 NUT; U-BOLT
M8 THA 		0-91110-508-0 08 1 0807-
80 BOLT; BRKT
(A) M10X25 FLANGE THA 		0-28651-025-0 04 1 0807-
80 BOLT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (D) M8X20 FLANGE THA 		0-28650-820-0 04 1 1108-
80 BOLT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) M10X30 FLANGE THA 		0-28651-030-0 04 1 1108-
80 BOLT; BRKT
(B) M12X35 FLANGE THA 		0-28651-235-0 04 1 0807-1102
366 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 01 1 1204-
366 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (E) DIN12X2 & PT3/8 DOUBLE ELBOW THA 		1-09661-026-0 01 1 1108-
366 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 01 1 1108-1203
366 CONNECTOR; NYLON TUBE
(E) DIN12X2 & PT3/8 DOUBLE ELBOW THA 		1-09661-026-0 01 1 1103-1107
366 CONNECTOR; NYLON TUBE
(A) DIN8 & R1/4 ELBOW THA 		1-09660-956-0 01 1 0807-1002
366 CONNECTOR; NYLON TUBE
(B) DIN8 & R3/8 ELBOW THA 		1-09660-957-0 01 1 0807-1002
366 CONNECTOR; NYLON TUBE
(C) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 07 1 0808-1002
366 CONNECTOR; NYLON TUBE
(D) DIN12 & R3/8 STRAIGHT THA 		1-09660-965-0 01 1 0807-1002

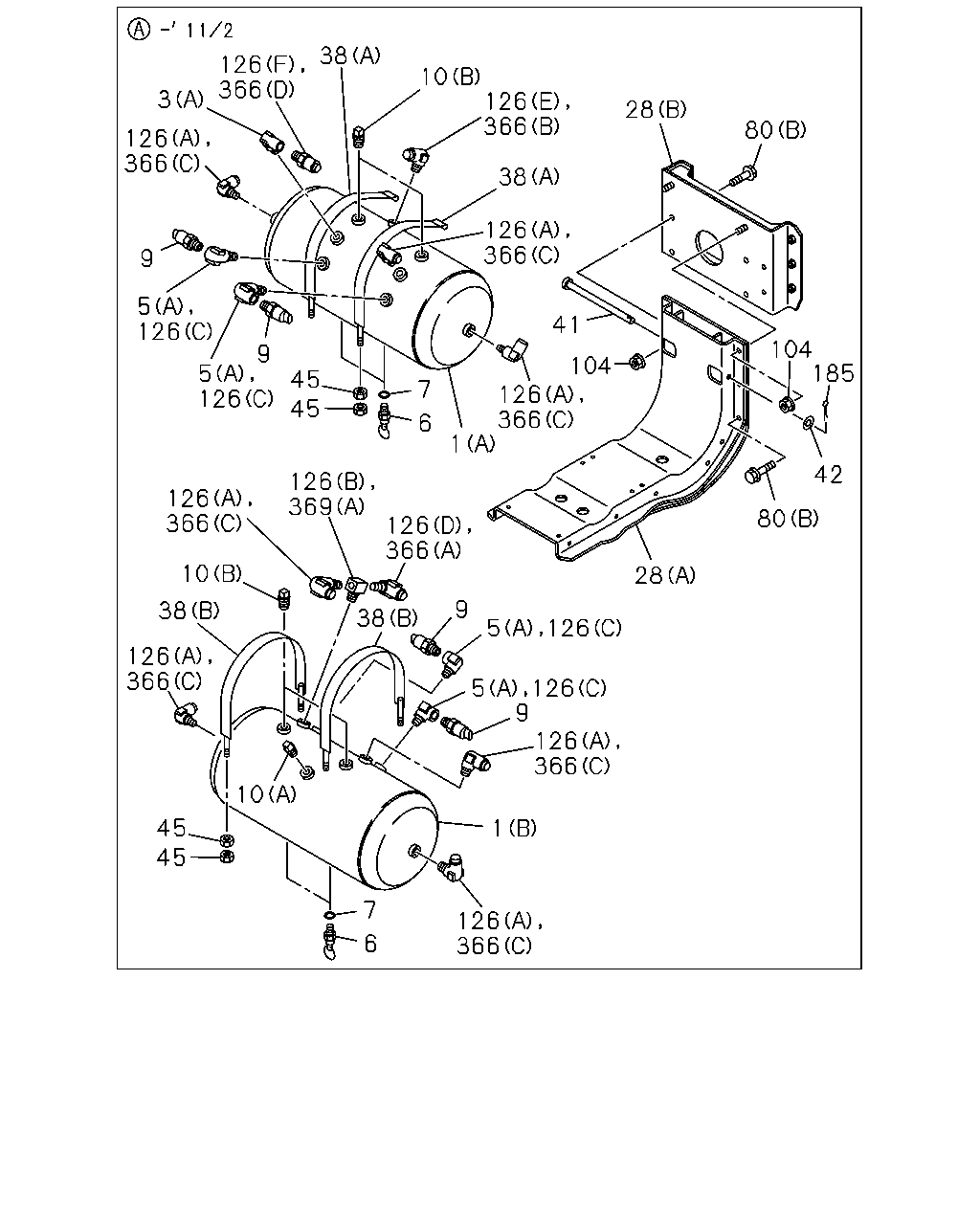

çizim 106977
38 126 366 10 126 366 3 28 80 126 366 38 126 366 9 5 126 41 104 185 9 104 126 366 5 126 45 45 7 6 1 42 126 369 126 366 80 126 366 10 28 9 38 38 5 126 126 366 5 126 9 126 366 10 45 45 1 7 126 366 6
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA 		8-98202-945-0 01 1 1204-
1 TANK ASM; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) THA 		8-98202-946-0 01 1 1204-
1 TANK ASM; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) 		1-48370-493-0 01 1 1108-
1 TANK ASM; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (D) 		8-98166-791-1 01 1 1108-
1 TANK ASM; AIR
(A) 		1-48370-181-1 01 1 0807-1107
1 TANK ASM; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) 		1-48370-181-1 01 1 1108-1203
1 TANK ASM; AIR
(B) 		8-98166-973-0 01 1 1003-1102
1 TANK ASM; AIR
(B) 		8-98018-535-0 01 1 1103-1107
1 TANK ASM; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) 		8-98018-535-0 01 1 1108-1203
1 TANK ASM; AIR
(B) 		8-98018-535-0 01 1 0807-1002
3 VALVE; CHECK,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) THA 		1-48320-031-1 01 1 1204-
3 VALVE; CHECK,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) 		1-48410-182-3 02 1 1108-
3 VALVE; CHECK,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) M20 & PT3/4 ELBOW 		1-48410-412-0 01 1 1103-1206
3 VALVE; CHECK,AIR TANK
(A) M20 & PT3/4 ELBOW 		1-48410-412-0 01 1 1207-
3 VALVE; CHECK,AIR TANK
(B) THA 		1-48320-031-1 01 1 0807-1107
3 VALVE; CHECK,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) THA 		1-48320-031-1 01 1 1108-1203
5 UNION; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (E) 		1-09656-557-1 01 1 1108-1112
5 UNION; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (E) M16 & R3/8 THA 		8-98204-239-0 01 1 1201-
5 UNION; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) DIN12 & M16 STRAIGHT THA 		1-09660-876-0 01 1 1108-
5 UNION; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) DIN12 & M20 STRAIGHT IMA 		1-09660-877-0 02 1 1108-
5 UNION; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (D) DIN12X2 & PT3/8 DOUBLE ELBOW THA 		1-09661-026-0 02 1 1108-
5 UNION; AIR TANK
(A) PT1/4 2WAY THA 		1-09660-693-0 04 1 0807-1002
6 COCK; DRAIN,AIR TANK 1-48312-015-0 04 1 1207-
6 COCK; DRAIN,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> 		1-48312-015-0 01 1 1110-1112
6 COCK; DRAIN,AIR TANK 1-48312-015-0 05 1 1201-1203
6 COCK; DRAIN,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> 		1-48312-015-0 04 1 1204-1206
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1207-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 05 1 0807-1109
6 COCK; DRAIN,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> 		1-48312-015-0 04 1 1110-1112
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 1207-
7 GASKET; DRAIN COCK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> ID=14 		1-09630-145-0 01 1 1110-1112
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 05 1 1201-1203
7 GASKET; DRAIN COCK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> ID=14 		1-09630-145-0 04 1 1204-1206
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1207-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 05 1 0807-1109
7 GASKET; DRAIN COCK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> ID=14 		1-09630-145-0 04 1 1110-1112
9 SWITCH; LOW PRESSURE GAGE,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> STAMP 5.5 THA 		8-97609-249-0 04 1 1108-
10 PLUG; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) PT3/8 THA 		9-09204-517-0 01 1 1204-
10 PLUG; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) PT3/4 		9-09204-526-0 03 1 1204-
10 PLUG; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) PT1/4 THA 		9-99204-513-0 01 1 1108-
10 PLUG; AIR TANK
(A) PT3/8 THA 		9-09204-517-0 01 1 1103-1107
10 PLUG; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) PT3/8 THA 		9-09204-517-0 01 1 1108-1203
10 PLUG; AIR TANK
(B) PT3/4 		9-09204-526-0 02 1 1003-1102
10 PLUG; AIR TANK
(B) PT3/4 		9-09204-526-0 03 1 1103-1107
10 PLUG; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) PT3/4 		9-09204-526-0 03 1 1108-1203
10 PLUG; AIR TANK
(A) PT3/8 THA 		9-09204-517-0 01 1 0807-1002
10 PLUG; AIR TANK
(B) PT3/4 		9-09204-526-0 04 1 0807-1002
28 BRACKET; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) 		1-48317-601-5 02 1 1204-
28 BRACKET; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (D) 		8-98174-720-0 02 1 1108-
28 BRACKET; AIR TANK
(A) THA 		8-98048-199-0 01 1 0807-1102
28 BRACKET; AIR TANK
(B) THA 		8-98048-200-2 01 1 0807-1102
28 BRACKET; AIR TANK
(C) 		1-48317-601-5 02 1 1103-1107
28 BRACKET; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) 		1-48317-601-5 02 1 1108-1203
38 BAND; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) 		1-48317-108-2 02 1 1204-
38 BAND; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) 		1-48317-109-2 02 1 1204-
38 BAND; AIR TANK
(A) 		1-48317-108-2 02 1 0807-1107
38 BAND; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) 		1-48317-108-2 02 1 1108-1203
38 BAND; AIR TANK
(B) 		1-48317-109-2 02 1 0807-1107
38 BAND; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) 		1-48317-109-2 02 1 1108-1203
41 PIN; BAND FIX
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> OD=10 L=60 		0-82254-060-0 02 1 1204-
41 PIN; BAND FIX 1-09744-068-0 01 1 0807-1102
41 PIN; BAND FIX
OD=10 L=60 		0-82254-060-0 02 1 1103-1107
41 PIN; BAND FIX
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> OD=10 L=60 		0-82254-060-0 02 1 1108-1203
42 WASHER; PL
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> ID=10.5 		0-91614-510-0 02 1 1204-
42 WASHER; PL
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> ID=8.4 OD=18 THA 		0-91610-608-0 04 1 1108-
42 WASHER; PL
ID=10.5 		9-09164-510-0 02 1 0808-0812
42 WASHER; PL
ID=10.5 		9-09164-510-0 01 1 0901-1002
42 WASHER; PL
ID=10.5 		0-91614-510-0 01 1 1003-1102
42 WASHER; PL
ID=10.5 		0-91614-510-0 02 1 1103-1107
42 WASHER; PL
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> ID=10.5 		0-91614-510-0 02 1 1108-1203
45 NUT; AIR TANK,MAIN
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8 THA 		0-91110-508-0 12 1 1204-
45 NUT; AIR TANK,MAIN
M8 THA 		0-91110-508-0 12 1 0807-1107
45 NUT; AIR TANK,MAIN
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8 THA 		0-91110-508-0 12 1 1108-1203
80 BOLT; BRKT
(A) M10X25 FLANGE THA 		0-28651-025-0 04 1 0807-
80 BOLT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (D) M8X20 FLANGE THA 		0-28650-820-0 04 1 1108-
80 BOLT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) M10X30 FLANGE THA 		0-28651-030-0 04 1 1108-
80 BOLT; BRKT
(B) M12X35 FLANGE THA 		0-28651-235-0 04 1 0807-1102
104 NUT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8 FLANGE THA 		0-91180-108-0 04 1 1110-
104 NUT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8 FLANGE THA 		0-91180-108-0 04 1 1108-1109
104 NUT; BRKT
M12 FLANGE THA 		0-91180-212-0 02 1 0807-1102
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (G) 		1-09650-283-1 01 1 1204-
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) PT1/4 2WAY THA 		1-09660-693-0 04 1 1204-
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (D) DIN8 & R1/4 ELBOW THA 		1-09660-956-0 01 1 1204-
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (E) DIN8 & R3/8 ELBOW THA 		1-09660-957-0 01 1 1204-
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 06 1 1204-
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (F) DIN12 & R3/8 STRAIGHT THA 		1-09660-965-0 01 1 1204-
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) IMA 		8-98166-127-0 01 1 1204-
126 CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (I) PT1/4 & PT3/8 2WAY THA 		1-09660-809-0 01 1 1108-
126 CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (J) DIN12 & M20 STRAIGHT IMA 		1-09660-877-0 01 1 1108-
126 CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 02 1 1108-
126 CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (H) DIN12 & R1/2 ELBOW THA 		1-09660-960-0 02 1 1108-
126 CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (K) DIN12X2 & R3/8 3WAY 		1-09661-007-0 01 1 1108-
126 CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (L) DIN8X2 & PT3/8 DOUBLE ELBOW THA 		1-09661-025-0 01 1 1108-
126 CONNECTOR; ELBOW
(G) 		1-09650-283-1 01 1 1103-1107
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (G) 		1-09650-283-1 01 1 1108-1203
126 CONNECTOR; ELBOW
(B) IMA 		1-09656-708-0 01 1 1003-1102
126 CONNECTOR; ELBOW
(B) IMA 		8-98166-127-0 01 1 1103-1107
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) IMA 		8-98166-127-0 01 1 1108-1203
126 CONNECTOR; ELBOW
(C) PT1/4 2WAY THA 		1-09660-693-0 04 1 1003-1107
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) PT1/4 2WAY THA 		1-09660-693-0 04 1 1108-1203
126 CONNECTOR; ELBOW
(D) DIN8 & R1/4 ELBOW THA 		1-09660-956-0 01 1 1003-1107
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (D) DIN8 & R1/4 ELBOW THA 		1-09660-956-0 01 1 1108-1203
126 CONNECTOR; ELBOW
(E) DIN8 & R3/8 ELBOW THA 		1-09660-957-0 01 1 1003-1107
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (E) DIN8 & R3/8 ELBOW THA 		1-09660-957-0 01 1 1108-1203
126 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 07 1 1003-1102
126 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 06 1 1103-1107
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 06 1 1108-1203
126 CONNECTOR; ELBOW
(F) DIN12 & R3/8 STRAIGHT THA 		1-09660-965-0 01 1 1003-1107
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (F) DIN12 & R3/8 STRAIGHT THA 		1-09660-965-0 01 1 1108-1203
126 CONNECTOR; ELBOW
ANTI LOCK BRAKE<JE5> (A) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 03 1 0809-1107
126 CONNECTOR; ELBOW
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 03 1 1108-1109
185 PIN; SNAP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=32.6 		8-98062-280-0 02 1 1204-
185 PIN; SNAP
L=32.6 		8-98062-280-0 01 1 0807-1102
185 PIN; SNAP
L=32.6 		8-98062-280-0 02 1 1103-1107
185 PIN; SNAP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=32.6 		8-98062-280-0 02 1 1108-1203
366 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 01 1 1204-
366 CONNECTOR; NYLON TUBE
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (E) DIN12X2 & PT3/8 DOUBLE ELBOW THA 		1-09661-026-0 01 1 1108-
366 CONNECTOR; NYLON TUBE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 01 1 1108-1203
366 CONNECTOR; NYLON TUBE
(E) DIN12X2 & PT3/8 DOUBLE ELBOW THA 		1-09661-026-0 01 1 1103-1107
366 CONNECTOR; NYLON TUBE
(A) DIN8 & R1/4 ELBOW THA 		1-09660-956-0 01 1 0807-1002
366 CONNECTOR; NYLON TUBE
(B) DIN8 & R3/8 ELBOW THA 		1-09660-957-0 01 1 0807-1002
366 CONNECTOR; NYLON TUBE
(C) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 07 1 0808-1002
366 CONNECTOR; NYLON TUBE
(D) DIN12 & R3/8 STRAIGHT THA 		1-09660-965-0 01 1 0807-1002
369 CONNECTOR; 3WAY
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) DIN9 & RC3/8 ELBOW THA 		8-98203-578-0 02 1 1112-
369 CONNECTOR; 3WAY
ANTI LOCK BRAKE<JE5> (B) PT3/8 3WAY THA 		1-09661-300-0 02 1 0809-1107
369 CONNECTOR; 3WAY
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) PT3/8 3WAY THA 		1-09661-300-0 02 1 1108-1111
369 CONNECTOR; 3WAY
(A) IMA 		1-09656-708-0 01 1 0807-1002

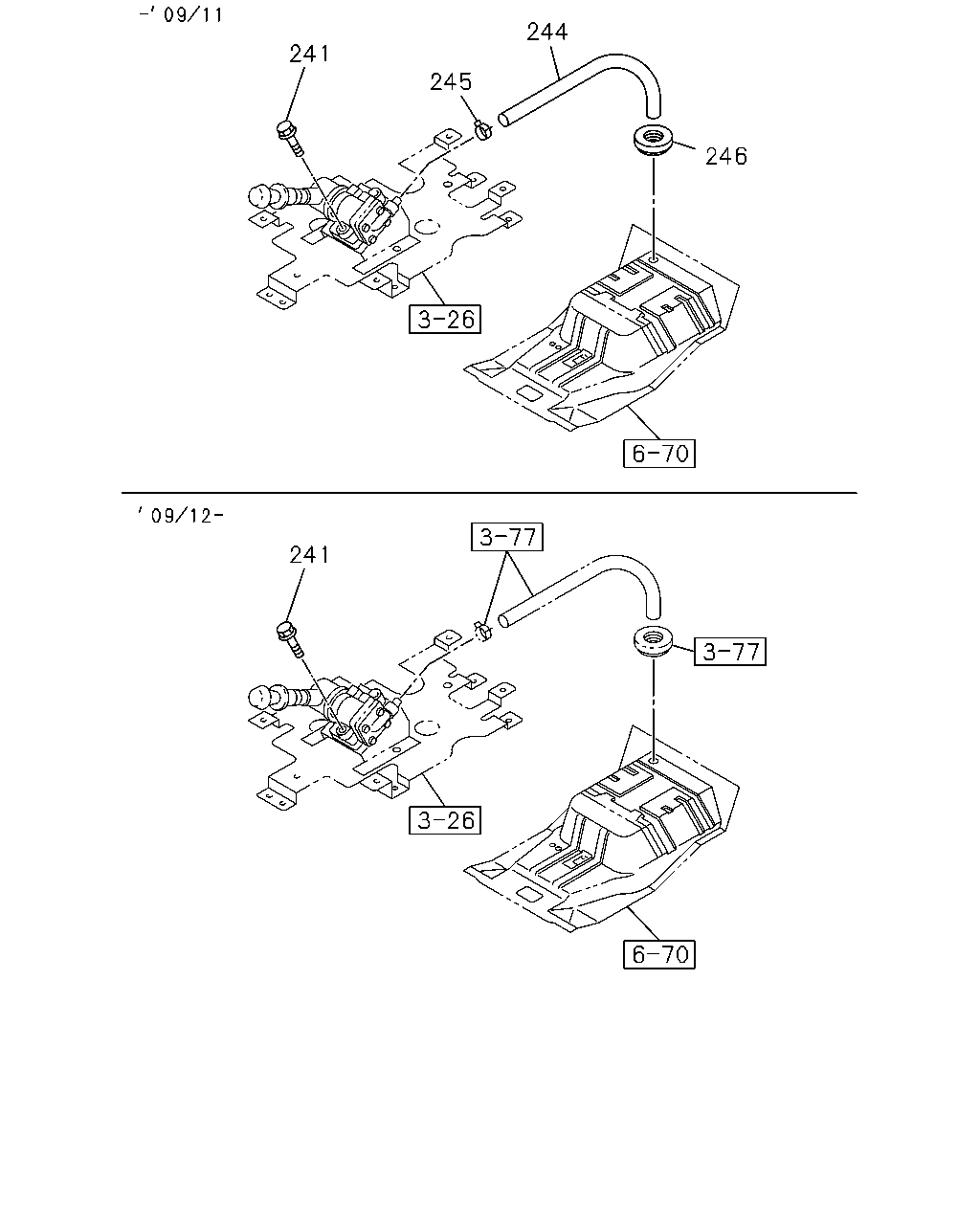

çizim 107013
244 241 245 246 241
BalonParca AdiParca NoAdetTipApplied Date
241 BOLT; SET,CONT VLV
M8X70 FLANGE THA 		0-28050-870-0 02 1 0807-1107
241 BOLT; SET,CONT VLV
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> M8X70 FLANGE THA 		0-28050-870-0 02 1 1108-
244 PIPE; VINYL,EXH
REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> L=260 ID=9.5 SERVICED BY L=10000 		9-09914-701-0 01 1 0807-0911
245 CLIP; VINYL PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> ID=14 		8-94238-572-0 01 1 0807-0911
246 GROMMET; VINYL PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> OD=24 		9-61166-007-0 01 1 0807-0911

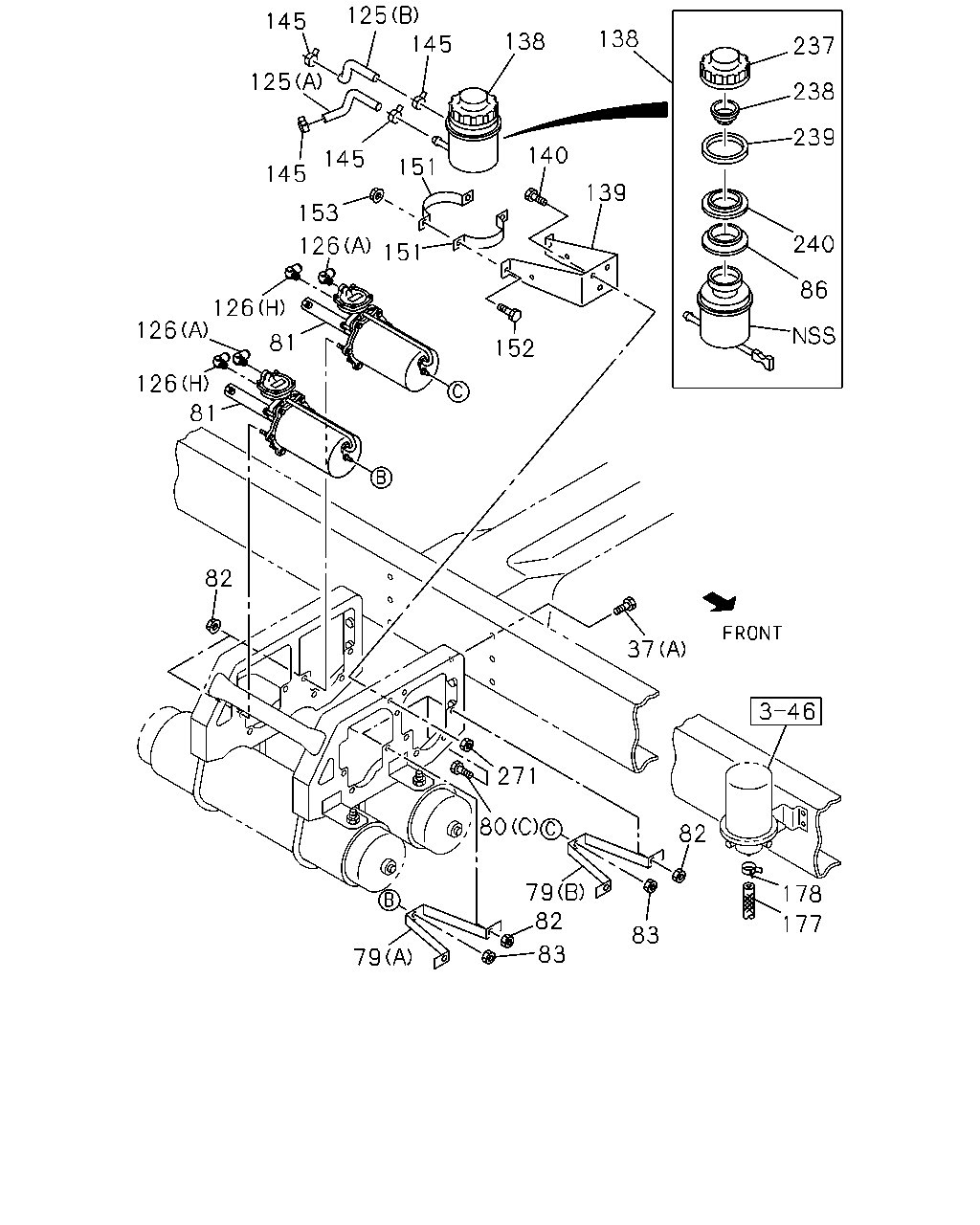

çizim 107022
125 145 138 138 145 237 125 238 239 140 145 151 145 139 153 240 126 151 86 126 126 81 152 126 81 82 37 271 80 82 79 82 178 177 83 83 79
BalonParca AdiParca NoAdetTipApplied Date
37 BOLT; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) M12X40 FLANGE THA 		0-28651-240-0 06 1 1108-
37 BOLT; AIR TANK
(A) M12X40 FLANGE THA 		0-28651-240-0 06 1 0807-1102
37 BOLT; AIR TANK
(A) M12X40 FLANGE THA 		0-28651-240-0 08 1 1103-1107
37 BOLT; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) M12X40 FLANGE THA 		0-28651-240-0 08 1 1108-
37 BOLT; AIR TANK
(B) M10X45 FLANGE THA 		0-28051-045-0 04 1 0807-
79 STAY; AIR MASTER TO BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) 		1-53318-348-0 01 1 1108-
79 STAY; AIR MASTER TO BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) 		8-98120-254-0 01 1 1108-
80 BOLT; BRKT
(A) M10X25 FLANGE THA 		0-28651-025-0 04 1 0807-
80 BOLT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (D) M8X20 FLANGE THA 		0-28650-820-0 04 1 1108-
80 BOLT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) M10X30 FLANGE THA 		0-28651-030-0 04 1 1108-
80 BOLT; BRKT
(B) M12X35 FLANGE THA 		0-28651-235-0 04 1 0807-1102
81 AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> SECONDARY 		1-47800-794-0 01 1 1108-
81 AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> PRIMARY 		1-47800-795-0 01 1 1108-
82 NUT; STAY,AIR MASTER BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M10 FLANGE THA 		0-91180-210-0 04 1 1108-
83 NUT; AIR MASTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M10 FLANGE THA 		0-91180-210-0 10 1 1108-
86 SEAL; DUST
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> 		1-47529-019-0 01 1 1108-
125 HOSE; OIL TANK TO AIR MASTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) 		1-47469-118-0 01 1 1108-
125 HOSE; OIL TANK TO AIR MASTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) 		1-47469-119-0 01 1 1108-
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (G) 		1-09650-283-1 01 1 1204-
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) PT1/4 2WAY THA 		1-09660-693-0 04 1 1204-
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (D) DIN8 & R1/4 ELBOW THA 		1-09660-956-0 01 1 1204-
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (E) DIN8 & R3/8 ELBOW THA 		1-09660-957-0 01 1 1204-
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 06 1 1204-
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (F) DIN12 & R3/8 STRAIGHT THA 		1-09660-965-0 01 1 1204-
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) IMA 		8-98166-127-0 01 1 1204-
126 CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (I) PT1/4 & PT3/8 2WAY THA 		1-09660-809-0 01 1 1108-
126 CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (J) DIN12 & M20 STRAIGHT IMA 		1-09660-877-0 01 1 1108-
126 CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 02 1 1108-
126 CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (H) DIN12 & R1/2 ELBOW THA 		1-09660-960-0 02 1 1108-
126 CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (K) DIN12X2 & R3/8 3WAY 		1-09661-007-0 01 1 1108-
126 CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (L) DIN8X2 & PT3/8 DOUBLE ELBOW THA 		1-09661-025-0 01 1 1108-
126 CONNECTOR; ELBOW
(G) 		1-09650-283-1 01 1 1103-1107
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (G) 		1-09650-283-1 01 1 1108-1203
126 CONNECTOR; ELBOW
(B) IMA 		1-09656-708-0 01 1 1003-1102
126 CONNECTOR; ELBOW
(B) IMA 		8-98166-127-0 01 1 1103-1107
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) IMA 		8-98166-127-0 01 1 1108-1203
126 CONNECTOR; ELBOW
(C) PT1/4 2WAY THA 		1-09660-693-0 04 1 1003-1107
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) PT1/4 2WAY THA 		1-09660-693-0 04 1 1108-1203
126 CONNECTOR; ELBOW
(D) DIN8 & R1/4 ELBOW THA 		1-09660-956-0 01 1 1003-1107
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (D) DIN8 & R1/4 ELBOW THA 		1-09660-956-0 01 1 1108-1203
126 CONNECTOR; ELBOW
(E) DIN8 & R3/8 ELBOW THA 		1-09660-957-0 01 1 1003-1107
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (E) DIN8 & R3/8 ELBOW THA 		1-09660-957-0 01 1 1108-1203
126 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 07 1 1003-1102
126 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 06 1 1103-1107
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 06 1 1108-1203
126 CONNECTOR; ELBOW
(F) DIN12 & R3/8 STRAIGHT THA 		1-09660-965-0 01 1 1003-1107
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (F) DIN12 & R3/8 STRAIGHT THA 		1-09660-965-0 01 1 1108-1203
126 CONNECTOR; ELBOW
ANTI LOCK BRAKE<JE5> (A) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 03 1 0809-1107
126 CONNECTOR; ELBOW
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 03 1 1108-1109
138 TANK ASM; OIL,AIR MASTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> 		1-47530-185-1 01 1 1108-
139 BRACKET; OIL TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> 		8-98174-721-0 01 1 1108-
140 BOLT; OIL TANK TO BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M10X25 FLANGE THA 		0-28651-025-0 03 1 1108-
145 CLIP; OIL TANK TO AIR MASTER HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> ID=14 		1-09704-102-0 04 1 1108-
151 BAND; OIL TANK,AIR MASTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> 		1-47537-056-2 02 1 1108-
152 BOLT; OIL TANK TO BAND
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8X20 FLANGE THA 		0-28650-820-0 02 1 1108-
153 NUT; OIL TANK TO BAND
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8 THA 		0-91110-508-0 02 1 1108-
177 HOSE; RUBBER,DRAIN
L=60 SERVICED BY L=3000 THA 		0-03566-300-0 01 1 0807-
178 CLIP; HOSE
ID=22 		8-94382-401-0 01 1 0807-1102
178 CLIP; HOSE
ID=21 THA 		8-94242-034-0 01 1 1103-
237 CAP; OIL TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> 		1-47525-030-0 01 1 1108-
238 PLATE; BAFFLE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> 		1-47529-022-0 01 1 1108-
239 FILTER; DUST
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> 		1-47529-017-0 01 1 1108-
240 HOLDER; FILTER
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> 		1-47529-018-0 01 1 1108-
271 NUT; BRKT,HOSE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M10 FLANGE THA 		0-91180-210-0 03 1 1108-

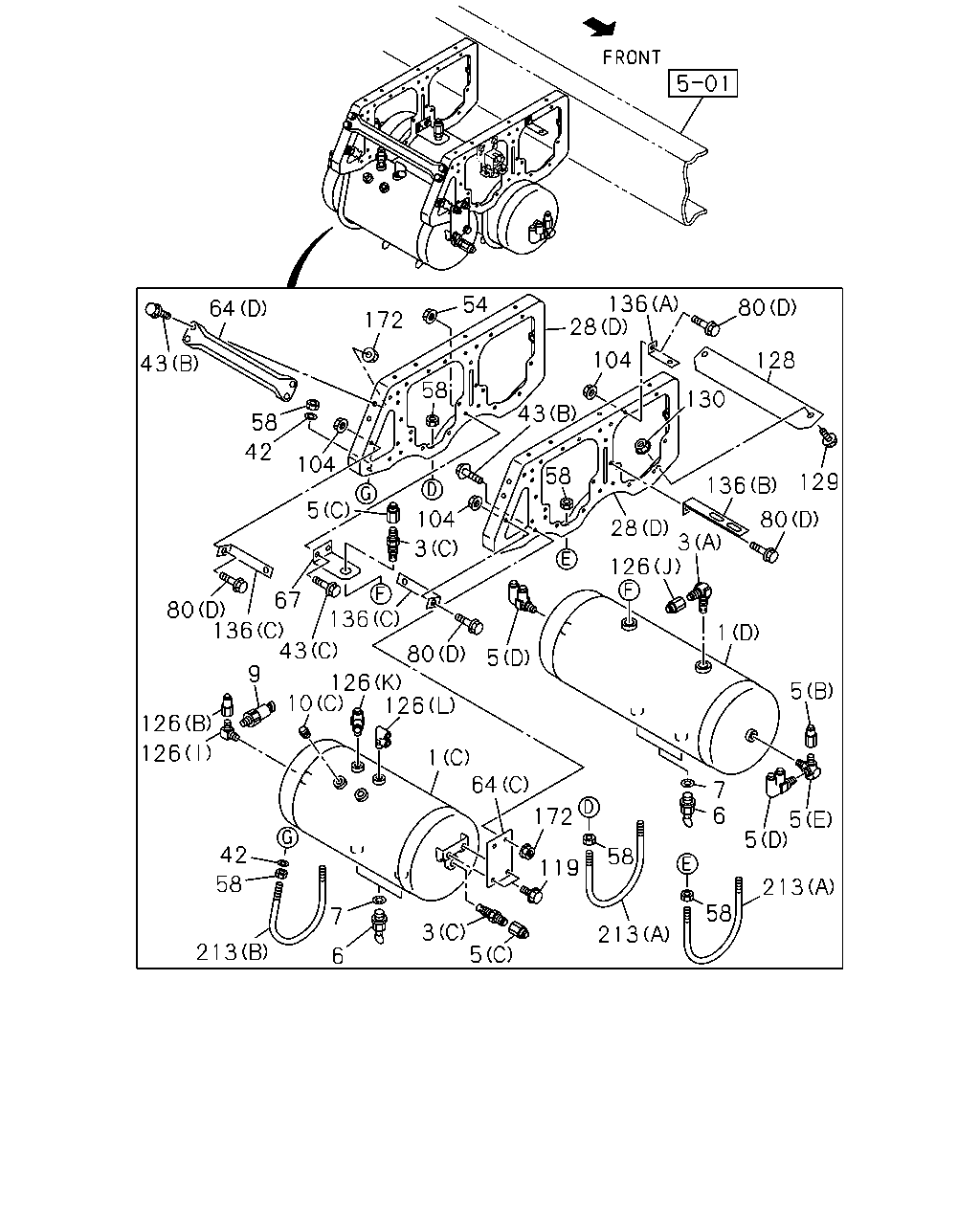

çizim 107046
136 28 54 80 64 172 58 104 128 43 130 43 58 42 58 104 129 136 5 104 80 28 3 126 3 136 67 80 136 43 1 80 5 9 126 10 126 5 126 126 1 64 7 6 172 5 5 42 58 119 58 213 58 7 3 5 213 213 6
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA 		8-98202-945-0 01 1 1204-
1 TANK ASM; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) THA 		8-98202-946-0 01 1 1204-
1 TANK ASM; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) 		1-48370-493-0 01 1 1108-
1 TANK ASM; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (D) 		8-98166-791-1 01 1 1108-
1 TANK ASM; AIR
(A) 		1-48370-181-1 01 1 0807-1107
1 TANK ASM; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) 		1-48370-181-1 01 1 1108-1203
1 TANK ASM; AIR
(B) 		8-98166-973-0 01 1 1003-1102
1 TANK ASM; AIR
(B) 		8-98018-535-0 01 1 1103-1107
1 TANK ASM; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) 		8-98018-535-0 01 1 1108-1203
1 TANK ASM; AIR
(B) 		8-98018-535-0 01 1 0807-1002
3 VALVE; CHECK,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) THA 		1-48320-031-1 01 1 1204-
3 VALVE; CHECK,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) 		1-48410-182-3 02 1 1108-
3 VALVE; CHECK,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) M20 & PT3/4 ELBOW 		1-48410-412-0 01 1 1103-1206
3 VALVE; CHECK,AIR TANK
(A) M20 & PT3/4 ELBOW 		1-48410-412-0 01 1 1207-
3 VALVE; CHECK,AIR TANK
(B) THA 		1-48320-031-1 01 1 0807-1107
3 VALVE; CHECK,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) THA 		1-48320-031-1 01 1 1108-1203
5 UNION; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (E) 		1-09656-557-1 01 1 1108-1112
5 UNION; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (E) M16 & R3/8 THA 		8-98204-239-0 01 1 1201-
5 UNION; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) DIN12 & M16 STRAIGHT THA 		1-09660-876-0 01 1 1108-
5 UNION; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) DIN12 & M20 STRAIGHT IMA 		1-09660-877-0 02 1 1108-
5 UNION; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (D) DIN12X2 & PT3/8 DOUBLE ELBOW THA 		1-09661-026-0 02 1 1108-
5 UNION; AIR TANK
(A) PT1/4 2WAY THA 		1-09660-693-0 04 1 0807-1002
6 COCK; DRAIN,AIR TANK 1-48312-015-0 04 1 1207-
6 COCK; DRAIN,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> 		1-48312-015-0 01 1 1110-1112
6 COCK; DRAIN,AIR TANK 1-48312-015-0 05 1 1201-1203
6 COCK; DRAIN,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> 		1-48312-015-0 04 1 1204-1206
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1207-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 05 1 0807-1109
6 COCK; DRAIN,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> 		1-48312-015-0 04 1 1110-1112
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 1207-
7 GASKET; DRAIN COCK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> ID=14 		1-09630-145-0 01 1 1110-1112
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 05 1 1201-1203
7 GASKET; DRAIN COCK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> ID=14 		1-09630-145-0 04 1 1204-1206
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1207-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 05 1 0807-1109
7 GASKET; DRAIN COCK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> ID=14 		1-09630-145-0 04 1 1110-1112
9 SWITCH; LOW PRESSURE GAGE,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> STAMP 5.5 THA 		8-97609-249-0 04 1 1108-
10 PLUG; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) PT3/8 THA 		9-09204-517-0 01 1 1204-
10 PLUG; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) PT3/4 		9-09204-526-0 03 1 1204-
10 PLUG; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) PT1/4 THA 		9-99204-513-0 01 1 1108-
10 PLUG; AIR TANK
(A) PT3/8 THA 		9-09204-517-0 01 1 1103-1107
10 PLUG; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) PT3/8 THA 		9-09204-517-0 01 1 1108-1203
10 PLUG; AIR TANK
(B) PT3/4 		9-09204-526-0 02 1 1003-1102
10 PLUG; AIR TANK
(B) PT3/4 		9-09204-526-0 03 1 1103-1107
10 PLUG; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) PT3/4 		9-09204-526-0 03 1 1108-1203
10 PLUG; AIR TANK
(A) PT3/8 THA 		9-09204-517-0 01 1 0807-1002
10 PLUG; AIR TANK
(B) PT3/4 		9-09204-526-0 04 1 0807-1002
28 BRACKET; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) 		1-48317-601-5 02 1 1204-
28 BRACKET; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (D) 		8-98174-720-0 02 1 1108-
28 BRACKET; AIR TANK
(A) THA 		8-98048-199-0 01 1 0807-1102
28 BRACKET; AIR TANK
(B) THA 		8-98048-200-2 01 1 0807-1102
28 BRACKET; AIR TANK
(C) 		1-48317-601-5 02 1 1103-1107
28 BRACKET; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) 		1-48317-601-5 02 1 1108-1203
42 WASHER; PL
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> ID=10.5 		0-91614-510-0 02 1 1204-
42 WASHER; PL
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> ID=8.4 OD=18 THA 		0-91610-608-0 04 1 1108-
42 WASHER; PL
ID=10.5 		9-09164-510-0 02 1 0808-0812
42 WASHER; PL
ID=10.5 		9-09164-510-0 01 1 0901-1002
42 WASHER; PL
ID=10.5 		0-91614-510-0 01 1 1003-1102
42 WASHER; PL
ID=10.5 		0-91614-510-0 02 1 1103-1107
42 WASHER; PL
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> ID=10.5 		0-91614-510-0 02 1 1108-1203
43 BOLT; STAY,AIR TANK,MAIN
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) M8X25 FLANGE THA 		0-28650-825-0 06 1 1204-
43 BOLT; STAY,AIR TANK,MAIN
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) M10X25 FLANGE THA 		0-28651-025-0 02 1 1108-
43 BOLT; STAY,AIR TANK,MAIN
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) M10X30 FLANGE THA 		0-28651-030-0 06 1 1108-
43 BOLT; STAY,AIR TANK,MAIN
(A) M8X25 FLANGE THA 		0-28650-825-0 06 1 1103-1107
43 BOLT; STAY,AIR TANK,MAIN
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) M8X25 FLANGE THA 		0-28650-825-0 06 1 1108-1203
54 NUT; STAY
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M10 FLANGE THA 		0-91180-210-0 02 1 1108-
58 NUT; BAND,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8 THA 		0-91110-508-0 12 1 1108-
64 STAY; AIR TANK,MAIN
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) 		1-48317-607-0 01 1 1204-
64 STAY; AIR TANK,MAIN
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) 		1-48317-691-0 01 1 1204-
64 STAY; AIR TANK,MAIN
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) 		1-48317-760-0 01 1 1108-
64 STAY; AIR TANK,MAIN
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (D) 		1-53318-293-1 01 1 1108-
64 STAY; AIR TANK,MAIN
(A) 		1-48317-607-0 01 1 1103-1107
64 STAY; AIR TANK,MAIN
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) 		1-48317-607-0 01 1 1108-1203
64 STAY; AIR TANK,MAIN
(B) 		1-48317-691-0 01 1 1103-1107
64 STAY; AIR TANK,MAIN
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) 		1-48317-691-0 01 1 1108-1203
67 STAY; SUB TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> 		1-48317-321-2 01 1 1108-
80 BOLT; BRKT
(A) M10X25 FLANGE THA 		0-28651-025-0 04 1 0807-
80 BOLT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (D) M8X20 FLANGE THA 		0-28650-820-0 04 1 1108-
80 BOLT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) M10X30 FLANGE THA 		0-28651-030-0 04 1 1108-
80 BOLT; BRKT
(B) M12X35 FLANGE THA 		0-28651-235-0 04 1 0807-1102
104 NUT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8 FLANGE THA 		0-91180-108-0 04 1 1110-
104 NUT; BRKT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8 FLANGE THA 		0-91180-108-0 04 1 1108-1109
104 NUT; BRKT
M12 FLANGE THA 		0-91180-212-0 02 1 0807-1102
119 BOLT; STAY
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M10X25 FLANGE THA 		0-28651-025-0 02 1 1108-
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (G) 		1-09650-283-1 01 1 1204-
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) PT1/4 2WAY THA 		1-09660-693-0 04 1 1204-
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (D) DIN8 & R1/4 ELBOW THA 		1-09660-956-0 01 1 1204-
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (E) DIN8 & R3/8 ELBOW THA 		1-09660-957-0 01 1 1204-
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 06 1 1204-
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (F) DIN12 & R3/8 STRAIGHT THA 		1-09660-965-0 01 1 1204-
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) IMA 		8-98166-127-0 01 1 1204-
126 CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (I) PT1/4 & PT3/8 2WAY THA 		1-09660-809-0 01 1 1108-
126 CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (J) DIN12 & M20 STRAIGHT IMA 		1-09660-877-0 01 1 1108-
126 CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 02 1 1108-
126 CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (H) DIN12 & R1/2 ELBOW THA 		1-09660-960-0 02 1 1108-
126 CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (K) DIN12X2 & R3/8 3WAY 		1-09661-007-0 01 1 1108-
126 CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (L) DIN8X2 & PT3/8 DOUBLE ELBOW THA 		1-09661-025-0 01 1 1108-
126 CONNECTOR; ELBOW
(G) 		1-09650-283-1 01 1 1103-1107
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (G) 		1-09650-283-1 01 1 1108-1203
126 CONNECTOR; ELBOW
(B) IMA 		1-09656-708-0 01 1 1003-1102
126 CONNECTOR; ELBOW
(B) IMA 		8-98166-127-0 01 1 1103-1107
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) IMA 		8-98166-127-0 01 1 1108-1203
126 CONNECTOR; ELBOW
(C) PT1/4 2WAY THA 		1-09660-693-0 04 1 1003-1107
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) PT1/4 2WAY THA 		1-09660-693-0 04 1 1108-1203
126 CONNECTOR; ELBOW
(D) DIN8 & R1/4 ELBOW THA 		1-09660-956-0 01 1 1003-1107
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (D) DIN8 & R1/4 ELBOW THA 		1-09660-956-0 01 1 1108-1203
126 CONNECTOR; ELBOW
(E) DIN8 & R3/8 ELBOW THA 		1-09660-957-0 01 1 1003-1107
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (E) DIN8 & R3/8 ELBOW THA 		1-09660-957-0 01 1 1108-1203
126 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 07 1 1003-1102
126 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 06 1 1103-1107
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 06 1 1108-1203
126 CONNECTOR; ELBOW
(F) DIN12 & R3/8 STRAIGHT THA 		1-09660-965-0 01 1 1003-1107
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (F) DIN12 & R3/8 STRAIGHT THA 		1-09660-965-0 01 1 1108-1203
126 CONNECTOR; ELBOW
ANTI LOCK BRAKE<JE5> (A) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 03 1 0809-1107
126 CONNECTOR; ELBOW
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 03 1 1108-1109
128 PROTECTOR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> 		1-53319-018-0 01 1 1108-
129 BOLT; PROTECTOR FIX
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8X30 FLANGE THA 		0-28650-830-0 02 1 1108-
130 NUT; PROTECTOR FIX
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M8 FLANGE THA 		0-91180-108-0 02 1 1108-
136 BRACKET; CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) L=90 B=25 THA 		1-47475-530-0 01 1 1108-
136 BRACKET; CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) L=150 H=30 		1-47477-629-2 01 1 1108-
136 BRACKET; CLIP
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) L=59 B=20 		1-47479-048-0 02 1 1108-
172 NUT; STAY,AIR TANK,MAIN
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M10 FLANGE THA 		0-91180-210-0 06 1 1108-
213 BOLT; U AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) 		1-48317-301-0 02 1 1108-
213 BOLT; U AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) 		1-48317-302-0 01 1 1108-

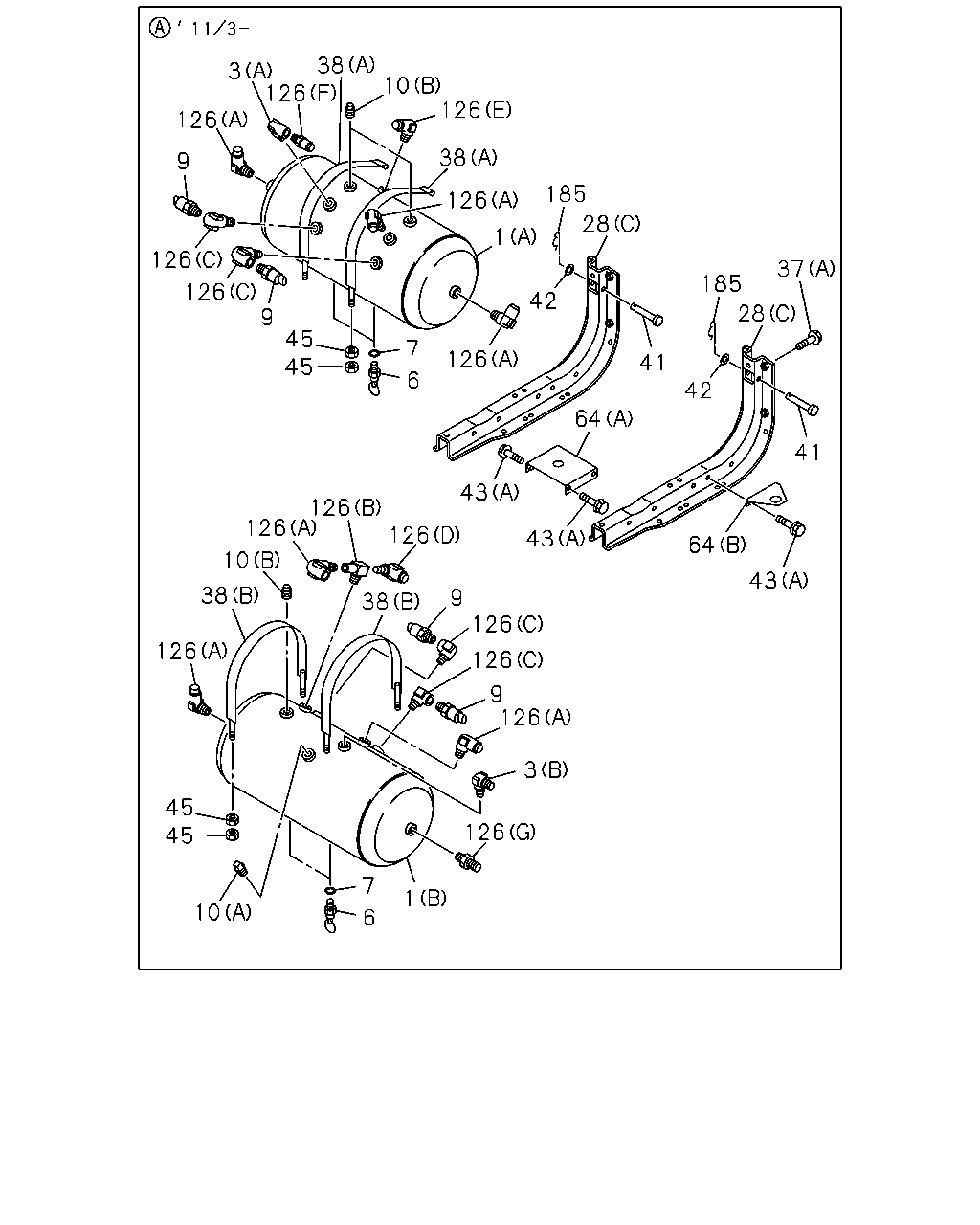

çizim 107151
3 38 126 3 10 126 126 38 9 185 126 28 1 126 37 185 126 9 42 28 45 45 7 126 41 6 64 42 41 43 126 126 126 43 64 10 43 38 9 38 126 126 126 9 126 3 45 45 126 7 1 10 6
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA 		8-98202-945-0 01 1 1204-
1 TANK ASM; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) THA 		8-98202-946-0 01 1 1204-
1 TANK ASM; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) 		1-48370-493-0 01 1 1108-
1 TANK ASM; AIR
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (D) 		8-98166-791-1 01 1 1108-
1 TANK ASM; AIR
(A) 		1-48370-181-1 01 1 0807-1107
1 TANK ASM; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) 		1-48370-181-1 01 1 1108-1203
1 TANK ASM; AIR
(B) 		8-98166-973-0 01 1 1003-1102
1 TANK ASM; AIR
(B) 		8-98018-535-0 01 1 1103-1107
1 TANK ASM; AIR
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) 		8-98018-535-0 01 1 1108-1203
1 TANK ASM; AIR
(B) 		8-98018-535-0 01 1 0807-1002
3 VALVE; CHECK,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) THA 		1-48320-031-1 01 1 1204-
3 VALVE; CHECK,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) 		1-48410-182-3 02 1 1108-
3 VALVE; CHECK,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) M20 & PT3/4 ELBOW 		1-48410-412-0 01 1 1103-1206
3 VALVE; CHECK,AIR TANK
(A) M20 & PT3/4 ELBOW 		1-48410-412-0 01 1 1207-
3 VALVE; CHECK,AIR TANK
(B) THA 		1-48320-031-1 01 1 0807-1107
3 VALVE; CHECK,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) THA 		1-48320-031-1 01 1 1108-1203
6 COCK; DRAIN,AIR TANK 1-48312-015-0 04 1 1207-
6 COCK; DRAIN,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> 		1-48312-015-0 01 1 1110-1112
6 COCK; DRAIN,AIR TANK 1-48312-015-0 05 1 1201-1203
6 COCK; DRAIN,AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> 		1-48312-015-0 04 1 1204-1206
6 COCK; DRAIN,AIR TANK 1-48312-015-0 01 1 1207-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 05 1 0807-1109
6 COCK; DRAIN,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> 		1-48312-015-0 04 1 1110-1112
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 1207-
7 GASKET; DRAIN COCK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> ID=14 		1-09630-145-0 01 1 1110-1112
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 05 1 1201-1203
7 GASKET; DRAIN COCK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> ID=14 		1-09630-145-0 04 1 1204-1206
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1207-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 05 1 0807-1109
7 GASKET; DRAIN COCK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> ID=14 		1-09630-145-0 04 1 1110-1112
9 SWITCH; LOW PRESSURE GAGE,AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> STAMP 5.5 THA 		8-97609-249-0 04 1 1108-
10 PLUG; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) PT3/8 THA 		9-09204-517-0 01 1 1204-
10 PLUG; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) PT3/4 		9-09204-526-0 03 1 1204-
10 PLUG; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) PT1/4 THA 		9-99204-513-0 01 1 1108-
10 PLUG; AIR TANK
(A) PT3/8 THA 		9-09204-517-0 01 1 1103-1107
10 PLUG; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) PT3/8 THA 		9-09204-517-0 01 1 1108-1203
10 PLUG; AIR TANK
(B) PT3/4 		9-09204-526-0 02 1 1003-1102
10 PLUG; AIR TANK
(B) PT3/4 		9-09204-526-0 03 1 1103-1107
10 PLUG; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) PT3/4 		9-09204-526-0 03 1 1108-1203
10 PLUG; AIR TANK
(A) PT3/8 THA 		9-09204-517-0 01 1 0807-1002
10 PLUG; AIR TANK
(B) PT3/4 		9-09204-526-0 04 1 0807-1002
28 BRACKET; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) 		1-48317-601-5 02 1 1204-
28 BRACKET; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (D) 		8-98174-720-0 02 1 1108-
28 BRACKET; AIR TANK
(A) THA 		8-98048-199-0 01 1 0807-1102
28 BRACKET; AIR TANK
(B) THA 		8-98048-200-2 01 1 0807-1102
28 BRACKET; AIR TANK
(C) 		1-48317-601-5 02 1 1103-1107
28 BRACKET; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) 		1-48317-601-5 02 1 1108-1203
37 BOLT; AIR TANK
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) M12X40 FLANGE THA 		0-28651-240-0 06 1 1108-
37 BOLT; AIR TANK
(A) M12X40 FLANGE THA 		0-28651-240-0 06 1 0807-1102
37 BOLT; AIR TANK
(A) M12X40 FLANGE THA 		0-28651-240-0 08 1 1103-1107
37 BOLT; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) M12X40 FLANGE THA 		0-28651-240-0 08 1 1108-
37 BOLT; AIR TANK
(B) M10X45 FLANGE THA 		0-28051-045-0 04 1 0807-
38 BAND; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) 		1-48317-108-2 02 1 1204-
38 BAND; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) 		1-48317-109-2 02 1 1204-
38 BAND; AIR TANK
(A) 		1-48317-108-2 02 1 0807-1107
38 BAND; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) 		1-48317-108-2 02 1 1108-1203
38 BAND; AIR TANK
(B) 		1-48317-109-2 02 1 0807-1107
38 BAND; AIR TANK
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) 		1-48317-109-2 02 1 1108-1203
41 PIN; BAND FIX
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> OD=10 L=60 		0-82254-060-0 02 1 1204-
41 PIN; BAND FIX 1-09744-068-0 01 1 0807-1102
41 PIN; BAND FIX
OD=10 L=60 		0-82254-060-0 02 1 1103-1107
41 PIN; BAND FIX
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> OD=10 L=60 		0-82254-060-0 02 1 1108-1203
42 WASHER; PL
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> ID=10.5 		0-91614-510-0 02 1 1204-
42 WASHER; PL
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> ID=8.4 OD=18 THA 		0-91610-608-0 04 1 1108-
42 WASHER; PL
ID=10.5 		9-09164-510-0 02 1 0808-0812
42 WASHER; PL
ID=10.5 		9-09164-510-0 01 1 0901-1002
42 WASHER; PL
ID=10.5 		0-91614-510-0 01 1 1003-1102
42 WASHER; PL
ID=10.5 		0-91614-510-0 02 1 1103-1107
42 WASHER; PL
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> ID=10.5 		0-91614-510-0 02 1 1108-1203
43 BOLT; STAY,AIR TANK,MAIN
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) M8X25 FLANGE THA 		0-28650-825-0 06 1 1204-
43 BOLT; STAY,AIR TANK,MAIN
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) M10X25 FLANGE THA 		0-28651-025-0 02 1 1108-
43 BOLT; STAY,AIR TANK,MAIN
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) M10X30 FLANGE THA 		0-28651-030-0 06 1 1108-
43 BOLT; STAY,AIR TANK,MAIN
(A) M8X25 FLANGE THA 		0-28650-825-0 06 1 1103-1107
43 BOLT; STAY,AIR TANK,MAIN
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) M8X25 FLANGE THA 		0-28650-825-0 06 1 1108-1203
45 NUT; AIR TANK,MAIN
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8 THA 		0-91110-508-0 12 1 1204-
45 NUT; AIR TANK,MAIN
M8 THA 		0-91110-508-0 12 1 0807-1107
45 NUT; AIR TANK,MAIN
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8 THA 		0-91110-508-0 12 1 1108-1203
64 STAY; AIR TANK,MAIN
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) 		1-48317-607-0 01 1 1204-
64 STAY; AIR TANK,MAIN
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) 		1-48317-691-0 01 1 1204-
64 STAY; AIR TANK,MAIN
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) 		1-48317-760-0 01 1 1108-
64 STAY; AIR TANK,MAIN
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (D) 		1-53318-293-1 01 1 1108-
64 STAY; AIR TANK,MAIN
(A) 		1-48317-607-0 01 1 1103-1107
64 STAY; AIR TANK,MAIN
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) 		1-48317-607-0 01 1 1108-1203
64 STAY; AIR TANK,MAIN
(B) 		1-48317-691-0 01 1 1103-1107
64 STAY; AIR TANK,MAIN
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) 		1-48317-691-0 01 1 1108-1203
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (G) 		1-09650-283-1 01 1 1204-
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) PT1/4 2WAY THA 		1-09660-693-0 04 1 1204-
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (D) DIN8 & R1/4 ELBOW THA 		1-09660-956-0 01 1 1204-
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (E) DIN8 & R3/8 ELBOW THA 		1-09660-957-0 01 1 1204-
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 06 1 1204-
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (F) DIN12 & R3/8 STRAIGHT THA 		1-09660-965-0 01 1 1204-
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) IMA 		8-98166-127-0 01 1 1204-
126 CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (I) PT1/4 & PT3/8 2WAY THA 		1-09660-809-0 01 1 1108-
126 CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (J) DIN12 & M20 STRAIGHT IMA 		1-09660-877-0 01 1 1108-
126 CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 02 1 1108-
126 CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (H) DIN12 & R1/2 ELBOW THA 		1-09660-960-0 02 1 1108-
126 CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (K) DIN12X2 & R3/8 3WAY 		1-09661-007-0 01 1 1108-
126 CONNECTOR; ELBOW
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (L) DIN8X2 & PT3/8 DOUBLE ELBOW THA 		1-09661-025-0 01 1 1108-
126 CONNECTOR; ELBOW
(G) 		1-09650-283-1 01 1 1103-1107
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (G) 		1-09650-283-1 01 1 1108-1203
126 CONNECTOR; ELBOW
(B) IMA 		1-09656-708-0 01 1 1003-1102
126 CONNECTOR; ELBOW
(B) IMA 		8-98166-127-0 01 1 1103-1107
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) IMA 		8-98166-127-0 01 1 1108-1203
126 CONNECTOR; ELBOW
(C) PT1/4 2WAY THA 		1-09660-693-0 04 1 1003-1107
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (C) PT1/4 2WAY THA 		1-09660-693-0 04 1 1108-1203
126 CONNECTOR; ELBOW
(D) DIN8 & R1/4 ELBOW THA 		1-09660-956-0 01 1 1003-1107
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (D) DIN8 & R1/4 ELBOW THA 		1-09660-956-0 01 1 1108-1203
126 CONNECTOR; ELBOW
(E) DIN8 & R3/8 ELBOW THA 		1-09660-957-0 01 1 1003-1107
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (E) DIN8 & R3/8 ELBOW THA 		1-09660-957-0 01 1 1108-1203
126 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 07 1 1003-1102
126 CONNECTOR; ELBOW
(A) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 06 1 1103-1107
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 06 1 1108-1203
126 CONNECTOR; ELBOW
(F) DIN12 & R3/8 STRAIGHT THA 		1-09660-965-0 01 1 1003-1107
126 CONNECTOR; ELBOW
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (F) DIN12 & R3/8 STRAIGHT THA 		1-09660-965-0 01 1 1108-1203
126 CONNECTOR; ELBOW
ANTI LOCK BRAKE<JE5> (A) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 03 1 0809-1107
126 CONNECTOR; ELBOW
ANTI LOCK BRAKE<JE5> BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) DIN12 & R3/8 ELBOW THA 		1-09660-959-0 03 1 1108-1109
185 PIN; SNAP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=32.6 		8-98062-280-0 02 1 1204-
185 PIN; SNAP
L=32.6 		8-98062-280-0 01 1 0807-1102
185 PIN; SNAP
L=32.6 		8-98062-280-0 02 1 1103-1107
185 PIN; SNAP
BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=32.6 		8-98062-280-0 02 1 1108-1203
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
