◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 11556 - FVR-RHD EURO5 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-50 - OIL COOLER AND OIL FILTER ▶
0-50 — OIL COOLER AND OIL FILTER (#129069) — 76 parça
çizim 379264
496 386 434 66 13 265 2 265 321 321 321
BalonParca AdiParca NoAdetTipApplied Date A B
2 ELEMENT; OIL FILTER 8-94391-049-4 01 1 1310-1410 ●
2 ELEMENT; OIL FILTER 8-94391-049-4 01 1 1411- ● ●
2 ELEMENT; OIL FILTER
BEST VALUE PARTS 		1-87610-064-0 01 1 1310-1410 ●
2 ELEMENT; OIL FILTER
BEST VALUE PARTS 		1-87610-064-0 01 1 1411- ● ●
13 VALVE; RELIEF 8-98238-944-0 01 1 1310-1410 ●
13 VALVE; RELIEF 8-98238-944-0 01 1 1411- ● ●
66 SPRING; VLV 8-98238-943-0 01 1 1310-1410 ●
66 SPRING; VLV 8-98238-943-0 01 1 1411- ● ●
265 BODY; OIL FILTER 8-98238-939-0 01 1 1310-1410 ●
265 BODY; OIL FILTER 8-98238-939-0 01 1 1411- ● ●
321 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8 		8-94399-339-0 01 1 1310-1410 ●
321 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8 		8-94399-339-0 01 1 1411- ● ●
321 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1 		8-94399-399-0 02 1 1310-1410 ●
321 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1 		8-94399-399-0 02 1 1411- ● ●
386 PLUG; OIL FILTER
(A) M10X10 		1-09604-074-0 01 1 1310-1410 ●
386 PLUG; OIL FILTER
(A) M10X10 		1-09604-074-0 01 1 1411- ● ●
386 PLUG; OIL FILTER
(B) 		8-98238-941-0 01 1 1310-1410 ●
386 PLUG; OIL FILTER
(B) 		8-98238-941-0 01 1 1411- ● ●
434 GASKET; PLUG,OIL FILTER
(A) ID=10.2 OD=15.2 		1-09630-083-0 01 1 1310-1410 ●
434 GASKET; PLUG,OIL FILTER
(A) ID=10.2 OD=15.2 		1-09630-083-0 01 1 1411- ● ●
434 GASKET; PLUG,OIL FILTER
(B) 		8-98238-942-0 01 1 1310-1410 ●
434 GASKET; PLUG,OIL FILTER
(B) 		8-98238-942-0 01 1 1411- ● ●
496 FILTER ASM; OIL 8-98236-649-0 01 1 1310-1410 ●
496 FILTER ASM; OIL 8-98236-649-0 01 1 1411- ● ●

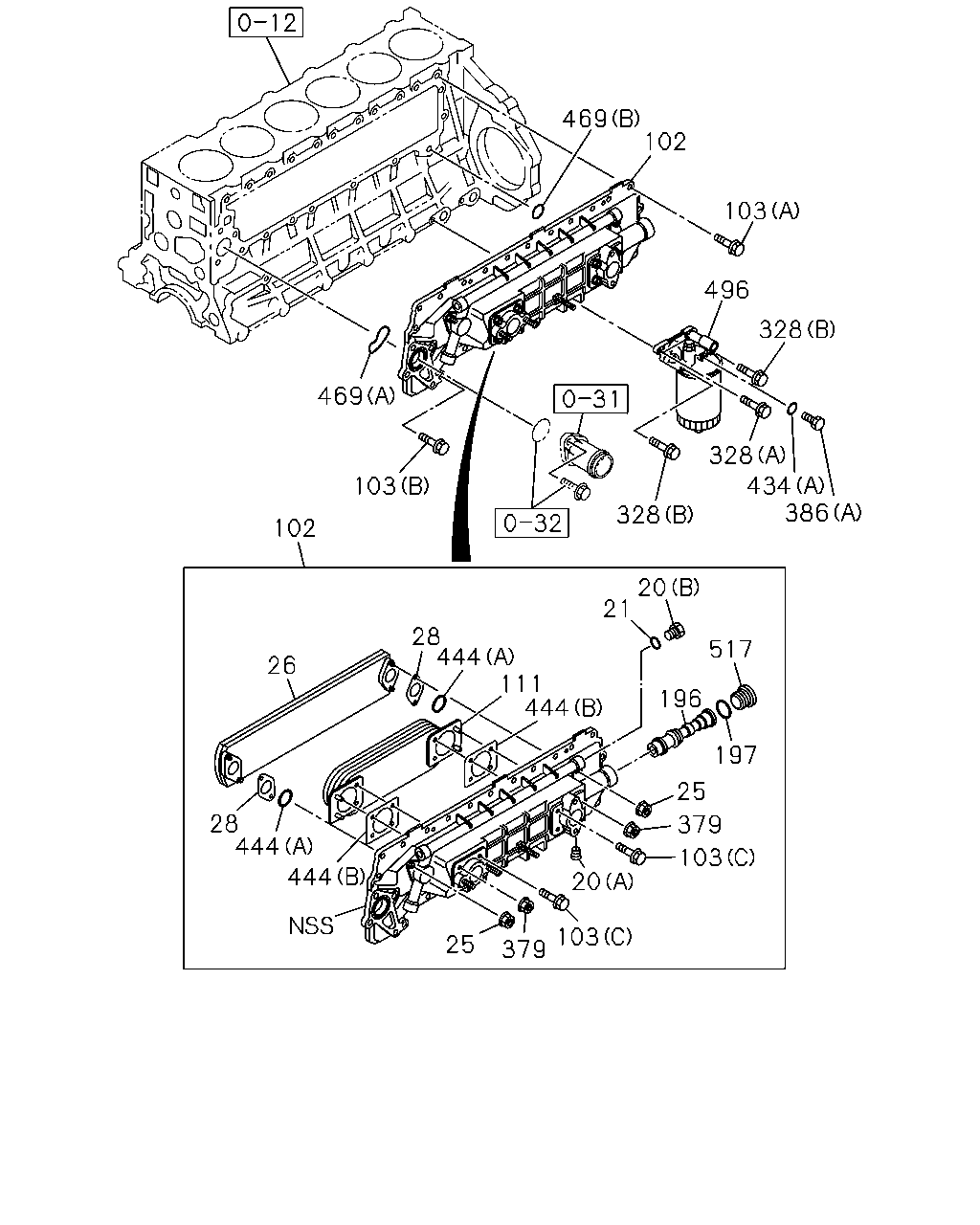

çizim 379280
469 102 103 496 328 469 103 102 26 28 444 111 444 21 20 517 196 197 25 379 103 20 103 379 25 444 444 28 328 434 386 328
BalonParca AdiParca NoAdetTipApplied Date A B
20 PLUG; COOLER BODY
(A) 		1-13219-240-0 02 1 1310-1410 ●
20 PLUG; COOLER BODY
(A) 		1-13219-240-0 02 1 1411- ● ●
20 PLUG; COOLER BODY
(B) 		8-97608-567-0 02 1 1310-1410 ●
20 PLUG; COOLER BODY
(B) 		8-97608-567-0 02 1 1411- ● ●
21 GASKET; PLUG
ID=17.8 		8-97608-568-0 02 1 1310-1410 ●
21 GASKET; PLUG
ID=17.8 		8-97608-568-0 02 1 1411- ● ●
25 NUT; CORE TO BODY
M10 FLANGE 		1-13219-324-0 04 1 1310-1410 ●
25 NUT; CORE TO BODY
M10 FLANGE 		1-13219-324-0 04 1 1411- ● ●
26 CORE ASM; OIL COOLER 8-98062-207-0 01 1 1310-1410 ●
26 CORE ASM; OIL COOLER 8-98062-207-0 01 1 1411- ● ●
28 GASKET; CORE TO BODY 8-94394-930-0 02 1 1310-1410 ●
28 GASKET; CORE TO BODY 8-94394-930-0 02 1 1411- ● ●
102 COOLER ASM; OIL 8-98236-650-0 01 1 1310-1410 ●
102 COOLER ASM; OIL 8-98236-650-0 01 1 1411- ● ●
103 BOLT; OIL COOLER
(C) M8X18 FLANGE 		8-98251-758-0 04 1 1310-1410 ●
103 BOLT; OIL COOLER
(C) M8X18 FLANGE 		8-98251-758-0 04 1 1411- ● ●
103 BOLT; OIL COOLER
(B) M8X35 FLANGE 		0-28050-835-0 03 1 1310-1410 ●
103 BOLT; OIL COOLER
(B) M8X35 FLANGE 		0-28050-835-0 03 1 1411- ● ●
103 BOLT; OIL COOLER
(A) M8X30 FLANGE 		0-28650-830-0 24 1 1310-1410 ●
103 BOLT; OIL COOLER
(A) M8X30 FLANGE 		0-28650-830-0 24 1 1411- ● ●
111 CORE; OIL COOLER 8-98063-863-0 01 1 1310-1410 ●
111 CORE; OIL COOLER 8-98063-863-0 01 1 1411- ● ●
196 THERMOSTAT; OIL COOLER
90 CELSIUS 		8-97600-936-0 01 1 1310-1410 ●
196 THERMOSTAT; OIL COOLER
90 CELSIUS 		8-97600-936-0 01 1 1411- ● ●
197 GASKET; THERMOSTAT 8-94391-728-0 01 1 1310-1410 ●
197 GASKET; THERMOSTAT 8-94391-728-0 01 1 1411- ● ●
328 BOLT; OIL FILTER
(A) M10X30 FLANGE 		0-28151-030-0 02 1 1310-1410 ●
328 BOLT; OIL FILTER
(A) M10X30 FLANGE 		0-28151-030-0 02 1 1411- ● ●
328 BOLT; OIL FILTER
(B) M10X90 FLANGE 		0-28151-090-0 02 1 1310-1410 ●
328 BOLT; OIL FILTER
(B) M10X90 FLANGE 		0-28151-090-0 02 1 1411- ● ●
379 NUT; OIL COOLER
M8 FLANGE 		0-91180-108-0 04 1 1310-1410 ●
379 NUT; OIL COOLER
M8 FLANGE 		0-91180-108-0 04 1 1411- ● ●
386 PLUG; OIL FILTER
(A) M10X10 		1-09604-074-0 01 1 1310-1410 ●
386 PLUG; OIL FILTER
(A) M10X10 		1-09604-074-0 01 1 1411- ● ●
386 PLUG; OIL FILTER
(B) 		8-98238-941-0 01 1 1310-1410 ●
386 PLUG; OIL FILTER
(B) 		8-98238-941-0 01 1 1411- ● ●
434 GASKET; PLUG,OIL FILTER
(A) ID=10.2 OD=15.2 		1-09630-083-0 01 1 1310-1410 ●
434 GASKET; PLUG,OIL FILTER
(A) ID=10.2 OD=15.2 		1-09630-083-0 01 1 1411- ● ●
434 GASKET; PLUG,OIL FILTER
(B) 		8-98238-942-0 01 1 1310-1410 ●
434 GASKET; PLUG,OIL FILTER
(B) 		8-98238-942-0 01 1 1411- ● ●
444 GASKET; ELEMENT TO BODY
(B) 		8-97601-801-0 02 1 1310-1410 ●
444 GASKET; ELEMENT TO BODY
(B) 		8-97601-801-0 02 1 1411- ● ●
444 GASKET; ELEMENT TO BODY
(A) ID=38.7 		1-09623-299-0 02 1 1310-1410 ●
444 GASKET; ELEMENT TO BODY
(A) ID=38.7 		1-09623-299-0 02 1 1411- ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-94399-002-0 01 1 1310-1410 ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-94399-002-0 01 1 1411- ● ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=20 		8-98045-449-0 01 1 1310-1410 ●
469 GASKET; OIL COOLER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=20 		8-98045-449-0 01 1 1411- ● ●
496 FILTER ASM; OIL 8-98236-649-0 01 1 1310-1410 ●
496 FILTER ASM; OIL 8-98236-649-0 01 1 1411- ● ●
517 PLUG; THERMOSTAT,OIL COOLER 8-94391-731-0 01 1 1310-1410 ●
517 PLUG; THERMOSTAT,OIL COOLER 8-94391-731-0 01 1 1411- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
