0-40 — FUEL INJECTION SYSTEM (#129067) — 138 parça

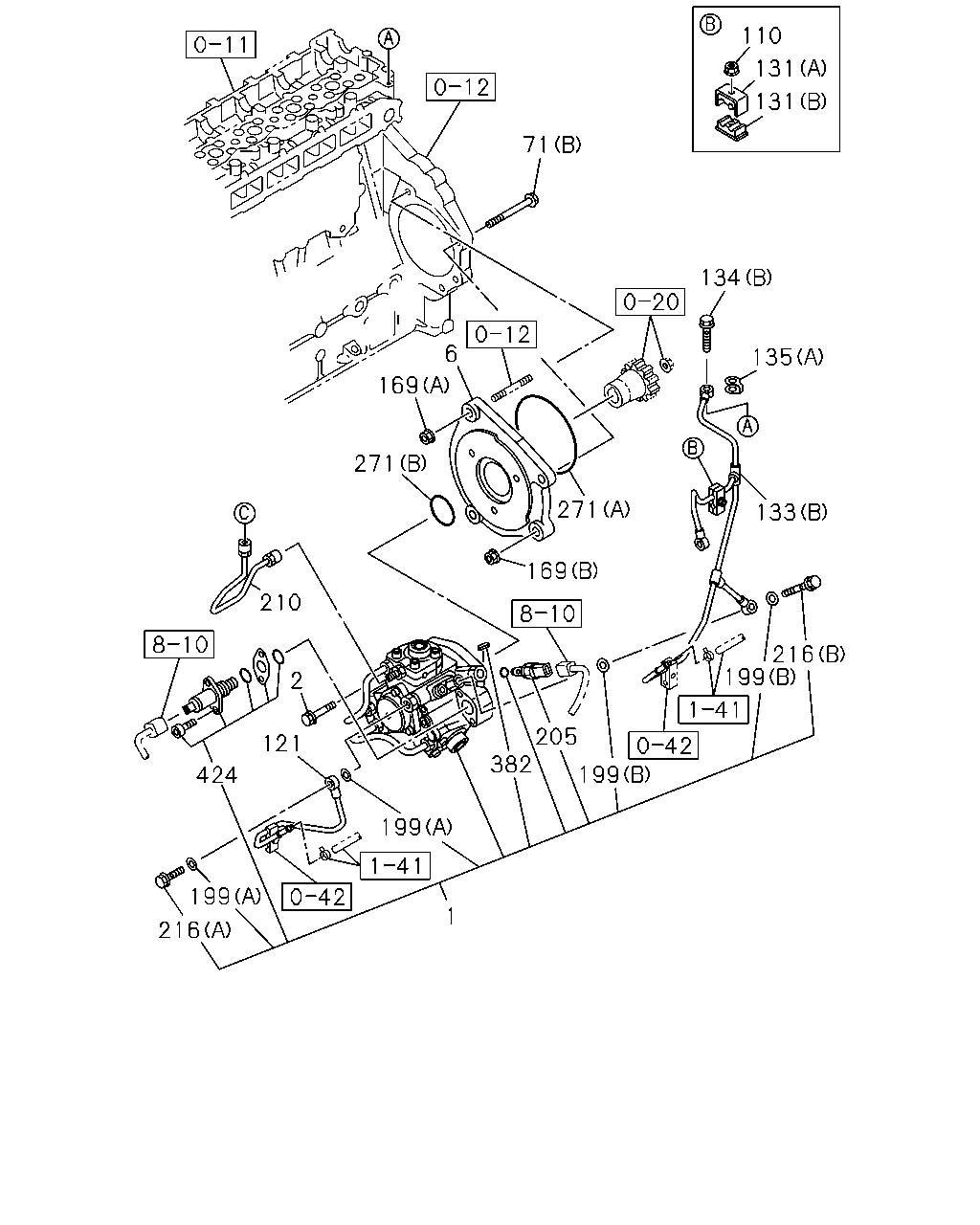

169 71 134 135 133 216 199 271 169 205 199 382 199 1 199 216 424 121 2 210 271 6 131 131 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; INJ	8-98239-521-1	01	1	1310-1410	●
1	PUMP ASM; INJ	8-98239-521-1	01	1	1411-	●	●
2	BOLT; INJ PUMP M8X28	8-94399-256-0	03	1	1310-1410	●
2	BOLT; INJ PUMP M8X28	8-94399-256-0	03	1	1411-	●	●
6	BRACKET; INJ PUMP TO C/BL	8-97601-154-1	01	1	1310-1410	●
6	BRACKET; INJ PUMP TO C/BL	8-97601-154-1	01	1	1411-	●	●
71	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	1310-1410	●
71	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	1411-	●	●
71	BOLT; BRKT (B) M12X100 FLANGE	0-28151-200-0	01	1	1310-1410	●
71	BOLT; BRKT (B) M12X100 FLANGE	0-28151-200-0	01	1	1411-	●	●
110	NUT; CLIP M6 FLANGE	0-91180-106-0	05	1	1310-1410	●
110	NUT; CLIP M6 FLANGE	0-91180-106-0	05	1	1411-	●	●
121	PIPE; FUEL,FEED PUMP,SUCTION	8-98126-331-0	01	1	1310-1410	●
121	PIPE; FUEL,FEED PUMP,SUCTION	8-98126-331-0	01	1	1411-	●	●
131	CLIP; OVERFLOW LEAK OFF (A) ID=7 & 9 L=25	8-98000-010-2	01	1	1310-1410	●
131	CLIP; OVERFLOW LEAK OFF (A) ID=7 & 9 L=25	8-98000-010-2	01	1	1411-	●	●
131	CLIP; OVERFLOW LEAK OFF (B) ID=7 & 9 L=25	8-98000-011-2	01	1	1310-1410	●
131	CLIP; OVERFLOW LEAK OFF (B) ID=7 & 9 L=25	8-98000-011-2	01	1	1411-	●	●
133	PIPE; INJ NOZZLE LEAK OFF (B)	8-98163-854-1	01	1	1310-1410	●
133	PIPE; INJ NOZZLE LEAK OFF (B)	8-98163-854-1	01	1	1411-	●	●
133	PIPE; INJ NOZZLE LEAK OFF (A)	8-98203-705-1	01	1	1310-1410	●
133	PIPE; INJ NOZZLE LEAK OFF (A)	8-98203-705-1	01	1	1411-	●	●
134	BOLT; JOINT,LEAK OFF PIPE (A) M8X18 EYE-BOLT	1-09675-037-1	06	1	1310-1410	●
134	BOLT; JOINT,LEAK OFF PIPE (A) M8X18 EYE-BOLT	1-09675-037-1	06	1	1411-	●	●
134	BOLT; JOINT,LEAK OFF PIPE (B) M10X21 FLANGE	8-94396-711-0	02	1	1310-1410	●
134	BOLT; JOINT,LEAK OFF PIPE (B) M10X21 FLANGE	8-94396-711-0	02	1	1411-	●	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 OD=15.0	8-98065-992-0	06	1	1310-1410	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 OD=15.0	8-98065-992-0	06	1	1411-	●	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=17	8-98079-755-0	01	1	1310-1410	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=17	8-98079-755-0	01	1	1411-	●	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6	8-98231-393-0	01	1	1310-1410	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6	8-98231-393-0	01	1	1411-	●	●
169	NUT; BRKT (A) M10 FLANGE	0-91180-110-0	02	1	1310-1410	●
169	NUT; BRKT (A) M10 FLANGE	0-91180-110-0	02	1	1411-	●	●
169	NUT; BRKT (B) M12 FLANGE	0-91180-112-0	01	1	1310-1410	●
169	NUT; BRKT (B) M12 FLANGE	0-91180-112-0	01	1	1411-	●	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	1310-1410	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	1411-	●	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	1310-1410	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	1411-	●	●
205	SENSOR; FUEL TEMP	8-98023-581-0	01	1	1310-1410	●
205	SENSOR; FUEL TEMP	8-98023-581-0	01	1	1411-	●	●
210	PIPE; INJ,C/R	8-98242-356-0	01	1	1310-1410	●
210	PIPE; INJ,C/R	8-98242-356-0	01	1	1411-	●	●
216	BOLT; EYE (A)	5-15759-003-0	01	1	1310-1410	●
216	BOLT; EYE (A)	5-15759-003-0	01	1	1411-	●	●
216	BOLT; EYE (B)	8-97351-388-0	01	1	1310-1410	●
216	BOLT; EYE (B)	8-97351-388-0	01	1	1411-	●	●
216	BOLT; EYE (C)	8-98035-828-0	01	1	1310-1410	●
216	BOLT; EYE (C)	8-98035-828-0	01	1	1411-	●	●
271	GASKET; INJ PUMP (A) ID=139.6	1-09623-464-0	01	1	1310-1410	●
271	GASKET; INJ PUMP (A) ID=139.6	1-09623-464-0	01	1	1411-	●	●
271	GASKET; INJ PUMP (B) ID=52	8-98031-844-0	01	1	1310-1410	●
271	GASKET; INJ PUMP (B) ID=52	8-98031-844-0	01	1	1411-	●	●
382	KEY; DRIVE SHAFT	8-98161-995-0	01	1	1310-1410	●
382	KEY; DRIVE SHAFT	8-98161-995-0	01	1	1411-	●	●
424	OVERHAUL KIT; SUPPLY PUMP	8-98145-449-1	01	1	1310-1410	●
424	OVERHAUL KIT; SUPPLY PUMP	8-98145-449-1	01	1	1411-	●	●

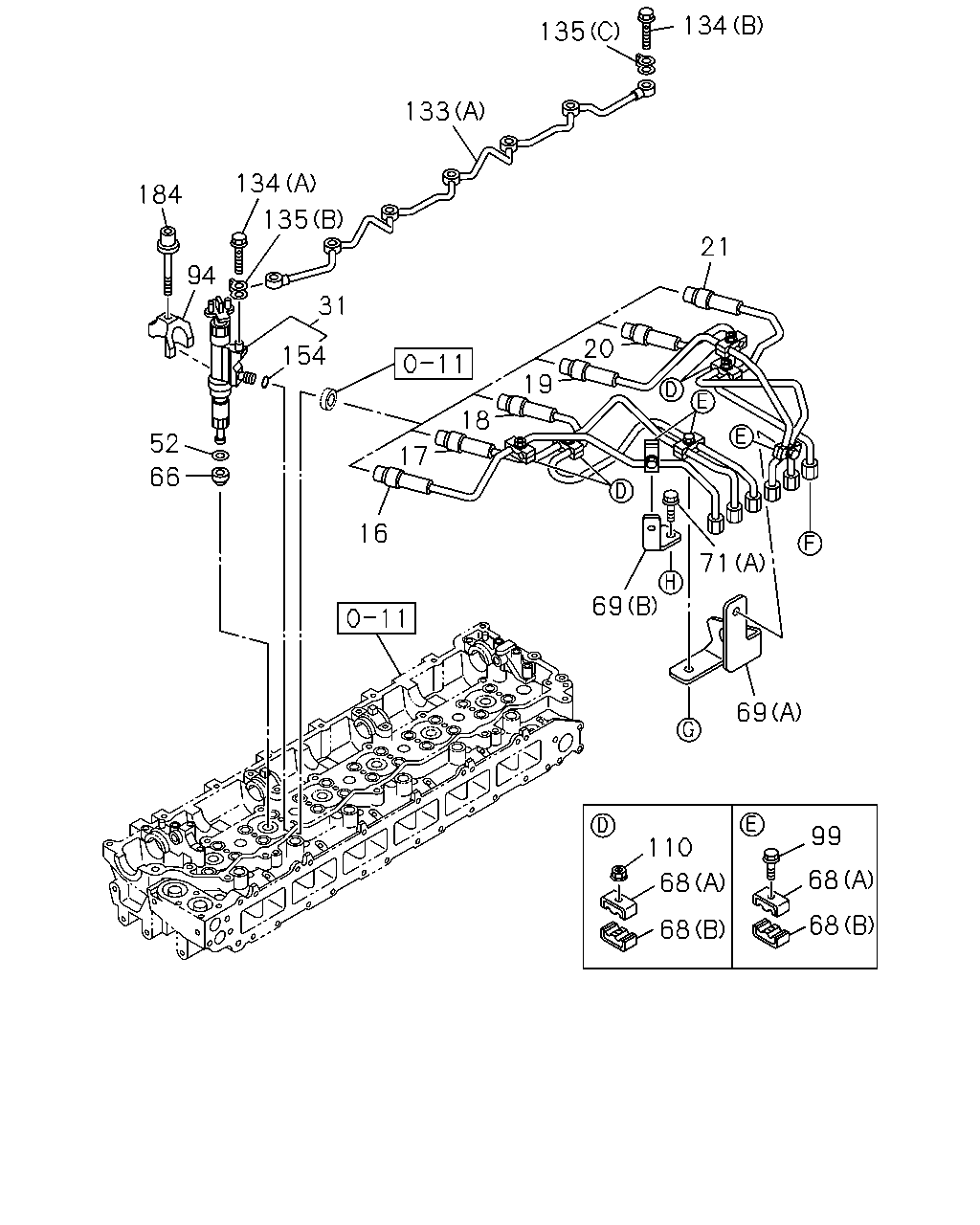

134 135 133 134 184 94 135 31 154 52 66 16 17 18 19 20 21 69 71 69 99 68 68 110 68 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	PIPE; INJ NO.1	8-98242-350-0	01	1	1310-1410	●
16	PIPE; INJ NO.1	8-98242-350-0	01	1	1411-	●	●
17	PIPE; INJ NO.2	8-98242-351-0	01	1	1310-1410	●
17	PIPE; INJ NO.2	8-98242-351-0	01	1	1411-	●	●
18	PIPE; INJ NO.3	8-98242-352-0	01	1	1310-1410	●
18	PIPE; INJ NO.3	8-98242-352-0	01	1	1411-	●	●
19	PIPE; INJ NO.4	8-98242-353-0	01	1	1310-1410	●
19	PIPE; INJ NO.4	8-98242-353-0	01	1	1411-	●	●
20	PIPE; INJ NO.5	8-98242-354-0	01	1	1310-1410	●
20	PIPE; INJ NO.5	8-98242-354-0	01	1	1411-	●	●
21	PIPE; INJ NO.6	8-98242-355-0	01	1	1310-1410	●
21	PIPE; INJ NO.6	8-98242-355-0	01	1	1411-	●	●
31	NOZZLE ASM; INJ	8-98207-435-0	06	1	1310-1410	●
31	NOZZLE ASM; INJ	8-98207-435-0	06	1	1411-	●	●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=23.3	8-94173-412-0	06	1	1310-1410	●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=23.3	8-94173-412-0	06	1	1411-	●	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	8-98079-248-0	06	1	1310-1410	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	8-98079-248-0	06	1	1411-	●	●
68	CLIP; INJ PIPE (B) ID=7 & 7 L=22	8-97330-118-3	07	1	1310-1410	●
68	CLIP; INJ PIPE (B) ID=7 & 7 L=22	8-97330-118-3	07	1	1411-	●	●
68	CLIP; INJ PIPE (A) ID=7 & 7 L=22	8-97330-119-3	07	1	1310-1410	●
68	CLIP; INJ PIPE (A) ID=7 & 7 L=22	8-97330-119-3	07	1	1411-	●	●
69	BRACKET; INJ PIPE CLIP (B)	8-98038-940-0	01	1	1310-1410	●
69	BRACKET; INJ PIPE CLIP (B)	8-98038-940-0	01	1	1411-	●	●
69	BRACKET; INJ PIPE CLIP (A)	8-98241-203-0	01	1	1310-1410	●
69	BRACKET; INJ PIPE CLIP (A)	8-98241-203-0	01	1	1411-	●	●
71	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	1310-1410	●
71	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	1411-	●	●
71	BOLT; BRKT (B) M12X100 FLANGE	0-28151-200-0	01	1	1310-1410	●
71	BOLT; BRKT (B) M12X100 FLANGE	0-28151-200-0	01	1	1411-	●	●
94	BRACKET; INJ NOZZLE	8-98028-999-1	06	1	1310-1410	●
94	BRACKET; INJ NOZZLE	8-98028-999-1	06	1	1411-	●	●
99	BOLT; CLIP,INJ,PIPE M6X35 FLANGE	0-28050-635-0	03	1	1310-1410	●
99	BOLT; CLIP,INJ,PIPE M6X35 FLANGE	0-28050-635-0	03	1	1411-	●	●
110	NUT; CLIP M6 FLANGE	0-91180-106-0	05	1	1310-1410	●
110	NUT; CLIP M6 FLANGE	0-91180-106-0	05	1	1411-	●	●
133	PIPE; INJ NOZZLE LEAK OFF (B)	8-98163-854-1	01	1	1310-1410	●
133	PIPE; INJ NOZZLE LEAK OFF (B)	8-98163-854-1	01	1	1411-	●	●
133	PIPE; INJ NOZZLE LEAK OFF (A)	8-98203-705-1	01	1	1310-1410	●
133	PIPE; INJ NOZZLE LEAK OFF (A)	8-98203-705-1	01	1	1411-	●	●
134	BOLT; JOINT,LEAK OFF PIPE (A) M8X18 EYE-BOLT	1-09675-037-1	06	1	1310-1410	●
134	BOLT; JOINT,LEAK OFF PIPE (A) M8X18 EYE-BOLT	1-09675-037-1	06	1	1411-	●	●
134	BOLT; JOINT,LEAK OFF PIPE (B) M10X21 FLANGE	8-94396-711-0	02	1	1310-1410	●
134	BOLT; JOINT,LEAK OFF PIPE (B) M10X21 FLANGE	8-94396-711-0	02	1	1411-	●	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 OD=15.0	8-98065-992-0	06	1	1310-1410	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 OD=15.0	8-98065-992-0	06	1	1411-	●	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=17	8-98079-755-0	01	1	1310-1410	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=17	8-98079-755-0	01	1	1411-	●	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6	8-98231-393-0	01	1	1310-1410	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=10.6	8-98231-393-0	01	1	1411-	●	●
154	GASKET; CONNECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0	0-95690-111-0	06	1	1310-1410	●
154	GASKET; CONNECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0	0-95690-111-0	06	1	1411-	●	●
184	BOLT; NOZZLE HOLDER M8X54	8-98008-895-0	06	1	1310-1410	●
184	BOLT; NOZZLE HOLDER M8X54	8-98008-895-0	06	1	1411-	●	●

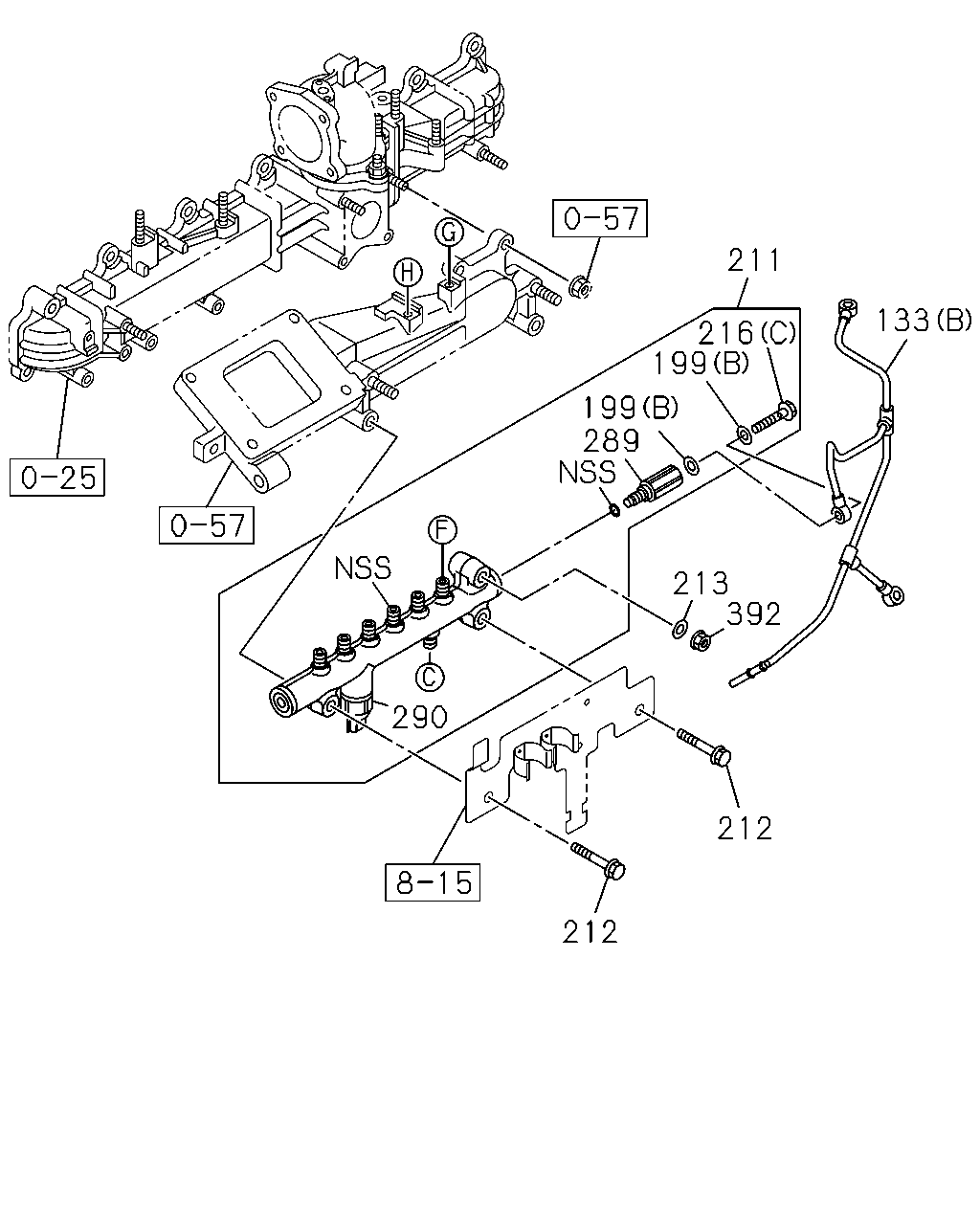

133 211 216 199 199 289 213 392 212 212 290

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
133	PIPE; INJ NOZZLE LEAK OFF (B)	8-98163-854-1	01	1	1310-1410	●
133	PIPE; INJ NOZZLE LEAK OFF (B)	8-98163-854-1	01	1	1411-	●	●
133	PIPE; INJ NOZZLE LEAK OFF (A)	8-98203-705-1	01	1	1310-1410	●
133	PIPE; INJ NOZZLE LEAK OFF (A)	8-98203-705-1	01	1	1411-	●	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	1310-1410	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	1411-	●	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	1310-1410	●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	1411-	●	●
211	RAIL ASM; COMMON	8-98239-520-0	01	1	1310-1410	●
211	RAIL ASM; COMMON	8-98239-520-0	01	1	1411-	●	●
212	BOLT; RAIL ASM M10X55 FLANGE	8-97365-449-0	02	1	1310-1410	●
212	BOLT; RAIL ASM M10X55 FLANGE	8-97365-449-0	02	1	1411-	●	●
213	WASHER; RAIL ASM ID=10.5 OD=22 T=4	1-09503-045-0	01	1	1310-1410	●
213	WASHER; RAIL ASM ID=10.5 OD=22 T=4	1-09503-045-0	01	1	1411-	●	●
216	BOLT; EYE (A)	5-15759-003-0	01	1	1310-1410	●
216	BOLT; EYE (A)	5-15759-003-0	01	1	1411-	●	●
216	BOLT; EYE (B)	8-97351-388-0	01	1	1310-1410	●
216	BOLT; EYE (B)	8-97351-388-0	01	1	1411-	●	●
216	BOLT; EYE (C)	8-98035-828-0	01	1	1310-1410	●
216	BOLT; EYE (C)	8-98035-828-0	01	1	1411-	●	●
289	LIMITER; FUEL PRESS	8-98138-695-0	01	1	1310-1410	●
289	LIMITER; FUEL PRESS	8-98138-695-0	01	1	1411-	●	●
290	SENSOR; PRESS	8-98138-736-0	01	1	1310-1410	●
290	SENSOR; PRESS	8-98138-736-0	01	1	1411-	●	●
392	NUT; RAIL ASM M10 FLANGE	0-91180-110-0	01	1	1310-1410	●
392	NUT; RAIL ASM M10 FLANGE	0-91180-110-0	01	1	1411-	●	●
