0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#129065) — 102 parça

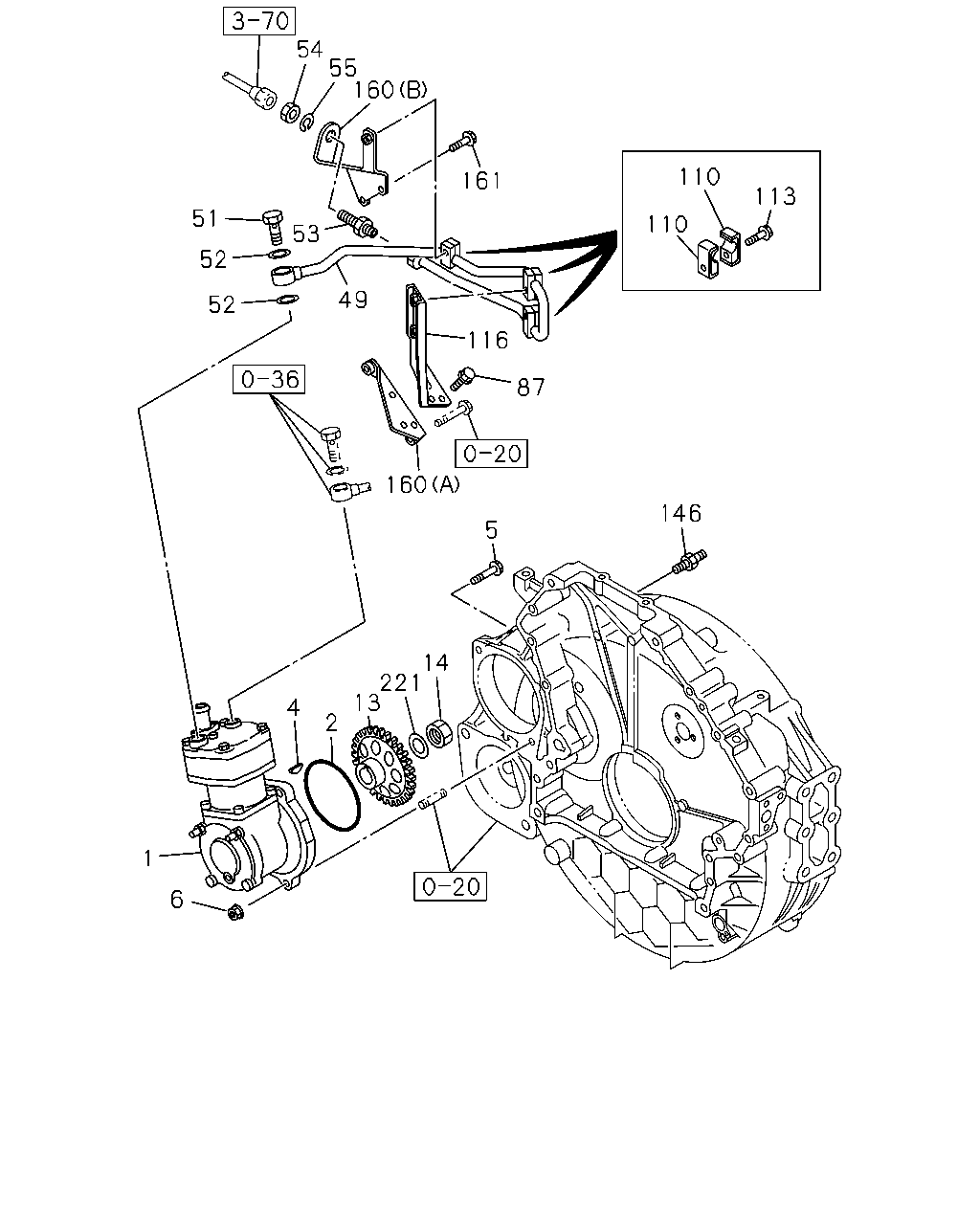

54 55 160 161 110 110 113 116 87 160 52 52 51 146 5 14 221 13 2 4 1 6 53 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98187-303-0	01	1	1310-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98187-304-0	01	1	1310-1410	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98187-304-1	01	1	1411-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-304-1	01	1	1411-		●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	1310-1410	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	1411-	●	●
4	KEY; INJ PUMP GEAR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	9-08055-516-0	01	1	1310-	●
5	BOLT; AIR CMPR FIX M12X70 FLANGE	0-28151-270-0	02	1	1310-1410	●
5	BOLT; AIR CMPR FIX M12X70 FLANGE	0-28151-270-0	02	1	1411-	●	●
6	NUT; AIR CMPR M12 FLANGE	0-91180-212-0	01	1	1310-1410	●
6	NUT; AIR CMPR M12 FLANGE	0-91180-212-0	01	1	1411-	●	●
13	GEAR; AIR CMPR DRIVE Z=49	8-94394-511-4	01	1	1310-1410	●
13	GEAR; AIR CMPR DRIVE Z=49	8-94394-511-4	01	1	1411-	●	●
14	NUT; GEAR M20	0-91110-520-0	01	1	1310-1410	●
14	NUT; GEAR M20	0-91110-520-0	01	1	1411-	●	●
49	PIPE; AIR,CHARGE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98042-002-0	01	1	1310-	●
49	PIPE; AIR,CHARGE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98052-612-0	01	1	1310-1410	●
49	PIPE; AIR,CHARGE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98052-612-0	01	1	1411-	●
49	PIPE; AIR,CHARGE	8-98052-612-0	01	1	1411-		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1310-1410	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1411-	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1310-1410	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1411-	●	●
53	UNION; CHARGE PIPE M22 & M26 L=79 STRAIGHT	1-09654-318-1	01	1	1310-1410	●
53	UNION; CHARGE PIPE M22 & M26 L=79 STRAIGHT	1-09654-318-1	01	1	1411-	●	●
54	NUT; PIPE UNION M22	0-91111-522-0	01	1	1310-1410	●
54	NUT; PIPE UNION M22	0-91111-522-0	01	1	1411-	●	●
55	WASHER; LK,PIPE UNION ID=22.5	0-91510-522-0	01	1	1310-1410	●
55	WASHER; LK,PIPE UNION ID=22.5	0-91510-522-0	01	1	1411-	●	●
87	BOLT; BRKT FIX M8X20 FLANGE	0-28050-820-0	03	1	1310-1410	●
87	BOLT; BRKT FIX M8X20 FLANGE	0-28050-820-0	03	1	1411-	●	●
110	CLIP; AIR PIPE ID=17 L=17	1-09701-284-0	06	1	1310-1410	●
110	CLIP; AIR PIPE ID=17 L=17	1-09701-284-0	06	1	1411-	●	●
113	BOLT; CLIP,AIR PIPE M8X45 FLANGE	0-28050-845-0	03	1	1310-1410	●
113	BOLT; CLIP,AIR PIPE M8X45 FLANGE	0-28050-845-0	03	1	1411-	●	●
116	BRACKET; AIR PIPE	8-97614-183-1	01	1	1310-1410	●
116	BRACKET; AIR PIPE	8-97614-183-1	01	1	1411-	●	●
146	STUD; AIR CMPR M10X16,M12X70 L=97.7	1-09049-038-1	01	1	1310-1410	●
146	STUD; AIR CMPR M10X16,M12X70 L=97.7	1-09049-038-1	01	1	1411-	●	●
160	BRACKET; AIR PIPE (A)	8-97614-182-2	01	1	1310-1410	●
160	BRACKET; AIR PIPE (A)	8-97614-182-2	01	1	1411-	●	●
160	BRACKET; AIR PIPE (B)	8-98042-844-1	01	1	1310-1410	●
160	BRACKET; AIR PIPE (B)	8-98042-844-1	01	1	1411-	●	●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	1310-1410	●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	1411-	●	●
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	1310-1410	●
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	1411-	●	●

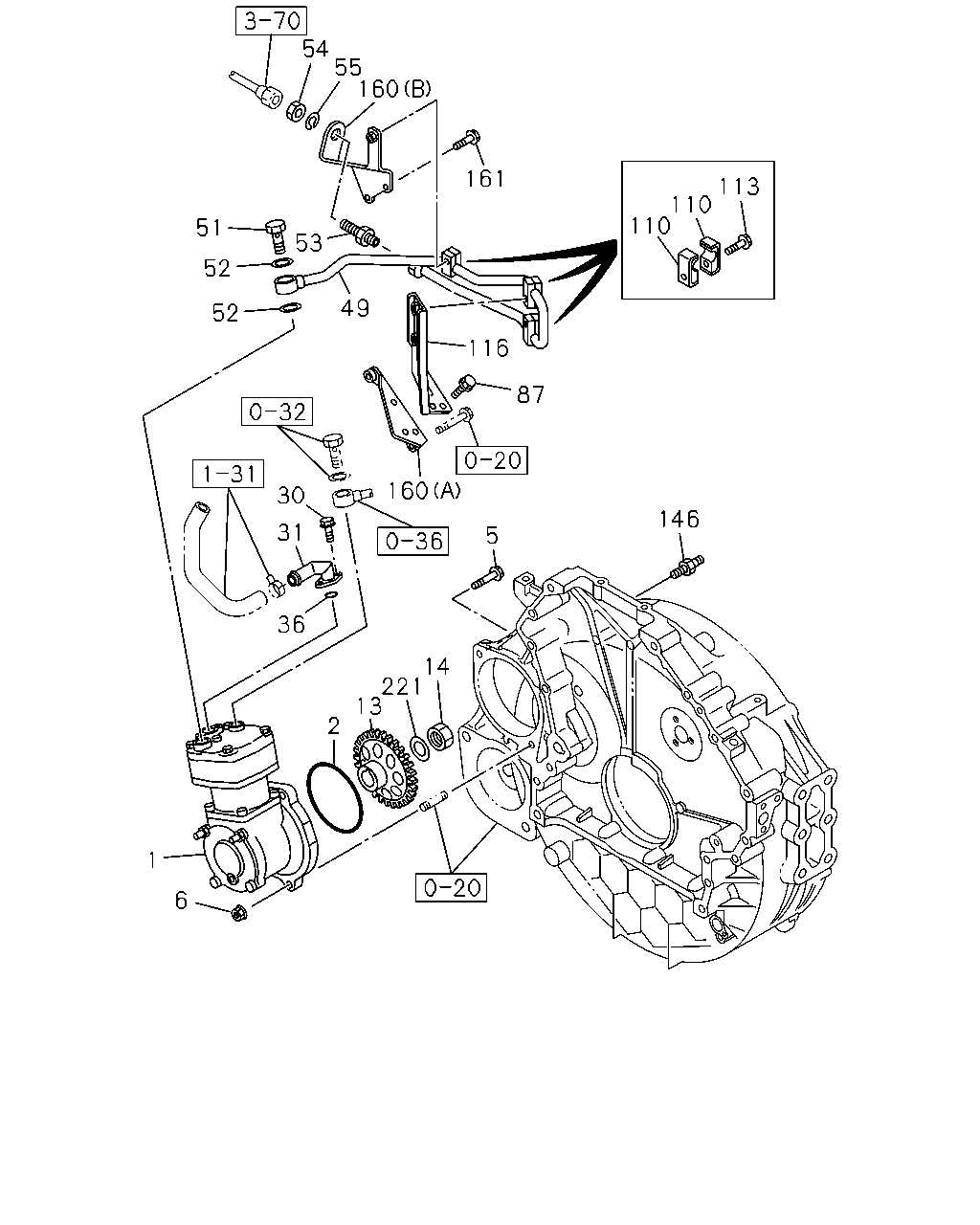

54 55 160 161 110 110 113 116 87 51 53 52 52 49 30 31 36 13 221 14 5 146 160 1 6 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98187-303-0	01	1	1310-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98187-304-0	01	1	1310-1410	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98187-304-1	01	1	1411-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-304-1	01	1	1411-		●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	1310-1410	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162	1-09623-570-0	01	1	1411-	●	●
5	BOLT; AIR CMPR FIX M12X70 FLANGE	0-28151-270-0	02	1	1310-1410	●
5	BOLT; AIR CMPR FIX M12X70 FLANGE	0-28151-270-0	02	1	1411-	●	●
6	NUT; AIR CMPR M12 FLANGE	0-91180-212-0	01	1	1310-1410	●
6	NUT; AIR CMPR M12 FLANGE	0-91180-212-0	01	1	1411-	●	●
13	GEAR; AIR CMPR DRIVE Z=49	8-94394-511-4	01	1	1310-1410	●
13	GEAR; AIR CMPR DRIVE Z=49	8-94394-511-4	01	1	1411-	●	●
14	NUT; GEAR M20	0-91110-520-0	01	1	1310-1410	●
14	NUT; GEAR M20	0-91110-520-0	01	1	1411-	●	●
30	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28650-820-0	02	1	1310-1410	●
30	BOLT; PIPE CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) M8X20 FLANGE	0-28650-820-0	02	1	1411-	●
30	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	02	1	1411-		●
31	PIPE; AIR,AIR CMPR SUCTION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-97620-948-0	01	1	1310-1410	●
31	PIPE; AIR,AIR CMPR SUCTION BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-97620-948-0	01	1	1411-	●
31	PIPE; AIR,AIR CMPR SUCTION	8-97620-948-0	01	1	1411-		●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) ID=24.4	1-09623-057-0	01	1	1310-1410	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06). ID=24.4	1-09623-057-0	01	1	1411-	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4	1-09623-057-0	01	1	1411-		●
49	PIPE; AIR,CHARGE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05)	8-98042-002-0	01	1	1310-	●
49	PIPE; AIR,CHARGE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98052-612-0	01	1	1310-1410	●
49	PIPE; AIR,CHARGE BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06)	8-98052-612-0	01	1	1411-	●
49	PIPE; AIR,CHARGE	8-98052-612-0	01	1	1411-		●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1310-1410	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1411-	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1310-1410	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	1411-	●	●
53	UNION; CHARGE PIPE M22 & M26 L=79 STRAIGHT	1-09654-318-1	01	1	1310-1410	●
53	UNION; CHARGE PIPE M22 & M26 L=79 STRAIGHT	1-09654-318-1	01	1	1411-	●	●
54	NUT; PIPE UNION M22	0-91111-522-0	01	1	1310-1410	●
54	NUT; PIPE UNION M22	0-91111-522-0	01	1	1411-	●	●
55	WASHER; LK,PIPE UNION ID=22.5	0-91510-522-0	01	1	1310-1410	●
55	WASHER; LK,PIPE UNION ID=22.5	0-91510-522-0	01	1	1411-	●	●
87	BOLT; BRKT FIX M8X20 FLANGE	0-28050-820-0	03	1	1310-1410	●
87	BOLT; BRKT FIX M8X20 FLANGE	0-28050-820-0	03	1	1411-	●	●
110	CLIP; AIR PIPE ID=17 L=17	1-09701-284-0	06	1	1310-1410	●
110	CLIP; AIR PIPE ID=17 L=17	1-09701-284-0	06	1	1411-	●	●
113	BOLT; CLIP,AIR PIPE M8X45 FLANGE	0-28050-845-0	03	1	1310-1410	●
113	BOLT; CLIP,AIR PIPE M8X45 FLANGE	0-28050-845-0	03	1	1411-	●	●
116	BRACKET; AIR PIPE	8-97614-183-1	01	1	1310-1410	●
116	BRACKET; AIR PIPE	8-97614-183-1	01	1	1411-	●	●
146	STUD; AIR CMPR M10X16,M12X70 L=97.7	1-09049-038-1	01	1	1310-1410	●
146	STUD; AIR CMPR M10X16,M12X70 L=97.7	1-09049-038-1	01	1	1411-	●	●
160	BRACKET; AIR PIPE (A)	8-97614-182-2	01	1	1310-1410	●
160	BRACKET; AIR PIPE (A)	8-97614-182-2	01	1	1411-	●	●
160	BRACKET; AIR PIPE (B)	8-98042-844-1	01	1	1310-1410	●
160	BRACKET; AIR PIPE (B)	8-98042-844-1	01	1	1411-	●	●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	1310-1410	●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	1411-	●	●
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	1310-1410	●
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	1411-	●	●
