0-36 — TURBOCHARGER SYSTEM (#129064) — 90 parça

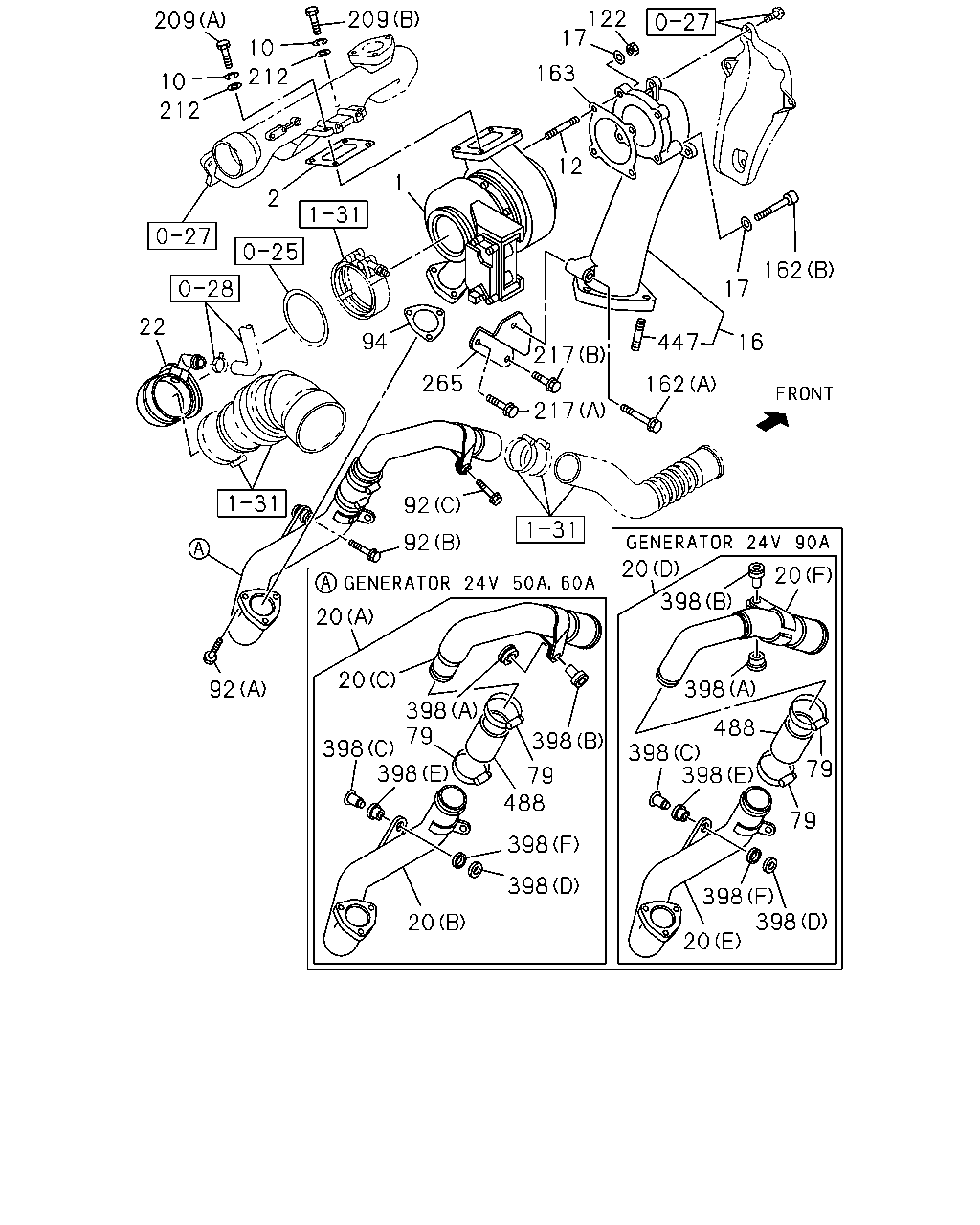

çizim 381406
122 17 163 12 17 162 16 447 162 217 217 265 94 92 92 92 22 2 1 209 10 212 209 10 212 20 20 79 20 79 20 20 79 79 20 398 398 398 398 398 398 398 398 398 398 398 398 488 488
BalonParca AdiParca NoAdetTipApplied Date A B
1 TURBOCHARGER ASM 8-98244-269-0 01 1 1411- ●
1 TURBOCHARGER ASM 8-97604-975-9 01 1 1310- ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97024-124-0 01 1 1310-1410 ●
2 GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97024-124-0 01 1 1411- ● ●
10 WASHER; LK,TURBOCHARGER
T=2.2 		1-09556-015-0 04 1 1310-1410 ●
10 WASHER; LK,TURBOCHARGER
T=2.2 		1-09556-015-0 04 1 1411- ● ●
12 STUD; TURBOCHARGER
M8X25 L=36 		8-94476-282-0 02 1 1310-1410 ●
12 STUD; TURBOCHARGER
M8X25 L=36 		8-94476-282-0 02 1 1411- ● ●
16 ADAPTER; EXH PIPE 8-98018-241-1 01 1 1310-1410 ●
16 ADAPTER; EXH PIPE 8-98018-241-1 01 1 1411- ● ●
17 WASHER; PL,ADAPTER
T=1.9 		5-09500-012-0 04 1 1310-1410 ●
17 WASHER; PL,ADAPTER
T=1.9 		5-09500-012-0 04 1 1411- ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) 		8-98046-167-4 01 1 1310-1408 ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) 		8-98251-581-0 01 1 1409-1410 ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (A) 		8-98251-581-0 01 1 1411- ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B) 		8-98046-168-1 01 1 1310-1410 ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (B) 		8-98046-168-1 01 1 1411- ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (C) 		8-98046-169-2 01 1 1310-1410 ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89) (C) 		8-98046-169-2 01 1 1411- ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (D) 		8-97617-214-2 01 1 1310-1408 ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (D) 		8-98251-580-0 01 1 1409-1410 ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (D) 		8-98251-580-0 01 1 1411- ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (E) 		8-97617-215-0 01 1 1310-1410 ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (E) 		8-97617-215-0 01 1 1411- ● ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (F) 		8-97617-216-0 01 1 1310-1410 ●
20 PIPE; INL,TURBOCHARGER OUT
GENERATOR 24V90A(K44) (F) 		8-97617-216-0 01 1 1411- ● ●
22 DUCT; INL,ACL TO TURBOCHARGER 8-98036-164-1 01 1 1310-1410 ●
22 DUCT; INL,ACL TO TURBOCHARGER 8-98036-164-1 01 1 1411- ● ●
79 CLIP; RUBBER HOSE
ID=58-79 		1-09707-136-0 02 1 1310-1410 ●
79 CLIP; RUBBER HOSE
ID=58-79 		1-09707-136-0 02 1 1411- ● ●
92 BOLT; INL PIPE
(A) M8X30 FLANGE 		0-28650-830-0 03 1 1310-1410 ●
92 BOLT; INL PIPE
(A) M8X30 FLANGE 		0-28650-830-0 03 1 1411- ● ●
92 BOLT; INL PIPE
(B) M8X35 FLANGE 		0-28650-835-0 01 1 1310-1410 ●
92 BOLT; INL PIPE
(B) M8X35 FLANGE 		0-28650-835-0 01 1 1411- ● ●
92 BOLT; INL PIPE
(C) M8X40 FLANGE 		0-28650-840-0 01 1 1310-1410 ●
92 BOLT; INL PIPE
(C) M8X40 FLANGE 		0-28650-840-0 01 1 1411- ● ●
94 GASKET; INL PIPE
ID=55 		8-98053-830-0 01 1 1310-1410 ●
94 GASKET; INL PIPE
ID=55 		8-98053-830-0 01 1 1411- ● ●
122 NUT; ADAPTER
M8 		1-09400-118-1 02 1 1310-1410 ●
122 NUT; ADAPTER
M8 		1-09400-118-1 02 1 1411- ● ●
162 BOLT; ADAPTER
(A) M10X60 FLANGE 		0-28051-060-0 01 1 1310-1410 ●
162 BOLT; ADAPTER
(A) M10X60 FLANGE 		0-28051-060-0 01 1 1411- ● ●
162 BOLT; ADAPTER
(B) M8X60 		8-98158-604-0 02 1 1310-1410 ●
162 BOLT; ADAPTER
(B) M8X60 		8-98158-604-0 02 1 1411- ● ●
163 GASKET; ADAPTER TO EXH PIPE
ID=83 		8-94392-553-2 01 1 1310-1410 ●
163 GASKET; ADAPTER TO EXH PIPE
ID=83 		8-94392-553-2 01 1 1411- ● ●
209 BOLT; BRACE,TURBOCHARGER
(B) M10X80 		8-98049-825-0 02 1 1310-1410 ●
209 BOLT; BRACE,TURBOCHARGER
(B) M10X80 		8-98049-825-0 02 1 1411- ● ●
209 BOLT; BRACE,TURBOCHARGER
(A) M10X40 		9-09604-007-1 02 1 1310-1410 ●
209 BOLT; BRACE,TURBOCHARGER
(A) M10X40 		9-09604-007-1 02 1 1411- ● ●
212 WASHER; PL,TURBOCHARGER
ID=10 		1-09503-033-1 04 1 1310-1410 ●
212 WASHER; PL,TURBOCHARGER
ID=10 		1-09503-033-1 04 1 1411- ● ●
217 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1310-1410 ●
217 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1411- ● ●
217 BOLT; BRKT
(B) M10X25 FLANGE 		0-28751-025-0 01 1 1310-1410 ●
217 BOLT; BRKT
(B) M10X25 FLANGE 		0-28751-025-0 01 1 1411- ● ●
265 BRACKET; EXH PIPE 8-98260-415-0 01 1 1310-1410 ●
265 BRACKET; EXH PIPE 8-98260-415-0 01 1 1411- ● ●
398 MOUNTING
(F) ID=19 OD=26 		8-94160-177-0 01 1 1310-1410 ●
398 MOUNTING
(F) ID=19 OD=26 		8-94160-177-0 01 1 1411- ● ●
398 MOUNTING
(C) OD=28 		8-94390-551-1 01 1 1310-1410 ●
398 MOUNTING
(C) OD=28 		8-94390-551-1 01 1 1411- ● ●
398 MOUNTING
(D) ID=13 OD=28 		8-94394-504-0 01 1 1310-1410 ●
398 MOUNTING
(D) ID=13 OD=28 		8-94394-504-0 01 1 1411- ● ●
398 MOUNTING
(E) OD=26 		8-94394-529-0 01 1 1310-1410 ●
398 MOUNTING
(E) OD=26 		8-94394-529-0 01 1 1411- ● ●
398 MOUNTING
(A) OD=32 		8-94395-766-0 01 1 1310-1410 ●
398 MOUNTING
(A) OD=32 		8-94395-766-0 01 1 1411- ● ●
398 MOUNTING
(B) OD=23 		8-97105-689-6 01 1 1310-1410 ●
398 MOUNTING
(B) OD=23 		8-97105-689-6 01 1 1411- ● ●
447 STUD; ADAPTER
M12X30 L=48 		0-44011-230-0 03 1 1310-1410 ●
447 STUD; ADAPTER
M12X30 L=48 		0-44011-230-0 03 1 1411- ● ●
488 HOSE; RUBBER 8-98046-356-0 01 1 1310-1408 ●
488 HOSE; RUBBER
ID=52.5 L=70 		8-98245-242-0 01 1 1409-1410 ●
488 HOSE; RUBBER
ID=52.5 L=70 		8-98245-242-0 01 1 1411- ● ●

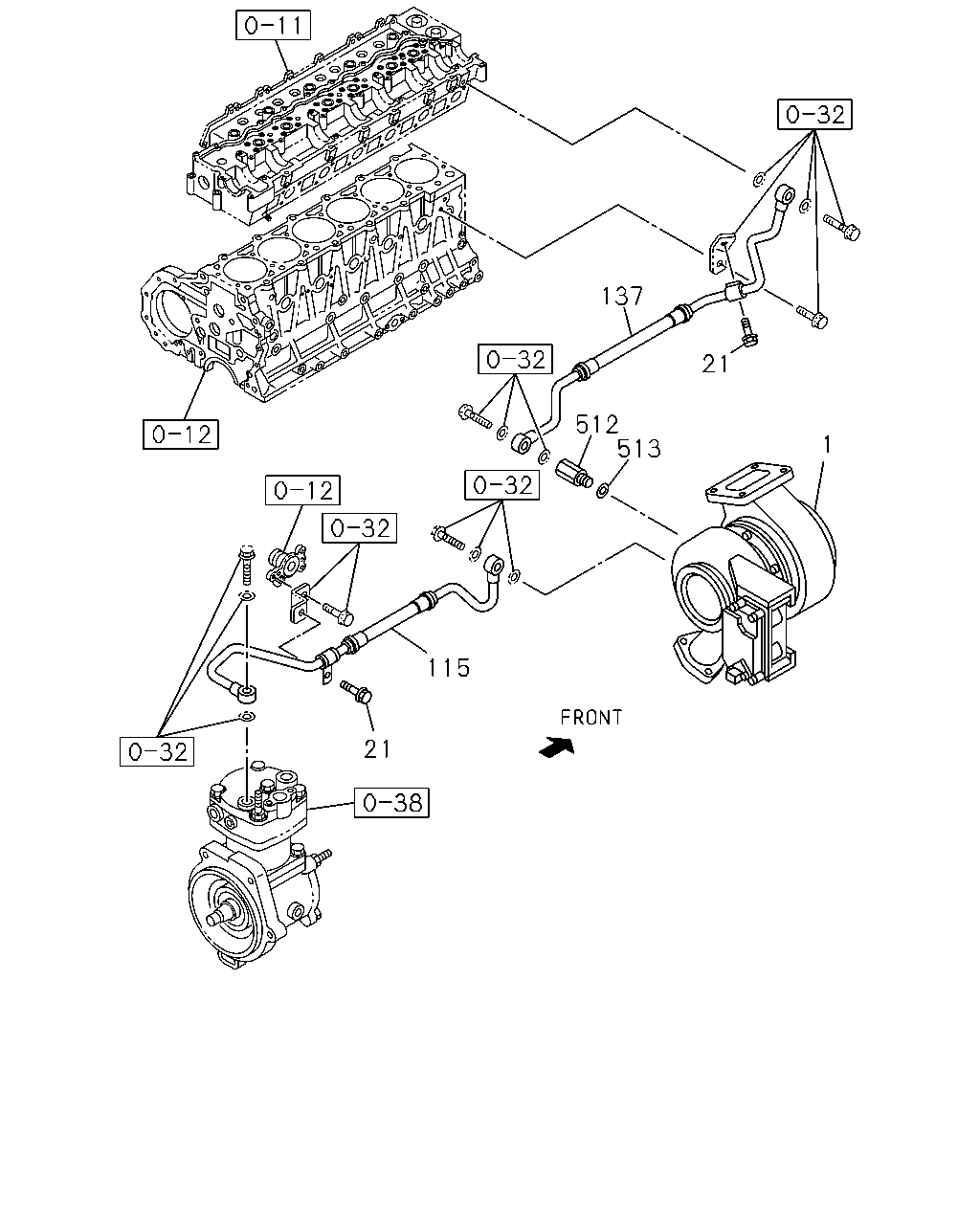

çizim 381543
137 21 512 513 1 115 21
BalonParca AdiParca NoAdetTipApplied Date A B
1 TURBOCHARGER ASM 8-98244-269-0 01 1 1411- ●
1 TURBOCHARGER ASM 8-97604-975-9 01 1 1310- ●
21 BOLT; PIPE
M8X16 FLANGE 		0-28050-816-0 02 1 1310-1410 ●
21 BOLT; PIPE
M8X16 FLANGE 		0-28050-816-0 02 1 1411- ● ●
115 PIPE; WATER,TURBOCHARGER OUT
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-97615-877-0 01 1 1310- ●
115 PIPE; WATER,TURBOCHARGER OUT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-97610-087-2 01 1 1310-1410 ●
115 PIPE; WATER,TURBOCHARGER OUT
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-97610-087-2 01 1 1411- ●
115 PIPE; WATER,TURBOCHARGER OUT 8-97610-087-2 01 1 1411- ●
137 PIPE; WATER,TURBOCHARGER IN 8-98046-783-0 01 1 1310-1410 ●
137 PIPE; WATER,TURBOCHARGER IN 8-98046-783-0 01 1 1411- ● ●
512 CONNECTOR; TURBO 8-98031-856-0 01 1 1310-1410 ●
512 CONNECTOR; TURBO 8-98031-856-0 01 1 1411- ● ●
513 GASKET; CONNECTOR
ID=14.2 OD=19.2 		1-09630-085-0 01 1 1310-1312 ●
513 GASKET; CONNECTOR
ID=14.2 OD=19.2 		8-98251-345-0 01 1 1401-1410 ●
513 GASKET; CONNECTOR
ID=14.2 OD=19.2 		8-98251-345-0 01 1 1411- ● ●
