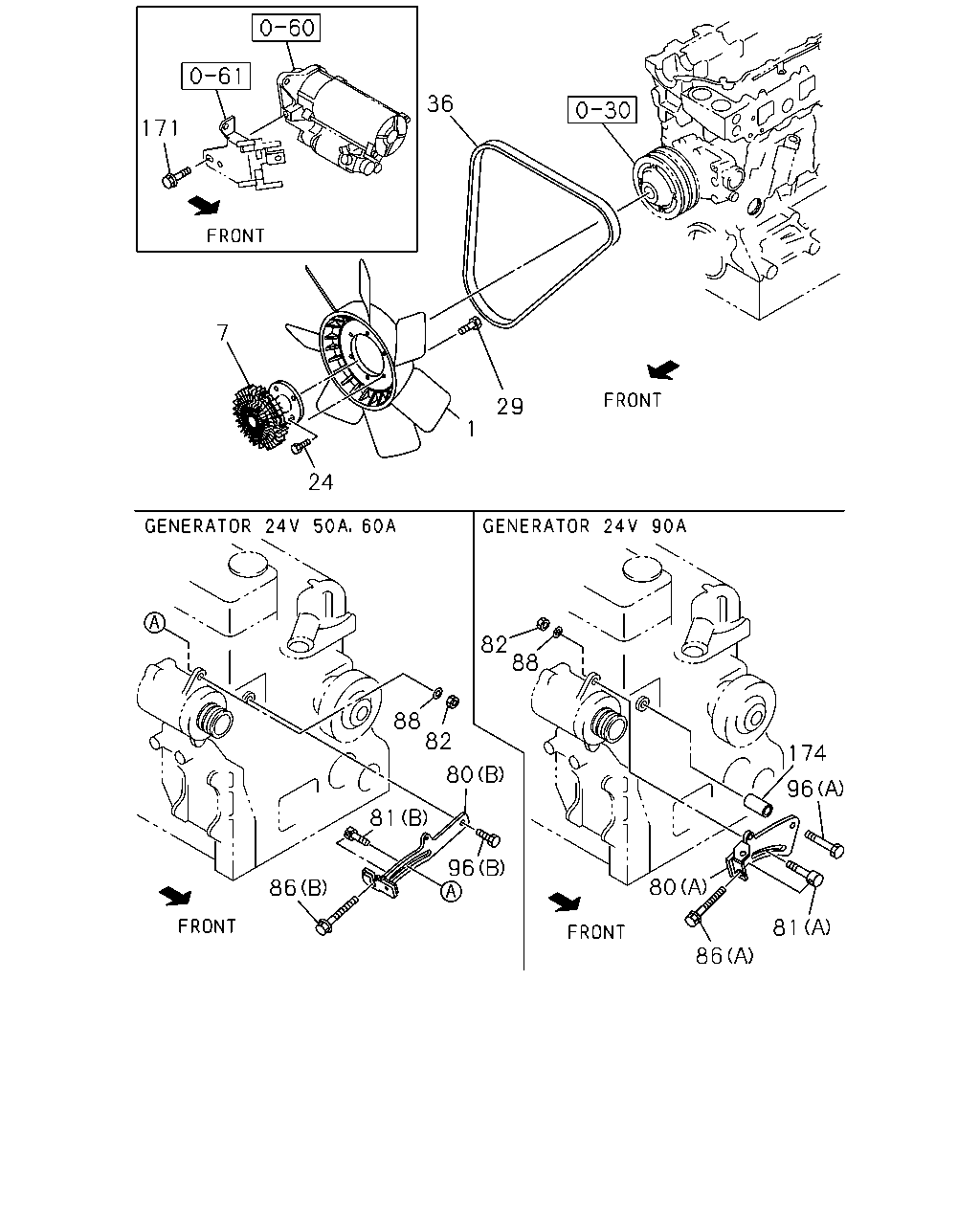

1 |
FAN; COOLING
OD=560
|
8-98073-467-1 |
01 |
1 |
1310-1410 |
● |
|
| |
1 |
FAN; COOLING
OD=560
|
8-98073-467-1 |
01 |
1 |
1411- |
● |
● |
| |
7 |
COUPLING; FAN
|
8-98075-290-1 |
01 |
1 |
1310-1410 |
● |
|
| |
7 |
COUPLING; FAN
|
8-98075-290-1 |
01 |
1 |
1411- |
● |
● |
| |
24 |
BOLT; FAN
M10X25 FLANGE
|
0-28151-025-0 |
04 |
1 |
1310-1410 |
● |
|
| |
24 |
BOLT; FAN
M10X25 FLANGE
|
0-28151-025-0 |
04 |
1 |
1411- |
● |
● |
| |
29 |
BOLT; COUPLING TO WATER PUMP
M8X16 FLANGE
|
0-28050-816-0 |
06 |
1 |
1310-1410 |
● |
|
| |
29 |
BOLT; COUPLING TO WATER PUMP
M8X16 FLANGE
|
0-28050-816-0 |
06 |
1 |
1411- |
● |
● |
| |
36 |

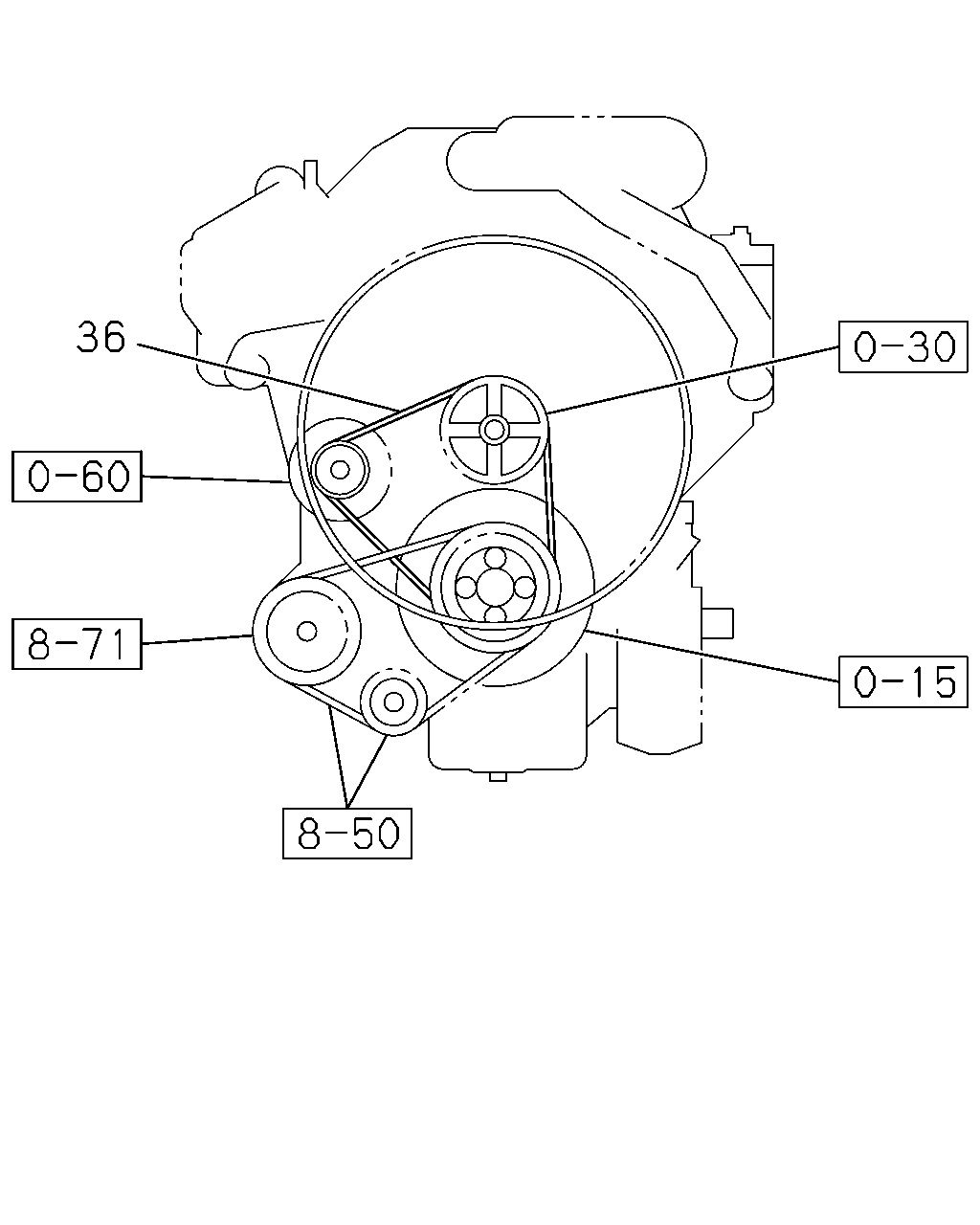

BELT; COOLING FAN
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89)
L=1170 MITSUBOSHI
|
8-97611-859-1 |
01 |
1 |
1310-1410 |
● |
|
| |
36 |
BELT; COOLING FAN
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89)
L=1170 MITSUBOSHI
|
8-97611-859-1 |
01 |
1 |
1411- |
● |
● |
| |
36 |
BELT; COOLING FAN
GENERATOR 24V90A(K44)
L=1190 MITSUBOSHI
|
8-97611-860-0 |
01 |
1 |
1310-1410 |
● |
|
| |
36 |
BELT; COOLING FAN
GENERATOR 24V90A(K44)
L=1190 MITSUBOSHI
|
8-97611-860-0 |
01 |
1 |
1411- |
● |
● |
| |
36 |
BELT; COOLING FAN
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89)
BEST VALUE PARTS
|
1-87610-105-0 |
01 |
1 |
1310-1410 |
● |
|
| |
36 |
BELT; COOLING FAN
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89)
BEST VALUE PARTS
|
1-87610-105-0 |
01 |
1 |
1411- |
● |
● |
| |
36 |
BELT; COOLING FAN
GENERATOR 24V90A(K44)
BEST VALUE PARTS
|
1-87610-106-0 |
01 |
1 |
1310-1410 |
● |
|
| |
36 |
BELT; COOLING FAN
GENERATOR 24V90A(K44)
BEST VALUE PARTS
|
1-87610-106-0 |
01 |
1 |
1411- |
● |
● |
| |
80 |
PLATE; ADJ
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89)
(B)
|
8-97601-020-1 |
01 |
1 |
1310-1410 |
● |
|
| |
80 |
PLATE; ADJ
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89)
(B)
|
8-97601-020-1 |
01 |
1 |
1411- |
● |
● |
| |
80 |
PLATE; ADJ
GENERATOR 24V90A(K44)
(A)
|
8-97617-940-0 |
01 |
1 |
1310-1410 |
● |
|
| |
80 |
PLATE; ADJ
GENERATOR 24V90A(K44)
(A)
|
8-97617-940-0 |
01 |
1 |
1411- |
● |
● |
| |
81 |
PIECE; SLIDING
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89)
(B)
M12X45
|
1-13674-160-0 |
01 |
1 |
1310-1410 |
● |
|
| |
81 |
PIECE; SLIDING
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89)
(B)
M12X45
|
1-13674-160-0 |
01 |
1 |
1411- |
● |
● |
| |
81 |
PIECE; SLIDING
GENERATOR 24V90A(K44)
(A)
M12X59
|
1-13674-161-0 |
01 |
1 |
1310-1410 |
● |
|
| |
81 |
PIECE; SLIDING
GENERATOR 24V90A(K44)
(A)
M12X59
|
1-13674-161-0 |
01 |
1 |
1411- |
● |
● |
| |
82 |
NUT; ADJ PLATE
M12 FLANGE
|
0-91180-112-0 |
01 |
1 |
1310-1410 |
● |
|
| |
82 |
NUT; ADJ PLATE
M12 FLANGE
|
0-91180-112-0 |
01 |
1 |
1411- |
● |
● |
| |
86 |
BOLT; ADJ
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89)
(B)
M10X155 FLANGE
|
1-09009-114-1 |
01 |
1 |
1310-1410 |
● |
|
| |
86 |
BOLT; ADJ
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89)
(B)
M10X155 FLANGE
|
1-09009-114-1 |
01 |
1 |
1411- |
● |
● |
| |
86 |
BOLT; ADJ
GENERATOR 24V90A(K44)
(A)
M10X135
|
1-09009-113-1 |
01 |
1 |
1310-1410 |
● |
|
| |
86 |
BOLT; ADJ
GENERATOR 24V90A(K44)
(A)
M10X135
|
1-09009-113-1 |
01 |
1 |
1411- |
● |
● |
| |
88 |
WASHER; PL,ADJ PLATE
ID=12.5 OD=32
|
0-91614-712-0 |
01 |
1 |
1310-1410 |
● |
|
| |
88 |
WASHER; PL,ADJ PLATE
ID=12.5 OD=32
|
0-91614-712-0 |
01 |
1 |
1411- |
● |
● |
| |
96 |
BOLT; ADJ PLATE
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89)
(B)
M10X45 FLANGE
|
0-28151-045-0 |
01 |
1 |
1310-1410 |
● |
|
| |
96 |
BOLT; ADJ PLATE
GENERATOR 24V60A(KG2),GENERATOR 24V50A(K89)
(B)
M10X45 FLANGE
|
0-28151-045-0 |
01 |
1 |
1411- |
● |
● |
| |
96 |
BOLT; ADJ PLATE
GENERATOR 24V90A(K44)
(A)
M10X75 FLANGE
|
8-94399-669-1 |
01 |
1 |
1310-1410 |
● |
|
| |
96 |
BOLT; ADJ PLATE
GENERATOR 24V90A(K44)
(A)
M10X75 FLANGE
|
8-94399-669-1 |
01 |
1 |
1411- |
● |
● |
| |
171 |
BOLT; HEAT PROTECTOR
M10X20 FLANGE
|
0-28051-020-0 |
01 |
1 |
1310-1410 |
● |
|
| |
171 |
BOLT; HEAT PROTECTOR
M10X20 FLANGE
|
0-28051-020-0 |
01 |
1 |
1411- |
● |
● |
| |
174 |
SPACER; ADJ PLATE
GENERATOR 24V90A(K44)
|
8-98056-785-0 |
01 |
1 |
1310-1410 |
● |
|
| |
174 |
SPACER; ADJ PLATE
GENERATOR 24V90A(K44)
|
8-98056-785-0 |
01 |
1 |
1411- |
● |
● |
