0-32 — WATER PIPING; ENGINE (#129061) — 106 parça

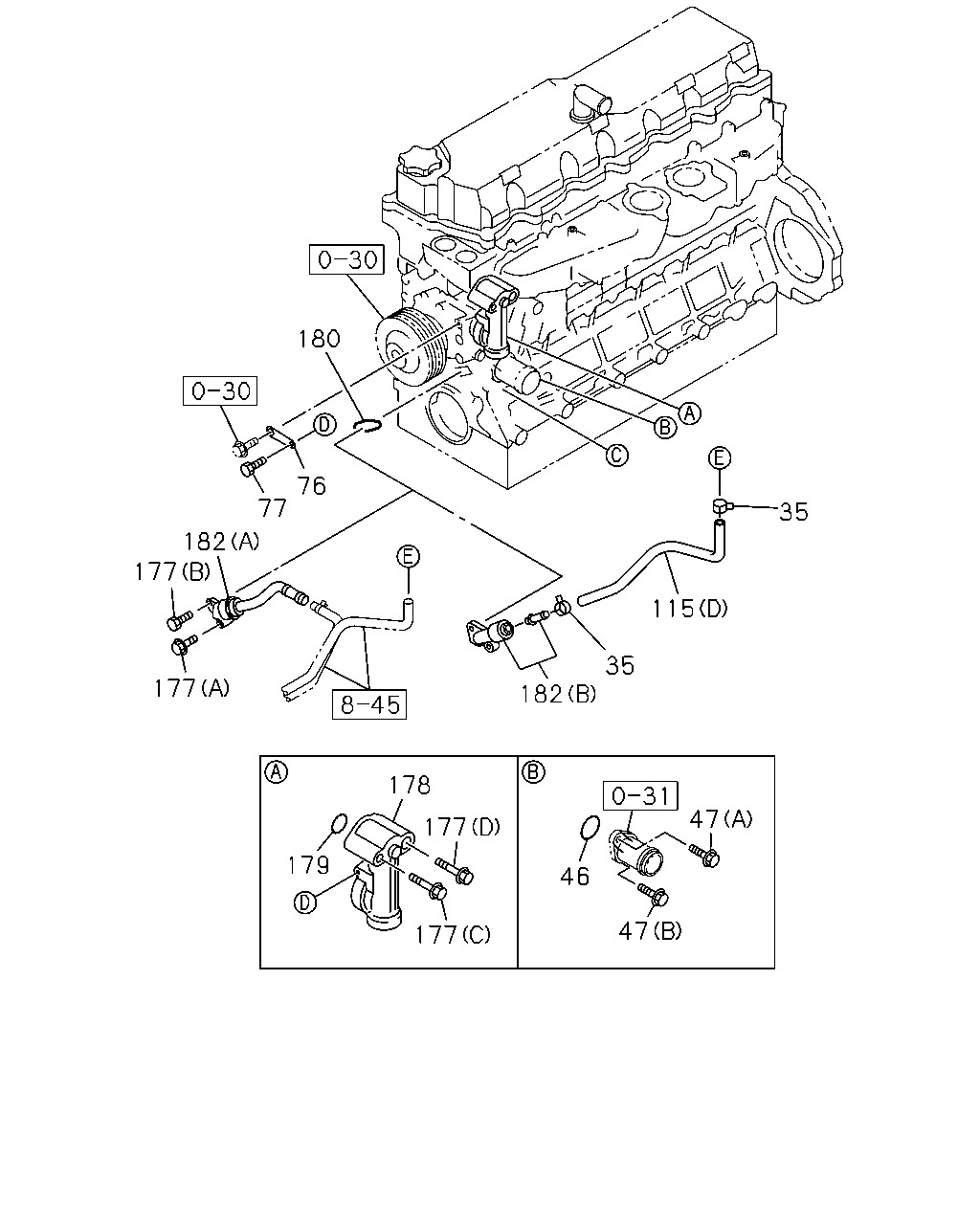

çizim 379170
180 76 77 182 177 177 179 178 177 177 47 46 47 182 115 35 35
BalonParca AdiParca NoAdetTipApplied Date A B
35 CLIP; RUBBER HOSE
ID=20 		8-98127-648-0 08 1 1310-1410 ●
35 CLIP; RUBBER HOSE
ID=20 		8-98127-648-0 08 1 1411- ● ●
35 CLIP; RUBBER HOSE
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=20 		8-98127-648-0 02 1 1310-1410 ●
35 CLIP; RUBBER HOSE
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=20 		8-98127-648-0 02 1 1411- ● ●
46 GASKET; WATER DUCT,TO OIL COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3 		8-94396-680-2 01 1 1310-1410 ●
46 GASKET; WATER DUCT,TO OIL COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3 		8-94396-680-2 01 1 1411- ● ●
47 BOLT; DUCT,TO OIL COOLER
(A) M8X45 FLANGE 		0-28050-845-0 01 1 1310-1410 ●
47 BOLT; DUCT,TO OIL COOLER
(A) M8X45 FLANGE 		0-28050-845-0 01 1 1411- ● ●
47 BOLT; DUCT,TO OIL COOLER
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1310-1410 ●
47 BOLT; DUCT,TO OIL COOLER
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1411- ● ●
76 BRACKET; WATER DUCT,PUMP 8-94394-784-0 01 1 1310-1410 ●
76 BRACKET; WATER DUCT,PUMP 8-94394-784-0 01 1 1411- ● ●
77 BOLT; BRKT,WATER DUCT
M8X50 FLANGE 		0-28050-850-0 01 1 1310-1410 ●
77 BOLT; BRKT,WATER DUCT
M8X50 FLANGE 		0-28050-850-0 01 1 1411- ● ●
115 HOSE; RUBBER
(B) 		8-97606-735-1 01 1 1310-1410 ●
115 HOSE; RUBBER
(B) 		8-97606-735-1 01 1 1411- ● ●
115 HOSE; RUBBER
(A) 		8-97606-749-0 02 1 1310-1410 ●
115 HOSE; RUBBER
(A) 		8-97606-749-0 02 1 1411- ● ●
115 HOSE; RUBBER
(C) 		8-98043-192-0 01 1 1310-1410 ●
115 HOSE; RUBBER
(C) 		8-98043-192-0 01 1 1411- ● ●
115 HOSE; RUBBER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D) 		8-97618-843-0 01 1 1310-1410 ●
115 HOSE; RUBBER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D) 		8-97618-843-0 01 1 1411- ● ●
177 BOLT; WATER DUCT
(C) M8X80 FLANGE 		0-28050-880-0 01 1 1310-1410 ●
177 BOLT; WATER DUCT
(C) M8X80 FLANGE 		0-28050-880-0 01 1 1411- ● ●
177 BOLT; WATER DUCT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1310-1410 ●
177 BOLT; WATER DUCT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 1411- ● ●
177 BOLT; WATER DUCT
(A) M8X65 FLANGE 		1-09044-072-1 01 1 1310-1410 ●
177 BOLT; WATER DUCT
(A) M8X65 FLANGE 		1-09044-072-1 01 1 1411- ● ●
177 BOLT; WATER DUCT
(D) M16X75 FLANGE 		8-94397-360-1 01 1 1310-1410 ●
177 BOLT; WATER DUCT
(D) M16X75 FLANGE 		8-94397-360-1 01 1 1411- ● ●
178 DUCT; WATER,BYPASS 8-94396-627-3 01 1 1310-1410 ●
178 DUCT; WATER,BYPASS 8-94396-627-3 01 1 1411- ● ●
179 GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2 		8-94396-679-0 01 1 1310-1408 ●
179 GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2 		8-98276-756-0 01 1 1409-1410 ●
179 GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2 		8-98276-756-0 01 1 1411- ● ●
180 GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94396-720-1 01 1 1310-1410 ●
180 GASKET; WATER DUCT
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94396-720-1 01 1 1411- ● ●
182 DUCT; WATER,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-94394-348-5 01 1 1310-1410 ●
182 DUCT; WATER,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A) 		8-94394-348-5 01 1 1411- ● ●
182 DUCT; WATER,HTR
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-94396-727-3 01 1 1310-1410 ●
182 DUCT; WATER,HTR
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B) 		8-94396-727-3 01 1 1411- ● ●

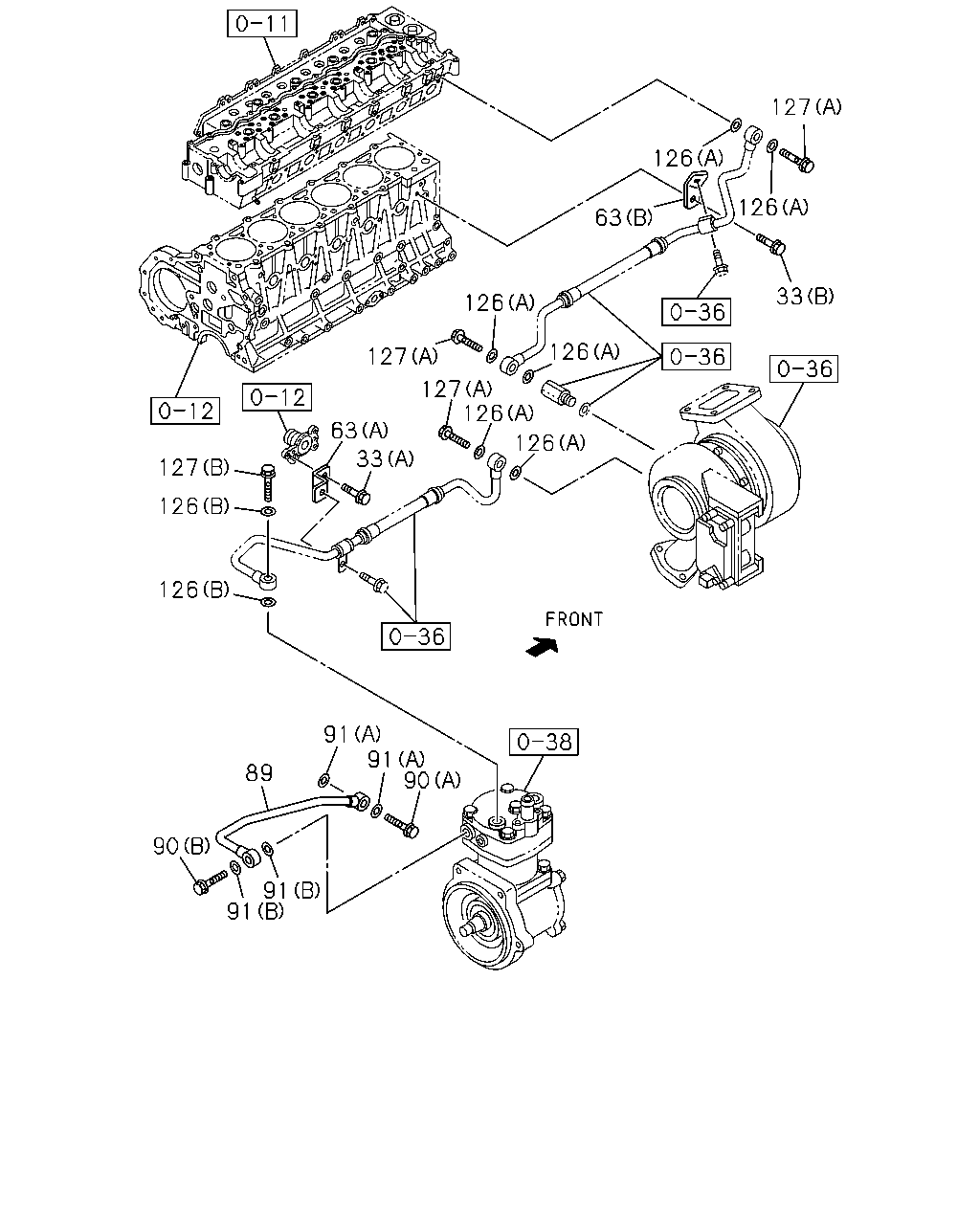

çizim 379179
127 126 126 63 33 126 126 127 126 127 126 63 33 127 126 126 91 91 90 89 90 91 91
BalonParca AdiParca NoAdetTipApplied Date A B
33 BOLT; BRKT
(B) M8X16 FLANGE 		0-28050-816-0 01 1 1310-1410 ●
33 BOLT; BRKT
(B) M8X16 FLANGE 		0-28050-816-0 01 1 1411- ● ●
33 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 03 1 1310-1410 ●
33 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 03 1 1411- ● ●
63 BRACKET; WATER PIPE
(B) 		8-98046-784-0 01 1 1310-1410 ●
63 BRACKET; WATER PIPE
(B) 		8-98046-784-0 01 1 1411- ● ●
63 BRACKET; WATER PIPE
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (A) 		8-98153-457-0 01 1 1310- ●
89 PIPE; WATER,AIR CMPR,IN
BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) 		8-97611-095-0 01 1 1310- ●
89 PIPE; WATER,AIR CMPR,IN
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-97610-086-0 01 1 1310-1410 ●
89 PIPE; WATER,AIR CMPR,IN
BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) 		8-97610-086-0 01 1 1411- ●
89 PIPE; WATER,AIR CMPR,IN 8-97610-086-0 01 1 1411- ●
90 BOLT; EYE,WATER PIPE,AIR CMPR
(A) M14X27 EYE-BOLT 		1-09675-193-0 01 1 1310-1410 ●
90 BOLT; EYE,WATER PIPE,AIR CMPR
(A) M14X27 EYE-BOLT 		1-09675-193-0 01 1 1411- ● ●
90 BOLT; EYE,WATER PIPE,AIR CMPR
(B) M16X28 		8-94383-489-0 01 1 1310-1410 ●
90 BOLT; EYE,WATER PIPE,AIR CMPR
(B) M16X28 		8-94383-489-0 01 1 1411- ● ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2 		1-09630-085-0 02 1 1310-1312 ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401-1410 ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1411- ● ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2 		1-09630-086-0 02 1 1310-1410 ●
91 GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2 		1-09630-086-0 02 1 1411- ● ●
126 GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2 		1-09630-085-0 06 1 1310-1312 ●
126 GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2 		8-98251-345-0 06 1 1401-1410 ●
126 GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2 		8-98251-345-0 06 1 1411- ● ●
126 GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2 		1-09630-086-0 02 1 1310-1410 ●
126 GASKET; CAP NUT
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2 		1-09630-086-0 02 1 1411- ● ●
127 BOLT; EYE
(A) M14X27 EYE-BOLT 		1-09675-193-0 03 1 1310-1410 ●
127 BOLT; EYE
(A) M14X27 EYE-BOLT 		1-09675-193-0 03 1 1411- ● ●
127 BOLT; EYE
(B) M16X28 		8-94383-489-0 01 1 1310-1410 ●
127 BOLT; EYE
(B) M16X28 		8-94383-489-0 01 1 1411- ● ●

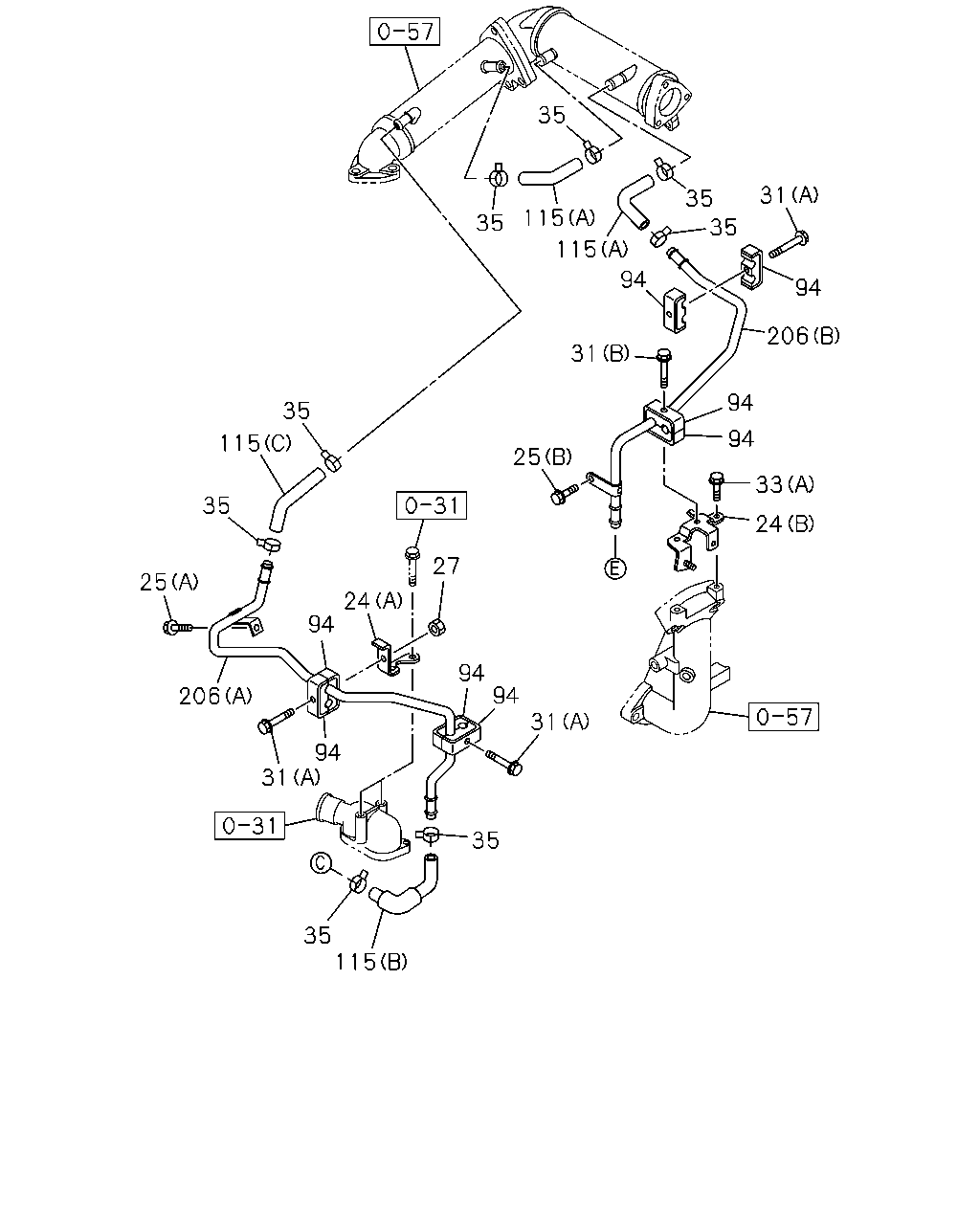

çizim 379190
94 31 115 115 35 35 31 35 94 94 206 94 33 24 25 115 35 25 35 94 24 27 94 94 31 35 115 35 31 206 35 94
BalonParca AdiParca NoAdetTipApplied Date A B
24 BRACKET; WATER PIPE
(A) 		8-98000-557-2 01 1 1310-1410 ●
24 BRACKET; WATER PIPE
(A) 		8-98000-557-2 01 1 1411- ● ●
24 BRACKET; WATER PIPE
(B) 		8-98051-626-1 01 1 1310-1410 ●
24 BRACKET; WATER PIPE
(B) 		8-98051-626-1 01 1 1411- ● ●
25 BOLT; WATER PIPE
(A) M8X12 FLANGE 		0-28050-812-0 01 1 1310-1410 ●
25 BOLT; WATER PIPE
(A) M8X12 FLANGE 		0-28050-812-0 01 1 1411- ● ●
25 BOLT; WATER PIPE
(B) M8X20 FLANGE 		0-28650-820-0 01 1 1310-1410 ●
25 BOLT; WATER PIPE
(B) M8X20 FLANGE 		0-28650-820-0 01 1 1411- ● ●
27 NUT; PIPE FIX
M6 FLANGE 		0-91180-106-0 01 1 1310-1410 ●
27 NUT; PIPE FIX
M6 FLANGE 		0-91180-106-0 01 1 1411- ● ●
31 BOLT; CLIP
(B) M6X45 FLANGE 		0-28050-645-0 01 1 1310-1410 ●
31 BOLT; CLIP
(B) M6X45 FLANGE 		0-28050-645-0 01 1 1411- ● ●
31 BOLT; CLIP
(A) M6X40 FLANGE 		0-28650-640-0 03 1 1310-1410 ●
31 BOLT; CLIP
(A) M6X40 FLANGE 		0-28650-640-0 03 1 1411- ● ●
33 BOLT; BRKT
(B) M8X16 FLANGE 		0-28050-816-0 01 1 1310-1410 ●
33 BOLT; BRKT
(B) M8X16 FLANGE 		0-28050-816-0 01 1 1411- ● ●
33 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 03 1 1310-1410 ●
33 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 03 1 1411- ● ●
35 CLIP; RUBBER HOSE
ID=20 		8-98127-648-0 08 1 1310-1410 ●
35 CLIP; RUBBER HOSE
ID=20 		8-98127-648-0 08 1 1411- ● ●
35 CLIP; RUBBER HOSE
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=20 		8-98127-648-0 02 1 1310-1410 ●
35 CLIP; RUBBER HOSE
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=20 		8-98127-648-0 02 1 1411- ● ●
94 CLIP; WATER PIPE 8-97605-129-1 08 1 1310-1410 ●
94 CLIP; WATER PIPE 8-97605-129-1 08 1 1411- ● ●
115 HOSE; RUBBER
(B) 		8-97606-735-1 01 1 1310-1410 ●
115 HOSE; RUBBER
(B) 		8-97606-735-1 01 1 1411- ● ●
115 HOSE; RUBBER
(A) 		8-97606-749-0 02 1 1310-1410 ●
115 HOSE; RUBBER
(A) 		8-97606-749-0 02 1 1411- ● ●
115 HOSE; RUBBER
(C) 		8-98043-192-0 01 1 1310-1410 ●
115 HOSE; RUBBER
(C) 		8-98043-192-0 01 1 1411- ● ●
115 HOSE; RUBBER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D) 		8-97618-843-0 01 1 1310-1410 ●
115 HOSE; RUBBER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (D) 		8-97618-843-0 01 1 1411- ● ●
206 PIPE; WATER,EGR COOLER
(A) 		8-97604-928-2 01 1 1310-1410 ●
206 PIPE; WATER,EGR COOLER
(A) 		8-97604-928-2 01 1 1411- ● ●
206 PIPE; WATER,EGR COOLER
(B) 		8-98000-480-1 01 1 1310-1410 ●
206 PIPE; WATER,EGR COOLER
(B) 		8-98000-480-1 01 1 1411- ● ●
