3-11 — PARKING BRAKE CONTROL (#12906) — 57 parça

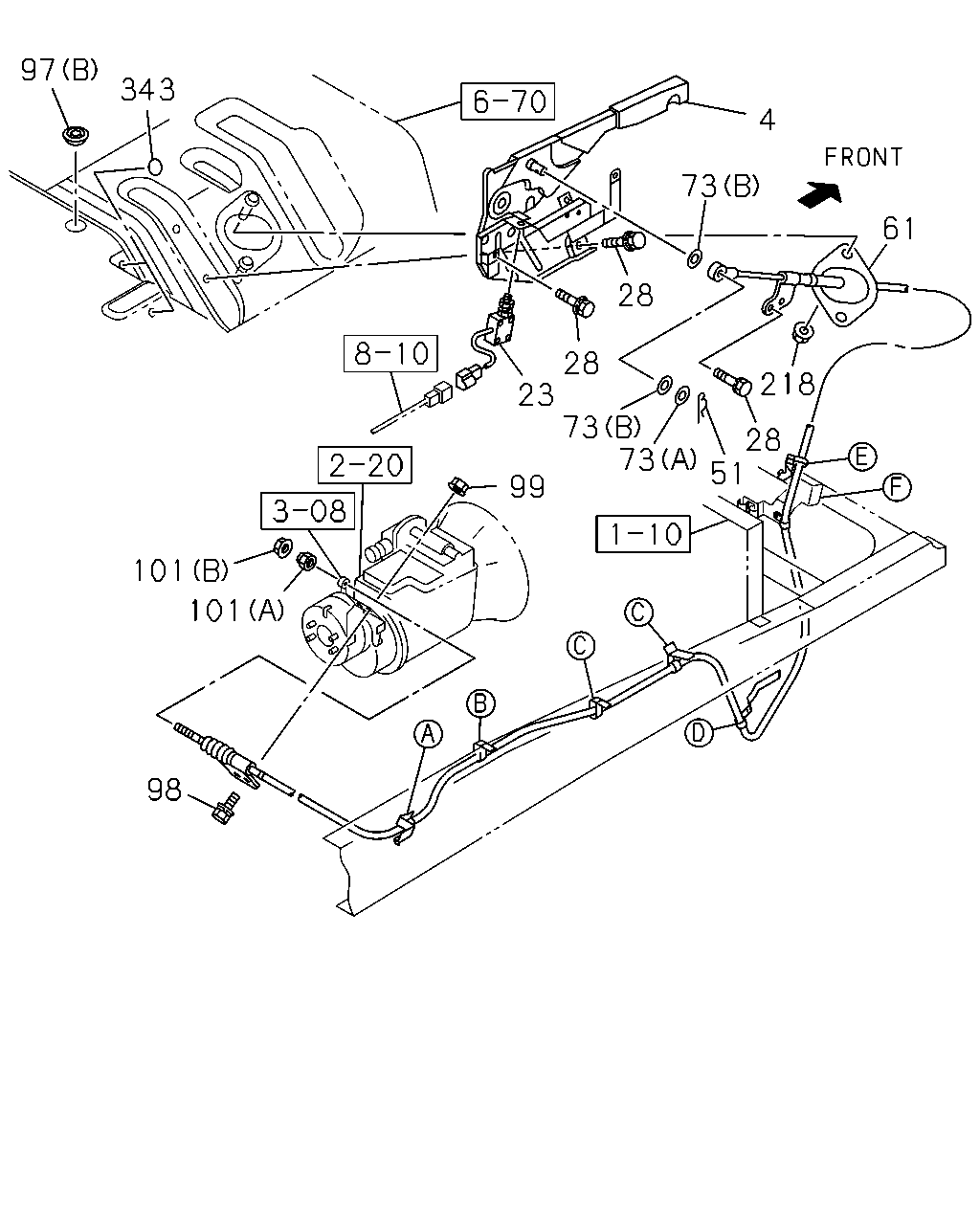

97 343 101 101 98 99 23 28 73 73 51 28 218 61 73 28 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	STEM; PARKING BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A>	8-98173-353-0	01	1	1108-
23	SWITCH; PARKING BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A>	1-82440-100-0	01	1	1108-
28	BOLT; HAND BRK LEVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	1108-
51	PIN; JOINT,RELAY LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A>	1-09987-243-1	01	1	1108-
61	CABLE; PARKING BRK MZW6P M/T<RSZ> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> L=4615 THA	8-98173-502-0	01	1	1108-1309
61	CABLE; PARKING BRK MZW6P M/T<RSZ> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> L=4615	8-98257-635-0	01	1	1310-
73	WASHER; PL,CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> (A) ID=17 OD=30	0-91610-516-0	01	1	1108-
73	WASHER; PL,CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> (B) ID=19	8-94206-429-1	02	1	1108-
97	GROMMET; PARKING BRK CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> (B) OD=35	8-94122-971-0	01	1	1108-1205
97	GROMMET; PARKING BRK CABLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> (B) OD=35	8-94122-971-0	01	1	1206-
97	GROMMET; PARKING BRK CABLE REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> (A)	8-98029-219-1	01	1	0807-1205
97	GROMMET; PARKING BRK CABLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> (A)	8-98029-219-1	01	1	1206-
98	BOLT; RR COVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> M10X30 FLANGE THA	0-28651-030-0	02	1	1108-
99	NUT; CONT CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> M10 FLANGE THA	0-91180-210-0	02	1	1108-
101	NUT; CABLE TO LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> (A)	1-46259-007-0	01	1	1108-
101	NUT; CABLE TO LEVER EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> (B) M8 FLANGE THA	0-91180-108-0	01	1	1108-
218	NUT; BRKT,PARKING BRK CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> M8 FLANGE THA	0-91180-108-0	02	1	1108-1203
218	NUT; BRKT,PARKING BRK CABLE 6HK1-TCN ENG<82L> MZW6P M/T<RSZ> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> M8 FLANGE THA	0-91180-108-0	02	1	1204-
343	SEAL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> OD=25 BLACK THA	1-76798-019-0	04	1	1108-1205
343	SEAL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> OD=25 BLACK THA	1-76798-019-0	04	1	1206-

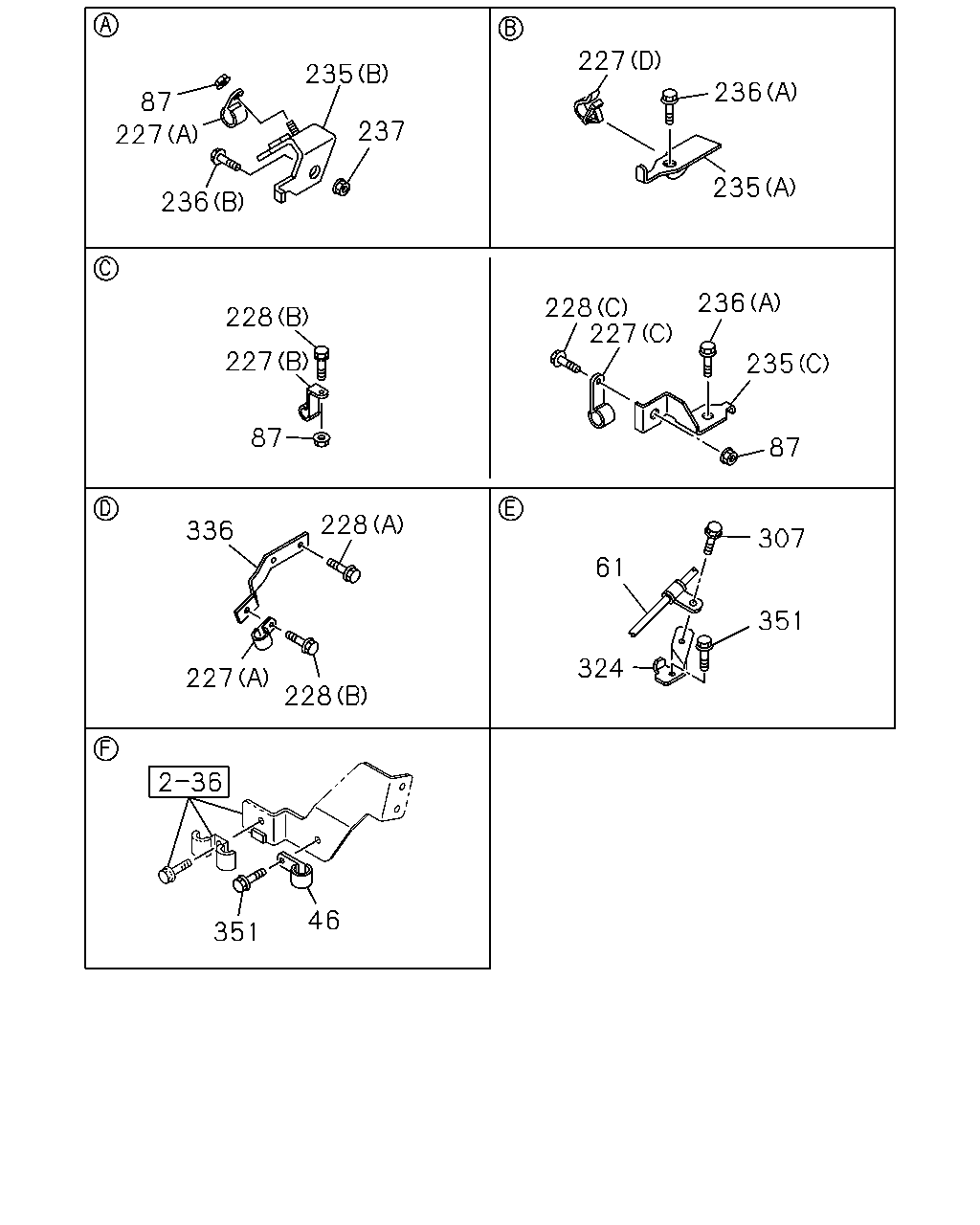

87 227 236 235 237 228 227 87 336 228 227 228 351 46 324 351 307 61 87 235 236 227 228 235 236 227

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
46	CLIP; FRT CABLE TO FLOOR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> ID=16 L=20	0-95235-535-0	01	1	1108-1401
46	CLIP; FRT CABLE TO FLOOR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> ID=13 L=20	0-95235-235-0	01	1	1402-
61	CABLE; PARKING BRK MZW6P M/T<RSZ> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> L=4615 THA	8-98173-502-0	01	1	1108-1309
61	CABLE; PARKING BRK MZW6P M/T<RSZ> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> L=4615	8-98257-635-0	01	1	1310-
87	NUT EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> M8 FLANGE THA	0-91180-108-0	02	1	1108-1203
87	NUT 6HK1-TCN ENG<82L> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> M8 FLANGE THA	0-91180-108-0	02	1	1204-
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> (A) ID=13 L=20	0-95235-235-0	02	1	1108-1205
227	CLIP; RAD 6HK1-TCN ENG<82L> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> (A) ID=13 L=20	0-95235-235-0	02	1	1206-
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> (B) ID=25 H=30 L=35	1-09700-875-0	01	1	1108-
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> (C) ID=14.5 L=40	1-09701-014-0	01	1	1108-
227	CLIP; RAD EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> (D) ID=9.5	5-09709-020-0	01	1	1108-
228	BOLT; CLIP RAD MTG 6HK1-TCN ENG<82L> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> (B) M8X16 FLANGE THA	0-28050-816-0	01	1	1204-
228	BOLT; CLIP RAD MTG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> (A) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	1108-
228	BOLT; CLIP RAD MTG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> (B) M8X16 FLANGE THA	0-28050-816-0	01	1	1108-1203
228	BOLT; CLIP RAD MTG EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> (C) M8X25 FLANGE THA	0-28650-825-0	02	1	1108-
235	BRACKET; CONT CABLE TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> (A)	8-98100-153-0	01	1	1108-1111
235	BRACKET; CONT CABLE TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> (B)	8-98111-492-0	01	1	1108-1205
235	BRACKET; CONT CABLE TO FRAME 6HK1-TCN ENG<82L> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> (B)	8-98111-492-0	01	1	1206-
235	BRACKET; CONT CABLE TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> (C)	8-98126-426-0	01	1	1108-
236	BOLT; BRKT TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> (A) M8X25 FLANGE THA	0-28650-825-0	01	1	1108-1203
236	BOLT; BRKT TO FRAME 6HK1-TCN ENG<82L> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> (A) M8X25 FLANGE THA	0-28650-825-0	01	1	1204-1209
236	BOLT; BRKT TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> (A) M8X25 FLANGE THA	0-28650-825-0	01	1	1210-
236	BOLT; BRKT TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> (B) M10X35 FLANGE THA	0-28651-035-0	01	1	1108-
237	NUT; BRKT TO FRAME 6HK1-TCN ENG<82L> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> M10 FLANGE THA	0-91180-210-0	01	1	1206-
237	NUT; BRKT TO FRAME EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> M10 FLANGE THA	0-91180-210-0	01	1	1108-1203
237	NUT; BRKT TO FRAME 6HK1-TCN ENG<82L> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> M10 FLANGE THA	0-91180-210-0	01	1	1204-
307	BOLT; BRKT,PARKING BRK CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> M8X25 W/WASHER	0-51640-825-0	01	1	1108-1205
307	BOLT; BRKT,PARKING BRK CABLE 6HK1-TCN ENG<82L> MZW6P M/T<RSZ> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> M8X25 W/WASHER	0-51640-825-0	01	1	1206-
324	BRACKET EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A>	8-98067-482-1	01	1	1108-1205
324	BRACKET 6HK1-TCN ENG<82L> MZW6P M/T<RSZ> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A>	8-98067-482-1	01	1	1206-
336	BRACKET; RADIATOR EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A>	8-98044-680-0	01	1	1108-1205
336	BRACKET; RADIATOR 6HK1-TCN ENG<82L> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A>	8-98044-680-0	01	1	1206-
351	BOLT; CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> M8X25 W/WASHER	0-51640-825-0	03	1	1108-

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
97	GROMMET; PARKING BRK CABLE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> (B) OD=35	8-94122-971-0	01	1	1108-1205
97	GROMMET; PARKING BRK CABLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> (B) OD=35	8-94122-971-0	01	1	1206-
97	GROMMET; PARKING BRK CABLE REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> (A)	8-98029-219-1	01	1	0807-1205
97	GROMMET; PARKING BRK CABLE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REAR WHEEL PARKING BRAKE AIR CONTROL<B3A> (A)	8-98029-219-1	01	1	1206-
