Isuzu WW
▶
TRUCKS
▶
FVR
▶
11556 - FVR-RHD EURO5
▶
0 - Engine, Emission, Engine Electrical
▶
0-28 - VENTILATION SYSTEM
▶

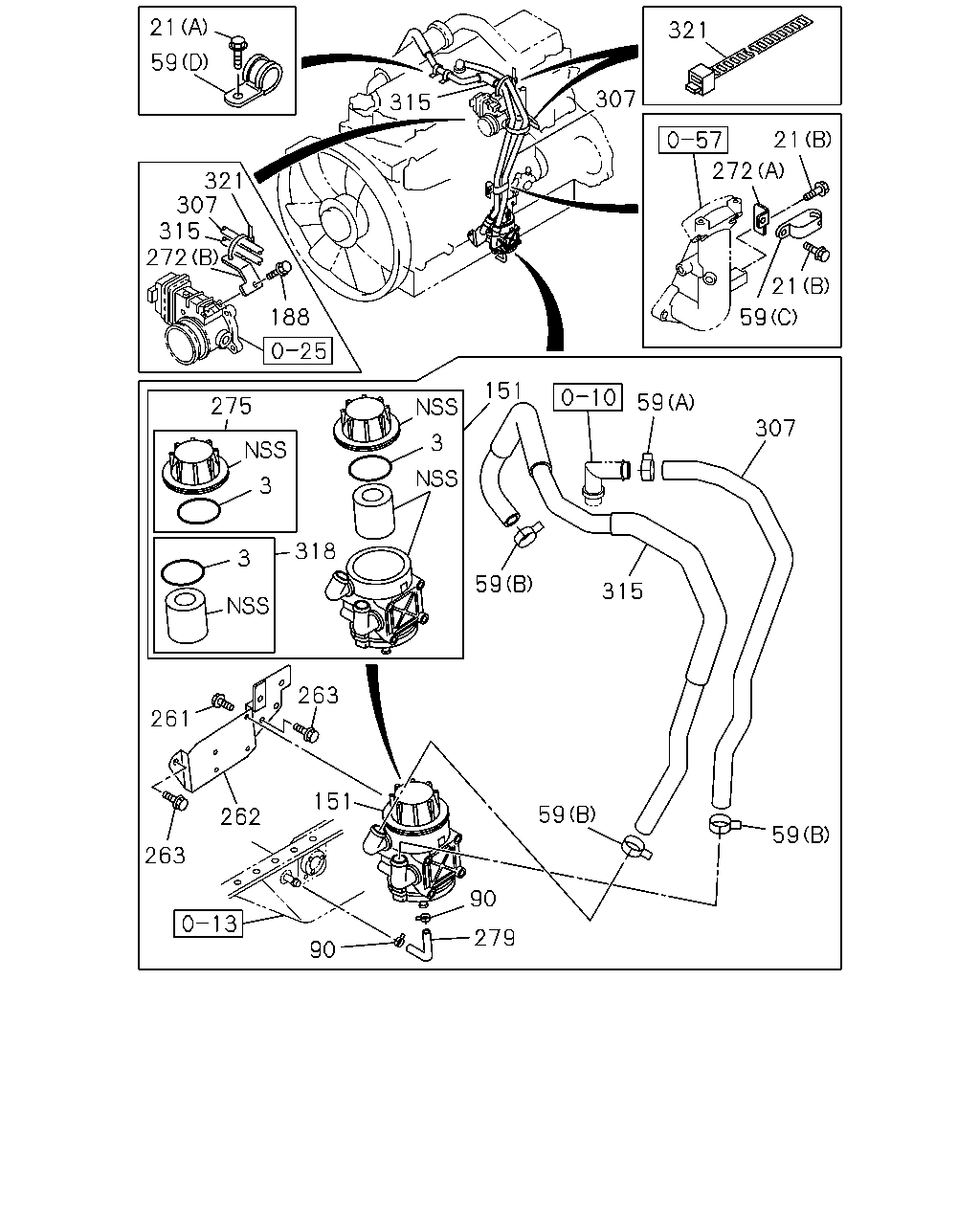

0-28 — VENTILATION SYSTEM
(#129058) — 44 parça
Tümü
A - 6HK1-TCN ENG
B - 6HK1-TCC ENG
21
59
321
307
315
272
188
315
307
321
21
272
21
59
307
59
315
151
59
59
59
263
261
262
263
151
90
90
279
318
3
3
275
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
3
GASKET; BODY TO CAP
8-97385-921-0
01
1
1310-1410
●
3
GASKET; BODY TO CAP
8-97385-921-0
01
1
1411-
●
●
21
BOLT; CLIP
(A) M8X12 FLANGE
0-28050-812-0
02
1
1310-1410
●
21
BOLT; CLIP
(A) M8X12 FLANGE
0-28050-812-0
02
1
1411-
●
●
21
BOLT; CLIP
(B) M8X16 FLANGE
0-28050-816-0
02
1
1310-1410
●
21
BOLT; CLIP
(B) M8X16 FLANGE
0-28050-816-0
02
1
1411-
●
●
59
CLIP; HOSE
(D) ID=35 L=33
1-09700-945-0
02
1
1310-1410
●
59
CLIP; HOSE
(D) ID=35 L=33
1-09700-945-0
02
1
1411-
●
●
59
CLIP; HOSE
(C) ID=30X2 L=28
1-09701-266-0
01
1
1310-1410
●
59
CLIP; HOSE
(C) ID=30X2 L=28
1-09701-266-0
01
1
1411-
●
●
59
CLIP; HOSE
(B) ID=28.5
1-09707-150-0
03
1
1310-1410
●
59
CLIP; HOSE
(B) ID=28.5
1-09707-150-0
03
1
1411-
●
●
59
CLIP; HOSE
(A) ID=31.2
8-97237-146-0
01
1
1310-1410
●
59
CLIP; HOSE
(A) ID=31.2
8-97237-146-0
01
1
1411-
●
●
90
CLIP; RUBBER HOSE
ID=14
1-09704-102-0
02
1
1310-1410
●
90
CLIP; RUBBER HOSE
ID=14
1-09704-102-0
02
1
1411-
●
●
151
SEPARATOR; OIL,PCV
8-97602-262-2
01
1
1310-1410
●
151
SEPARATOR; OIL,PCV
8-97602-262-2
01
1
1411-
●
●
188
BOLT; BRKT
M6X12 FLANGE
0-28050-612-0
01
1
1310-1410
●
188
BOLT; BRKT
M6X12 FLANGE
0-28050-612-0
01
1
1411-
●
●
188
BOLT; BRKT
M8X16 FLANGE
0-28050-816-0
01
1
1310-1410
●
188
BOLT; BRKT
M8X16 FLANGE
0-28050-816-0
01
1
1411-
●
●
261
BOLT; SEPARETOR
M8X16 FLANGE
0-28050-816-0
04
1
1310-1410
●
261
BOLT; SEPARETOR
M8X16 FLANGE
0-28050-816-0
04
1
1411-
●
●
262
BRACKET; OIL SEPARETOR
8-97610-919-1
01
1
1310-1410
●
262
BRACKET; OIL SEPARETOR
8-97610-919-1
01
1
1411-
●
●
263
BOLT; BRKT,OIL SEPARETOR
M10X25 FLANGE
0-28751-025-0
02
1
1310-1410
●
263
BOLT; BRKT,OIL SEPARETOR
M10X25 FLANGE
0-28751-025-0
02
1
1411-
●
●
272
BRACKET; PIPE
(A)
8-97607-396-1
01
1
1310-1410
●
272
BRACKET; PIPE
(A)
8-97607-396-1
01
1
1411-
●
●
272
BRACKET; PIPE
(B)
8-97607-397-0
01
1
1310-1410
●
272
BRACKET; PIPE
(B)
8-97607-397-0
01
1
1411-
●
●
275
CAP; PCV
8-97606-319-0
01
1
1310-1410
●
275
CAP; PCV
8-97606-319-0
01
1
1411-
●
●
279
HOSE; RUBBER,OIL DRAIN
L=190
0-02709-190-0
01
1
1310-1410
●
279
HOSE; RUBBER,OIL DRAIN
L=190
0-02709-190-0
01
1
1411-
●
●
307
HOSE; RUBBER,HEAD COVER TO OIL SEPARAT
8-98054-285-2
01
1
1310-1410
●
307
HOSE; RUBBER,HEAD COVER TO OIL SEPARAT
8-98054-285-2
01
1
1411-
●
●
315
HOSE; RUBBER
8-98054-286-2
01
1
1310-1410
●
315
HOSE; RUBBER
8-98054-286-2
01
1
1411-
●
●
318
ELEMENT KIT; PCV
8-97606-318-0
01
1
1310-1410
●
318
ELEMENT KIT; PCV
8-97606-318-0
01
1
1411-
●
●
321
CLIP; HOSE,SEPARATOR
L=300
1-09707-001-1
02
1
1310-1410
●
321
CLIP; HOSE,SEPARATOR
L=300
1-09707-001-1
02
1
1411-
●
●
