Sayfa 3-05 - Isuzu EPC

3-05 — REAR WHEEL BRAKE (#12903) — 430 parça

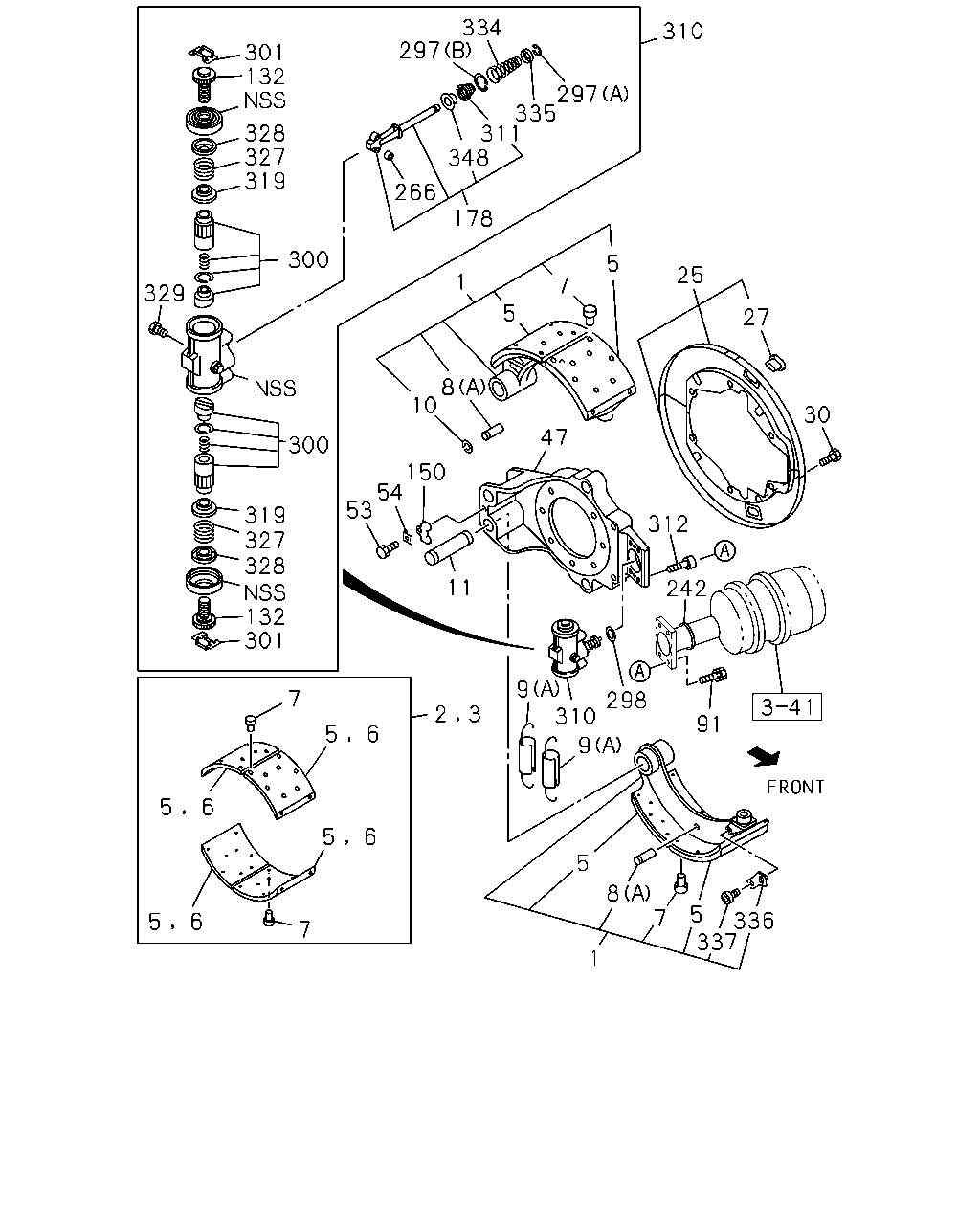

346 301 328 327 319 334 297 297 335 311 348 329 319 327 328 301 347 301 301

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
297	RING; SNAP (A) THA	1-47649-031-0	02	1	0807-1107
297	RING; SNAP (A) THA	1-47649-031-0	02	1	0807-1107
297	RING; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	1-47649-031-0	02	1	1108-
297	RING; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	1-47649-031-0	02	1	1108-
297	RING; SNAP (B) THA	1-47649-034-1	02	1	0807-1107
297	RING; SNAP (B) THA	1-47649-034-1	02	1	0807-1107
297	RING; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) THA	1-47649-034-1	02	1	1108-
297	RING; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) THA	1-47649-034-1	02	1	1108-
301	CLIP; ANTI LOTATION THA	1-47621-017-0	04	1	0807-1107
301	CLIP; ANTI LOTATION THA	1-47621-017-0	04	1	0807-1107
301	CLIP; ANTI LOTATION BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47621-017-0	04	1	1108-
301	CLIP; ANTI LOTATION BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47621-017-0	04	1	1108-
311	BOOT; WEDGE THA	1-47649-042-0	02	1	0807-1107
311	BOOT; WEDGE THA	1-47649-042-0	02	1	0807-1107
311	BOOT; WEDGE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47649-042-0	02	1	1108-
311	BOOT; WEDGE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47649-042-0	02	1	1108-
319	RING; DRIVE THA	1-47629-200-0	04	1	0807-1107
319	RING; DRIVE THA	1-47629-200-0	04	1	0807-1107
319	RING; DRIVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47629-200-0	04	1	1108-
319	RING; DRIVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47629-200-0	04	1	1108-
327	SPRING; ADJ THA	1-47629-196-0	04	1	0807-1107
327	SPRING; ADJ THA	1-47629-196-0	04	1	0807-1107
327	SPRING; ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47629-196-0	04	1	1108-
327	SPRING; ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47629-196-0	04	1	1108-
328	CAGE; SPRING THA	1-47629-192-0	04	1	0807-1107
328	CAGE; SPRING THA	1-47629-192-0	04	1	0807-1107
328	CAGE; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47629-192-0	04	1	1108-
328	CAGE; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47629-192-0	04	1	1108-
329	SCREW; LOCATING THA	1-47619-149-1	04	1	0807-1107
329	SCREW; LOCATING THA	1-47619-149-1	04	1	0807-1107
329	SCREW; LOCATING BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47619-149-1	04	1	1108-
329	SCREW; LOCATING BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47619-149-1	04	1	1108-
334	SPRING; ROD THA	1-47649-041-0	02	1	0807-1107
334	SPRING; ROD THA	1-47649-041-0	02	1	0807-1107
334	SPRING; ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47649-041-0	02	1	1108-
334	SPRING; ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47649-041-0	02	1	1108-
335	RETAINER; SPRING THA	1-47649-020-0	02	1	0807-1107
335	RETAINER; SPRING THA	1-47649-020-0	02	1	0807-1107
335	RETAINER; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47649-020-0	02	1	1108-
335	RETAINER; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47649-020-0	02	1	1108-
346	REPAIR KIT; EXPANDER THA	1-85576-403-0	02	1	0807-1107
346	REPAIR KIT; EXPANDER THA	1-85576-403-0	02	1	0807-1107
346	REPAIR KIT; EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-85576-403-0	02	1	1108-
346	REPAIR KIT; EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-85576-403-0	02	1	1108-
347	REPAIR KIT; BOOT,EXPANDER THA	1-85576-404-0	02	1	0807-1107
347	REPAIR KIT; BOOT,EXPANDER THA	1-85576-404-0	02	1	0807-1107
347	REPAIR KIT; BOOT,EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-85576-404-0	02	1	1108-
347	REPAIR KIT; BOOT,EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-85576-404-0	02	1	1108-
348	CAP; EXPANDER THA	1-47649-044-0	02	1	0807-1107
348	CAP; EXPANDER THA	1-47649-044-0	02	1	0807-1107
348	CAP; EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47649-044-0	02	1	1108-
348	CAP; EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47649-044-0	02	1	1108-

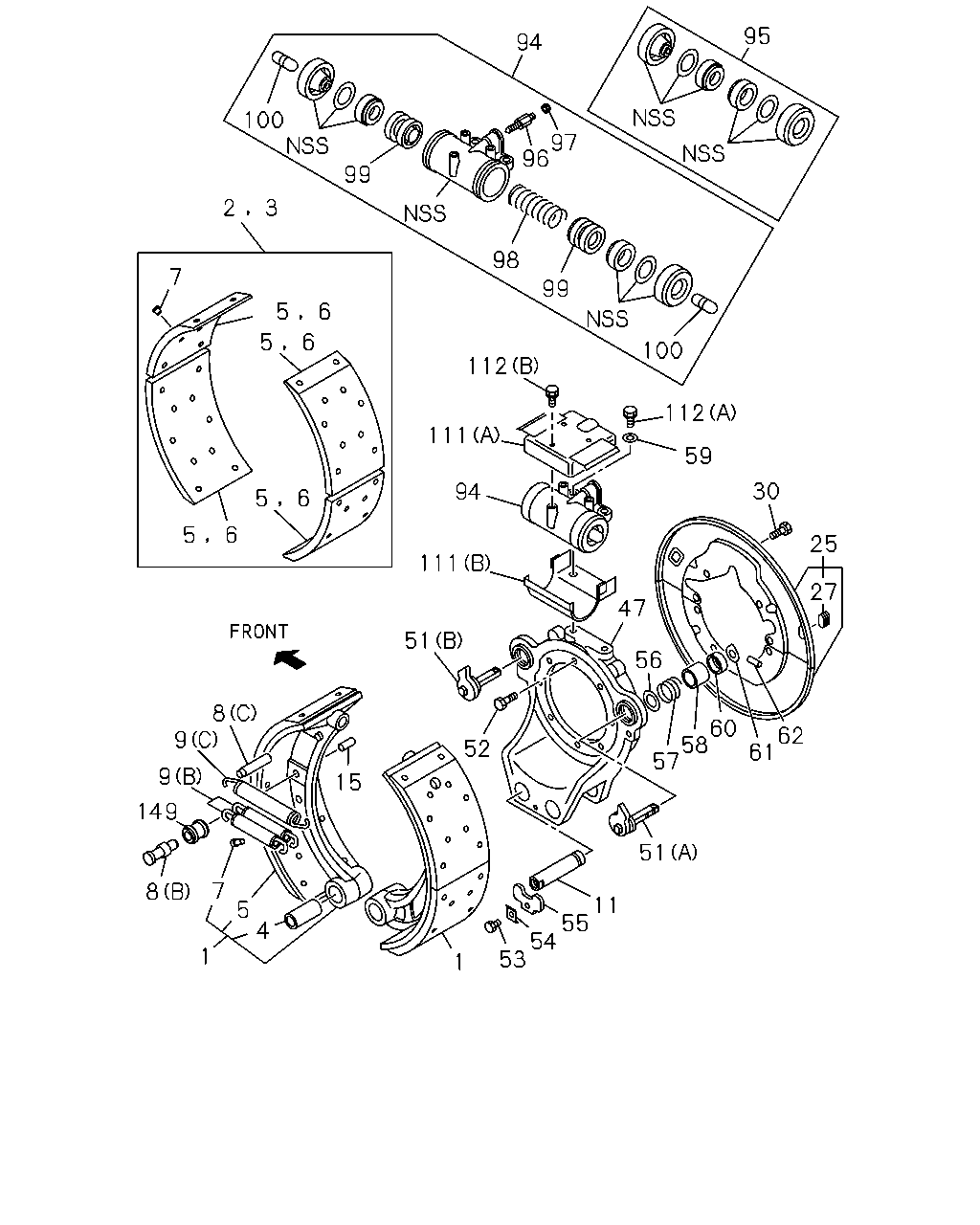

95 94 100 97 96 99 2 3 98 7 99 5 6 5 6 100 112 112 111 59 30 94 5 6 5 6 25 111 27 47 51 56 8 9 60 58 57 62 61 52 9 15 149 51 7 8 11 55 54 53 5 4 1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47170-442-0	08	1	1108-
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47170-442-0	08	1	1108-
1	SHOE; BRK,RR LEADING THA	1-47170-504-0	01	1	0807-1107
1	SHOE; BRK,RR LEADING THA	1-47170-504-0	01	1	0807-1107
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> LEADING THA	1-47170-504-0	01	1	1108-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> LEADING THA	1-47170-504-0	01	1	1108-
1	SHOE; BRK,RR LEADING THA	1-47170-506-0	01	1	0807-1107
1	SHOE; BRK,RR LEADING THA	1-47170-506-0	01	1	0807-1107
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> LEADING THA	1-47170-506-0	01	1	1108-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> LEADING THA	1-47170-506-0	01	1	1108-
1	SHOE; BRK,RR TRAILING THA	1-47170-505-0	01	1	0807-1107
1	SHOE; BRK,RR TRAILING THA	1-47170-505-0	01	1	0807-1107
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> TRAILING THA	1-47170-505-0	01	1	1108-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> TRAILING THA	1-47170-505-0	01	1	1108-
1	SHOE; BRK,RR TRAILING THA	1-47170-507-0	01	1	0807-1107
1	SHOE; BRK,RR TRAILING THA	1-47170-507-0	01	1	0807-1107
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> TRAILING THA	1-47170-507-0	01	1	1108-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> TRAILING THA	1-47170-507-0	01	1	1108-
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> T=16	1-88311-359-1	02	1	1108-
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> T=16	1-88311-359-1	02	1	1108-
2	LINING SET; RR BRK,STANDARD	1-88310-773-1	02	1	0807-1107
2	LINING SET; RR BRK,STANDARD	1-88310-773-1	02	1	0807-1107
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-88310-773-1	02	1	1108-
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-88310-773-1	02	1	1108-
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> T=17	1-88311-360-1	02	1	1108-
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> T=17	1-88311-360-1	02	1	1108-
3	LINING SET; RR BRK,OVER SIZE	1-88310-774-1	02	1	0807-1107
3	LINING SET; RR BRK,OVER SIZE	1-88310-774-1	02	1	0807-1107
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-88310-774-1	02	1	1108-
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-88310-774-1	02	1	1108-
4	BUSHING; BRK SHOE,RR WHEEL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47112-012-0	04	1	1108-
4	BUSHING; BRK SHOE,RR WHEEL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47112-012-0	04	1	1108-
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47126-760-0	16	1	1108-
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47126-760-0	16	1	1108-
5	LINING; RR BRK SHOE,STANDARD THA	1-47126-091-0	08	1	0807-1107
5	LINING; RR BRK SHOE,STANDARD THA	1-47126-091-0	08	1	0807-1107
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47126-091-0	08	1	1108-
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47126-091-0	08	1	1108-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> T=17 THA	1-47126-761-0	16	1	1108-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> T=17 THA	1-47126-761-0	16	1	1108-
6	LINING; RR BRK SHOE,OVER SIZE THA	1-47126-092-0	08	1	0807-1107
6	LINING; RR BRK SHOE,OVER SIZE THA	1-47126-092-0	08	1	0807-1107
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47126-092-0	08	1	1108-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47126-092-0	08	1	1108-
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=18.5 THA	1-09732-034-0	AR	1	1108-
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=18.5 THA	1-09732-034-0	AR	1	1108-
7	RIVET; LINING,RR BRK L=15.5 THA	1-09732-053-0	AR	1	0807-1107
7	RIVET; LINING,RR BRK L=15.5 THA	1-09732-053-0	AR	1	0807-1107
7	RIVET; LINING,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=15.5 THA	1-09732-053-0	AR	1	1108-
7	RIVET; LINING,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=15.5 THA	1-09732-053-0	AR	1	1108-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA	1-09744-051-0	08	1	1108-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA	1-09744-051-0	08	1	1108-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) THA	1-47119-025-0	08	1	1108-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) THA	1-47119-025-0	08	1	1108-
8	PIN; RETURN SPRING,RR BRK SHOE (A) THA	1-47119-175-0	04	1	0807-1107
8	PIN; RETURN SPRING,RR BRK SHOE (A) THA	1-47119-175-0	04	1	0807-1107
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	1-47119-175-0	04	1	1108-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	1-47119-175-0	04	1	1108-
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA	1-09583-175-0	04	1	1108-
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA	1-09583-175-0	04	1	1108-
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) THA	1-09583-210-0	08	1	1108-
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) THA	1-09583-210-0	08	1	1108-
9	SPRING; RETURN,BRK SHOE (A) THA	1-09583-376-0	02	1	0807-1107
9	SPRING; RETURN,BRK SHOE (A) THA	1-09583-376-0	02	1	0807-1107
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	1-09583-376-0	02	1	1108-
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	1-09583-376-0	02	1	1108-
11	PIN; ANCHOR,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=121.5 THA	1-47131-039-0	08	1	1108-
11	PIN; ANCHOR,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=121.5 THA	1-47131-039-0	08	1	1108-
11	PIN; ANCHOR,RR WHEEL BRK L=138.5 THA	1-47131-045-0	04	1	0807-1107
11	PIN; ANCHOR,RR WHEEL BRK L=138.5 THA	1-47131-045-0	04	1	0807-1107
11	PIN; ANCHOR,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=138.5 THA	1-47131-045-0	04	1	1108-
11	PIN; ANCHOR,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=138.5 THA	1-47131-045-0	04	1	1108-
15	PIN; GUIDE,ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47116-002-0	08	1	1108-
15	PIN; GUIDE,ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47116-002-0	08	1	1108-
25	COVER SET; RR BRK DRUM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05>	1-47151-526-1	02	1	1108-
25	COVER SET; RR BRK DRUM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05>	1-47151-526-1	02	1	1108-
25	COVER SET; RR BRK DRUM	1-47151-806-0	01	1	0807-1107
25	COVER SET; RR BRK DRUM	1-47151-806-0	01	1	0807-1107
25	COVER SET; RR BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-47151-806-0	01	1	1108-
25	COVER SET; RR BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-47151-806-0	01	1	1108-
25	COVER SET; RR BRK DRUM	1-47151-807-0	01	1	0807-1107
25	COVER SET; RR BRK DRUM	1-47151-807-0	01	1	0807-1107
25	COVER SET; RR BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-47151-807-0	01	1	1108-
25	COVER SET; RR BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-47151-807-0	01	1	1108-
27	COVER; CHECK HOLE,DRUM COVER THA	1-09333-151-0	04	1	0807-
27	COVER; CHECK HOLE,DRUM COVER THA	1-09333-151-0	04	1	0807-
30	BOLT; DRUM COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M10X16 W/LK WASHER	0-50541-016-0	12	1	1108-
30	BOLT; DRUM COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M10X16 W/LK WASHER	0-50541-016-0	12	1	1108-
30	BOLT; DRUM COVER M10X12 THA	1-47159-187-0	12	1	0807-1107
30	BOLT; DRUM COVER M10X12 THA	1-47159-187-0	12	1	0807-1107
30	BOLT; DRUM COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M10X12 THA	1-47159-187-0	12	1	1108-
30	BOLT; DRUM COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M10X12 THA	1-47159-187-0	12	1	1108-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK ANTI LOCK BRAKE<JE5> FORWARD	1-47137-549-0	01	1	1103-1306
47	BRACKET; ANCHOR PIN,RR WHEEL BRK ANTI LOCK BRAKE<JE5> FORWARD THA	8-98091-254-1	01	1	1307-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK ANTI LOCK BRAKE<JE5> FORWARD	1-47137-550-0	01	1	1103-1306
47	BRACKET; ANCHOR PIN,RR WHEEL BRK ANTI LOCK BRAKE<JE5> FORWARD THA	8-98091-255-1	01	1	1307-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47137-151-0	04	1	1108-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47137-151-0	04	1	1108-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK ANTI LOCK BRAKE<JE5> FORWARD	1-47137-549-0	01	1	0809-1102
47	BRACKET; ANCHOR PIN,RR WHEEL BRK ANTI LOCK BRAKE<JE5> FORWARD	1-47137-550-0	01	1	0809-1102
47	BRACKET; ANCHOR PIN,RR WHEEL BRK	1-47137-472-0	02	1	0807-0808
47	BRACKET; ANCHOR PIN,RR WHEEL BRK	1-47137-472-0	02	1	0807-0808
47	BRACKET; ANCHOR PIN,RR WHEEL BRK REARWARD	1-47137-472-0	02	1	0809-1107
47	BRACKET; ANCHOR PIN,RR WHEEL BRK EXC. ANTI LOCK BRAKE<JE5> FORWARD	1-47137-472-0	02	1	0809-1107
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REARWARD	1-47137-472-0	02	1	1108-1306
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> FORWARD	1-47137-472-0	02	1	1108-1306
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REARWARD THA	8-98091-253-1	02	1	1307-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> FORWARD THA	8-98091-253-1	02	1	1307-
51	CAM ASM; SHOE ADJ,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) THA	1-47165-058-1	04	1	1108-
51	CAM ASM; SHOE ADJ,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) THA	1-47165-058-1	04	1	1108-
51	CAM ASM; SHOE ADJ,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA	1-47165-059-1	04	1	1108-
51	CAM ASM; SHOE ADJ,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA	1-47165-059-1	04	1	1108-
52	BOLT; ANCHOR BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M14X50 THA	1-09040-066-0	04	1	1108-
52	BOLT; ANCHOR BRKT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M14X50 THA	1-09040-066-0	04	1	1108-
53	BOLT; LOCK PLATE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M10X16	0-20851-016-0	04	1	1108-
53	BOLT; LOCK PLATE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M10X16	0-20851-016-0	04	1	1108-
53	BOLT; LOCK PLATE M10X16	0-20851-016-0	02	1	0807-0910
53	BOLT; LOCK PLATE M10X16	0-20851-016-0	02	1	0807-0910
53	BOLT; LOCK PLATE M10X16 THA	1-47139-173-0	02	1	0911-1107
53	BOLT; LOCK PLATE M10X16 THA	1-47139-173-0	02	1	0911-1107
53	BOLT; LOCK PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M10X16 THA	1-47139-173-0	02	1	1108-
53	BOLT; LOCK PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M10X16 THA	1-47139-173-0	02	1	1108-
54	WASHER; LK,ANCHOR PIN,RR BRK THA	1-47133-011-0	02	1	0807-
54	WASHER; LK,ANCHOR PIN,RR BRK THA	1-47133-011-0	02	1	0807-
55	PLATE; LK,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47133-005-0	04	1	1108-
55	PLATE; LK,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47133-005-0	04	1	1108-
56	WASHER; ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47169-033-0	08	1	1108-
56	WASHER; ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47169-033-0	08	1	1108-
57	SPRING; ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47169-046-0	08	1	1108-
57	SPRING; ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47169-046-0	08	1	1108-
58	BOOT; ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47169-034-0	08	1	1108-
58	BOOT; ADJ CAM,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47169-034-0	08	1	1108-
59	WASHER; LK,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> ID=14.2	0-91510-514-0	08	1	1108-
59	WASHER; LK,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> ID=14.2	0-91510-514-0	08	1	1108-
60	COVER; ADJ CAM BOOT,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47169-031-0	08	1	1108-
60	COVER; ADJ CAM BOOT,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47169-031-0	08	1	1108-
61	INDICATOR; WEAR,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47169-032-1	08	1	1108-
61	INDICATOR; WEAR,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47169-032-1	08	1	1108-
62	PIN; ADJ CAM SPINDLE,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47169-030-0	08	1	1108-
62	PIN; ADJ CAM SPINDLE,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47169-030-0	08	1	1108-
94	CYLINDER; WHEEL,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47600-684-0	04	1	1108-
94	CYLINDER; WHEEL,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47600-684-0	04	1	1108-
95	CUP SET; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05>	1-87830-527-0	02	1	1108-
95	CUP SET; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05>	1-87830-527-0	02	1	1108-
96	SCREW; BLEEDER,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47615-002-0	04	1	1108-
96	SCREW; BLEEDER,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47615-002-0	04	1	1108-
97	CAP; BLEEDER,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> OD=12 THA	1-47619-011-0	04	1	1108-
97	CAP; BLEEDER,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> OD=12 THA	1-47619-011-0	04	1	1108-
98	SPRING; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-09580-019-0	04	1	1108-
98	SPRING; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-09580-019-0	04	1	1108-
99	PISTON; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47624-302-0	08	1	1108-
99	PISTON; RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47624-302-0	08	1	1108-
100	ROD; PUSH,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47621-009-0	08	1	1108-
100	ROD; PUSH,RR WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47621-009-0	08	1	1108-
111	COVER; WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) THA	1-47159-089-0	04	1	1108-
111	COVER; WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) THA	1-47159-089-0	04	1	1108-
111	COVER; WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA	1-47159-118-0	04	1	1108-
111	COVER; WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA	1-47159-118-0	04	1	1108-
112	BOLT; WHEEL CYL SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) M14X35	0-20851-435-0	08	1	1108-
112	BOLT; WHEEL CYL SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) M14X35	0-20851-435-0	08	1	1108-
112	BOLT; WHEEL CYL SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) M8X16 W/LK WASHER	0-50540-816-0	12	1	1108-
112	BOLT; WHEEL CYL SETTING BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) M8X16 W/LK WASHER	0-50540-816-0	12	1	1108-
149	PIN; GUIDE RETURN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47119-024-0	08	1	1108-
149	PIN; GUIDE RETURN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47119-024-0	08	1	1108-

334 297 310 301 132 297 335 311 348 328 327 319 266 178 300 5 25 1 7 329 5 27 8 10 30 47 300 150 54 53 319 327 328 132 301 312 11 242 9 310 7 298 91 5 6 9 5 6 5 6 5 8 7 5 336 337 5 6 7 1 2 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47170-442-0	08	1	1108-
1	SHOE; BRK,RR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47170-442-0	08	1	1108-
1	SHOE; BRK,RR LEADING THA	1-47170-504-0	01	1	0807-1107
1	SHOE; BRK,RR LEADING THA	1-47170-504-0	01	1	0807-1107
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> LEADING THA	1-47170-504-0	01	1	1108-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> LEADING THA	1-47170-504-0	01	1	1108-
1	SHOE; BRK,RR LEADING THA	1-47170-506-0	01	1	0807-1107
1	SHOE; BRK,RR LEADING THA	1-47170-506-0	01	1	0807-1107
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> LEADING THA	1-47170-506-0	01	1	1108-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> LEADING THA	1-47170-506-0	01	1	1108-
1	SHOE; BRK,RR TRAILING THA	1-47170-505-0	01	1	0807-1107
1	SHOE; BRK,RR TRAILING THA	1-47170-505-0	01	1	0807-1107
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> TRAILING THA	1-47170-505-0	01	1	1108-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> TRAILING THA	1-47170-505-0	01	1	1108-
1	SHOE; BRK,RR TRAILING THA	1-47170-507-0	01	1	0807-1107
1	SHOE; BRK,RR TRAILING THA	1-47170-507-0	01	1	0807-1107
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> TRAILING THA	1-47170-507-0	01	1	1108-
1	SHOE; BRK,RR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> TRAILING THA	1-47170-507-0	01	1	1108-
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> T=16	1-88311-359-1	02	1	1108-
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> T=16	1-88311-359-1	02	1	1108-
2	LINING SET; RR BRK,STANDARD	1-88310-773-1	02	1	0807-1107
2	LINING SET; RR BRK,STANDARD	1-88310-773-1	02	1	0807-1107
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-88310-773-1	02	1	1108-
2	LINING SET; RR BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-88310-773-1	02	1	1108-
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> T=17	1-88311-360-1	02	1	1108-
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> T=17	1-88311-360-1	02	1	1108-
3	LINING SET; RR BRK,OVER SIZE	1-88310-774-1	02	1	0807-1107
3	LINING SET; RR BRK,OVER SIZE	1-88310-774-1	02	1	0807-1107
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-88310-774-1	02	1	1108-
3	LINING SET; RR BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-88310-774-1	02	1	1108-
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47126-760-0	16	1	1108-
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47126-760-0	16	1	1108-
5	LINING; RR BRK SHOE,STANDARD THA	1-47126-091-0	08	1	0807-1107
5	LINING; RR BRK SHOE,STANDARD THA	1-47126-091-0	08	1	0807-1107
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47126-091-0	08	1	1108-
5	LINING; RR BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47126-091-0	08	1	1108-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> T=17 THA	1-47126-761-0	16	1	1108-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> T=17 THA	1-47126-761-0	16	1	1108-
6	LINING; RR BRK SHOE,OVER SIZE THA	1-47126-092-0	08	1	0807-1107
6	LINING; RR BRK SHOE,OVER SIZE THA	1-47126-092-0	08	1	0807-1107
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47126-092-0	08	1	1108-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47126-092-0	08	1	1108-
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=18.5 THA	1-09732-034-0	AR	1	1108-
7	RIVET; LINING,RR BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=18.5 THA	1-09732-034-0	AR	1	1108-
7	RIVET; LINING,RR BRK L=15.5 THA	1-09732-053-0	AR	1	0807-1107
7	RIVET; LINING,RR BRK L=15.5 THA	1-09732-053-0	AR	1	0807-1107
7	RIVET; LINING,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=15.5 THA	1-09732-053-0	AR	1	1108-
7	RIVET; LINING,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=15.5 THA	1-09732-053-0	AR	1	1108-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA	1-09744-051-0	08	1	1108-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA	1-09744-051-0	08	1	1108-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) THA	1-47119-025-0	08	1	1108-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) THA	1-47119-025-0	08	1	1108-
8	PIN; RETURN SPRING,RR BRK SHOE (A) THA	1-47119-175-0	04	1	0807-1107
8	PIN; RETURN SPRING,RR BRK SHOE (A) THA	1-47119-175-0	04	1	0807-1107
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	1-47119-175-0	04	1	1108-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	1-47119-175-0	04	1	1108-
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA	1-09583-175-0	04	1	1108-
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA	1-09583-175-0	04	1	1108-
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) THA	1-09583-210-0	08	1	1108-
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) THA	1-09583-210-0	08	1	1108-
9	SPRING; RETURN,BRK SHOE (A) THA	1-09583-376-0	02	1	0807-1107
9	SPRING; RETURN,BRK SHOE (A) THA	1-09583-376-0	02	1	0807-1107
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	1-09583-376-0	02	1	1108-
9	SPRING; RETURN,BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	1-09583-376-0	02	1	1108-
10	RING; SNAP,SPR PIN ID=10	0-91805-510-0	04	1	0807-1107
10	RING; SNAP,SPR PIN ID=10	0-91805-510-0	04	1	0807-1107
10	RING; SNAP,SPR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> ID=10	0-91805-510-0	04	1	1108-
10	RING; SNAP,SPR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> ID=10	0-91805-510-0	04	1	1108-
11	PIN; ANCHOR,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=121.5 THA	1-47131-039-0	08	1	1108-
11	PIN; ANCHOR,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=121.5 THA	1-47131-039-0	08	1	1108-
11	PIN; ANCHOR,RR WHEEL BRK L=138.5 THA	1-47131-045-0	04	1	0807-1107
11	PIN; ANCHOR,RR WHEEL BRK L=138.5 THA	1-47131-045-0	04	1	0807-1107
11	PIN; ANCHOR,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=138.5 THA	1-47131-045-0	04	1	1108-
11	PIN; ANCHOR,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=138.5 THA	1-47131-045-0	04	1	1108-
25	COVER SET; RR BRK DRUM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05>	1-47151-526-1	02	1	1108-
25	COVER SET; RR BRK DRUM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05>	1-47151-526-1	02	1	1108-
25	COVER SET; RR BRK DRUM	1-47151-806-0	01	1	0807-1107
25	COVER SET; RR BRK DRUM	1-47151-806-0	01	1	0807-1107
25	COVER SET; RR BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-47151-806-0	01	1	1108-
25	COVER SET; RR BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-47151-806-0	01	1	1108-
25	COVER SET; RR BRK DRUM	1-47151-807-0	01	1	0807-1107
25	COVER SET; RR BRK DRUM	1-47151-807-0	01	1	0807-1107
25	COVER SET; RR BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-47151-807-0	01	1	1108-
25	COVER SET; RR BRK DRUM BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-47151-807-0	01	1	1108-
27	COVER; CHECK HOLE,DRUM COVER THA	1-09333-151-0	04	1	0807-
27	COVER; CHECK HOLE,DRUM COVER THA	1-09333-151-0	04	1	0807-
30	BOLT; DRUM COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M10X16 W/LK WASHER	0-50541-016-0	12	1	1108-
30	BOLT; DRUM COVER BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M10X16 W/LK WASHER	0-50541-016-0	12	1	1108-
30	BOLT; DRUM COVER M10X12 THA	1-47159-187-0	12	1	0807-1107
30	BOLT; DRUM COVER M10X12 THA	1-47159-187-0	12	1	0807-1107
30	BOLT; DRUM COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M10X12 THA	1-47159-187-0	12	1	1108-
30	BOLT; DRUM COVER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M10X12 THA	1-47159-187-0	12	1	1108-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK ANTI LOCK BRAKE<JE5> FORWARD	1-47137-549-0	01	1	1103-1306
47	BRACKET; ANCHOR PIN,RR WHEEL BRK ANTI LOCK BRAKE<JE5> FORWARD THA	8-98091-254-1	01	1	1307-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK ANTI LOCK BRAKE<JE5> FORWARD	1-47137-550-0	01	1	1103-1306
47	BRACKET; ANCHOR PIN,RR WHEEL BRK ANTI LOCK BRAKE<JE5> FORWARD THA	8-98091-255-1	01	1	1307-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47137-151-0	04	1	1108-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47137-151-0	04	1	1108-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK ANTI LOCK BRAKE<JE5> FORWARD	1-47137-549-0	01	1	0809-1102
47	BRACKET; ANCHOR PIN,RR WHEEL BRK ANTI LOCK BRAKE<JE5> FORWARD	1-47137-550-0	01	1	0809-1102
47	BRACKET; ANCHOR PIN,RR WHEEL BRK	1-47137-472-0	02	1	0807-0808
47	BRACKET; ANCHOR PIN,RR WHEEL BRK	1-47137-472-0	02	1	0807-0808
47	BRACKET; ANCHOR PIN,RR WHEEL BRK REARWARD	1-47137-472-0	02	1	0809-1107
47	BRACKET; ANCHOR PIN,RR WHEEL BRK EXC. ANTI LOCK BRAKE<JE5> FORWARD	1-47137-472-0	02	1	0809-1107
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REARWARD	1-47137-472-0	02	1	1108-1306
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> FORWARD	1-47137-472-0	02	1	1108-1306
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> REARWARD THA	8-98091-253-1	02	1	1307-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> EXC. ANTI LOCK BRAKE<JE5> FORWARD THA	8-98091-253-1	02	1	1307-
53	BOLT; LOCK PLATE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M10X16	0-20851-016-0	04	1	1108-
53	BOLT; LOCK PLATE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M10X16	0-20851-016-0	04	1	1108-
53	BOLT; LOCK PLATE M10X16	0-20851-016-0	02	1	0807-0910
53	BOLT; LOCK PLATE M10X16	0-20851-016-0	02	1	0807-0910
53	BOLT; LOCK PLATE M10X16 THA	1-47139-173-0	02	1	0911-1107
53	BOLT; LOCK PLATE M10X16 THA	1-47139-173-0	02	1	0911-1107
53	BOLT; LOCK PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M10X16 THA	1-47139-173-0	02	1	1108-
53	BOLT; LOCK PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M10X16 THA	1-47139-173-0	02	1	1108-
54	WASHER; LK,ANCHOR PIN,RR BRK THA	1-47133-011-0	02	1	0807-
54	WASHER; LK,ANCHOR PIN,RR BRK THA	1-47133-011-0	02	1	0807-
91	BOLT; CHAMBER M10X45 W/LK WASHER	0-50051-045-0	08	1	0807-0906
91	BOLT; CHAMBER M10X45 W/LK WASHER	0-50051-045-0	08	1	0807-0906
91	BOLT; CHAMBER M10X45 W/LK WASHER	0-50551-045-0	08	1	0907-0910
91	BOLT; CHAMBER M10X45 W/LK WASHER	0-50551-045-0	08	1	0907-0910
91	BOLT; CHAMBER M10X45 THA	1-47139-174-0	08	1	0911-1107
91	BOLT; CHAMBER M10X45 THA	1-47139-174-0	08	1	0911-1107
91	BOLT; CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M10X45 THA	1-47139-174-0	08	1	1108-
91	BOLT; CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M10X45 THA	1-47139-174-0	08	1	1108-
132	SCREW; ADJ,RR BRK THA	1-47623-035-2	04	1	0807-1107
132	SCREW; ADJ,RR BRK THA	1-47623-035-2	04	1	0807-1107
132	SCREW; ADJ,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47623-035-2	04	1	1108-
132	SCREW; ADJ,RR BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47623-035-2	04	1	1108-
150	PLATE; LK,ANCHOR PIN THA	1-47133-010-0	02	1	0807-1107
150	PLATE; LK,ANCHOR PIN THA	1-47133-010-0	02	1	0807-1107
150	PLATE; LK,ANCHOR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47133-010-0	02	1	1108-
150	PLATE; LK,ANCHOR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47133-010-0	02	1	1108-
178	WEDGE; RR WHEEL CYL THA	1-47640-012-0	02	1	0807-1107
178	WEDGE; RR WHEEL CYL THA	1-47640-012-0	02	1	0807-1107
178	WEDGE; RR WHEEL CYL BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47640-012-0	02	1	1108-
178	WEDGE; RR WHEEL CYL BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47640-012-0	02	1	1108-
242	SEAL THA	1-47159-186-0	04	1	0807-1107
242	SEAL THA	1-47159-186-0	04	1	0807-1107
242	SEAL BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47159-186-0	04	1	1108-
242	SEAL BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47159-186-0	04	1	1108-
266	ROLLER; WEDGE THA	1-47643-007-0	04	1	0807-1107
266	ROLLER; WEDGE THA	1-47643-007-0	04	1	0807-1107
266	ROLLER; WEDGE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47643-007-0	04	1	1108-
266	ROLLER; WEDGE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47643-007-0	04	1	1108-
297	RING; SNAP (A) THA	1-47649-031-0	02	1	0807-1107
297	RING; SNAP (A) THA	1-47649-031-0	02	1	0807-1107
297	RING; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	1-47649-031-0	02	1	1108-
297	RING; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	1-47649-031-0	02	1	1108-
297	RING; SNAP (B) THA	1-47649-034-1	02	1	0807-1107
297	RING; SNAP (B) THA	1-47649-034-1	02	1	0807-1107
297	RING; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) THA	1-47649-034-1	02	1	1108-
297	RING; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) THA	1-47649-034-1	02	1	1108-
298	GASKET THA	1-48259-231-0	02	1	0807-1107
298	GASKET THA	1-48259-231-0	02	1	0807-1107
298	GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-48259-231-0	02	1	1108-
298	GASKET BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-48259-231-0	02	1	1108-
300	SLEEVE THA	1-47629-247-1	04	1	0807-1107
300	SLEEVE THA	1-47629-247-1	04	1	0807-1107
300	SLEEVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47629-247-1	04	1	1108-
300	SLEEVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47629-247-1	04	1	1108-
301	CLIP; ANTI LOTATION THA	1-47621-017-0	04	1	0807-1107
301	CLIP; ANTI LOTATION THA	1-47621-017-0	04	1	0807-1107
301	CLIP; ANTI LOTATION BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47621-017-0	04	1	1108-
301	CLIP; ANTI LOTATION BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47621-017-0	04	1	1108-
310	EXPANDER THA	1-47601-087-0	02	1	0807-1107
310	EXPANDER THA	1-47601-087-0	02	1	0807-1107
310	EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47601-087-0	02	1	1108-
310	EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47601-087-0	02	1	1108-
311	BOOT; WEDGE THA	1-47649-042-0	02	1	0807-1107
311	BOOT; WEDGE THA	1-47649-042-0	02	1	0807-1107
311	BOOT; WEDGE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47649-042-0	02	1	1108-
311	BOOT; WEDGE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47649-042-0	02	1	1108-
312	BOLT; EXPANDER M8X16 HEXALOBULAR SOCKET THA	1-47634-008-0	04	1	0807-1107
312	BOLT; EXPANDER M8X16 HEXALOBULAR SOCKET THA	1-47634-008-0	04	1	0807-1107
312	BOLT; EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X16 HEXALOBULAR SOCKET THA	1-47634-008-0	04	1	1108-
312	BOLT; EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X16 HEXALOBULAR SOCKET THA	1-47634-008-0	04	1	1108-
319	RING; DRIVE THA	1-47629-200-0	04	1	0807-1107
319	RING; DRIVE THA	1-47629-200-0	04	1	0807-1107
319	RING; DRIVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47629-200-0	04	1	1108-
319	RING; DRIVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47629-200-0	04	1	1108-
327	SPRING; ADJ THA	1-47629-196-0	04	1	0807-1107
327	SPRING; ADJ THA	1-47629-196-0	04	1	0807-1107
327	SPRING; ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47629-196-0	04	1	1108-
327	SPRING; ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47629-196-0	04	1	1108-
328	CAGE; SPRING THA	1-47629-192-0	04	1	0807-1107
328	CAGE; SPRING THA	1-47629-192-0	04	1	0807-1107
328	CAGE; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47629-192-0	04	1	1108-
328	CAGE; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47629-192-0	04	1	1108-
329	SCREW; LOCATING THA	1-47619-149-1	04	1	0807-1107
329	SCREW; LOCATING THA	1-47619-149-1	04	1	0807-1107
329	SCREW; LOCATING BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47619-149-1	04	1	1108-
329	SCREW; LOCATING BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47619-149-1	04	1	1108-
334	SPRING; ROD THA	1-47649-041-0	02	1	0807-1107
334	SPRING; ROD THA	1-47649-041-0	02	1	0807-1107
334	SPRING; ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47649-041-0	02	1	1108-
334	SPRING; ROD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47649-041-0	02	1	1108-
335	RETAINER; SPRING THA	1-47649-020-0	02	1	0807-1107
335	RETAINER; SPRING THA	1-47649-020-0	02	1	0807-1107
335	RETAINER; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47649-020-0	02	1	1108-
335	RETAINER; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47649-020-0	02	1	1108-
336	PLATE; PIVOT THA	1-47119-152-0	04	1	0807-1107
336	PLATE; PIVOT THA	1-47119-152-0	04	1	0807-1107
336	PLATE; PIVOT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47119-152-0	04	1	1108-
336	PLATE; PIVOT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47119-152-0	04	1	1108-
337	BOLT; PLATE THA	1-47119-153-0	04	1	0807-1107
337	BOLT; PLATE THA	1-47119-153-0	04	1	0807-1107
337	BOLT; PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47119-153-0	04	1	1108-
337	BOLT; PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47119-153-0	04	1	1108-
348	CAP; EXPANDER THA	1-47649-044-0	02	1	0807-1107
348	CAP; EXPANDER THA	1-47649-044-0	02	1	0807-1107
348	CAP; EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47649-044-0	02	1	1108-
348	CAP; EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47649-044-0	02	1	1108-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
