Isuzu WW
▶
TRUCKS
▶
FTR
▶
11555 - FTR-RHD EURO5 W/DOC
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-10 - WIRING HARNESS AND FUSE
▶
8-10 — WIRING HARNESS AND FUSE
(#129026) — 219 parça
◀
[810A] CAB HARNESS NO.2 (8 parça)
[810A] TRANSMISSION HARNESS (6 parça)
[810A] ENGINE HARNESS (6 parça)
[810A] AIR TANK HARNESS (5 parça)
[810A] OTHER HARNESS NO.2 (11 parça)
[810A] FRAME HARNESS NO.2 (8 parça)
[810A] OTHER HARNESS NO.1 (11 parça)
[810A] CLIP (39 parça)
[810A] CAB HARNESS NO.1 (36 parça)
[810A] OTHER HARNESS NO.3 (10 parça)
[810A] BOLT AND NUT (27 parça)

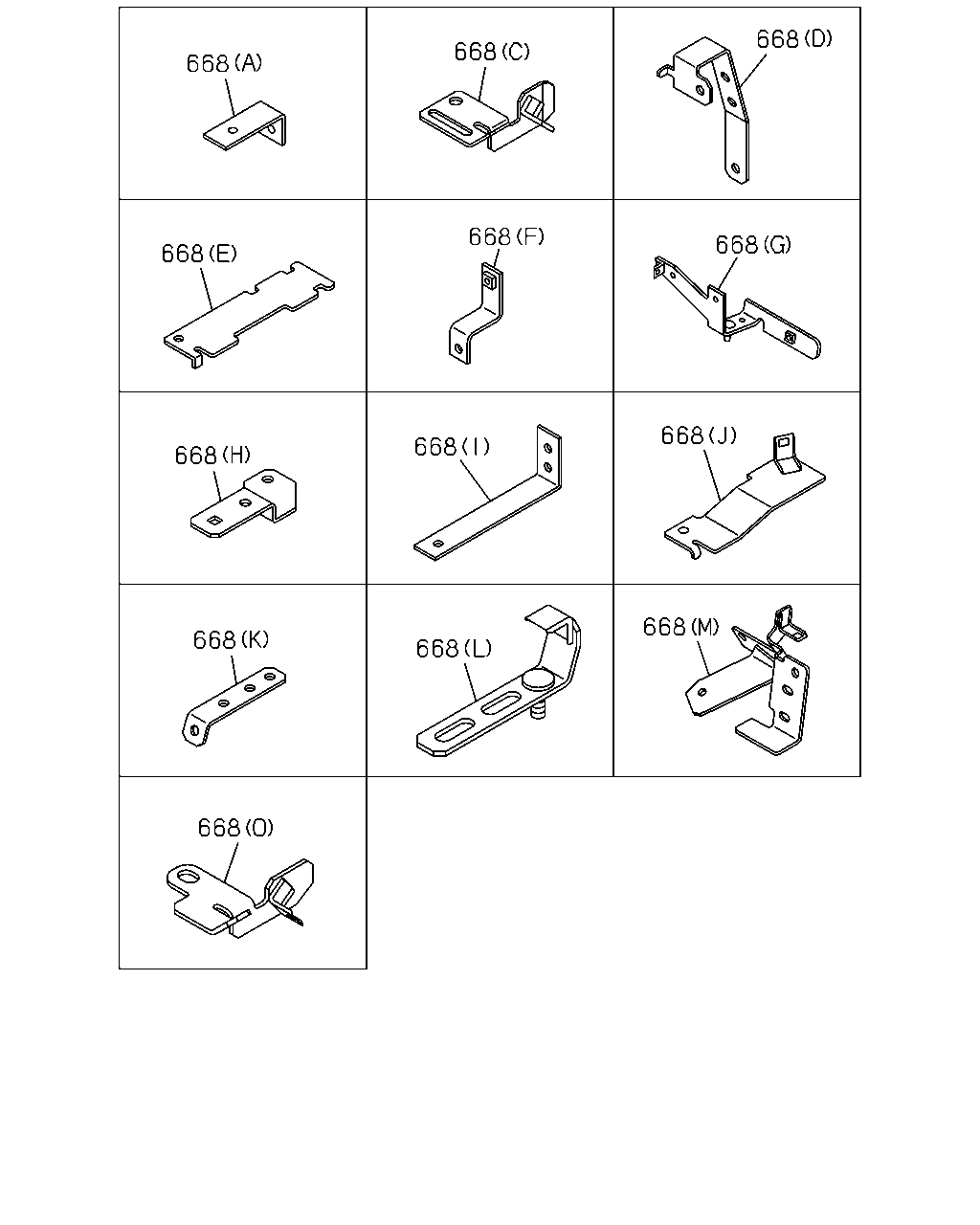

[810A] BRACKET (14 parça)

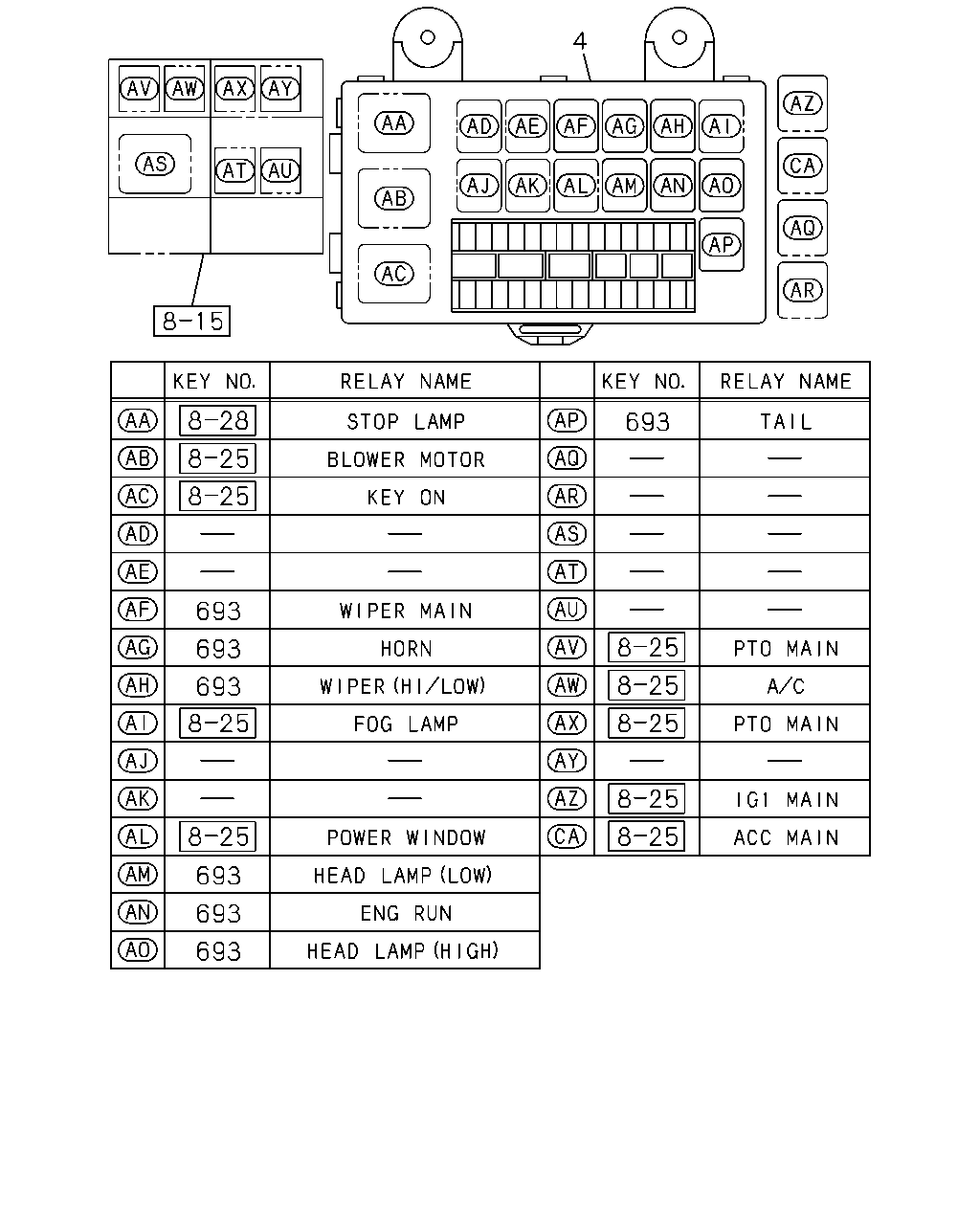

[810A] RELAY;CAB HARNESS (2 parça)
[810A] OTHER HARNESS NO.4 (12 parça)

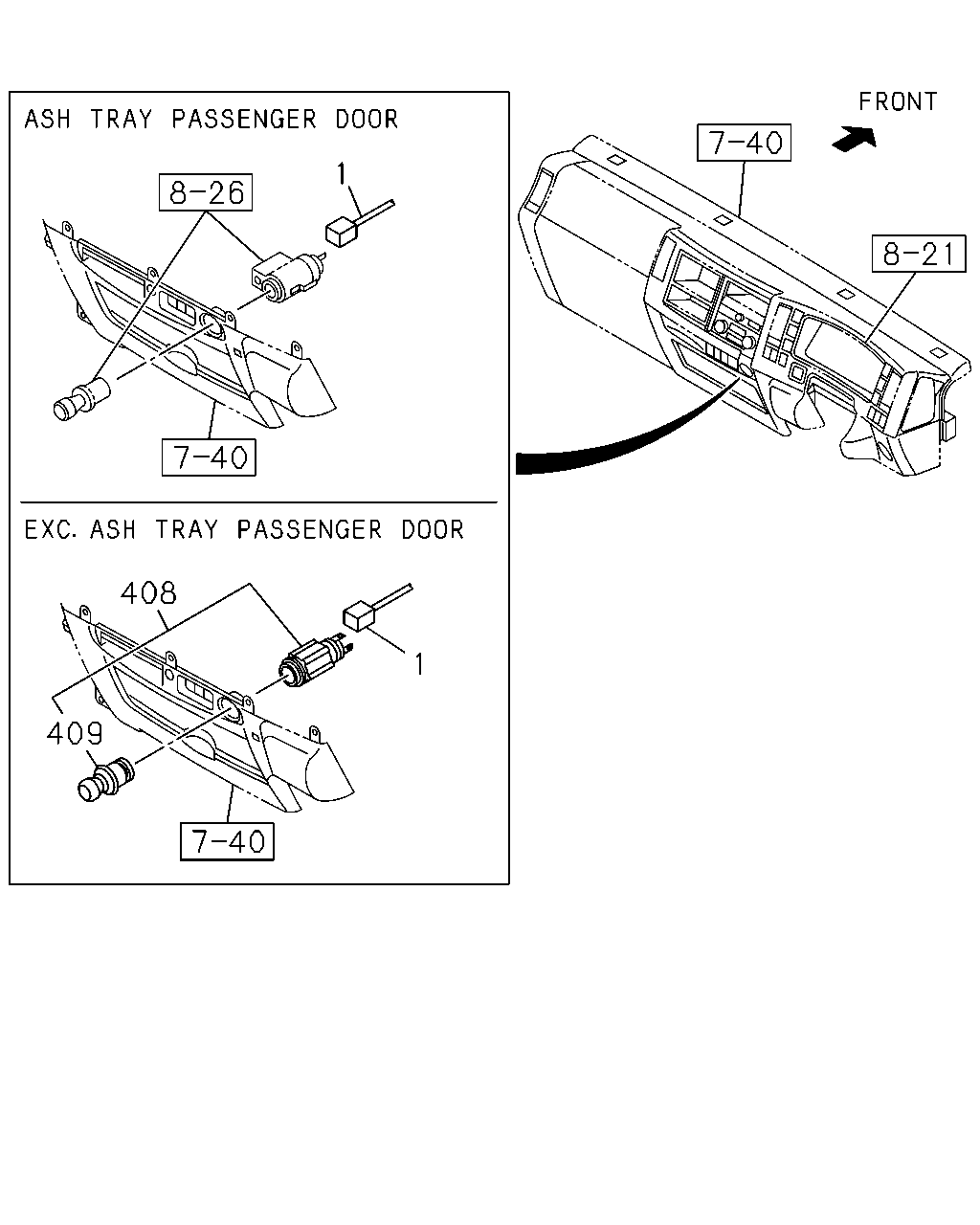

[810A] ACCESSORY SOCKET (6 parça)
[810A] FRAME HARNESS NO.1 (18 parça)
▶
2
2
2
2
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date

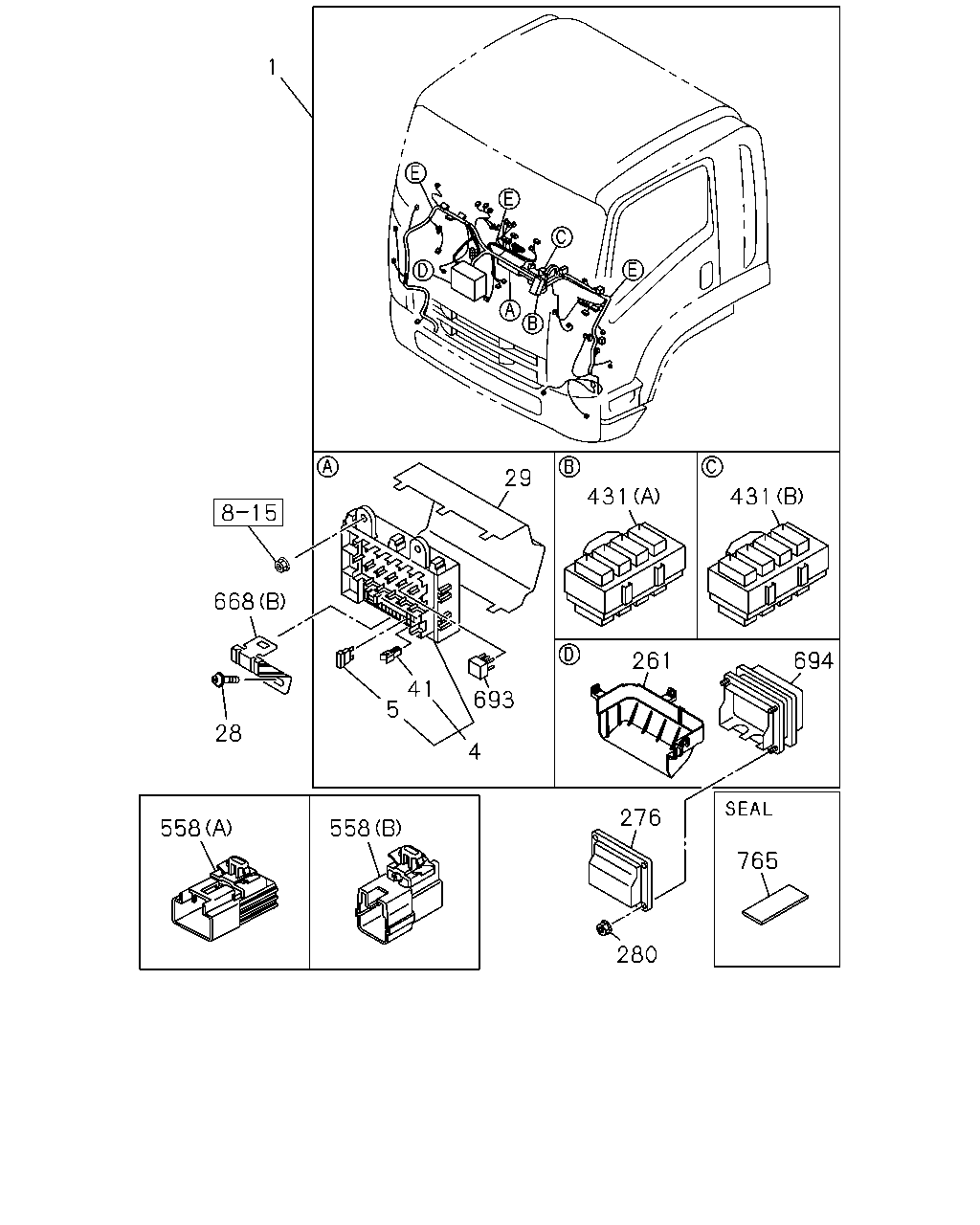

1
HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98232-834-0
01
1
1310-
1
HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98232-822-0
01
1
1310-
1
HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3)
8-98232-815-0
01
1
1310-
1
HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3)
8-98232-811-0
01
1
1310-
2
DIODE; CABLE HARNESS
(A) BLACK 10P
1-82699-703-0
AR
1
1310-
2
DIODE; CABLE HARNESS
(C) BLACK 3P-1.5A
8-94416-438-1
AR
1
1310-
2
DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A
8-94422-639-1
AR
1
1310-
2
DIODE; CABLE HARNESS
(D) BLACK 3P-1.5A
8-94422-640-1
AR
1
1310-

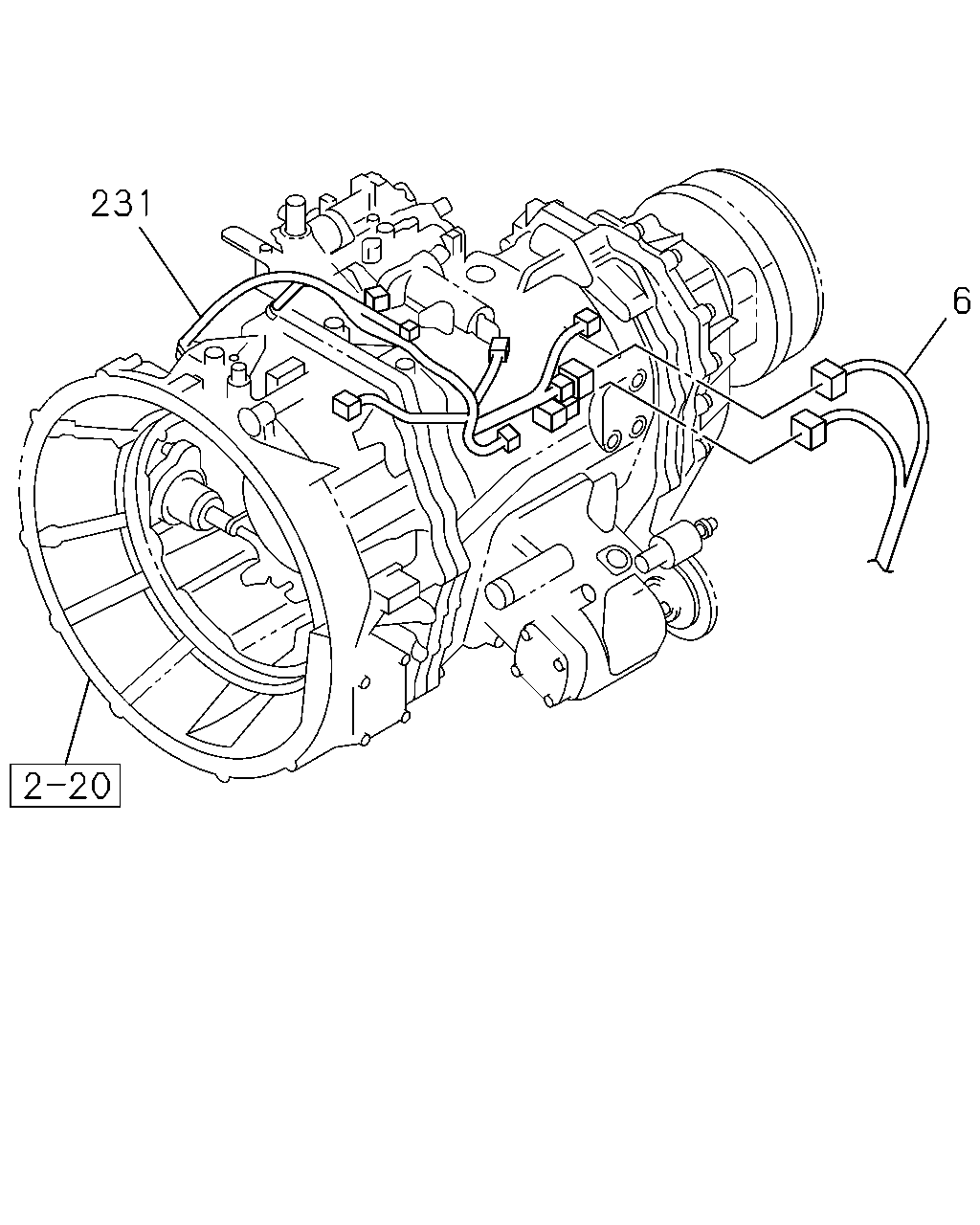

231
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
CAB SUSPENSION SEMI FLOATING<SDK> TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98232-776-0
01
1
1310-
6
HARNESS; FRAME
CAB SUSPENSION SEMI FLOATING<SDK> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98232-772-0
01
1
1310-
6
HARNESS; FRAME
CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98232-775-0
01
1
1310-
6
HARNESS; FRAME
CAB SUSPENSION FULL FLOATING<W16> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98232-771-0
01
1
1310-
231
HARNESS; TRANS
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98234-229-1
01
1
1310-
231
HARNESS; TRANS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98243-722-0
01
1
1310-
13
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
CAB SUSPENSION SEMI FLOATING<SDK> TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98232-776-0
01
1
1310-
6
HARNESS; FRAME
CAB SUSPENSION SEMI FLOATING<SDK> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98232-772-0
01
1
1310-
6
HARNESS; FRAME
CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98232-775-0
01
1
1310-
6
HARNESS; FRAME
CAB SUSPENSION FULL FLOATING<W16> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98232-771-0
01
1
1310-
13

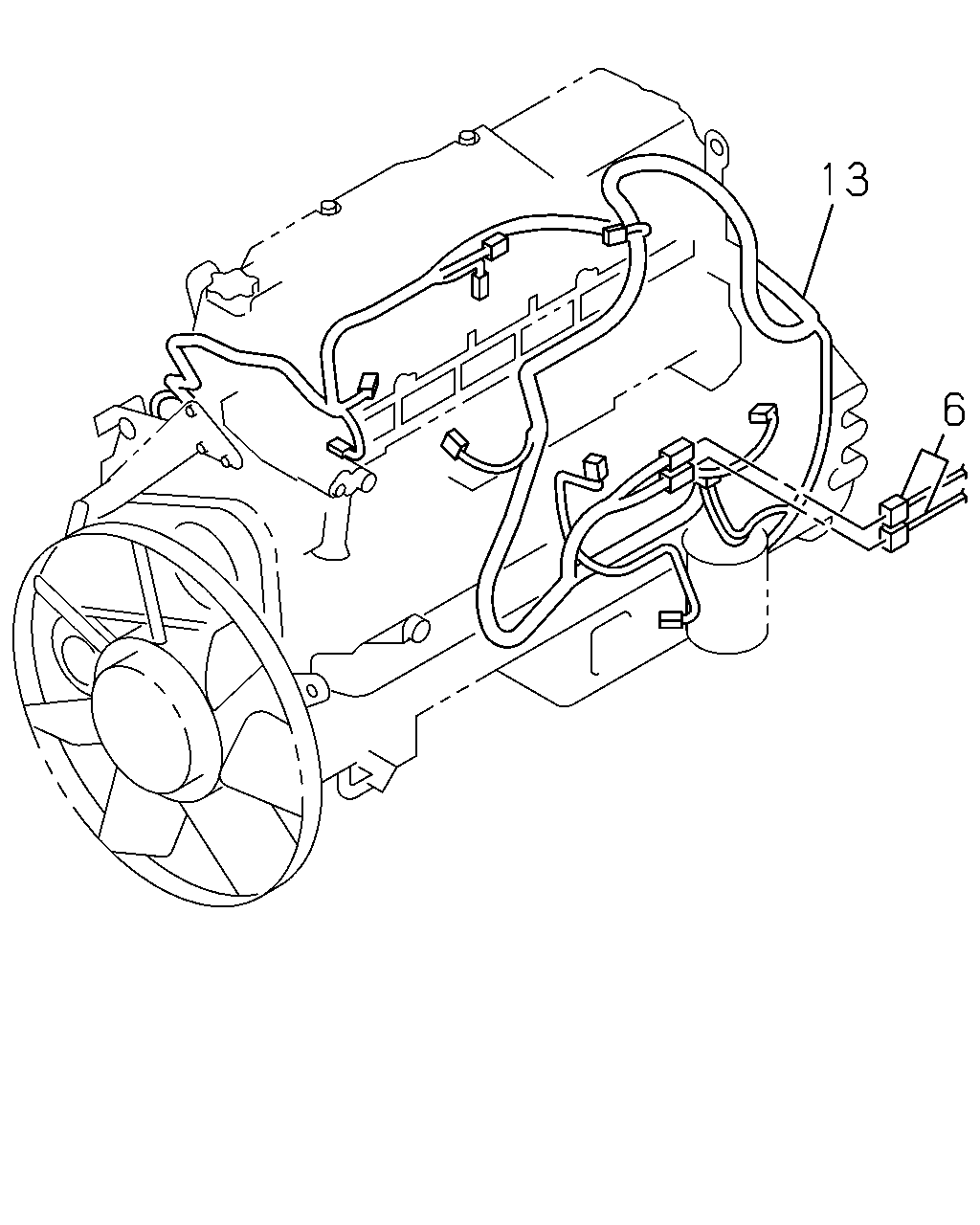

HARNESS; ENG
GENERATOR 24V60A(KG2),GENERATOR 24V90A(K44)
8-98242-598-0
01
1
1310-
13
HARNESS; ENG
GENERATOR 24V50A(K89)
8-98242-597-0
01
1
1310-
201
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
CAB SUSPENSION SEMI FLOATING<SDK> TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98232-776-0
01
1
1310-
6
HARNESS; FRAME
CAB SUSPENSION SEMI FLOATING<SDK> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98232-772-0
01
1
1310-
6
HARNESS; FRAME
CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98232-775-0
01
1
1310-
6
HARNESS; FRAME
CAB SUSPENSION FULL FLOATING<W16> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98232-771-0
01
1
1310-
201

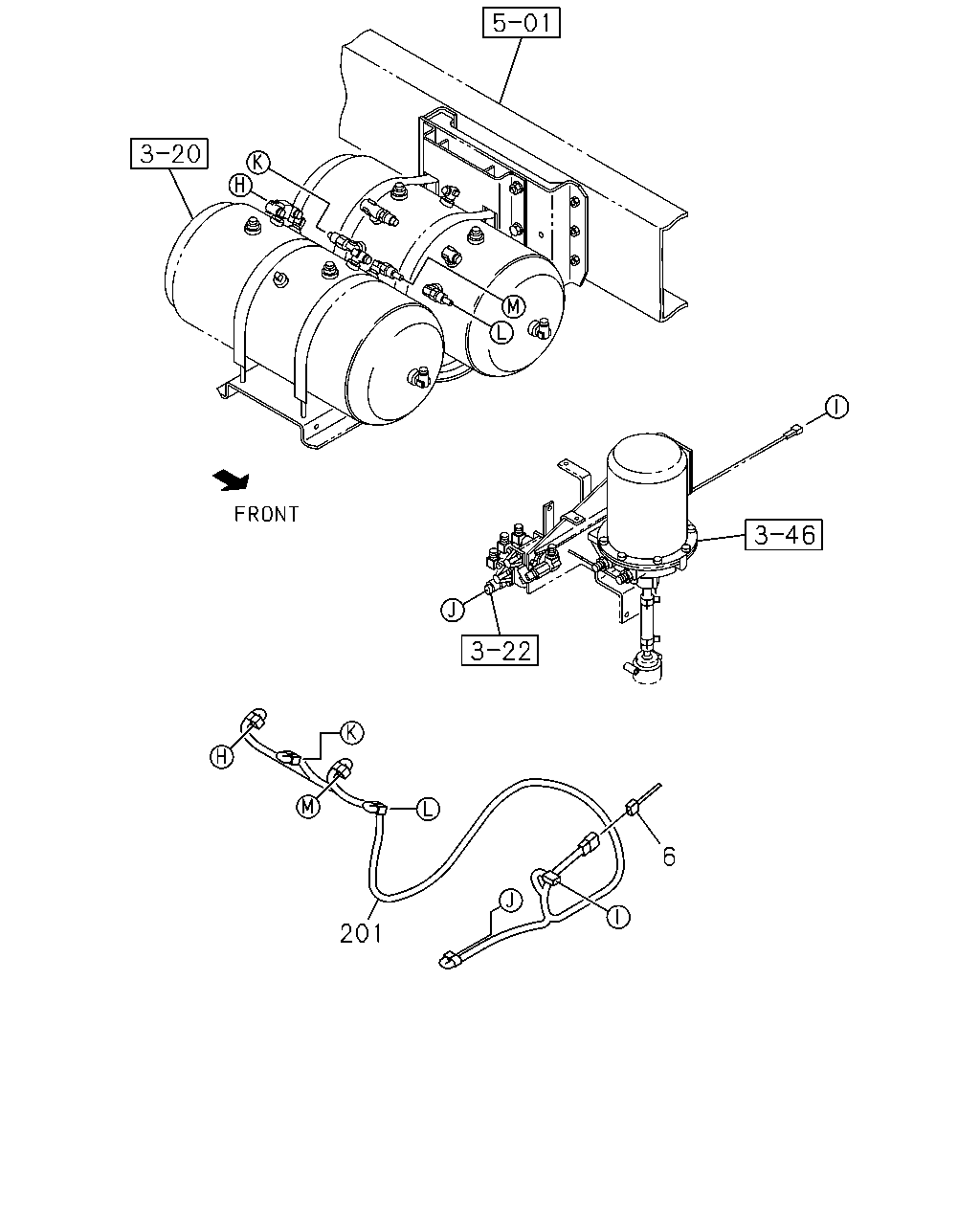

HARNESS; AIR TANK
8-98184-703-0
01
1
1310-
1

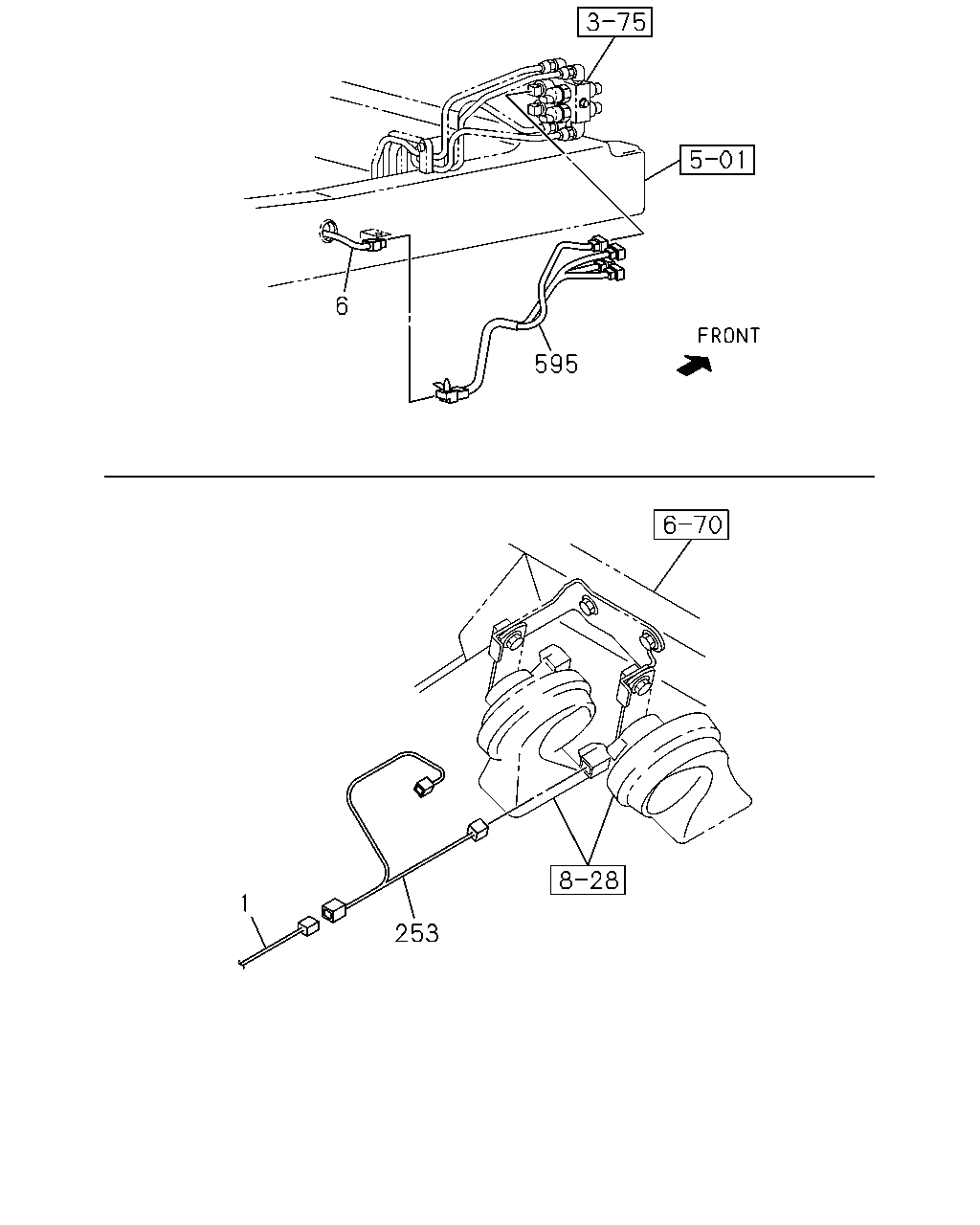

253
595
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98232-834-0
01
1
1310-
1
HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98232-822-0
01
1
1310-
1
HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3)
8-98232-815-0
01
1
1310-
1
HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3)
8-98232-811-0
01
1
1310-
6
HARNESS; FRAME
CAB SUSPENSION SEMI FLOATING<SDK> TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98232-776-0
01
1
1310-
6
HARNESS; FRAME
CAB SUSPENSION SEMI FLOATING<SDK> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98232-772-0
01
1
1310-
6
HARNESS; FRAME
CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98232-775-0
01
1
1310-
6
HARNESS; FRAME
CAB SUSPENSION FULL FLOATING<W16> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98232-771-0
01
1
1310-
253
HARNESS; EXT,HORN
8-98074-081-2
01
1
1310-
595
HARNESS; WARNING,BRK
TRANSMISSION CONTROL-SMOOTHER(8GF)
8-97620-488-1
01
1
1310-
595
HARNESS; WARNING,BRK
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
8-97620-487-1
01
1
1310-
6
9
9
189
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
CAB SUSPENSION SEMI FLOATING<SDK> TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98232-776-0
01
1
1310-
6
HARNESS; FRAME
CAB SUSPENSION SEMI FLOATING<SDK> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98232-772-0
01
1
1310-
6
HARNESS; FRAME
CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98232-775-0
01
1
1310-
6
HARNESS; FRAME
CAB SUSPENSION FULL FLOATING<W16> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98232-771-0
01
1
1310-

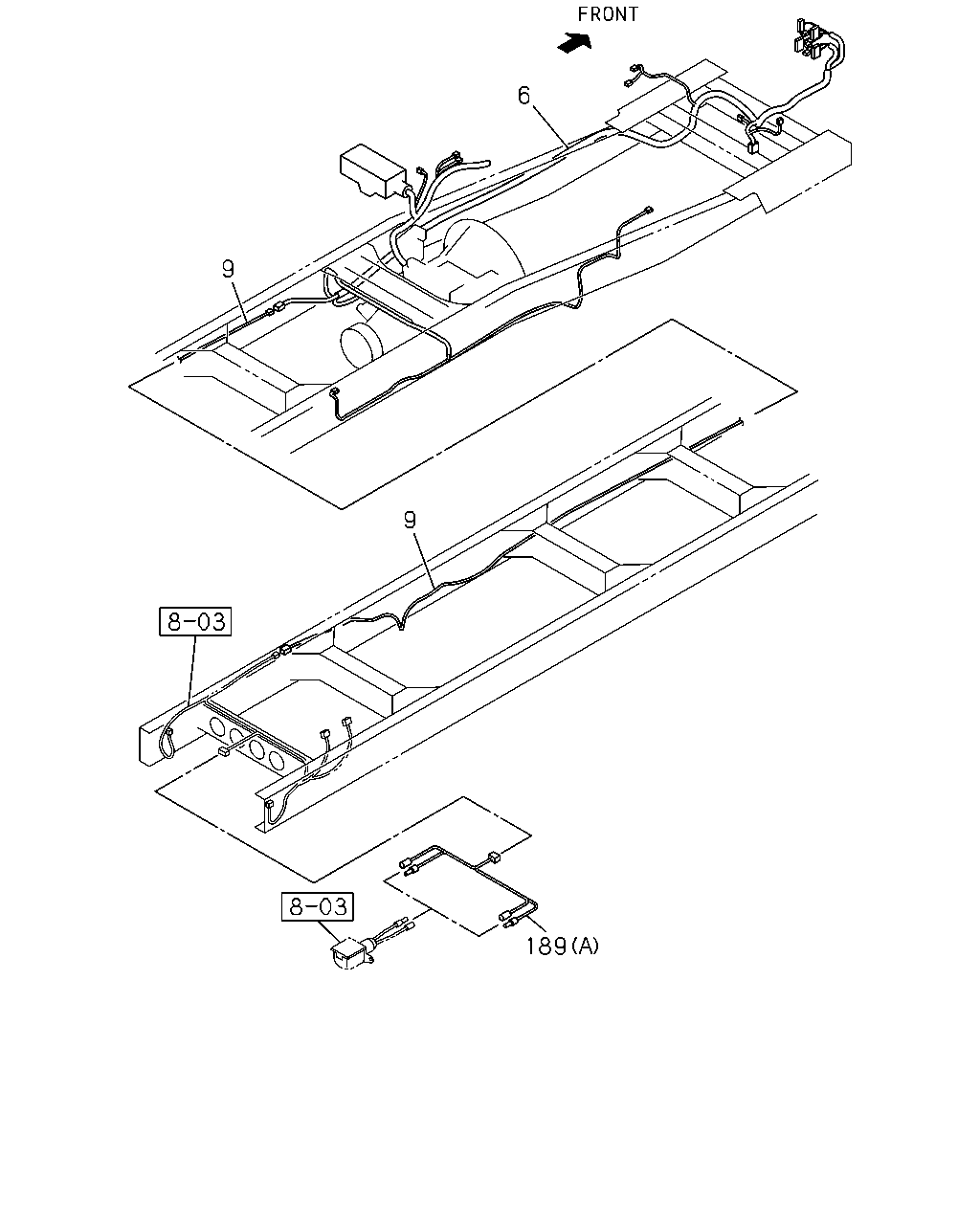

9
HARNESS; FRAME,RR
WHEEL BASE 5000MM(50W)
8-98168-648-0
01
1
1310-
9
HARNESS; FRAME,RR
WHEEL BASE 5500MM(55W)
8-98168-649-0
01
1
1310-
189
HARNESS; EXT
(B)
8-98098-510-0
01
1
1310-
189
HARNESS; EXT
(A)
8-98131-066-0
01
1
1310-
14
18
204
12
18
378
14
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date

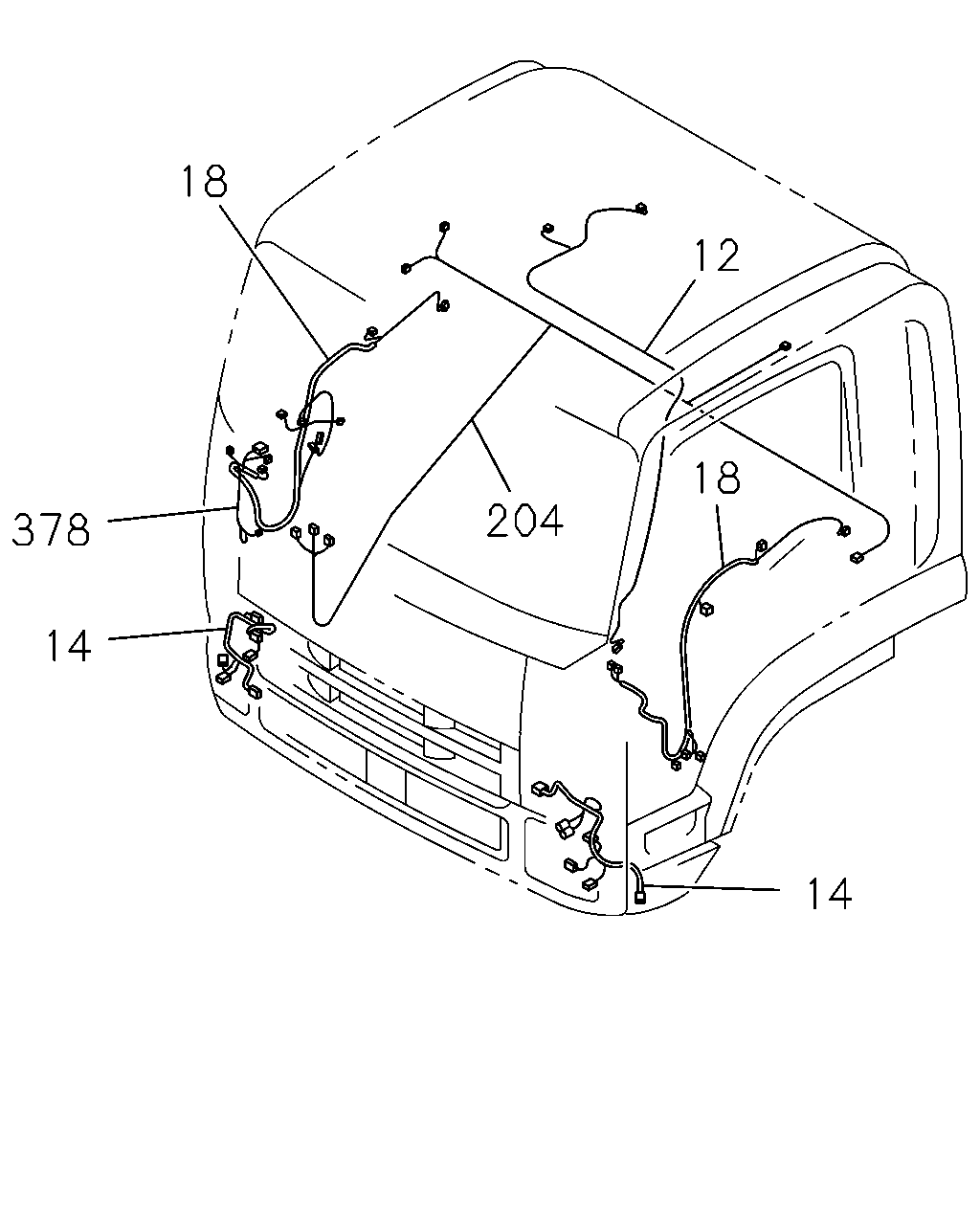

12
HARNESS; ROOF
FLUORESCENT LAMP<6UC>
8-98048-931-2
01
1
1310-
12
HARNESS; ROOF
EXC. FLUORESCENT LAMP<6UC>
8-98041-949-2
01
1
1310-
14
HARNESS; HEADLAMP
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98069-166-1
02
1
1310-
14
HARNESS; HEADLAMP
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-94270-986-0
02
1
1310-
18
HARNESS; DOOR
8-98108-439-1
01
1
1310-
18
HARNESS; DOOR
8-98108-440-1
01
1
1310-
204
HARNESS; CABLE,FLOOR
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98085-292-1
01
1
1310-
204
HARNESS; CABLE,FLOOR
AIR BAG DRIVER(AJ3) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98085-279-1
01
1
1310-
204
HARNESS; CABLE,FLOOR
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3)
8-98085-289-0
01
1
1310-
204
HARNESS; CABLE,FLOOR
EXC. AIR BAG DRIVER(AJ3),TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98085-274-0
01
1
1310-
378
HARNESS; EXT,MIRROR
8-98022-717-1
01
1
1310-
533
548
542
548
533
533
533
533
533
533
541
533
533
541
533
533
541
541
533
533

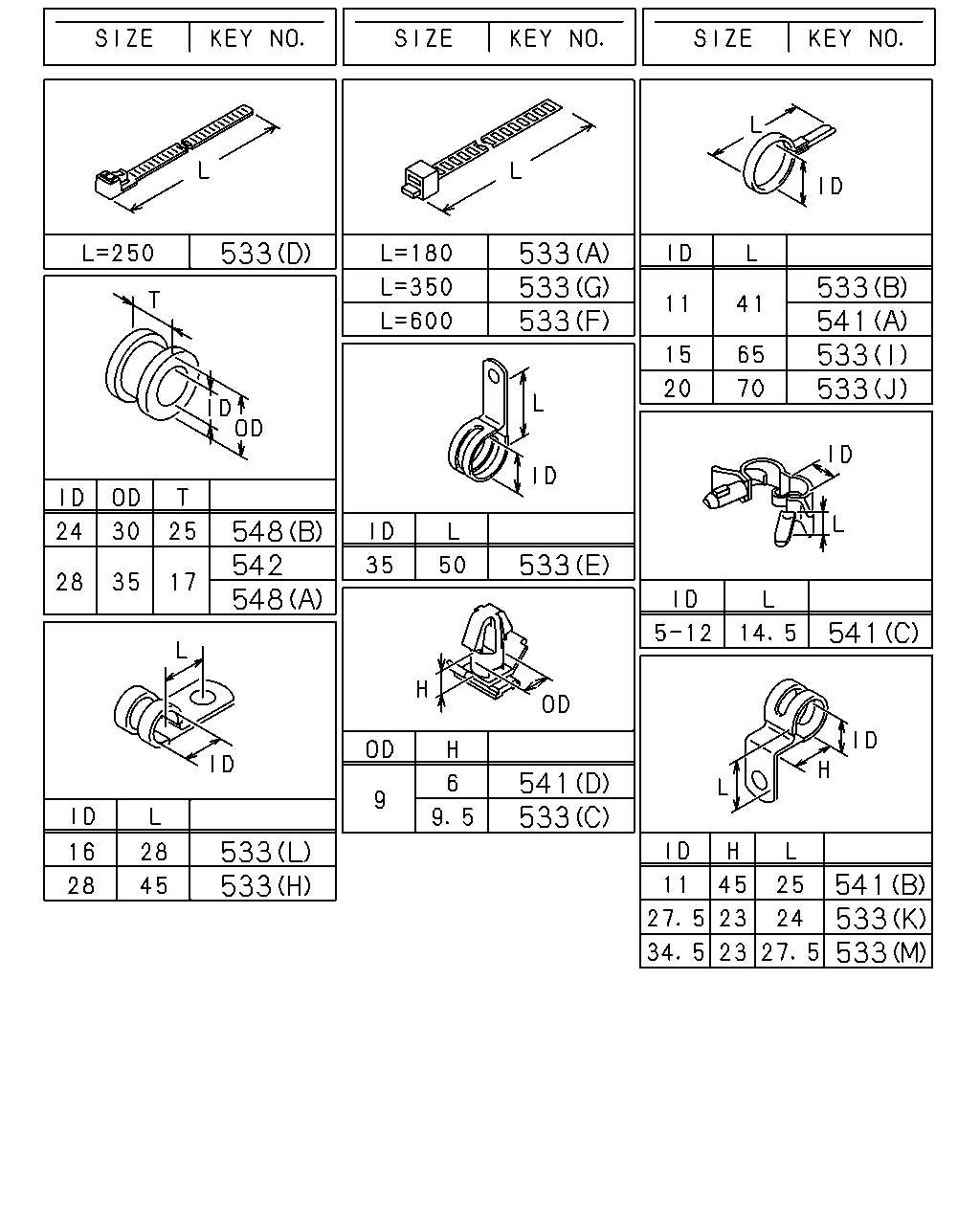

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
533
CLIP
AIR CONDITIONER MANUAL CONTROL(C60) (A) L=180
1-09707-162-1
01
1
1310-
533
CLIP
(A) L=180
1-09707-162-1
01
1
1310-
533
CLIP
CAB SUSPENSION SEMI FLOATING<SDK> (G) L=350
1-09707-183-0
03
1
1310-
533
CLIP
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (E) ID=35 L=50
1-09701-214-0
01
1
1310-
533
CLIP
CAB SUSPENSION SEMI FLOATING<SDK> TRANSMISSION CONTROL-SMOOTHER(8GF) (E) ID=35 L=50
1-09701-214-0
01
1
1310-
533
CLIP
AUTO CAB TILT<WV2> (D) L=250
5-09707-030-1
01
1
1310-1310
533
CLIP
H.S.A SYSTEM<6EP> (D) L=250
5-09707-030-1
01
1
1310-1310
533
CLIP
AUTO CAB TILT<WV2> (D) L=250
5-09707-030-1
01
1
1310-
533
CLIP
(D) L=250
5-09707-030-1
02
1
1310-
533
CLIP
AUTO CAB TILT<WV2> (D) L=250
5-09707-030-1
02
1
1310-
533
CLIP
CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER(8GF) (H) ID=28 L=45
1-09700-825-1
01
1
1310-
533
CLIP
WHEEL BASE 5000MM(50W) (I) ID=15 L=65
1-09700-466-0
07
1
1310-
533
CLIP
WHEEL BASE 5000MM(50W) (J) ID=20 L=70
1-09700-485-0
09
1
1310-
533
CLIP
WHEEL BASE 5500MM(55W) (I) ID=15 L=65
1-09700-466-0
08
1
1310-
533
CLIP
WHEEL BASE 5500MM(55W) (J) ID=20 L=70
1-09700-485-0
10
1
1310-
533
CLIP
TRANSMISSION CONTROL-SMOOTHER(8GF) (K) ID=27.5 H=23 L=24
1-09700-863-0
01
1
1310-
533
CLIP
(L) ID=16 L=28
0-95235-556-0
02
1
1310-1310
533
CLIP
(B) ID=11 L=41
1-09700-403-0
01
1
1310-
533
CLIP
(I) ID=15 L=65
1-09700-466-0
02
1
1310-
533
CLIP
(M) ID=34.5 H=23 L=27.5
1-09700-905-0
02
1
1310-
533
CLIP
(C) OD=9 H=9.5
1-09709-179-0
01
1
1310-
533
CLIP
(D) L=250
5-09707-030-1
03
1
1310-
533
CLIP
(D) L=250
5-09707-030-1
04
1
1310-
533
CLIP
(F) L=600
1-09707-107-1
01
1
1310-
533
CLIP
(F) L=600
1-09707-107-1
01
1
1310-
533
CLIP
(M) ID=34.5 H=23 L=27.5
1-09700-905-0
01
1
1310-
533
CLIP
EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (M) ID=34.5 H=23 L=27.5
1-09700-905-0
01
1
1310-
541
CLIP
AUTO CAB TILT<WV2> (A) ID=11 L=41
1-09700-403-0
01
1
1310-
541
CLIP
AUTO CAB TILT<WV2> (B) ID=11 H=45 L=25
1-09700-866-0
02
1
1310-1404
541
CLIP
AUTO CAB TILT<WV2> (B) ID=11 H=45 L=25
1-09700-866-0
01
1
1405-
541
CLIP
AUTO CAB TILT<WV2> (C) ID=5-12 L=14.5
1-09987-221-0
02
1
1310-
541
CLIP
AUTO CAB TILT<WV2> (D) OD=9 H=6
8-97368-793-0
02
1
1310-
542
GROMMET; HARNESS
ID=28 OD=35 T=17
9-09956-256-2
01
1
1310-
542
GROMMET; HARNESS
ID=28 OD=35 T=17
9-09956-256-2
02
1
1310-
548
GROMMET
AUTO CAB TILT<WV2> (A) ID=28 OD=35 T=17
9-09956-256-2
01
1
1310-1310
548
GROMMET
WHEEL BASE 5000MM(50W) (A) ID=28 OD=35 T=17
9-09956-256-2
01
1
1310-1310
548
GROMMET
AUTO CAB TILT<WV2> (A) ID=28 OD=35 T=17
9-09956-256-2
01
1
1310-
548
GROMMET
WHEEL BASE 5500MM(55W) (B) ID=28 OD=35 T=25
1-09332-011-1
01
1
1310-1310
548
GROMMET
(B) ID=28 OD=35 T=25
1-09332-011-1
01
1
1310-
1
668
28
558
558
5
41
693
4
29
431
261
276
280
765
694
431
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98232-834-0
01
1
1310-
1
HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98232-822-0
01
1
1310-
1
HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3)
8-98232-815-0
01
1
1310-
1
HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3)
8-98232-811-0
01
1
1310-
4
BOX ASM; FUSE,HARNESS
8-98065-666-0
01
1
1310-
5
FUSE; FACIA HARNESS
10A RED
8-98054-257-0
AR
1
1310-
5
FUSE; FACIA HARNESS
15A BLUE
8-98054-258-0
AR
1
1310-
5
FUSE; FACIA HARNESS
20A YELLOW
8-98054-259-0
AR
1
1310-
5
FUSE; FACIA HARNESS
25A WHITE
8-98062-982-0
AR
1
1310-
28
SCREW; FUSE BOX
M6X16 FLANGE
0-28650-616-0
01
1
1310-
29
COVER; FUSE BOX
8-98056-968-0
01
1
1310-
41
PULLER; FUSE
8-98054-260-0
01
1
1310-
261
COVER; CONNECTOR BOX
8-98065-986-1
01
1
1310-
276
COVER; BOX,FRAME HARNESS
8-98034-039-1
01
1
1310-
280
NUT; BOX ASM FIX
M6 FLANGE
0-91180-106-0
04
1
1310-
431
CONNECTOR; JOINT
(A) WHITE
8-98056-374-0
01
1
1310-
431
CONNECTOR; JOINT
(B) WHITE
8-98056-375-0
01
1
1310-
558
CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)
8-98108-678-0
01
1
1310-
558
CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)
8-98108-679-0
01
1
1310-
668
BRACKET; HARNESS
CAB SUSPENSION SEMI FLOATING<SDK> (E)
8-98127-093-0
01
1
1310-
668
BRACKET; HARNESS
(F)
8-97609-110-1
01
1
1310-
668
BRACKET; HARNESS
AUTO CAB TILT<WV2> (H)
8-97620-519-0
01
1
1310-
668
BRACKET; HARNESS
CAB SUSPENSION FULL FLOATING<W16> (I)
1-47479-674-0
01
1
1310-
668
BRACKET; HARNESS
CAB SUSPENSION FULL FLOATING<W16> (J)
8-98107-610-1
01
1
1310-
668
BRACKET; HARNESS
(A) L=55
1-47475-304-0
01
1
1310-
668
BRACKET; HARNESS
(K)
1-82698-167-0
01
1
1310-
668
BRACKET; HARNESS
(D)
8-97619-097-1
01
1
1310-
668
BRACKET; HARNESS
(B)
8-98095-653-2
01
1
1310-
668
BRACKET; HARNESS
(G)
8-98212-082-1
01
1
1310-
668
BRACKET; HARNESS
(C)
8-97616-305-0
01
1
1310-1502
668
BRACKET; HARNESS
(O)
8-98254-592-0
01
1
1503-
668
BRACKET; HARNESS
(L)
8-98047-730-0
02
1
1310-
668
BRACKET; HARNESS
(M)
8-98107-611-0
01
1
1310-
693
RELAY; FUSE BOX
24V 10A PANASONIC
8-97173-035-1
AR
1
1310-
694
BOX ASM; CONNECTOR
8-98057-771-0
01
1
1310-
765
TAPE
100X40
1-72498-022-1
01
1
1409-

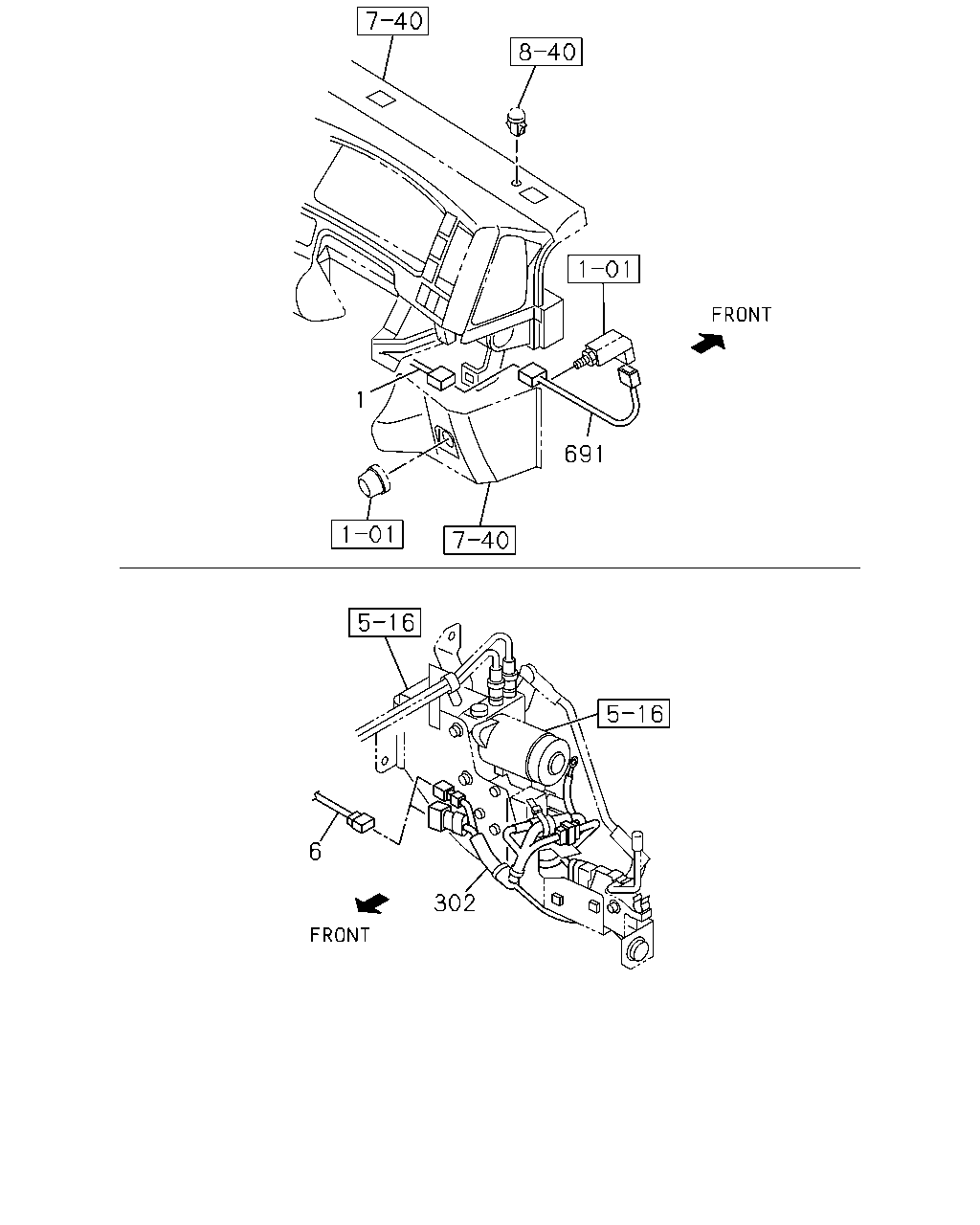

1
691
6
302
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98232-834-0
01
1
1310-
1
HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98232-822-0
01
1
1310-
1
HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3)
8-98232-815-0
01
1
1310-
1
HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3)
8-98232-811-0
01
1
1310-
6
HARNESS; FRAME
CAB SUSPENSION SEMI FLOATING<SDK> TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98232-776-0
01
1
1310-
6
HARNESS; FRAME
CAB SUSPENSION SEMI FLOATING<SDK> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98232-772-0
01
1
1310-
6
HARNESS; FRAME
CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98232-775-0
01
1
1310-
6
HARNESS; FRAME
CAB SUSPENSION FULL FLOATING<W16> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98232-771-0
01
1
1310-
302
HARNESS; POWER CAB TILT
AUTO CAB TILT<WV2>
8-97620-490-1
01
1
1310-
691
HARNESS; IDLE CONT
8-98049-014-2
01
1
1310-
267
639
267
639
534
639
267
267
535
290
293
295
525
640
290
534
534
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
267
BOLT; BRKT
AUTO CAB TILT<WV2> (A) M8X20 FLANGE
0-28650-820-0
01
1
1310-
267
BOLT; BRKT
CAB SUSPENSION SEMI FLOATING<SDK> (A) M8X20 FLANGE
0-28650-820-0
01
1
1310-
267
BOLT; BRKT
(B) M8X25 FLANGE
0-28650-825-0
01
1
1310-
267
BOLT; BRKT
CAB SUSPENSION FULL FLOATING<W16> (A) M8X20 FLANGE
0-28650-820-0
02
1
1310-
267
BOLT; BRKT
(C) M8X35 FLANGE
0-28650-835-0
01
1
1310-
267
BOLT; BRKT
(C) M8X35 FLANGE
0-28650-835-0
02
1
1310-
267
BOLT; BRKT
(D) M10X25 FLANGE
0-28651-025-0
02
1
1310-
290
NUT; BRKT
AUTO CAB TILT<WV2> (A) M8 FLANGE
0-91180-108-0
01
1
1310-
290
NUT; BRKT
CAB SUSPENSION SEMI FLOATING<SDK> (A) M8 FLANGE
0-91180-108-0
01
1
1310-
290
NUT; BRKT
(A) M8 FLANGE
0-91180-108-0
01
1
1310-
290
NUT; BRKT
CAB SUSPENSION FULL FLOATING<W16> (A) M8 FLANGE
0-91180-108-0
02
1
1310-
290
NUT; BRKT
(A) M8 FLANGE
0-91180-108-0
06
1
1310-
290
NUT; BRKT
(B) M10 FLANGE
0-91180-210-0
02
1
1310-
293
NUT
M8 FLANGE
0-91180-108-0
01
1
1310-
295
NUT; BRKT
M8 FLANGE
0-91180-108-0
01
1
1310-
525
NUT; CLIP
M8 FLANGE
0-91180-108-0
01
1
1310-
525
NUT; CLIP
M8 FLANGE
0-91180-108-0
01
1
1310-
525
NUT; CLIP
AUTO CAB TILT<WV2> M8 FLANGE
0-91180-108-0
01
1
1310-
534
BOLT
AUTO CAB TILT<WV2> (B) M5X16 W/LK&PL WASHER
8-94198-538-0
01
1
1310-
534
BOLT
(C) M8X30 FLANGE
0-28650-830-0
01
1
1310-
534
BOLT
(A) M8X35 W/LK&PL WASHER
1-09030-073-0
03
1
1310-
535
BOLT; BRKT FIX
M10X35 FLANGE
0-28651-035-0
01
1
1310-
639
BOLT; CLIP
(B) M8X25 FLANGE
0-28650-825-0
01
1
1310-
639
BOLT; CLIP
AUTO CAB TILT<WV2> (C) M8X30 FLANGE
0-28650-830-0
01
1
1310-
639
BOLT; CLIP
(A) M8X20 FLANGE
0-28650-820-0
01
1
1310-
639
BOLT; CLIP
(A) M8X20 FLANGE
0-28650-820-0
01
1
1310-
640
NUT; CLIP
M8 FLANGE
0-91180-108-0
01
1
1310-
668
668
668
668
668
668
668
668
668
668
668
668
668
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
668
BRACKET; HARNESS
CAB SUSPENSION SEMI FLOATING<SDK> (E)
8-98127-093-0
01
1
1310-
668
BRACKET; HARNESS
(F)
8-97609-110-1
01
1
1310-
668
BRACKET; HARNESS
AUTO CAB TILT<WV2> (H)
8-97620-519-0
01
1
1310-
668
BRACKET; HARNESS
CAB SUSPENSION FULL FLOATING<W16> (I)
1-47479-674-0
01
1
1310-
668
BRACKET; HARNESS
CAB SUSPENSION FULL FLOATING<W16> (J)
8-98107-610-1
01
1
1310-
668
BRACKET; HARNESS
(A) L=55
1-47475-304-0
01
1
1310-
668
BRACKET; HARNESS
(K)
1-82698-167-0
01
1
1310-
668
BRACKET; HARNESS
(D)
8-97619-097-1
01
1
1310-
668
BRACKET; HARNESS
(B)
8-98095-653-2
01
1
1310-
668
BRACKET; HARNESS
(G)
8-98212-082-1
01
1
1310-
668
BRACKET; HARNESS
(C)
8-97616-305-0
01
1
1310-1502
668
BRACKET; HARNESS
(O)
8-98254-592-0
01
1
1503-
668
BRACKET; HARNESS
(L)
8-98047-730-0
02
1
1310-
668
BRACKET; HARNESS
(M)
8-98107-611-0
01
1
1310-
4
693
693
693
693
693
693
693
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
BOX ASM; FUSE,HARNESS
8-98065-666-0
01
1
1310-
693
RELAY; FUSE BOX
24V 10A PANASONIC
8-97173-035-1
AR
1
1310-
6
189
1
339
6
486
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98232-834-0
01
1
1310-
1
HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98232-822-0
01
1
1310-
1
HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3)
8-98232-815-0
01
1
1310-
1
HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3)
8-98232-811-0
01
1
1310-
6
HARNESS; FRAME
CAB SUSPENSION SEMI FLOATING<SDK> TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98232-776-0
01
1
1310-
6
HARNESS; FRAME
CAB SUSPENSION SEMI FLOATING<SDK> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98232-772-0
01
1
1310-
6
HARNESS; FRAME
CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98232-775-0
01
1
1310-
6
HARNESS; FRAME
CAB SUSPENSION FULL FLOATING<W16> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98232-771-0
01
1
1310-
189
HARNESS; EXT
(B)
8-98098-510-0
01
1
1310-
189
HARNESS; EXT
(A)
8-98131-066-0
01
1
1310-
339
HARNESS; EXT,FUEL
8-98227-392-1
01
1
1310-
486
HARNESS; ALL SPEED ACCEL
TRANSMISSION SIDE PTO WO/LEVER(SH5)
1-82675-898-0
01
1
1310-
408
409
1
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98232-834-0
01
1
1310-
1
HARNESS; CAB
AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98232-822-0
01
1
1310-
1
HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER(AJ3)
8-98232-815-0
01
1
1310-
1
HARNESS; CAB
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3)
8-98232-811-0
01
1
1310-
408
SOCKET ASM; ACCESSORY
EXC. ASH TRAY PASSENGER DOOR<8LX>
8-98169-757-0
01
1
1310-
409
CAP; ACCESSORY SOCKET
EXC. ASH TRAY PASSENGER DOOR<8LX>
8-98183-771-0
01
1
1310-
6
10
27
184
720
184
388
174
453

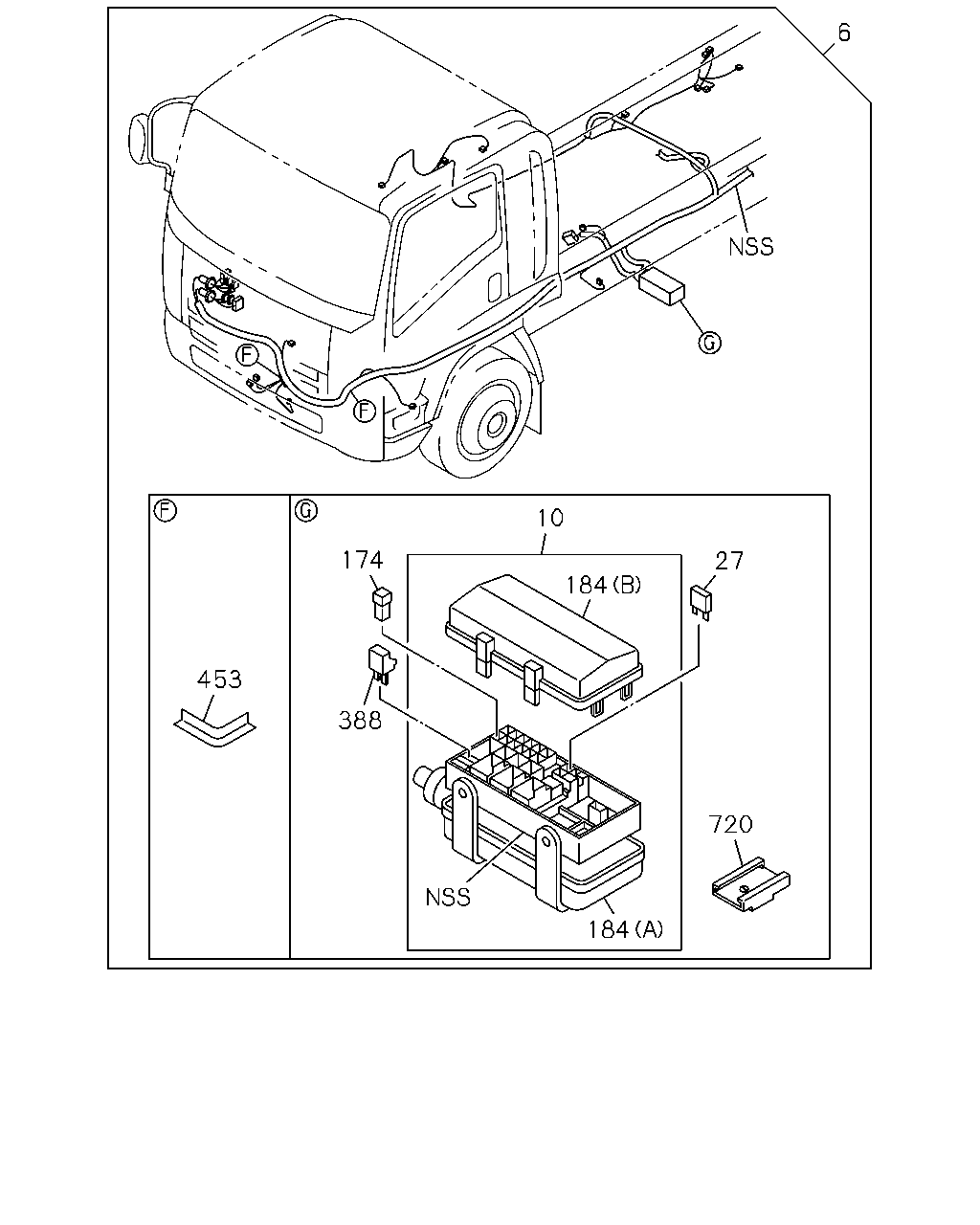

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
CAB SUSPENSION SEMI FLOATING<SDK> TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98232-776-0
01
1
1310-
6
HARNESS; FRAME
CAB SUSPENSION SEMI FLOATING<SDK> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98232-772-0
01
1
1310-
6
HARNESS; FRAME
CAB SUSPENSION FULL FLOATING<W16> TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98232-775-0
01
1
1310-
6
HARNESS; FRAME
CAB SUSPENSION FULL FLOATING<W16> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)
8-98232-771-0
01
1
1310-
10
BOX; FUSE,HARNESS
8-98030-762-0
01
1
1310-
27
FUSE UNIT
10A RED
8-98054-257-0
01
1
1310-
27
FUSE UNIT
15A BLUE
8-98054-258-0
01
1
1310-
174
FUSE; SLOW BLOW
60A YELLOW
8-97219-407-0
01
1
1310-
174
FUSE; SLOW BLOW
30A PINK
8-98079-191-0
01
1
1310-
174
FUSE; SLOW BLOW
40A GREEN
8-98079-192-0
01
1
1310-
174
FUSE; SLOW BLOW
50A RED
8-98079-193-0
03
1
1310-
174
FUSE; SLOW BLOW
60A YELLOW
8-97219-407-0
02
1
1310-
184
COVER; RELAY & FUSE BOX
(A)
8-98030-766-0
01
1
1310-
184
COVER; RELAY & FUSE BOX
(B)
8-98030-767-1
01
1
1310-
388
DIODE; RELAY BOX
BLACK 4P-1.5A
8-94381-730-0
01
1
1310-
388
DIODE; RELAY BOX
BLACK 2P-1.5A
8-94422-639-1
01
1
1310-
453
PROTECTOR; HARNESS
1-82699-709-0
01
1
1310-
720
ATTACHMENT; CONNECTOR
1-82699-688-0
03
1
1310-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
