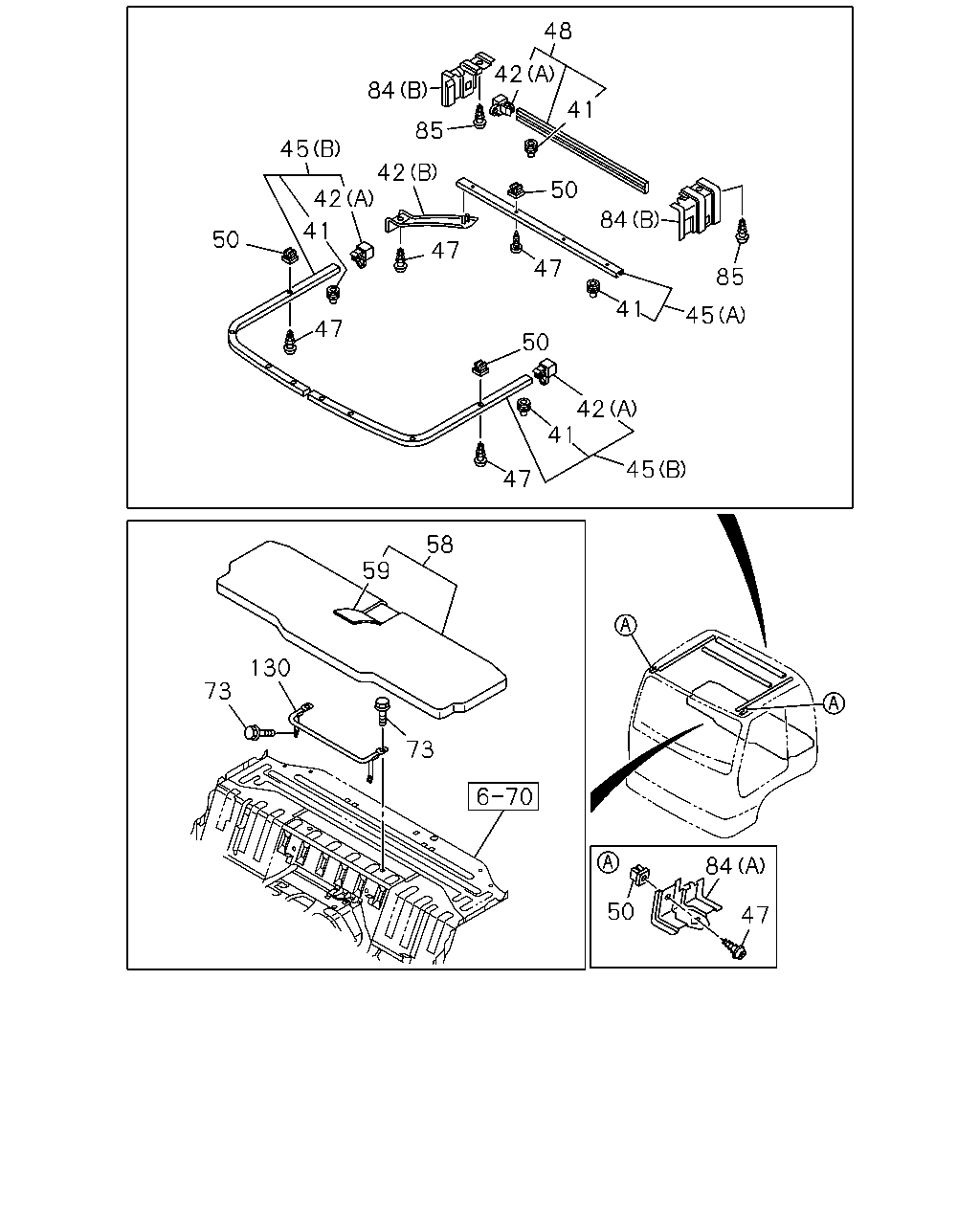

7-70 — SEPARATER AND BED (#129022) — 35 parça

47 84 50 73 130 73 59 58 47 41 42 50 41 85 45 47 50 41 42 48 84 42 42 45 50 47 47 41 85 84 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	HOOK; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> H=14.5 WHITE	1-73996-398-0	42	1	1310-
41	HOOK; CURTAIN RAIL H=14.5 WHITE	1-73996-398-0	14	1	1310-
42	STOPPER; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY	8-97408-038-0	03	1	1310-
42	STOPPER; CURTAIN RAIL (B) DARK GRAY	8-97407-499-2	01	1	1310-
42	STOPPER; CURTAIN RAIL (B) DARK GRAY	8-97407-972-2	01	1	1310-
45	RAIL; CURTAIN,FRT ROUND CURTAIN RAIL<EDH> (B) LIGHT GRAY	8-97415-679-0	01	1	1310-
45	RAIL; CURTAIN,FRT ROUND CURTAIN RAIL<EDH> (B) LIGHT GRAY	8-97415-680-0	01	1	1310-
45	RAIL; CURTAIN,FRT (A) DARK GRAY	8-97407-488-1	01	1	1310-
47	SCREW; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> M5X20	5-09981-059-0	14	1	1310-
47	SCREW; CURTAIN RAIL M5X20	5-09981-059-0	06	1	1310-
48	RAIL; CURTAIN,BACK ROUND CURTAIN RAIL<EDH> DARK GRAY	8-97407-490-2	01	1	1310-
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	20	1	1310-
50	GROMMET; SCREW,CURTAIN RAIL D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1310-
50	GROMMET; SCREW,CURTAIN RAIL EXC. ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	04	1	1310-1405
50	GROMMET; SCREW,CURTAIN RAIL EXC. ROUND CURTAIN RAIL<EDH> D=8.6X7.7 L=7.5	8-94279-078-0	02	1	1406-
58	BED; MAT VINYL SEAT<A83> MATTRESS SLEEPER CAB<E40> DARK GRAY	8-97409-894-1	01	1	1310-
58	BED; MAT MATTRESS SLEEPER CAB<E40> SEAT CLOTH<7FL> DARK GRAY	8-97407-384-2	01	1	1310-
59	COVER ASM; TRIM,BED MAT VINYL SEAT<A83> MATTRESS SLEEPER CAB<E40> DARK GRAY	8-97414-135-0	01	1	1310-
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40> SEAT CLOTH<7FL> DARK GRAY	8-97412-043-1	01	1	1310-
73	BOLT; GUARD PIPE MATTRESS SLEEPER CAB<E40> M8X20 FLANGE	0-28450-820-0	04	1	1310-
84	BRACKET; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> (B)	8-98042-152-0	04	1	1310-
84	BRACKET; CURTAIN RAIL (A)	8-98028-326-1	02	1	1310-1405
84	BRACKET; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> (A)	8-98028-326-1	02	1	1406-
84	BRACKET; CURTAIN RAIL EXC. ROUND CURTAIN RAIL<EDH> (B)	8-98042-152-0	02	1	1310-
85	SCREW; BRKT ROUND CURTAIN RAIL<EDH> M5X20	5-09981-059-0	06	1	1310-
85	SCREW; BRKT EXC. ROUND CURTAIN RAIL<EDH> M5X20	5-09981-059-0	04	1	1310-1405
85	SCREW; BRKT EXC. ROUND CURTAIN RAIL<EDH> M5X20	5-09981-059-0	02	1	1406-
130	PIPE; GUARD,BED MATTRESS SLEEPER CAB<E40>	8-98014-968-0	01	1	1310-

51 51 44 44 92 92 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	CURTAIN ASM; CABIN CENTER BLUE	8-97407-947-1	01	1	1310-
44	CURTAIN ASM; CABIN CENTER BLUE	8-97407-948-1	01	1	1310-
51	CURTAIN; BACK BLUE	8-97407-758-1	01	1	1310-
51	CURTAIN; BACK BLUE	8-97407-759-1	01	1	1310-
64	CURTAIN KIT	8-97415-695-0	01	1	1310-
92	CURTAIN ASM; ROUND BLUE	8-97415-698-0	01	1	1310-
92	CURTAIN ASM; ROUND BLUE	8-97415-701-0	01	1	1310-
