3-01 — FRONT WHEEL BRAKE (#12902) — 203 parça

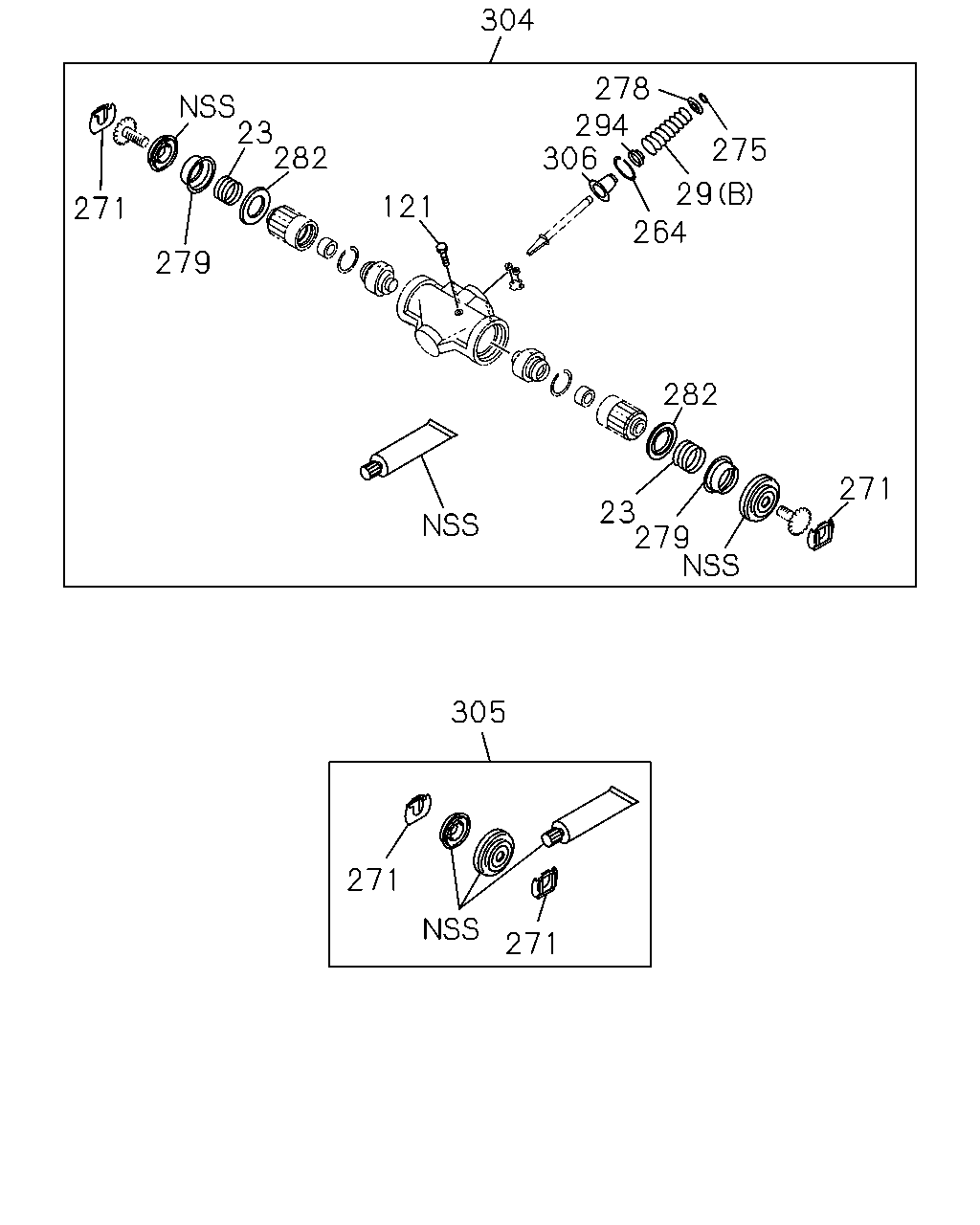

304 278 294 306 23 282 275 29 121 271 264 279 282 271 23 279 305 271 271

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
23	SPRING; COIL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	9-09940-435-0	02	1	1108-
23	SPRING; COIL THA	1-47629-196-0	04	1	0807-1107
23	SPRING; COIL BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47629-196-0	04	1	1108-
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) THA	1-09583-269-1	02	1	1108-
29	SPRING; RETURN,FRT BRK SHOE (A) THA	1-09583-365-1	04	1	0807-1107
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	1-09583-365-1	04	1	1108-
29	SPRING; RETURN,FRT BRK SHOE (B) THA	1-47649-041-0	02	1	0807-1107
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) THA	1-47649-041-0	02	1	1108-
121	SCREW; LK SPR FRT WHEEL CYL THA	1-47619-149-1	04	1	0807-1107
121	SCREW; LK SPR FRT WHEEL CYL BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47619-149-1	04	1	1108-
264	RING; SNAP,SPR PIN THA	1-47649-034-1	02	1	0807-1107
264	RING; SNAP,SPR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47649-034-1	02	1	1108-
271	CLIP; ADJ THA	1-47621-017-0	04	1	0807-1107
271	CLIP; ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47621-017-0	04	1	1108-
275	RING; RETAINER THA	1-47649-031-0	02	1	0807-1107
275	RING; RETAINER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47649-031-0	02	1	1108-
278	RETAINER; SPRING THA	1-47649-020-0	02	1	0807-1107
278	RETAINER; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47649-020-0	02	1	1108-
279	CAGE; SPRING THA	1-47629-192-0	04	1	0807-1107
279	CAGE; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47629-192-0	04	1	1108-
282	RING; DRIVE THA	1-47629-200-0	04	1	0807-1107
282	RING; DRIVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47629-200-0	04	1	1108-
294	BOOT; WEDGE THA	1-47649-042-0	02	1	0807-1107
294	BOOT; WEDGE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47649-042-0	02	1	1108-
304	REPAIR KIT; EXPANDER THA	1-85576-403-0	02	1	0807-1107
304	REPAIR KIT; EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-85576-403-0	02	1	1108-
305	REPAIR KIT; BOOT,EXPANDER THA	1-85576-404-0	02	1	0807-1107
305	REPAIR KIT; BOOT,EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-85576-404-0	02	1	1108-
306	CAP; EXPANDER THA	1-47649-044-0	02	1	0807-1107
306	CAP; EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47649-044-0	02	1	1108-

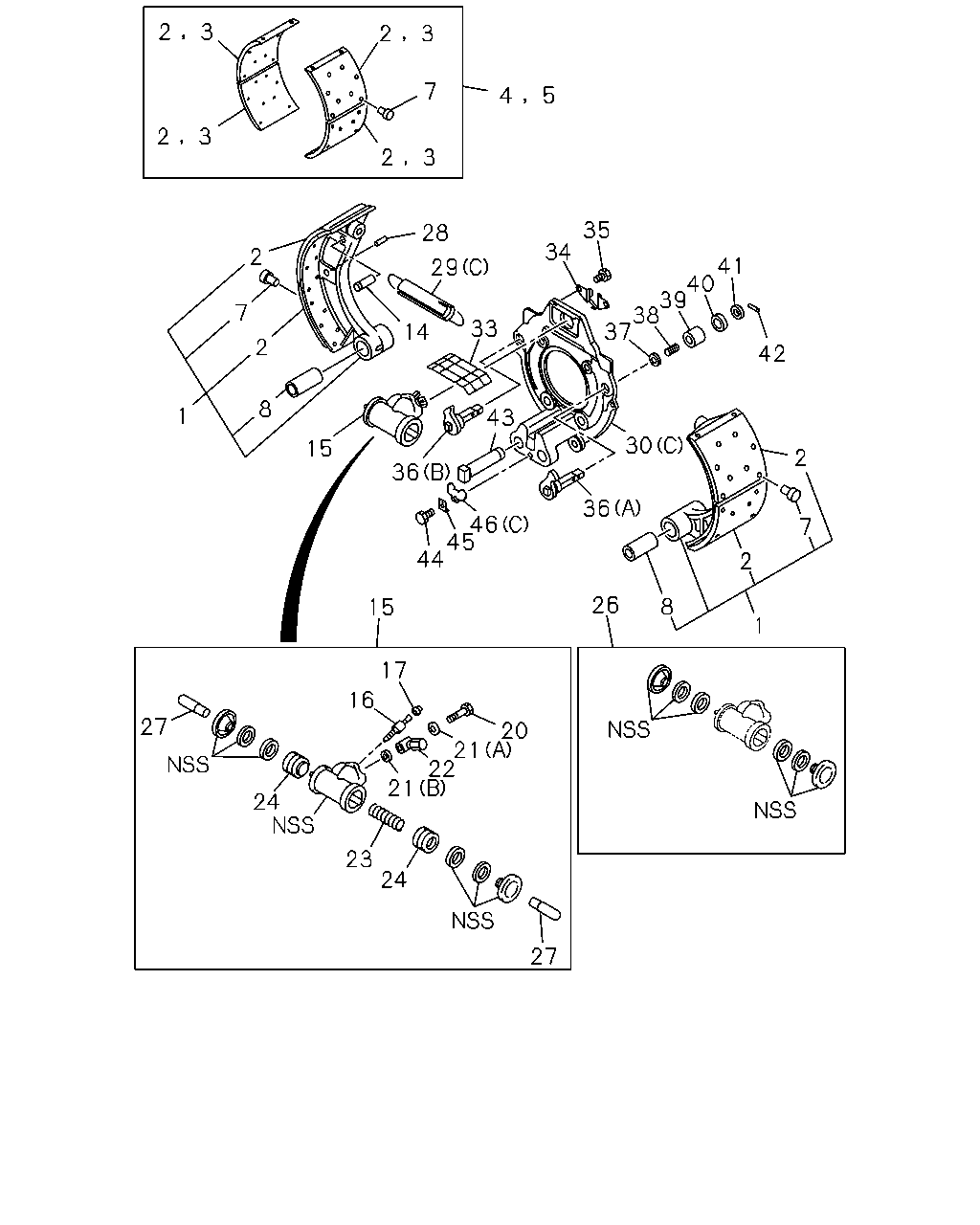

2 3 2 3 7 5 4 2 3 2 3 35 28 34 2 41 40 39 38 37 29 7 33 14 2 42 8 1 43 30 15 2 36 36 46 45 44 7 2 26 8 15 1 17 16 27 20 21 22 21 24 23 24 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47170-441-0	04	1	1108-
1	SHOE; BRK,FRT LEADING THA	1-47170-316-0	01	1	0807-1107
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> LEADING THA	1-47170-316-0	01	1	1108-
1	SHOE; BRK,FRT TRAILING THA	1-47170-317-0	01	1	0807-1107
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> TRAILING THA	1-47170-317-0	01	1	1108-
1	SHOE; BRK,FRT LEADING THA	1-47170-318-0	01	1	0807-1107
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> LEADING THA	1-47170-318-0	01	1	1108-
1	SHOE; BRK,FRT TRAILING THA	1-47170-319-0	01	1	0807-1107
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> TRAILING THA	1-47170-319-0	01	1	1108-
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47126-758-0	08	1	1108-
2	LINING; FRT BRK SHOE,STANDARD THA	1-47126-698-0	08	1	0807-1107
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47126-698-0	08	1	1108-
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47126-759-0	08	1	1108-
3	LINING; FRT BRK SHOE,OVER SIZE THA	1-47126-699-0	08	1	0807-1107
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47126-699-0	08	1	1108-
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05>	1-88311-353-1	02	1	1108-
4	LINING SET; FRT BRK,STANDARD	1-88311-314-0	02	1	0807-1107
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-88311-314-0	02	1	1108-
4	LINING SET; FRT BRK,STANDARD BEST VALUE PARTS	1-87610-128-0	01	1	0807-1107
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> BEST VALUE PARTS	1-87610-128-0	01	1	1108-
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05>	1-88311-354-1	02	1	1108-
5	LINING SET; FRT BRK,OVER SIZE	1-88311-315-0	02	1	0807-1107
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-88311-315-0	02	1	1108-
7	RIVET; LINING,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=18.5 THA	1-09732-034-0	80	1	1108-
7	RIVET; LINING,FRT BRK L=15.5 THA	1-09732-053-0	80	1	0807-1107
7	RIVET; LINING,FRT BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=15.5 THA	1-09732-053-0	80	1	1108-
8	BUSHING; BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47112-011-0	04	1	1108-
8	BUSHING; BRK SHOE THA	1-47112-020-0	04	1	0807-1107
8	BUSHING; BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47112-020-0	04	1	1108-
14	PIN; SHOE RETURN SPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=73.5 THA	1-47119-017-1	04	1	1108-
14	PIN; SHOE RETURN SPR THA	1-47119-177-1	04	1	0807-1107
14	PIN; SHOE RETURN SPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47119-177-1	04	1	1108-
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47600-674-0	01	1	1108-
15	CYLINDER; WHEEL,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47600-675-0	01	1	1108-
16	SCREW; BLEEDER,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=66.5 THA	1-47615-005-0	02	1	1108-
17	CAP; BLEEDER,FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> OD=12 THA	1-47619-011-0	02	1	1108-
20	BOLT; JOINT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M12X40.5 EYE BOLT THA	1-47634-006-0	02	1	1108-
21	GASKET; UNION BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) ID=15.2 THA	1-09630-019-0	02	1	1108-
21	GASKET; UNION BOLT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) ID=12.2 THA	1-09630-020-0	02	1	1108-
22	JOINT; PIPE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47631-057-1	02	1	1108-
23	SPRING; COIL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	9-09940-435-0	02	1	1108-
23	SPRING; COIL THA	1-47629-196-0	04	1	0807-1107
23	SPRING; COIL BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47629-196-0	04	1	1108-
24	PISTON; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	9-47624-210-0	04	1	1108-
26	CUP SET; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> ID=47.5	1-87830-521-0	02	1	1108-
27	ROD; PUSH BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47621-009-0	04	1	1108-
28	PIN; SHOE ADJ CAM GUIDE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47116-002-0	04	1	1108-
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) THA	1-09583-269-1	02	1	1108-
29	SPRING; RETURN,FRT BRK SHOE (A) THA	1-09583-365-1	04	1	0807-1107
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	1-09583-365-1	04	1	1108-
29	SPRING; RETURN,FRT BRK SHOE (B) THA	1-47649-041-0	02	1	0807-1107
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) THA	1-47649-041-0	02	1	1108-
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) THA	1-47137-435-0	02	1	1108-
30	BRACKET; ANCHOR,FRT (A)	1-47137-512-0	02	1	0807-1005
30	BRACKET; ANCHOR,FRT (B) THA	8-98091-252-0	02	1	1006-1107
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) THA	8-98091-252-0	02	1	1108-
33	COVER; WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47159-080-0	02	1	1108-
34	PLATE; DIRECTION,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47159-094-0	02	1	1108-
35	BOLT; FRT WHEEL CYL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M12X35 W/LK WASHER	0-50551-235-0	04	1	1108-
36	CAM ASM; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (A) THA	1-47165-058-1	02	1	1108-
36	CAM ASM; ADJ BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (B) THA	1-47165-059-1	02	1	1108-
37	WASHER; ADJ CAM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47169-033-0	04	1	1108-
38	SPRING; ADJ CAM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47169-046-0	04	1	1108-
39	BOOT; ADJ CAM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47169-034-0	04	1	1108-
40	COVER; BOOT,ADJ CAM BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47169-031-0	04	1	1108-
41	INDICATOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47169-032-1	04	1	1108-
42	PIN; SPINDLE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47169-030-0	04	1	1108-
43	PIN; ANCHOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=106.5 THA	1-47131-038-0	04	1	1108-
43	PIN; ANCHOR L=115.5 THA	1-47131-044-0	04	1	0807-1107
43	PIN; ANCHOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=115.5 THA	1-47131-044-0	04	1	1108-
44	BOLT; LOCK,ANCHOR PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M10X16	0-20851-016-0	02	1	1108-
44	BOLT; LOCK,ANCHOR PIN M10X16	0-20851-016-0	02	1	0807-0910
44	BOLT; LOCK,ANCHOR PIN M10X16 THA	1-47139-173-0	02	1	0911-1107
44	BOLT; LOCK,ANCHOR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M10X16 THA	1-47139-173-0	02	1	1108-
45	WASHER; LK THA	1-47133-011-0	02	1	0807-
46	PLATE; LOCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) THA	1-47133-005-0	02	1	1108-
46	PLATE; LOCK (A) THA	1-47119-152-0	04	1	0807-1107
46	PLATE; LOCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	1-47119-152-0	04	1	1108-
46	PLATE; LOCK (B) THA	1-47133-010-0	02	1	0807-1107
46	PLATE; LOCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) THA	1-47133-010-0	02	1	1108-

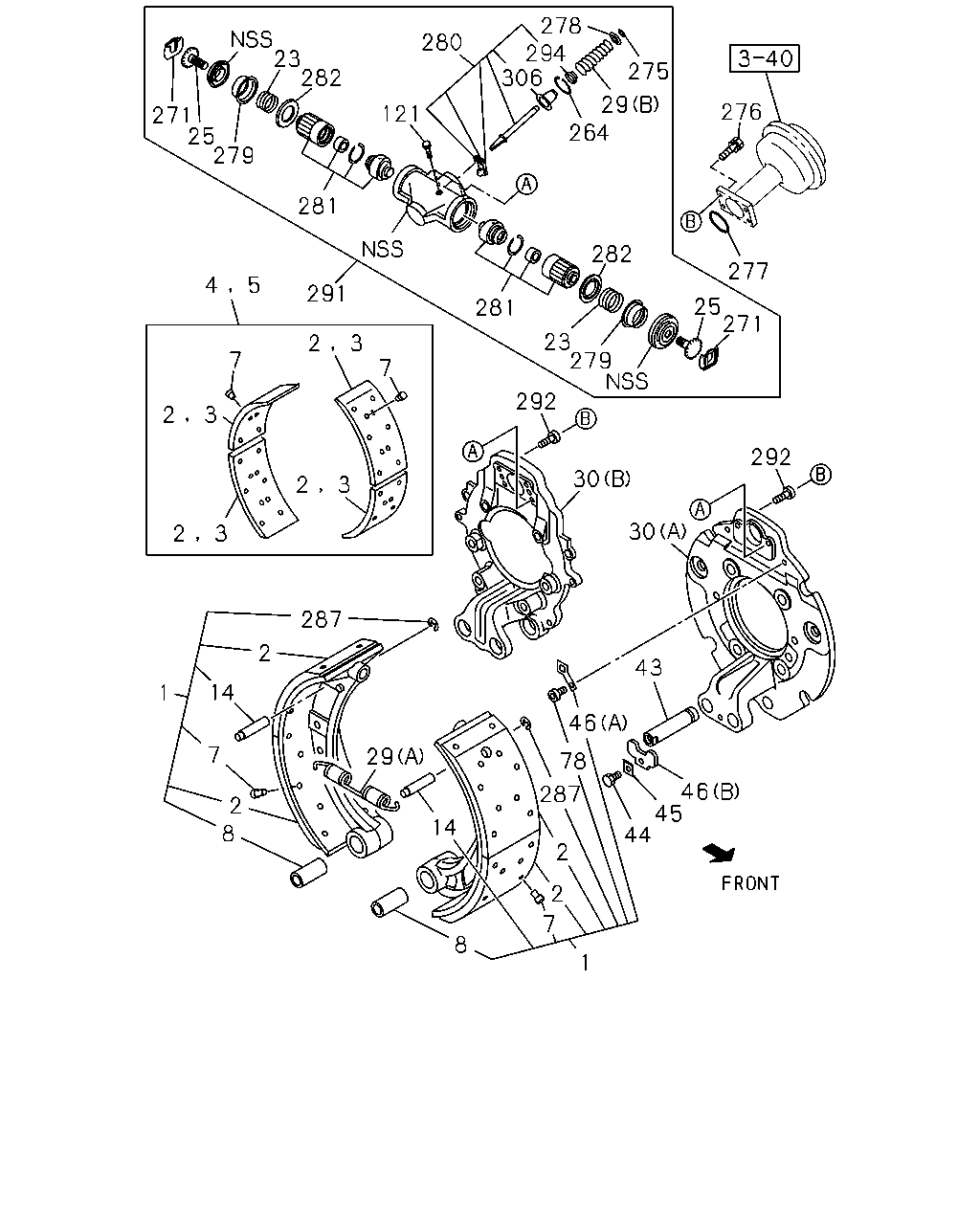

278 294 306 23 282 280 275 29 264 276 121 271 25 279 281 282 277 5 4 291 25 271 281 23 279 3 2 7 7 292 2 3 292 30 2 3 30 2 3 287 2 43 14 1 46 7 29 78 46 45 44 287 2 8 14 2 2 7 8 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47170-441-0	04	1	1108-
1	SHOE; BRK,FRT LEADING THA	1-47170-316-0	01	1	0807-1107
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> LEADING THA	1-47170-316-0	01	1	1108-
1	SHOE; BRK,FRT TRAILING THA	1-47170-317-0	01	1	0807-1107
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> TRAILING THA	1-47170-317-0	01	1	1108-
1	SHOE; BRK,FRT LEADING THA	1-47170-318-0	01	1	0807-1107
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> LEADING THA	1-47170-318-0	01	1	1108-
1	SHOE; BRK,FRT TRAILING THA	1-47170-319-0	01	1	0807-1107
1	SHOE; BRK,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> TRAILING THA	1-47170-319-0	01	1	1108-
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47126-758-0	08	1	1108-
2	LINING; FRT BRK SHOE,STANDARD THA	1-47126-698-0	08	1	0807-1107
2	LINING; FRT BRK SHOE,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47126-698-0	08	1	1108-
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47126-759-0	08	1	1108-
3	LINING; FRT BRK SHOE,OVER SIZE THA	1-47126-699-0	08	1	0807-1107
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47126-699-0	08	1	1108-
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05>	1-88311-353-1	02	1	1108-
4	LINING SET; FRT BRK,STANDARD	1-88311-314-0	02	1	0807-1107
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-88311-314-0	02	1	1108-
4	LINING SET; FRT BRK,STANDARD BEST VALUE PARTS	1-87610-128-0	01	1	0807-1107
4	LINING SET; FRT BRK,STANDARD BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> BEST VALUE PARTS	1-87610-128-0	01	1	1108-
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05>	1-88311-354-1	02	1	1108-
5	LINING SET; FRT BRK,OVER SIZE	1-88311-315-0	02	1	0807-1107
5	LINING SET; FRT BRK,OVER SIZE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06>	1-88311-315-0	02	1	1108-
7	RIVET; LINING,FRT BRK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=18.5 THA	1-09732-034-0	80	1	1108-
7	RIVET; LINING,FRT BRK L=15.5 THA	1-09732-053-0	80	1	0807-1107
7	RIVET; LINING,FRT BRK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=15.5 THA	1-09732-053-0	80	1	1108-
8	BUSHING; BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	1-47112-011-0	04	1	1108-
8	BUSHING; BRK SHOE THA	1-47112-020-0	04	1	0807-1107
8	BUSHING; BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47112-020-0	04	1	1108-
14	PIN; SHOE RETURN SPR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=73.5 THA	1-47119-017-1	04	1	1108-
14	PIN; SHOE RETURN SPR THA	1-47119-177-1	04	1	0807-1107
14	PIN; SHOE RETURN SPR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47119-177-1	04	1	1108-
23	SPRING; COIL BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> THA	9-09940-435-0	02	1	1108-
23	SPRING; COIL THA	1-47629-196-0	04	1	0807-1107
23	SPRING; COIL BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47629-196-0	04	1	1108-
25	SCREW; ADJ,FRT WHEEL CYL THA	1-47623-035-2	04	1	0807-1107
25	SCREW; ADJ,FRT WHEEL CYL BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47623-035-2	04	1	1108-
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) THA	1-09583-269-1	02	1	1108-
29	SPRING; RETURN,FRT BRK SHOE (A) THA	1-09583-365-1	04	1	0807-1107
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	1-09583-365-1	04	1	1108-
29	SPRING; RETURN,FRT BRK SHOE (B) THA	1-47649-041-0	02	1	0807-1107
29	SPRING; RETURN,FRT BRK SHOE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) THA	1-47649-041-0	02	1	1108-
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) THA	1-47137-435-0	02	1	1108-
30	BRACKET; ANCHOR,FRT (A)	1-47137-512-0	02	1	0807-1005
30	BRACKET; ANCHOR,FRT (B) THA	8-98091-252-0	02	1	1006-1107
30	BRACKET; ANCHOR,FRT BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) THA	8-98091-252-0	02	1	1108-
43	PIN; ANCHOR BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> L=106.5 THA	1-47131-038-0	04	1	1108-
43	PIN; ANCHOR L=115.5 THA	1-47131-044-0	04	1	0807-1107
43	PIN; ANCHOR BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> L=115.5 THA	1-47131-044-0	04	1	1108-
44	BOLT; LOCK,ANCHOR PIN BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> M10X16	0-20851-016-0	02	1	1108-
44	BOLT; LOCK,ANCHOR PIN M10X16	0-20851-016-0	02	1	0807-0910
44	BOLT; LOCK,ANCHOR PIN M10X16 THA	1-47139-173-0	02	1	0911-1107
44	BOLT; LOCK,ANCHOR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M10X16 THA	1-47139-173-0	02	1	1108-
45	WASHER; LK THA	1-47133-011-0	02	1	0807-
46	PLATE; LOCK BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT<Z05> (C) THA	1-47133-005-0	02	1	1108-
46	PLATE; LOCK (A) THA	1-47119-152-0	04	1	0807-1107
46	PLATE; LOCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (A) THA	1-47119-152-0	04	1	1108-
46	PLATE; LOCK (B) THA	1-47133-010-0	02	1	0807-1107
46	PLATE; LOCK BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> (B) THA	1-47133-010-0	02	1	1108-
78	BOLT; LK,PLATE THA	1-47119-153-0	04	1	0807-1107
78	BOLT; LK,PLATE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47119-153-0	04	1	1108-
121	SCREW; LK SPR FRT WHEEL CYL THA	1-47619-149-1	04	1	0807-1107
121	SCREW; LK SPR FRT WHEEL CYL BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47619-149-1	04	1	1108-
264	RING; SNAP,SPR PIN THA	1-47649-034-1	02	1	0807-1107
264	RING; SNAP,SPR PIN BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47649-034-1	02	1	1108-
271	CLIP; ADJ THA	1-47621-017-0	04	1	0807-1107
271	CLIP; ADJ BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47621-017-0	04	1	1108-
275	RING; RETAINER THA	1-47649-031-0	02	1	0807-1107
275	RING; RETAINER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47649-031-0	02	1	1108-
276	BOLT; CHAMBER M10X42.5 THA	1-47139-163-0	08	1	0807-1107
276	BOLT; CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M10X42.5 THA	1-47139-163-0	08	1	1108-
277	RING; CHAMBER THA	1-48259-231-0	02	1	0807-1107
277	RING; CHAMBER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-48259-231-0	02	1	1108-
278	RETAINER; SPRING THA	1-47649-020-0	02	1	0807-1107
278	RETAINER; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47649-020-0	02	1	1108-
279	CAGE; SPRING THA	1-47629-192-0	04	1	0807-1107
279	CAGE; SPRING BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47629-192-0	04	1	1108-
280	WEDGE; FRT WHEEL CYL THA	1-47640-012-0	02	1	0807-1107
280	WEDGE; FRT WHEEL CYL BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47640-012-0	02	1	1108-
281	SLEEVE THA	1-47629-247-1	04	1	0807-1107
281	SLEEVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47629-247-1	04	1	1108-
282	RING; DRIVE THA	1-47629-200-0	04	1	0807-1107
282	RING; DRIVE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47629-200-0	04	1	1108-
287	RING; SNAP ID=10	0-91805-510-0	08	1	0807-1107
287	RING; SNAP BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> ID=10	0-91805-510-0	08	1	1108-
291	EXPANDER THA	1-47601-087-0	02	1	0807-1107
291	EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47601-087-0	02	1	1108-
292	BOLT; EXPANDER M8X16 HEXALOBULAR SOCKET THA	1-47634-008-0	04	1	0807-1107
292	BOLT; EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> M8X16 HEXALOBULAR SOCKET THA	1-47634-008-0	04	1	1108-
294	BOOT; WEDGE THA	1-47649-042-0	02	1	0807-1107
294	BOOT; WEDGE BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47649-042-0	02	1	1108-
306	CAP; EXPANDER THA	1-47649-044-0	02	1	0807-1107
306	CAP; EXPANDER BRAKE SYSTEM FULL AIR DUAL CIRCUIT<Z06> THA	1-47649-044-0	02	1	1108-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
