◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11555 - FTR-RHD EURO5 W/DOC ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-43 - SUN VISOR AND ASSIST GRIP ▶
7-43 — SUN VISOR AND ASSIST GRIP (#129018) — 68 parça

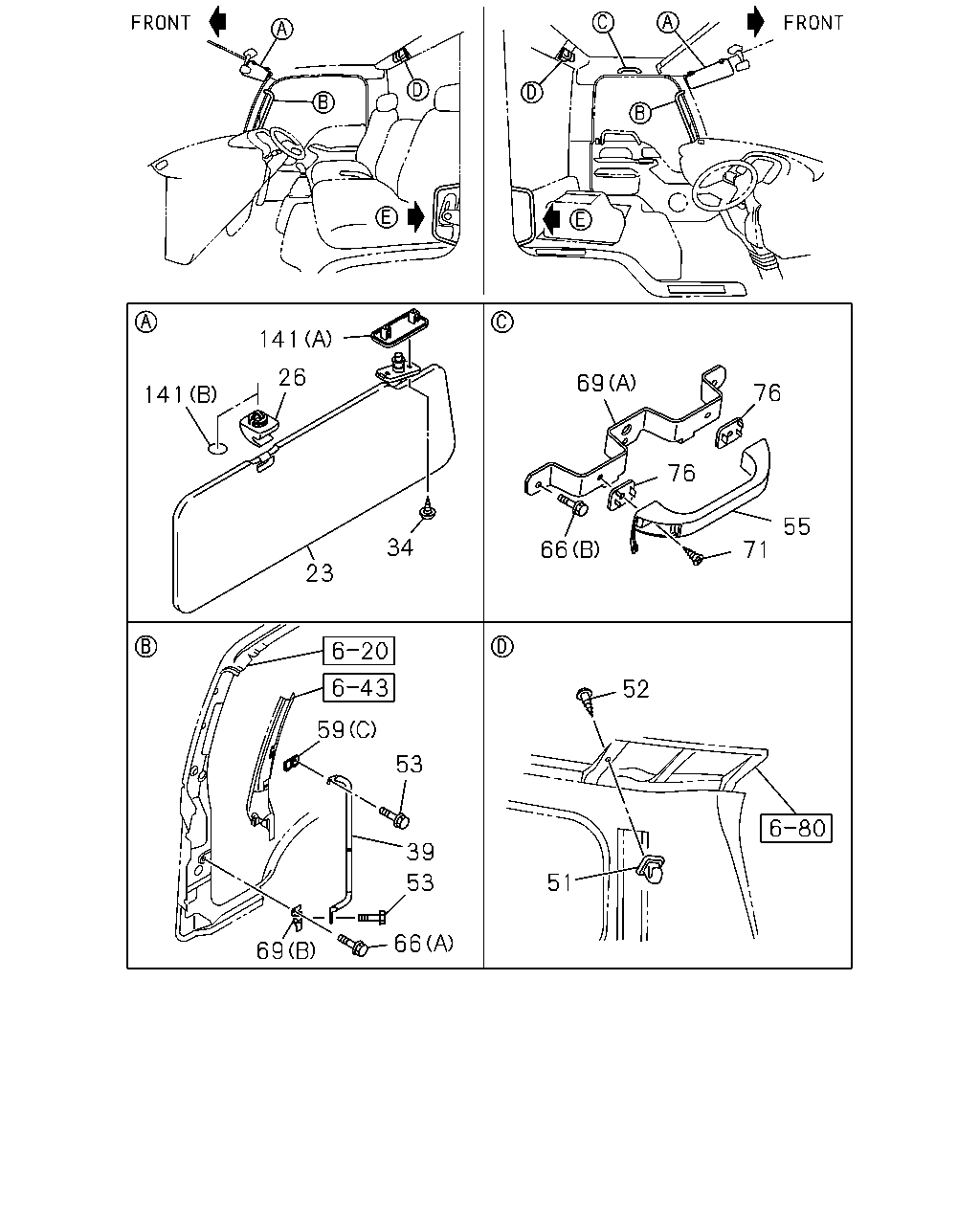

çizim 379698
141 141 26 23 34 69 76 76 55 71 66 59 53 39 53 69 66 51 52
BalonParca AdiParca NoAdetTipApplied Date
23 SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY 		8-97405-170-3 01 1 1310-
23 SUN VISOR
H.S.A SYSTEM<6EP> DARK GRAY 		8-97413-097-1 01 1 1310-
23 SUN VISOR
EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF) DARK GRAY 		8-97407-373-2 01 1 1310-
26 HOLDER; SUN VISOR
DARK GRAY 		8-97405-171-0 01 1 1310-
26 HOLDER; SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY 		8-97405-171-0 01 1 1310-
34 SCREW; SUN VISOR
M6X26 		8-98033-674-0 04 1 1310-
34 SCREW; SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> M6X26 		8-98033-674-0 04 1 1310-
39 HANDLE; ASSIST,A-POST
DARK GRAY 		8-97412-923-1 01 1 1310-
39 HANDLE; ASSIST,A-POST
DARK GRAY 		8-97412-924-1 01 1 1310-
51 HOOK; COAT HANGER
DARK GRAY 		8-97409-845-0 02 1 1310-
52 SCREW; HOOK
M4X20 TAPPING OVAL-HEAD 		0-70540-420-0 02 1 1310-
53 SCREW; ASSIST HANDLE
M8X20 FLANGE 		0-28650-820-0 04 1 1310-
55 GRIP; ASSIST,CAB SIDE UPR
DARK GRAY 		8-97405-285-2 01 1 1310-
59 COVER; ASSIST GRIP
(B) 		1-71998-789-2 02 1 1310-
59 COVER; ASSIST GRIP
(A) 		1-71998-790-2 02 1 1310-
59 COVER; ASSIST GRIP
(C) DARK GRAY 		8-97407-417-1 02 1 1310-
66 BOLT; ASSIST GRIP BRKT
(A) M8X16 FLANGE 		0-28050-816-0 04 1 1310-
66 BOLT; ASSIST GRIP BRKT
(B) M6X12 FLANGE 		8-97108-669-0 06 1 1310-
69 BRACKET; ASSIST GRIP
(A) 		8-98014-094-0 02 1 1310-
69 BRACKET; ASSIST GRIP
(B) 		8-98057-971-2 01 1 1310-
69 BRACKET; ASSIST GRIP
(B) 		8-98057-972-2 01 1 1310-
71 SCREW
M6X28 		8-98004-344-0 02 1 1310-
76 SPACER; ASSIST GRIP
DARK GRAY 		8-97405-286-0 02 1 1310-
141 COVER; SUN VISOR
(A) L=66 B=30 DARK GRAY 		8-97408-029-0 01 1 1310-
141 COVER; SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) L=66 B=30 DARK GRAY 		8-97408-029-0 01 1 1310-
141 COVER; SUN VISOR
(B) OD=30 T=0.05 DARK GRAY 		8-97408-030-0 01 1 1310-1401
141 COVER; SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> (B) OD=30 T=0.05 DARK GRAY 		8-97408-030-0 01 1 1310-1401
141 COVER; SUN VISOR
(B) OD=30 T=0.05 DARK GRAY 		8-97408-030-0 02 1 1402-
141 COVER; SUN VISOR
HEADER CONSOLE DRIVER & PASSENGER<EDG> (B) OD=30 T=0.05 DARK GRAY 		8-97408-030-0 02 1 1402-

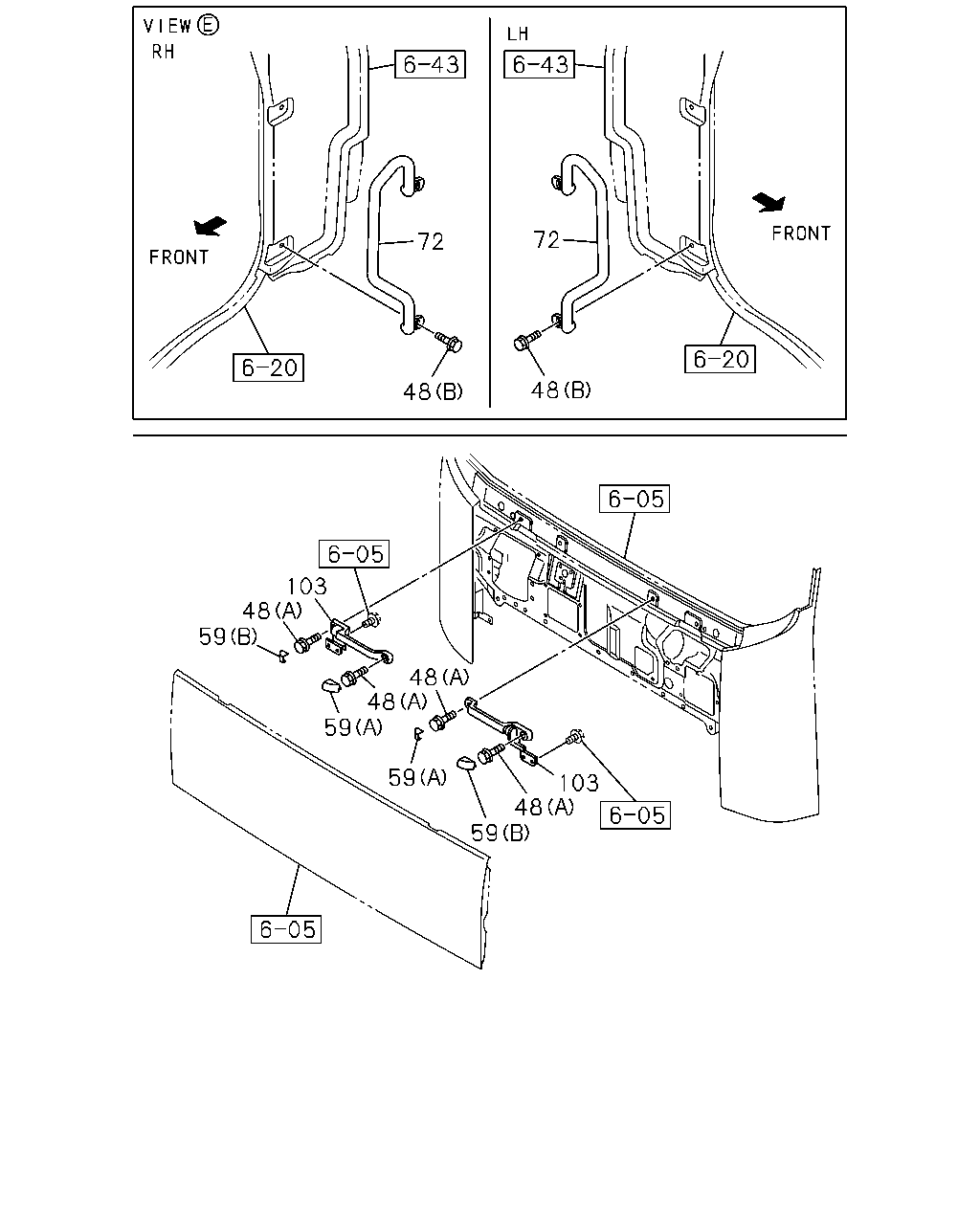

çizim 379734
48 103 48 59 59 59 48 48 59 103 48 72 48 72
BalonParca AdiParca NoAdetTipApplied Date
48 BOLT; ASSIST GRIP
(B) M8X16 FLANGE 		0-28060-816-0 04 1 1310-
48 BOLT; ASSIST GRIP
(A) M8X30 FLANGE 		0-28660-830-0 04 1 1310-
59 COVER; ASSIST GRIP
(B) 		1-71998-789-2 02 1 1310-
59 COVER; ASSIST GRIP
(A) 		1-71998-790-2 02 1 1310-
59 COVER; ASSIST GRIP
(C) DARK GRAY 		8-97407-417-1 02 1 1310-
72 GRIP; ASSIST,CAB ENTRY,BACK 8-98084-136-1 01 1 1310-
72 GRIP; ASSIST,CAB ENTRY,BACK 8-98084-137-1 01 1 1310-
103 GRIP; ASSIST,FRT PNL 8-98036-565-1 01 1 1310-
103 GRIP; ASSIST,FRT PNL 8-98036-566-1 01 1 1310-

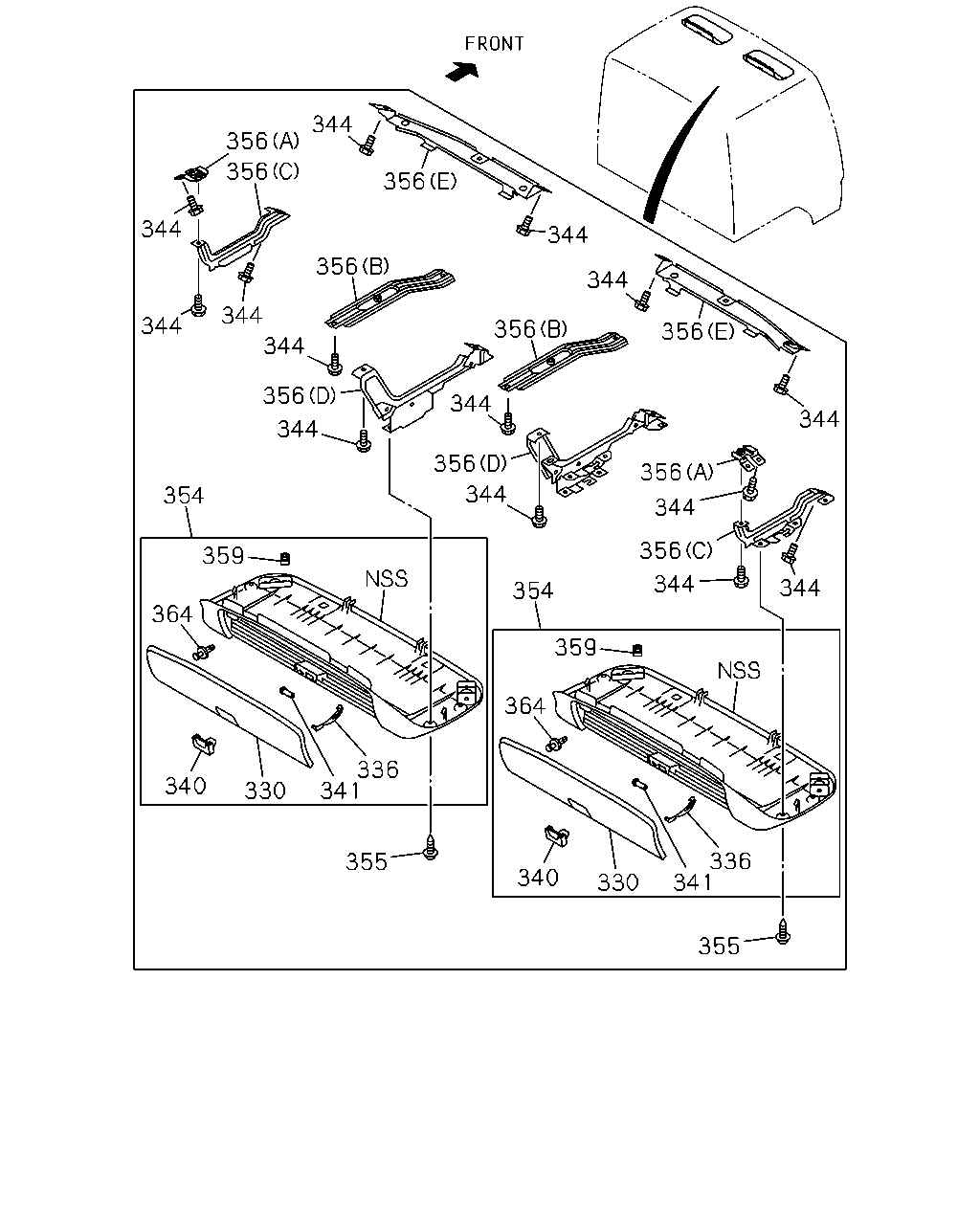

çizim 381189
344 356 344 344 356 344 356 356 344 344 344 344 356 344 344 356 356 356 344 356 344 356 344 344 354 359 364 340 330 341 336 355 359 364 340 330 341 355 336 354
BalonParca AdiParca NoAdetTipApplied Date
330 LID; HEADER SHELF
DARK GRAY 		8-97407-834-1 01 1 1310-
330 LID; HEADER SHELF
HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY 		8-97407-834-1 01 1 1310-
336 STAY; LID 1-72448-379-3 02 1 1310-
336 STAY; LID
HEADER CONSOLE DRIVER & PASSENGER<EDG> 		1-72448-379-3 02 1 1310-
340 LOCK; HEADER SHELF 1-72448-376-0 01 1 1310-
340 LOCK; HEADER SHELF
HEADER CONSOLE DRIVER & PASSENGER<EDG> 		1-72448-376-0 01 1 1310-
341 HINGE; LID,HEADER SHELF 8-98025-428-2 02 1 1310-
341 HINGE; LID,HEADER SHELF
HEADER CONSOLE DRIVER & PASSENGER<EDG> 		8-98025-428-2 02 1 1310-
344 BOLT; BRKT,FRT
HEADER CONSOLE DRIVER & PASSENGER<EDG> M6X12 FLANGE 		8-97108-669-0 08 1 1310-
344 BOLT; BRKT,FRT
M6X12 FLANGE 		8-97108-669-0 12 1 1310-
354 TRAY; HEADER ROOF
DARK GRAY 		8-97407-386-5 01 1 1310-1401
354 TRAY; HEADER ROOF
HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY 		8-97407-386-5 01 1 1310-1401
354 TRAY; HEADER ROOF
DARK GRAY 		8-97428-821-0 01 1 1402-
354 TRAY; HEADER ROOF
HEADER CONSOLE DRIVER & PASSENGER<EDG> DARK GRAY 		8-97428-821-0 01 1 1402-
355 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 1310-
355 SCREW; TRAY
HEADER CONSOLE DRIVER & PASSENGER<EDG> M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 1310-
356 BRACKET; ROOF OUTER
HEADER CONSOLE DRIVER & PASSENGER<EDG> (C) 		8-98016-871-3 01 1 1310-
356 BRACKET; ROOF OUTER
HEADER CONSOLE DRIVER & PASSENGER<EDG> (D) 		8-98042-009-2 01 1 1310-
356 BRACKET; ROOF OUTER
(A) 		8-97386-874-1 01 1 1310-
356 BRACKET; ROOF OUTER
HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) 		8-97386-874-1 01 1 1310-
356 BRACKET; ROOF OUTER
(B) 		8-98010-059-0 01 1 1310-
356 BRACKET; ROOF OUTER
HEADER CONSOLE DRIVER & PASSENGER<EDG> (B) 		8-98010-059-0 01 1 1310-
356 BRACKET; ROOF OUTER
(C) 		8-98014-088-3 01 1 1310-
356 BRACKET; ROOF OUTER
(D) 		8-98023-257-2 01 1 1310-
356 BRACKET; ROOF OUTER
(E) 		8-98042-015-3 01 1 1310-
356 BRACKET; ROOF OUTER
(E) 		8-98042-016-3 01 1 1310-
359 HOLDER; HEADER TRAY 8-98041-754-0 04 1 1310-
359 HOLDER; HEADER TRAY
HEADER CONSOLE DRIVER & PASSENGER<EDG> 		8-98041-754-0 04 1 1310-
364 STOPPER; LID 8-98010-867-1 03 1 1310-
364 STOPPER; LID
HEADER CONSOLE DRIVER & PASSENGER<EDG> 		8-98010-867-1 03 1 1310-
