7-20 — MIRROR AND MIRROR STAY (#129014) — 134 parça

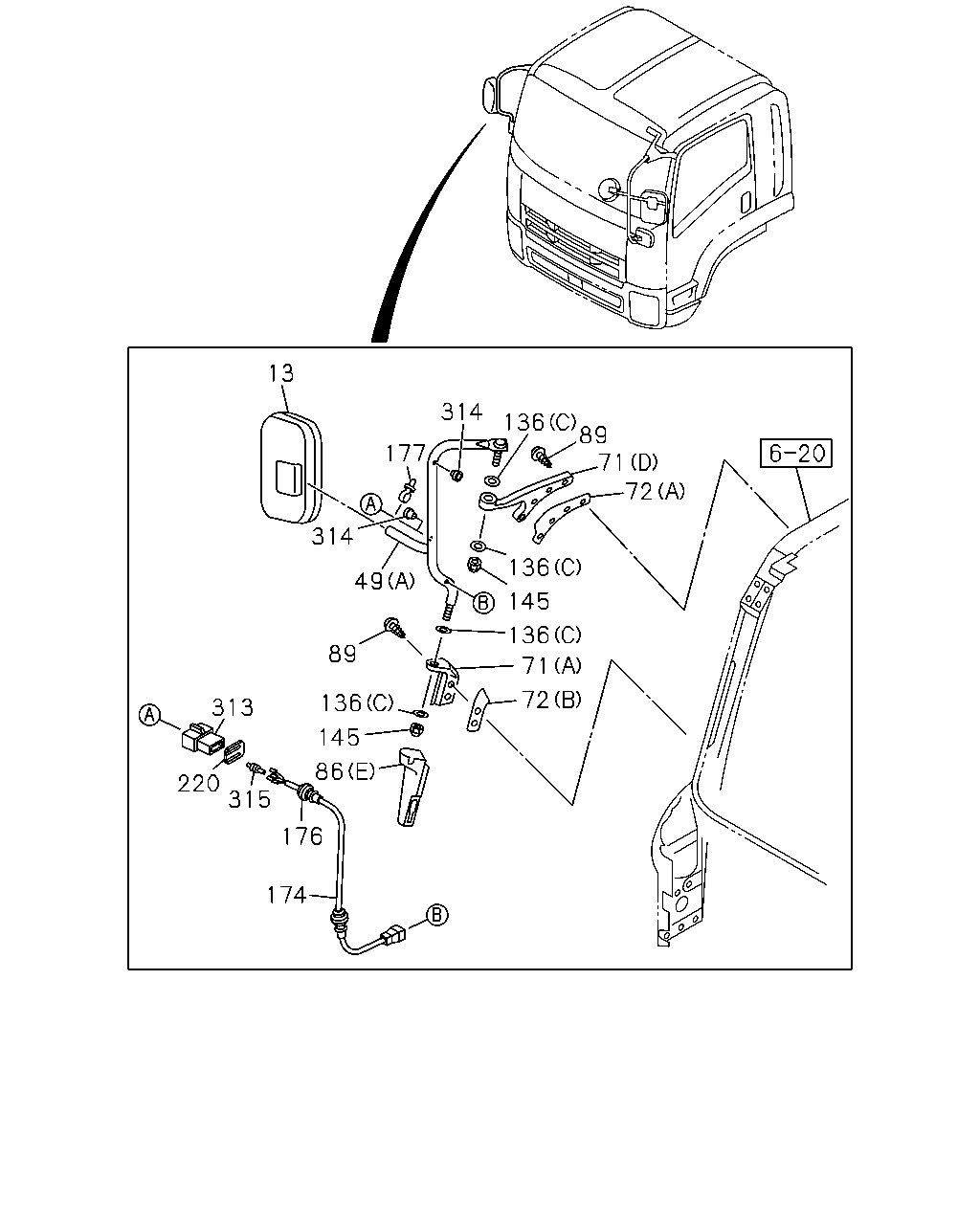

çizim 379536
220 315 176 174 86 136 89 145 49 314 13 314 177 136 72 136 136 71 72 145 71 89 313
BalonParca AdiParca NoAdetTipApplied Date
13 MIRROR ASM; OUTSIDE RR VIEW 1-71707-100-2 01 1 1310-
13 MIRROR ASM; OUTSIDE RR VIEW 1-71707-101-2 01 1 1310-
49 STAY; MIRROR SIDE
(B) 		8-98083-831-1 01 1 1310-1402
49 STAY; MIRROR SIDE
(B) 		8-98257-753-0 01 1 1403-
49 STAY; MIRROR SIDE
(A) 		8-98091-456-0 01 1 1310-1502
49 STAY; MIRROR SIDE
(A) 		8-98305-584-0 01 1 1503-
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71797-877-0 02 1 1310-
71 BRACKET; OUTSIDE MIRROR
(C) 		1-71797-878-0 02 1 1310-
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98040-021-0 01 1 1310-
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98040-022-1 01 1 1310-
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98040-543-1 01 1 1310-
72 SHEET
(A) 		8-98040-351-0 01 1 1310-
72 SHEET
(B) 		8-98040-353-1 01 1 1310-
72 SHEET
(C) 		8-98040-535-0 01 1 1310-
72 SHEET
(D) 		8-98040-537-1 01 1 1310-
86 COVER; STAY,OUTSIDE MIRROR
(B) BLACK 		1-71737-649-1 01 1 1310-
86 COVER; STAY,OUTSIDE MIRROR
(A) BLACK 		1-71737-652-1 01 1 1310-
86 COVER; STAY,OUTSIDE MIRROR
(E) 		8-98040-542-2 01 1 1310-
86 COVER; STAY,OUTSIDE MIRROR
(C) 		8-98040-545-1 01 1 1310-
86 COVER; STAY,OUTSIDE MIRROR
(D) 		8-98040-546-1 01 1 1310-
89 SCREW; BRKT,OUTSIDE MIRROR
M8X26 W/PL WASHER 		8-98067-249-2 10 1 1310-
136 WASHER; LK,BRKT,MIRROR STAY
(A) ID=10 		1-09985-180-0 01 1 1310-
136 WASHER; LK,BRKT,MIRROR STAY
(B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 02 1 1310-
136 WASHER; LK,BRKT,MIRROR STAY
(C) ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 1310-
145 NUT; CAP,SUB STAY
M10 CAP NUT 		1-09984-134-0 03 1 1310-
174 HARNESS; MIRROR 8-98047-367-0 01 1 1310-1402
174 HARNESS; MIRROR 8-98258-260-0 01 1 1403-
174 HARNESS; MIRROR 8-98047-368-2 01 1 1310-
176 GROMMET; HARNESS 1-82699-906-0 01 1 1310-
176 GROMMET; HARNESS 1-82699-906-0 01 1 1310-
177 CLIP; HARNESS
L=140 		5-09707-031-1 01 1 1310-
177 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 1310-
220 HOLDER; CONNECTOR 8-94447-536-0 01 1 1310-
220 HOLDER; CONNECTOR 8-94447-536-0 01 1 1310-
313 CONNECTOR; MIRROR 8-94447-532-0 01 1 1310-
313 CONNECTOR; MIRROR 8-94447-532-0 01 1 1310-
314 BUFFER; STOPPER 8-94314-317-0 01 1 1310-
315 RUBBER ASM; CONNECTOR 1-82691-026-0 01 1 1310-
315 RUBBER ASM; CONNECTOR 1-82691-026-0 01 1 1310-

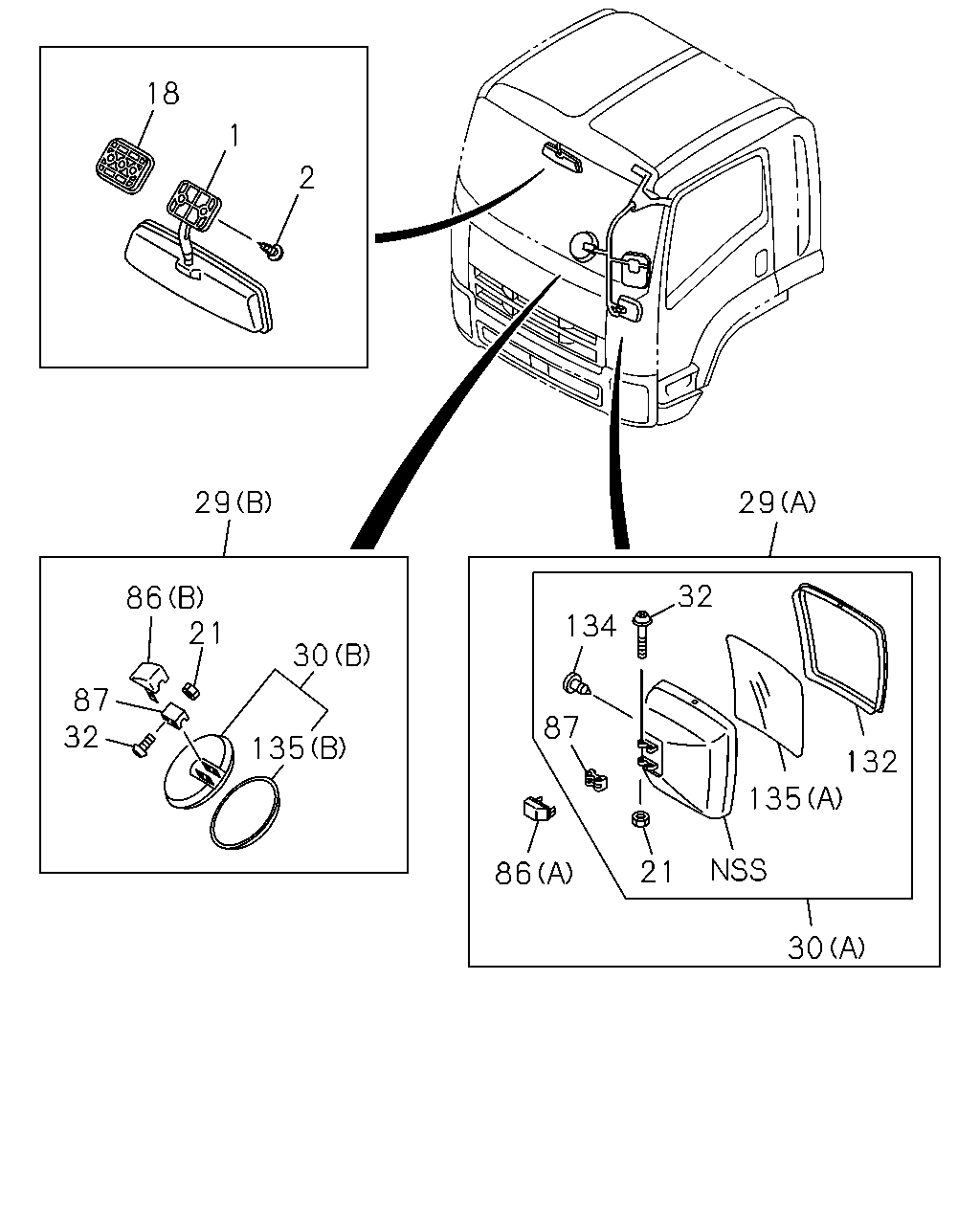

çizim 379609
18 1 2 29 86 87 32 135 30 21 134 87 86 21 30 135 132 32 29
BalonParca AdiParca NoAdetTipApplied Date
1 MIRROR; ROOM
DARK GRAY 		8-98097-534-1 01 1 1310-
2 SCREW; MIRROR TO BODY
M6X26 		8-98033-674-0 02 1 1310-
18 CLIP; MIRROR
DARK GRAY 		8-97408-241-0 01 1 1310-
21 NUT; MIRROR
M5 		1-09984-124-0 02 1 1310-
21 NUT; MIRROR
M5 		1-09984-124-0 02 1 1310-
29 MIRROR ASM; UNDER
(B) 		1-71798-421-1 01 1 1310-
29 MIRROR ASM; UNDER
(A) 		1-71798-422-0 01 1 1310-
30 MIRROR; UNDER
(B) 		1-71798-591-1 01 1 1310-
30 MIRROR; UNDER
(A) 		1-71798-592-1 01 1 1310-
32 SCREW; UNDER MIRROR
M5X40 W/PL WASHER 		1-71737-797-0 02 1 1310-
32 SCREW; UNDER MIRROR
M5X40 W/PL WASHER 		1-71737-797-0 02 1 1310-
86 COVER; STAY,OUTSIDE MIRROR
(B) BLACK 		1-71737-649-1 01 1 1310-
86 COVER; STAY,OUTSIDE MIRROR
(A) BLACK 		1-71737-652-1 01 1 1310-
86 COVER; STAY,OUTSIDE MIRROR
(E) 		8-98040-542-2 01 1 1310-
86 COVER; STAY,OUTSIDE MIRROR
(C) 		8-98040-545-1 01 1 1310-
86 COVER; STAY,OUTSIDE MIRROR
(D) 		8-98040-546-1 01 1 1310-
87 SPACER 1-71737-646-2 01 1 1310-
87 SPACER 1-71737-646-2 01 1 1310-
132 RING; MIRROR 1-71737-935-0 01 1 1310-
134 CLIP; MIRROR LENS 1-71737-936-0 01 1 1310-
135 LENS; MIRROR,SIDE UNDER
(A) 		1-71737-929-0 01 1 1310-
135 LENS; MIRROR,SIDE UNDER
(B) 		1-71798-838-0 01 1 1310-

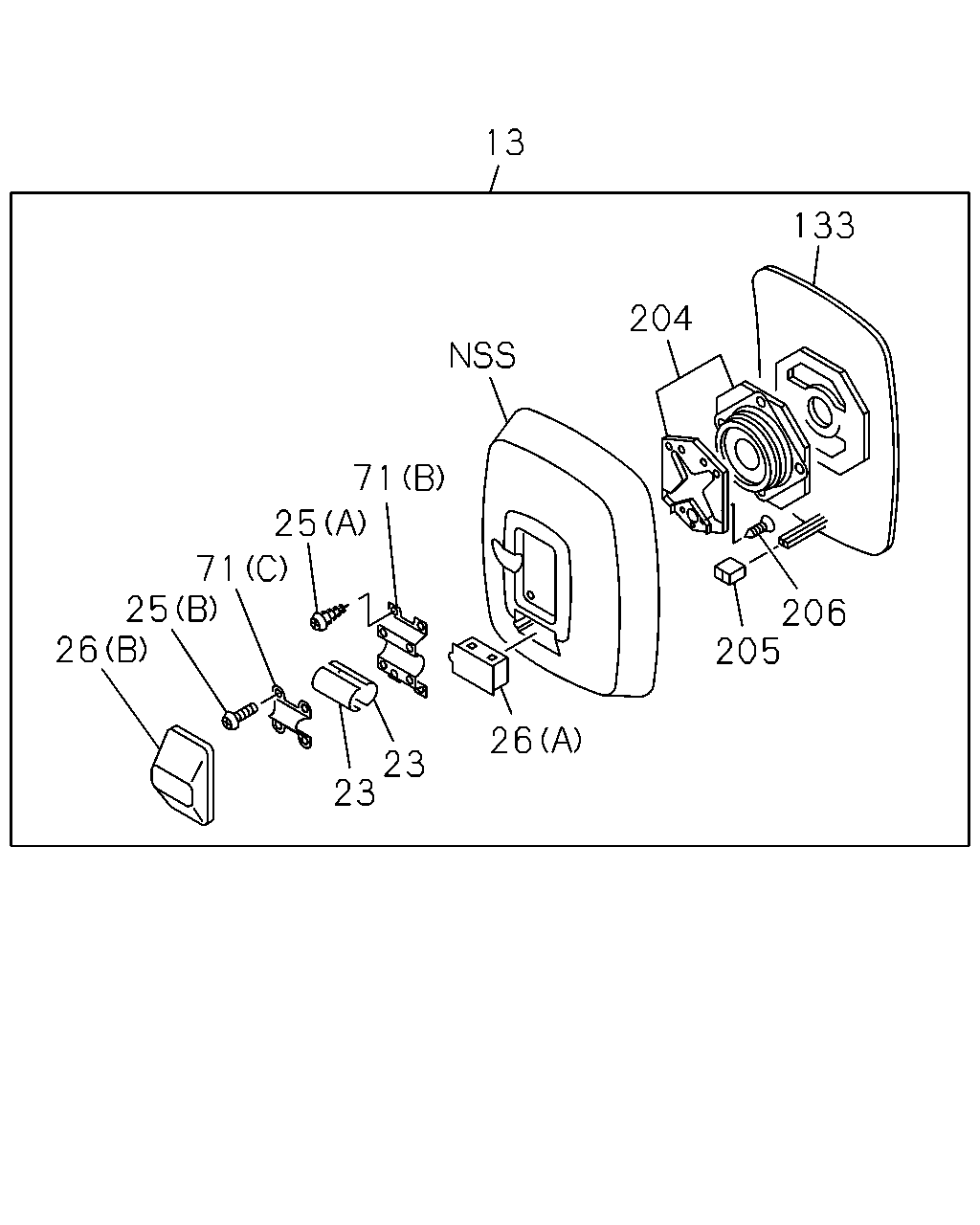

çizim 380907
13 133 204 71 25 71 25 26 23 23 26 205 206
BalonParca AdiParca NoAdetTipApplied Date
13 MIRROR ASM; OUTSIDE RR VIEW 1-71707-100-2 01 1 1310-
13 MIRROR ASM; OUTSIDE RR VIEW 1-71707-101-2 01 1 1310-
23 WASHER; OUTSIDE MIRROR 1-71797-883-0 04 1 1310-
25 SCREW; OUTSIDE MIRROR
(A) M5X14 		1-71797-881-0 08 1 1310-
25 SCREW; OUTSIDE MIRROR
(B) M6X10 		1-71797-882-0 08 1 1310-
26 COVER; OUTSIDE MIRROR
(B) 		1-71797-879-0 02 1 1310-
26 COVER; OUTSIDE MIRROR
(A) 		1-71797-880-0 02 1 1310-
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71797-877-0 02 1 1310-
71 BRACKET; OUTSIDE MIRROR
(C) 		1-71797-878-0 02 1 1310-
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98040-021-0 01 1 1310-
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98040-022-1 01 1 1310-
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98040-543-1 01 1 1310-
133 LENS; MIRROR,OUTSIDE 1-71797-952-1 01 1 1310-
133 LENS; MIRROR,OUTSIDE 1-71797-953-0 01 1 1310-
204 MOTOR KIT; MIRROR 1-71707-144-0 02 1 1310-
205 CONNECTOR KIT; MIRROR 1-71797-955-0 02 1 1310-
206 SCREW; MOTOR,MIRROR 8-98134-316-0 04 1 1310-

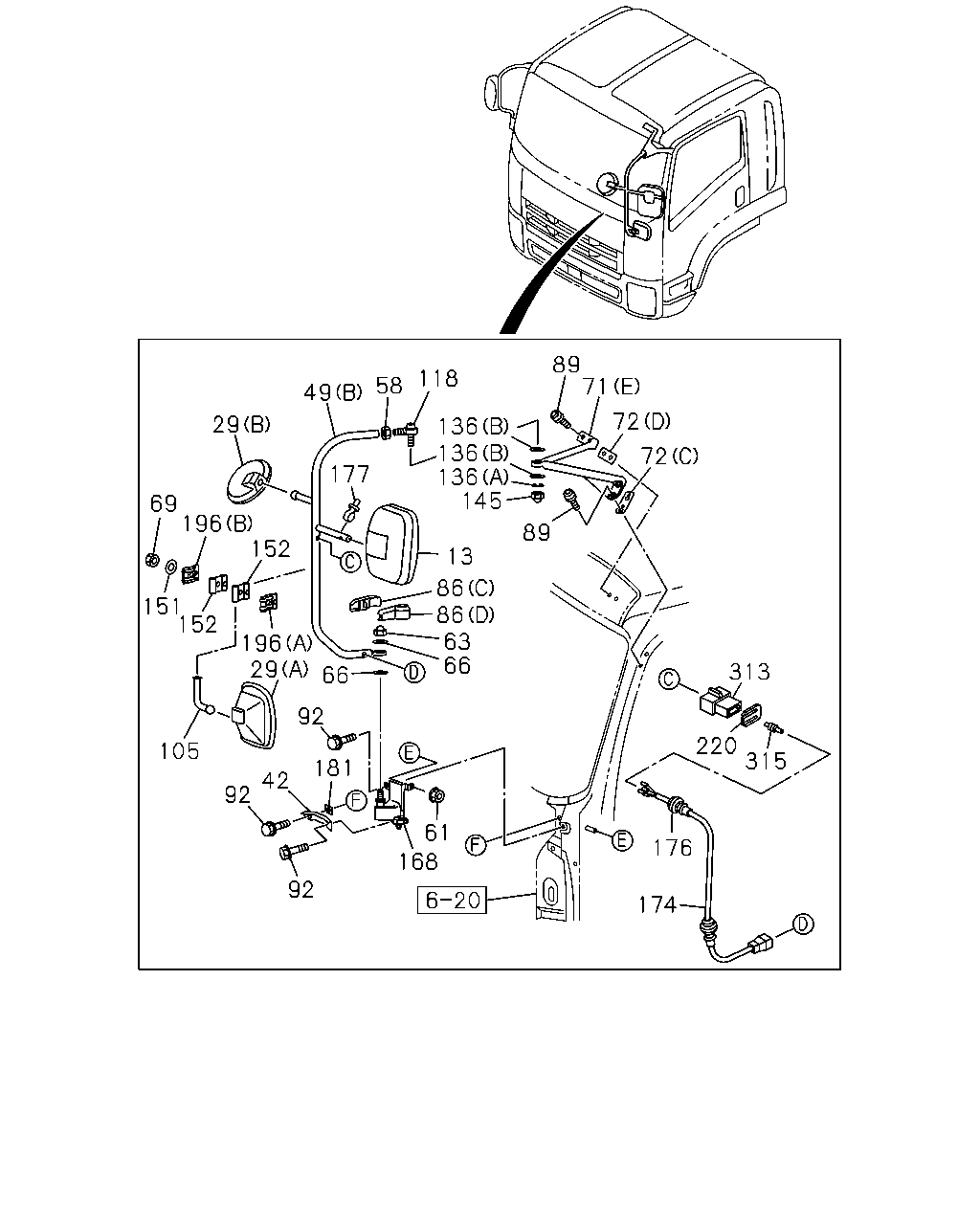

çizim 381329
69 151 152 105 92 42 92 181 92 66 29 196 196 152 29 49 58 118 136 136 136 145 13 86 86 63 66 61 168 174 176 220 315 313 89 72 72 71 89 177
BalonParca AdiParca NoAdetTipApplied Date
13 MIRROR ASM; OUTSIDE RR VIEW 1-71707-100-2 01 1 1310-
13 MIRROR ASM; OUTSIDE RR VIEW 1-71707-101-2 01 1 1310-
29 MIRROR ASM; UNDER
(B) 		1-71798-421-1 01 1 1310-
29 MIRROR ASM; UNDER
(A) 		1-71798-422-0 01 1 1310-
42 ATTACHMENT; OUTSIDE MIRROR 8-98070-643-0 01 1 1310-
49 STAY; MIRROR SIDE
(B) 		8-98083-831-1 01 1 1310-1402
49 STAY; MIRROR SIDE
(B) 		8-98257-753-0 01 1 1403-
49 STAY; MIRROR SIDE
(A) 		8-98091-456-0 01 1 1310-1502
49 STAY; MIRROR SIDE
(A) 		8-98305-584-0 01 1 1503-
58 NUT; MIRROR STAY
M12 		8-98061-883-0 01 1 1310-
61 NUT; STAY,OUTSIDE MIRROR
M8 FLANGE 		0-91180-108-0 01 1 1310-
63 NUT; STAY
M14 CAP NUT 		8-98041-311-1 01 1 1310-
66 WASHER; PL
ID=14.5 OD=30 		9-09851-946-0 02 1 1310-
69 NUT; CAP
M10 CAP NUT 		1-09984-134-0 01 1 1310-
71 BRACKET; OUTSIDE MIRROR
(B) 		1-71797-877-0 02 1 1310-
71 BRACKET; OUTSIDE MIRROR
(C) 		1-71797-878-0 02 1 1310-
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98040-021-0 01 1 1310-
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98040-022-1 01 1 1310-
71 BRACKET; OUTSIDE MIRROR
(A) 		8-98040-543-1 01 1 1310-
72 SHEET
(A) 		8-98040-351-0 01 1 1310-
72 SHEET
(B) 		8-98040-353-1 01 1 1310-
72 SHEET
(C) 		8-98040-535-0 01 1 1310-
72 SHEET
(D) 		8-98040-537-1 01 1 1310-
86 COVER; STAY,OUTSIDE MIRROR
(B) BLACK 		1-71737-649-1 01 1 1310-
86 COVER; STAY,OUTSIDE MIRROR
(A) BLACK 		1-71737-652-1 01 1 1310-
86 COVER; STAY,OUTSIDE MIRROR
(E) 		8-98040-542-2 01 1 1310-
86 COVER; STAY,OUTSIDE MIRROR
(C) 		8-98040-545-1 01 1 1310-
86 COVER; STAY,OUTSIDE MIRROR
(D) 		8-98040-546-1 01 1 1310-
89 SCREW; BRKT,OUTSIDE MIRROR
M8X26 W/PL WASHER 		8-98067-249-2 10 1 1310-
92 BOLT; STAY BRKT,MIRROR
M8X16 FLANGE 		8-98076-109-0 04 1 1310-
105 STAY; SUB UNDER MIRROR 8-98041-571-2 01 1 1310-1402
105 STAY; SUB UNDER MIRROR 8-98257-761-0 01 1 1403-
118 JOINT ASM; BALL 1-71798-356-2 01 1 1310-
136 WASHER; LK,BRKT,MIRROR STAY
(A) ID=10 		1-09985-180-0 01 1 1310-
136 WASHER; LK,BRKT,MIRROR STAY
(B) ID=10.5 OD=26 T=2.6 		1-09985-184-0 02 1 1310-
136 WASHER; LK,BRKT,MIRROR STAY
(C) ID=10.5 OD=26 T=2.6 		1-09985-204-0 04 1 1310-
145 NUT; CAP,SUB STAY
M10 CAP NUT 		1-09984-134-0 03 1 1310-
151 WASHER; PL,MIRROR
ID=10.5 T=2.0 		1-09985-183-0 01 1 1310-
152 SHEET; MIRROR STAY 1-71798-445-1 02 1 1310-
168 POWER UNIT; MIRROR STAY 8-97612-287-2 01 1 1310-
174 HARNESS; MIRROR 8-98047-367-0 01 1 1310-1402
174 HARNESS; MIRROR 8-98258-260-0 01 1 1403-
174 HARNESS; MIRROR 8-98047-368-2 01 1 1310-
176 GROMMET; HARNESS 1-82699-906-0 01 1 1310-
176 GROMMET; HARNESS 1-82699-906-0 01 1 1310-
177 CLIP; HARNESS
L=140 		5-09707-031-1 01 1 1310-
177 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 1310-
181 SEAL; BRKT
25X25 		8-94272-533-0 01 1 1310-
196 HOLDER; STAY
(A) 		1-71798-442-2 01 1 1310-
196 HOLDER; STAY
(B) 		1-71798-444-2 01 1 1310-
220 HOLDER; CONNECTOR 8-94447-536-0 01 1 1310-
220 HOLDER; CONNECTOR 8-94447-536-0 01 1 1310-
313 CONNECTOR; MIRROR 8-94447-532-0 01 1 1310-
313 CONNECTOR; MIRROR 8-94447-532-0 01 1 1310-
315 RUBBER ASM; CONNECTOR 1-82691-026-0 01 1 1310-
315 RUBBER ASM; CONNECTOR 1-82691-026-0 01 1 1310-
