Sayfa 7-10 - Isuzu EPC

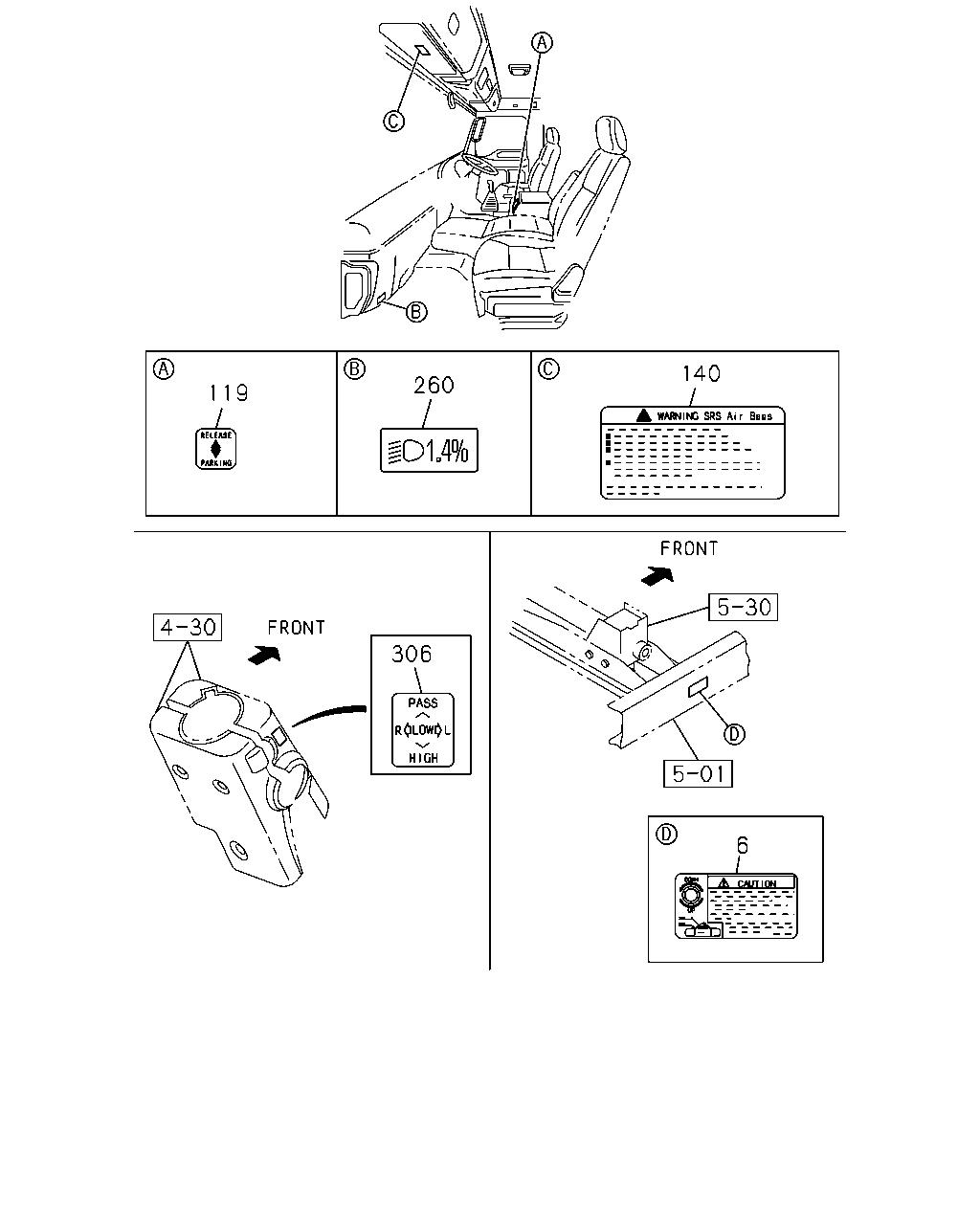

7-10 — CAUTION PLATE AND LABEL (#129013) — 8 parça

119 260 140 6 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	PLATE; CAUTION,SPARE TIRE SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8>	8-98082-437-0	01	1	1310-
119	PLATE; CAUTION,HAND BRK LEVER	1-85881-759-0	01	1	1310-
140	PLATE; CAUTION,SRS AIR BAG DRIVER(AJ3) EXC. H.S.A SYSTEM<6EP>,TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98139-964-0	01	1	1310-
260	PLATE; CAUTION,HEAD LAMP LEVELING	8-98008-779-0	01	1	1310-
306	LABEL; BEAM & PASS	8-98070-239-0	01	1	1310-

49 35 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

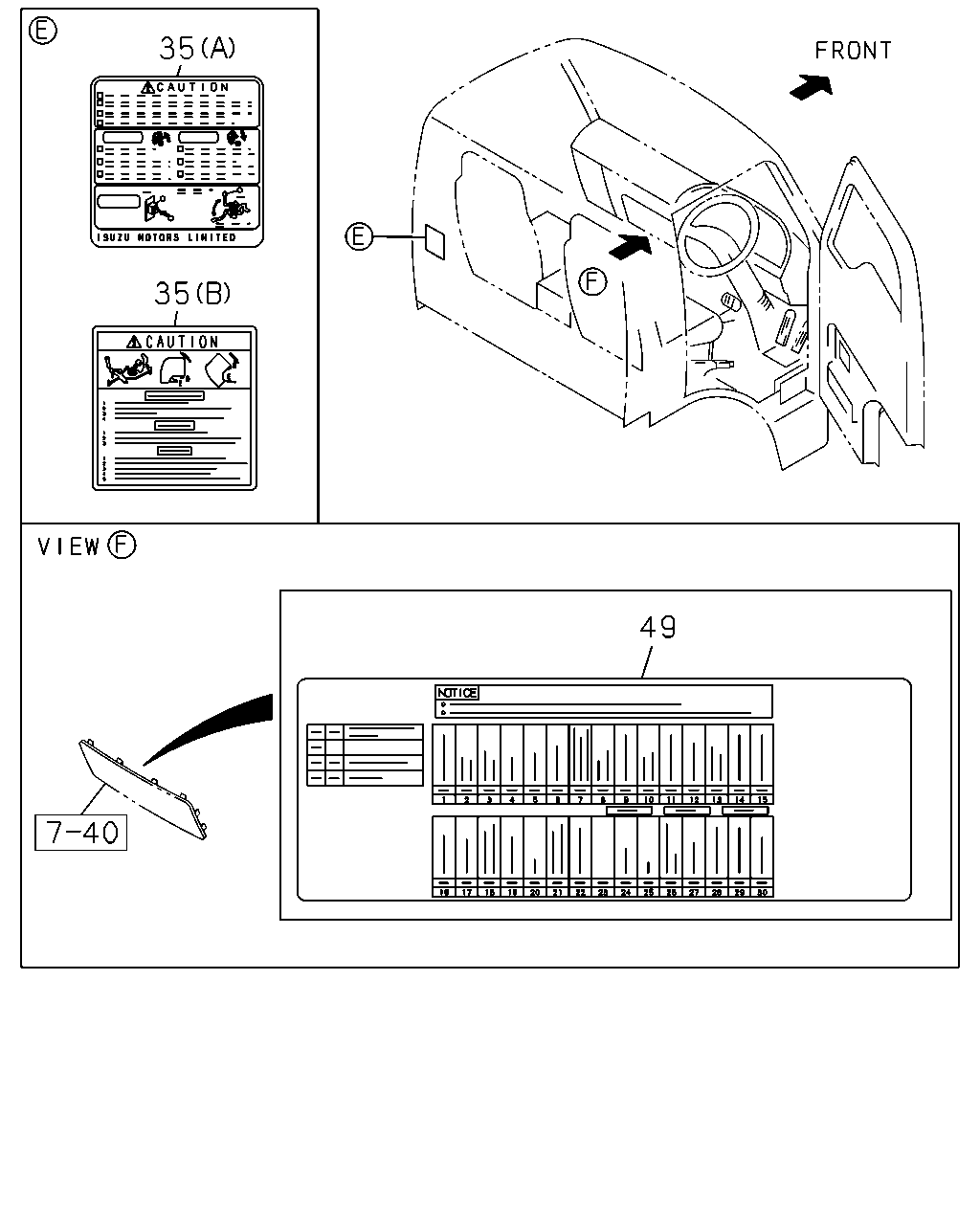

35	PLATE; CAUTION,CAB AUTO CAB TILT<WV2> (A)	8-98017-667-1	01	1	1310-
35	PLATE; CAUTION,CAB EXC. AUTO CAB TILT<WV2> (B)	8-98065-363-0	01	1	1310-
49	PLATE; CAUTION,FUSE BOX	8-98122-353-0	01	1	1310-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
