◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11555 - FTR-RHD EURO5 W/DOC ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#129004) — 64 parça

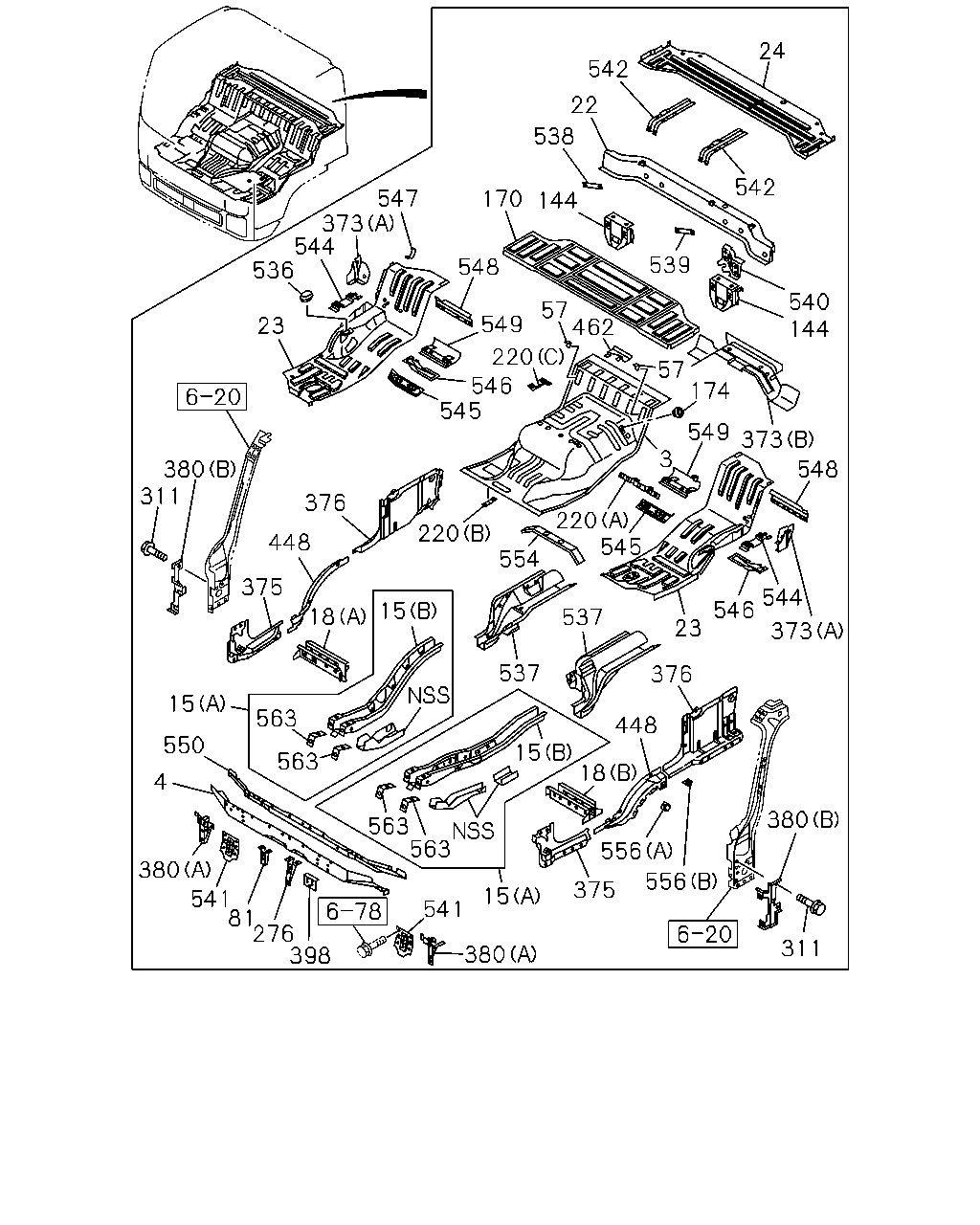

çizim 381429
24 542 542 22 538 170 539 540 174 57 144 144 549 548 373 462 57 220 3 548 549 547 373 544 536 23 545 546 220 220 545 554 537 537 23 376 448 546 373 18 15 380 311 556 556 375 15 544 15 563 563 563 563 448 375 15 550 4 311 380 376 18 380 541 541 380 398 276 81
BalonParca AdiParca NoAdetTipApplied Date
3 HOOD ASM; ENG
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98167-036-0 01 1 1310-
3 HOOD ASM; ENG
EXC. TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98167-037-0 01 1 1310-
4 FRAME; FLOOR,FRT 8-98073-693-1 01 1 1310-
15 FRAME; UNDER
(A) 		8-97584-387-9 01 1 1310-
15 FRAME; UNDER
(B) 		8-97584-388-9 01 1 1310-
15 FRAME; UNDER
(A) 		8-97584-411-9 01 1 1310-
15 FRAME; UNDER
(B) 		8-97584-412-7 01 1 1310-
18 FRAME; FLOOR,CENTER SIDE
(A) 		8-97584-398-4 01 1 1310-
18 FRAME; FLOOR,CENTER SIDE
(B) 		8-97584-421-4 01 1 1310-
22 FRAME; FLOOR REAR 8-97584-431-5 01 1 1310-
23 PANEL; FLOOR,SIDE 8-97584-372-7 01 1 1310-
23 PANEL; FLOOR,SIDE 8-98073-691-1 01 1 1310-
24 PANEL; BED PAN 8-97584-378-6 01 1 1310-
57 BRACKET; SPARE TIRE 8-98038-970-1 02 1 1310-
81 BRACKET; HARNESS SUPPORT 8-98041-333-3 01 1 1310-
144 BRACKET; MTG,RR 8-97584-432-6 01 1 1310-
144 BRACKET; MTG,RR 8-97589-666-6 01 1 1310-
170 EXTENSION; RR FLOOR 8-97589-207-4 01 1 1310-
174 GROMMET; AIR PIPE
OD=35 		8-94122-971-0 01 1 1310-
220 PATCH
(A) 		8-97588-840-4 01 1 1310-
220 PATCH
(B) 		8-97589-603-3 01 1 1310-
220 PATCH
(C) 		8-97589-627-2 01 1 1310-
276 BRACKET; RAD GRILLE 8-97589-596-3 01 1 1310-
311 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 04 1 1310-
373 REINFORCEMENT; SEAT BELT
(B) 		8-97584-345-9 01 1 1310-
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-367-2 01 1 1310-
373 REINFORCEMENT; SEAT BELT
(A) 		8-97584-375-2 01 1 1310-
375 CLOSING; PILLAR 8-98044-897-3 01 1 1310-
375 CLOSING; PILLAR 8-98044-898-3 01 1 1310-
376 CLOSING; PILLAR,LWR 8-97589-554-4 01 1 1310-1403
376 CLOSING; PILLAR,LWR 8-98199-228-0 01 1 1404-
376 CLOSING; PILLAR,LWR 8-97589-556-5 01 1 1310-
380 BRACKET; HEAD LAMP
(A) 		8-97584-460-2 01 1 1310-
380 BRACKET; HEAD LAMP
(A) 		8-97589-506-2 01 1 1310-
380 BRACKET; HEAD LAMP
(B) 		8-98032-614-1 01 1 1310-
380 BRACKET; HEAD LAMP
(B) 		8-98032-615-1 01 1 1310-
398 BRACKET; PIPE SUPPORT 8-97589-681-3 01 1 1310-
448 CLOSING; ROCKER 8-97589-551-2 01 1 1310-
448 CLOSING; ROCKER 8-97589-552-2 01 1 1310-
462 BRACKET; EXTINGUISHER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AUTO CAB TILT<WV2> 		8-97585-688-1 01 1 1310-
462 BRACKET; EXTINGUISHER
AUTO CAB TILT<WV2> 		8-97585-688-1 01 1 1310-
536 PLUG; CABLE,PTO 8-97612-074-1 01 1 1310-
537 SUPPORT ASM; MTG RR 8-97584-391-4 01 1 1310-
537 SUPPORT ASM; MTG RR 8-97584-417-4 01 1 1310-
538 REINFORCEMENT ASM; AIR INT DUCT 8-97610-207-2 01 1 1310-
539 PATCH ASM; SAFTY HOOK 8-97584-440-2 01 1 1310-
540 BRACKET ASM; CAB LOCK LEVER 8-97584-438-1 01 1 1310-
541 REINFORCEMENT; MTG,FRT 8-98067-903-0 02 1 1310-
542 BOLSTER; BED PAN 8-97589-685-1 02 1 1310-
544 BRACKET; DUMP CONT 8-97584-363-1 01 1 1310-
544 BRACKET; DUMP CONT 8-98049-529-0 01 1 1310-
545 BRACKET; SEAT FRT 8-97584-361-1 01 1 1310-
545 BRACKET; SEAT FRT 8-97584-373-1 01 1 1310-
546 REINFORCEMENT; FLOOR SIDE 8-97584-427-0 02 1 1310-
547 BRACKET; JACK HANDLE 8-97588-843-1 01 1 1310-
548 BRACKET; MUD GUARD 8-97588-961-1 01 1 1310-
548 BRACKET; MUD GUARD 8-97588-962-1 01 1 1310-
549 BRACKET; SEAT RR 8-97588-958-4 01 1 1310-
549 BRACKET; SEAT RR 8-97589-557-4 01 1 1310-
550 CLOSING ASM; MTG,FRT 8-97584-615-4 01 1 1310-
554 REINFORCEMENT; FLOOR CENTER 8-97584-351-2 01 1 1310-
556 BRACKET; TILT HANDLE
EXC. AUTO CAB TILT<WV2> (A) 		8-98077-605-1 01 1 1310-
556 BRACKET; TILT HANDLE
EXC. AUTO CAB TILT<WV2> (B) 		8-98077-606-1 01 1 1310-
563 REINFORCEMENT; MTG FRT,RR 8-97589-579-2 04 1 1310-
