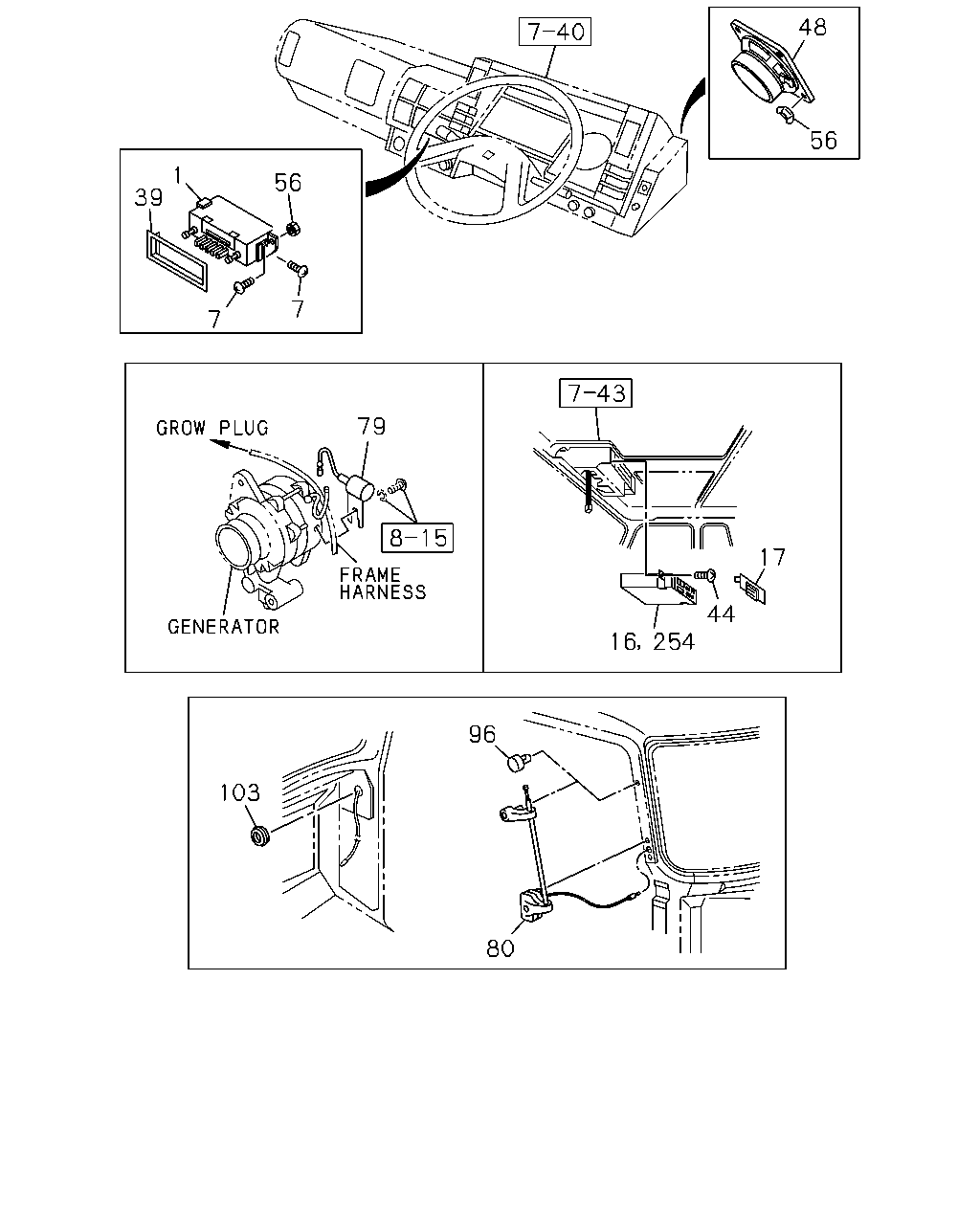

8-90 — RADIO AND TV (#129) — 26 parça

48 56 56 1 39 7 7 79 16 254 44 17 103 96 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	RADIO RADIO CLARION(SK2),RADIO AM & TAPE PLAYER(UM1)	1-84112-034-0	01	1	9202-	●	●
7	SCREW; RADIO RADIO AM/FM<U69> M6X16 W/PL WASHER	1-09981-438-0	03	1	9202-	●	●
7	SCREW; RADIO RADIO CLARION(SK2),RADIO AM & TAPE PLAYER(UM1) M6X16 W/LK&PL WASHER	1-09981-141-0	02	1	9202-9210	●	●
7	SCREW; RADIO SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> M6X16 W/LK&PL WASHER	1-09981-141-0	02	1	9202-9210	●	●
7	SCREW; RADIO RADIO CLARION(SK2),RADIO AM & TAPE PLAYER(UM1) M6X16 W/LK&PL WASHER	1-09981-141-0	02	1	9211-	●	●
7	SCREW; RADIO SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> M6X16 W/LK&PL WASHER	1-09981-141-0	02	1	9211-	●
16	CASSETTE STEREO RADIO AM & TAPE PLAYER(UM1)	1-84120-032-1	01	1	9202-	●	●
17	ATTACH KIT; CASSETTE RADIO AM & TAPE PLAYER(UM1)	1-84125-015-0	01	1	9202-	●	●
39	ESCUTCHEON RADIO CLARION(SK2),RADIO AM & TAPE PLAYER(UM1)	1-84119-034-1	01	1	9202-	●	●
39	ESCUTCHEON EXC. RADIO CLARION(SK2),RADIO AM & TAPE PLAYER(UM1),RADIO AM/FM<U69>	1-84125-007-2	01	1	9202-	●	●
44	SCREW; CONV RADIO AM & TAPE PLAYER(UM1) M6X16 W/WASHER	1-09981-112-0	02	1	9202-	●	●
48	SPEAKER; AUDIO RADIO AM & TAPE PLAYER(UM1),RADIO AM/FM<U69>	1-84114-044-0	02	1	9202-	●	●
48	SPEAKER; AUDIO RADIO CLARION(SK2)	1-84114-044-0	01	1	9202-	●	●
48	SPEAKER; AUDIO SPEAKER SYSTEM FRT 2 SPEAKERS<UX6>	1-84114-049-0	02	1	9202-9210	●	●
48	SPEAKER; AUDIO SPEAKER SYSTEM FRT 2 SPEAKERS<UX6>	1-84114-049-0	02	1	9211-	●
56	NUT; SPEAKER,RADIO OR STEREO RADIO AM & TAPE PLAYER(UM1),RADIO AM/FM<U69>	1-09984-118-0	04	1	9202-	●	●
56	NUT; SPEAKER,RADIO OR STEREO RADIO AM/FM<U69>	1-09984-118-0	04	1	9202-	●	●
56	NUT; SPEAKER,RADIO OR STEREO RADIO CLARION(SK2)	1-09984-118-0	02	1	9202-	●	●
79	CONDENSER; RADIO RADIO CLARION(SK2),RADIO AM & TAPE PLAYER(UM1), RADIO AM/FM<U69>	1-84132-004-0	01	1	9202-9204	●	●
80	ANTENNA RADIO CLARION(SK2),RADIO AM & TAPE PLAYER(UM1), RADIO AM/FM<U69>	1-84115-051-1	01	1	9202-	●	●
80	ANTENNA ANTENNA RADIO<U73>	1-84115-051-1	01	1	9202-	●	●
96	PLUG; ANTENNA HOLE EXC. RADIO CLARION(SK2),RADIO AM & TAPE PLAYER(UM1),SPEAKER SYSTEM FRT 2 SPEAKERS<UX6>,RADIO AM/FM<U69>	1-09983-094-0	03	1	9202-	●	●
103	GROMMET; ANTENNA HOLE,FRT RADIO CLARION(SK2),RADIO AM & TAPE PLAYER(UM1), RADIO AM/FM<U69> ID=10 OD=42 T=5	1-09983-111-0	01	1	9202-	●	●
103	GROMMET; ANTENNA HOLE,FRT SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> ID=10 OD=42 T=5	1-09983-111-0	01	1	9202-	●	●
103	GROMMET; ANTENNA HOLE,FRT EXC. RADIO CLARION(SK2),RADIO AM & TAPE PLAYER(UM1),SPEAKER SYSTEM FRT 2 SPEAKERS<UX6>,RADIO AM/FM<U69>	1-09983-097-0	01	1	9202-	●	●
254	RADIO CONTROL ASM; STEREO,AM-FM RADIO AM/FM<U69>	1-84112-053-0	01	1	9202-	●	●
