◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11555 - FTR-RHD EURO5 W/DOC ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-01 - FRONT BUMPER ▶
6-01 — FRONT BUMPER (#128990) — 49 parça

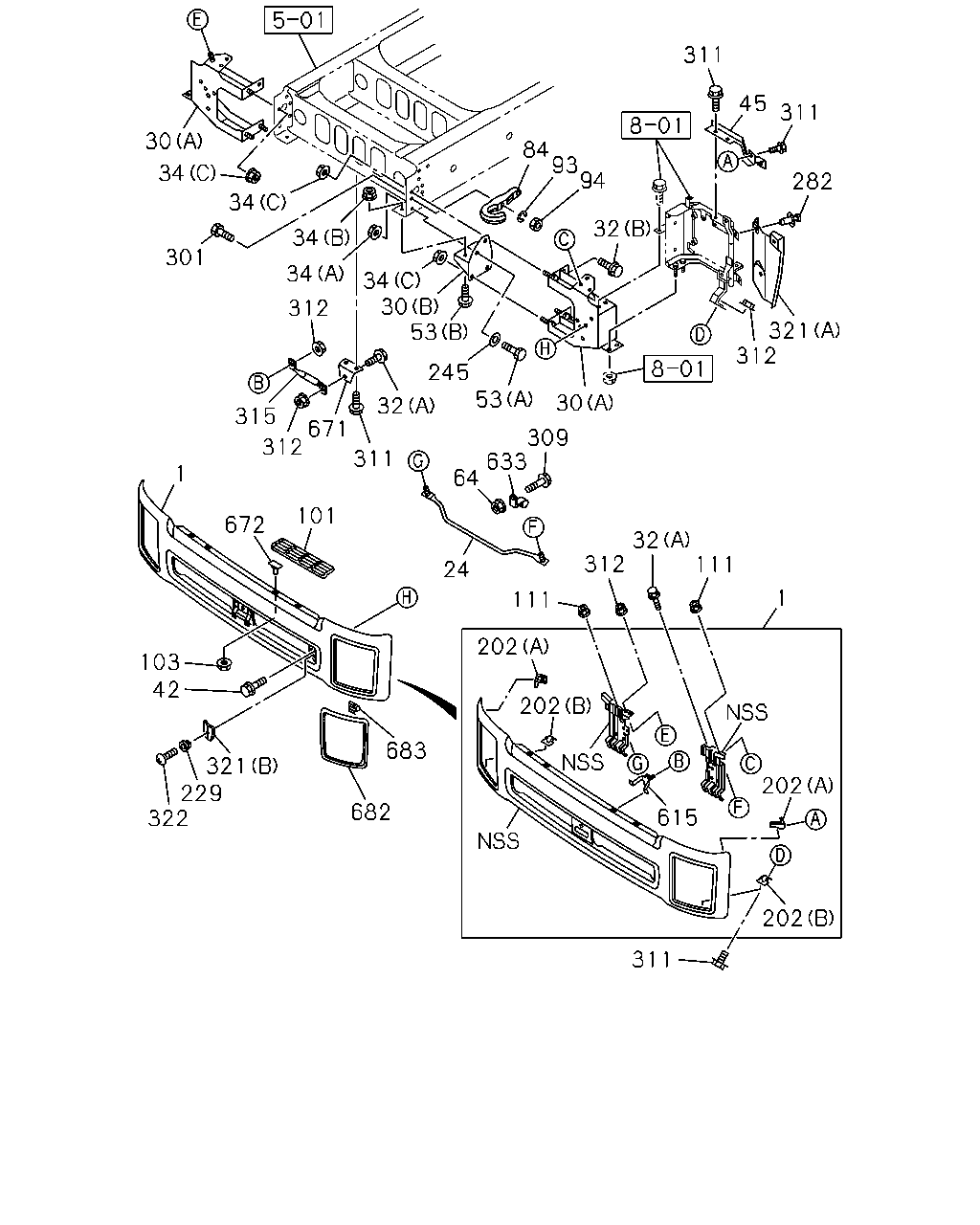

çizim 380962
202 311 615 202 202 202 683 682 321 229 322 42 103 672 101 24 1 111 111 32 312 1 312 321 282 311 45 311 32 94 93 84 30 309 633 64 245 32 311 671 312 315 312 34 34 34 53 30 53 34 301 34 30
BalonParca AdiParca NoAdetTipApplied Date
1 BUMPER ASM; FRT
WHITE 		8-97409-903-1 01 1 1310-
24 BAR; FRT BUMPER 8-97625-359-0 01 1 1310-
30 BRACKET; FRT BUMPER
(A) 		8-98034-434-2 01 1 1310-
30 BRACKET; FRT BUMPER
(A) 		8-98034-435-2 01 1 1310-
30 BRACKET; FRT BUMPER
(B) 		8-98053-546-1 01 1 1310-
30 BRACKET; FRT BUMPER
(B) 		8-98053-547-1 01 1 1310-
32 BOLT; BRKT,BUMPER
(B) M12X35 FLANGE 		0-28051-235-0 02 1 1310-
32 BOLT; BRKT,BUMPER
(A) M10X30 		8-94324-205-0 01 1 1310-
34 NUT; BRKT,BUMPER
(A) M16 		0-91110-516-0 02 1 1310-
34 NUT; BRKT,BUMPER
(C) M12 FLANGE 		0-91180-212-0 06 1 1310-
34 NUT; BRKT,BUMPER
(B) M14 FLANGE 		0-91180-214-0 04 1 1310-
42 BOLT; BUMPER
M10X30 		8-94324-205-0 06 1 1310-
45 BRACKET; BRKT TO BUMPER 8-97613-647-2 01 1 1310-
45 BRACKET; BRKT TO BUMPER 8-97613-648-2 01 1 1310-
53 BOLT; BRKT TO FRAME
(A) M16X40 		0-20851-640-0 02 1 1310-
53 BOLT; BRKT TO FRAME
(B) M14X45 FLANGE 		0-28851-445-0 04 1 1310-
64 NUT; CLIP
M6 FLANGE 		0-91180-106-0 01 1 1310-
84 HOOK 1-57181-027-1 01 1 1310-
93 WASHER; LK,HOOK
ID=16.2 		0-91510-816-0 02 1 1310-
94 NUT; HOOK
M16 		0-91110-516-0 02 1 1310-
101 STEP; BUMPER 8-97611-542-0 01 1 1310-
101 STEP; BUMPER 8-97611-543-0 01 1 1310-
103 NUT; BUMPER STEP
M6 FLANGE 		0-91180-106-0 04 1 1310-
111 NUT; STAY
M8 FLANGE 		0-91180-108-0 02 1 1310-
202 BRACKET; BUMPER SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR TRANS BLUE(999) (A) 		8-97613-636-0 01 1 1310-
202 BRACKET; BUMPER SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR TRANS BLUE(999) (A) 		8-97613-637-0 01 1 1310-
202 BRACKET; BUMPER SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR TRANS BLUE(999) (B) 		8-97613-640-1 01 1 1310-
202 BRACKET; BUMPER SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR TRANS BLUE(999) (B) 		8-97613-641-1 01 1 1310-
229 GROMMET
D=7X7 L=7.5 		5-09983-007-0 02 1 1310-
245 WASHER; PL,BRKT TO FRAME
ID=17 OD=30 		0-91610-516-0 02 1 1310-
282 FASTENER; BUMPER FILLER
D8X13.5 		1-09987-248-1 08 1 1310-
301 BOLT; HOOK TO FRAME
M16X70 		0-10861-670-0 02 1 1310-
309 BOLT; CLIP
M6X16 FLANGE 		0-28650-616-0 01 1 1310-
311 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 06 1 1310-
311 BOLT; BRKT
M10X30 		8-94324-205-0 07 1 1310-
312 NUT; BRKT
M10 FLANGE 		0-91180-210-0 05 1 1310-
315 STAY; BUMPER 8-97613-645-1 01 1 1310-
321 COVER; BUMPER FRT SIDE
(B) 		8-97616-296-1 01 1 1310-
321 COVER; BUMPER FRT SIDE
(B) 		8-97616-297-1 01 1 1310-
321 COVER; BUMPER FRT SIDE
(A) 		8-97619-119-0 01 1 1310-
321 COVER; BUMPER FRT SIDE
(A) 		8-97619-120-0 01 1 1310-
322 SCREW; COVER FIX
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1310-
615 BRACKET; BUMPER CENTER
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR TRANS BLUE(999) 		8-97613-643-1 01 1 1310-
633 CLIP; BUMPER
ID=16 H=24 L=20 		0-95207-315-0 01 1 1310-
671 BRACKET; STAY 8-97620-889-0 01 1 1310-
672 STUD; STEP
M6X20 		8-97611-666-0 04 1 1310-
682 BEZEL; BUMPER 8-97611-530-2 01 1 1310-
682 BEZEL; BUMPER 8-97611-531-2 01 1 1310-
683 CLIP; BEZEL,BUMPER 8-98084-293-0 08 1 1310-
