◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11555 - FTR-RHD EURO5 W/DOC ▶ 5 - Frame, Cab Mounting ▶ 5-16 - OIL PUMP; CAB TILT ▶
5-16 — OIL PUMP; CAB TILT (#128986) — 56 parça

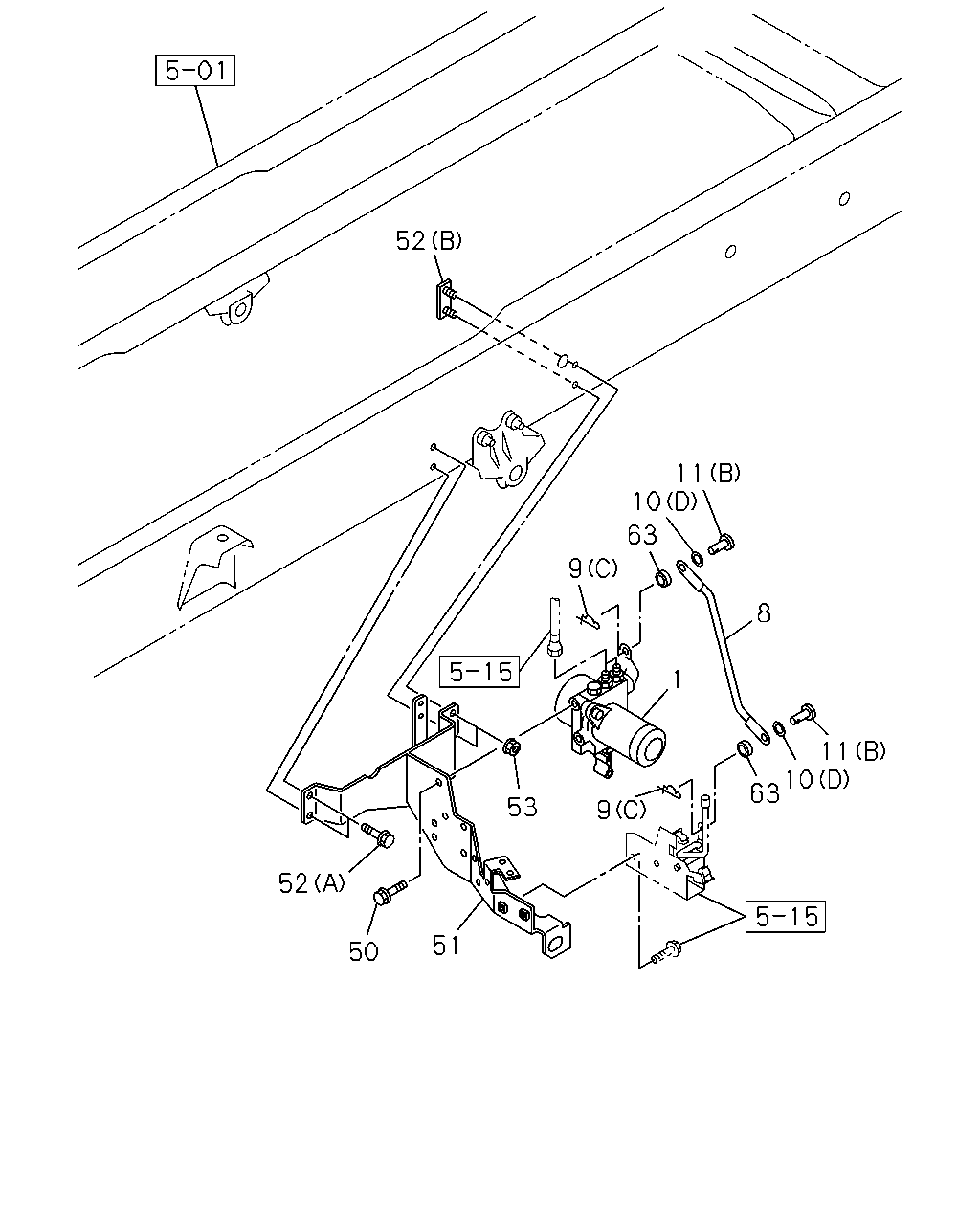

çizim 380122
52 52 50 51 53 9 63 10 11 8 1 9 63 10 11
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP; OIL,CAB TILT
AUTO CAB TILT<WV2> 		8-98087-856-1 01 1 1310-
8 LINK; OIL PUMP
AUTO CAB TILT<WV2> 		8-98022-480-0 01 1 1310-
9 PIN; OIL PUMP
AUTO CAB TILT<WV2> (C) L=27.7 		1-09987-141-0 02 1 1310-
9 PIN; OIL PUMP
AUTO CAB TILT<WV2> (A) 		1-53458-057-0 01 1 1310-
9 PIN; OIL PUMP
AUTO CAB TILT<WV2> (B) 		1-53458-060-0 01 1 1310-
10 WASHER; OIL PUMP
AUTO CAB TILT<WV2> (D) ID=8.4 OD=22 		0-91610-708-0 02 1 1310-
10 WASHER; OIL PUMP
AUTO CAB TILT<WV2> (A) 		1-53457-208-0 01 1 1310-
10 WASHER; OIL PUMP
AUTO CAB TILT<WV2> (B) 		1-53457-211-0 01 1 1310-
10 WASHER; OIL PUMP
AUTO CAB TILT<WV2> (C) 		1-53458-013-0 01 1 1310-
11 PIN; SPLIT,OIL PUMP
AUTO CAB TILT<WV2> (B) OD=8 L=17 		0-82253-817-0 02 1 1310-
11 PIN; SPLIT,OIL PUMP
AUTO CAB TILT<WV2> (A) 		1-53457-209-0 02 1 1310-
50 BOLT; OIL PUMP
AUTO CAB TILT<WV2> M10X16 FLANGE 		0-28051-016-0 02 1 1310-
51 BRACKET; OIL PUMP
AUTO CAB TILT<WV2> 		8-98022-422-3 01 1 1310-
52 BOLT; BRKT
AUTO CAB TILT<WV2> (A) M10X40 FLANGE 		0-28651-040-0 02 1 1310-
52 BOLT; BRKT
AUTO CAB TILT<WV2> (B) 		8-98087-304-0 01 1 1310-
53 NUT; BRKT
AUTO CAB TILT<WV2> M10 FLANGE 		0-91180-210-0 02 1 1310-
63 GROMMET
AUTO CAB TILT<WV2> ID=10 OD=23 T=8 		1-09983-010-0 02 1 1310-

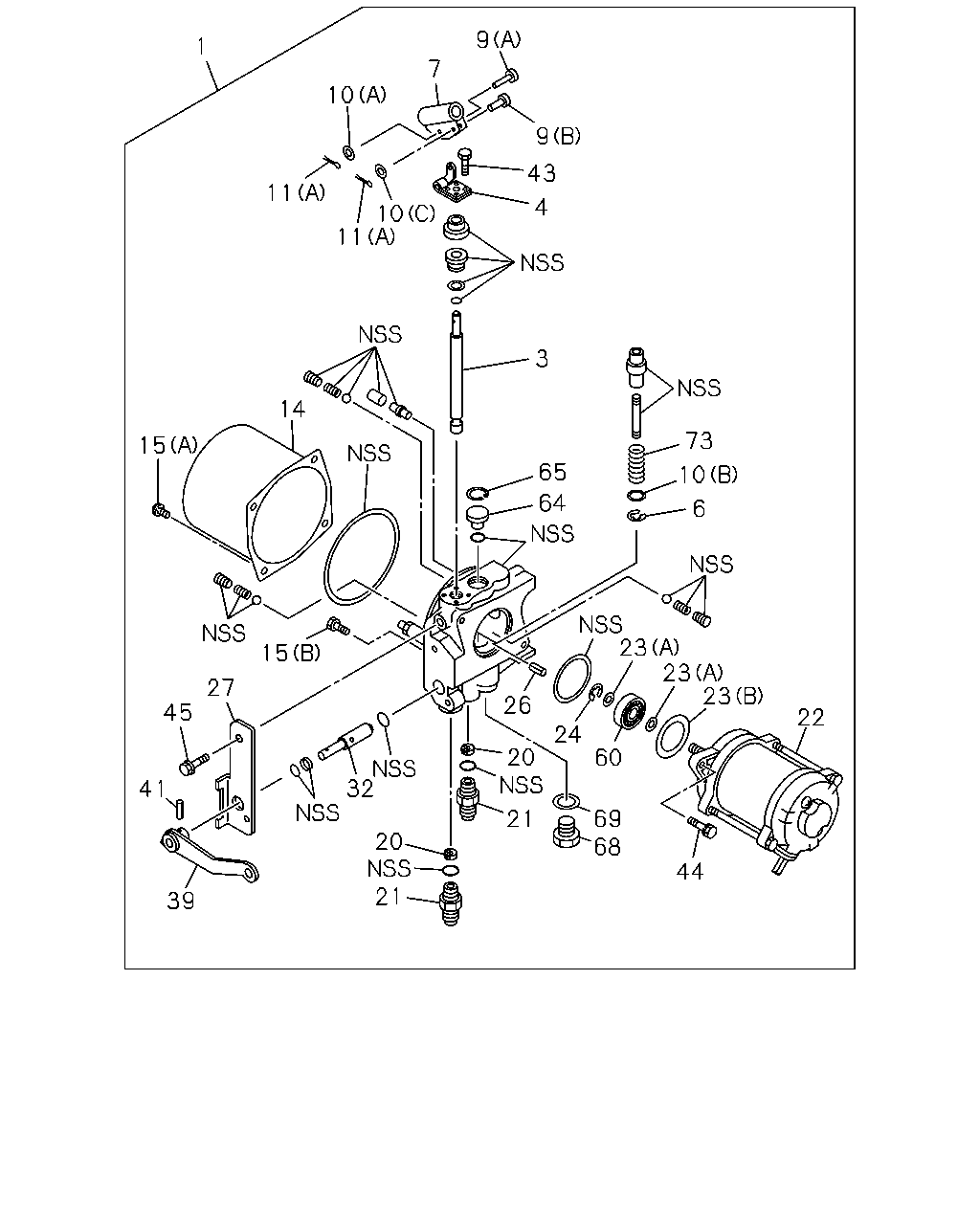

çizim 381582
1 10 7 9 11 11 10 9 43 3 73 10 6 65 64 14 15 15 27 45 41 39 32 20 21 21 20 60 69 68 44 26 24 22 23 23 23 4
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP; OIL,CAB TILT
AUTO CAB TILT<WV2> 		8-98087-856-1 01 1 1310-
3 PISTON; MANUAL
AUTO CAB TILT<WV2> 		1-53457-204-0 01 1 1310-
4 BRACKET; OIL PUMP
AUTO CAB TILT<WV2> 		1-53457-205-0 01 1 1310-
6 RING; SNAP
AUTO CAB TILT<WV2> 		1-53457-210-0 01 1 1310-
7 SOCKET; OIL PUMP
AUTO CAB TILT<WV2> 		1-53457-207-0 01 1 1310-
9 PIN; OIL PUMP
AUTO CAB TILT<WV2> (C) L=27.7 		1-09987-141-0 02 1 1310-
9 PIN; OIL PUMP
AUTO CAB TILT<WV2> (A) 		1-53458-057-0 01 1 1310-
9 PIN; OIL PUMP
AUTO CAB TILT<WV2> (B) 		1-53458-060-0 01 1 1310-
10 WASHER; OIL PUMP
AUTO CAB TILT<WV2> (D) ID=8.4 OD=22 		0-91610-708-0 02 1 1310-
10 WASHER; OIL PUMP
AUTO CAB TILT<WV2> (A) 		1-53457-208-0 01 1 1310-
10 WASHER; OIL PUMP
AUTO CAB TILT<WV2> (B) 		1-53457-211-0 01 1 1310-
10 WASHER; OIL PUMP
AUTO CAB TILT<WV2> (C) 		1-53458-013-0 01 1 1310-
11 PIN; SPLIT,OIL PUMP
AUTO CAB TILT<WV2> (B) OD=8 L=17 		0-82253-817-0 02 1 1310-
11 PIN; SPLIT,OIL PUMP
AUTO CAB TILT<WV2> (A) 		1-53457-209-0 02 1 1310-
14 RESERVOIR; OIL PUMP
AUTO CAB TILT<WV2> 		1-53457-213-0 01 1 1310-
15 BOLT; RESERVOIR
AUTO CAB TILT<WV2> (A) M5X8 		1-53458-005-0 04 1 1310-
15 BOLT; RESERVOIR
AUTO CAB TILT<WV2> (B) M5X8 		1-53458-433-0 02 1 1310-
20 FILTER; OIL PUMP
AUTO CAB TILT<WV2> 		1-53457-081-0 02 1 1310-
21 CONNECTOR; OIL PUMP
AUTO CAB TILT<WV2> M12 		1-53458-941-0 02 1 1310-
22 MOTOR; OIL PUMP
AUTO CAB TILT<WV2> 		1-53457-080-0 01 1 1310-
23 WASHER; MOTOR
AUTO CAB TILT<WV2> (A) 		1-53457-212-0 02 1 1310-
23 WASHER; MOTOR
AUTO CAB TILT<WV2> (B) 		1-53458-018-0 01 1 1310-
24 RING; SNAP,MOTOR
AUTO CAB TILT<WV2> 		1-53458-044-0 01 1 1310-
26 PIN; SPR,OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-038-0 01 1 1310-
27 COVER; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-568-0 01 1 1310-
32 VALVE; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-569-0 01 1 1310-
39 LEVER; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-567-0 01 1 1310-
41 PIN; SPR,LEVER
AUTO CAB TILT<WV2> 		1-53458-019-0 01 1 1310-
43 BOLT; LEVER
AUTO CAB TILT<WV2> M5X16 		1-53457-206-0 03 1 1310-
44 BOLT; MOTOR
AUTO CAB TILT<WV2> M6X20 		1-53458-007-0 02 1 1310-
45 BOLT; COVER
AUTO CAB TILT<WV2> M6X8 		1-53458-004-0 02 1 1310-
60 BEARING; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-423-0 01 1 1310-
64 SLEEVE; OIL PUMP
AUTO CAB TILT<WV2> 		1-53458-572-0 01 1 1310-
65 RING; SNAP,SLEEVE
AUTO CAB TILT<WV2> 		1-53458-570-0 01 1 1310-
68 PLUG; FILLER
AUTO CAB TILT<WV2> 		1-53458-428-0 01 1 1310-
69 GASKET; FILLER PLUG
AUTO CAB TILT<WV2> 		1-53458-427-0 01 1 1310-
73 SPRING; PISTON
AUTO CAB TILT<WV2> 		1-53458-040-0 01 1 1310-

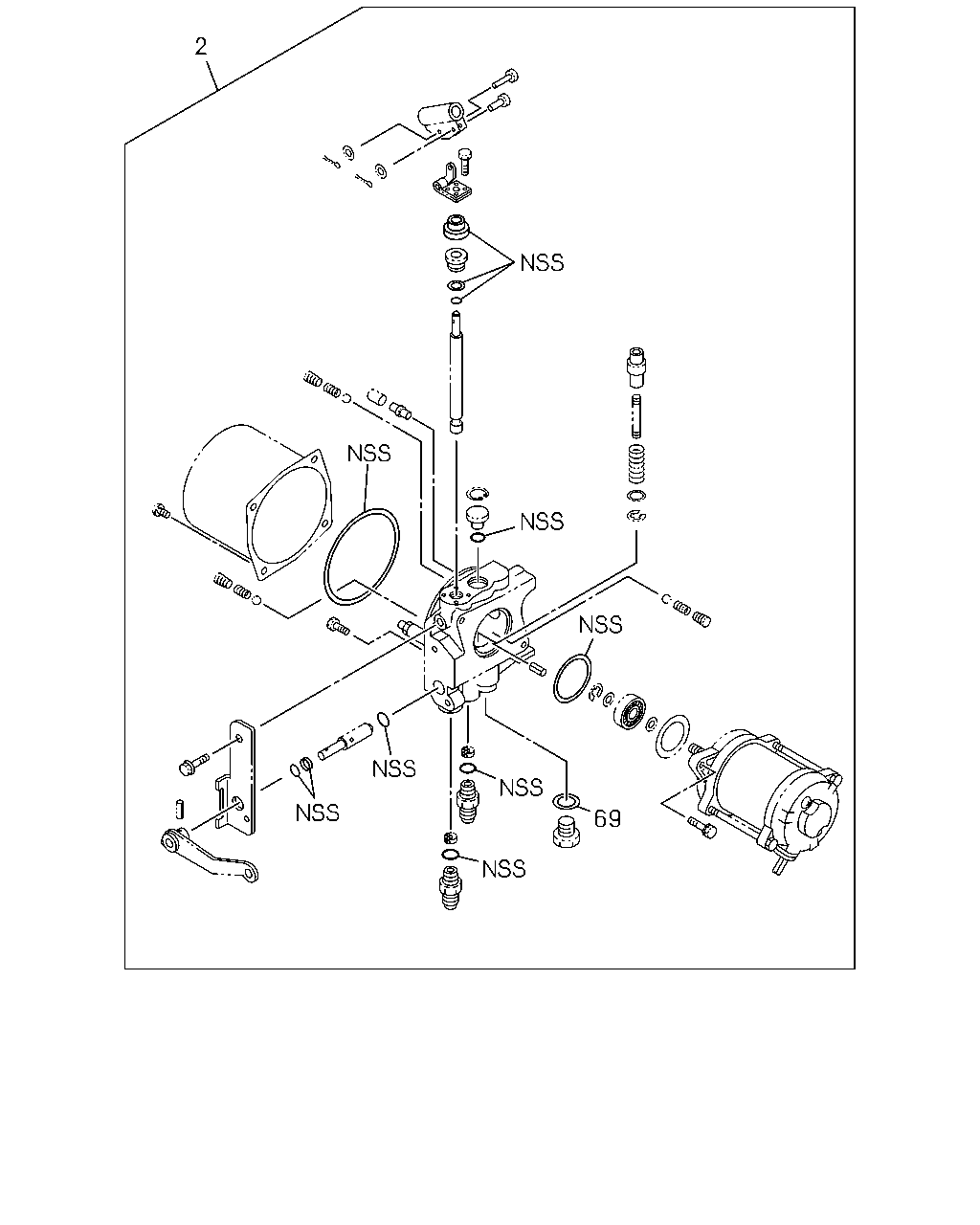

çizim 381813
2 69
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; OIL PUMP
AUTO CAB TILT<WV2> 		1-85579-069-0 01 1 1310-
69 GASKET; FILLER PLUG
AUTO CAB TILT<WV2> 		1-53458-427-0 01 1 1310-
