5-15 — CAB MOUNTING; CAB SIDE (#128985) — 96 parça

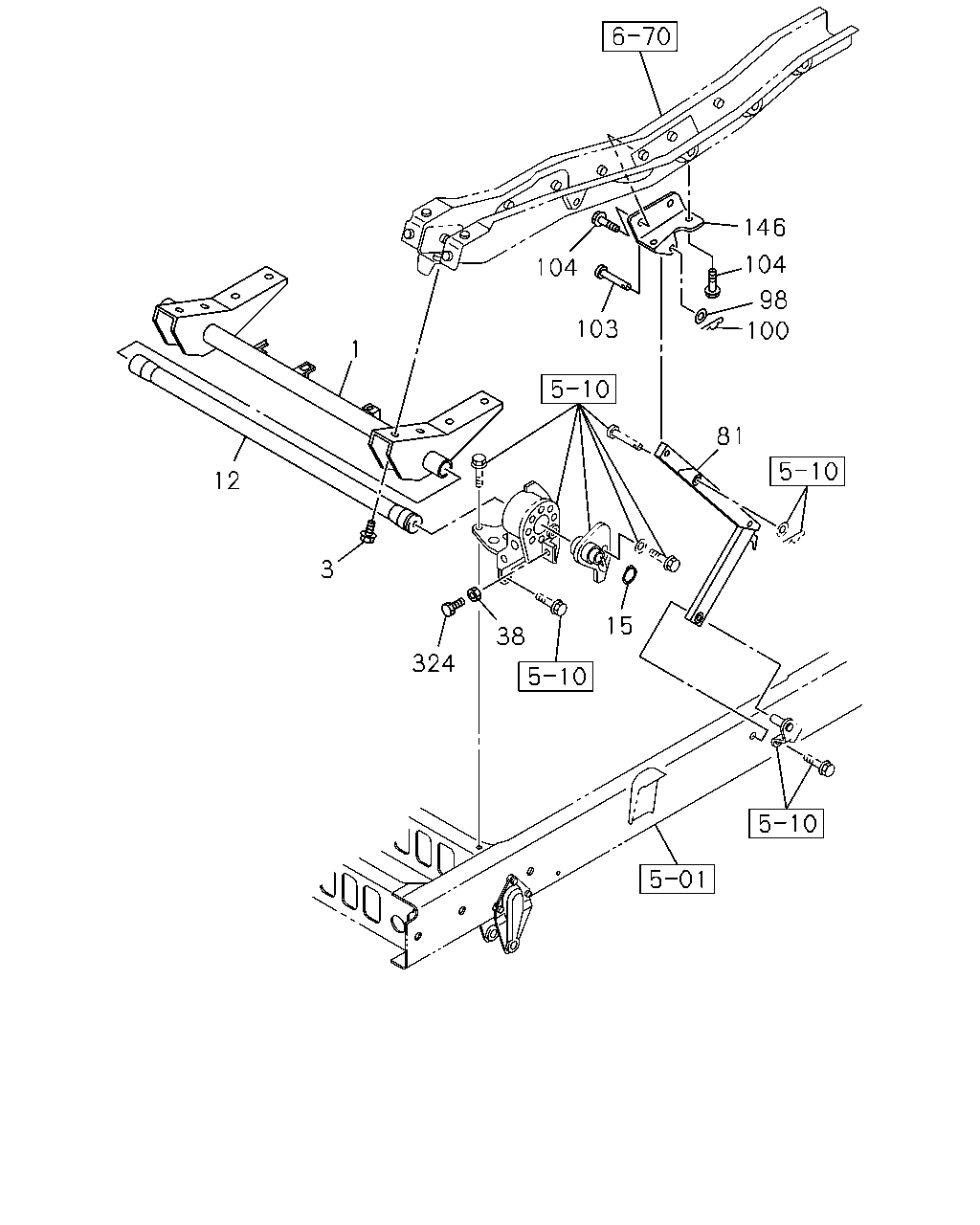

1 12 3 324 104 103 146 104 98 100 81 15 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LEVER; TORSION BAR EXC. AUTO CAB TILT<WV2>	8-98010-752-7	01	1	1310-
3	BOLT; LEVER EXC. AUTO CAB TILT<WV2> M12X42 FLANGE	8-98090-287-1	08	1	1310-
12	BAR; TORSION,UPR EXC. AUTO CAB TILT<WV2>	8-98010-947-1	01	1	1310-
15	RING; SNAP,TORSION BAR EXC. AUTO CAB TILT<WV2> T=1.90 BLUE	8-97129-615-0	01	1	1310-
38	NUT; LK EXC. AUTO CAB TILT<WV2> M14	0-91110-514-0	01	1	1310-
81	STAY ASM; CAB TILT EXC. AUTO CAB TILT<WV2>	1-62500-761-0	01	1	1310-1406
81	STAY ASM; CAB TILT EXC. AUTO CAB TILT<WV2>	8-98278-116-0	01	1	1407-
98	WASHER; CAB STAY EXC. AUTO CAB TILT<WV2> ID=10.5 T=2.0	1-09985-183-0	01	1	1310-
100	PIN; SNAP,CAB STAY TO CAB EXC. AUTO CAB TILT<WV2> L=34	8-98039-426-1	01	1	1310-
103	PIN; JOINT,CAB STAY EXC. AUTO CAB TILT<WV2>	1-09744-108-1	01	1	1310-
104	BOLT; CAB STAY BRKT EXC. AUTO CAB TILT<WV2> M10X30 FLANGE	0-28661-030-0	04	1	1310-
146	BRACKET ASM; CAB STAY UPR EXC. AUTO CAB TILT<WV2>	8-98019-506-0	01	1	1310-
324	BOLT; ADJUST EXC. AUTO CAB TILT<WV2> M14X55	8-98004-319-1	01	1	1310-1511
324	BOLT; ADJUST EXC. AUTO CAB TILT<WV2> M14X59	8-98330-402-0	01	1	1512-

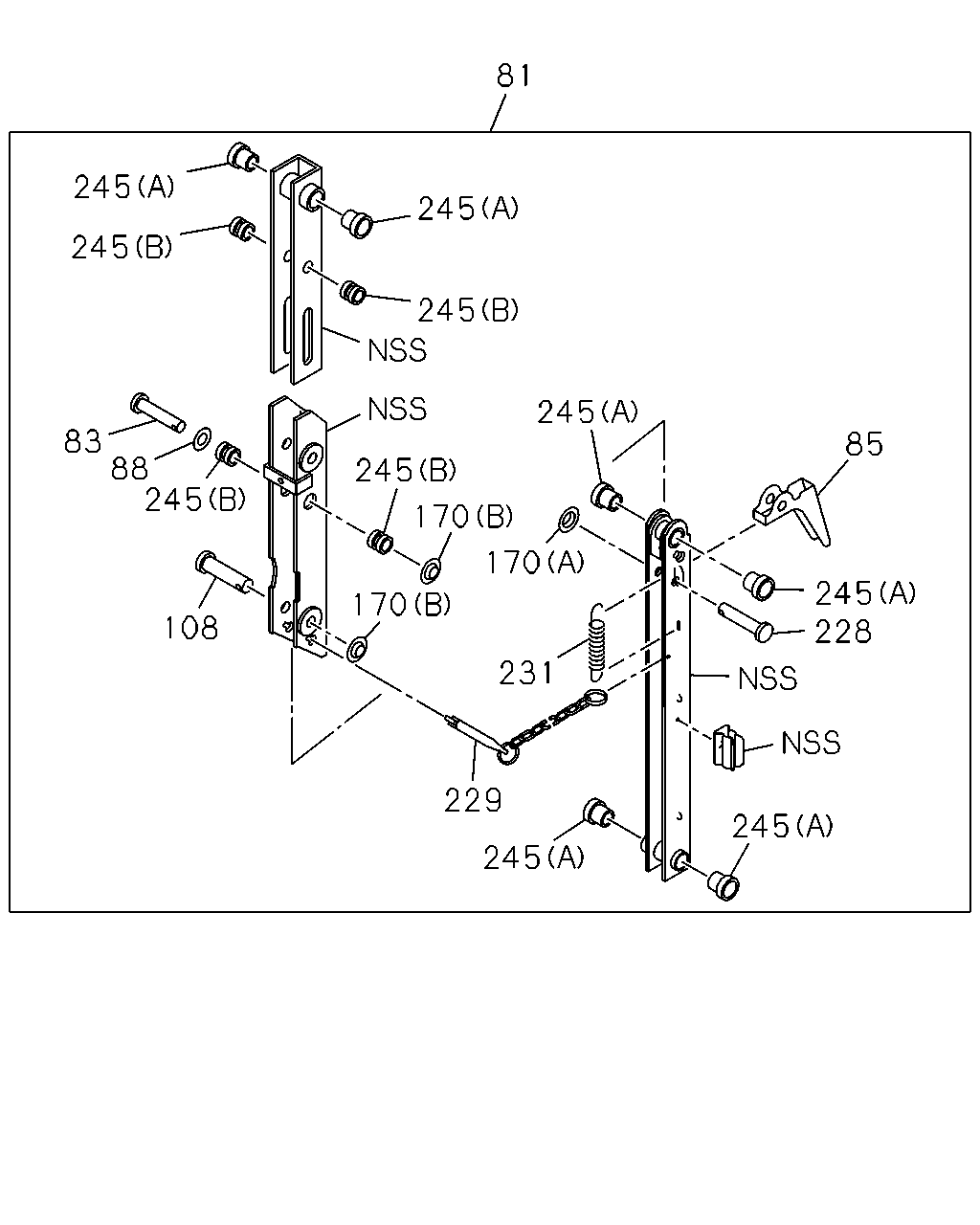

81 245 245 245 245 83 88 245 108 245 170 170 170 245 85 245 228 245 245 229 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
81	STAY ASM; CAB TILT EXC. AUTO CAB TILT<WV2>	1-62500-761-0	01	1	1310-1406
81	STAY ASM; CAB TILT EXC. AUTO CAB TILT<WV2>	8-98278-116-0	01	1	1407-
83	PIN; JOINT,CAB STAY EXC. AUTO CAB TILT<WV2> OD=10 L=42	1-09744-106-0	01	1	1310-
85	LEVER; LOCK,CAB STAY EXC. AUTO CAB TILT<WV2>	1-62500-503-0	01	1	1310-
88	WASHER; PL,CAB STAY PIN EXC. AUTO CAB TILT<WV2> ID=10.5 T=2.0	1-09985-183-0	01	1	1310-
108	PIN; ADJ,CAB STAY EXC. AUTO CAB TILT<WV2> OD=10 L=42	1-09744-106-0	01	1	1310-
170	NUT EXC. AUTO CAB TILT<WV2> (A) ID=7.9 PUSH NUT	8-97022-565-0	01	1	1310-
170	NUT EXC. AUTO CAB TILT<WV2> (B) ID=9.9 PUSH NUT	8-97022-566-0	02	1	1310-
228	PIN; SAFETY LOCK SPRING,CAB STAY EXC. AUTO CAB TILT<WV2> OD=8 L=27	1-09744-086-2	01	1	1310-
229	PIN ASM; SAFETY EXC. AUTO CAB TILT<WV2>	1-62500-517-1	01	1	1310-
231	SPRING; RETURN,LOCK LEVER,CAB STAY EXC. AUTO CAB TILT<WV2>	1-09583-244-0	01	1	1310-
245	BUSHING; CAB STAY EXC. AUTO CAB TILT<WV2> (A)	1-62500-587-0	06	1	1310-
245	BUSHING; CAB STAY EXC. AUTO CAB TILT<WV2> (B)	1-62500-588-0	04	1	1310-

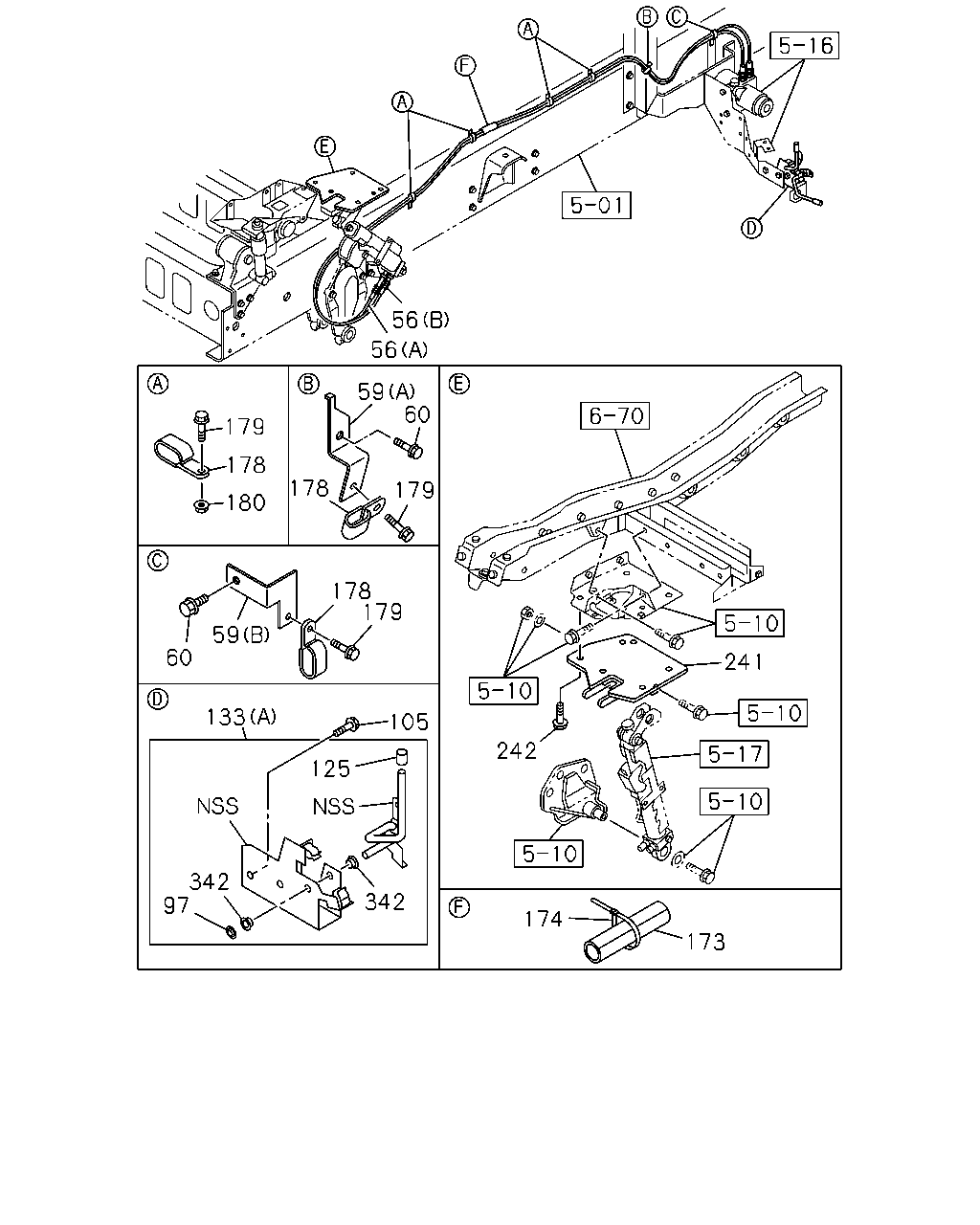

56 56 59 179 178 180 60 179 178 178 179 59 60 133 342 97 342 125 105 242 174 173 241

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
56	HOSE; FLEX,OIL PIPE AUTO CAB TILT<WV2> (A)	8-98022-487-2	01	1	1310-
56	HOSE; FLEX,OIL PIPE AUTO CAB TILT<WV2> (B)	8-98087-331-1	01	1	1310-
59	BRACKET; CLIP AUTO CAB TILT<WV2> (A)	8-98083-608-1	01	1	1310-
59	BRACKET; CLIP AUTO CAB TILT<WV2> (B)	8-98083-609-0	01	1	1310-
60	BOLT; BRKT AUTO CAB TILT<WV2> M8X20 FLANGE	0-28650-820-0	02	1	1310-
97	NUT; CAB STAY PIN AUTO CAB TILT<WV2> ID=9.9 PUSH NUT	8-97022-566-0	01	1	1310-
105	BOLT; CAB STAY AUTO CAB TILT<WV2> M8X16 FLANGE	0-28050-816-0	02	1	1310-
125	GRIP; HAND LEVER,CAB LOCK AUTO CAB TILT<WV2> ID=9.0	8-94207-303-0	01	1	1310-
133	LOCK ASM; CAB AUTO CAB TILT<WV2> (A)	8-97608-198-0	01	1	1310-
133	LOCK ASM; CAB (B)	8-98061-489-1	01	1	1310-
133	LOCK ASM; CAB (C)	8-98094-285-2	01	1	1310-
173	SLEEVE; RUBBER,FLEX HOSE AUTO CAB TILT<WV2> ID=17 OD=21 L=40	1-09337-012-0	01	1	1310-
174	CLIP; BAND,FLEX HOSE AUTO CAB TILT<WV2> L=140	5-09707-031-1	01	1	1310-
178	CLIP; FLEX HOSE AUTO CAB TILT<WV2> ID=11X2 L=20	0-95325-035-0	07	1	1310-
179	BOLT; CLIP,FLEX HOSE AUTO CAB TILT<WV2> M8X20 FLANGE	0-28650-820-0	06	1	1310-
179	BOLT; CLIP,FLEX HOSE AUTO CAB TILT<WV2> M8X30 FLANGE	0-28650-830-0	03	1	1310-
180	NUT; CLIP AUTO CAB TILT<WV2> M8 FLANGE	0-91180-108-0	02	1	1310-
180	NUT; CLIP AUTO CAB TILT<WV2> M8 FLANGE	0-91180-108-0	04	1	1310-
241	BRACKET; POWER CYL UPR,CAB TILT AUTO CAB TILT<WV2>	8-98022-417-1	01	1	1310-
242	BOLT; POWER CYL BRKT,CAB TILT AUTO CAB TILT<WV2> M10X30 FLANGE	0-28661-030-0	05	1	1310-
342	BUSHING; LEVER,CAB LOCK AUTO CAB TILT<WV2> T=6 OD=17.5	9-33659-249-0	02	1	1310-

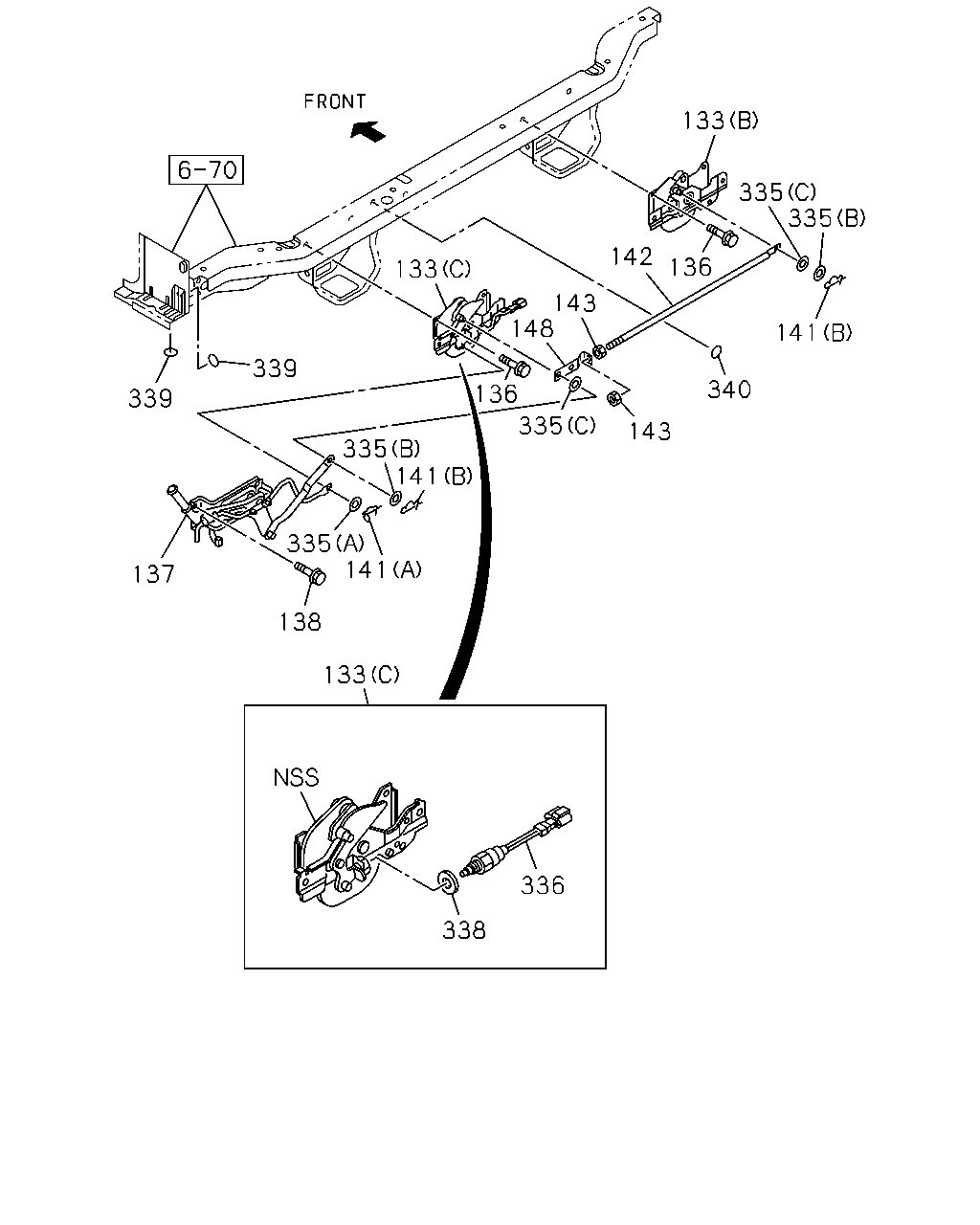

338 336 133 138 141 335 137 335 141 339 339 133 136 148 335 143 143 340 141 136 142 133 335 335

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
133	LOCK ASM; CAB AUTO CAB TILT<WV2> (A)	8-97608-198-0	01	1	1310-
133	LOCK ASM; CAB (B)	8-98061-489-1	01	1	1310-
133	LOCK ASM; CAB (C)	8-98094-285-2	01	1	1310-
136	BOLT; CAB LK M8X20 FLANGE	0-28650-820-0	08	1	1310-
137	CONTROL UNIT; CAB LOCK	8-97587-592-5	01	1	1310-
138	BOLT; CAB LOCK CONT UNIT M8X20 FLANGE	0-28650-820-0	04	1	1310-
141	PIN; SNAP,CAB LOCK ROD (B) L=32.6	8-98062-280-0	02	1	1310-
141	PIN; SNAP,CAB LOCK ROD (A) L=25.3	8-98039-045-1	01	1	1310-
141	PIN; SNAP,CAB LOCK ROD EXC. AUTO CAB TILT<WV2> (A) L=25.3	8-98039-045-1	01	1	1310-
142	ROD; HOOK TO HOOK	8-97587-990-0	01	1	1310-
143	NUT; JAW JOINT,HOOK TO HOOK M10	0-91110-510-0	02	1	1310-
148	JOINT; JAW,HOOK TO HOOK	8-97410-736-0	01	1	1310-
335	WASHER; CAB LOCK ROD (A) ID=8.4 OD=16	0-91610-508-0	01	1	1310-
335	WASHER; CAB LOCK ROD (B) ID=12.5 OD=26	0-91610-612-0	02	1	1310-
335	WASHER; CAB LOCK ROD (C) ID=13 OD=22	8-98060-839-0	02	1	1310-
336	SWITCH; CAB LOCK	8-98091-155-1	01	1	1310-
338	WASHER; CAB LOCK ID=17 OD=30	0-91610-516-0	01	1	1310-
339	SEAL; TILT HANDLE AUTO CAB TILT<WV2> OD=25 BLACK	1-76798-019-0	04	1	1310-
340	SEAL; HOLE AUTO CAB TILT<WV2> OD=25 BLACK	1-76798-019-0	02	1	1310-

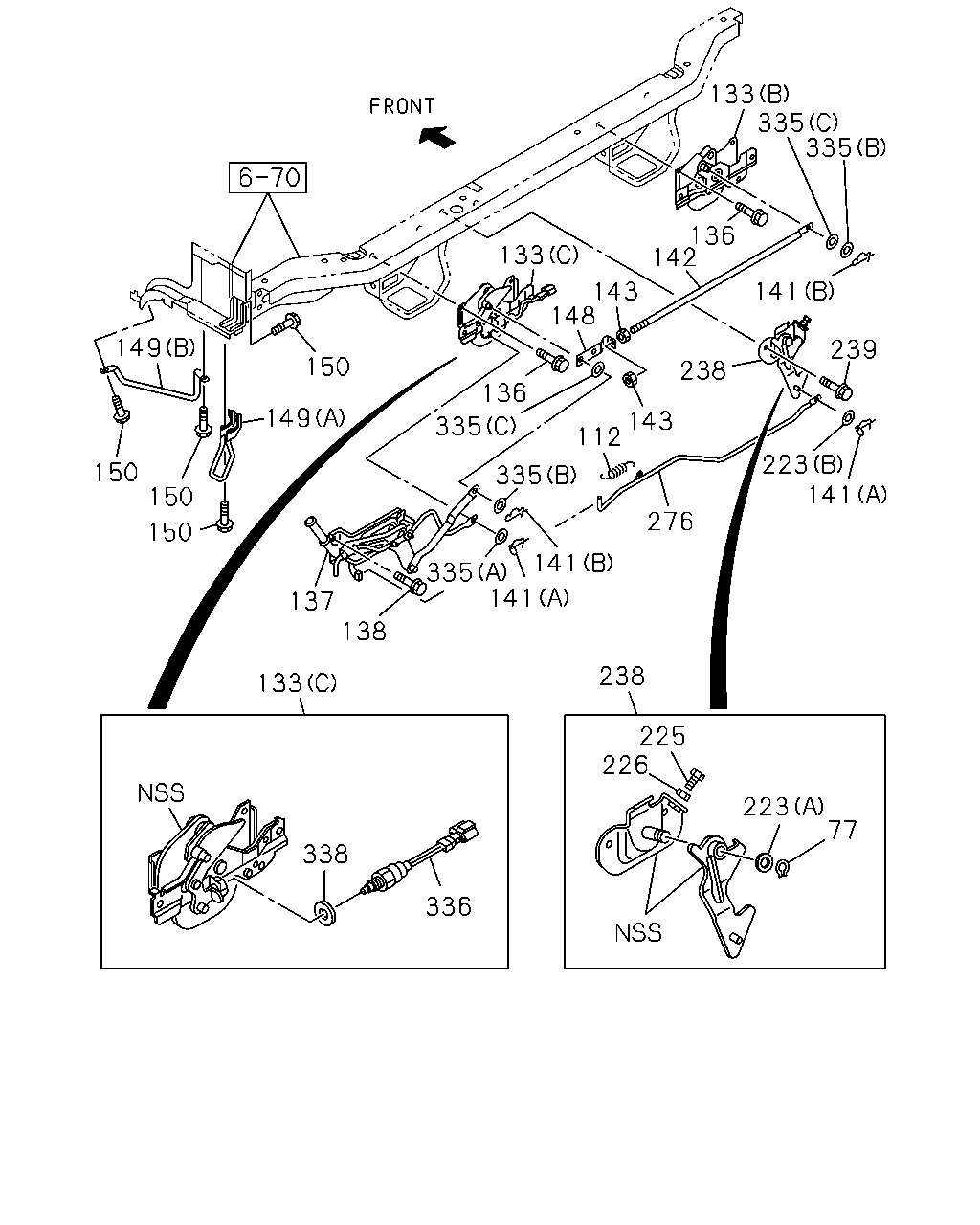

133 335 335 136 142 141 239 223 141 276 143 112 335 141 141 335 137 138 133 335 136 133 148 143 238 150 149 150 150 150 149 338 336 226 225 238 223 77

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
77	RING; SNAP EXC. AUTO CAB TILT<WV2> ID=14.7	0-91800-616-0	01	1	1310-
112	SPRING; RETURN,SAFETY ROD EXC. AUTO CAB TILT<WV2>	1-79718-655-0	01	1	1310-
133	LOCK ASM; CAB AUTO CAB TILT<WV2> (A)	8-97608-198-0	01	1	1310-
133	LOCK ASM; CAB (B)	8-98061-489-1	01	1	1310-
133	LOCK ASM; CAB (C)	8-98094-285-2	01	1	1310-
136	BOLT; CAB LK M8X20 FLANGE	0-28650-820-0	08	1	1310-
137	CONTROL UNIT; CAB LOCK	8-97587-592-5	01	1	1310-
138	BOLT; CAB LOCK CONT UNIT M8X20 FLANGE	0-28650-820-0	04	1	1310-
141	PIN; SNAP,CAB LOCK ROD (B) L=32.6	8-98062-280-0	02	1	1310-
141	PIN; SNAP,CAB LOCK ROD (A) L=25.3	8-98039-045-1	01	1	1310-
141	PIN; SNAP,CAB LOCK ROD EXC. AUTO CAB TILT<WV2> (A) L=25.3	8-98039-045-1	01	1	1310-
142	ROD; HOOK TO HOOK	8-97587-990-0	01	1	1310-
143	NUT; JAW JOINT,HOOK TO HOOK M10	0-91110-510-0	02	1	1310-
148	JOINT; JAW,HOOK TO HOOK	8-97410-736-0	01	1	1310-
149	HANDLE; TILT EXC. AUTO CAB TILT<WV2> (B)	8-97586-206-1	01	1	1310-
149	HANDLE; TILT EXC. AUTO CAB TILT<WV2> (A)	8-98025-707-3	01	1	1310-
150	BOLT; TILT HANDLE EXC. AUTO CAB TILT<WV2> M8X20 FLANGE	0-28650-820-0	06	1	1310-
223	WASHER; PL,SAFETY LK EXC. AUTO CAB TILT<WV2> (B) ID=8.4 OD=16	0-91610-508-0	01	1	1310-
223	WASHER; PL,SAFETY LK EXC. AUTO CAB TILT<WV2> (A) ID=17 OD=30	0-91610-516-0	01	1	1310-
225	BOLT; SAFETY LK EXC. AUTO CAB TILT<WV2> M8X30 FLANGE	0-28050-830-0	01	1	1310-
226	NUT; SAFETY LK EXC. AUTO CAB TILT<WV2> M8	0-91110-508-0	01	1	1310-
238	LOCK ASM; SAFETY,CAB TILT EXC. AUTO CAB TILT<WV2>	8-98048-899-1	01	1	1310-
239	BOLT; SAFETY LK EXC. AUTO CAB TILT<WV2> M8X20 FLANGE	0-28650-820-0	02	1	1310-
276	ROD ASM; CAB LOCK,HOOK TO HOOK EXC. AUTO CAB TILT<WV2>	8-98048-831-1	01	1	1310-
335	WASHER; CAB LOCK ROD (A) ID=8.4 OD=16	0-91610-508-0	01	1	1310-
335	WASHER; CAB LOCK ROD (B) ID=12.5 OD=26	0-91610-612-0	02	1	1310-
335	WASHER; CAB LOCK ROD (C) ID=13 OD=22	8-98060-839-0	02	1	1310-
336	SWITCH; CAB LOCK	8-98091-155-1	01	1	1310-
338	WASHER; CAB LOCK ID=17 OD=30	0-91610-516-0	01	1	1310-
