5-10 — CAB MOUNTING; FRAME SIDE (#128984) — 107 parça

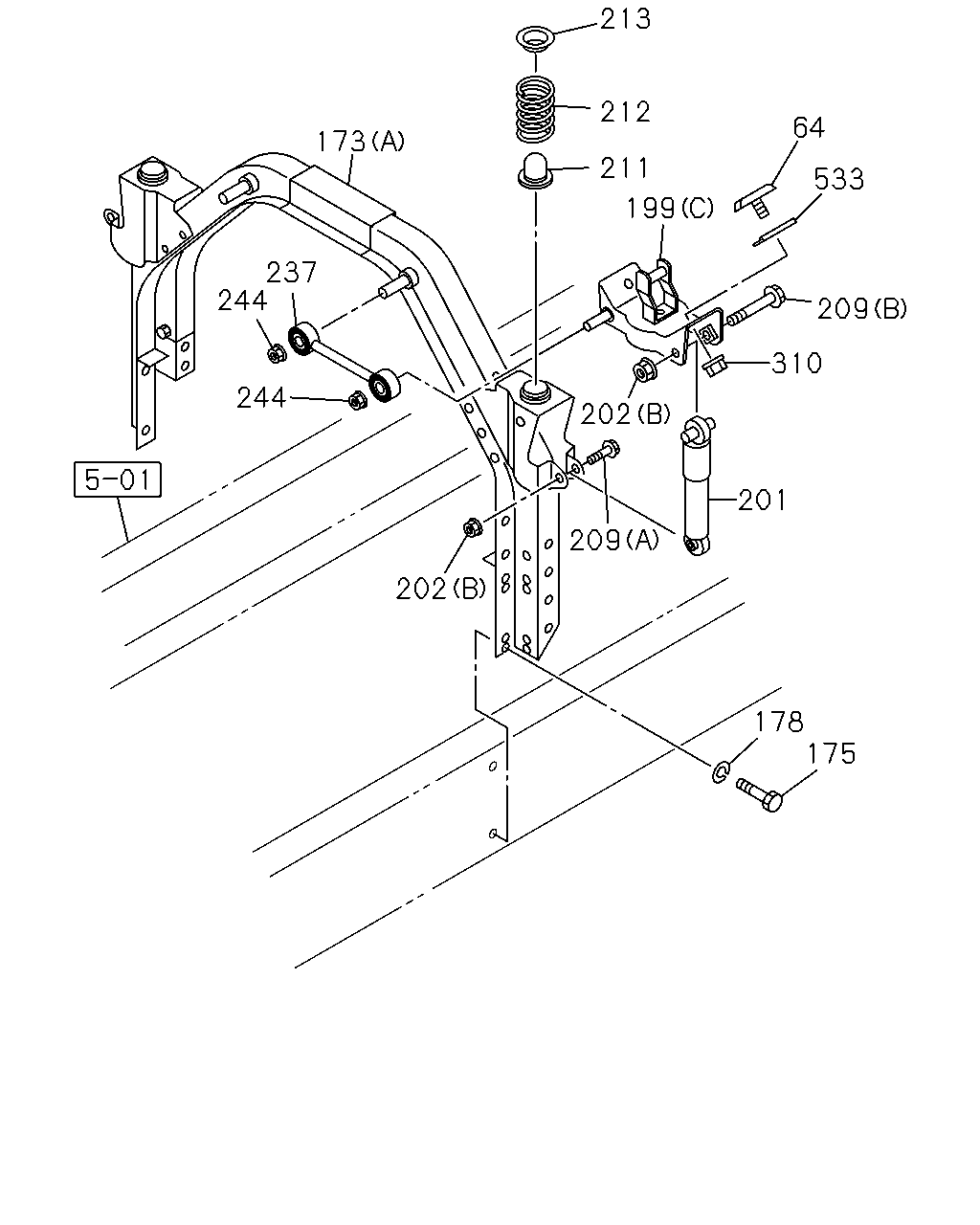

173 213 212 211 199 64 533 209 310 202 201 209 178 175 202 244 244 237

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
64	RUBBER; CUSHION	8-97113-340-0	04	1	1310-
173	MEMBER; CAB MTG RR CAB SUSPENSION SEMI FLOATING<SDK> (B)	8-98151-943-0	01	1	1310-
173	MEMBER; CAB MTG RR CAB SUSPENSION FULL FLOATING<W16> (A)	8-98022-592-8	01	1	1310-
175	BOLT; MEMBER TO FRAME M12X35	0-20951-235-0	08	1	1310-
178	WASHER; LK,MEMBER ID=12.2	0-91510-612-0	08	1	1310-
199	BRACKET; CAB RR MTG CAB SUSPENSION SEMI FLOATING<SDK> (B)	8-98023-692-0	02	1	1310-
199	BRACKET; CAB RR MTG CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98060-901-1	02	1	1310-
199	BRACKET; CAB RR MTG CAB SUSPENSION FULL FLOATING<W16> (C)	8-98025-488-4	01	1	1310-
199	BRACKET; CAB RR MTG CAB SUSPENSION FULL FLOATING<W16> (C)	8-98025-489-4	01	1	1310-
201	ABSORBER ASM; SHOCK,RR MTG CAB SUSPENSION FULL FLOATING<W16>	8-98022-450-0	02	1	1310-1401
201	ABSORBER ASM; SHOCK,RR MTG CAB SUSPENSION FULL FLOATING<W16>	8-98269-510-0	02	1	1402-
202	NUT; S/ABS CAB SUSPENSION FULL FLOATING<W16> (B) M12 FLANGE	0-91180-212-0	04	1	1310-
202	NUT; S/ABS CAB SUSPENSION FULL FLOATING<W16> (A) M10	9-09110-410-0	02	1	1310-
209	BOLT; S/ABS CAB SUSPENSION FULL FLOATING<W16> (A) M12X60 FLANGE	0-28051-260-0	02	1	1310-
209	BOLT; S/ABS CAB SUSPENSION FULL FLOATING<W16> (B) M12X100 FLANGE	0-28061-200-0	02	1	1310-
211	RUBBER; CUSHION,S/ABS CAB SUSPENSION FULL FLOATING<W16>	1-53366-144-0	02	1	1310-
212	SPRING; COIL CAB SUSPENSION FULL FLOATING<W16>	1-09580-398-1	02	1	1310-
213	SEAT; SPR,S/ABS CAB SUSPENSION FULL FLOATING<W16>	1-53366-062-2	02	1	1310-
237	ROD ASM; LATERAL CAB SUSPENSION FULL FLOATING<W16>	1-53459-585-2	02	1	1310-
244	NUT; LATERAL ROD CAB SUSPENSION FULL FLOATING<W16> M16 FLANGE	0-91180-216-0	04	1	1310-
310	NUT; CUSHION M8 FLANGE	0-91180-108-0	04	1	1310-
533	SPACER; MTG RUBBER CAB SUSPENSION FULL FLOATING<W16>	8-98077-323-0	04	1	1310-

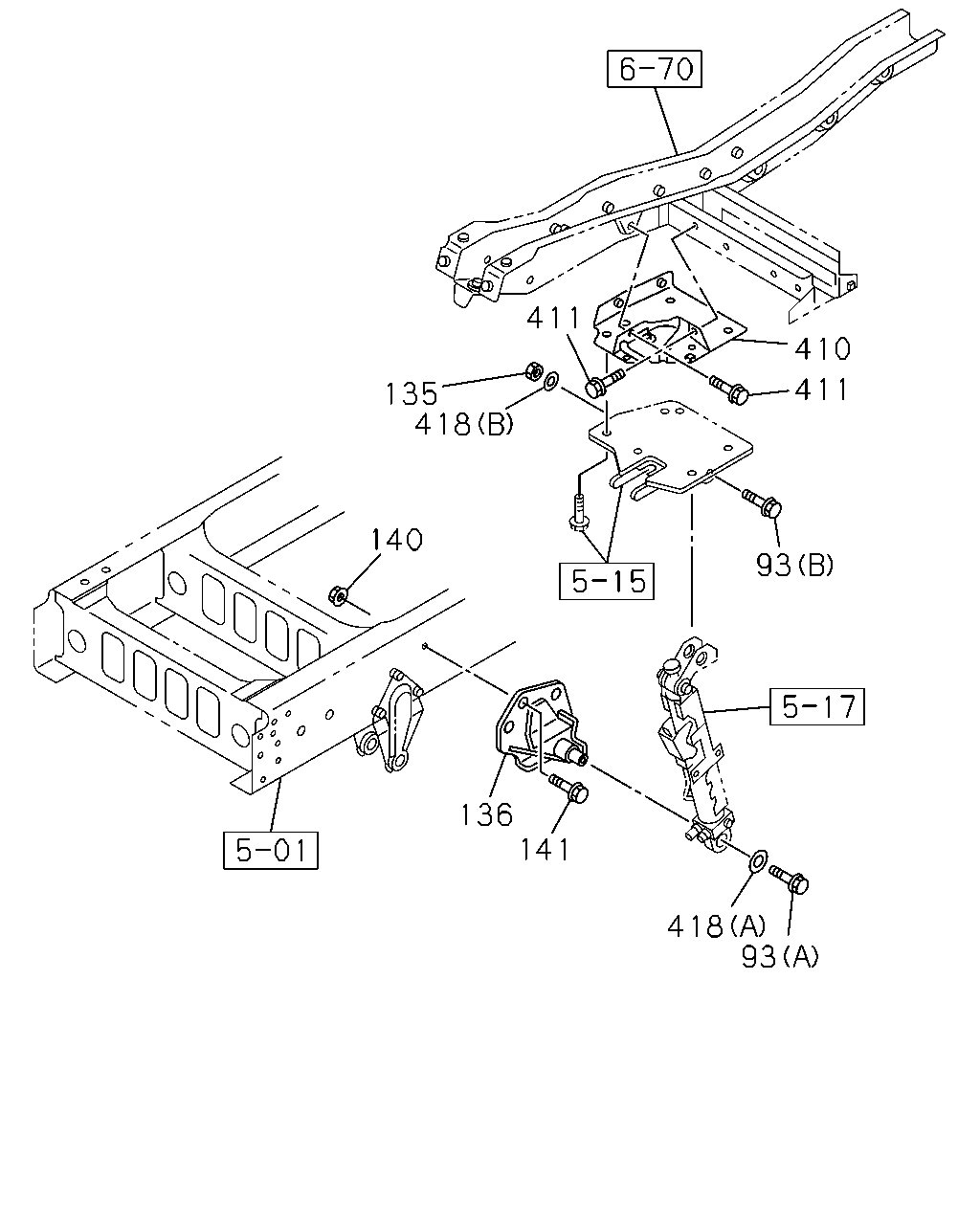

135 418 140 136 141 418 93 93 411 410 411

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
93	BOLT; PIN AUTO CAB TILT<WV2> (A) M10X20 FLANGE	0-28651-020-0	01	1	1310-
93	BOLT; PIN AUTO CAB TILT<WV2> (B) M14X70 FLANGE	0-29261-470-0	01	1	1310-
135	NUT; PIN AUTO CAB TILT<WV2> M14	0-91110-514-0	01	1	1310-
136	BRACKET; OIL CYL AUTO CAB TILT<WV2>	8-98077-938-0	01	1	1310-
140	NUT; BRKT AUTO CAB TILT<WV2> M14 FLANGE	0-91180-214-0	04	1	1310-
141	BOLT; BRKT AUTO CAB TILT<WV2> M14X40 FLANGE	0-28661-440-0	04	1	1310-
410	REINFORCEMENT; CAB TILT AUTO CAB TILT<WV2>	8-97588-837-5	01	1	1310-
411	BOLT; REINFORCEMENT AUTO CAB TILT<WV2> M8X20 FLANGE	0-28650-820-0	04	1	1310-
418	WASHER; PL,PIN AUTO CAB TILT<WV2> (B) ID=15	0-91610-514-0	01	1	1310-
418	WASHER; PL,PIN AUTO CAB TILT<WV2> (A) ID=10.5 OD=32	0-91614-810-0	01	1	1310-

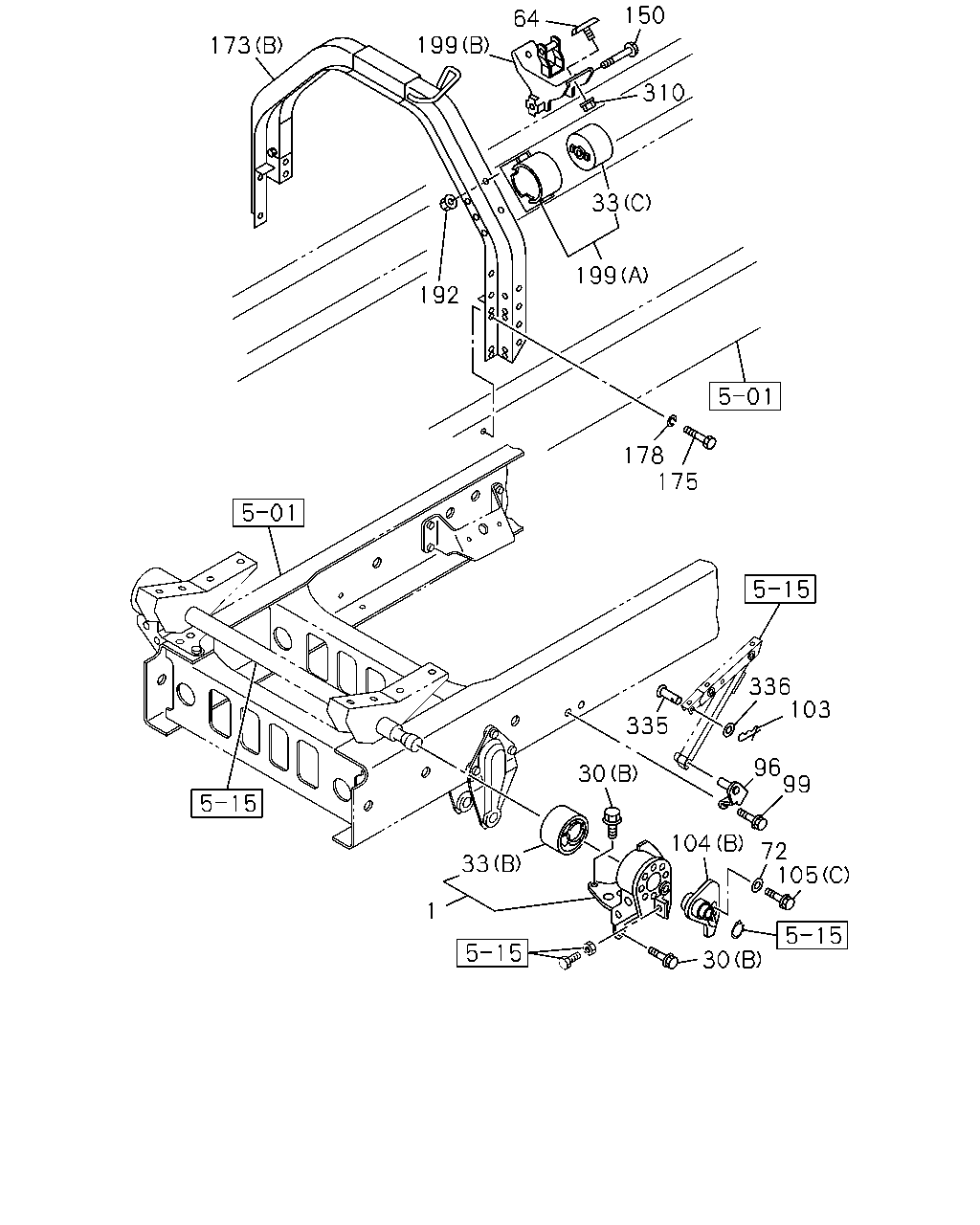

173 199 64 192 33 310 150 199 178 175 336 103 96 99 104 72 30 33 1 335 105 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK>	8-98017-658-1	01	1	1310-
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK>	8-98017-659-1	01	1	1310-
30	BOLT; CAB FRT FOOT CAB SUSPENSION SEMI FLOATING<SDK> (A) M14X45 FLANGE	0-28861-445-0	10	1	1310-
30	BOLT; CAB FRT FOOT CAB SUSPENSION FULL FLOATING<W16> (B) M14X50	0-20951-450-0	10	1	1310-
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> (C)	8-98010-759-2	02	1	1310-
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> (B)	8-98065-943-0	02	1	1310-
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION FULL FLOATING<W16> (A)	1-53458-636-1	02	1	1310-
64	RUBBER; CUSHION	8-97113-340-0	04	1	1310-
72	WASHER; PL,BRKT TO FRAME EXC. AUTO CAB TILT<WV2> ID=15 OD=36	0-91614-714-0	01	1	1310-
96	BRACKET; CAB STAY EXC. AUTO CAB TILT<WV2>	1-62500-628-0	01	1	1310-
99	BOLT; BRKT EXC. AUTO CAB TILT<WV2> M10X30 FLANGE	0-28661-030-0	02	1	1310-
103	PIN; SPLIT,CAB STAY EXC. AUTO CAB TILT<WV2> L=32.6	8-98062-280-0	01	1	1310-
104	BRACKET; CAB FRAME,CAB FRT MTG AUTO CAB TILT<WV2> (A)	8-98022-420-2	01	1	1310-
104	BRACKET; CAB FRAME,CAB FRT MTG AUTO CAB TILT<WV2> (A)	8-98022-421-2	01	1	1310-
104	BRACKET; CAB FRAME,CAB FRT MTG EXC. AUTO CAB TILT<WV2> (B)	8-98010-753-3	01	1	1310-1511
104	BRACKET; CAB FRAME,CAB FRT MTG EXC. AUTO CAB TILT<WV2> (B)	8-98330-224-0	01	1	1512-
105	BOLT; BRKT TO CAB FRAME AUTO CAB TILT<WV2> (B) M12X35 FLANGE	0-28651-235-0	04	1	1310-
105	BOLT; BRKT TO CAB FRAME AUTO CAB TILT<WV2> (A) M10X30 FLANGE	0-28661-030-0	08	1	1310-
105	BOLT; BRKT TO CAB FRAME EXC. AUTO CAB TILT<WV2> (C) M14X35 FLANGE	0-28661-435-0	01	1	1310-
150	BOLT; CAB MTG RR CAB SUSPENSION SEMI FLOATING<SDK> M14X100	0-10956-400-0	02	1	1310-
173	MEMBER; CAB MTG RR CAB SUSPENSION SEMI FLOATING<SDK> (B)	8-98151-943-0	01	1	1310-
173	MEMBER; CAB MTG RR CAB SUSPENSION FULL FLOATING<W16> (A)	8-98022-592-8	01	1	1310-
175	BOLT; MEMBER TO FRAME M12X35	0-20951-235-0	08	1	1310-
178	WASHER; LK,MEMBER ID=12.2	0-91510-612-0	08	1	1310-
192	NUT; BRKT FIX CAB SUSPENSION SEMI FLOATING<SDK> M12 FLANGE	0-91180-212-0	04	1	1310-
199	BRACKET; CAB RR MTG CAB SUSPENSION SEMI FLOATING<SDK> (B)	8-98023-692-0	02	1	1310-
199	BRACKET; CAB RR MTG CAB SUSPENSION SEMI FLOATING<SDK> (A)	8-98060-901-1	02	1	1310-
199	BRACKET; CAB RR MTG CAB SUSPENSION FULL FLOATING<W16> (C)	8-98025-488-4	01	1	1310-
199	BRACKET; CAB RR MTG CAB SUSPENSION FULL FLOATING<W16> (C)	8-98025-489-4	01	1	1310-
310	NUT; CUSHION M8 FLANGE	0-91180-108-0	04	1	1310-
335	PIN; ADJ,STAY LOCK EXC. AUTO CAB TILT<WV2> OD=10 L=48	1-09744-107-0	01	1	1310-
336	WASHER; PL,STAY LOCK EXC. AUTO CAB TILT<WV2> ID=10.5 T=2.0	1-09985-183-0	01	1	1310-

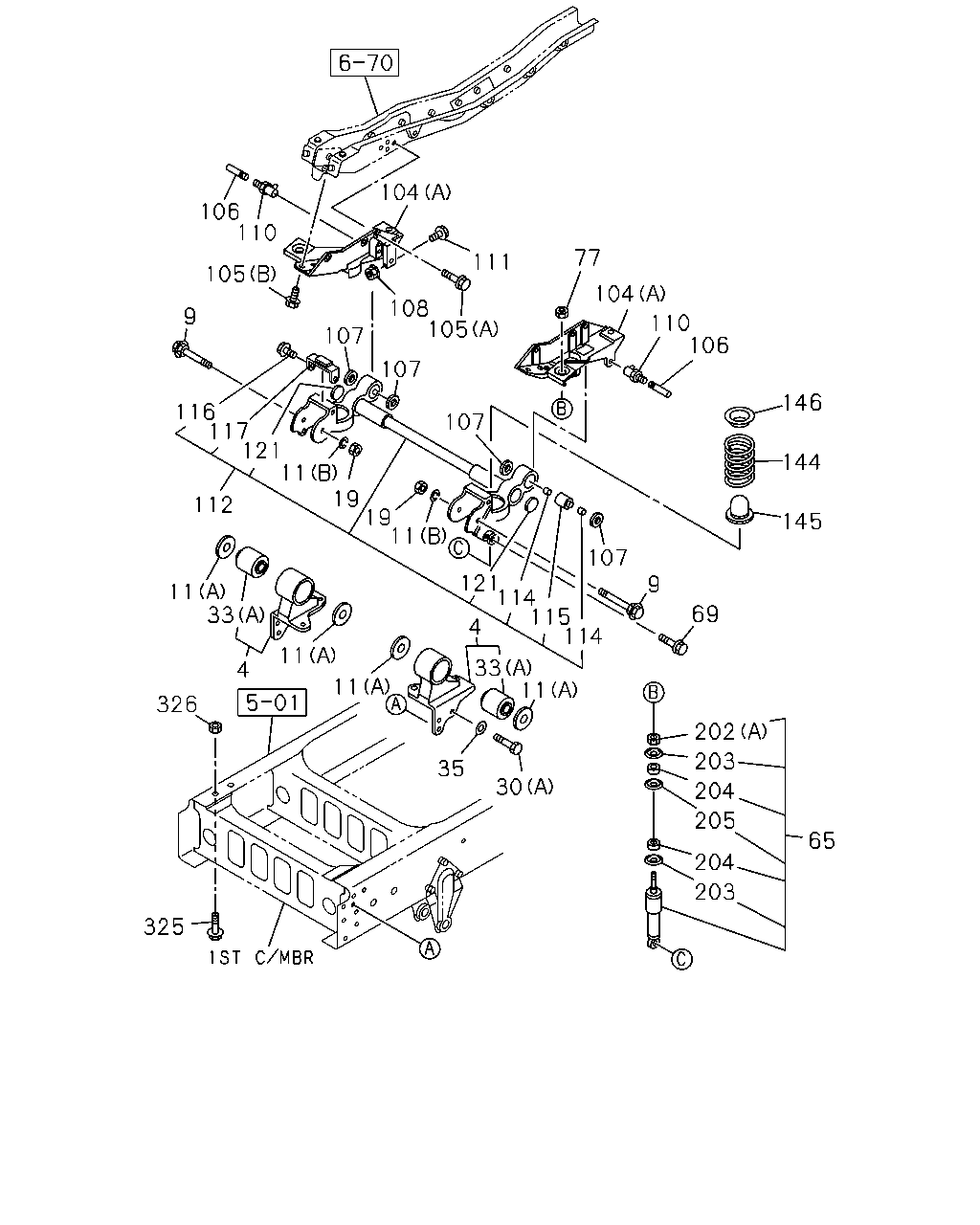

104 111 77 104 110 106 146 144 145 69 9 107 107 107 106 110 105 107 108 105 9 116 117 121 11 19 19 11 121 114 115 114 33 4 11 30 35 11 11 33 11 112 326 325 202 203 204 205 65 204 203 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	BRACKET; FRT MTG CAB SUSPENSION FULL FLOATING<W16>	1-53453-269-0	01	1	1310-
4	BRACKET; FRT MTG CAB SUSPENSION FULL FLOATING<W16>	1-53453-270-0	01	1	1310-
9	BOLT AUTO CAB TILT<WV2> M16X125	1-51361-023-0	02	1	1310-
11	WASHER; LK AUTO CAB TILT<WV2> (B) ID=16.2	0-91510-816-0	02	1	1310-
11	WASHER; LK AUTO CAB TILT<WV2> (A) ID=34.5	1-53458-281-1	04	1	1310-
19	NUT AUTO CAB TILT<WV2> M16	0-91110-516-0	02	1	1310-
30	BOLT; CAB FRT FOOT CAB SUSPENSION SEMI FLOATING<SDK> (A) M14X45 FLANGE	0-28861-445-0	10	1	1310-
30	BOLT; CAB FRT FOOT CAB SUSPENSION FULL FLOATING<W16> (B) M14X50	0-20951-450-0	10	1	1310-
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> (C)	8-98010-759-2	02	1	1310-
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK> (B)	8-98065-943-0	02	1	1310-
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION FULL FLOATING<W16> (A)	1-53458-636-1	02	1	1310-
35	WASHER; PL,CAB MTG BRKT CAB SUSPENSION FULL FLOATING<W16> ID=15	8-98010-627-1	10	1	1310-
65	ABSORBER; SHOCK,CAB FRT SUSPENSION CAB SUSPENSION FULL FLOATING<W16>	1-51630-345-0	02	1	1310-
69	BOLT; S/ABS,CAB FRT SUSPENSION CAB SUSPENSION FULL FLOATING<W16> M12X60 FLANGE	0-28051-260-0	02	1	1310-
77	NUT CAB SUSPENSION FULL FLOATING<W16>	8-97359-039-0	02	1	1310-
104	BRACKET; CAB FRAME,CAB FRT MTG AUTO CAB TILT<WV2> (A)	8-98022-420-2	01	1	1310-
104	BRACKET; CAB FRAME,CAB FRT MTG AUTO CAB TILT<WV2> (A)	8-98022-421-2	01	1	1310-
104	BRACKET; CAB FRAME,CAB FRT MTG EXC. AUTO CAB TILT<WV2> (B)	8-98010-753-3	01	1	1310-1511
104	BRACKET; CAB FRAME,CAB FRT MTG EXC. AUTO CAB TILT<WV2> (B)	8-98330-224-0	01	1	1512-
105	BOLT; BRKT TO CAB FRAME AUTO CAB TILT<WV2> (B) M12X35 FLANGE	0-28651-235-0	04	1	1310-
105	BOLT; BRKT TO CAB FRAME AUTO CAB TILT<WV2> (A) M10X30 FLANGE	0-28661-030-0	08	1	1310-
105	BOLT; BRKT TO CAB FRAME EXC. AUTO CAB TILT<WV2> (C) M14X35 FLANGE	0-28661-435-0	01	1	1310-
106	PIN; BRKT TO LINK ARM AUTO CAB TILT<WV2>	1-53459-642-1	02	1	1310-
107	WASHER; LINK ARM PIN,CAB FRT SUSPENSIO AUTO CAB TILT<WV2>	1-53459-643-2	04	1	1310-
108	NUT; PIN LOCK BOLT AUTO CAB TILT<WV2> M8 FLANGE	0-91180-108-0	02	1	1310-
110	NIPPLE; GREASE,LINK ARM PIN AUTO CAB TILT<WV2> PT1/8 ELBOW	0-90301-610-0	02	1	1310-
111	BOLT; PIN LOCK,LINK ARM AUTO CAB TILT<WV2> M8X50 FLANGE	0-28050-850-0	02	1	1310-
112	ARM ASM; LINK,CAB FRT SUSP AUTO CAB TILT<WV2>	8-98148-517-0	01	1	1310-
114	BUSHING; FLOATING LINK PIN AUTO CAB TILT<WV2>	1-09330-068-0	04	1	1310-
115	BUSHING; RUBBER,FLOATING LINK ARM AUTO CAB TILT<WV2>	1-53459-315-2	02	1	1310-
116	BOLT; STOPPER RUBBER,LINK ARM AUTO CAB TILT<WV2> M8X20 FLANGE	0-28050-820-0	04	1	1310-
117	RUBBER; STOPPER,LINK ARM,CAB FRT MTG AUTO CAB TILT<WV2>	1-53458-321-1	02	1	1310-
121	PLUG; FLOATING LINK ARM AUTO CAB TILT<WV2>	9-09860-031-0	02	1	1310-
144	SPRING; COIL,CAB FRT SUSPENSION CAB SUSPENSION FULL FLOATING<W16>	1-09580-518-1	02	1	1310-
145	RUBBER; CUSHION,CAB FRT SUSPENSION CAB SUSPENSION FULL FLOATING<W16>	1-53366-144-0	02	1	1310-
146	SEAT; SPRING,CAB FRT SUSPENSION CAB SUSPENSION FULL FLOATING<W16>	1-53366-132-1	02	1	1310-
202	NUT; S/ABS CAB SUSPENSION FULL FLOATING<W16> (B) M12 FLANGE	0-91180-212-0	04	1	1310-
202	NUT; S/ABS CAB SUSPENSION FULL FLOATING<W16> (A) M10	9-09110-410-0	02	1	1310-
203	WASHER; RUBBER,SHOCK CAB SUSPENSION FULL FLOATING<W16> ID=10.5 OD=38	9-51631-062-0	04	1	1310-
204	RUBBER; CUSHION,SHOCK CAB SUSPENSION FULL FLOATING<W16> TOKICO	9-51631-603-0	04	1	1310-
205	WASHER; RUBBER,SHOCK CAB SUSPENSION FULL FLOATING<W16> ID=13 OD=38	9-51631-063-0	02	1	1310-
325	BOLT; GUIDE NUT CAB SUSPENSION FULL FLOATING<W16> M12X40 FLANGE	0-28651-240-0	02	1	1310-
326	NUT; GUIDE NUT CAB SUSPENSION FULL FLOATING<W16> M12	0-91110-512-0	02	1	1310-
