5-01 — FRAME AND OTHER PARTS (#128983) — 49 parça

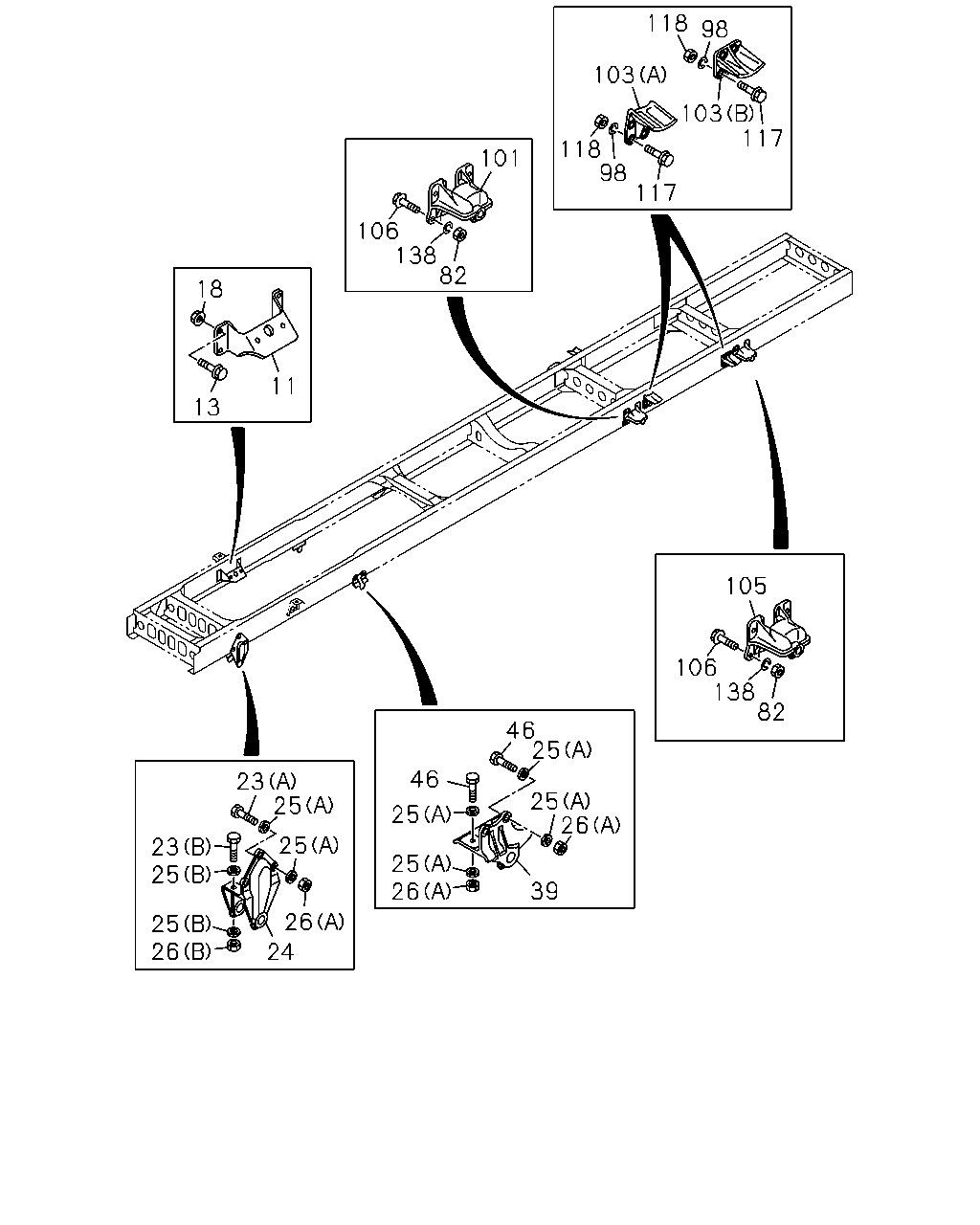

çizim 381396
101 82 138 106 11 13 18 103 118 117 117 103 118 98 105 106 138 82 25 25 26 39 46 25 25 26 46 23 25 25 26 25 23 25 26 24 98
BalonParca AdiParca NoAdetTipApplied Date A B
11 BRACKET; ENG MTG 8-97619-549-0 02 1 1310- ● ●
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 1310- ● ●
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 1310- ● ●
23 BOLT; BRKT,SPR
(A) M14X50 		0-20951-450-0 06 1 1310- ● ●
23 BOLT; BRKT,SPR
(B) M16X60 		0-20951-660-0 04 1 1310- ● ●
24 BRACKET; FRT SPR,FRT 8-98018-840-0 01 1 1310- ● ●
24 BRACKET; FRT SPR,FRT 8-98018-841-0 01 1 1310- ● ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-316-0 08 1 1310- ● ●
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 28 1 1310- ● ●
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 14 1 1310- ● ●
26 NUT; BRKT,SPR
(B) M16 		0-91110-516-0 04 1 1310- ● ●
39 BRACKET; FRT SPR,RR 8-98043-648-0 01 1 1310- ● ●
39 BRACKET; FRT SPR,RR 8-98043-649-0 01 1 1310- ● ●
46 BOLT; BRKT FIX
M14X50 		0-20951-450-0 08 1 1310- ● ●
82 NUT; BRKT
M14 		0-91110-514-0 20 1 1310- ● ●
98 WASHER; LK,STOPPER
ID=14.2 		0-91510-814-0 16 1 1310- ● ●
101 BRACKET; RR SPR,FRT 1-53353-072-1 02 1 1310- ● ●
103 STOPPER; SUB SPR
(A) 		1-53356-038-1 02 1 1310- ● ●
103 STOPPER; SUB SPR
(B) 		1-53357-029-1 02 1 1310- ● ●
105 BRACKET; RR SPR,RR 1-53353-072-1 02 1 1310- ● ●
106 BOLT; BRKT
M14X50 		0-20951-450-0 20 1 1310- ● ●
117 BOLT; STOPPER
M14X50 		0-20951-450-0 16 1 1310- ● ●
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 1310- ● ●
138 WASHER; LK,BRKT
ID=14.2 		0-91510-814-0 20 1 1310- ● ●

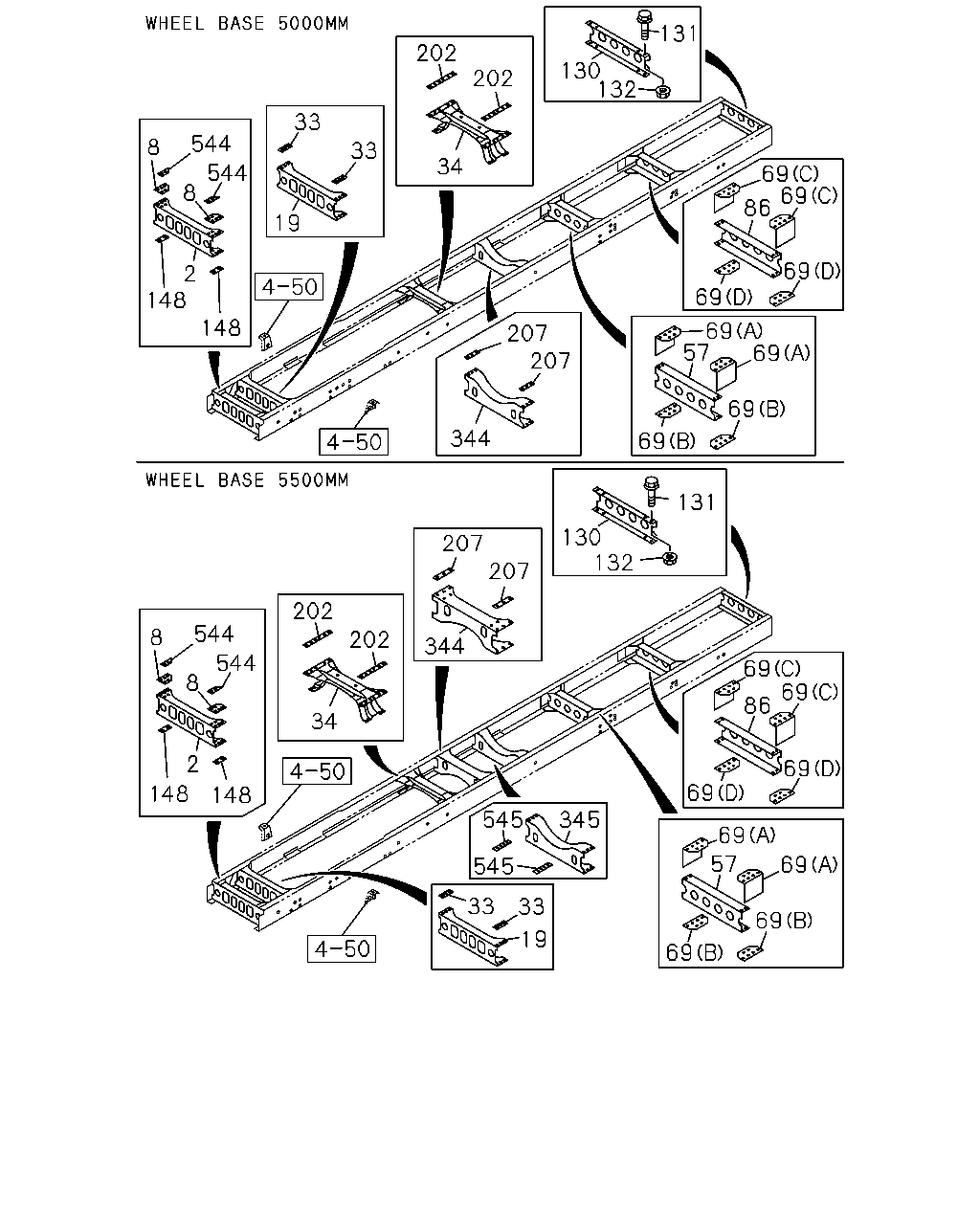

çizim 381509
69 69 69 57 69 19 33 33 545 345 545 148 148 544 544 8 2 8 34 202 202 207 207 344 132 130 131 69 57 69 69 69 69 69 86 69 69 207 207 344 148 148 2 8 544 544 8 33 19 33 202 202 34 130 132 131 69 69 86 69 69
BalonParca AdiParca NoAdetTipApplied Date A B
2 MEMBER; CROSS,1ST 8-97610-852-7 01 1 1310- ● ●
8 GUSSET; 1ST C/MBR 8-97611-027-0 02 1 1310- ● ●
19 MEMBER; CROSS,2ND 8-97610-853-5 01 1 1310- ● ●
33 SPACER; 2ND C/MBR,UPR 8-97611-040-0 02 1 1310- ● ●
34 MEMBER; CROSS,3RD 8-97610-854-2 01 1 1310- ● ●
57 MEMBER; CROSS,RR SUSP FRT 8-97610-858-5 01 1 1310- ● ●
69 GUSSET; RR SUSP,UPR
(B) 		8-97610-865-0 02 1 1310- ● ●
69 GUSSET; RR SUSP,UPR
(D) 		8-97610-866-0 02 1 1310- ● ●
69 GUSSET; RR SUSP,UPR
(A) 		8-97612-264-0 01 1 1310- ● ●
69 GUSSET; RR SUSP,UPR
(A) 		8-97612-265-1 01 1 1310- ● ●
69 GUSSET; RR SUSP,UPR
(C) 		8-97612-266-1 01 1 1310- ● ●
69 GUSSET; RR SUSP,UPR
(C) 		8-97612-267-1 01 1 1310- ● ●
86 MEMBER; CROSS,RR SUSP RR 8-97610-858-5 01 1 1310- ● ●
130 MEMBER; CROSS,END 8-97610-869-1 01 1 1310- ● ●
131 BOLT; END C/MBR
M12X30 W/LK WASHER 		0-50541-230-0 04 1 1310- ● ●
132 NUT; END C/MBR
M12 		0-91110-512-0 04 1 1310- ● ●
148 SPACER; C/MBR 8-97611-039-0 02 1 1310- ● ●
202 SPACER; 3RD C/MBR 8-97610-872-0 02 1 1310- ● ●
207 SPACER; 4TH C/MBR
0.24KG 		8-97611-245-0 02 1 1310- ●
207 SPACER; 4TH C/MBR
0.25KG 		8-97611-244-0 02 1 1310- ●
344 MEMBER; CROSS,4TH 8-97611-238-1 01 1 1310- ● ●
345 MEMBER; CROSS,5TH 8-97611-238-1 01 1 1310- ●
544 PLATE; CAB FRT MTG 8-97617-891-0 02 1 1310- ●
544 PLATE; CAB FRT MTG 8-97611-030-0 02 1 1310- ●
545 SPACER; 5TH C/MBR
0.24KG 		8-97611-245-0 02 1 1310- ●
